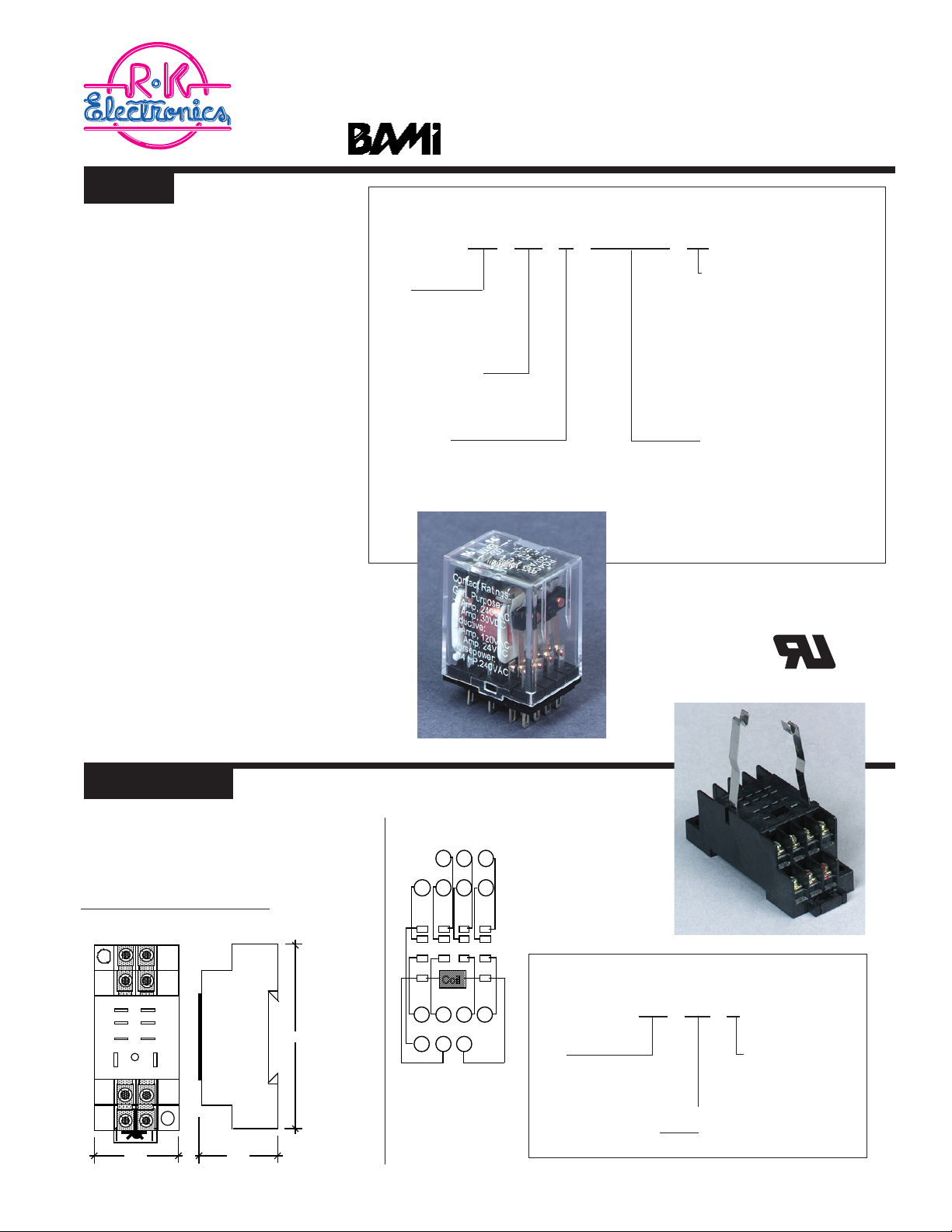

USC
”Ice Cube“
1112 10 9
144 13
78 6 5
23 1
NC
NO
C
2.73"
1.17"
1.26"
Relay
Contact Ratings
5 Amps @ 30VDC/240VAC
Double Pole, Gen. Purpose
3 Amps @ 30VDC/240VAC
Four Pole, General Purpose
1 Amps @ 120 VAC
Inductive (CosØ=.35)
1/4HP @ 240VAC Motor
Specifications
Pick-Up Voltage: 75% of Rated Voltage
Drop-Out Voltage:
30% of rated AC Voltage
10% of rated DC Voltage
Max. Voltage: 110% of rated Voltage
Operating Time: 20 milliseconds
Coil Power:
1.9VA 50Hz
1.7VA 60Hz
1.2W DC
Temperature Rating: -10˚C to 40˚C
Contact Material: Silver (Ag)
Contact Resistance:
<0.050 Ohms (before use)
Minimum Operating Current:
5mA@24VDC
Life: Mechanical:
50,000,000 Operations
Electrical:
600,000 Operations
Relays and Sockets
Ordering Information
RG 4C B - 120VAC -
BAMI Model
RG
Contact Form
2C - Double Pole
Double Throw
4C - Four Pole
Double Throw
Termination
B - Blade
C - Circuit Board
RG/SG
Options
L - Light Indicator
S - Coil Supression
T - Top Mounting Flange
Coil Voltage
6VAC
12VAC
24VAC
48VAC
120VAC
240VAC
6VDC
12VDC
24VDC
48VDC
110VDC
Socket
Specifications
Current Rating: 5 Amps
Voltage Rating: 250VAC
Mounting: DIN or Surface
Dimensions
•
Connections
Ordering Information
SG - 14 B
BAMI Model
SG
Number of Terminals
14 - 14 Terminals
Termination
B - Blade
C - Circuit Board
4/8/01
