Cabinet
Pipari 180
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Assembly Instructions - Please keep for future reference
132/0284
132/3384
132/3377
132/7919
132/7926
132/0318
132/0325
132/0301
132/0291
132/0277
132/0260
132/0253
Tip : To prevent damage,
we recommend that you
build your unit on the
carton(s) it was packed in.
Issue 3 - 19/02/13
DR82506
132/0253 OAK
132/0260 WAL
132/0277 WHT
132/0291 BLK GLOSS
132/0301 WHT GLOSS
132/0318 OAK
132/0325 WAL
132/7919 WHT GLOSS MIRROR
132/7926 BLK GLOSS MIRROR
132/3384 WAL FOIL MIRROR
132/3377 OAK FOIL MIRROR
132/0284 MIRROR
Doors
Mirror doors
Dimensions
Width - 180cm
Depth - 59.5cm
Height - 199.8cm
2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• Check you have all the
components and tools listed on
pages 3,4 and 5.
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Care and maintenance
Skin contact: Remove
contamination by washing with
soap and water. This procedure
should also be followed prior to
eating and drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
Glue safety - Take care when using glue, please follow the advice below
Cabinet
Components - Panels
Please check you have all the panels listed below
3
Left side
(199.8 x 52.9cm)
1
P2883
Right side
(199.8 x 55.8cm)
2
P2882
Upright
(190.3 x 49cm)
3
P2886
Back x2
(193 x 89cm)
4
BO3431
Bottom
(177 x 51.1cm)
6
P1897
Top
(177 x 51cm)
5
P1896
Shelf x2
(87.7 x 48.8cm)
8
P1898
Plinth x2
(177 x 6cm)
7
P7241
Segment middle x2
(91.5 x 65.1cm)
10
P3270/FA3270
Segment x4
(91.5 x 65cm)
9
P3269/FA3269
132/0325
132/0318
132/7919
132/7926
132/3377
132/3384
132/0291
132/0301
Doors
Mirror doors
Segment middle x2
(91.5 x 65cm)
14
PS3276
Segment x4
(91.5 x 65cm)
13
PS3275
132/0284
Mirror doors
Segment middle x1
(91.5 x 65.1cm)
10
P3270/FA3270
Segment x2
(91.5 x 65cm)
9
P3269/FA3269
Segment middle x1
(91.5 x 65.1cm)
12
PS3274
Segment x2
(91.5 x 65cm)
11
PS3273
Finishing prole x 4, plastic (883mm)
X
PK1902
4
Please check you hav tings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
Components - Fittings
If you have damaged or missing components,
call the Customer Helpline:
0845 6400800
1/2
Locking screw x 18 (5x24mm)
B
FK1011
Screw x 34 (4x15mm)
C
FK1400
Conrmat screw x 4 (5x40mm)
A
FK1005
Plug, Nylon x 32 (5x9mm)
E
FK1082
Nail x 60
F
FK1515
Screw x 81 (4x12.5mm)
D
FK1309
Wood dowel x 8 (8x30mm)
H
FK1411
Large locking nut x 24 (15x12mm)
I
FK1012
15mm
Double locking screw x 3 (5x66.5mm)
G
FK1052
Hanger rail support, gray x 4
K
FK1217
Peg, brown x 2
L
FK1234
Corner connector, white x 2
J
FK1248
Nail holder x 1
N
FK1419
Connecting plate x 8
O
FK1236
L-Bracket x 1
M
FK1235
Guide rail x 1, metal (1769mm)
Q
PM1611
Guide rail x 1, plastic(1769mm)
R
PK1611
Hanger rail x 2
P
PM1877
(869mm)
Brush x 3 (1951mm)
T
PM1652C
Door trim x 1 (1951mm)
U
PM1652D
Door handle x 3 (1951mm)
S
PM1652B
Wall plug (6mm) and parkerscrew x 1
W
ZF99936
Allen key x 1 (3mm)
V
FK1013
OR
Please check you hav tings listed below
Ruler - Use this ruler to help correctly identify the screws
Tools required
Note: The quantities below are the correct amount to complete the assembly. In some cases more
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
110 115 120 125 130 135 140 145 150 155 160 165 170
105
Components - Fittings
If you have damaged or missing components,
call the Customer Helpline:
0845 6400800
Phillips screwdriver
(medium & large)
Flatblade screwdriver
Small
hammer
Ruler/tape
measure
Drill
Eye protection
(when using a
hammer or drill)
5mm Suitable drill bit
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1 2 3 4 5 6
Stairs
Piercer
Scissors
(medium)
(small)
Level ruler
Setsquare
5
2/2
Screw x 33 (4x15mm)
AC
ZF9997L
Screw x 13 (3.5x25mm)
AB
ZF9997K
Screw x 2 (3.5x35mm)
AA
ZF9997I
Tapping block for guide rail x 2
AF
ZF9997E
Screw x 2 (4x14mm)
AD
ZF9997J
Stop guide rail x 2
AH
ZF9997H
Front guide part x 2
AI
ZF9997C
Spacer x 1
AE
ZF9997F
End stop x 2
AG
ZF9997G
Sliding door connecting plate x 2
AK
ZF9997B
Sliding door connecting bracket x 2
AL
ZF9997A
Back guide part x 2
AJ
ZF9998D
A
AM
NO Gap!
NO Gap!
6
Assembly Instructions
Step 1
Cabinet assembly
a: Screw 9 locking screws
B
into the holes on back of
the left side 1.
Mount hanger rail support
K, fasten with 1 screw D.
Screw D into the board
between two predrilled
holes.
Mount tapping block for
guide rail f with two
screws b.
b: Screw 9 locking screws
B into the holes on back of
the right side 2 .
Mount hanger rail
support K, fasten with 1
screw D. Screw D into the
board between two
predrilled holes.
Mount tapping block for
guide rail f with two
screws b.
C: Mount hanger rail
support K on the
upright 3, fasten with
screw D 1x. Screw D into
the board between two
predrilled holes
Turn upright.
Mount hanger rail
support K on the
upright 3, fasten with
screw D 1x. Screw D into
the board between two
predrilled holes.
K
D
1
Finished
front edge
a:
AF
AB
K
D
2
AF
AB
Finished
front edge
b:
BBBBBBBBBBBBBBBBBBB
K
D
3
Finished
front edge
c:
D
K
AF
AB
AB
AB
AB
AF
7
Assembly Instructions
Step 1
Cabinet assembly
d: Insert 6x small locking
nuts I into the top 5.
Make sure the ‘arrow’ on I
is pointing towards the hole
in the edge of the top 5.
e: Insert 6x small locking
nuts I into the bottom 6.
Make sure the ‘arrow’ on I
is pointing towards the hole
in the edge of the
bottom 6.
f: Insert 6x small locking
nuts I into the shelf 6.
2x.
Make sure the ‘arrow’ on I
is pointing towards the hole
in the edge of the
bottom 6.
g: Insert 4x wooden dowels
J into the plinth 7.
2x.
plain chipboard
Finished
front edge
d:
Finished
front edge
Finished
front edge
e:
f:
Finished
front edge
g:
2x
2x
568
7
IIIIIIIIIIIIIIIIIIH
H
8
Assembly Instructions
Step 1
Cabinet assembly
h: Attach top 5 with 2x
conrmat screws A to the
upright 3. Use allenkey V.
Attach bottom 6 with 2x
conrmat srews A to the
upright 3
.
i: Attach 2x the shelf 8 to
the upright 3 with 3x
double locking screws G.
Use a screwdriver to turn 6x
locking nuts clockwise to
lock.
j: Attach the left side 1
with 9x double locking
screws G on the top 5,
shelf 8 and the bottom 6.
Use a screwdriver to turn 9x
locking nuts clockwise to
lock.
VGG
G
6318855
Plain chipboard
Plain chipboard
Plain chipboard
Finished
front edge
h:
Finished
front edge
Finished
front edge
i:
j:
365
AAA
388
6
Assembly Instructions
Step 1
Cabinet assembly
k:Attach 2x the plinth 7
between the left site 1
and the right side 2.
Note: that the nished side
is properly placed.
Attach the right side 2
with 9x double locking
screws G on the top 5,
shelf 8 and the bottom 6.
Use a screwdriver to turn 9x
locking nuts clockwise to
lock.
Mount corner connector J
with 2 screws C on the
plinth 7 and bottom 6.
l: Attach 2x foldy back 4
to back of cabinet with
the coloured surface facing
the inside of the cabinet
using 60x nails F and
26x screws C.
Use nail holder N to hold the
nails F vertical and at
correct distance as you
secure the 2x foldy back 4.
Nails F should be spaced
about 150mm apart.
Stand up the unit!
Important:
Cabinet MUST be
‘square’ when
back is attached.
Finished
front edge
k:
Finished
front edge
JJCCFFF
Finished side
l:
JCC
76776282544N6
2
F
C
N
F
9
Assembly Instructions
Step 1
Cabinet assembly
m: Position L-Bracket M
onto top 5 , by using 1x
screw C.
Position metal guide rail Q
onto top 5 , x with 7x
screws C.
Attach 2x end stop g on
the end of the guide rail Q
with 2x screws d.
Place 2x hanger rail P into
hanger rail support K.
n: Position plastic guide rail
R onto bottom 6 , x
with 9x screws b.
Attach 2x stop guide rail
h on the end of the guide
rail R, mount with 2x
screws a.
AD
m:
P
P
n:
AG
AG
M
CCCCCCCCQ
AHAHABABABABABAAAA
R
10
88123
123
6
5
ADQAD
AG
Q
A
x2
x7
B
C
x7
C
P
K
AB
AA
R
6
7
x9
B
A
D
C
x10
AH
. . . . . . .
x x
R
9/11
9/11
9/11
9/11
9/11
9/11
10/12
/@

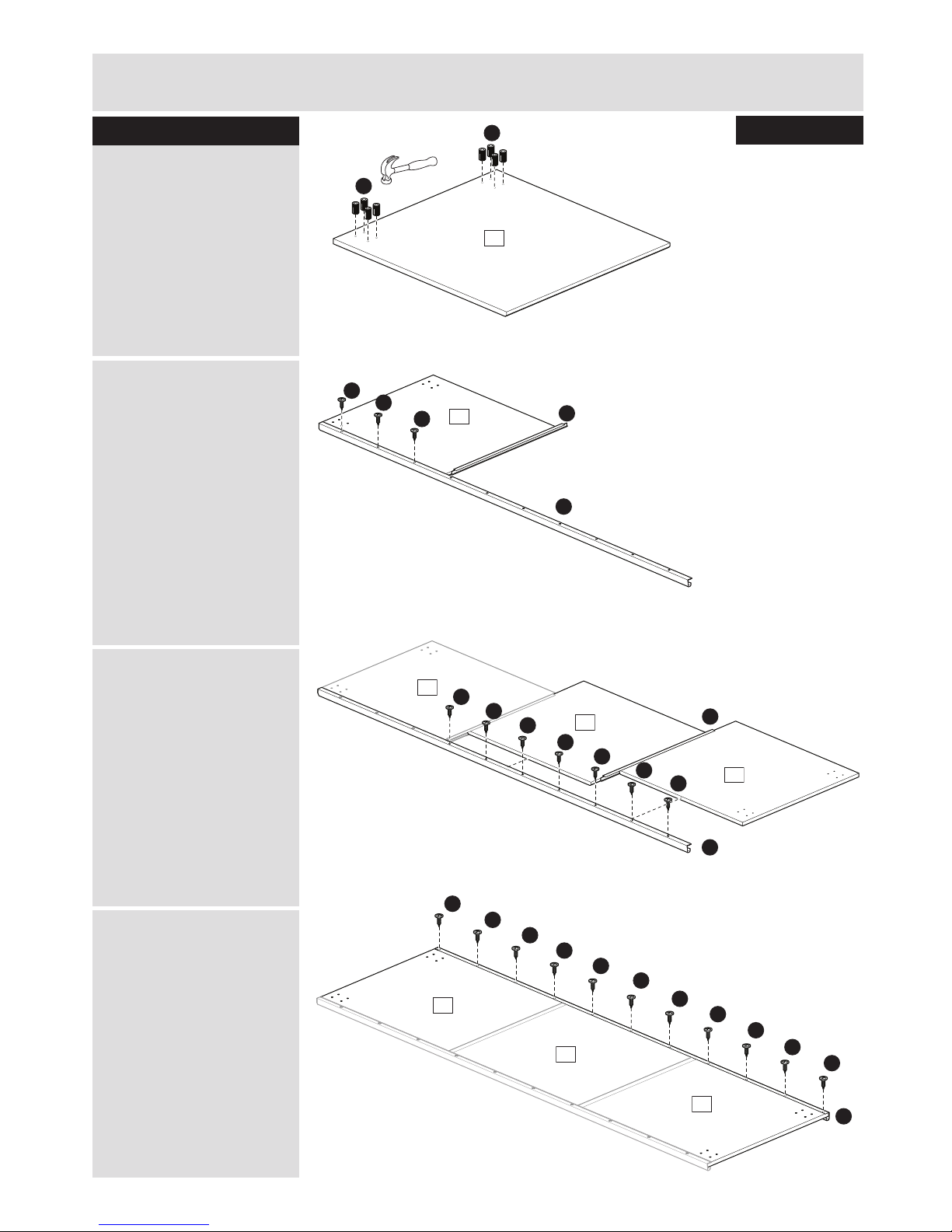

Assembly Instructions
Step 2
3 Segment slide door left
a: Put 8x nylon plug E into
the segment 9/! .
Use a small hammer.
Repeat this step.
c: Mount segment middle
0/@ with 3x screws D
on door trim U.
Mount segment 9/! with
4x screws D on
door trim U.
b: Mount door trim U with
3x screws D on segment
9/!.
Note: there should be no
gap between doorsegment
9/! and door trim U.
(See m.)
d: Mount door handle S
on segment 9 /!with 4x
screws D and on middle
segment 0/@ with 3x
screws D.
Note: there should be no
gap between doorsegment
9/! and door handle S.
(See m.)
a:
2x
11
132/0325
132/0318
132/0301
132/0291
132/3384
132/3377
132/7926
132/7919
E
E
b:
c:
d:
UUS10DDDDDDDDDDDDDDDDDDDDD
Doors
Mirror doors
AM
NO Gap!
NO Gap!
Assembly Instructions
Step 2
3 Segment slide door left
e: Mount 4x connecting
plate O, each with 2x
screws D on segment
9/! and 2x screws D
on middle segment 0/@.
Remove protective lm from
door handle S.
Stick 1x brush T onto
door handle S by partially
remove the cover from
adhease as brush is applied.
f: Upside.
Mount 2x Sliding door
connecting plate k
squarely by using the guidemarks in the plate k,
each with 6x screws c
on segment 9/!.
Attach 1x spacer e with
1x screw c on the
sliding door connecting
plate k.
g: Underside.
Mount 2x back guide
part j , each with 2x
screws c on segment
9 / !.
/
11/11
x2
AJ
AC
Y
Y
AKACACx4AKAKACACACACAC
999
AJAJACACAC
AC
e:
132/0325
132/0318
132/0301
132/0291
132/3384
132/3377
132/0349
132/0332
Doors
Mirror doors
f:
g:
12
TOODDDD
S
10
9
AE
OODDD
D
11
/
/
12/11
132/3384
132/3377
132/7926
132/7919
Mirror doors
Please remove
the protective film!
S
T
20cm
20cm
Assembly Instructions
Step 2
3 Segment slide door left
a: Put 8x nylon plug E into
the segment #. Use a small
hammer.
Repeat this step.
c: Mount segment middle
$ with 3x screws D
on door trim U.
Place 1x nishing prole
X on segment $.
Mount segment # with 4x
screws D on door trim U.
Place 1x nishing prole
X on segment @.
b: Mount door trim U with
3x screws D on segment
#. Place 1x nishing prole
X on segment #.
Note: there should be no
gap between doorsegment
# and door trim U.
(See m.)
d: Mount door handle S
on segment # with 4x
screws D and on middle
segment $ with 3x
screws D.
Note: there should be no
gap between doorsegment
# and door handle S.
(See m.)
a:
2x
X
X
13
132/0284
E
E
b:
c:
d:
UUSDDDDDDDDDDDDDDDDDDDD
D
13131314131314
13
Mirror doors
Important: follow these instructions for cat no:
Assembly Instructions
Step 2
3 Segment slide door left
e: Mount 4x connecting
plate O, each with 2x
screws D on segment #
and 2x screws D on middle
segment $.
Remove protective lm from
door handle S.
Stick 1x brush T onto
door handle S by partially
remove the cover from
adhease as brush is applied.
f: Upside.
Mount 2x Sliding door
connecting plate k
squarely by using the guidemarks in the plate k,
each with 6x screws c
on segment #.
Attach 1x spacer e with
1x screw c on the
sliding door connecting
plate k.
g: Underside.
Mount 2x back guide
part j , each with 2x
screws c on segment
#.
AKAKACACACACACAJAJACACACAC
e:
132/0284
Mirror doors
f:
g:
14
TODDSAEOODDDDODD
1314131313
x2
AJ
AC
AC
x4
Please remove
the protective film!
S
T
131413
Assembly Instructions
Step 3
Place left slide door
a: Hook the 2x back guide
part j into the plastic
guide rail R.
a: Detail.
The hook of the back guide
part j should be in the
front guide of the plastic
guide rail R
a:
15
9/12
9
/
/
10
AJ
AJ
RRR
11
11
Assembly Instructions
Step 3
Place left slide door
b: Hook Sliding door
connecting platek
on metal guide rail Q.
b: Detail.
The wheel of the sliding door
connecting plate k should
be in the front guide of the
metal guide rail Q.
To lock the door, lock the
Sliding door connecting
plate k on the guide railQ
with the locking pawl.
16
131413
push the yellow
lock pin to
secure part k to rail
9
/
/
10
9/12
b:
QQQ
Q
AKAKAK
11
11
Assembly Instructions
Step 4
3 Segment slide door right
a: Put 8x nylon plug E into
the segment 9/!.
Use a small hammer.
Repeat this step.
c: Mount segment middle
0/@ with 3x screws D on
door handle S.
Mount segment 9/! with
4x screws D on door
handle S.
b: Mount door handle S
with 4x screws D on
segment 9/! .
Note: there should be no
gap between doorsegment
9/! and door handle S.
(See m.)
d: Mount door handle S
on segment 9/! with 4x
screws D and on middle
segment 0/@ with
3x screws D.
Note: there should be no
gap between doorsegment
9/! and door handle S.
(See m.)
17
/
12/12
a:
E
E
99999
c:
d:
SSS
10
10
DDDDDDDDDDDDDDDDDDDDD
D
2x
132/0325
132/0318
132/0301
132/0291
132/3384
132/3377
132/7926
132/7919
b:
Doors
Mirror doors
9/11/11/11/11/11/11
Assembly Instructions
Step 4
3 Segment slide door right
e: Mount 4x connecting
plate O, each with 2x
screws D on
segment 9/! and
2x screws D on middle
segment 0/@ .
Remove protective lm from
door handle S.
Stick 2x brush T onto 2x
door handle S by partially
remove the cover from
adhease as brush is applied.
f: Upside.
Mount 2x sliding door
connecting bracket l
squarely by using the guidemarks in the plate l,
each with 6x screws c
on segment 9/!.
g: Underside.
Mount 2x front guide
part i , each with 2x
screws c on
segment 9/!.
18
x2
AC
AI
9
TOODDDD
S
10
9
O
O
D
D
D
D
T
/11/
11
ACACACACAC
AC
9
9
ACACAC
AC
e:
132/0325
132/0318
132/0301
132/0291
Doors
132/3384
132/3377
132/7926
132/7919
Mirror doors
f:
g:
ALALALAIAI
/
12/11/11
Please remove
the protective film!
S
T
20cm
19
Assembly Instructions
Step 4
3 Segment slide door left
a: Put 8x nylon plug E into
the segment #. Use a small
hammer.
Repeat this step.
c: Mount segment middle
$ with 3x screws D
on door trim S.
Place 1x nishing prole
X on segment $.
Mount segment # with 4x
screws D on door trim U.
b: Mount door trim S with
3x screws D on segment
#. Place 1x nishing prole
X on segment #.
Note: there should be no
gap between doorsegment
# and door handle S.
(See m.)
d: Mount door handle S
on segment # with 4x
screws D and on middle
segment $ with 3x
screws D.
Note: there should be no
gap between doorsegment
# and door handle S.
(See m.)
a:
2x
X
X
132/0284
E
E
b:
c:
d:
SDDDDDDDDDDDDDDDDDDDD
D
13
13
Mirror doors
1313131314
14
S
S
Important: follow these instructions for cat no:
20
Assembly Instructions
Step 4
3 Segment slide door right
e: Mount 4x connecting
plate O, each with 2x
screws D on segment #
and 2x screws D on middle
segment $ .
Remove protective lm from
door handle S.
Stick 2x brush T onto 2x
door handle Sby partially
remove the cover from
adhease as brush is applied.
f: Upside.
Mount 2x sliding door
connecting bracket l
squarely by using the guidemarks in the plate l,
each with 6x screws c
on segment #.
g: Underside.
Mount 2x front guide
part i , each with 2x
screws c on segment #.
ACACACACACACAC
AC
f:
g:
ALALAI
AI
13
13
e:
132/0284
Mirror doors
TODDSOODDDDOD
D
131413
T
x2
AC
AI
Please remove
the protective film!
S
T
Assembly Instructions
Step 5
Place right slide door
a: Hook the 2x front guide
part i into the plastice
guide rail R.
a: Detail.
The hook of the front guide
part i should be in the
front guide of the plastic
guide rail R
a:
21
R
R
AI
9910
R
/12/
/
1314131111
AI
Assembly Instructions
Step 5
Place right slide door
b: Hook the sliding door
connecting bracketl
on metal guide rail Q.
b: Detail.
The wheel of the sliding door
connecting bracket l
should be in the front guide
of the metal guide rail Q.
To lock the door, lock the
sliding door connecting
bracket l on the
guide rail Q with the
locking pawl.
22
a:
QQQ
Q
AL
AL
9
/
/
10
9/12AL1314131111

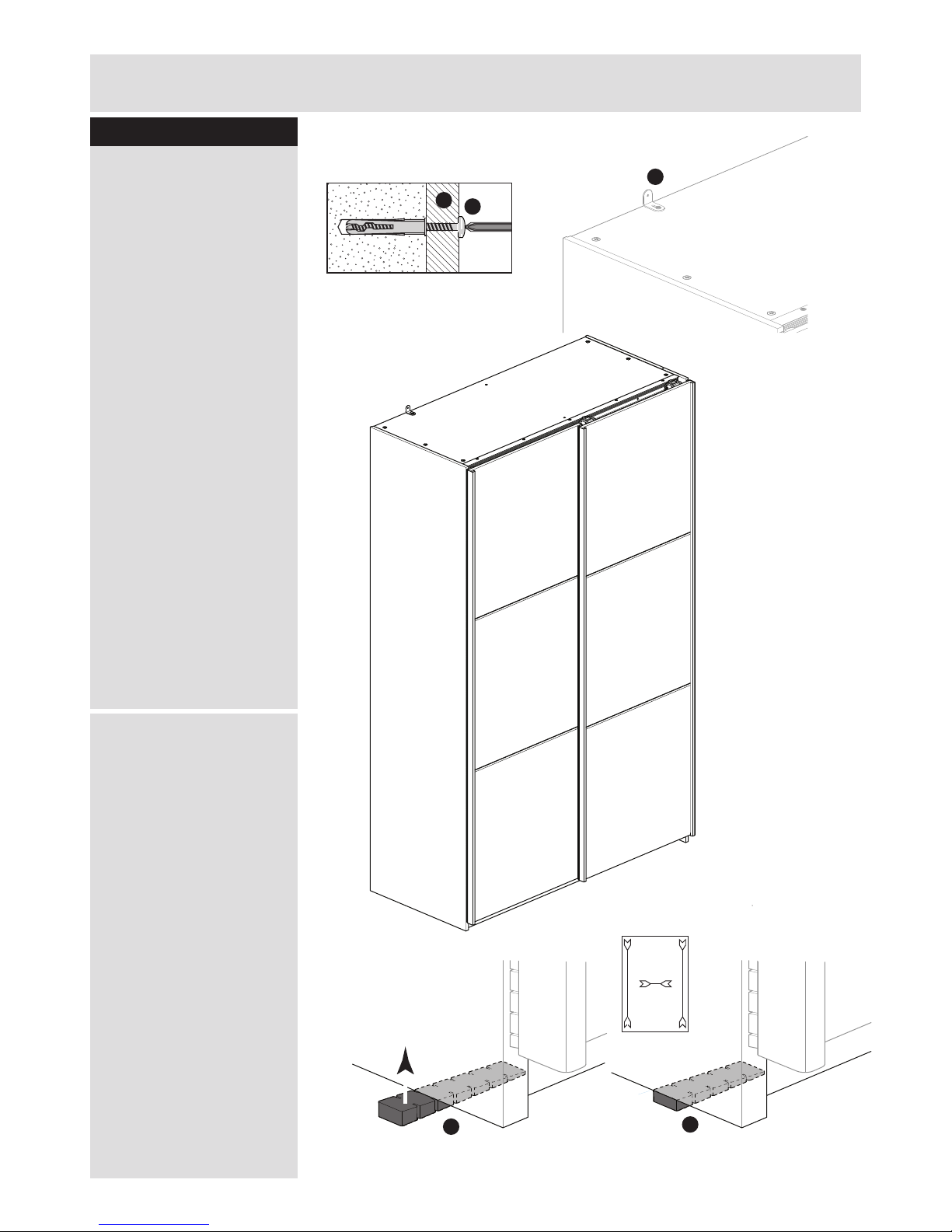

Assembly Instructions
Step 6
Place cabinaet
m: Use to 1x wall plug W
to mount L-Bracket M on
the wall,
please see last page for
more information.
b: Before adjusting the
doors, use a spirit level to
check if the base of this unit
is level front-to-back and
side-to-side in the three
positions shown.
Use pegs L to square your
unit. Knock peg L in, as far
as you require, under the
ends of the unit and then
snap o ush with the
panel.
a:
b:
23
MMW
SNAP!
L
L
Assembly Instructions
Step 5
Xxxxxx
x: x
A Guide to - Wall Mounting & Fixings
Revision 2 - 7/10/09
Important note:
Types of walls
Care &
Maintenance
No.1 “General Purpose” wall plug
No.6 “Shield Anchor” wall plug
Heavy loads
No.3 “Cavity Fixing” wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
loads, general purpose wall plugs can
be used.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
For use with plasterboard partitions or
hollow wooden doors.
heavy loads such as shelving, wall
cabinets and coat racks.
For use with walls stuck with
is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5:
drilled hole.
If plastic wall plugs
are supplied with your
product:
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
responsibility of the installer.
Loading...
