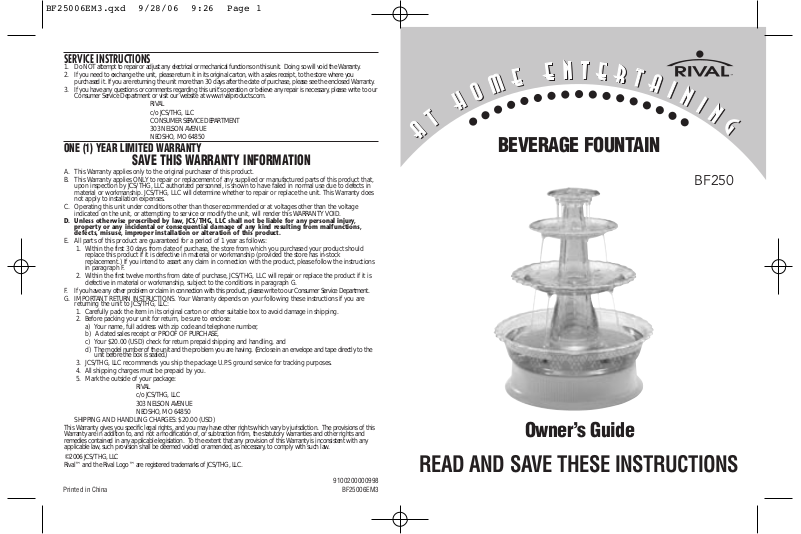

Rival BF250 User Manual

Owner’s Guide

READ AND SAVE THESE INSTRUCTIONS

BEVERAGE FOUNTAIN

BF250

™

9100200000998

Printed in China BF25006EM3

SERVICE INSTRUCTIONS

1. Do NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void the Warranty .

2. If you need to exchange the unit, please return it in its original carton, with a sales receipt, to the store where you purchased it. If you are returning the unit more than 30 days after the date of purchase, please see the enclosed Warranty.

3. If you have any questions or comments regarding this unit’s operation or believe any repair is necessary, please write to our Consumer Service Department or visit our website at www.rivalproducts.com.

RIVAL c/o JCS/THG, LLC CONSUMER SERVICE DEPARTMENT 303 NELSON AVENUE NEOSHO, MO 64850

ONE (1) YEAR LIMITED WARRANTY

SAVE THIS WARRANTY INFORMATION

A. This Warranty applies only to the original purchaser of this product. B. This Warranty applies ONLY to repair or replacement of any supplied or manufactured parts of this product that,

upon inspection by JCS/THG, LLC authorized personnel, is shown to have failed in normal use due to defects in material or workmanship. JCS/THG, LLC will determine whether to repair or replace the unit. This Warranty does not apply to installation expenses.

C. Operating this unit under conditions other than those recommended or at voltages other than the voltage

indicated on the unit, or attempting to service or modify the unit, will render this WARRANTY VOID.

D. Unless otherwise proscribed by law, JCS/THG, LLC shall not be liable for any personal injury,

property or any incidental or consequential damage of any kind resulting from malfunctions, defects, misuse, improper installation or alteration of this product.

E. All parts of this product are guaranteed for a period of 1 year as follows:

1. Within the first 30 days from date of purchase, the store from which you purchased your product should replace this product if it is defective in material or workmanship (provided the store has in-stock replacement.) If you intend to assert any claim in connection with the product, please follow the instructions in paragraph F.

2. Within the first twelve months from date of purchase, JCS/THG, LLC will repair or replace the product if it is defective in material or workmanship, subject to the conditions in paragraph G.

F. If you have any other problem or claim in connection with this product, please write to our Consumer Service Department. G. IMPORTANT RETURN INSTRUCTIONS. Your Warranty depends on your following these instructions if you are

returning the unit to JCS/THG, LLC:

1. Carefully pack the item in its original carton or other suitable box to avoid damage in shipping.

2. Before packing your unit for return, be sure to enclose: a) Your name, full address with zip code and telephone number, b) A dated sales receipt or PROOF OF PURCHASE, c) Your $20.00 (USD) check for return prepaid shipping and handling, and d) The model number of the unit and the problem you are having. (Enclose in an envelope and tape directly to the

unit before the box is sealed.)

3. JCS/THG, LLC recommends you ship the package U.P.S ground service for tracking purposes.

4. All shipping charges must be prepaid by you.

5. Mark the outside of your package:

RIVAL c/o JCS/THG, LLC 303 NELSON AVENUE NEOSHO, MO 64850

SHIPPING AND HANDLING CHARGES: $20.00 (USD)

This Warranty gives you specific legal rights, and you may have other rights which vary by jurisdiction. The provisions of this Warranty are in addition to, and not a modification of, or subtraction from, the statutory warranties and other rights and remedies contained in any applicable legislation. To the extent that any provision of this Warranty is inconsistent with any applicable law, such provision shall be deemed voided or amended, as necessary, to comply with such law.

2006 JCS/THG, LLC

Rival

™

and the Rival Logo™are registered trademarks of JCS/THG, LLC.

BF25006EM3.qxd 9/28/06 9:26 Page 1

-3-

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions before using.

2. To protect against risk of electrical shock do not immerse cord, plugs, or base unit in water or other liquid.

3. Close supervision is necessary when any appliance is used by or near children.

4. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.

5. Avoid contacting moving parts.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the manufacturer (see warranty) for examination, repair, or electrical or mechanical adjustment.

7. The use of accessory attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock or injury.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter.

10. Do not let cord contact hot surfaces, including the stove.

11. If using a beverage with alcohol content, keep all open flames and cigarettes away from the fountain.

WARNING: DO NOT USE WITH UNDILUTED LIQUOR (alcohol must be less than 80 proof or have less than 40% alcohol content).

12. Be sure beverage fountain is properly assembled and secured in place before operating or adding liquid. See detailed assembly instructions.

13. Do not float candles in fountain.

14. Make sure fountain is on a flat level surface before operating. NOTE: Rival™Beverage Fountain must be on a level surface to

flow properly.

15. Do not use the beverage fountain for other than intended use.

-2-

IMPORTANT SAFEGUARDS

This appliance is for HOUSEHOLD USE ONLY. No user-serviceable parts inside this product. Do not attempt to service this

product.

SAVE THESE INSTRUCTIONS

BF25006EM3.qxd 9/28/06 9:26 Page 3

-5-

BEFORE USE

-4-

IMPORTANT: Always add liquid before operating the fountain. If running while empty, excessive noise (and possible motor damage) will result.

1. Remove all black foam packing rings from the bottom of the BOWL. (See Figure. 2)

2. Wash all parts EXCEPT the BASE (see CLEANING & MAINTENANCE).

1. Align the BOWL over the BASE so the VALVE fits into the WATER PUMP INPUT and the other 4 notches align. Press firmly to secure BOWL into BASE.

2. Align the INNER TUBE over the WATER PUMP OUTLET on the center of the BOWL (it only fits one way).

3. Place the OUTER TUBE over the INNER TUBE, and rotate CLOCKWISE until it locks firmly into place.

PARTS AND ASSEMBLY

A. Base B. Water Pump Input C. Bowl D. Valve E. Notches F. Water Pump Outlet G. Inner Tube H. Outer Tube I. Large Tier J. Medium Tier K. Small Tier L. Spouts M. Flow Collar N. Domes O. Stems

Figure. 1

Align

Figure. 2

ASSEMBLING THE BEVERAGE FOUNTAIN

FEATURES AND BENEFITS

Create a beautiful centerpiece that is sure to capture the attention of every guest at your next get-together.

The Rival™Beverage Fountain is easy to assemble and holds up to 2

/2 gallons of your favorite party beverage. Simply add the prepared beverage directly into the bowl and watch as the liquid flows up the tower and then cascades down through each of the three tiers, creating a centerpiece ready for your guests to enjoy!

The bubbles and rotating 4-color light enhance the stunning ambience created by your Rival™Beverage Fountain.

You may also add ice to the bowl and garnish your punch with frozen or fresh fruit such as orange or lemon slices, strawberries, or raspberries. Use the included ladle and 12 punch cups to serve guests at your next event.

The Rival™Beverage Fountain is also the perfect party companion to the Rival™ Chocolate Fountain.

Figure. 3

BF25006EM3.qxd 9/28/06 9:26 Page 5

OPERATING INSTRUCTIONS

-7-

-6-

• Beverage mixture should not include more than 50% carbonated liquid, as this will adversely affect the operation of the Beverage Fountain.

2. Add up to 11/2 gallons of the prepared beverage to the BOWL.

• The BOWL holds up to 11/2 gallons when filled to maximum capacity.

• Once you complete these steps and the unit is running, you may add up to 1 additional gallon of liquid to the BOWL (capacity of unit during operation is up to 2

/2 gallons).

3. Plug the power transformer into an electrical outlet and plug the connector into the BASE.

• The liquid will start flowing up through the OUTER TUBE and

then down through the spouts located in each TIER to create a beautiful flowing fountain (at this point you may add up to 1 additional gallon of liquid).

• During operation, bubbles will be created and a four-colored

light will alternate colors through the INNER TUBE, adding to the ambience of your event!

4. If you would like to refill the Rival™Beverage Fountain during the course of your party , you may do so by adding more liquid to the BOWL.

5. IMPORTANT: Before shutting off the fountain, observe the liquid level in the Bowl.

• If the Bowl is more than half full while the unit is running,

remove liquid until the Bowl is less than half full.

• Use a cup to transfer the excess liquid to a pitcher-this will

prevent overflow.

• After shutting off the fountain, if it appears that the fountain is

about to overflow, quickly plug it back in and remove more liquid.

The Rival

™

Beverage Fountain is designed to create a beautiful waterfall

of your favorite party beverage. NOTE: • Rival™Beverage Fountain must be on a level surface to flow

properly.

•You may want to place a washable tablecloth under and around the immediate area of the fountain, to protect against light misting, splashing or accidental spills (especially if adding food coloring to the punch).

1. Prepare your beverage according to one of the included recipes or using your own favorite recipe.

OPERATING INSTRUCTIONS (CONT.)

4. Place each of the 4 DOMES over each STEM in the LARGE TIER and press firmly into place.

5. Slide the LARGE and MEDIUM tiers over the OUTER TUBE. Then slide the FLOW COLLAR and SMALL tier over the OUTER TUBE.

NOTE: •Tiers do not lock into place.

• Pay careful attention to the "THIS SIDE UP" markings on the FLOW COLLAR during assembly. Position the FLOW COLLAR so that the double arrows are facing upwards. (See Figure. 3)

6. For best results and optimal waterfall effect, rotate each tier so the spout placement is staggered.

NOTE: The liquid from the MEDIUM TIER should flow down

through each SPOUT and onto the DOMES.

7. If desired, you may hang each of the 12 included CUPS from the rim of the Bowl. The included LADLE may be used to fill CUPS with beverage.

IMPORTANT: Do not add liquid until product is fully assembled.

ASSEMBLING THE BEVERAGE FOUNTAIN (CONT.)

BF25006EM3.qxd 9/28/06 9:26 Page 7
