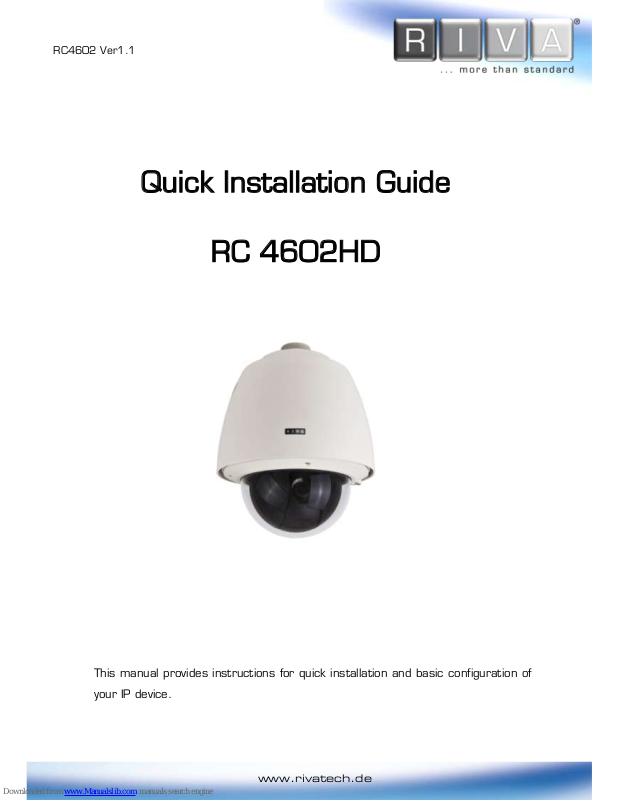

Page 1
RC4602 Ver1.1
www.rivatech.de
Quick Installation Guide
RC 4602HD
This manual provides instructions for quick installation and basic configuration of
your IP device.
Page 2
RC4602 Ver1.1
www.rivatech.de

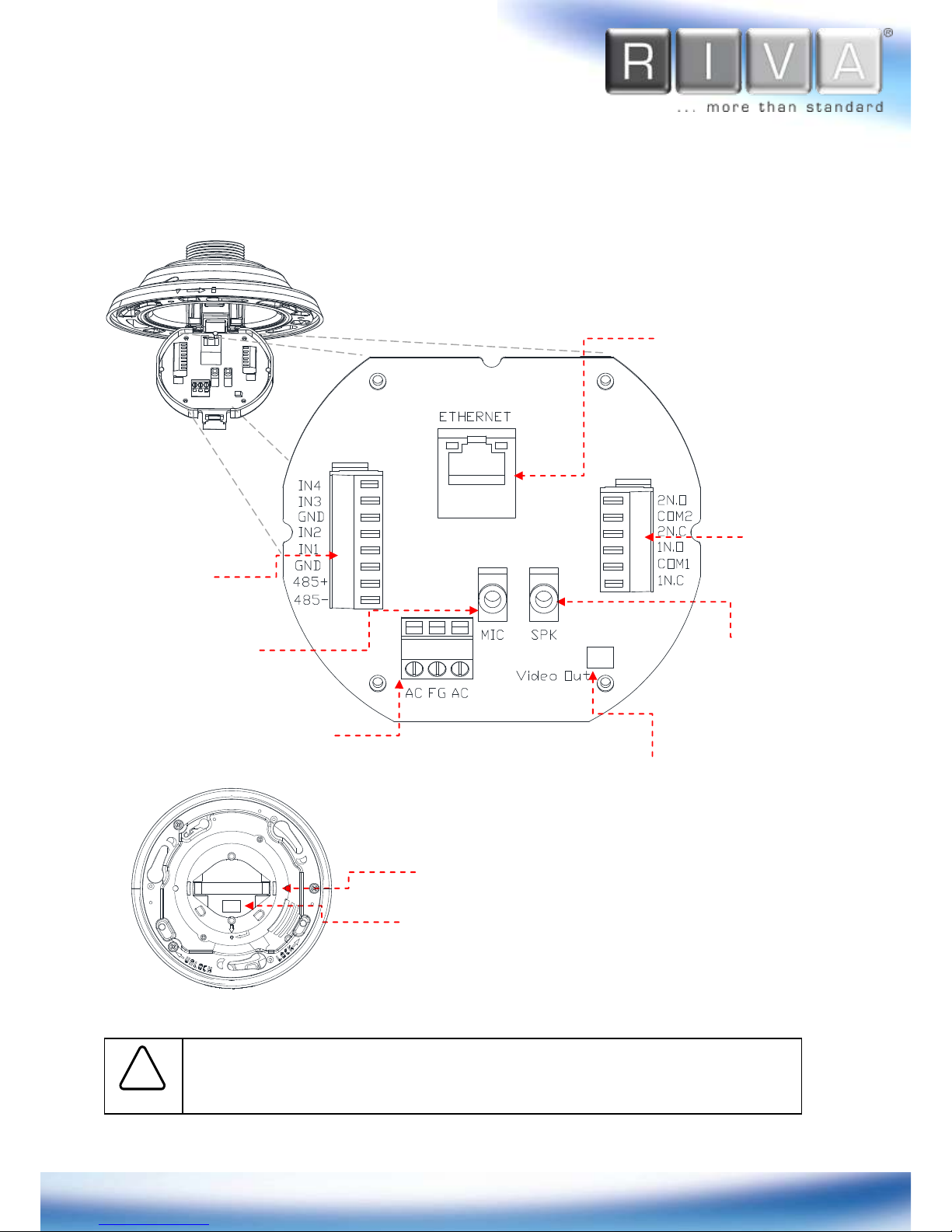

Step1. Connect cables to IP device
Connect required cables to the device including the power cable and LAN cable. To see the
correct positions of all connectors, refer to the following image below.
Incorrect connection may cause malfunction or damage to the IP device.
Caution
!
* Model design and appearance are subject to change without any prior notice
6-pin
Terminal
Connect
(Digital Out)
3.5 mm Microphone
Stereo Jack
3.5 mm Speaker
Stereo Jack
Video Out
32-pin socket
microSD slot
Main Camera Body Top View
PCB Top View
LAN Cable
3-pin Power
Terminal Connect
③
8-pin
Terminal
Connect
(Digital In)
Page 3
RC4602 Ver1.1
www.rivatech.de

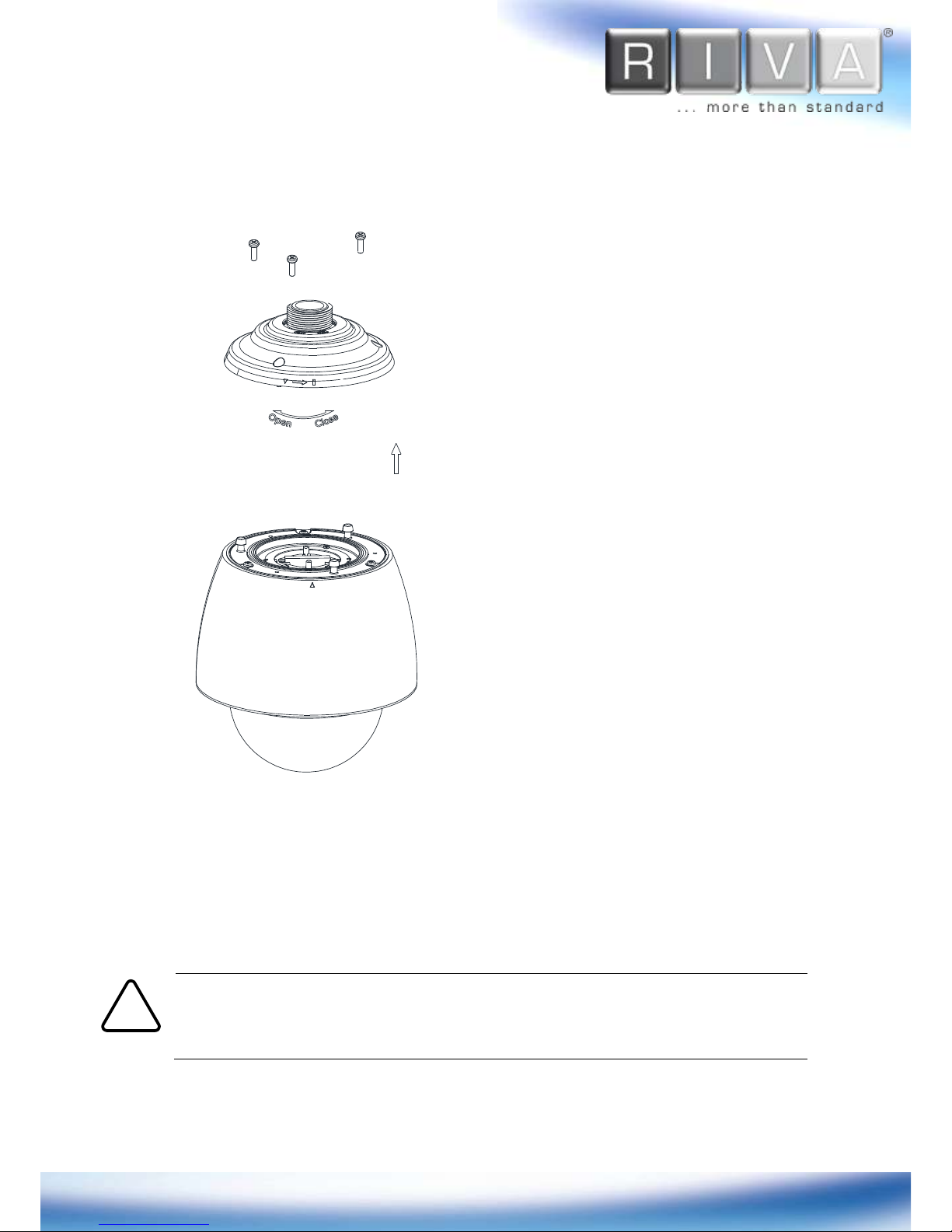

Step2. Install IP device
1) Secure three screws in top of
camera’s main body as three unit holders
with metal rings attached in the end.
2) Connect all necessary cables to a PCB
board in a cover shield before conjoining
the shield to a camera’s main body.
3) Under the PCB board has a 32-pin
connector which matches the main
camera body’s 32-pin socket; The shield’s
three unit holder holes also align with the
main camera body’s three unit holders.
4) Once cable connect is complete
along with brackets and poles on an
installation spot, align the connector (of
the cover shield) and socket (of the main
body), and then push the main body to
conjoin together.
5) Once two units are attached, rotate
the main camera body counterclockwise
to secure the lock.
6) Insert three screws on top cover shield
and tighten them up.
Caution
!
To prevent products from damaging, place the camera on stable and nonvibrating surfaces. If the stability is in doubt, consult with safety personnel for
reinforcements, and then proceed with the installation.
Page 4
RC4602 Ver1.1
www.rivatech.de
Step3. Set the lens position
The device is 360° rotating camera and fully controlled by web user interface. Once the
unit’s installation is complete and connected properly, please refer to IPXIPN Web User’s
Manual for the device’s camera configuration instructions.
Step4. Set up network environment
The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of
the device from converting the MAC address’s hexadecimal numbers, which is attached to the
device. Be sure that the device and PC are on a same area network before running the
installation.
Generic IP Environment
In case of generic private network environment where IP address 192.168.XXX.XXX are
used, users may view the live streaming images on a web page using the device’s default IP
address:
1. Convert the device’s MAC address to the IP address. Refer to the Hexadecimal-Decimal
Conversion Chart at the end of the manual.
(The MAC address of the device is attached on the side or bottom of the device.)
2. Start the Microsoft® Internet Explorer web browser and enter the IP address of the device.
3. Web streaming and device configurations are supported through ActiveX program. When
the ActiveX installation pop-up window appears, authorize and install the ActiveX setup.exe,
Convert the last two set of hexadecimal numbers to decimal
Page 5
RC4602 Ver1.1
www.rivatech.de

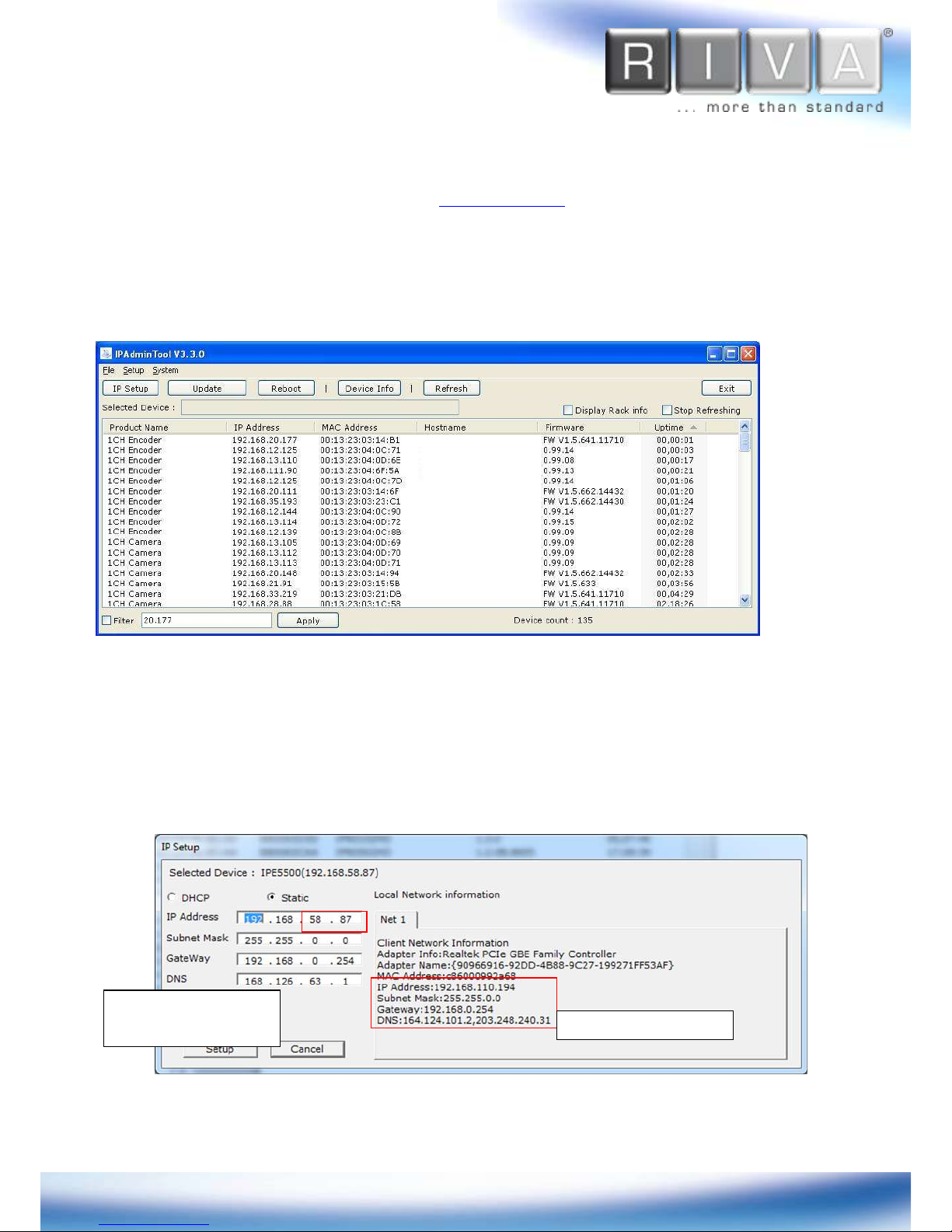

Custom IP Environment
IPAdminTool and the manual are provided on www.rivatech.de homepage.
IPAdminTool is a management tool, which automatically scans all of the network products for
users to perform administrative tasks, which includes network configurations, firmware update,
device reboot, and device organizations.
To modify the device’s default IP address for customized network area;
1. Find the device from the IPAdminTool’s list and highlight the device’s name.
2. Right-click the mouse and select “IP Address”; IP Setup window appears.
PC environment Info
Give new unique IP address in
last two sets and mirror other
information in other boxes
Page 6
RC4602 Ver1.1
www.rivatech.de
3. In the IP Setup’s window, information under ‘Local Network information’ displays the
user/PC’s network area information. Those information need to be incorporated to the IP
Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address,
which are to be the unique numbers for the device. Refer to the image above for the
setting
4. Click ‘Setup’ to complete the modification. When the dialog box appears to request user
name and password, enter the default value for the administrator account (case-sensitive)
as:
ID:
root
Password:
pass
Page 7
RC4602 Ver1.1
www.rivatech.de
Step5. View video on web page
Once the device’s proper IP address has been identified, type the URL in a web browser to
access the camera. At first time access, installation window may pop up. The default
username and password is
root / pass
.

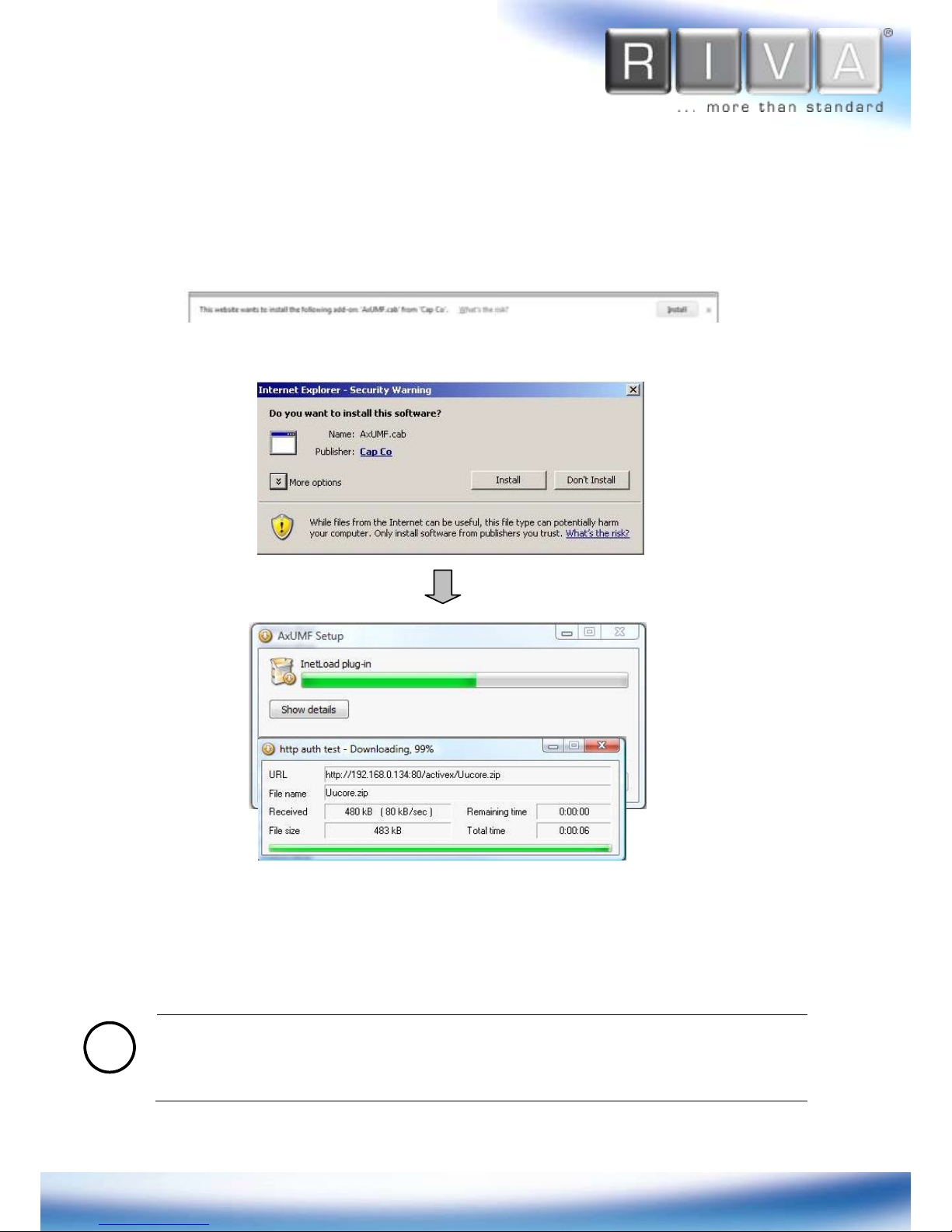

1. When the browser asks to install the AxUMF software, click Install to proceed.
2. When Setup installation pop-up window appears, click install to proceed with rest of
installations.
Note
i
Depends on system OS and Internet Explorer version, Installation experience may
differ from one another. Figures described above are from Windows 7, Internet
Explorer 9 environment.
Page 8
RC4602 Ver1.1
www.rivatech.de
Rebooting
Perform the following procedures to reset your device:
1. Press the Reset button for 2 seconds.
2. Wait for the system to reboot.
Resetting to the Factory Default Settings
Resetting the device back to the factory default will initialize all parameters including the IP
address back to the factory defaults. To reset back to the factory default;
1. Press reset button and hold.
2. Release the button after 5 seconds.
3. Wait for the system to reboot.
The factory default settings can be inferred as follows:
More Information
To learn more about using other features of your devices, refer to the manuals as “RIVA Web
Interface Manual Full HD Series” or “VCAsys Online Help”, which is available on
www.rivatech.de homepage.

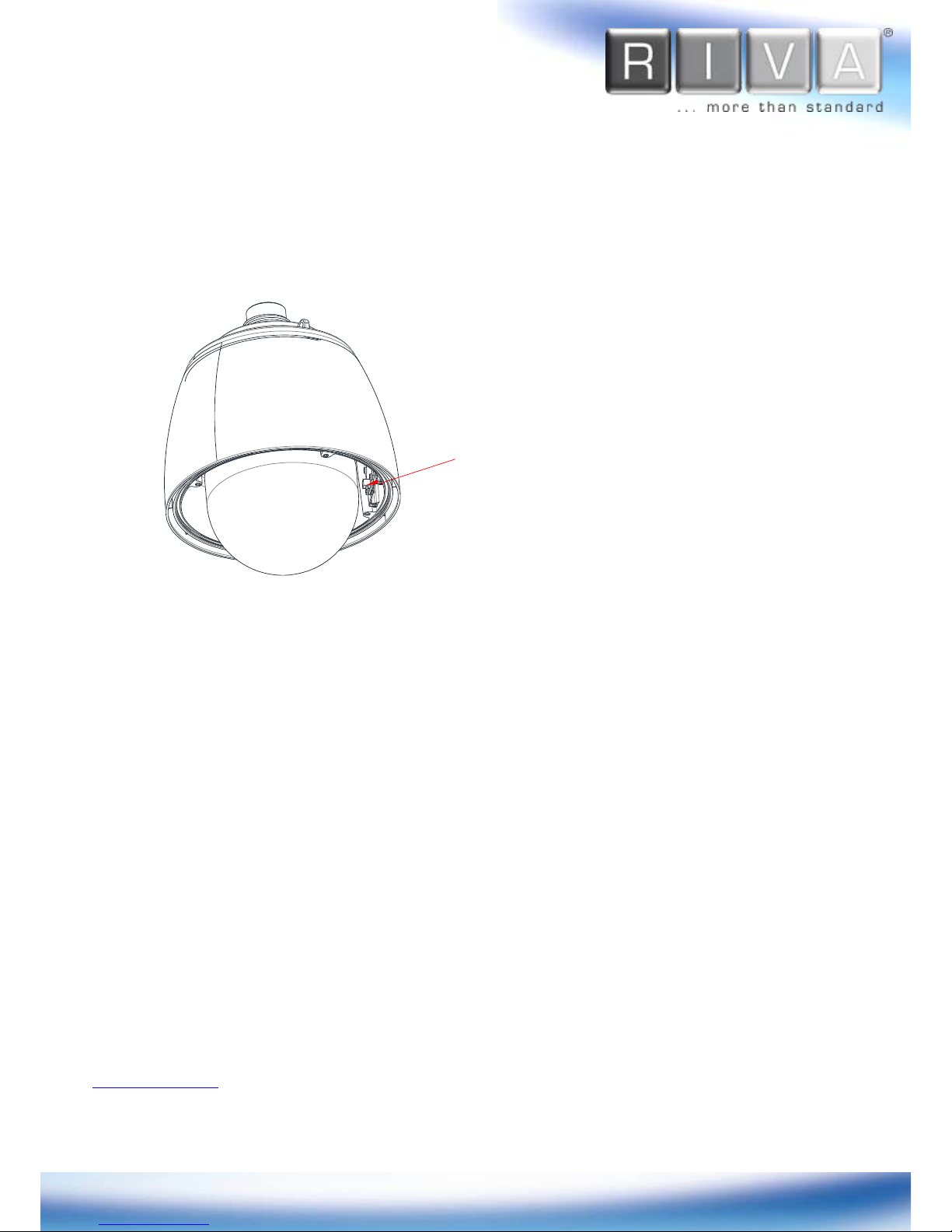

Reset Button Location
IP address: 192.168.xx.yy
Network mask: 255.255.0.0
Gateway: 192.168.0.1
User ID: root
Password: pass
Page 9
RC4602 Ver1.1
www.rivatech.de
Hexadecimal-Decimal Conversion Table
Refer to the following table when you convert the MAC address of your device to IP address.
Hex
Dec
Hex
Dec
Hex
Dec
Hex
Dec
Hex
Dec
Hex
Dec
Hex
Dec 0 0
25
37
4A
74
6F
111
94
148
B9
185
DE
222 1 1
26
38
4B
75
70
112
95
149
BA
186
DF
223 2 2
27
39
4C
76
71
113
96
150
BB
187
E0
224 3 3
28
40
4D
77
72
114
97
151
BC
188
E1
225 4 4
29
41
4E
78
73
115
98
152
BD
189
E2
226 5 5
2A
42
4F
79
74
116
99
153
BE
190
E3
227 6 6
2B
43
50
80
75
117
9A
154
BF
191
E4
228 7 7
2C
44
51
81
76
118
9B
155
C0
192
E5
229 8 8
2D
45
52
82
77
119
9C
156
C1
193
E6
230 9 9
2E
46
53
83
78
120
9D
157
C2
194
E7
231
0A
10
2F
47
54
84
79
121
9E
158
C3
195
E8
232
0B
11
30
48
55
85
7A
122
9F
159
C4
196
E9
233
0C
12
31
49
56
86
7B
123
A0
160
C5
197
EA
234
0D
13
32
50
57
87
7C
124
A1
161
C6
198
EB
235
0E
14
33
51
58
88
7D
125
A2
162
C7
199
EC
236
0F
15
34
52
59
89
7E
126
A3
163
C8
200
ED
237
10
16
35
53
5A
90
7F
127
A4
164
C9
201
EE
238
11
17
36
54
5B
91
80
128
A5
165
CA
202
EF
239
12
18
37
55
5C
92
81
129
A6
166
CB
203
F0
240
13
19
38
56
5D
93
82
130
A7
167
CC
204
F1
241
14
20
39
57
5E
94
83
131
A8
168
CD
205
F2
242
15
21
3A
58
5F
95
84
132
A9
169
CE
206
F3
243
16
22
3B
59
60
96
85
133
AA
170
CF
207
F4
244
17
23
3C
60
61
97
86
134
AB
171
D0
208
F5
245
18
24
3D
61
62
98
87
135
AC
172
D1
209
F6
246
19
25
3E
62
63
99
88
136
AD
173
D2
210
F7
247
1A
26
3F
63
64
100
89
137
AE
174
D3
211
F8
248
1B
27
40
64
65
101
8A
138
AF
175
D4
212
F9
249
1C
28
41
65
66
102
8B
139
B0
176
D5
213
FA
250
1D
29
42
66
67
103
8C
140
B1
177
D6
214
FB
251
1E
30
43
67
68
104
8D
141
B2
178
D7
215
FC
252
1F
31
44
68
69
105
8E
142
B3
179
D8
216
FD
253
20
32
45
69
6A
106
8F
143
B4
180
D9
217
FE
254
21
33
46
70
6B
107
90
144
B5
181
DA
218
FF
255
Page 10
RC4602 Ver1.1
www.rivatech.de
22
34
47
71
6C
108
91
145
B6
182
DB
219
23
35
48
72
6D
109
92
146
B7
183
DC
220
24
36
49
73
6E
110
93
147
B8
184
DD
221
