RC3202HD-6111(W)
Installation Guide
Precaution
Please read this manual carefully before installing the unit.
Never disassemble the camera. Unauthorized disassembly may cause
equipment failure or damage to the unit.
Please do not install the camera in a place exposed to direct sunlight.
Do not operate the camera in environments beyond the specified
temperature.
Refer to “Environment Condition” on “
APPENDIX (A) : SPECIFICATIONS
” in
this manual.
Before applying power to the camera, check the power source to ensure
that it is within the specifications. Refer to “Electrical Characteristics” on
“
APPENDIX (A) : SPECIFICATIONS
”
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 3
Table of Contents
Precaution .................................................................................. 2
1. FEATURES .............................................................................. 4
2. PACKAGE CONTENTS ................................................................ 6
3. PART NAMES .......................................................................... 7
4. INSTALLATION ......................................................................... 8
4.1. Installing the camera ..................................................................... 8
4.2. Adjusting the angle of the camera .................................................. 10
4.3. Setting the Image Attribute ........................................................... 11
4.4. Adjusting lens focus ..................................................................... 12
5. CONNECTIONS ...................................................................... 13
6. CONFIGURATION .................................................................... 16
6.1. Set up network environment ......................................................... 16
6.1.1. Generic IP Environment .......................................................... 16
6.1.2. Custom IP Environment .......................................................... 17
6.2. View video on web page ............................................................... 19
6.2.1. ActiveX Installation ................................................................ 19
6.2.2. View video using IPAdmin tool .................................................. 20
6.3. Reboot ...................................................................................... 21
6.4. Factory Default ........................................................................... 21
6.5. Safe Mode ................................................................................. 21
APPENDIX (A): SPECIFICATIONS .................................................... 24
Summary .......................................................................................... 24
Electrical Characteristics ..................................................................... 26
Environment Condition ........................................................................ 26
Mechanical Condition .......................................................................... 26
APPENDIX (B): POWER OVER ETHERNET ........................................ 27
PoE compatibility ................................................................................ 27
Power Comparison ............................................................................. 27
APPENDIX (C): DIMENSIONS ........................................................ 29
APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE ............. 30
REVISION HISTORY ..................................................................... 32
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 4
1. FEATURES
Camera
Full HD Compact Indoor Dome IP Camera
SONY EXMOR 1/2.9” 1080p CMOS Image Sensor
Digital Day / Night
WDR
Video
Video compression: H.264, MJPEG, 25/30FPS@1080p*
Dual streaming mode
Unicast/Multicast
Text Overlay
Network
10 / 100 Base-T Ethernet
RTSP/ HTTP protocol supported
Integration
Software Development Kit (SDK) available
ONVIF Compliant (Profile S)
General
Micro SD/SDHC slot
Power Over Ethernet (PoE)
Digital input/output supported (1/1ch)
Video Contents Analytics (VCA)
VCA Presence (Standard)
VCA Surveillance or other VCA extension license are available (Optional)
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 5
* If VCA is activated, frame rate is limit to max15fps@1080p. Limitation based on V.1.6.0
firmware release and could be changed without notice.
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 6
2. PACKAGE CONTENTS
Please unpack the package carefully and handle the equipment with care.
The package contains:
Camera
DC Power Adaptor
Universal Plugs
Screws and anchor blocks
Quick Installation Guide
Camera Opener
Ferrite Core
Installation Template
The contents above are subject to change without prior notice.
Note
i
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 7
3. PART NAMES
1 Reset button
Use the button to restart the device or to reset it to Factory Default.
Refer
to
6.3. Reset and 6.4. Factory Default for more details.
2 Terminal Connector
Connector for cable connection of digital input/output. Refer to 5.Connections
for more details.
3 Micro SD/SDHC slot
Supports up to 64GB. Recommend Class 6 and higher for HD recordings.
4 LAN Connector
This is a RJ45 LAN connector for 10/100 Base-T Ethernet. (PoE supported)
5 Power Adaptor Connector
Use DC 12V adapter for power supply.
DO
DI
Out
In
Com
Com
* Models herein and their appearance are subject to change without any prior notice.
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 8
4. INSTALLATION
4.1. Installing the camera
To prevent products from damage, place the camera on stable and
non-vibrating surfaces If the stability is in doubt, consult safety
personnel for reinforcements, and then proceed with the
installation.
Caution
!
1) Place the installation template
(outline shown on the next page)
included in the package on the
desired installation surface.
2) Drill holes in correct positions
based on the template paper, and
insert anchor blocks into the holes.
3) Make sure the necessary cables
including a LAN cable and a power
cable are properly connected to the
camera either thru the ceiling or thru
the groove around the mounting
plate.
4) Place the camera body and match
the alignment holes with the
corresponding anchor blocks and hold
against the mounting surface.
5) Tighten the anchor blocks with
screws.
6) Adjust the angle of the camera.
Refer to 4.2.Adjusting the angle of
the camera for more details.
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 9
Installation Template
(Unit: mm)
Installation template’s image size scale in this installation guide is
not 1:1.
The correct-size template design paper can be found inside the
package separately.
Caution
!
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 10

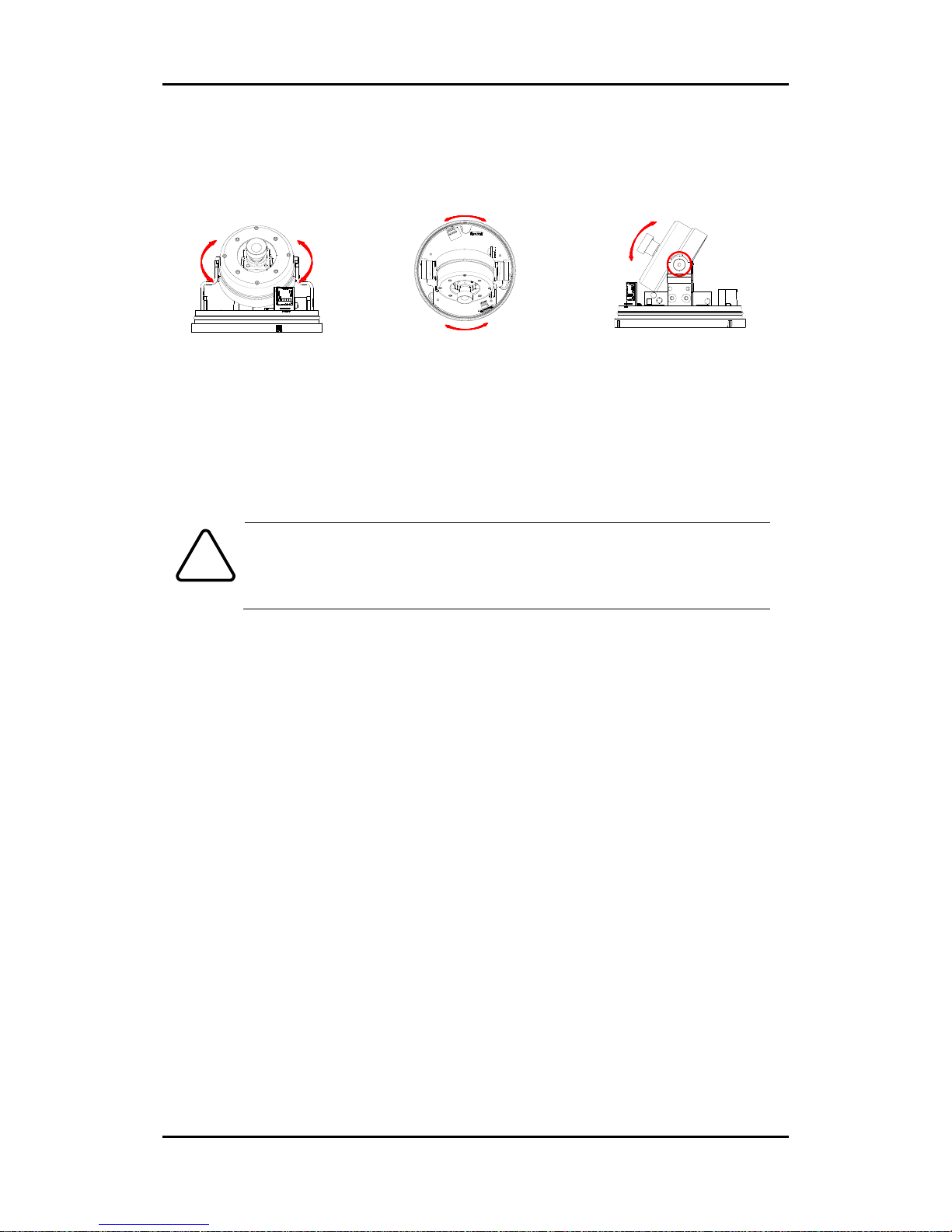

4.2. Adjusting the angle of the camera
Adjust the lens to the desired position by manually moving its upper lens shell,
reinforced body or horizontal platform in the following directions.
Refrain from continuously rotating the camera gimbal with
excessive force to a single direction as it is attached with a cable
inside the dome.
Caution
!
B. To pan, rotate the lower
body of the camera gimbal.
C. To tilt, tilt the lens by
vertically adjusting the camera
A. To adjust lens position,
rotate the camera gimbal.
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 11
4.3. Setting the Image Attribute
Through the camera’s webpage, users can configure image settings. The menu
of image attribute is available under Video Appearance menu in Setup > Video &
Audio > Camera. The following features can be adjusted: Brightness, Contrast,
Saturation, Sharpness and Orientation
For more detailed information, refer to the provided “RIVA Web Interface Manual
Full HD Line”.
All Manual’s and Installation Guides can downloaded from www.rivatech.de
homepage.
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 12
4.4. Adjusting lens focus
The lens focus is pre-adjusted, best at 3m distance, when the
camera is manufactured. It is recommended not to adjust the lens
focus unless it has to.
Note
i
Set Ring
Lens
1) Remove the dome cover with the opener
included in the package.
2) *Rotate the set ring counterclockwise will
allow users to adjust the focus of the lens.
3) Adjust the focus of the lens by rotating
the lens. After the setting, tighten up the set
ring by turning it clockwise.
4) Once the lens focus is well-adjusted,
place the dome cover on the camera body
and gently push the dome cover until the
cover interlock with the camera body.
Opener
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 13
5. CONNECTIONS
DO
DI
Out
In
Com
Com
In
Com
Out
Com
DI
DO
③
④
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 14
1 Sensor (DI) connection
Sensor (DI) can be connected to either a voltage type sensor or a relay type
sensor like the following figures. Settings can be done through the camera's
webpage.
Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA
Do not exceed the maximum input voltage or relay rate.
2 Alarm (DO) connection
Only the relay type is supported.
Relay Rating: Max 24VDC 50mA
Do not exceed the maximum relay rating.
Caution
!
Caution
!
DO
COM
Relay Type
Device
Internal
+3.3V
DI
COM
DI
COM
+
-
Relay Type
Voltage Type
+
-
Output of
Sensor
Output of
Sensor
Internal
Internal
+
-
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 15
3 LAN Connection
This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Use the Ethernet
cable (RJ45) to connect the device to a hub or a router in the network. Refer to
“
Appendix (B). Power over Ethernet
” for more details.
4 Power Connection
The camera can be powered from either 12VDC or PoE. If the camera is
powered via PoE, refer to “
Appendix (B). Power over Ethernet”
for more details.
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 16
6. CONFIGURATION
6.1. Set up network environment
The default IP address of the device is 192.168.XXX.XXX. Users can identify the
IP address of the device from converting the MAC address’s hexadecimal numbers,
which is attached to the device. Be sure that the device and PC are on a same
area network before running the installation.
IP address : 192.168.xxx.xxx
Subnet mask: 255.255.0.0
6.1.1. Generic IP Environment
In case of generic private network environment where IP address
192.168.XXX.XXX are used, users may view the live streaming images on a web
page using the device’s default IP address:
1. Convert the device’s MAC address to the IP address. Refer to the Hexadecimal-
Decimal Conversion Chart at the end of the manual.
(The MAC address of the device is attached on the side or bottom of the
device.)
2. Start the Microsoft® Internet Explorer web browser and enter the address of
the device.
3. Web streaming and device configurations are supported through ActiveX
program. When the ActiveX installation window appears, authorize and install
the ActiveX.
Convert the last two sets of hexadecimal numbers to decimal numbers.
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 17
6.1.2. Custom IP Environment
IPAdminTool is a management tool, which automatically scans all of the network
products for users to perform administrative tasks, which includes network
configurations, firmware update, device reboot, and device organizations.
IPAdminTool and the manual can download from www.rivatech.de homepage.
To modify the device’s default IP address for customized network area;
1. Find the device from the IPAdminTool’s list and highlight the device’s name.
2. Right-click the mouse and select IP Address; IP Setup window appears.
3. In the IP Setup’s window, information under Local Network information
displays the user/PC’s network area information. Those information need to
be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes,
except the last 2 sets of IP Address, which are to be the unique numbers for
the device. Refer to the image above for the setting
4. Click Setup to complete the modification.
PC environment Info
Give new unique IP
address in last two sets
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 18
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 19
6.2. View video on web page
Type the proper IP address to view the live streaming images through a web
browser.
The default username and password is root / pass.
6.2.1. ActiveX Installation
1. When the browser asks to install the AxUMF software, click Install to
proceed.
2. When Setup installation pop-up window appears, click Install to proceed with
rest of installations.
Depending on system OS and Internet Explorer version, installation
experience may differ from one another. Figures described above are
from Windows 7, Internet Explorer 9 environment.
Note
i
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 20
Caution
!
6.2.2. View video using IPAdmin tool
IPAdminTool and the manual can download from www.rivatech.de homepage.
IPAdminTool automatically searches all activated network encoders and IP
cameras and shows the product name, IP address, MAC address and etc.
1. From the IPAdminTool’s product list, select the device by highlighting it.
2. Right-click the mouse and select Web View.
3. . The system’s default web browser opens the device’s address.
Whether directly accessing the streaming video through typing IP
address on a web page or taking steps through IPAdminTool, the
ActiveX is needed to be installed for the Microsoft® Internet
Explorer to have the complete configuration privileges.
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 21
6.3. Reboot
Perform the following procedures to reset your device:
1. Press the Reset button, and hold for 2 seconds while the device is in use.
2. Wait for the system to reboot.
Please do not hold for more than 2 seconds. Otherwise, the camera
may be switched to its Factory Default settings.
6.4. Factory Default
Resetting the device back to the factory default will initialize all parameters
including the IP address back to the factory defaults. To reset back to the factory
default:
1. Press the reset button and hold while the device is in use.
2. Release the button after 10 seconds..
3. Wait for the system to reboot.
The factory default settings can be inferred as follows:
IP address: 192.168.xx.yy
Network mask: 255.255.0.0
Gateway: 192.168.0.1
User ID: root
Password: pass
6.5. Safe Mode
What is Safe Mode?
Your IP camera or encoder could encounter an unexpected occasion such as
broken firmware
file or uncompleted loading of firmware file during system booting. To restore the
device from the occasions, the device provides the emergency firmware as a
factory default. Your device will get restarted with safe mode when there is any
error on your booting system files.
Why does your IP camera or encoder boot in Safe Mode?
Normally, the cause of ‘safe mode’ is classified into two types.
* When the power supply is unplugged in the middle of system booting.
* When the firmware files required for system booting are damaged.
Caution
!
Note
i
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 22
IMPORTANT: Your device will turn into the safe mode when it fails to boot three
times.
How to recover your system from Safe Mode
The message above in the screenshot will appear when your device has been
rebooted at ‘safe mode’. Then, you should follow the steps below.
1. Turn off the device, and turn it on again.
2. Wait until the device completely reboots.
3. Refresh the webpage to check out if the webpage is displayed in normal.
What if your device still remains at safe mode after the above procedure?
It means that some parts of your firmware files on the device are damaged and
are not available any more.
Then, please try the steps below to recover the firmware file.
1. Click Browse on the screen, and select the appropriate firmware file
available.
2. Click START to restore the firmware to the device.
3. Check if the webpage appears normal.
There is another method to update firmware, which is using
IPAdminTool.
Please refer to ‘IPAdminTool User’s Manual.pdf’ for the detailed
procedure.
If your device is still at safe mode after trying to update firmware,
please contact your local agency to get further assistance.
More Information
Note
i
Note
i
Browse
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 23
To learn more about using other features of your devices, refer to the manuals
as “RIVA Web Interface Manual Full HD Series” or “VCAsys Manual Full HD
Series”, which is available on www.rivatech.de homepage.
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 24
APPENDIX (A): SPECIFICATIONS
Summary
Camera Module
CMOS
Image Sensor
1/2.9” 1080p CMOS
Effective
Pixels
1920x1080
Scanning
system
Progressive scanning
ELECTRIC
AL
Resolution
1920 x 1080
Min.
Illumination
Color: 1.0 lux, BW: 0.001 lux (DSS ON)
AGC Control
Auto
Lens
RC3202HD-6111: 4.0mm F2.0
RC3202HD-6111W: 2.97mm F2.0
Day & Night
Digital Day & Night
Wide Dynamic Range
WDR
Video
Compression Format
H.264 and MJPEG Selectable per Stream
Number of Streams
Dual Stream, Configurable
Resolution
1920x1080, 1280x720, 1120x630, 960x540,
800x450, 640x360, 480x270, 320x180
Compression FPS
30fps@1080p*
Motion Detection
Built-in
Burnt-in Text (Digital)
Video stream overlay text
Output
-
Audio
Input/output
-
Compression Format
-
Function
Digital Input/output
1/1 channel
RS-485
Not supported
Network
10/100 Base-T
Power over Ethernet (PoE)
Supported
Protocol
QoS Layer 3 DiffServ, TCP/IP, UDP/IP, HTTP,
HTTPS, RTSP, RTCP, RTP/UDP, RTP/TCP, mDNS,
UPnP™, SMTP, DHCP, DNS, DynDNS, NTP,
SNMPv1/v2c/v3(MIB-II), IGMP, ICMP, SSLv2/v3,
TLSv1
SD Slot
1 Micro SD/SDHC slot
※ Micro SD Card is not included
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 25
(Recommend Class 6 and higher for HD recordings)
* If VCA is activated, frame rate is limit to max15fps@1080p. Limitation based on V.1.6.0
firmware release and could be changed without notice.
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 26
Electrical Characteristics
Power Source
DC 12V / PoE
Power Consumption
2.64W @ DC 12V
Video Output
-
Audio Input
-
Audio Output
-
D/I
Max 50mA@5VDC, TTL level, VIL=0.8V(max),
VIH=2.0V(min)
D/O
Max 50mA@24VDC
On-state resistance: 50 Ω (max continuous)
Environment Condition
Operating Temperature
Operating Range
0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity
Up to 85% RH
Mechanical Condition
Material
Plastic (ABS)
Color
Ivory
Dimension
110 (Ø) x 95(H) mm
Weight (Approx)
300g
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 27
APPENDIX (B): POWER OVER
ETHERNET
The Power over Ethernet (PoE) is designed to extract power from a conventional
twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Powerover-Ethernet (PoE) standard.
IEEE 802.3af allows for two power options for Category 5 cables.
The IEEE 802.3af-2003 standard allows up to 15.4 W power to device.
However, 12.95W is the maximum available power, as some power gets lost in
the cable.
PoE has advantages over conventional power in such places where AC powers
cannot be reached or is expensive to wire.
For proper activation of 12V PoE, the Category 5 must be shorter
than 140m and conform the PoE standard.
PoE compatibility
With non-Power Sourcing Equipment (PSE)
When it is connected with non-PSE, the power adaptor should be connected.
With power adaptor
Connecting both PSE and power adaptor does not do any harm to the product,
but power adaptor will be the only power source for the device as it has priority
over PSE. In this case, disconnecting power adaptor while it is operating will
cause the device to reboot. And PoE will be the power source for the device after
the reboot.
Power Comparison
The PoE Property supported by the device is 802.2af.
Property
802.3af
802.3at
Available Power
12.95 W
25.50 W
Max. Power by PSE
15.40 W
34.20 W
Max. Current
350 mA
600 mA
Supported Cable
Category 3 and 5
Category 5
Note
i
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 28
Disconnecting PSE or PoE does not reboot the device as long as a
power adaptor is connected.
Note
i
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 29
APPENDIX (C): DIMENSIONS
(Unit: mm)
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 30
APPENDIX (D): HEXADECIMALDECIMAL CONVERSION TABLE
Refer to the following table when converting the MAC address of the device to
the IP address.
Hex
Dec
Hex
Dec
Hex
Dec
Hex
Dec
Hex
Dec
Hex
Dec
Hex
Dec
0 0 25
37
4A
74
6F
111
94
148
B9
185
DE
222 1 1
26
38
4B
75
70
112
95
149
BA
186
DF
223 2 2
27
39
4C
76
71
113
96
150
BB
187
E0
224 3 3
28
40
4D
77
72
114
97
151
BC
188
E1
225 4 4
29
41
4E
78
73
115
98
152
BD
189
E2
226 5 5
2A
42
4F
79
74
116
99
153
BE
190
E3
227 6 6
2B
43
50
80
75
117
9A
154
BF
191
E4
228 7 7
2C
44
51
81
76
118
9B
155
C0
192
E5
229 8 8
2D
45
52
82
77
119
9C
156
C1
193
E6
230 9 9
2E
46
53
83
78
120
9D
157
C2
194
E7
231
0A
10
2F
47
54
84
79
121
9E
158
C3
195
E8
232
0B
11
30
48
55
85
7A
122
9F
159
C4
196
E9
233
0C
12
31
49
56
86
7B
123
A0
160
C5
197
EA
234
0D
13
32
50
57
87
7C
124
A1
161
C6
198
EB
235
0E
14
33
51
58
88
7D
125
A2
162
C7
199
EC
236
0F
15
34
52
59
89
7E
126
A3
163
C8
200
ED
237
10
16
35
53
5A
90
7F
127
A4
164
C9
201
EE
238
11
17
36
54
5B
91
80
128
A5
165
CA
202
EF
239
12
18
37
55
5C
92
81
129
A6
166
CB
203
F0
240
13
19
38
56
5D
93
82
130
A7
167
CC
204
F1
241
14
20
39
57
5E
94
83
131
A8
168
CD
205
F2
242
15
21
3A
58
5F
95
84
132
A9
169
CE
206
F3
243
16
22
3B
59
60
96
85
133
AA
170
CF
207
F4
244
17
23
3C
60
61
97
86
134
AB
171
D0
208
F5
245
18
24
3D
61
62
98
87
135
AC
172
D1
209
F6
246
19
25
3E
62
63
99
88
136
AD
173
D2
210
F7
247
1A
26
3F
63
64
100
89
137
AE
174
D3
211
F8
248
1B
27
40
64
65
101
8A
138
AF
175
D4
212
F9
249
1C
28
41
65
66
102
8B
139
B0
176
D5
213
FA
250
1D
29
42
66
67
103
8C
140
B1
177
D6
214
FB
251
1E
30
43
67
68
104
8D
141
B2
178
D7
215
FC
252
1F
31
44
68
69
105
8E
142
B3
179
D8
216
FD
253
20
32
45
69
6A
106
8F
143
B4
180
D9
217
FE
254
21
33
46
70
6B
107
90
144
B5
181
DA
218
FF
255
22
34
47
71
6C
108
91
145
B6
182
DB
219
23
35
48
72
6D
109
92
146
B7
183
DC
220
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 31
24
36
49
73
6E
110
93
147
B8
184
DD
221
HD Series RC3202HD-6111(W) Installation Guide
09-2013-A www.rivatech.de 32
REVISION HISTORY
MAN#
DATE(M/D/Y
)
Comments
01A.03
07/05/201
3
First release version
09-2013-
A
09/04/201
3
Minor updates
Loading...
