Rittal CMC-TC ISDN Unit 7320.830 Operating Manual

RJ45 ISDN socket

Optionally, the ISDN unit can be

DK 7320.830

Drawing number A 31461 03 IT 74

Operating manual

CMC-TC ISDN Unit

New versions at www.cmc-tc.com

Contents: Page

1. Description 1

2. Conditions of use / safety instructions 3

3. Description CMC-TC ISDN Unit 7320.830 face 4

4. Description CMC-TC ISDN Unit 7320.830 rear 5

5. Technical specifications 5

6. Start-up 6

7. Settings 9

7.1 Via Telnet 9

7.2 Via browser 12

8. SMS mode 14

8.1 Sending SMSs 14

8.2 Receiving SMSs 15

1. Description:
Note:

For reasons of clarity these operating instructions cannot contain all detailed information, nor can they
take into account every conceivable case of installation, operation and maintenance. Specifications
subject to alterations at any time. The German wording shall apply in cases of doubt.

Accessories: Processing Unit:

ISDN Unit 7320.830 PU 7320.100 from software version 1.21

IOIOI ISDN

24 VDC

max. 80mA

supplied from a 24 V DC, 80mA power
source connected here. This is not
necessary when the PU is connected

Connection cable RJ 12/ RJ 12, enclosed

Page 1

The CMC-TC ISDN unit can be used to configure a redundant transmission path or,
when no network infrastructure is available, for relaying alarm messages. The alarm
signal is sent in SMS format. The ISDN unit is connected to the serial interface on the
processing unit 7320.100. The power supply is likewise achieved via the connection
cable. The device functions only with ISDN (see “ISDN access – minimum
requirements”). Up to four target call numbers may be set and allocated to the
various events.
This variant of sending alarm messages can also be used for countries permitting
SMS in fixed networks. Moreover, SMS can now be used over the fixed network to
control switching outputs.
Power supply is via the processing unit.
Other functions, where offered by the provider:

- Fax

- E-mail:

- Voice mail

ISDN access – requirements:

- DSS1 (Euro-ISDN)

- Point-to-multi-point configuration (ISDN-S

-Bus)

0

These minimum requirements must also be fulfilled when the ISDN unit is connected
to a private branch exchange.

Important information:
– IMPORTANT Only one of the tools “ISDN unit”, “GSM unit”, or “display unit” may be

connected to a PU.

– IMPORTANT When the ISDN unit is used, the front interface

(RS-232) on the processing unit is deactivated (e.g.
Hyperterminal access). The system can then be configured only
via Telnet or the web.
When Hyperterminal was used before the ISDN unit is installed, the
user must have logged off correctly.

– IMPORTANT When the system is used outside of Germany, it must be
reconfigured to the new circumstances over a telephone link. Our centre will be

pleased to assist you with further information.
Tel.: (+49) (02772) 505 – 0
Tel.: (+49) (02772) 505 – 2578

– IMPORTANT When more than sixteen unsent messages have accumulated in the
SMS memory, all new outgoing messages will be deleted. These deleted messages
can be viewed in the Processing Unit via the WEB or FTP.

Also required:

- Processing unit 7320.100

Page 2

2. Conditions of use / safety instructions

– The CMC-TC ISDN Unit must be used exclusively for the Rittal CMC-TC system.
– The following documents apply: the operating / safety instructions for the

processing unit (7320.100) and these product-specific instructions. In particular,
the conditions of use, safety instructions and warranties listed in these documents
must be observed.

– It is imperative that all leads are connected separately from cables carrying the

supply voltage.

– The CMC-TC ISDN unit must be used exclusively within the specified

environmental limits.

– The CMC-TC ISDN unit must not be opened. The unit does not contain any parts

that need servicing.

– Before connecting the CMC-TC ISDN unit, make sure that it is suitable for the

processing unit.

– Safety devices must not be deactivated.
– It is imperative that the CMC-TC ISDN unit does not come into direct contact with

water (e.g. dew), oil, or aggressive substances.

– The unit must not be operated in environments with flammable gases or vapours.

The unit must be installed in an enclosure to protect it from water and dust.

– There must be no voltage across the CMC-TC system when the CMC-TC ISDN

unit is connected to the PU.

– The CMC-TC ISDN unit must be properly installed in accordance with the

separate installation instructions.

– The conditions of use / safety instructions listed in the instructions must be

observed.

– All warranty claims on the grounds of damage become void when this damage is

incurred by failure to observe these instructions / conditions of use or the
instructions for the processing unit 7320.100. Rittal assumes no liability for
consequential damage!

– Rittal assumes no liability for any damage to property or bodily injury incurred by

improper use or failure to observe the safety instructions. Every warranty claim
becomes void in such cases!

Page 3

3. Description CMC-TC ISDN unit 7320.830 – face

ISDN

ISDN unit

1 2

The red/green duo LED (1) indicates the current status of the ISDN unit.
The green LED (2) indicates the connect status of the ISDN unit.

LED Status Meaning

1 (status LED red / green) red The ISDN unit is being initialised

orange The ISDN unit is sending or receiving an SMS

green The ISDN unit is ready

2 (ISDN LED green) off After activation the ISDN unit still has no ISDN access

(no terminal endpoint identifier / TEI assigned)

brief flash The ISDN socket is in the non-operative state

(TEI assigned, Layer 1 of the ISDN socket is
deactivated)

slowly flashing

(¼ s ON, ¾ s OFF)

slowly flashing

(½ s ON, ½ s OFF)

quickly flashing

(six times a second)

The ISDN socket is activated, but the ISDN unit has
not connected

(Layer 1 activated, Layer 2 pending)
The ISDN socket is activated, but the ISDN unit has

not connected
(Layer 1 activated and Layer 2 configured)
The ISDN unit is transferring an SMS or data

Page 4

4. Description CMC-TC ISDN unit 7320.830 – rear

24 VDC

ISDNIOIOI

1

2 3

max. 80mA

1

The provided RJ12/RJ12 connecting lead connects the ISDN unit to this RJ12 socket (RS-232
interface) on the processing unit. This connecting lead functions as the 24 V DC supply and
transfers data to and from the processing unit.

The RJ45 ISDN socket is designed for connection to an ISDN socket.

2
3

The 24 V DC voltage connector is designed for future developments of the CMC-TC system
and is not needed for running the processing unit.

5. Specifications:

Max power consumption: 80 mA
Max connecting lead length: 4 m (processing unit to ISDN unit)
Rated voltage 24 V DC with supply link from the processing unit
Shock resistance 1 g
Operating temperature range: +5 °C to +45 °C
Protection category: IP 40
ISDN socket: DSS1 (Euro ISDN), multi-point interface

Page 5

6. First start-up

PIN GSM-Card:

Note: Phone Number 1 - 4

Important: The following description applies to software version 1.21 and higher for
the processing unit (DK 7320.100) needed to operate the ISDN unit.

§ First start-up

When several SMS terminals are operated on the one ISDN bus, each of these SMS
terminals (and therefore every ISDN unit as well) must be assigned its own call
number for sending and receiving SMSs.

Note the following before transferring SMSs over the fixed network.
(This is necessary only when an SMS command is to be sent to the ISDN unit.

Receiving SMS “alarm” messages does not require registration. )

Registering at a network provider requires that an SMS is sent once only to this
provider (for example for Deutsche Telekom: the text “ANMELD” is sent to the call
number “8888”). See the section “ISDN command” below.

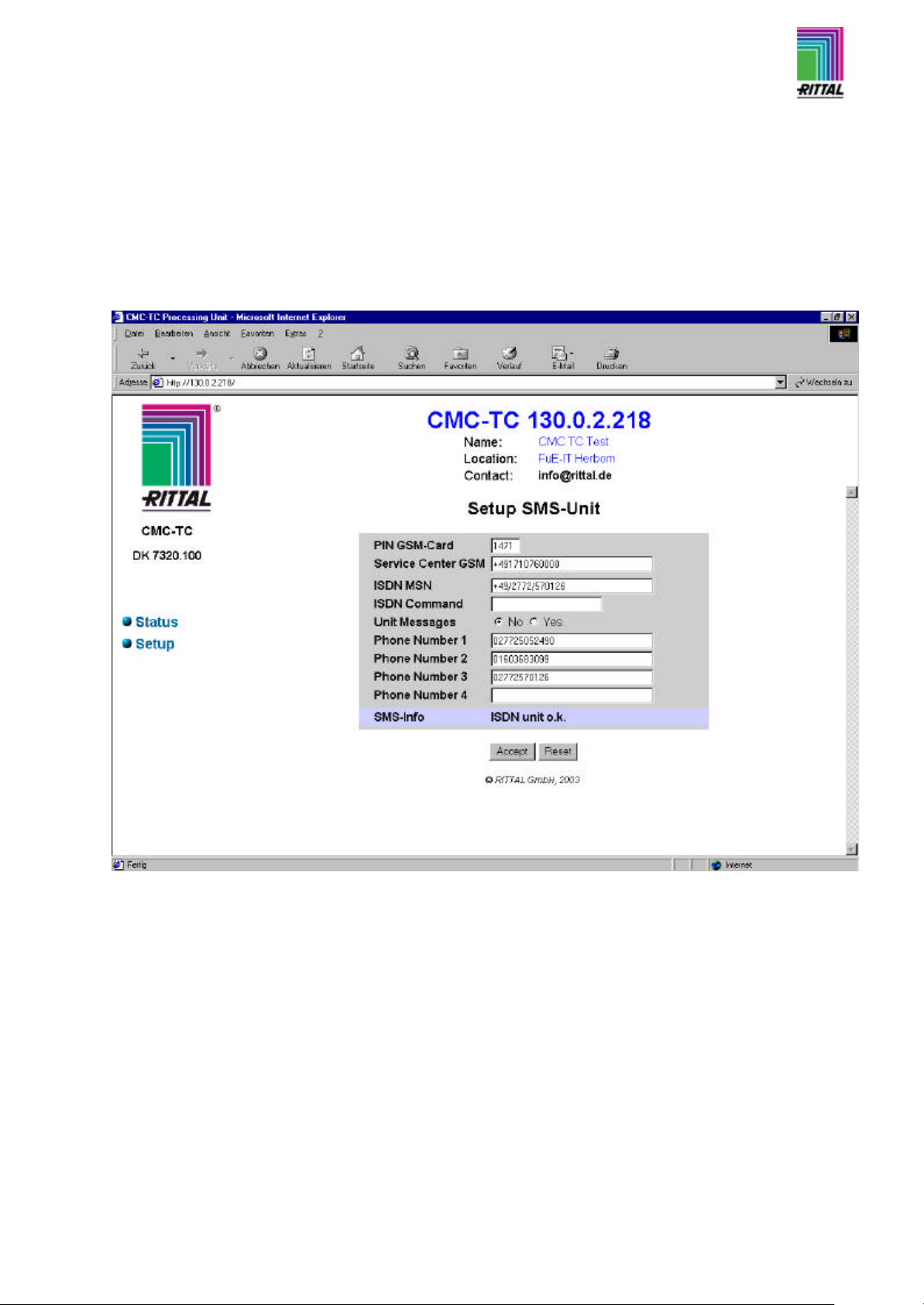

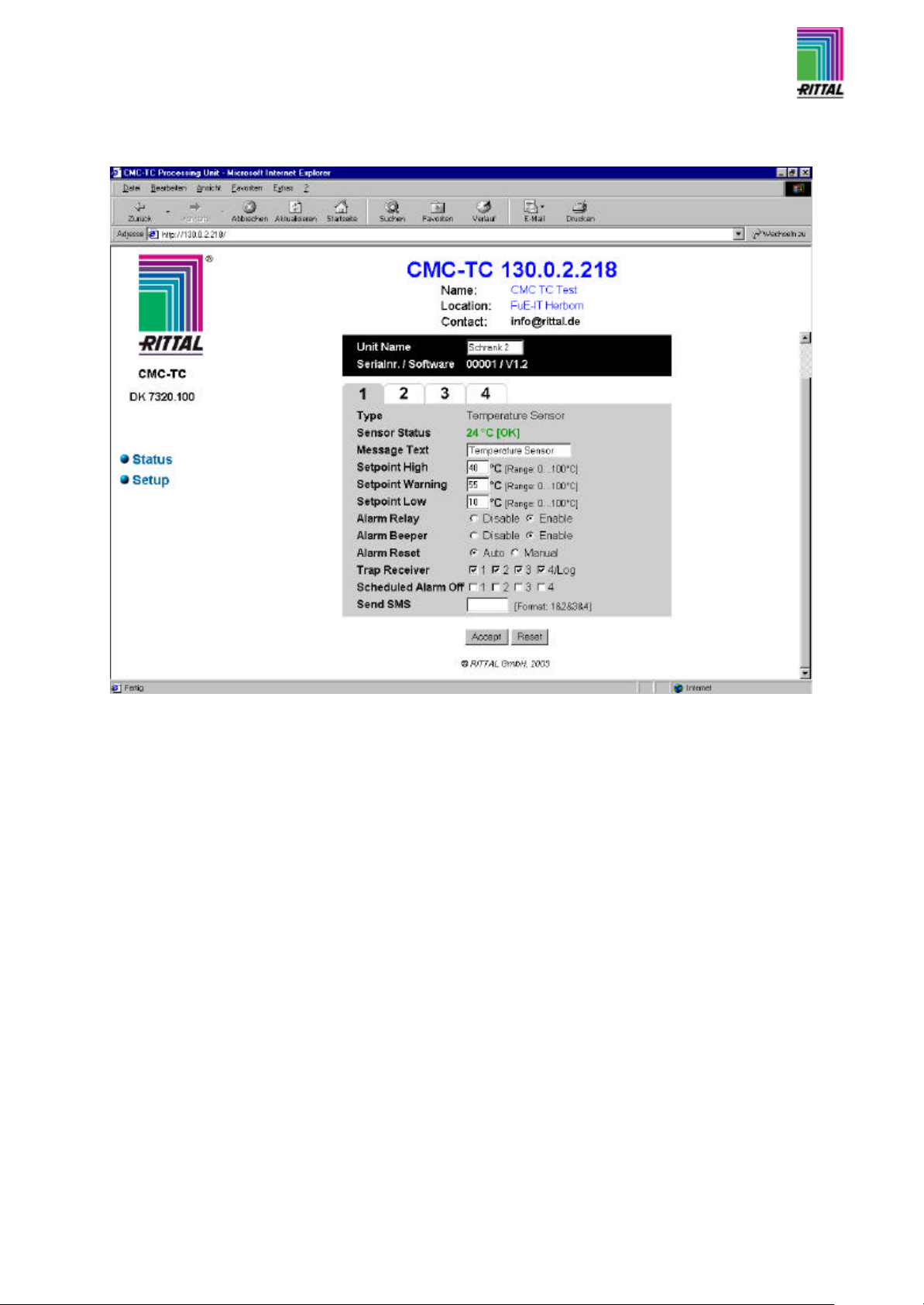

The following data must be entered before the ISDN unit is connected to the
processing unit.

Mandatory data:

This field is not needed to configure the ISDN
Unit.

Service Center GSM:

This field is not needed to configure the ISDN
Unit.

Mobile phone numbers must not
entered with the country code.

ISDN MSN:

The MSN (multiple subscriber number) is assigned by the network provider.
Also the country code and the local area code must be entered (separated by “/”).
Example: +49/2772/570126

ISDN Command

Before an SMS can be sent over the fixed network, the ISDN unit must be registered
at an SMS centre. (This is necessary only when an SMS command is to be sent to
the ISDN unit. Receiving SMS “alarm” messages does not require registration. )
The Deutsche Telekom SMS Centre requires an SMS containing the text “ANMELD”
to be sent to the number 8888.

Enter “8888 ANMELD” in the field “ISDN Command”. The ISDN unit then sends this
message to the SMS centre.

When the ISDN unit is not to receive SMS messages any longer or is to be operated
at another socket, the command “8888 ABMELD” sent to Deutsche Telekom cancels
the registration.

Page 6
