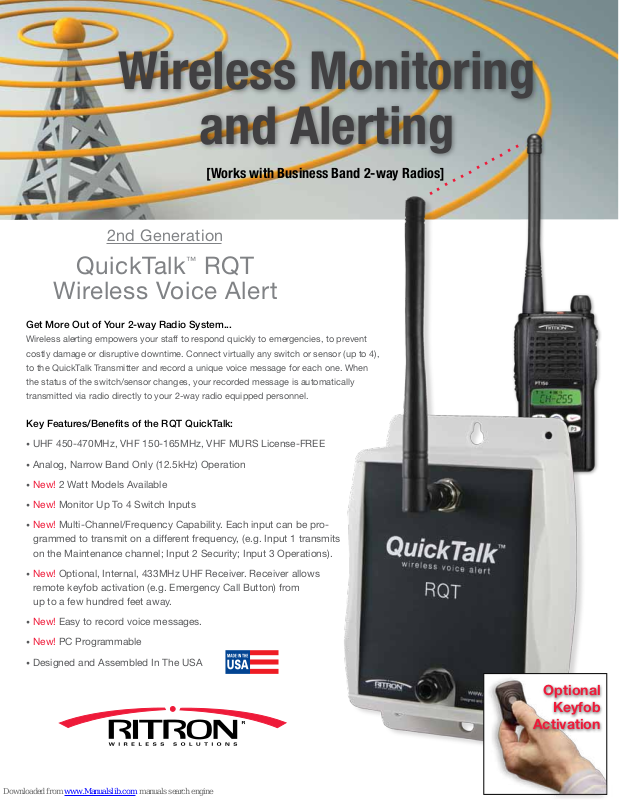

Ritron Quick Talk RQT, QuickTalk RQT-451, QuickTalk RQT-151, QuickTalk RQT-152M, QuickTalk RQT-452 Specification

Wireless Monitoring

and Alerting

[Works with Business Band 2-way Radios]

............

2nd

QuickTalk

Generation

™

RQT

Wireless Voice Alert

Get More Out of Your 2-way Radio System...

Wireless alerting empowers your staff to respond quickly to emergencies, to prevent

costly damage or disruptive downtime. Connect virtually any switch or sensor (up to 4),

to the QuickTalk Transmitter and record a unique voice message for each one. When

the status of the switch/sensor changes, your recorded message is automatically

transmitted via radio directly to your 2-way radio equipped personnel.

Key Features/Benefits of the RQT QuickTalk:

• UHF 450-470MHz, VHF 150-165MHz, VHF MURS License-FREE

• Analog, Narrow Band Only (12.5kHz) Operation

• New! 2 Watt Models Available

• New! Monitor Up To 4 Switch Inputs

• New! Multi-Channel/Frequency Capability. Each input can be pro-

grammed to transmit on a different frequency, (e.g. Input 1 transmits
on the Maintenance channel; Input 2 Security; Input 3 Operations).

• New! Optional, Internal, 433MHz UHF Receiver. Receiver allows

remote keyfob activation (e.g. Emergency Call Button) from
up to a few hundred feet away.

• New! Easy to record voice messages.

• New! PC Programmable

• Designed and Assembled In The USA

Optional

Keyfob

Activation

Send Wireless Voice Alerts To Your 2-Way Radios or PA System!

Optional 433MHz Receiver For Keyfob /Activation (Radio Order # RQT-XXX-RCVR)

Receive/Transmit Frequency: 433.92 MHz
Receiver Programming: On-board pushbutton while receiving keyfob transmission
Receiver Installation: Factory installed within RQT enclosure includes receiver antenna.
Receiver Capacity: Unlimited number of keyfob’s can be programmed to

trigger any of the 4 standard inputs
Keyfob Power/Range: 80µV/m max, Up to 250 ft. –range depends on building structure

and topography

Keyfob Programming: jumper programming
Keyfob Battery: 3V CR2032 lithium button cell
Keyfob Buttons: Single button standard, optional multi-button up to 5
Keyfob Dimensions: 2.23” H x 1.37” W x .45” D

Note: With Optional internal 433 MHz receiver, the RQT MUST be powered with external
power supply – use Ritron p/n RPS-Expo.

PT Portable Radio

LoudMouth

Wireless PA System

Ritron

Base Station

Call Button/Panic Alarm –A stainless steel
push button assembly (p/n #RPB-1AG),
connected to the QuickTalk provides an
effective push button alerting solution. With
a simple push of a button, a custom pre­recorded alert message is transmitted directly
and discretely to radio equipped personnel.

Door Alarm –A magnetic door switch con-
nected to a QuickTalk transmitter allows
easy monitoring of open doors, windows,
tool cribs, etc. It can also be programmed
to monitor and alert when a “propped” door
condition is detected.

Power ON/Fail Alarm –With the Power-Out
Alert connected to a QuickTalk, it can detect
a loss of AC power and immediately trigger
the QuickTalk to send an alert to all radio
equipped personnel. It even works through
repeaters!

Temperature Alert –This device connected
to a QuickTalk lets you monitor and receive
voice alerts for pre-set high or low tempera­tures. Use for monitoring the environments
of livestock, produce, refrigerated units, and
computer rooms.

Liquid Level –Monitor liquid levels. A simple
marine grade liquid level switch connected to a
QuickTalk can help provide and early warning
alert for both high and low level conditions.

Wireless Shopper Callbox –The RQA offers
the same basic voice-alerting features and
battery powered operation as the RQT, with
the exception that it is a turn-key package
complete with “How Can We Help” label, red
push button, and LED transmit indicator.

Models RQT-451 (UHF) RQT-151 (VHF) RQT-151M (VHF)
RQT-452 (UHF) RQT-152 (VHF) RQT-152M (VHF)

FCC ID: AIERIT32-451 AIERIT32-151 AIERIT32-151M

FCC Rule Parts: 90 90 95J

Frequency Range: 450 to 470 MHz 150–165 MHz 150–165 MHz

MURS frequencies only

Bandwidth: Narrow Band Only Narrow Band Only Narrow and Wide Band
No. of Channels: 4 4 4

Synthesizer Step Size: 6.25 kHz 2.5 kHz 2.5 kHz

Frequency Stability

(-30° to +60° C): +/-2.5 PPM +/-1.5 PPM +/-1.5 PPM

Emission Designators: 11K0F3E 11K0F3E 11K0F3E narrow
16KOF3E wide

Deviation: +/- 2.50 kHz +/- 2.50 kHz +/- 2.50 kHz narrow
+/- 5.0 kHz wide

FM Hum and Noise: -35 dB -40 dB -40 dB narrow

-46 dB wide

Audio Distortion: < 6 % < 6 % < 6 % narrow
< 3 % wide

RF Power Output: 120 mW
2 Watt (RQT-452) 2 Watt (RQT-152) 2 Watt (RQT-152M)

All Models

Coded Signaling Encode: CTCSS, Quiet Call, 51 Tones

DCS, Digital Quiet Call, all codes
DTMF ANI
3-7 tone Selcall

Typical Range: One half mile to a handheld radio transceiver using the
standard flexible antenna. Greater range is possible if optional
antenna (RAM-1545), or a radio repeater is used.

Battery Life: 1 year when using AA batteries and the unit transmits a 5 second
message once each hour, 24 hours per day, 5 days per week
or approximately 7,000 transmissions.

Internal Battery: 6 AA batteries. (Lithium-Ion batteries, none rechargeable)

External Power: 12 - 18 VDC, Use Ritron p/n# RPS-EXPO

Antenna Connector: BNC, 50 Ohms, front panel mounted

Antenna: Ritron AFB-1545 Standard Antenna, Flexible Whip,

14 inches long with elbow connector.

Housing: Polycarbonate

Dimensions: 7.57” x 5.07” x 2.65” (19.23cm x 12.88cm x 6.73cm)

Weight: 1 pound, without batteries and antenna

Number of Switch Inputs: 4 Momentary, Latching, Analog Voltage or Resistance

Voice Message Length: 24 seconds total for all voice messages, equally allocated to

the programmed inputs

Auxiliary Messages: (Fixed Time) Low Battery (2 seconds)
External Power Failure (2 seconds)
Location (2 seconds) One location message per RQT. Precedes voice
message for each input.

Programming Method: User Programmable with Ritron RQA/RQT PC Programmer via USB

Programmable Features: - 4 independently programmed inputs

- Analog or digital input operation

- Event driven and/or scheduled transmission of input status

- Compressed transmitted audio (compatible with companded radios)

- Preamble alert tone prior to transmitter voice message
(selectable On/Off)

- Unique, user recorded voice messages

- Voice message recording via on-board microphone or
pre-recorded .wav file

- External power failure and low battery alert

(RQT-451) 120 mW (RQT-151) 120 mW (RQT-151M)
