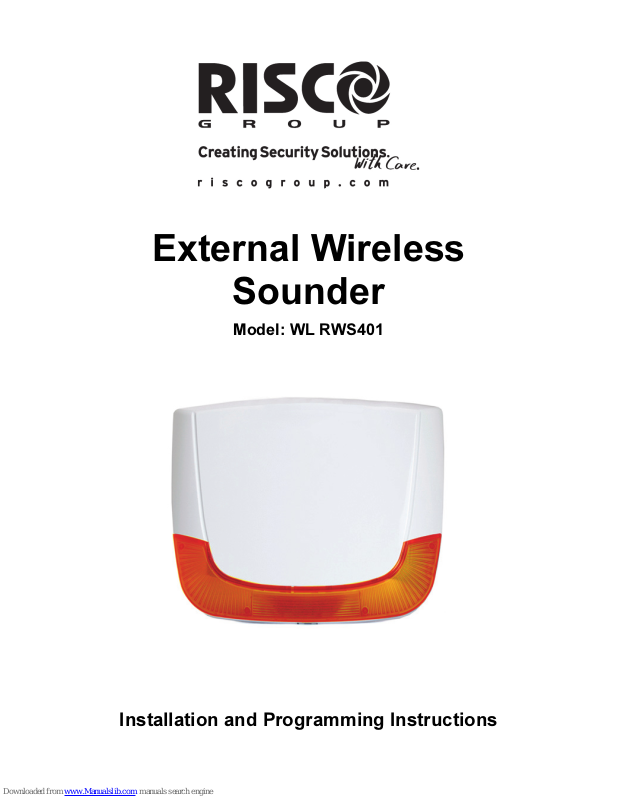

Risco WL RWS401 Installation And Programming Instructions

External Wireless

Sounder

Model: WL RWS401

Installation and Programming Instructions

Wireless Sounder Instructions

2

Table of Contents

Introduction ........................................................................................................... 3

Operational Functions .......................................................................................... 3

Alarm / Tamper Indication ................................................................................... 3

Low Battery Indication ......................................................................................... 3

Supervision ......................................................................................................... 3

Pre Alarm Indication ............................................................................................ 3

Sounder Self Testing ........................................................................................... 3

LED display ......................................................................................................... 3

Mounting the Sounder .......................................................................................... 4

Programming the sounder ................................................................................... 6

Step 1: Sounder/Receiver Communication Set up .............................................. 6

Step 2: Setting the Sounder Parameters ............................................................. 6

Strobe Control ............................................................................................... 6

Strobe Blink ................................................................................................... 6

Strobe Arm Squawk ...................................................................................... 7

Adjusting the Volume .................................................................................... 7

Muting Tamper .............................................................................................. 7

Setting Supervision Time .............................................................................. 7

Pre Alarm indication ...................................................................................... 8

Step 3: Testing the Sounder ............................................................................... 8

Communication Test ..................................................................................... 8

Diagnostics .................................................................................................... 8

Replacing Batteries .............................................................................................. 9

Technical Information ......................................................................................... 10

Electrical ........................................................................................................... 10

Wireless ............................................................................................................ 10

Environment ...................................................................................................... 10

RTTE Compliance Statement ........................................................................... 10

RISCO Group Limited Warranty ........................................................................ 11

Contacting RISCO Group ................................................................................... 12

Wireless Sounder Instructions

3

Introduction

RISCO Group's two-way External Wireless Sounder is designed to extend the
signaling capabilities of RISCO Group's wireless systems. The wireless sounder
offers an easy and flexible solution for quick installation. The sounder is powered by
its own batteries and communicates wirelessly with the security panel.
Up to 3 wireless sounders can be assigned to a system.

Operational Functions

Alarm / Tamper Indication

Upon an alarm condition, the sounder will be activated for a period of time defined
by the system (Bell Time Out parameter).

Low Battery Indication

Upon a low battery condition a trouble indication is sent to the panel.
There are 2 types of low battery indications:

 Radio low battery
 Speaker low battery

Supervision

Each sounder can be defined to be supervised by the panel. The system generates
a local fault signal identifying the sounder whose signal is not received during a
predefined time, followed by a report to the Alarm Receiving Center (if defined).

Pre Alarm Indication

When an entry time starts, the system transmits a pre-alarm signal to the sounder.
If the system is unset before the entry delay time expires, a cancellation signal is
sent to the sounder.
If the sounder does not receive a cancellation signal within the entry delay time, the
sounder will be activated.

Sounder Self Testing

Once placing all batteries in the battery holders or pressing on the reset switch
located on the PCB (with the tamper switch open), the sounder performs a
functional self test indicated by a strobe flash squawk sound.

LED display

The wireless sounder has 2 LEDs located on the PCB. These LEDs are
enabled when the tamper is open and 10 minutes after the tamper is closed.

Red: Indicates transmission
Yellow: Indicates a low battery

Red and Yellow (3 seconds): Confirms successful learning

Wireless Sounder Instructions

4

Mounting the Sounder

To mount the sounder follow this procedure:

1. Open the front cover by removing the case locking screw located at the bottom of
the unit.

2. Hold the mounting pattern template (supplied) against the wall and mark the
locations for the mounting holes (4 mounting holes are available).

Drill the desired

mounting holes and place the screw anchors.

3. Mount the back unit to the wall using the supplied screws, 3.9mm, 32mm length
screws (DIN 7981 3.9X32 ZP).

4. Insert a tamper screw into a tamper hole -- see the figure below.

5. Access to the PCB is gained by releasing the inner cover retaining the clip and
lifting the cover upward (rotating it on its axis).

6. Insert the supplied batteries in the metal clips according to the polarity. The
sounder is ready for communication set up with the system.

Tamper Screw

7. After the sounder is trained, Close the inner cover, re-attach the front cover and
lock the Cover Screw Assembly.
