RIOTEC iLS6303XBU, iLS6303XB Programming Quick Manual

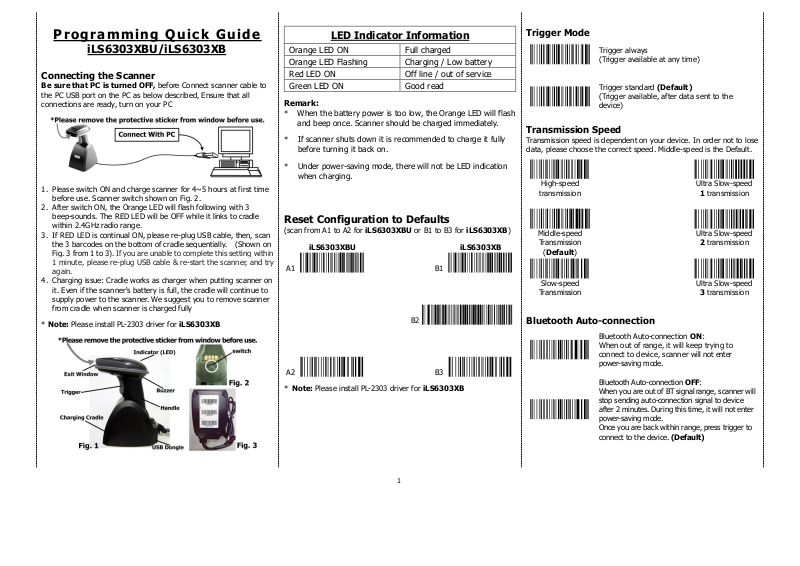

Programming Quic k G u i d e

iLS6303XBU/iLS6303XB

Connecting the Scanner

Be sure that PC is turned OFF, before Connect scanner cable to

the PC USB port on the PC as below described, Ensure that all
connections are ready, turn on your PC

1. Please switch ON and charge scanner for 4~5 hours at first time

before use. Scanner switch shown on Fig. 2.

2. After switch ON, the Orange LED will flash following with 3

beep-sounds. The RED LED will be OFF while it links to cradle
within 2.4GHz radio range.

3. If RED LED is continual ON, please re-plug USB cable, then, scan

the 3 barcodes on the bottom of cradle sequentially. (Shown on
Fig. 3 from 1 to 3). If you are unable to complete this setting within

1 minute, please re-plug USB cable & re-start the scanner, and try
again.

4. Charging issue: Cradle works as charger when putting scanner on

it. Even if the scanner's battery is full, the cradle will continue to
supply power to the scanner. We suggest you to remove scanner
from cradle when scanner is charged fully

* Note: Please install PL-2303 driver for iLS6303XB

LED Indicator Information

Orange LED ON

Full charged

Orange LED Flashing

Charging / Low battery

Red LED ON

Off line / out of service

Green LED ON

Good read

Remark:

* When the battery power is too low, the Orange LED will flash

and beep once. Scanner should be charged immediately.

* If scanner shuts down it is recommended to charge it fully

before turning it back on.

* Under power-saving mode, there will not be LED indication

when charging.

Reset Configuration to Defaults

(scan from A1 to A2 for iLS6303XBU or B1 to B3 for iLS6303XB)

iLS6303XBU

iLS6303XB

A1

www.tec-it.com

B1

www.tec-it.com

B2

Demo

A2

Demo

B3

Demo

* Note: Please install PL-2303 driver for iLS6303XB

Trigger Mode

Demo

Trigger always
(Trigger available at any time)

Demo

Trigger standard (Default)
(Trigger available, after data sent to the
device)

Transmission Speed

Transmission speed is dependent on your device. In order not to lose
data, please choose the correct speed. Middle-speed is the Default.

Demo

Demo

High-speed

Ultra Slow-speed

transmission

1 transmission

Demo

Middle-speed

Ultra Slow-speed

Transmission

(Default)

2 transmission

Demo

Slow-speed

Ultra Slow-speed

Transmission

3 transmission

Bluetooth Auto-connection

Demo

Bluetooth Auto-connection ON:
When out of range, it will keep trying to
connect to device, scanner will not enter
power-saving mode.

Demo

Bluetooth Auto-connection OFF:
When you are out of BT signal range, scanner will
stop sending auto-connection signal to device
after 2 minutes. During this time, it will not enter
power-saving mode.
Once you are back within range, press trigger to
connect to the device. (Default)

1

Keyboard Country(For USB HID only)

Scan the appropriate country code as below to program the keyboard
layout for your country or language. As a general rule, the following
characters are supported, but need special care for countries other
than the United States: @ | $ # { } [ ] = / ‘ \ < > ~

USA

(Original setting)

Italian

Norway

France

Germany

Vietnam

Sweden

Spain

Denmark

Portugal

Switzerland (F)

Hungary

Latin America

Icelandic

Brazil

Poland

Belgium

Turkey F

Bulgarian Latin

Turkey Q

Finland

Japan

Netherlands

Korea

Thai

Russia

Switzerland German

*The different keyboard language option starts from June. 2017.

Power-saving Mode

Demo

Power-saving mode OFF

Demo

Power-saving mode ON (Default):
Enter power-saving mode after 3-minute inactivity.
This function converses battery power. When you
press "SCAN/Power ON" button, it will wake up and
begin to scan.

Demo

Power-saving mode ON:
Enter power-saving mode after 10-minute
inactivity. This function converses battery power.
When you press "SCAN/Power ON" button, it will
wake up and begin to scan.

*When charging, the scanner will not enter power-saving mode

automatically

How to append a “prefix” or a “suffix” to the

barcode data

Demo
Demo

prefix

suffix

1. scan above configuration code for Prefix or Suffix

2. enter the required values (right, numeric barcode) for Prefix or

Suffix using the hex values for the desired HEX values from “Prefix
& Suffix TABLE (blew page)”

3. then, end by scanning Code X (below, right)
* The max. of special characters is 5.

* When you append 1~4 required values for Prefix or Suffix, it must

end with Code X.

* It doesn’t need Code X, if you append 5 values to barcode data.

How to delete Prefix or Suffix

1. scan above configuration code for Prefix or Suffix

2. enter the “0” “0” (above, right)

3. then end by scanning Code X (below, right)

Numeric barcode for settings

Demo

0

Demo

6

Demo

C

Demo

1

Demo

7

Demo

D

Demo

2

Demo

8

Demo

E

Demo

3

Demo

9

F

Demo

4

Demo

A

Demo

5

Demo

B

Demo

X

2

Prefix & Suffix TABLE

HEX

HID

(SPP)

HEX

HID

(SPP)

HEX HEX HEX HEX

01

CTRL A

(SOH)

19

CTRL Y

(EM)

20

SPACE

38 8 50 P 68 h 02

CTRL B

(STX)

1A

CTRL

Z(SUB)

21 ! 39 9 51 Q 69 i 03

CTRL C

(ETX)

1B

ESC

(ESC)

22 " 3A : 52 R 6A j 04

CTRL D

(EOT)

1C

CTRL \

(FS)

23 # 3B ; 53 S 6B k 05

CTRL E

(ENQ)

1D

CTRL ]

(GS)

24 $ 3C < 54 T 6C l 06

CTRL F

(ACK)

1E

CTRL ^

(RS)

25 % 3D = 55 U 6D m 07

CTRL G

(BEL)

1F

CTRL _

(US)

26 & 3E > 56 V 6E n 08

Backspace

(BS)

27 ' 3F ? 57 W 6F o 09

Tab

(HT)

28 ( 40 @ 58 X 70 p 0A

CTRL J

(LF)

29 ) 41 A 59 Y 71 q 0B

CTRL K

(VT)

2A * 42 B 5A Z 72 r 0C

CTRL L

(FF)

2B + 43 C 5B [ 73 s 0D

Enter

(CR)

2C , 44 D 5C \ 74 t 0E

CTRL N

(SO)

2D - 45 E 5D ] 75 u 0F

CTRL O

(SI)

2E . 46 F 5E ^ 76 v 10

CTRL P

(DLE)

2F / 47 G 5F _ 77 w 11

CTRL Q

(DC1)

30 0 48 H 60 ` 78 x 12

CTRL R

(DC2)

31 1 49 I 61 a 79 y 13

CTRL S

(DC3)

32 2 4A J 62 b 7A

z

14

CTRL T

(DC4)

33 3 4B K 63 c 7B { 15

CTRL U

(NAK)

34 4 4C L 64 d 7C

|

16

CTRL V

(SYN)

35 5 4D M 65 e 7D

}

17

CTRL W

(ETB)

36 6 4E N 66 f 7E ~ 18

CTRL X

(CAN)

37 7 4F O 67 g

Reading Techniques

The view finder projects an aiming
beam that should be centered over the
bar code, but it can be positioned in
any direction for a good read.

* Hold the scanner over the bar code, pull the trigger, and center the

aiming beam on the bar code.

* The aiming beam is smaller when the scanner is closer to the code

and larger when it is farther from the code.

1D Symbologies On/OFF -1

ENABLE

Codabar

DISABLE

ENABLE

Code 39

DISABLE

Demo

Demo

ENABLE

Code 39

Full ASCII

DISABLE

Demo

Demo

ENABLE

Interleaved

2 of 5

DISABLE

Demo

ENABLE

NEC 2 of 5

DISABLE

Demo

1D Symbologies On/OFF -2

ENABLE

Straight 2 of 5

Industrial

DISABLE

Demo

ENABLE

Straight 2 of 5

IATA

DISABLE

Demo

ww w .tec-it.com

ENABLE

Matrix

2 of 5

DISABLE

Demo

ENABLE

GS1-128

DISABLE

ENABLE

UPC-A

DISABLE

ENABLE

UPC-E

DISABLE

Demo

Demo

ENABLE

Code 11

DISABLE

Demo

ENABLE

Code 93

DISABLE

Demo

3

1D Symbologies On/OFF -3

ENABLE

Telepen

DISABLE

ENABLE

GS1 DataBar

Omnidirectional

DISABLE

Demo

ENABLE

GS1 DataBar

Limited

DISABLE

Demo

ENABLE

GS1 DataBar

Expanded

DISABLE

Demo

ENABLE

MSI

DISABLE

ENABLE

Trioptic

Code

DISABLE

Demo

ENABLE

EAN-13

DISABLE

ENABLE

EAN-8

DISABLE

ENABLE

Code 32

DISABLE

ww w .tec-it.com

* If you are going to scan Code 32, Trioptic Code must be off.

2D Symbologies On/OFF

ENABLE

Codablock A

DISABLE

ENABLE

Codablock F

DISABLE

ENABLE

PDF 417

DISABLE

Demo
Demo

ENABLE

Micro

PDF 417

DISABLE

ww w .tec-it.com

ENABLE

QR Code

DISABLE

Demo

ENABLE

Data Matrix

DISABLE

ENABLE

MaxiCOde

DISABLE

ww w .tec-it.com

ENABLE

Aztec Code

DISABLE

Demo

Demo

ENABLE

Chinese Sensible

(Han Xin) Code

DISABLE

Demo

Quick guide is subject to change without notice.

R_180808_01
