Programming Quic k G u i d e
iLS6300VBU/iLS6300VB
Connecting the Scanner
Be sure that PC is turned OFF, before Connect scanner cable to the
PC USB port on the PC as below described, Ensure that all connections
are ready, and turn on your PC.
1. Please switch ON and charge scanner for 4~5 hours at first time before
use. Scanner switch shown on Fig. 2.
2. After switch ON, the Orange LED will flash following with 3
beep-sounds. The RED LED will be OFF while it links to cradle within
2.4GHz radio range.
3. If RED LED is continual ON, please re-plug USB cable, then, scan the 3
barcodes on the bottom of cradle sequentially. (Shown on Fig. 3 from
1 to 3). If you are unable to complete this setting within 1 minute,
please re-plug USB cable & re-start the scanner, and try again.
4. Charging issue: Cradle works as charger when putting scanner on it.
Even if the scanner's battery is full, the cradle will continue to supply
power to the scanner. We suggest you to remove scanner from cradle
when scanner is charged fully
* Note: Please install PL-2303 driver for iLS6300VB
LED Indicator Information
Orange LED ON
Full charged
Orange LED Flashing
Charging / Low battery
Red LED ON
Offline / out of service
Green LED ON
Good read
Remark:
* When the battery power is too low, the Orange LED will flash and beep once.
Scanner should be charged immediately.
* If scanner shuts down it is recommended to charge it fully before turning it back
on.
* Under power-saving mode, there will not be LED indication when charging.
Reset Configuration to Defaults
(scan from A1 to A8 for iLS6300FBU or B1 to B7 for iLS6300FB)
iLS6300VBU
iLS6300VB
A1
Demo
B1
Demo
A2
Demo
B2
Demo
A3
Demo
B3
Demo
A4
Demo
B4
Demo
A5
Demo
B5
A6
B6
Demo
A7
Demo
B7
Demo
A8
Demo
* Note: Please install PL-2303 driver for iLS6300VB
Trigger Mode
Demo
Trigger always
(Trigger available at any time)
Demo
Trigger standard (Default)
(Trigger available, after data sent to the device)
Transmission Speed
Transmission speed is dependent on your device. In order not to lose
data, please choose the correct speed. Middle-speed is the Default.
Demo
Demo
High-speed
Ultra Slow-speed
Transmission
1 transmission
Demo
Middle-speed
Ultra Slow-speed
Transmission
(Default)
2 transmission
Demo
Slow-speed
Ultra Slow-speed
Transmission
3 transmission
Bluetooth Auto-connection
Demo
Bluetooth Auto-connection ON:
When out of range, it will keep trying to
connect to device, scanner will not enter
power-saving mode.
Demo
Bluetooth Auto-connection OFF:
When you are out of BT signal range, scanner
will stop sending auto-connection signal to
device after 2 minutes. During this time, it will
not enter power-saving mode. Once you are
back within range, press trigger to connect to the
device. (Default)
1
Keyboard Country(For USB HID only)
Scan the appropriate country code as below to program the keyboard
layout for your country or language. As a general rule, the following
characters are supported, but need special care for countries other
than the United States: @ | $ # { } [ ] = / ‘ \ < > ~
USA
(Original setting)
Italian
Norway
France
Germany
Vietnam
Sweden
Spain
Denmark
Portugal
Switzerland (F)
Hungary
Latin America
Icelandic
Brazil
Poland
Belgium
Turkey F
Bulgarian Latin
Turkey Q
Finland
Japan
Netherlands
Korea
Thai
Russia
Switzerland German
*The different keyboard language option starts from June. 2017.
Power-saving Mode
Demo
Power-saving mode OFF
Demo
Power-saving mode ON (Default):
Enter power-saving mode after 3-minute inactivity.
This function converses battery power. When you
press "SCAN/Power ON" button, it will wake up and
begin to scan.
Demo
Power-saving mode ON:
Enter power-saving mode after 10-minute
inactivity. This function converses battery power.
When you press "SCAN/Power ON" button, it will
wake up and begin to scan.
*When charging, the scanner will not enter power-saving mode
automatically
How to append a “prefix” or a “suffix” to the
barcode data
Demo
Demo
prefix
suffix
1. Scan above configuration code for Prefix or Suffix
2. Enter the required values (right, numeric barcode) for Prefix or
Suffix using the hex values for the desired HEX values from “Prefix
& Suffix TABLE (blew page)”
3. Then, end by scanning Code X (below, right)
* The max. of special characters is 5.
* When you append 1~4 required values for Prefix or Suffix, it must
end with Code X.
* It doesn’t need Code X, if you append 5 values to barcode data.
How to delete Prefix or Suffix
1. Scan above configuration code for Prefix or Suffix
2. Enter the “0” “0” (above, right)
3. Then end by scanning Code X (below, right)
Numeric barcode for settings
Demo
0
Demo
6
Demo
C
Demo
1
Demo
7
Demo
D
Demo
2
Demo
8
Demo
E
Demo
3
Demo
9
F
Demo
4
Demo
A
Demo
5
Demo
B
Demo
X
2
Prefix & Suffix TABLE
HEX
HID
(SPP)
HEX
HID
(SPP)
HEX HEX HEX HEX
01
CTRL A
(SOH)
19
CTRL Y
(EM)
20
SPACE
38 8 50 P 68 h 02
CTRL B
(STX)
1A
CTRL
Z(SUB)
21 ! 39 9 51 Q 69 i 03
CTRL C
(ETX)
1B
ESC
(ESC)
22 " 3A : 52 R 6A j 04
CTRL D
(EOT)
1C
CTRL \
(FS)
23 # 3B ; 53 S 6B
k
05
CTRL E
(ENQ)
1D
CTRL ]
(GS)
24 $ 3C < 54 T 6C l 06
CTRL F
(ACK)
1E
CTRL ^
(RS)
25 % 3D = 55 U 6D m 07
CTRL G
(BEL)
1F
CTRL _
(US)
26 & 3E > 56 V 6E n 08
Backspace
(BS)
27 ' 3F ? 57 W 6F o 09
Tab
(HT)
28 ( 40 @ 58 X 70
p
0A
CTRL J
(LF)
29 ) 41 A 59 Y 71 q 0B
CTRL K
(VT)
2A * 42 B 5A Z 72 r 0C
CTRL L
(FF)
2B + 43 C 5B [ 73 s 0D
Enter
(CR)
2C , 44 D 5C \ 74 t 0E
CTRL N
(SO)
2D - 45 E 5D ] 75 u 0F
CTRL O
(SI)
2E . 46 F 5E ^ 76 v 10
CTRL P
(DLE)
2F / 47 G 5F _ 77 w 11
CTRL Q
(DC1)
30 0 48 H 60 ` 78 x 12
CTRL R
(DC2)
31 1 49 I 61 a 79
y
13
CTRL S
(DC3)
32 2 4A J 62 b 7A z 14
CTRL T
(DC4)
33 3 4B K 63 c 7B { 15
CTRL U
(NAK)
34 4 4C L 64 d 7C
|
16
CTRL V
(SYN)
35 5 4D M 65 e 7D
}
17
CTRL W
(ETB)
36 6 4E N 66 f 7E
~
18
CTRL X
(CAN)
37 7 4F O 67 g

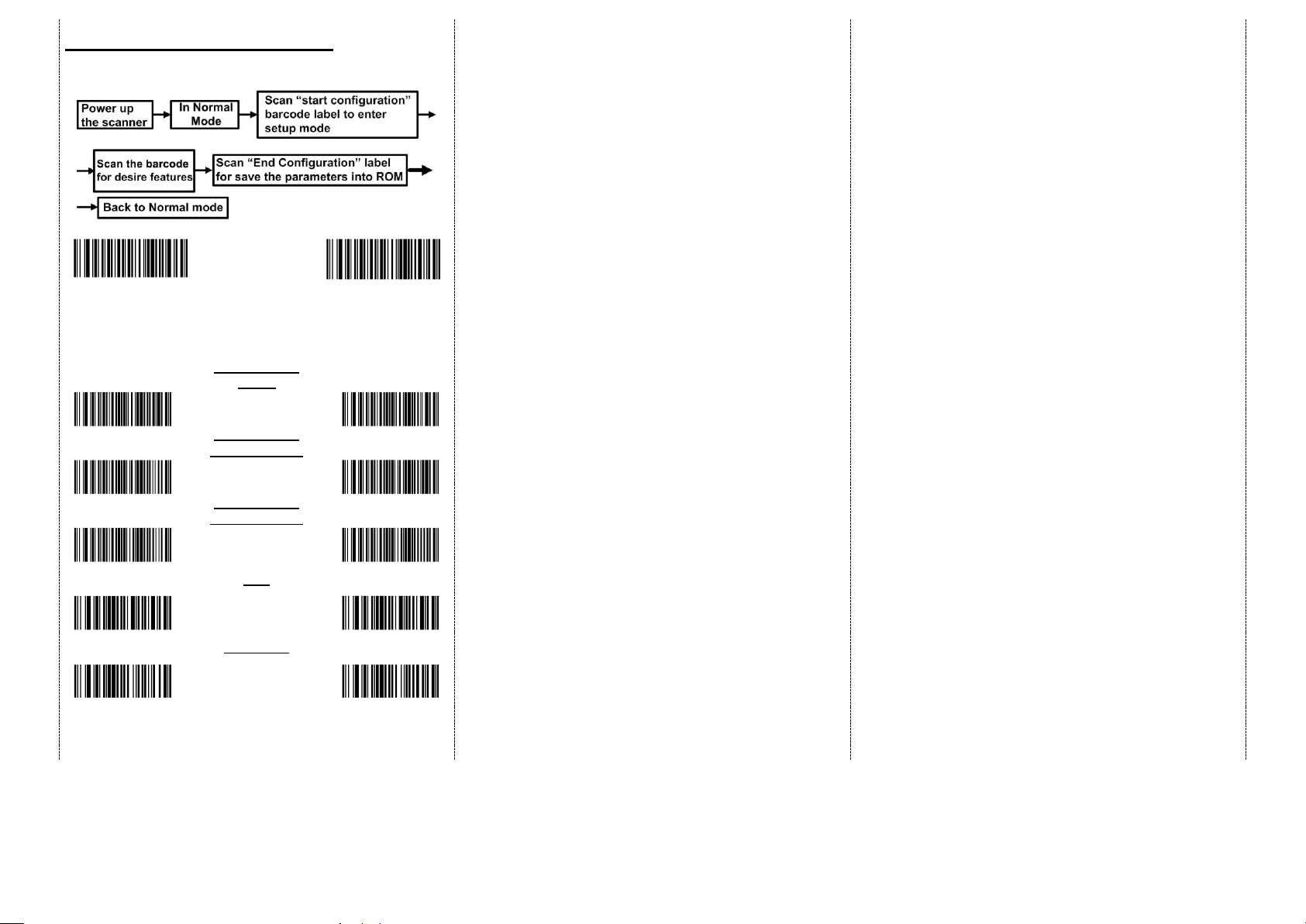

Barcode Configuration Method:
(Flow chart for setup procedure :)
Start
Configuration
End
Configuration
1D Symbologies – 1
ENABLE
CODE 39
DISABLE
Demo
ENABLE
GS1-128
UCC/EAN-128
DISABLE
ENABLE
EAN8
DISABLE
Demo
ENABLE
EAN-13
DISABLE
Demo
1D Symbologies – 2
ENABLE
CODE 93
DISABLE
ENABLE
CODE 11
DISABLE
Demo
ENABLE
ISSN
DISABLE
ENABLE
ISBN
DISABLE
Demo
ENABLE
UPC-E
DISABLE
ENABLE
UPC-A
DISABLE
Demo
ENABLE
Interleaved
25
DISABLE
Demo
ENABLE
Matrix 25
DISABLE
Demo
ENABLE
Industrial 25
DISABLE
Demo
3
Barcode Configuration Method:
(Flow chart for setup procedure :)
Start
Configuration
End
Configuration
1D Symbologies – 3
ENABLE
GS1-Databar
(RSS)
DISABLE
Demo
ENABLE
GS1-Databar
(RSS-Limited)
DISABLE
Demo
ENABLE
GS1-Databar
(RSS-Expand)
DISABLE
Demo
Demo
ENABLE
MSI
DISABLE
Demo
ENABLE
CODABAR
DISABLE
Quick guide is subject to change without notice.
R_180808_01
