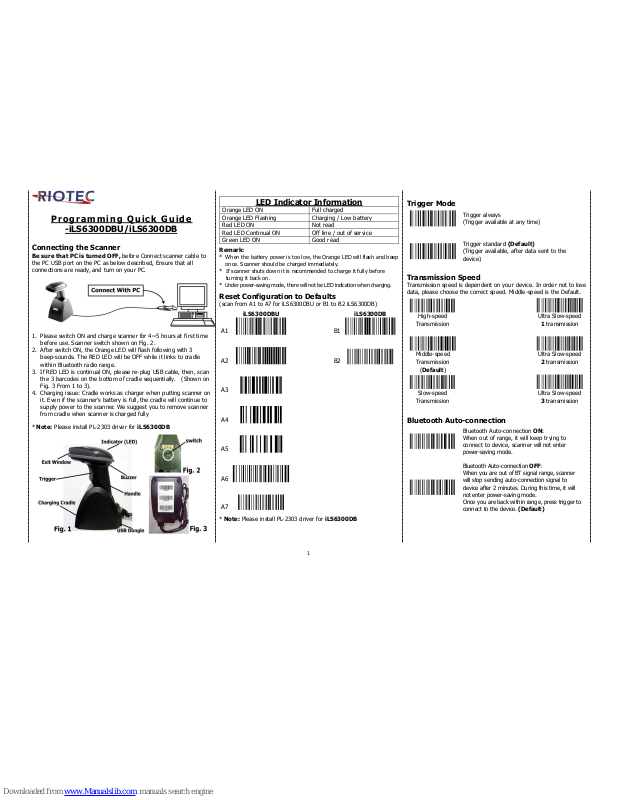

P rogrammi n g Q u i c k G uide
-iLS6300DBU/iLS6300DB
Connecting the Scanner
Be sure that PC is turned OFF, before Connect scanner cable to
the PC USB port on the PC as below described, Ensure that all
connections are ready, and turn on your PC.
1. Please switch ON and charge scanner for 4~5 hours at first time
before use. Scanner switch shown on Fig. 2.
2. After switch ON, the Orange LED will flash following with 3
beep-sounds. The RED LED will be OFF while it links to cradle
within Bluetooth radio range.
3. If RED LED is continual ON, please re-plug USB cable, then, scan
the 3 barcodes on the bottom of cradle sequentially. (Shown on
Fig. 3 From 1 to 3).
4. Charging issue: Cradle works as charger when putting scanner on
it. Even if the scanner's battery is full, the cradle will continue to
supply power to the scanner. We suggest you to remove scanner
from cradle when scanner is charged fully
* Note: Please install PL-2303 driver for iLS6300DB
LED Indicator Information
Orange LED ON
Full charged
Orange LED Flashing
Charging / Low battery
Red LED ON
Not read
Red LED Continual ON
Off line / out of service
Green LED ON
Good read
Remark:
* When the battery power is too low, the Orange LED will flash and beep
once. Scanner should be charged immediately.
* If scanner shuts down it is recommended to charge it fully before
turning it back on.
* Under power-saving mode, there will not be LED indication when charging.
Reset Configuration to Defaults
(scan from A1 to A7 for iLS6300DBU or B1 to B2 iLS6300DB)
iLS6300DBU
iLS6300DB
A1
B1
A2
B2
Demo
A3
A4
A5
A6
A7
Demo
* Note: Please install PL-2303 driver for iLS6300DB
Trigger Mode
Demo
Trigger always
(Trigger available at any time)
Demo
Trigger standard (Default)
(Trigger available, after data sent to the
device)
Transmission Speed
Transmission speed is dependent on your device. In order not to lose
data, please choose the correct speed. Middle-speed is the Default.
Demo
Demo
High-speed
Ultra Slow-speed
Transmission
1 transmission
Demo
Middle-speed
Ultra Slow-speed
Transmission
(Default)
2 transmission
Demo
Slow-speed
Ultra Slow-speed
Transmission
3 transmission
Bluetooth Auto-connection
Demo
Bluetooth Auto-connection ON:
When out of range, it will keep trying to
connect to device, scanner will not enter
power-saving mode.
Demo
Bluetooth Auto-connection OFF:
When you are out of BT signal range, scanner
will stop sending auto-connection signal to
device after 2 minutes. During this time, it will
not enter power-saving mode.
Once you are back within range, press trigger to
connect to the device. (Default)
2
Keyboard Country(For USB HID only)
Scan the appropriate country code as below to program the keyboard
layout for your country or language. As a general rule, the following
characters are supported, but need special care for countries other
than the United States: @ | $ # { } [ ] = / ‘ \ < > ~
USA
(Original setting)
Italian
Norway
France
Germany
Vietnam
Sweden
Spain
Denmark
Portugal
Switzerland (F)
Hungary
Latin America
Icelandic
Brazil
Poland
Belgium
Turkey F
Bulgarian Latin
Turkey Q
Finland
Japan
Netherlands
Korea
Thai
Russia
Switzerland German
*The different keyboard language option starts from June. 2017.
Power-saving Mode
Demo
Power-saving mode OFF
Demo
Power-saving mode ON (Default):
Enter power-saving mode after 3-minute inactivity.
This function converses battery power. When you
press "SCAN/Power ON" button, it will wake up and
begin to scan.
Demo
Power-saving mode ON:
Enter power-saving mode after 10-minute
inactivity. This function converses battery power.
When you press "SCAN/Power ON" button, it will
wake up and begin to scan.
*When charging, the scanner will not enter power-saving mode
automatically
How to append a “prefix” or a “suffix” to the
barcode data
Demo
Demo
prefix suffix
1. Scan above configuration code for Prefix or Suffix
2. Enter the required values (right, numeric barcode) for Prefix or
Suffix using the hex values for the desired HEX values from “Prefix
& Suffix TABLE (blew page)”
3. Then, end by scanning Code X (below, right)
* The max. of special characters is 5.
* When you append 1~4 required values for Prefix or Suffix, it must
end with Code X
* It doesn’t need Code X, if you append 5 values to barcode data.
How to delete Prefix or Suffix
1. Scan above configuration code for Prefix or Suffix
2. Enter the “0” “0” (above, right)
3. Then end by scanning Code X (below, right)
Numeric barcode for settings
Demo
0
Demo
6
Dem o
C
Demo
1
Demo
7
Dem o
D
Demo
2
Demo
8
Dem o
E
Demo
3
Demo
9
F
Demo
4
Dem o
A
Demo
5
Dem o
B
Dem o
X
3
Prefix & Suffix TABLE
HEX
HID
(SPP)
HEX
HID
(SPP)
HEX HEX HEX HEX
01
CTRL A
(SOH)
19
CTRL Y
(EM)
20
SPACE
38 8 50 P 68 h 02
CTRL B
(STX)
1A
CTRL
Z(SUB)
21 ! 39 9 51 Q 69 i 03
CTRL C
(ETX)
1B
ESC
(ESC)
22 " 3A : 52 R 6A j 04
CTRL D
(EOT)
1C
CTRL \
(FS)
23 # 3B ; 53 S 6B
k
05
CTRL E
(ENQ)
1D
CTRL ]
(GS)
24 $ 3C < 54 T 6C l 06
CTRL F
(ACK)
1E
CTRL ^
(RS)
25 % 3D = 55 U 6D m 07
CTRL G
(BEL)
1F
CTRL _
(US)
26 & 3E > 56 V 6E n 08
Backspace
(BS)
27 ' 3F ? 57 W 6F o 09
Tab
(HT)
28 ( 40 @ 58 X 70 p 0A
CTRL J
(LF)
29 ) 41 A 59 Y 71 q 0B
CTRL K
(VT)
2A * 42 B 5A Z 72 r 0C
CTRL L
(FF)
2B + 43 C 5B [ 73 s 0D
Enter
(CR)
2C , 44 D 5C \ 74
t
0E
CTRL N
(SO)
2D - 45 E 5D ] 75 u 0F
CTRL O
(SI)
2E . 46 F 5E ^ 76 v 10
CTRL P
(DLE)
2F / 47 G 5F _ 77 w 11
CTRL Q
(DC1)
30 0 48 H 60 ` 78 x 12
CTRL R
(DC2)
31 1 49 I 61 a 79
y
13
CTRL S
(DC3)
32 2 4A J 62 b 7A z 14
CTRL T
(DC4)
33 3 4B K 63 c 7B { 15
CTRL U
(NAK)
34 4 4C L 64 d 7C | 16
CTRL V
(SYN)
35 5 4D M 65 e 7D } 17
CTRL W
(ETB)
36 6 4E N 66 f 7E ~ 18
CTRL X
(CAN)
37 7 4F O 67 g
Barcode Configuration Method:
Please follow the below 1~5 steps to complete the
“Symbologies enable” or “Symbologies disable”
1. Start Configuration 2. Choose one Symbologies
3 & 4 scan 2 Enable (or Disable) setting codes
5. End Configuration
1
Start
Configuration
1D Symbologies – 1
2
UPC-A
2
UPC-E
2
EAN-13
(ISBN/ISSN)
2
EAN-8
2
Industrial
2 of 5
2
Matrix
2 of 5
2
Code 93
2
Code 11
2
MSI/Plessey
2
UK/Plessey
1D Symbologies – 2
2
Codabar
2
ISBT 128
2
UCC/EAN 128
2
Interleaved
2 of 5
2
Code 39
(Code 32)
2
GS1 DataBar
2
China Post
2
GS1 DataBar
Expanded
2
GS1 DataBar
Limited
3
Enable
3
Disable
4
Enable
4
Disable
5
End
Configuration
Quick guide is subject to change without notice.
