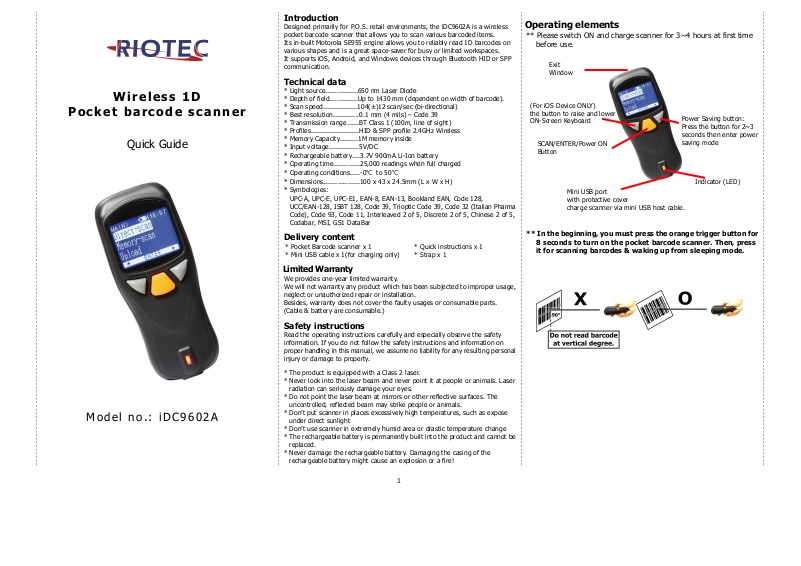

Riotec iDC9602A Quick Guide

Introduction

Indicator (LED)

Wireless 1D

Pocket barcode s ca n n er

Quick Guide

M od e l n o .: iD C 9 6 0 2 A

Designed primarily for P.O.S. retail environments, the iDC9602A is a wireless pocket barcode scanner that allows you to scan various barcoded items. Its in-built Motorola SE955 engine allows you to reliably read 1D barcodes on various shapes and is a great space-saver for busy or limited workspaces. It supports iOS, Android, and Windows devices through Bluetooth HID or SPP communication.

Technical data

* Light source................650 nm Laser Diode

* Depth of field..............Up to 1430 mm (dependent on width of barcode).

* Scan speed.................104(±)12 scan/sec (bi-directional)

* Best resolution.............0.1 mm (4 mils) – Code 39

* Transmission range......BT Class 1 (100m, line of sight)

* Profiles........................HID & SPP profile 2.4GHz Wireless

* Memory Capacity.........1M memory inside

* Input voltage...............5V/DC

* Rechargeable battery....3.7V 900mA Li-Ion battery

* Operating time.............25,000 readings when full charged

* Operating conditions.....-0℃ to 50℃

* Dimensions..................100 x 43 x 24.5mm (L x W x H)

* Symbologies:

UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, Code 128, UCC/EAN-128, ISBT 128, Code 39, Trioptic Code 39, Code 32 (Italian Pharma Code), Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, GS1 DataBar

Delivery content

* Pocket Barcode scanner x 1 * Mini USB cable x 1(for charging only) * Strap x 1

* Quick instructions x 1

Limited Warranty

We provides one-year limited warranty. We will not warranty any product which has been subjected to improper usage, neglect or unauthorized repair or installation. Besides, warranty does not cover the faulty usages or consumable parts. (Cable & battery are consumable.)

Safety instructions

Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property.

* The product is equipped with a Class 2 laser. * Never look into the laser beam and never point it at people or animals. Laser

radiation can seriously damage your eyes.

* Do not point the laser beam at mirrors or other reflective surfaces. The

uncontrolled, reflected beam may strike people or animals.

* Don’t put scanner in places excessively high temperatures, such as expose

under direct sunlight

* Don’t use scanner in extremely humid area or drastic temperature change * The rechargeable battery is permanently built into the product and cannot be

replaced.

* Never damage the rechargeable battery. Damaging the casing of the

rechargeable battery might cause an explosion or a fire!

1

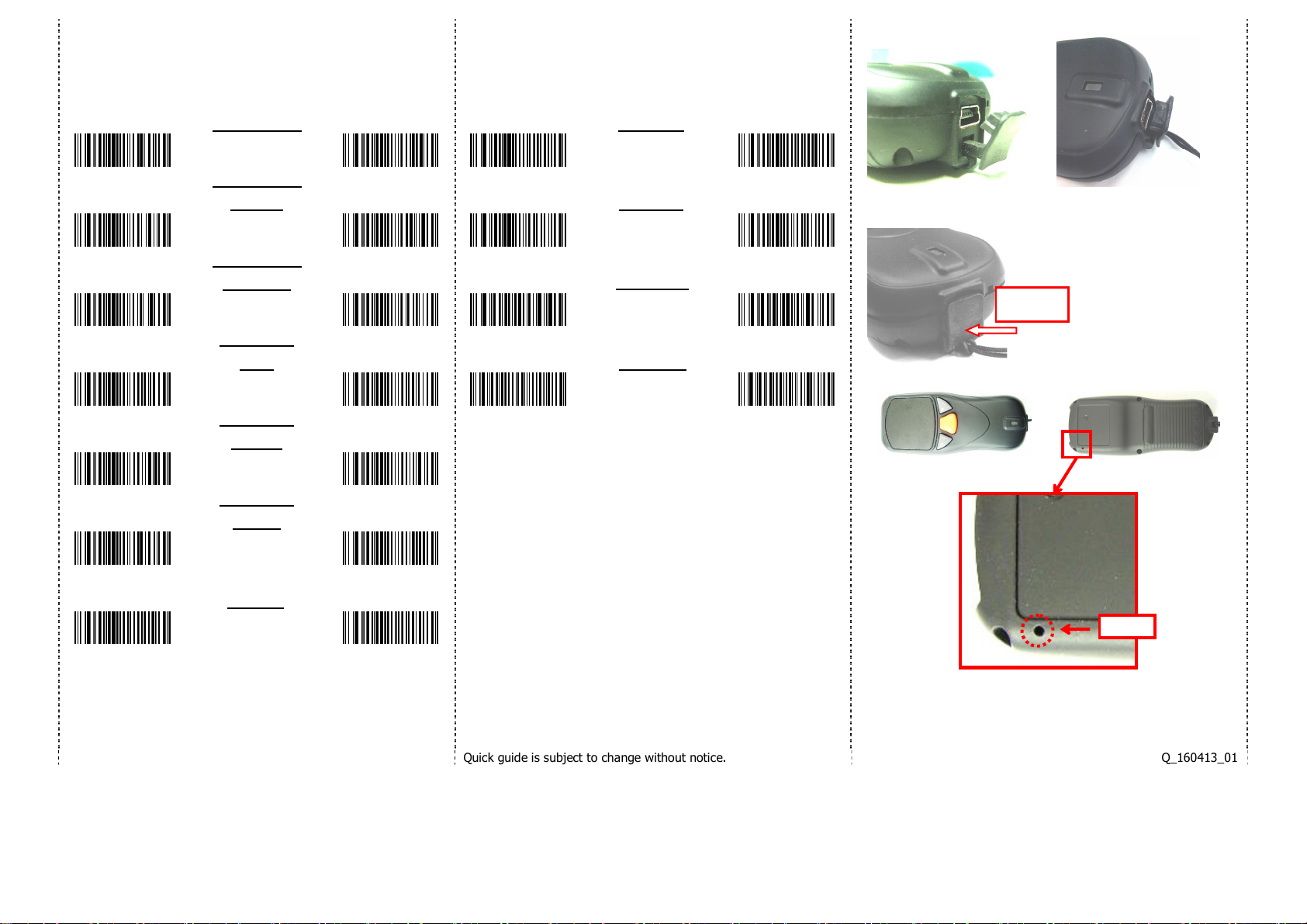

Operating elements

** Please switch ON and charge scanner for 3~4 hours at first time

before use.

Exit Window

(For iOS Device ONLY) the button to raise and lower ON-Screen Keyboard

SCAN/ENTER/Power ON Button

** In the beginning, you must press the orange trigger button for

8 seconds to turn on the pocket barcode scanner. Then, press it for scanning barcodes & waking up from sleeping mode.

Mini USB port with protective cover charge scanner via mini USB host cable.

Power Saving button: Press the button for 2~3 seconds then enter power saving mode

How to Connect to Smartphone or Tablet

S

H

S

1. Make sure your device supports BT HID or BT SPP profile

2. Turn off Power-Saving mode on your smartphone/tablet first

3. Then, choose HID or SPP device before connecting to smartphone/tablet.

If you don’t know what profile your device is, please try HID profile first, then, SPP profile.

How to connect to SPP or HID device or dongle

* After you select what you want, press the orange button to enter the

1. Main MENU 2. select Setup

MAIN>

Direct-scan

Memory-scan Upload

↑

ENTER

12:52

↓

MAIN> Memory-scan Upload

Setup

↑

3. select BT setup

S>

BT setup

Sleep time Output Speed

ESC ENTER

A1. select HID device

S/B> SPP device

HID device

Dongle

ESC ENTER

12:52

After you select what you want, press the orange button to enter the next or ESC button back to the

↓

HID device (from A1 to A3)

previous.

A2. select Simple pairing

S 12:52

S/B/H>

Simple pairing

Pairing

↓

ESC ENTER ↓

or Pairing

A3. Setting … Completed. .

Setting …

Completed!!!

next or ESC button back to the previous.

ENTER

12:52

↓

12:52

How to connect to SPP or HID device or dongle

SPP device (from B1 to B3)

B1. select SPP device C1. select Dongle

S/B>

12:52

SPP device

HID device dongle

ESC ENTER

↓

B2. Setting… Completed. C2. Setting … Completed.

Setting …

Completed!!!

B3. When your device pairs with

scanner, it will ask you to key-in the PIN code, please key-in “1234”. Then, the connection is ready. Then, open your app (like Blueterm), then, the data you scan will be sent to BT Serial port.

* After you select what you want, press the orange button to enter the

next or ESC button back to the previous.

Dongle (from C1 to C4)

S/B> SPP device HID device

Dongle

ESC ENTER

Setting …

C3. Scan MAC Address barcode

on the label of Dongle

S/B/S>

Push scan key

to read MAC address…

ESC SCAN

C4. Please plug Dongle into PC and

it will connects automatically. Then, you can begin to scan the codes. The data will be sent to PC directly.

12:52

↓

Completed!!!

12:52

1. click the “Settings” 2. click “General”

3. click “Bluetooth”

5. Select “Rxxxxxx” to connect

4. Turn it ON, and search the

Devices

6. When see the “Connected” means

the connection is OK.

(example: pairing with iPhone)

4. Please complete the connection procedures as the above photos.

5. After the connection is completed, the RED light will be OFF.

6. Before using WordPad file or appropriate APP, please set keyboard language

of device to US language. Then, scan the barcodes and the barcode data will show on the cursor side.

2

LED Indicator Information

There are two operating modes on the scanner

H

Notes:

* This product complies with Bluetooth standards. This device that

communicated with this product must support the same SPP or HID. For other Bluetooth devices with other profiles we cannot guarantee a connection before the product has been tested.

* The communication speed and range of the product may vary due

to obstacles and radio wave condition between the product and device to which it is connected. Condition on the host device may also affect the communication speed and range of the scanner.

Orange LED ON Full charged Orange LED Flashing Charging / Low battery Red LED ON Offline / out of service Green LED ON Good read Orange LED ON Good read (Batch mode)

Remark:

* When the battery power is too low, the Orange LED will flash and

beep once. Scanner should be charged immediately.

* If scanner shuts down it is recommended to charge it fully before

turning it back on.

* Under power-saving mode, there will not be LED indication when

charging.

Reset Configuration to Defaults

(Scan from A1 to A2 for HID profile or B1 to B3 for SPP profile)

A1

A2

HID profile

SPP profile

B1

B2

B3

1. Direct-scan Mode

1. select Direct-scan 2. Clear memory

MAIN>

Direct-scan

Memory-scan Upload

↑

3a. BT is disconnected.

D>

Off line !!!

ESC

3b. BT connected, begin to

D>

ESC SCAN

12:52

ENTER

H 12:52

…Linking!

scan the barcodes

12:52

↓

D>

12:52

Data in memory Will be erased!

NO YES

If BT is disconnected, please back to

page #2 and do the pairing procedure

again.

2. Memory-scan Mode

1. select Memory-scan 2. begin to scan the barcodes

MAIN> Direct-scan

Memory-scan

Upload

↑

ENTER

12:52

↓

M>

ESC SCAN

12:52

Under Memory-scan mode, enable/disable “Quantity entry” function

Disable “Quantity entry” (default)

1. disable “Quantity entry”

Setting code

3. press DEL to delete the last barcode data

M>

H 12:52

1234567

ESC SCAN DEL

2. begin the scan the barcodes

M>

ESC SCAN

4. be sure that you want to

delete the last barcode.

M>

H 12:52 The last code Will be deleted ! Are you sure ? NO YES

3

12:52

Enable “Quantity Entry” function,

decide the order of the output data to your device first

1. Q’ty first, then, barcode 2. Barcode first, then, Q’ty

3. Enable “Quantity Entry”

Setting code

4. begin the scan the barcodes

M>

12:52

Scan:

Q’ty: 1 ESC SCAN ENTER

When “Quantity Entry” is enabled, decide how to type-in the number.

By button (default) By scanning the number code

C1. enable D1. enable

C2. scan the barcode D2. scan the barcodes

M> Scan:

Q’ty: 1 ESC SCAN ENTER

12:52

M> Scan :

Q’ty: 1 ESC SCAN ENTER

C3. Press the ENTER to type the q’ty D3. Press the ENTER to type the q’ty

M> 1234567

Q’ty: ---ESC SCAN ENTER

C4. press ↓ to choose number,

then, press ENTER to confirm

M>

Q’ty: 5--ESC ENTER

C5. Then, scan the next barcode

M> Scan:

Q’ty: 1 ESC SCAN ENTER

12:52

↓

12:52

M> 7654321

Q’ty: ---ESC SCAN

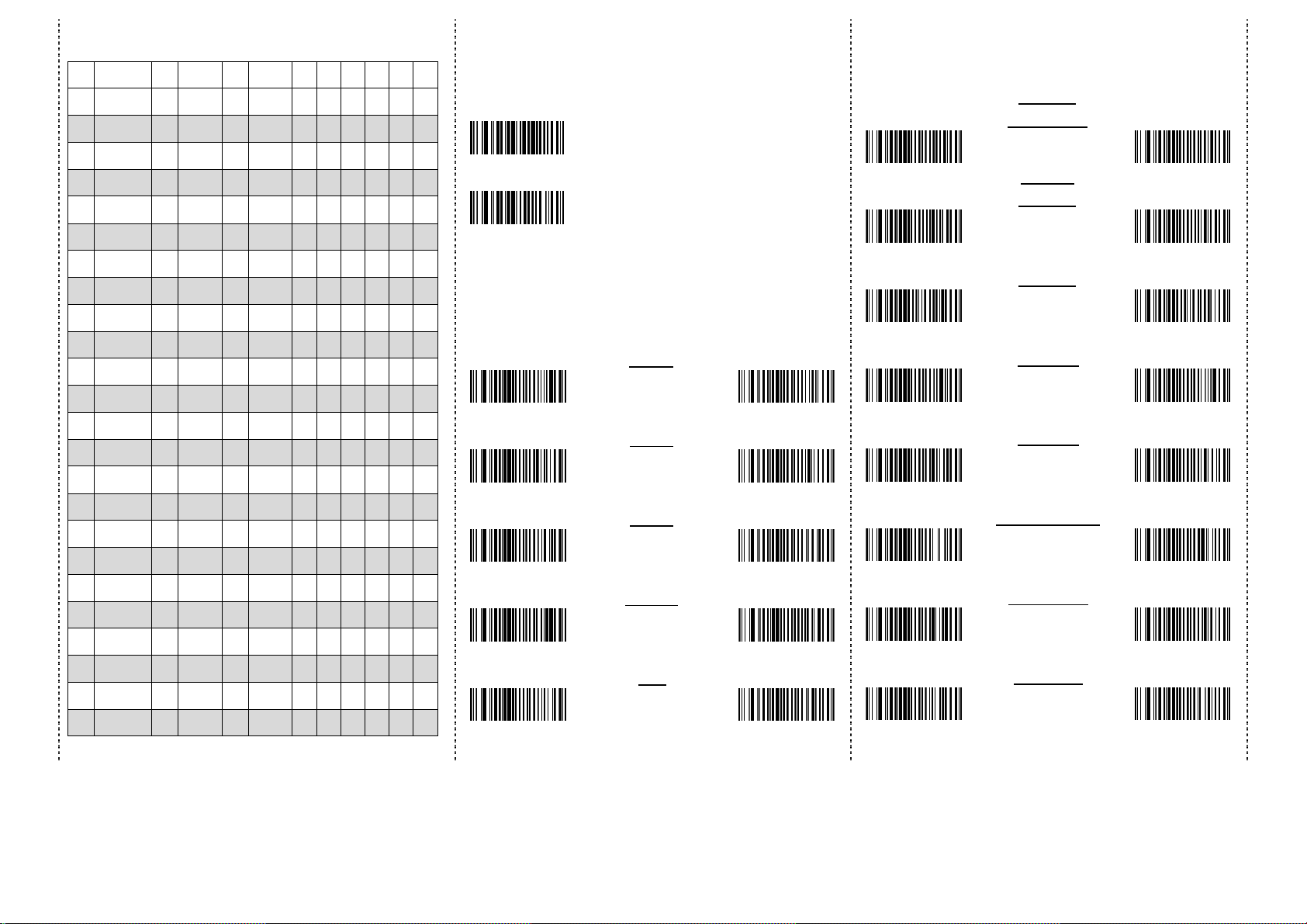

D4. scan numeric code (page #5)

M>

Q’ty: 5--ESC SCAN

D5. end by X code, then,

be ready to scan the next

M> Scan :

Q’ty: 1 ESC SCAN ENTER

12:52

H

Transmission Speed

H

Upload data (Memory-scan)

1. press ESC, select Upload

MAIN>

12:52 Direct-scan Memory-scan

Upload

↑

ENTER

↓

3. After data upload, press

ERASE to delete memory data

U>

12:52 Transmitting…

Completed!!

ESC SPEED ERASE

5. After you delete the memory data, it will be back to MAIN MENU

Switch from Memory-scan to Direct-scan mode

1. switch Memory-scan to

Direct-scan mode

D>

12:52

Data in memory

2. BT connected, press

START to send data

U>

12:52 Push START key to send data…

ESC START

4. be sure that you want to delete

U/E>

memory data.

12:52

Data in memory Will be erased! Are you sure?

NO YES

2. must delete all data in the memory

…process

will be erased!

NO

YES

Completed!!!

3. begin to scan the barcode

D>

12:52

ESC SCAN

Power-saving Mode

1. Main MENU 2. select Setup

MAIN>

Direct-scan

Memory-scan Upload

↑

3. select Sleep time

S> BT setup

Sleep time

Output Speed ESC ENTER

*. When charging, the scanner will not enter power-saving mode automatically.

ENTER

H 12:52

↓

H 12:52

↓

MAIN>

12:52 Memory-scan Upload

Setup

↑

ENTER

↓

4. press ↓, decide the time to enter sleeping mode

S/P/S>

H 12:52 Sleep time 00

ESC ENTER

↓

Transmission speed is dependent on your device. In order not to lose data, please choose the correct speed.

1. Main MENU 2. select Setup

MAIN>

Direct-scan

Memory-scan Upload

↑

ENTER

12:52

↓

MAIN> Memory-scan Upload

Setup

↑

ENTER

3. select Output Speed 4. select the speed type,

S> BT Status Sleep time

Output Speed

ESC ENTER

12:52

S/O>

12:52

Unlimited

Extra high High

↓

ESC ENTER

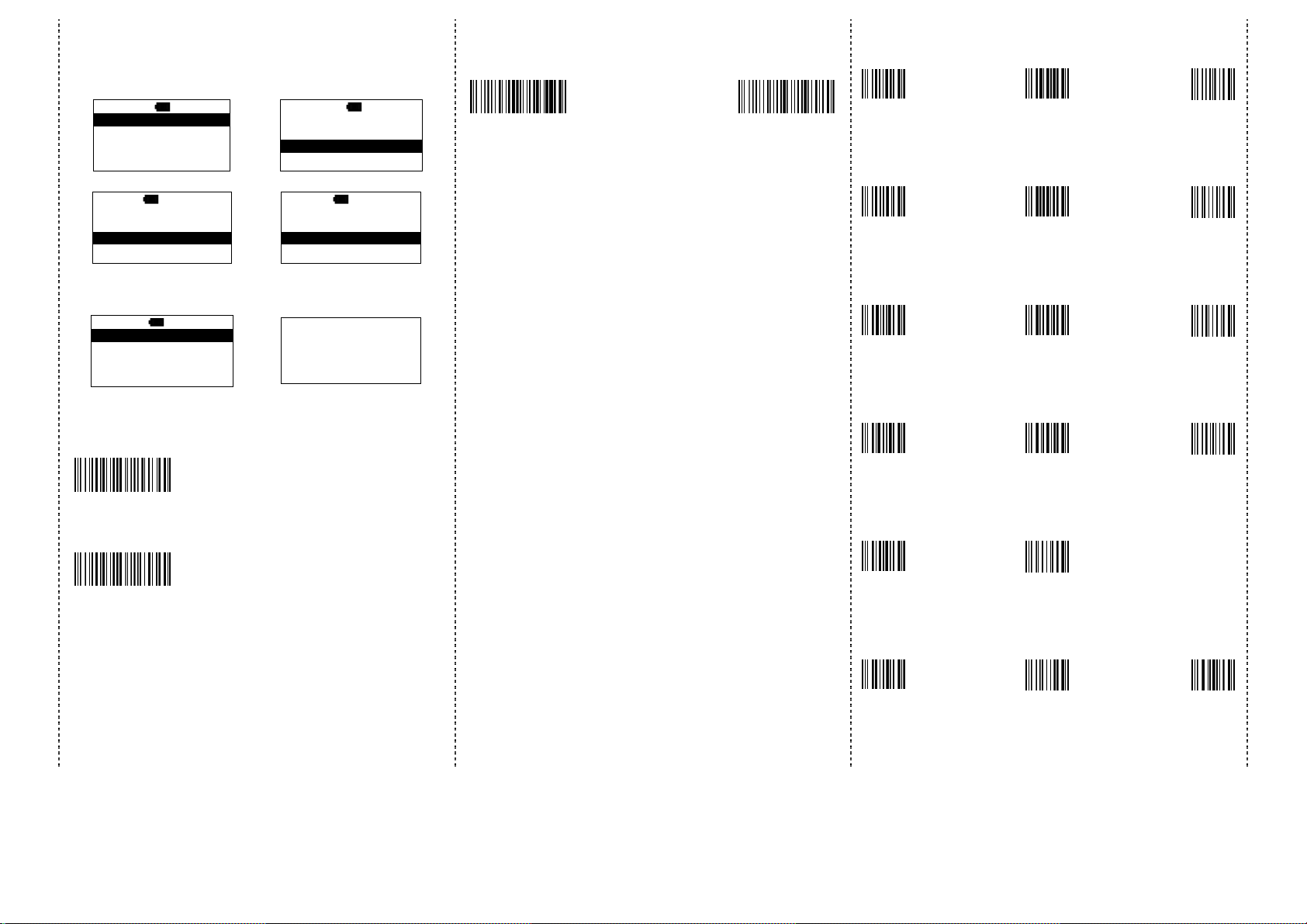

RTC (Real-time clock)

1. Main MENU 2. select Setup

MAIN>

Direct-scan

Memory-scan Upload

↑

3. select Time 4. select Stamp

S> Sleep time Output Speed

Time

ESC ENTER

5. select Date Stamp 6. Date Stamp is on or off. S/T/S>

Date Stamp

Time Stamp Interval char.

ESC ENTER

7. press ESC, select Time

Stamp

S/T/S> Date Stamp

Time Stamp

Interval char.

ESC ENTER

9. press ESC, select

Interval char.

S/T/S> Date Stamp Time Stamp

Interval char.

ESC ENTER

ENTER
