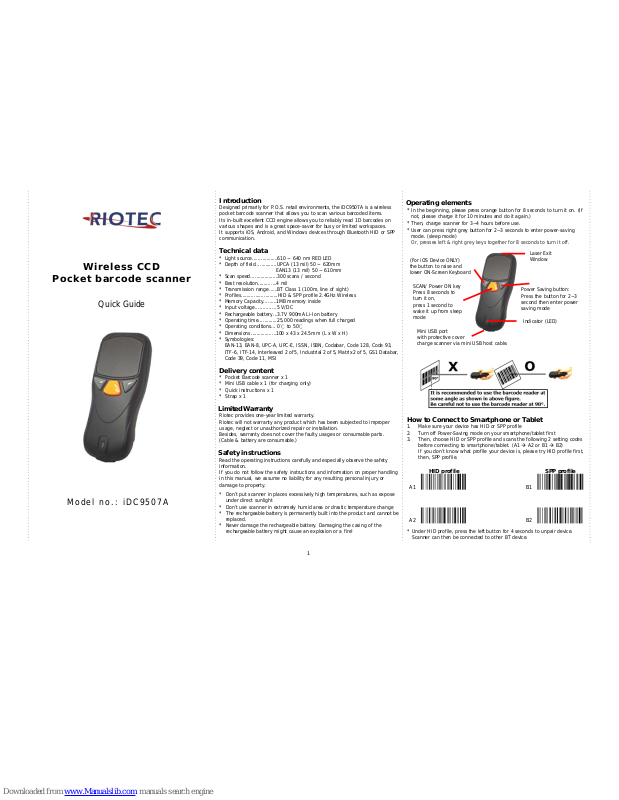

1

Wireless CCD

Pocket barcode scanner

Quick Guide

Model no.: iDC9507A

Introduction

Designed primarily for P.O.S. retail environments, the iDC9507A is a wireless pocket barcode scanner that allows you to scan various barcoded items. Its in-built excellent CCD engine allows you to reliably read 1D barcodes on various shapes and is a great space-saver for busy or limited workspaces. It supports iOS, Android, and Windows devices through Bluetooth HID or SPP communication.

Technical data

* Light source………………610 ~ 640 nm RED LED * Depth of field……….…..UPCA (13 mil) 50 ~ 620mm

EAN13 (13 mil) 50 ~ 610mm * Scan speed……………….300 scans / second * Best resolution………….4 mil * Transmission range……BT Class 1 (100m, line of sight) * Profiles………….………….HID & SPP profile 2.4GHz Wireless * Memory Capacity………1MB memory inside

* Input voltage..............5 V/DC

* Rechargeable battery…3.7V 900mA Li-Ion battery * Operating time………….25,000 readings when full charged * Operating conditions… 0℃ to 50℃ * Dimensions………………100 x 43 x 24.5mm (L x W x H) * Symbologies:

EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI

Delivery content

* Po cket Barcode scanner x 1 * Mini USB cable x 1 (for charging only) * Quick instructions x 1 * Strap x 1

Limited Warranty

Riotec provides one-year limited warranty. Riotec will not warranty any product which has been subjected to improper usage, neglect or unauthorized repa ir or insta lla tion. Besides, warranty does not cover the faulty usages or consumable parts. (Cable & battery are consumable.)

Safety instructions

Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property.

* Don’t put scanner in places excessively high temperatures, such as expose

under direct sunlight * Don’t use scanner in extremely humid area or drastic temperature change * The rechargeable battery is permanently built into the product an d cannot be

replaced. * Never damage the rechargeable battery. Damaging the casing of the

rechargeable battery might cause an explosion or a fire!

Operating elements

* In the beginning, please press orange button for 8 seconds to turn it on. (If

not, please charge it for 10 minutes and do it again.)

* Then, charge scanner for 3~4 hours before use. * User can press right grey button for 2~3 seconds to enter power-saving

mode. (sleep mode)

Or, presses left & right grey keys together for 8 seconds to turn it off.

How to Connect to Smartphone or Tablet

1. Make sure your device has HID or SPP profile

2. Turn off Power-Saving mode on your smartphone/tablet first

3. Then, choose HID or SPP profile and scans the following 2 setting codes before connecting to smartphone/tablet. (A1  A2 or B1  B2) If you don’t know what profile your device is, please try HID profile first, then, SPP profile.

HID profile

SPP profile

* Under HID profile, press the left button for 4 seconds to unpair device.

Scanner can then be connected to other BT device.

(For iOS Device ONLY) the button to raise and lower ON-Screen Keyboard

SCAN/ Power ON key Press 8 seconds to turn it on, press 1 second to wake it up from sleep mode

Power Saving b utton: Press the button for 2~3 second then enter power saving mode

Laser Exit Window

Mini USB port with protective cover charge scanner via mini USB host cable.

Indicator (LED)

Page 2

2

1. click the “Settings” 2. click “General”

3. click “Bluetooth”

4. Turn it ON, and search the Devices

5. Select “Rxxxxxx” to connect

6. When see the “Connected” means the connection is OK.

(example: pairing with iPhone)

4. Please complete the connection procedures as the above photos.

5. After the connection is completed, the RED light will be OFF.

6. Before using WordPad file or appropriate APP, please set keyboard language of device to US language. Then, scan the barcodes and the barcode data will show on the cursor side.

Notes:

* This product complies with Bluetooth standa rds. This device that communicated with

this product must support the same SP P or HID . F or oth er Bluet ooth devi ces with other profiles we cannot guarantee a connection before the product has been tested.

* The communication speed an d ran ge of th e product may v ary due to obstacles and

radio wave condition between the product and device to which it is conn ected. Condition on the host device may also affect the communication speed and range of the scanner.

LED Indicator Information

Orange LED ON Full charged Orange LED Flashin

Charging / Low battery Red LED ON Offline / out of service Green LED ON Good read Orange LED ON Good read (Batch mode)

Remark:

* When the battery power is too low, the Orange LED will flash and beep once.

Scanner should be charged immediately.

* In case the power consumed out totally; the RT C (R eal Tim e Clock) wil l back to

original setting 01012000.

* If scanner shuts down it is recommended to charge it fully before turning it

back on.

* Under power-saving mode, there will not be LED indication when charging.

Reset Configuration to Defaults

(scan from A1 to A8 for HID profile or B1 to B8 for SPP profile)

HID profile SPP profile

There are two operating modes on the scanner

1. Data Transmission mode (Default)

It is a necessary to scan “clean memory data" when switching between these two modes. With i n 2.4GHzrad i o ra ngeBeyond 2.4GHz radio range

Data read

Transmit data to smartphone/tablet directly

Save data into scanner’s memory, scanner will transmit data to smartphone/tablet automatically when back to 2.4GHz radio range.

Enter Data Storage mode

LED

Green/ Oran

e LED flashes

followed by 3 beeps.

2.Data Storage mode (Batch Mode)

It is a necessary to scan “clean memory data" when switching between these two modes.

Data read

Save data directly to scanner’s memory, It will transmit the data to smartphone/tablet after you scan the Transmit memory data code. To delete data please scan the Clean memory data code.

EnterData Transmission mod

LED Green/Orange LED flashes followed by 3 beeps.

Always Clean memory data before switching to Data Tr ansmission Mode. Otherwise Red/ Orange LED will flash with one long beep and will not switch modes.

Under Data storage Mode

The data can be kept or deleted after data transmission

Keep the data

(Default)

Delete the data

ransmit memory data

Green/Oran

e LED Flashes followed by 3 bee ps

Clean memory data

Green/Oran

e LED flashes fo l l o w e d b y 3 bee p s

The barcode data which is stored in the memory will be deleted.

Page 3

3

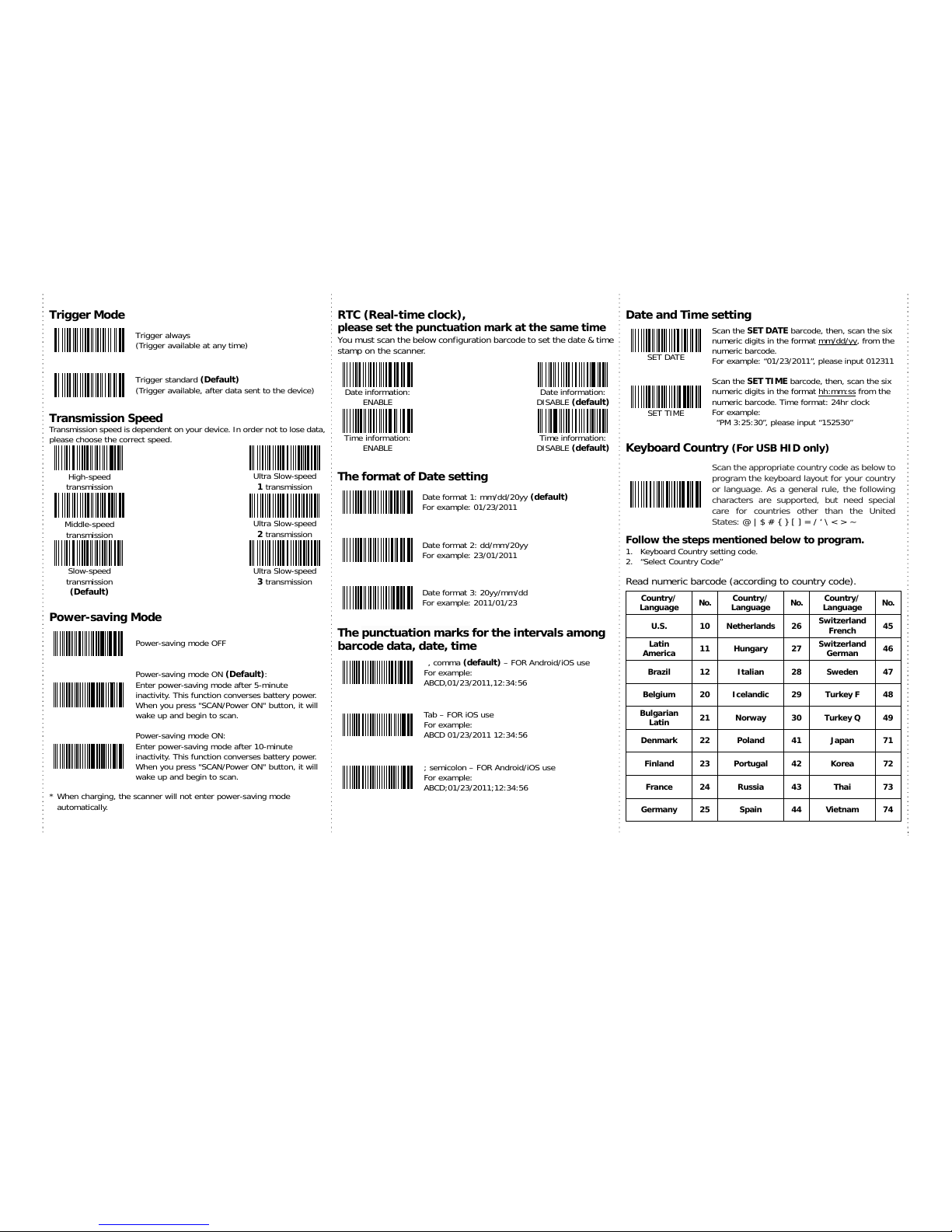

Trigger Mode

Trigger always (Trigger available at any time)

Trigger standard (Default) (Trigger available, after data sent to the device)

Transmission Speed

Transmission speed is dependent on y our device. In order not to lose data, please choose the correct speed.

High-speed

Ultra Slow-speed

transmission

1 transmission

Middle-speed

Ultra Slow-speed

transmission

2 transmission

Slow-speed

Ultra Slow-speed

transmission

(Default)

3 transmission

Power-saving Mode

Power-saving mode OFF

Power-saving mode ON (Default): Enter power-saving mode after 5-minute inactivity. This function converses battery power. When you press "SCAN/Power ON" button, it will wake up and begin to scan.

Power-saving mode ON: Enter power-saving mode after 10-minute inactivity. This function converses battery power. When you press "SCAN/Power ON" button, it will wake up and begin to scan.

* When charging, the scanner will not enter power-saving mode

automatically.

RTC (Real-time clock),

please set the punctuation mark at the same time

You must scan the below configuration barcode to set the date & time stamp on the scanner.

Date information:

ENABLE

Date information:

DISABLE (default)

Time information:

ENABLE

Time information:

DISABLE (default)

The format of Date setting

Date format 1: mm/dd/20yy (default) For example: 01/23/2011

Date format 2: dd/mm/20yy For example: 23/01/2011

Date format 3: 20yy/mm/dd For example: 2011/01/23

The punctuation marks for the intervals among barcode data, date, time

, comma (default)–FOR Android/iOS use For example: ABCD,01/23/2011,12:34:56

Tab –FOR iOS use For example: ABCD 01/23/2011 12:34:56

; semicolon –FOR Android/iOS use For example: ABCD;01/23/2011;12:34:56

Date and Time setting

SET DATE

Scan the SET DATE barcode, then, scan the six numeric digits in the format mm/dd/yy, from the numeric barcode. For example: “01/23/2011”, please input 012311

SET TIME

Scan the SET TIME barcode, then, scan the six numeric digits in the format hh:mm:ss from the numeric barcode. Time format: 24hr clock For example: “PM 3:25:30”, please input “152530”

Keyboard Country

(For USB HID only)

Scan the appropriate country code as below to program the keyboa rd l ayou t fo r yo ur co un tr y or language. As a general rule, the following characters are supported, but need special care for countries other than the United States: @ | $ # { } [ ] = / ‘ \ < > ~

Follow the steps mentioned below to program.

1. Keyboard Country setting code.

2. “Select Country Code”

Read numeric barcode (according to country code).

Country/

Language

No.

Country/ Language

No.

Country/

Language

No.

U.S. 10 Netherlands 26

Switzerland

French

Latin

America

11 Hungary 27

Switzerland

German

Brazil 12 Italian 28 Sweden 47

Belgium 20 Icelandic 29 Turkey F 48

Bulgarian

Latin

21 Norway 30 Turkey Q 49

Denmark 22 Poland 41 Japan 71

Finland 23 Portugal 42 Korea 72

France 24 Russia 43 Thai 73

Germany 25 Spain 44 Vietnam 74

Page 4

4

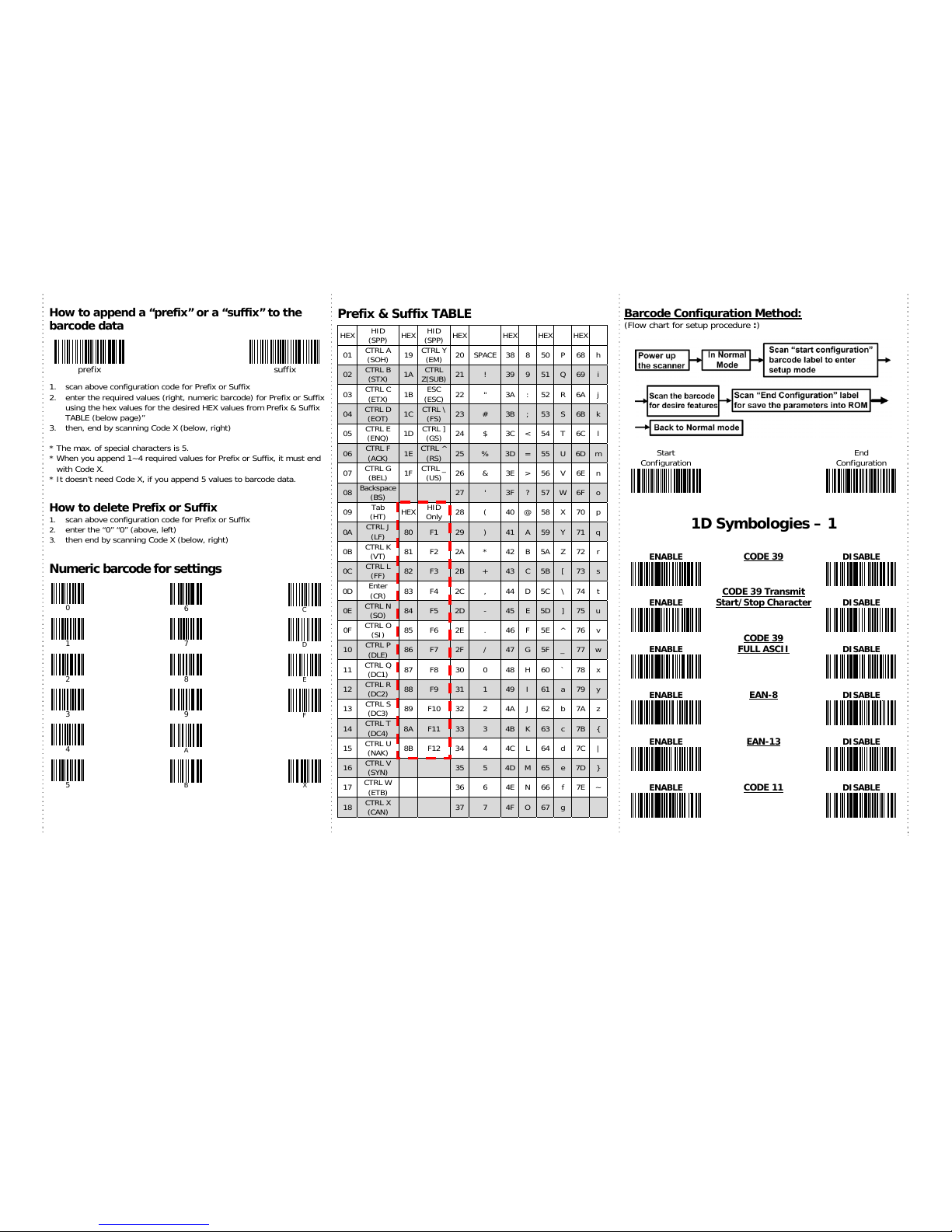

How to append a “prefix” or a “suffix” to the barcode data

prefix suffix

1. scan above configuration code for Prefix or Suffix

2. enter the required values (right, numeric barcode) for Prefix or Suffix using the hex values for the desired HEX values from Prefix & Suffix TABLE (below page)”

3. then, end by scanning Code X (below, right)

* The max. of special characters is 5. * When you append 1~4 required values for Prefix or Suffix, it must end

with Code X.

* It doesn’t need Code X, if you append 5 values to barcode data.

How to delete Prefix or Suffix

1. scan above configuration code for Prefix or Suffix

2. enter the “0” “0” (above, left)

3. then end by scanning Code X (below, right)

Numeric barcode for settings

Prefix & Suffix TABLE

HEX

HID

(SPP)

HEX

HID

(SPP)

HEX HEX HEX HEX

CTRL A

(SOH)

CTRL

(EM)

20 SPACE 38 8 50 P 68 h

CTRL B

(STX)

CTRL

Z(SUB)

21 ! 39 9 51 Q 69 i

CTRL C

(ETX)

ESC

(ESC)

22 " 3A : 52 R 6A j

CTRL D

(EOT)

CTRL \

(FS)

23 # 3B ; 53 S 6B k

CTRL E

(ENQ)

CTRL ]

(GS)

24 $ 3C < 54 T 6C l

CTRL F

(ACK)

CTRL ^

(RS)

25 % 3D = 55 U 6D m

CTRL G

(BEL)

CTRL _

(US)

26 & 3E > 56 V 6E n

Backspace

(BS)

27 ' 3F ? 57 W 6F o

Tab (HT)

HEX

HID

Only

28 ( 40 @ 58 X 70 p

CTRL J

(LF)

80 F1 29 ) 41 A 59 Y 71 q

CTRL K

(VT)

81 F2 2A * 42 B 5A Z 72 r

CTRL L

(FF)

82 F3 2B + 43 C 5B [ 73 s

Ente

(CR)

83 F4 2C , 44 D 5C \ 74 t

CTRL N

(SO)

84 F5 2D - 45 E 5D ] 75 u

CTRL O

(SI)

85 F6 2E . 46 F 5E ^ 76 v

CTRL P

(DLE)

86 F7 2F / 47 G 5F _ 77 w

CTRL Q

(DC1)

87 F8 30 0 48 H 60 ` 78 x

CTRL R

(DC2)

88 F9 31 1 49 I 61 a 79 y

CTRL S

(DC3)

89 F10 32 2 4A J 62 b 7A z

CTRL T

(DC4)

8A F11 33 3 4B K 63 c 7B {

CTRL U

(NAK)

8B F12 34 4 4C L 64 d 7C |

CTRL

(SYN)

35 5 4D M 65 e 7D }

CTRL W

(ETB)

36 6 4E N 66 f 7E ~

CTRL

(CAN)

37 7 4F O 67 g

Barcode Configuration Method:

(Flow chart for setup procedure :)

Start

Configuration

End

Configuration

1D Symbologies – 1

ENABLE

CODE 39

DISABLE

ENABLE

CODE 39 Transmit

Start/Stop Character

DISABLE

ENABLE

CODE 39

FULL ASCII

DISABLE

ENABLE

EAN-8

DISABLE

ENABLE

EAN-13

DISABLE

ENABLE

CODE 11

DISABLE

Page 5

5

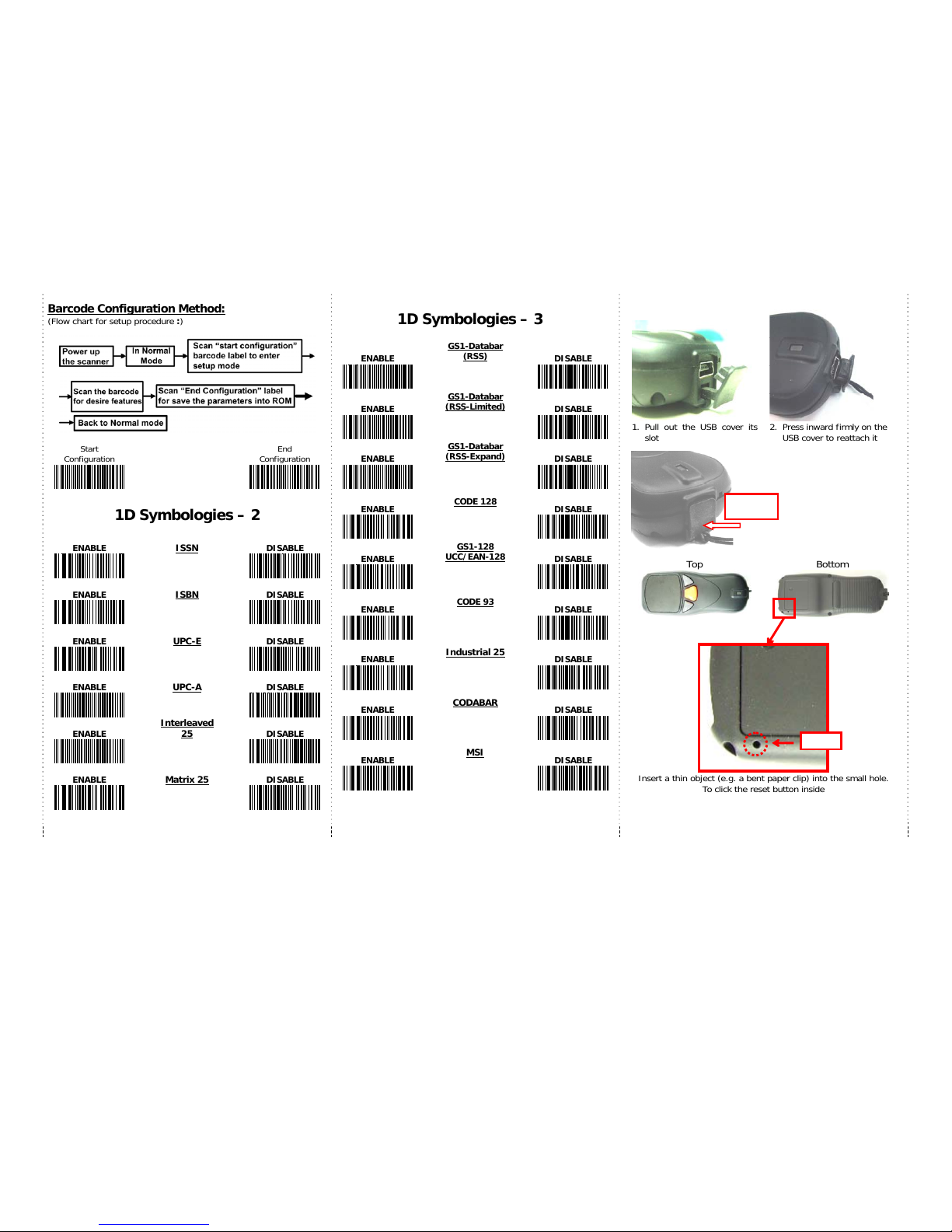

Barcode Configuration Method:

(Flow chart for setup procedure :)

Start

Configuration

End

Configuration

1D Symbologies – 2

ENABLE

ISSN

DISABLE

ENABLE

ISBN

DISABLE

ENABLE

UPC-E

DISABLE

ENABLE

UPC-A

DISABLE

ENABLE

Interleaved

DISABLE

ENABLE

Matrix 25

DISABLE

1D Symbologies – 3

ENABLE

GS1-Databar

(RSS)

DISABLE

ENABLE

GS1-Databar

(RSS-Limited)

DISABLE

ENABLE

GS1-Databar

(RSS-Expand)

DISABLE

ENABLE

CODE 128

DISABLE

ENABLE

GS1-128

UCC/EAN-128

DISABLE

ENABLE

CODE 93

DISABLE

ENABLE

Industrial 25

DISABLE

ENABLE

CODABAR

DISABLE

ENABLE

MSI

DISABLE

1. Pull out the USB cover its slot

2. Press inward firmly on the USB cover to reattach it

Top Bottom

Insert a thin object (e.g. a bent paper clip) into the small hole.

To click the reset button inside

Quick guide is subject to change without notice. R_170116_01

Pressing direction

Reset
