RIOTEC DC9270 Quick Manual

w

)

t

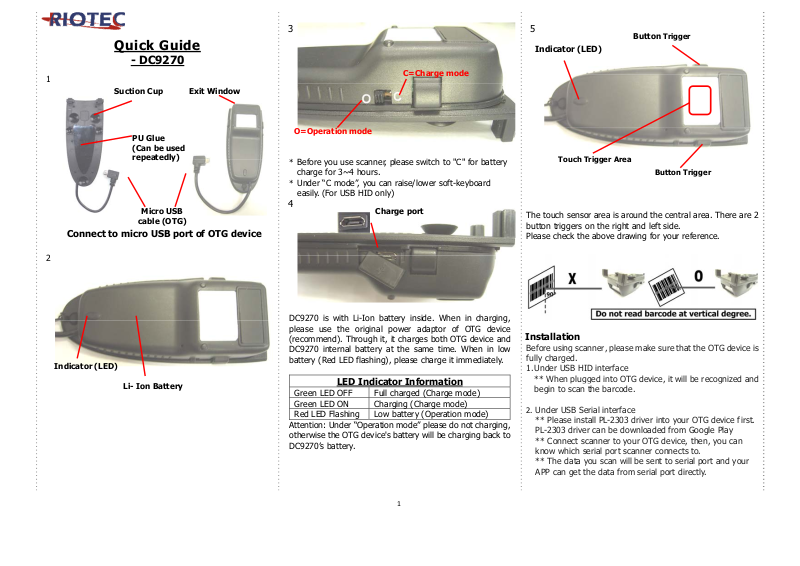

Quick Guide

3

5

Indicator (LED

Button

Trigger

- DC9270

1

Suction Cup

Exit Windo

C=Charge mode

PU Glue
(Can be used
repeatedly)

Micro USB

cable (OTG)

Connect to micro USB port of OTG device

2

Indicator (LED)

Li- Ion Battery

O=Operation mode

* Before you use scanner, please switch to "C" for battery

charge for 3~4 hours.

* Under “C mode”, you can raise/lower soft-keyboard

easily. (For USB HID only)

4

Charge por

DC9270 is with Li-Ion battery inside. When in charging,
please use the original power adaptor of OTG device
(recommend). Through it, it charges both OTG device and
DC9270 internal battery at the same time. When in low
battery (Red LED flashing), please charge it immediately.

LED Indicator Information

Green LED OFF Full charged (Charge mode)
Green LED ON Charging (Charge mode)

Red LED Flashing Low battery (Operation mode)
Attention: Under “Operation mode” please do not charging,
otherwise the OTG device's battery will be charging back to
DC9270’s battery.

Touch Trigger Area

Button Trigger



The touch sensor area is around the central area. There are 2
button triggers on the right and left side.
Please check the above drawing for your reference.

Installation

Before using sca nner , ple ase make s ure that the OT G dev ice is
fully charged.

1. Under USB HID interface
** When plugged into OTG device, it will be recognized and
begin to scan the barcode.

2. Under USB Serial interface

** Please install PL-2303 driver into your OTG device first.
PL-2303 driver can be downloaded from Google Play
** Connect scanner to your OTG device, then, you can
know which serial port scanner connects to.
** The data you scan will be sent to serial port and your
APP can get the data from serial port directly.



1

K

Reset Configuration to Defaults

If you are unsure of the scanner configuration or
have scanned the incorrect codes, please scan the
“Default” barcode. This will reset the scanner to its
factory defaults. (scan from A1 for USB HID, B1 to B4
for USB Serial)

USB HID USB Serial

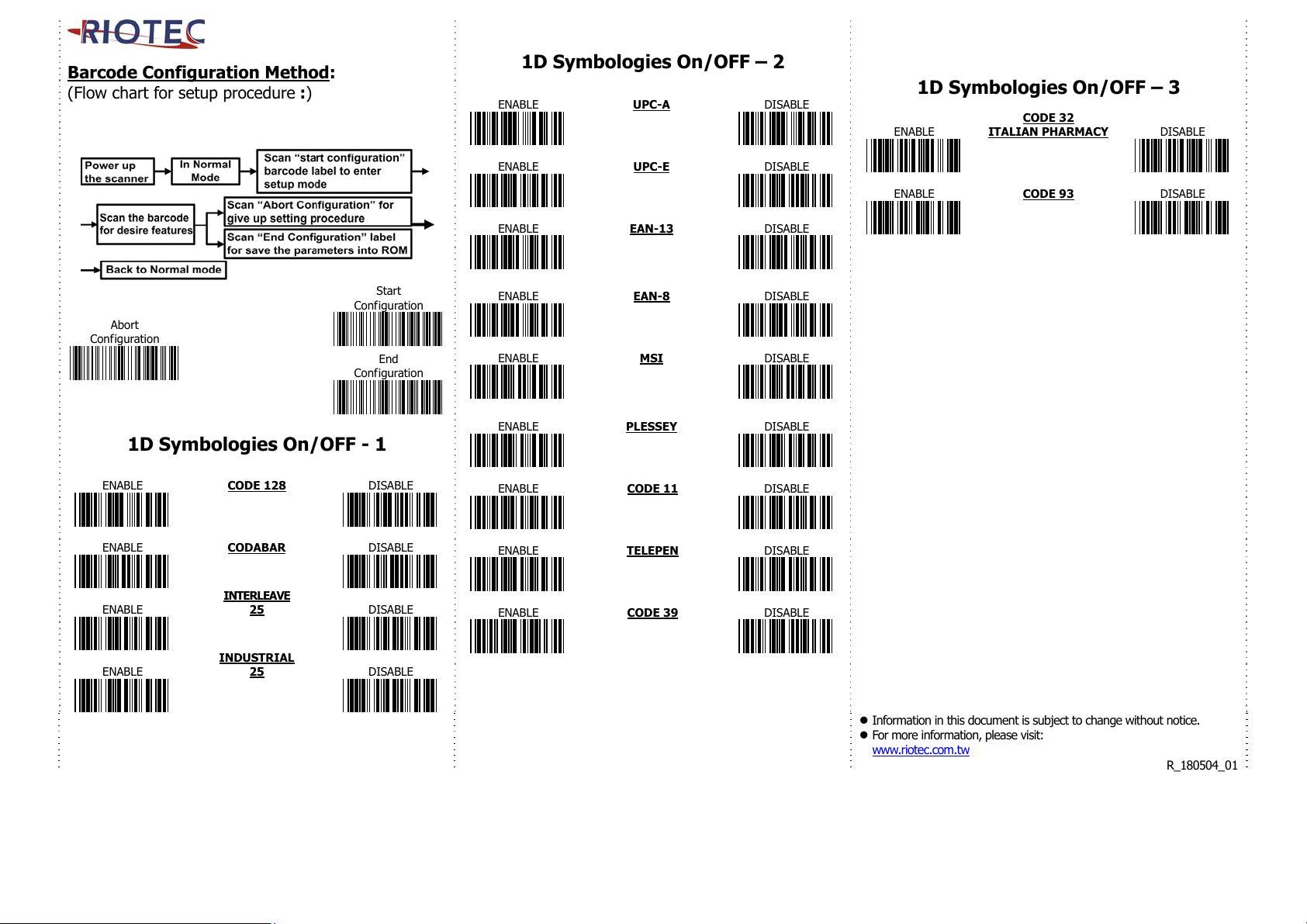

Barcode Configuration Method:

(Flow chart for setup procedure :)

DOUBLE CHECK

(ENABLE)

SINGLE SCAN

Keyboard Language

DENMAR

Multi-Interface Functions

DOUBLE

CHECK

READING

MODE

DOUBLE CHECK

(DISABLE)

SINGLE SCAN

NO TRIGGER

FRENCH

A1

Note: Please install PL-2303 driver for

B1

B2

B3

B4

USB Serial.

Abort

Configuration

Multi-Interface Functions

LOUDER

LOWER SILENT

LONG

SHORT

SOUND

LEVEL

SOUND /

LED CONTROL

Start

Configuration

End

Configuration

MIDDLE

MIDDLE

GERMANY HUNGARY

JAPAN

NORWEGIAN

SPANISH

SWITZERLAND USA

VIETNAM

ITALIAN

PORTUGAL

SWEDISH

2
