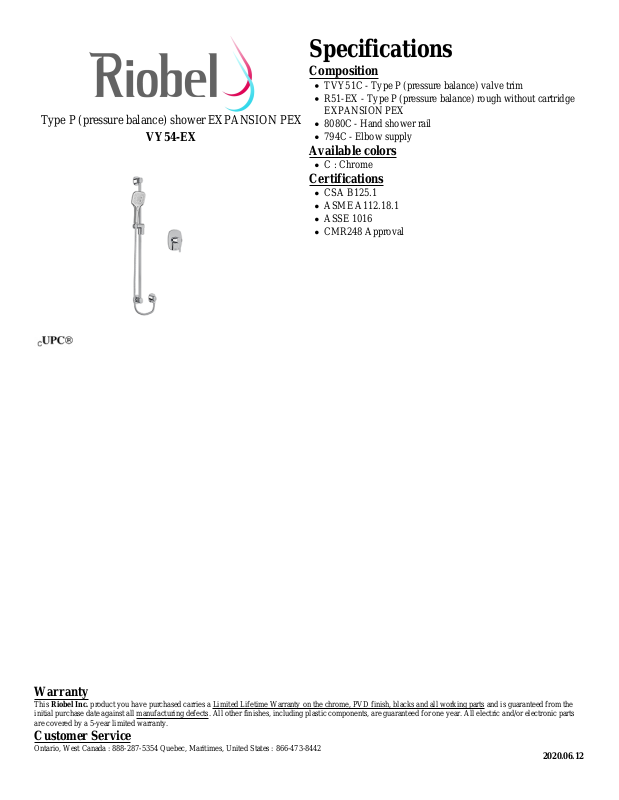

Page 1
Type P (pressure balance) shower EXPANSION PEX
VY54-EX
Specifications
Composition
TVY51C - Type P (pressure balance) valve trim
R51-EX - Type P (pressure balance) rough without cartridge
EXPANSION PEX
8080C - Hand shower rail
794C - Elbow supply
Available colors
C : Chrome
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.06.12
Page 2
Type P (pressure balance) valve trim
TVY51
Specifications
Descriptions
Double action: flow and temperature control
Ceramic cartridge and balancing spool with check valves
Trim only
R51, R51-SPEX or R51-EX rough required to complete
Available colors
C : Chrome
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
ADA
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.06.12
Page 3
Type P (pressure balance) rough without cartridge
EXPANSION PEX
R51-EX
Specifications
Descriptions
¾" bath outlet EXPANSION PEX or ½" sweat
Test cap
Rough only
½" inlet EXPANSION PEX
TXX51XX trim required to complete
Service valves
½" shower outlet EXPANSION PEX
Available colors
:
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.06.12
Page 4
Hand shower rail
8080
Specifications
Descriptions
Scale-free
150 cm (59") double interlock flexible hose, swivel and 2
check valves
Ø19 mm (¾") slide bar
4308, 2-jet hand shower
Easy-Glide left cursor
Available colors
C : Chrome
Available flows
• 6.7 L/min, 1.8 gpm (US) 60psi
• 5.69 L/min, 1.5 gpm (US) 60psi ( 8080-15 )
Certifications
CSA B125.1
ASME A112.18.1
CMR248 Approval
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.06.12
Page 5
Elbow supply
794
Specifications
Descriptions
½" inlet female NPT
½" outlet male
Adjustable depth
Available colors
C : Chrome
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.06.12
