Page 1

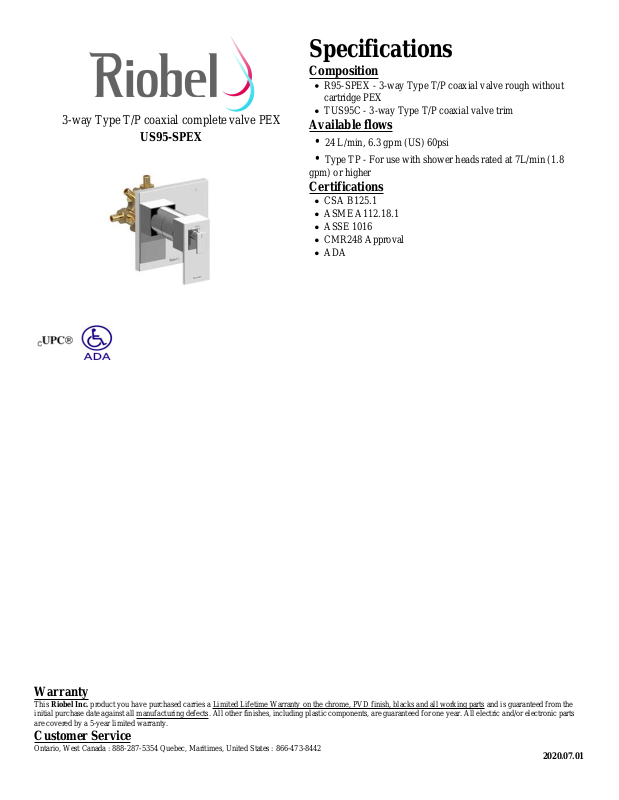

3-way Type T/P coaxial complete valve PEX
US95-SPEX
Specifications
Composition
R95-SPEX - 3-way Type T/P coaxial valve rough without
cartridge PEX
TUS95C - 3-way Type T/P coaxial valve trim
Available flows
• 24 L/min, 6.3 gpm (US) 60psi
• Type TP - For use with shower heads rated at 7L/min (1.8
gpm) or higher
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
ADA
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.07.01
Page 2
3-way Type T/P coaxial valve rough without cartridge
PEX
R95-SPEX
Specifications
Descriptions
Rough only
Three ½" outlets PEX
½" inlet PEX
Test cap
TXX95XX or TXX97XX trim required to complete
Service valves
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel PRO, product you have purchased carries a Limited LIFETIME warranty on their cartridge. All working parts and finishes are guaranteed for a period of
five (5) years from the initial purchase date against all manufacturing defects. All electric and/or electronic parts are covered by a 5-years limited warranty. The warranty
offered on our products will be honored only if the installation is performed by a certified master plumber.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.07.01
Page 3
3-way Type T/P coaxial valve trim
TUS95
Specifications
Descriptions
Thermostatic/pressure balance coaxial cartridge with check
valves
Trim only
6 positions (OFF, 1, 1 and 2, 2, 2 and 3, 3) share
R95, R95-SPEX or R95-EX rough required to complete
Available flows
• 24 L/min, 6.3 gpm (US) 60psi
• Type TP - For use with shower heads rated at 7L/min (1.8
gpm) or higher
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
ADA
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.07.01
