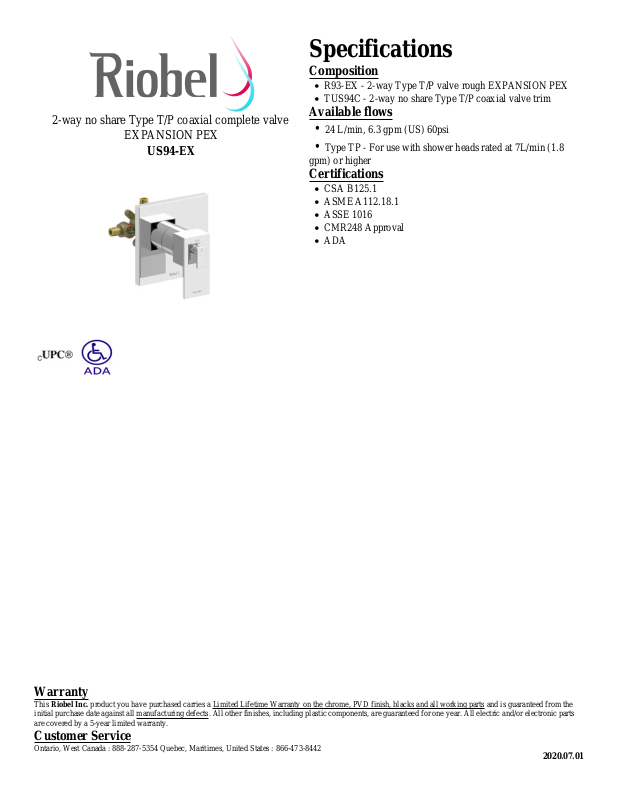

Page 1
2-way no share Type T/P coaxial complete valve
EXPANSION PEX
US94-EX
Specifications
Composition
R93-EX - 2-way Type T/P valve rough EXPANSION PEX
TUS94C - 2-way no share Type T/P coaxial valve trim
Available flows
• 24 L/min, 6.3 gpm (US) 60psi
• Type TP - For use with shower heads rated at 7L/min (1.8
gpm) or higher
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
ADA
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.07.01
Page 2
2-way Type T/P valve rough EXPANSION PEX
R93-EX
Specifications
Descriptions
½" inlet EXPANSION PEX
Two ½" outlets EXPANSION PEX
Service valves
Rough only
Test cap
TXX93XX or TXX94XX trim required to complete
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel PRO, product you have purchased carries a Limited LIFETIME warranty on their cartridge. All working parts and finishes are guaranteed for a period of
five (5) years from the initial purchase date against all manufacturing defects. All electric and/or electronic parts are covered by a 5-years limited warranty. The warranty
offered on our products will be honored only if the installation is performed by a certified master plumber.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.07.01
Page 3
2-way no share Type T/P coaxial valve trim
TUS94
Specifications
Descriptions
3 positions (OFF, 1, 2) no share
Trim only
Thermostatic/pressure balance coaxial cartridge with check
valves
R93, R93-SPEX or R93-EX rough required to complete
Available flows
• Type TP - For use with shower heads rated at 7L/min (1.8
gpm) or higher
• 23 L/min, 6.0 gpm (US) 60psi
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
ADA
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.07.01
