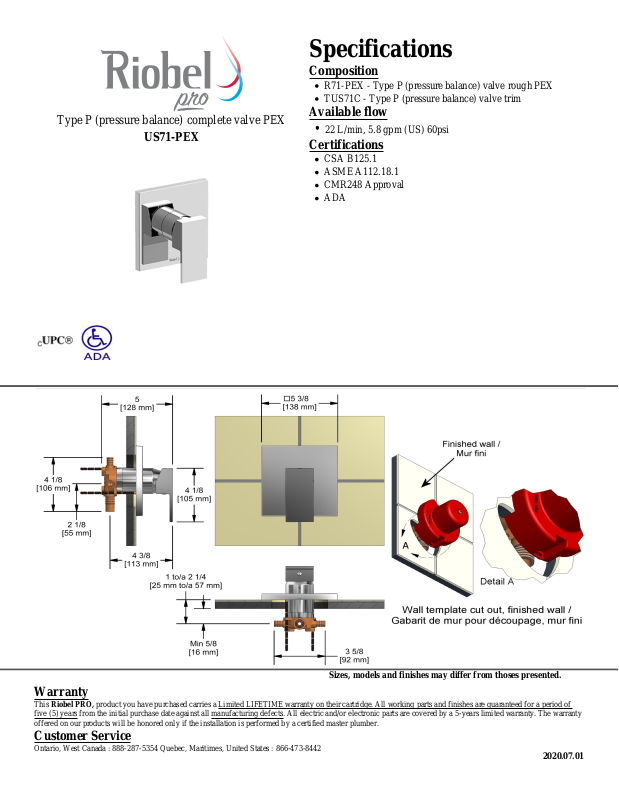

Page 1
Type P (pressure balance) complete valve PEX
US71-PEX
Specifications
Composition
R71-PEX - Type P (pressure balance) valve rough PEX
TUS71C - Type P (pressure balance) valve trim
Available flow
• 22 L/min, 5.8 gpm (US) 60psi
Certifications
CSA B125.1
ASME A112.18.1
CMR248 Approval
ADA
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel PRO, product you have purchased carries a Limited LIFETIME warranty on their cartridge. All working parts and finishes are guaranteed for a period of
five (5) years from the initial purchase date against all manufacturing defects. All electric and/or electronic parts are covered by a 5-years limited warranty. The warranty
offered on our products will be honored only if the installation is performed by a certified master plumber.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.07.01
Page 2
Type P (pressure balance) valve rough PEX
R71-PEX
Specifications
Descriptions
Rough only
Without service valves
Test cap
½" inlet PEX
½" shower outlet PEX
¾" bath outlet PEX or ½" sweat
TXX71XX trim required to complete
Certifications
CSA B125.1
ASME A112.18.1
CMR248 Approval
Warranty
This Riobel PRO, product you have purchased carries a Limited LIFETIME warranty on their cartridge. All working parts and finishes are guaranteed for a period of
five (5) years from the initial purchase date against all manufacturing defects. All electric and/or electronic parts are covered by a 5-years limited warranty. The warranty
offered on our products will be honored only if the installation is performed by a certified master plumber.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.07.01
Page 3
Type P (pressure balance) valve trim
TUS71
Specifications
Descriptions
Trim only
Ceramic cartridge and balancing spool with check valves
Double action: flow and temperature control
R71, R71-SPEX or R71-EX required to complete
Available flow
• 22 L/min, 5.8 gpm (US) 60psi
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
ADA
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.07.01
