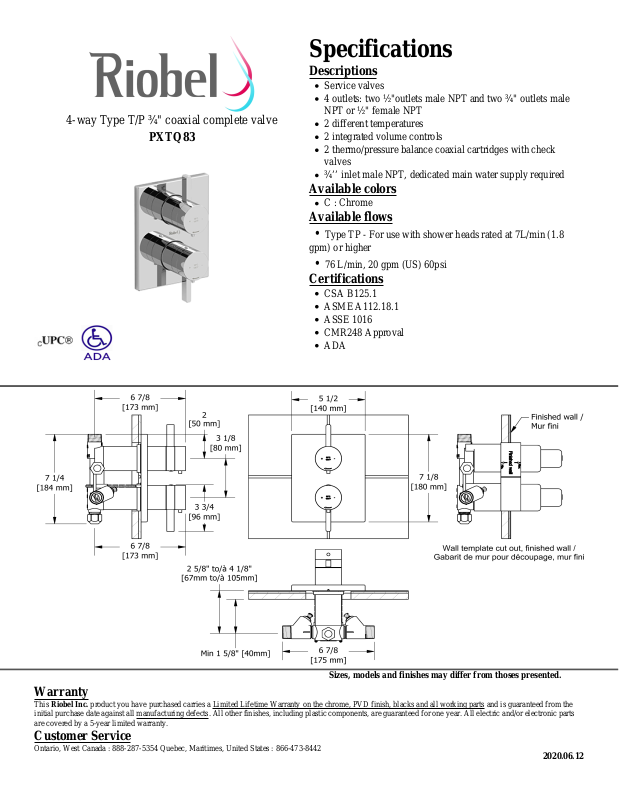

4-way Type T/P ¾" coaxial complete valve
PXTQ83
Specifications
Descriptions
Service valves
4 outlets: two ½"outlets male NPT and two ¾" outlets male
NPT or ½" female NPT
2 different temperatures
2 integrated volume controls
2 thermo/pressure balance coaxial cartridges with check
valves
¾’’ inlet male NPT, dedicated main water supply required
Available colors
C : Chrome
Available flows
• Type TP - For use with shower heads rated at 7L/min (1.8
gpm) or higher
• 76 L/min, 20 gpm (US) 60psi
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
ADA
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.06.12
