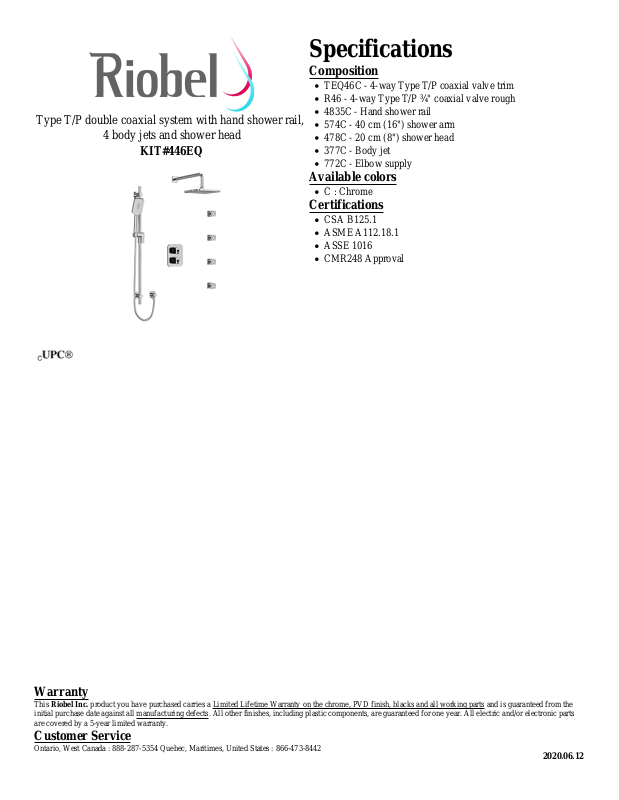

Page 1
Type T/P double coaxial system with hand shower rail,
4 body jets and shower head
KIT#446EQ
Specifications
Composition
TEQ46C - 4-way Type T/P coaxial valve trim
R46 - 4-way Type T/P ¾" coaxial valve rough
4835C - Hand shower rail
574C - 40 cm (16") shower arm
478C - 20 cm (8") shower head
377C - Body jet
772C - Elbow supply
Available colors
C : Chrome
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.06.12
Page 2
4-way Type T/P coaxial valve trim
TEQ46
Specifications
Description
Trim only
Available colors
C : Chrome
BN : Brushed Nickel (PVD)
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.06.12
Page 3
4-way Type T/P ¾" coaxial valve rough
R46
Specifications
Descriptions
Rough only
¾’’ inlet male NPT
Must be supplied with minimum ¾" PEX , ¾" EXPANSION
PEX or ½" copper
Four ½" outlets female NPT
Service valves
Test cap
TXX46XX or TXX88XX trim required to complete
Available colors
:
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.06.12
Page 4
Specifications
Descriptions
Ø19 mm (¾") slide bar
150 cm (59") double interlock flexible hose, swivel and 2
check valves
Hand shower rail
4835
*
4365, 2-jet hand shower
Scale-free
Easy-Glide left cursor
Available colors
C : Chrome
BK : Black
Available flows
• 7.6 L/min, 2.0 gpm (US) 60psi
• 5.69 L/min, 1.5 gpm (US) 60psi ( 4835-15 )
• 6.6L/min, 1.75 gpm (US) 60psi ( 4835-WS ) *
*EPA certification applicable to the indicated model only*
Certifications
CSA B125.1
ASME A112.18.1
CMR248 Approval
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.06.12
Page 5
40 cm (16") shower arm
574
Specifications
Descriptions
Shower arm with Salome flange with set screw
½" inlet male NPT
Available colors
C : Chrome
PN : Polished Nickel (PVD)
BK : Black
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.06.12
Page 6
Specifications
Descriptions
Scale-free
Swivel
20 cm (8") shower head
478
*
G½" inlet female
Available colors
C : Chrome
BN : Brushed Nickel (PVD)
PN : Polished Nickel (PVD)
Available flows
• 7.6 L/min, 2.0 gpm (US) 60psi
• 5.69 L/min, 1.5 gpm (US) 60psi ( 478-15 )
• 6.6L/min, 1.75 gpm (US) 60psi ( 478-WS ) *
*EPA certification applicable to the indicated model only*
Certifications
CSA B125.1
ASME A112.18.1
CMR248 Approval
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.06.12
Page 7
Body jet
377
Specifications
Descriptions
½" inlet female NPT
Directional
Scale-free
Available colors
C : Chrome
PN : Polished Nickel (PVD)
Available flow
• 2 à/to 6 L/min, 0.5 à/to 1.6 gpm (US) 60psi
Certifications
CSA B125.1
ASME A112.18.1
CMR248 Approval
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.06.12
Page 8
Elbow supply
772
Specifications
Descriptions
Adjustable depth
½" outlet male
½" inlet female NPT
Available colors
C : Chrome
PN : Polished Nickel (PVD)
BK : Black
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.06.12
