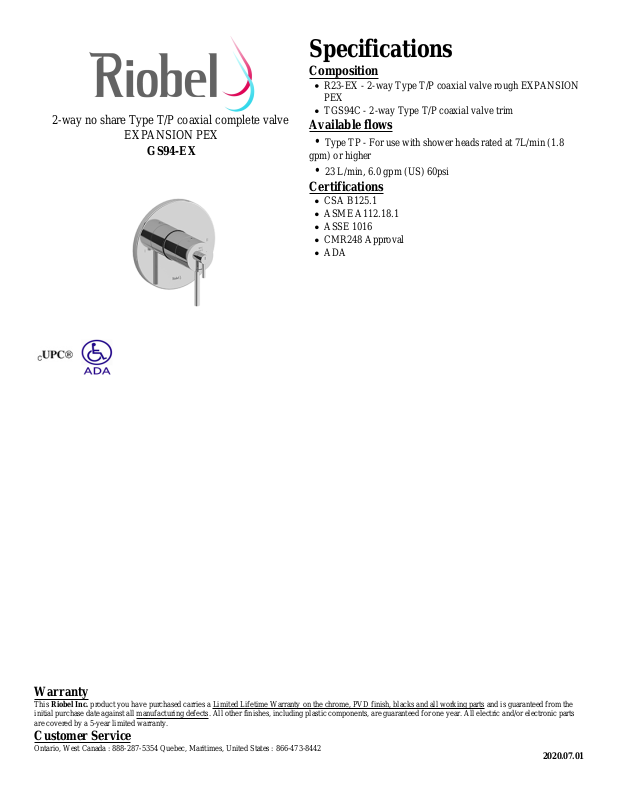

Page 1
2-way no share Type T/P coaxial complete valve
EXPANSION PEX
GS94-EX
Specifications
Composition
R23-EX - 2-way Type T/P coaxial valve rough EXPANSION
PEX
TGS94C - 2-way Type T/P coaxial valve trim
Available flows
• Type TP - For use with shower heads rated at 7L/min (1.8
gpm) or higher
• 23 L/min, 6.0 gpm (US) 60psi
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
ADA
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.07.01
Page 2
2-way Type T/P coaxial valve rough EXPANSION
PEX
R23-EX
Specifications
Descriptions
TXX23XX or TXX44XX trim required to complete
Service valves
Rough only
Test cap
½" inlet EXPANSION PEX
Two ½" outlets EXPANSION PEX
Available colors
:
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.07.01
Page 3
2-way Type T/P coaxial valve trim
TGS94
Specifications
Descriptions
Trim only
Thermostatic/pressure balance coaxial cartridge with check
valves
3 positions (OFF, 1, 2) no share
R93, R93-SPEX or R93-EX rough required to complete
Available flows
• Type TP - For use with shower heads rated at 7L/min (1.8
gpm) or higher
• 23 L/min, 6.0 gpm (US) 60psi
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
ADA
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.07.01
