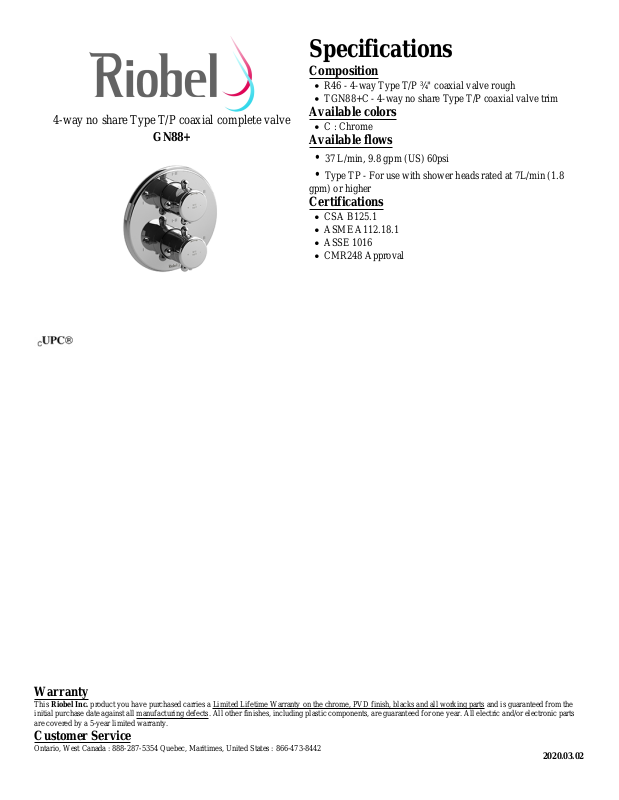

4-way no share Type T/P coaxial complete valve
GN88+
Specifications
Composition
R46 - 4-way Type T/P ¾" coaxial valve rough
TGN88+C - 4-way no share Type T/P coaxial valve trim
Available colors
C : Chrome
Available flows
• 37 L/min, 9.8 gpm (US) 60psi
• Type TP - For use with shower heads rated at 7L/min (1.8
gpm) or higher
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.03.02
4-way Type T/P ¾" coaxial valve rough
R46
Specifications
Descriptions
Rough only
¾’’ inlet male NPT
Must be supplied with minimum ¾" PEX , ¾" EXPANSION
PEX or ½" copper
Four ½" outlets female NPT
Service valves
Test cap
TXX46XX or TXX88XX trim required to complete
Available colors
:
Certifications
CSA B125.1
ASME A112.18.1
ASSE 1016
CMR248 Approval
Sizes, models and finishes may differ from thoses presented.
Warranty
This Riobel Inc. product you have purchased carries a Limited Lifetime Warranty on the chrome, PVD finish, blacks and all working parts and is guaranteed from the
initial purchase date against all manufacturing defects. All other finishes, including plastic components, are guaranteed for one year. All electric and/or electronic parts
are covered by a 5-year limited warranty.
Customer Service
Ontario, West Canada : 888-287-5354 Quebec, Maritimes, United States : 866-473-8442
2020.03.02
