D640/D740

Remote Display

Manual

copied, reproduced, republished, uploaded, posted,

transmitted, distributed, stored in or introduced into a

retrieval system in any form, or by any means (electronic,

mechanical, photocopying, recording or otherwise)

whatsoever without prior written permission of Rinstrum

Pty Ltd.

Disclaimer

Rinstrum Pty Ltd reserves the right to make changes to

the products contained in this manual in order to improve

design, performance or reliability.

The information in this manual is believed to be accurate

in all respects at the time of publication, but is subject to

change without notice. Rinstrum Pty Ltd assumes no

responsibility for any errors or omissions and disclaims

responsibility for any consequences resulting from the use

of the information provided herein.

Reference Manual - Software Version 2.xx

Table of Contents

1. INTRODUCTION................................................................................................................... 2

1.1. Overview......................................................................................................................................2

1.2. Document Scope.........................................................................................................................2

2. SPECIFICATIONS................................................................................................................. 3

3. DISPLAY............................................................................................................................... 4

4. INSTALLATION..................................................................................................................... 5

4.1. Overview......................................................................................................................................5

4.2. Installation Preparation................................................................................................................5

4.3. Dipswitches..................................................................................................................................6

4.4. Unit Addressing ...........................................................................................................................6

4.5. Protocol Grouping........................................................................................................................7

4.6. Lock Communication Settings.....................................................................................................7

4.7. Decimal Point...............................................................................................................................8

4.7.1.

LED Unit ....................................................................................................................8

4.7.2.

Electromechanical Unit..............................................................................................8

4.8. Serial Connection ........................................................................................................................9

4.8.1.

Baud Rate and Parity.................................................................................................9

4.8.2.

Earthing Requirements for Cable Shields................................................................10

4.8.3.

Powering Indicator from Remote Display (Pins 8 and 9).........................................10

4.8.4.

Dim LED Display (Pins 10 and 11)..........................................................................10

4.8.5.

RS232 Receive Only................................................................................................10

4.8.6.

RS485 Receive Only................................................................................................11

4.8.7.

20mA Current Loop Receive Only...........................................................................11

4.9. Power Connection .....................................................................................................................12

4.10. Mounting....................................................................................................................................13

4.10.1. Clip Attachment .......................................................................................................13

4.10.2. Wall Mounting..........................................................................................................13

4.11. Weather Hood ...........................................................................................................................14

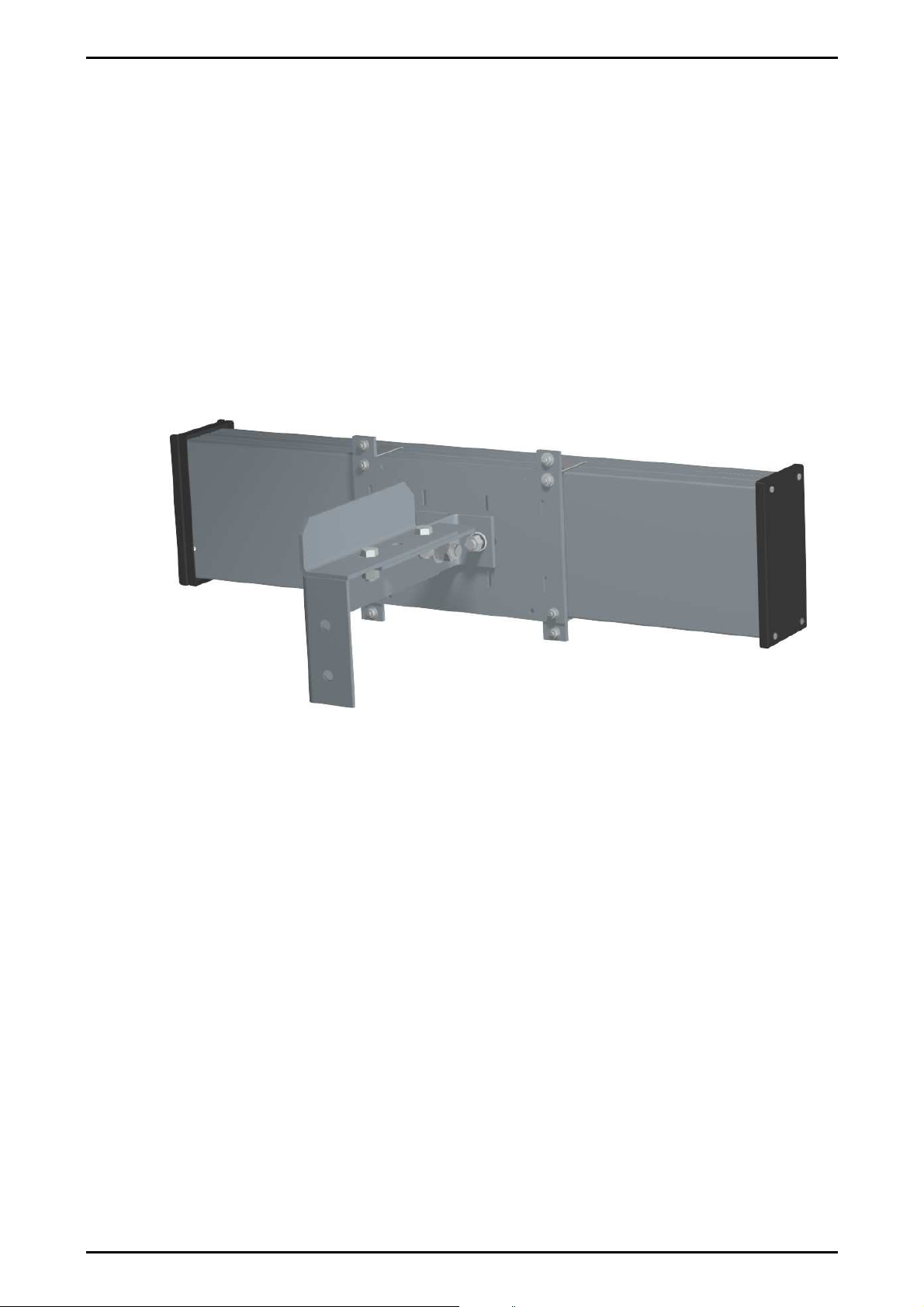

4.12. Mounting Options.......................................................................................................................14

5. PROTOCOL GROUP 0 ....................................................................................................... 15

5.1. Overview....................................................................................................................................15

5.2. Protocol 1...................................................................................................................................15

5.3. Protocol 2...................................................................................................................................16

5.4. Protocol 3...................................................................................................................................17

5.5. Protocol 4...................................................................................................................................18

5.6. Protocol 5...................................................................................................................................19

5.7. Protocol 6...................................................................................................................................20

5.8. Protocol 7...................................................................................................................................21

5.9. Protocol 8...................................................................................................................................22

5.10. Protocol 9...................................................................................................................................23

5.11. Protocol 10.................................................................................................................................24

5.12. Protocol 11.................................................................................................................................25

5.13. Protocol 12.................................................................................................................................26

5.14. Protocol 13.................................................................................................................................27

5.15. Protocol 14.................................................................................................................................28

5.16. Protocol 15.................................................................................................................................29

5.17. Protocol 16.................................................................................................................................30

5.18. Protocol 17.................................................................................................................................31

5.19. Protocol 18.................................................................................................................................32

5.20. Protocol 19.................................................................................................................................33

5.21. Protocol 20.................................................................................................................................34

5.22. Protocol 21.................................................................................................................................35

5.23. Protocol 22.................................................................................................................................36

6. PROTOCOL GROUP 1 – TEXT ONLY................................................................................ 37

7. ERROR MESSAGES........................................................................................................... 38

7.1. Weighing Errors.........................................................................................................................38

046D-600-150 Page 1

1.1. Overview

These remote displays are capable of displaying up to 7 alpha/numeric digits in Electro-mechanical (E/M) or up to 7 semi-alpha/numeric digits in LED format. An annunciator board is available with three status annunciations (centre of zero, net and motion). The displays are available in a variety of configurations: 4 digit, 5 digit, 5 digit + annunciator, 6 digit + annunciator and 7 digit.

The serial interface will support RS232, RS485 and 20mA Current Loop as standard. Facilities for automatic selection of the data source and baud rate are also standard.

These remote displays are capable of interpreting and displaying formatted weight transmissions from digital weight indicators. Additionally they can be used to display text.

The remote displays are addressable which allows a single device to send targeted information to multiple displays. They support firmware upgrades via an optical link on the front.

Reference Manual - Software Version 2.xx

1. Introduction

These units are suitable to use in external applications and are designed to be weather resistant. An optional weather hood is available to minimise effects of direct sunlight. The unit can be wall mounted or fixed onto an optional pole and swivel mounting.

1.2. Document Scope

This manual covers the physical installation of a display, its power and serial connections and the various network protocols that are supported. It is intended for use by Scale Technicians who are installing and maintaining the unit.

Page 2 046D-600-150

Reference Manual - Software Version 2.xx

2. Specifications

Display

Display Up to seven (7) Electromechanical digits for displaying full alpha

numeric characters

• 125 (H) x 78 (W) mm, 4.9 (H) x 3.1 (W) inches

• 35 segments per digit

Up to seven (7) LED digits with decimal points for displaying numeric and semi-alpha characters

• 120 (H) x 78 (W) mm, 4.7 (H) x 3.1 (W) inches

• 68 LED’s per digit

Status annunciators for Motion, Centre of Zero and Net

Permformance

Visibility Up to 40m, 131 feet Update Rate 10Hz Operating Environment

Digital

Setup Automatic Memory Full non-volatile operation

Dimensions

External Dimensions Display Window 671(L) x 141(H) mm

Weight 3.4 kg

Power

AC Power 110/240VAC 50/60Hz 25W DC Power 12-24VDC 28W

Features

Serial Inputs RS232 – two wire, receive only

Optical Data Communications Approvals FCC, CE, C-tick

Unit addressing (up to 8 addresses supported) Display timeout available Font selectable for curved or blocked

Options

Weather Hood Pole Mount Swivel Mount

Temperature: –10 to +50°C, 14 to 122°F case temperature Humidity:<90%rh non-condensing Storage: –20 to +50°C, -4 to 122°F ambient

850 (L) x 202 (H) x 109 (D) mm

33.5 (L) x 7.9 (H) x 4.3 (D) inches

26.4 (L) x 5.6 (H) inches

7.5 lb

RS485 – two wire, receive only 20mA Current Loop - receive only Magnetically coupled optical communications for firmware upgrades.

Check trade approvals

046D-600-150 Page 3

Reference Manual - Software Version 2.xx

OpticalLink Connection

Annunicators

Weight/TextDisplay

UnitsSticker

WallMountingClips

3. Display

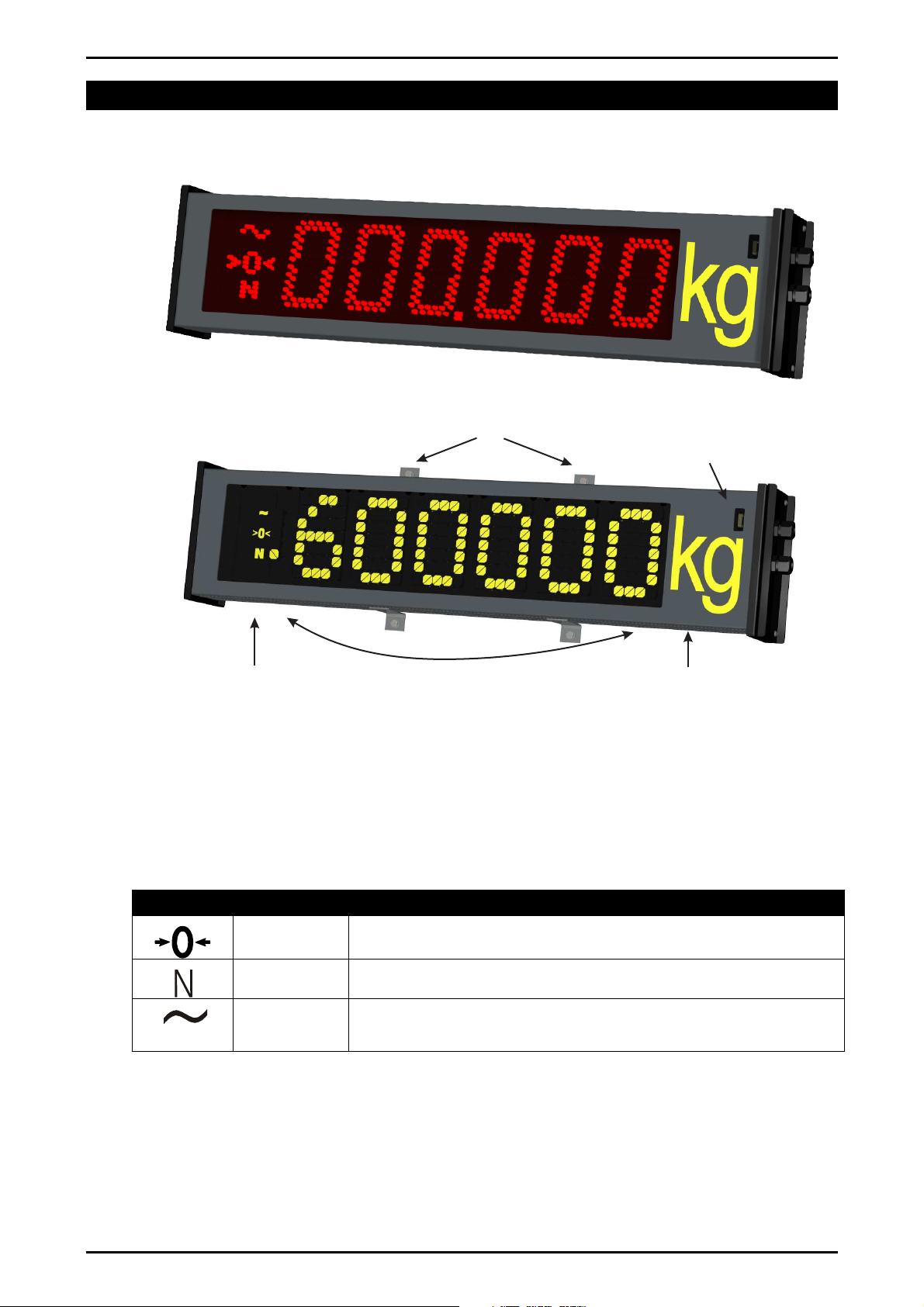

Figure 1 - Display Components

Annunciator – where the annunciator board is fitted, there are three annunciator

conditions, detailed in the following table. (Note: Some protocols do not support all annunciators)

Symbol Name Description

ZERO Lit when the indicator is displaying centre of zero.

NET Lit when the indicator shows NET weight.

MOTION Lit when the indicator reading is not stable.

Weight Display – Up to seven (7) digits if annunciator option not used, shows the weight readings, setup information and errors.

Page 4 046D-600-150

Units - Sticker to indicate the units of the reading. Opto-link Connection – Optical link connection point for firmware upgrades.

4.1. Overview

This section covers the mounting and electrical connections for the remote displays. These units contain precision electronics and must not be subjected to shock, excessive vibration, or extremes of temperature, either before or after installation.

The serial and power inputs of the displays are protected against electrical interference; however excessive levels of electro-magnetic radiation may effect the operation of the instrument. They should be installed away from any sources of electrical noise and the power and data cables should run separately from other sources of electrical noise.

The installation covers:

• Dipswitch settings

• Application of decimal point (if being used)

• Serial connection

Reference Manual - Software Version 2.xx

4. Installation

• Power connection

• Mounting – either to a flat surface using mounting clips or to an optional pole

or swivel mounting kit.

4.2. Installation Preparation

To access the dipswitches, serial and power connections remove the end plate (held by four screws) then slide the mask assembly out. Slide out only to the point of not dislodging the case earth connection near the power connection. Note: Avoid damaging the opto-link on the front of the mask assembly board.

Warning: Contains Hazardous Voltages. Disconnect

power before opening

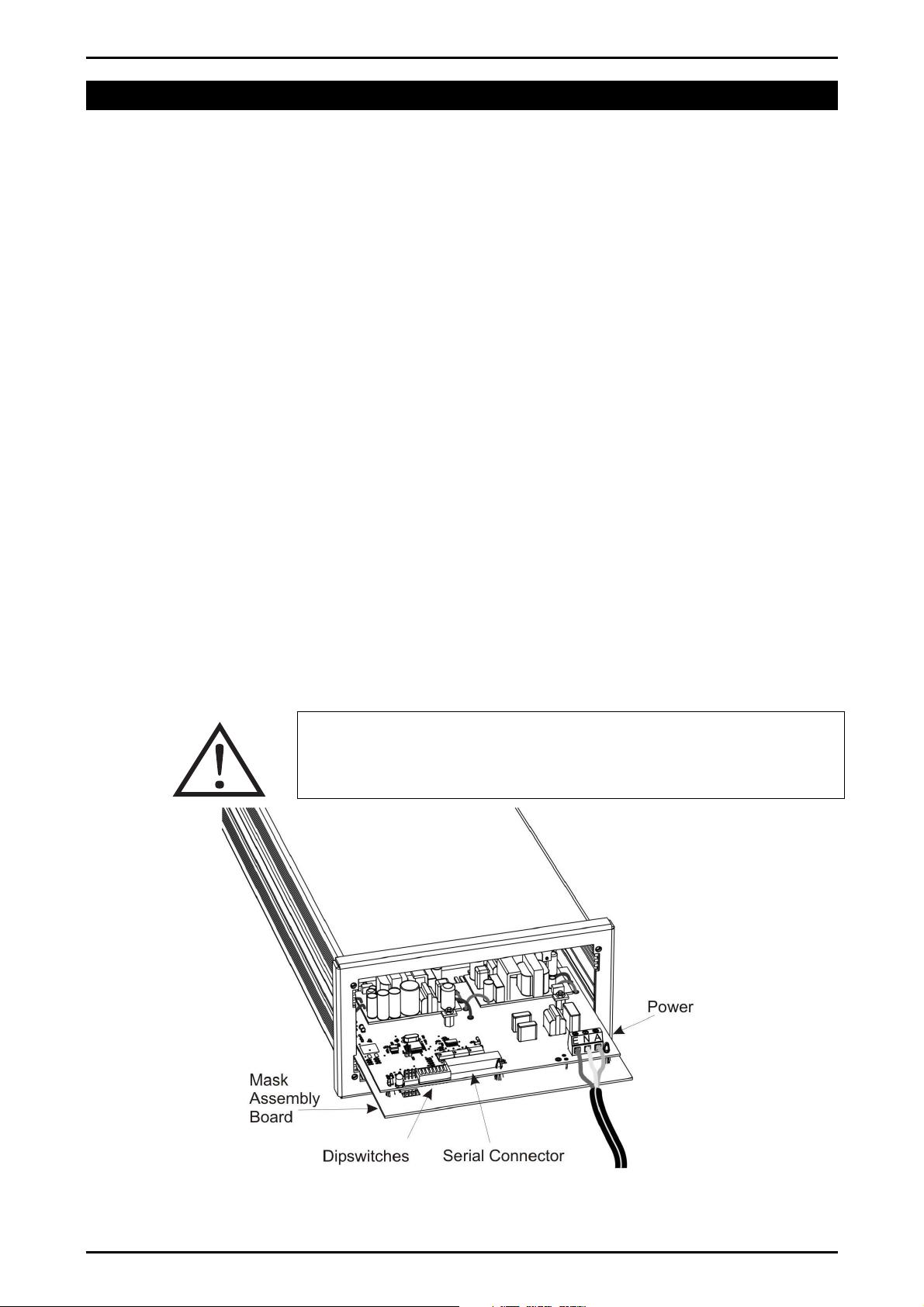

Figure 2 - Internal Connections and Dipswitches

046D-600-150 Page 5

Treatment

4.3. Dipswitches

The eight (8) dipswitches are located on the left hand side of the board near the serial connection, and are labelled 1-8. The table below lists the use of each dipswitch.

Reference Manual - Software Version 2.xx

Address

Protocol Group

Lock Comms

Display Font

DIPSWITCH 1 2 3 4 5 6 7 8

Unit Address

Address 0 - Broadcast OFF OFF OFF

Address 1 ON OFF OFF Address 2 OFF ON OFF Address 3 ON ON OFF Address 4 OFF OFF ON Address 5 ON OFF ON Address 6 OFF ON ON Address 7 ON ON ON

Protocol Groups

Protocol Group 0

Protocol Group 1 Protocol Group 2 - unused Protocol Group 3 - unused

Lock Comms Settings

OFF OFF ON OFF OFF ON ON ON

Decimal Point

Disabled

Enabled

Electro-mechanical Font

Block straight font

Curved font

Decimal Point

Displayed

Not Displayed

OFF ON

4.4. Unit Addressing

The first three dipswitches set the unit address (eight addresses). Note that unit addressing is not supported by some protocols.

Page 6 046D-600-150

Reference Manual - Software Version 2.xx

4.5. Protocol Grouping

Dipswitches 4 and 5 set the protocol group.

Protocol Group 0

Setting the dipswitches to Protocol Group 0 means that the unit will attempt to automatically detect one of the protocols described in section 5, Protocol Group 0, page 15. The Protocol Table below lists the suggested corresponding manufacturer that each protocol aims to support. Note that compatibility is not guaranteed and manufacturers may change their protocol at any time without advice.

Protocol

Protocol Name

Group

0 1 Ranger A GSE, HBM, PT, Rinstrum, 0 2 Ranger B Rinstrum

0 3 Ranger C GSE, HBM, PT and Rinstrum 0 4 Ranger D Rinstrum 0 5 PCMODE Custom software 0 6 R series register write GSE, Rinstrum 0 7 Avery string #7 Avery L105 0 8 Gedge C2 Gedge 0 9 Gedge C3 Gedge 0 10 AD standard string A & D 0 11 AD4531 A & D 0 12 Toledo continuous Toledo 0 13 GSE without COZ GSE 0 14 GSE with COZ GSE 0 15 Schenck without DP Schenck 0 16 Schenck with DP Schenck 0 17 Auto control string 1 Auto control 0 18 Auto control string 2 Auto control 0 19 Sartorius Sartorius 0 20 Soehnle without DP Soehnle 0 21 Soehnle with DP Soehnle 0 22 Last resort numbers 1 1 Text

Protocol commonly used by indicators from:

Systec

Protocol Group 1

When set to group 1, the unit will look for up to 8 printable characters to display, refer to section 6, Protocol Group 1 – Text Only, page 37 for further information.

4.6. Lock Communication Settings

Dipswitch 6 sets the communication settings lock. When set to OFF, locking is disabled and the display will start scanning all communication ports after not receiving any data for 2 seconds. When set to ON, the locking is enabled and the display will only accept communications on the port and baud rate that it last received valid communication, even after power is lost. Note: If the stored communications settings are not valid the display will start searching until it finds valid communication at which point it will lock again.

046D-600-150 Page 7

Reference Manual - Software Version 2.xx

4.7. Decimal Point

4.7.1. LED Unit

The LED unit allows for the decimal point to be optionally displayed.

Decimal Point Dipswitch 8 Comment

Displayed OFF A decimal point will be displayed (all digits are

Not Displayed ON The decimal point will not be displayed.

4.7.2. Electromechanical Unit

The E/M unit allows for the decimal point to be optionally displayed. Alternatively, a sticker is to be used.

Decimal Point Dipswitch 8 Comment

still available) if it is in the received data.

Displayed OFF A full digit will be used for the decimal point

Not Displayed ON The decimal point will not be displayed which

allows for a decimal point sticker to be used inside the unit.

♦

Affixing the decimal point sticker

To affix the decimal point sticker turn the unit over to access the front of the mask and place the sticker between appropriate digits, as shown in the figure below. Note that the case earth will need to be disconnected and reconnected to allow the mask assembly to be slid out to access the digits.

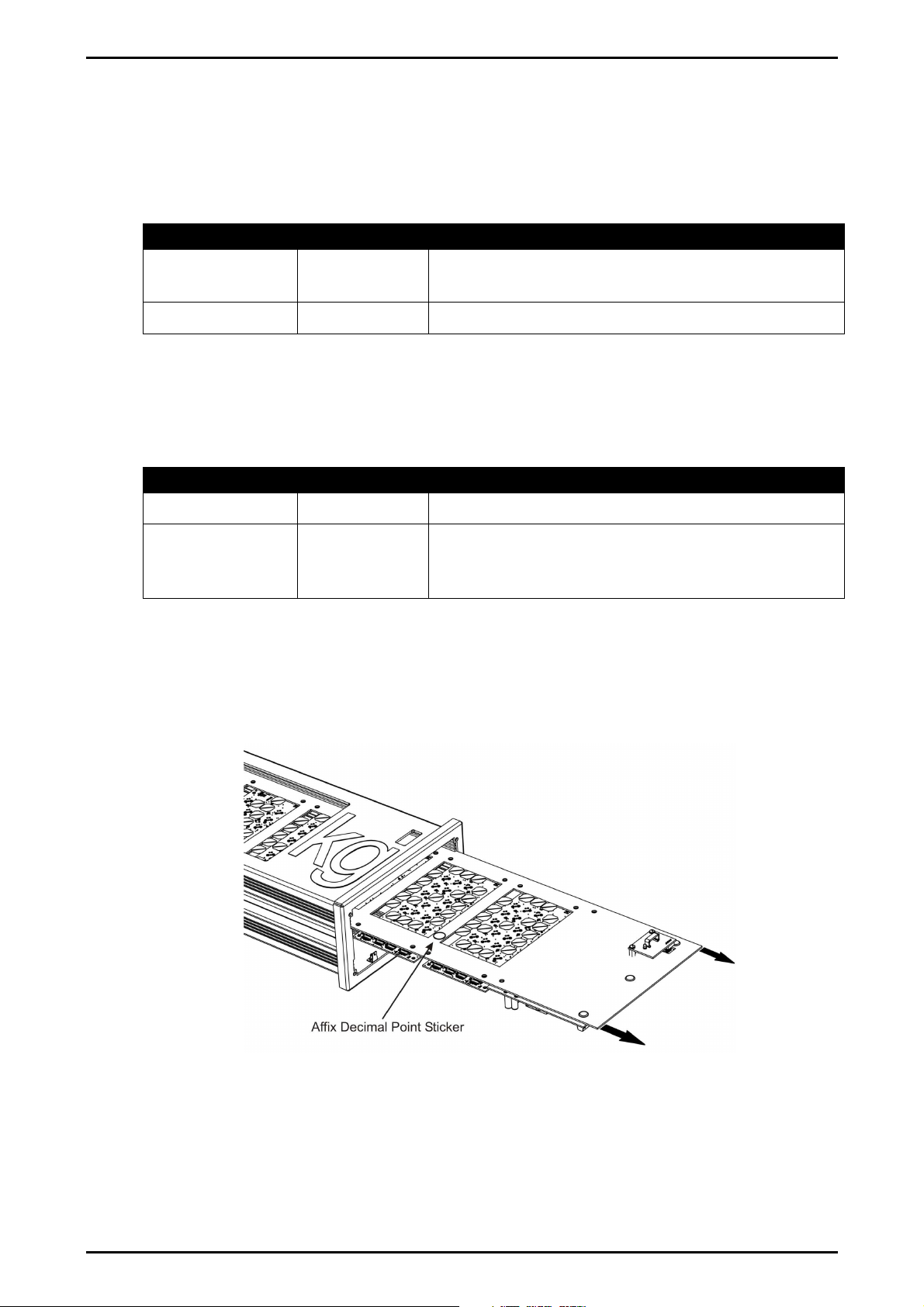

Figure 3 - Application of Decimal Point Sticker

Page 8 046D-600-150

Reference Manual - Software Version 2.xx

Shield

RS232RX

RS232GND

RS485RA -

RS485RB+

LoopData+

LoopData-

+24VMax250mA

0V

Dimming

1 2

5 6

8 9 10

4.8. Serial Connection

The serial connection receives the data to display. It is located on the left of the mask assembly board near the dipswitches as shown in Figure 2 - Internal Connections and Dipswitch. The connections are numbered left to right, 1 being furthest to the left near the dipswitches.

A shielded data cable should be used to prevent electrical noise interfering with the signal on the cable, and thereby the operation of the unit. The data cable should be run through the upper gland of the end plate, through the gasket and the cable sheath cut back around 50mm before being connected to the terminal blocks.

Both units have a single serial connection that automatically scans for data. There are three serial port connection types:

• RS232 isolated receive only

• RS485 isolated receive only

• 20mA Current Loop isolated receive only

Warning: If using the 24V supply to power a current loop,

ensure that external current limiting is provided otherwise

damage may occur to both units.

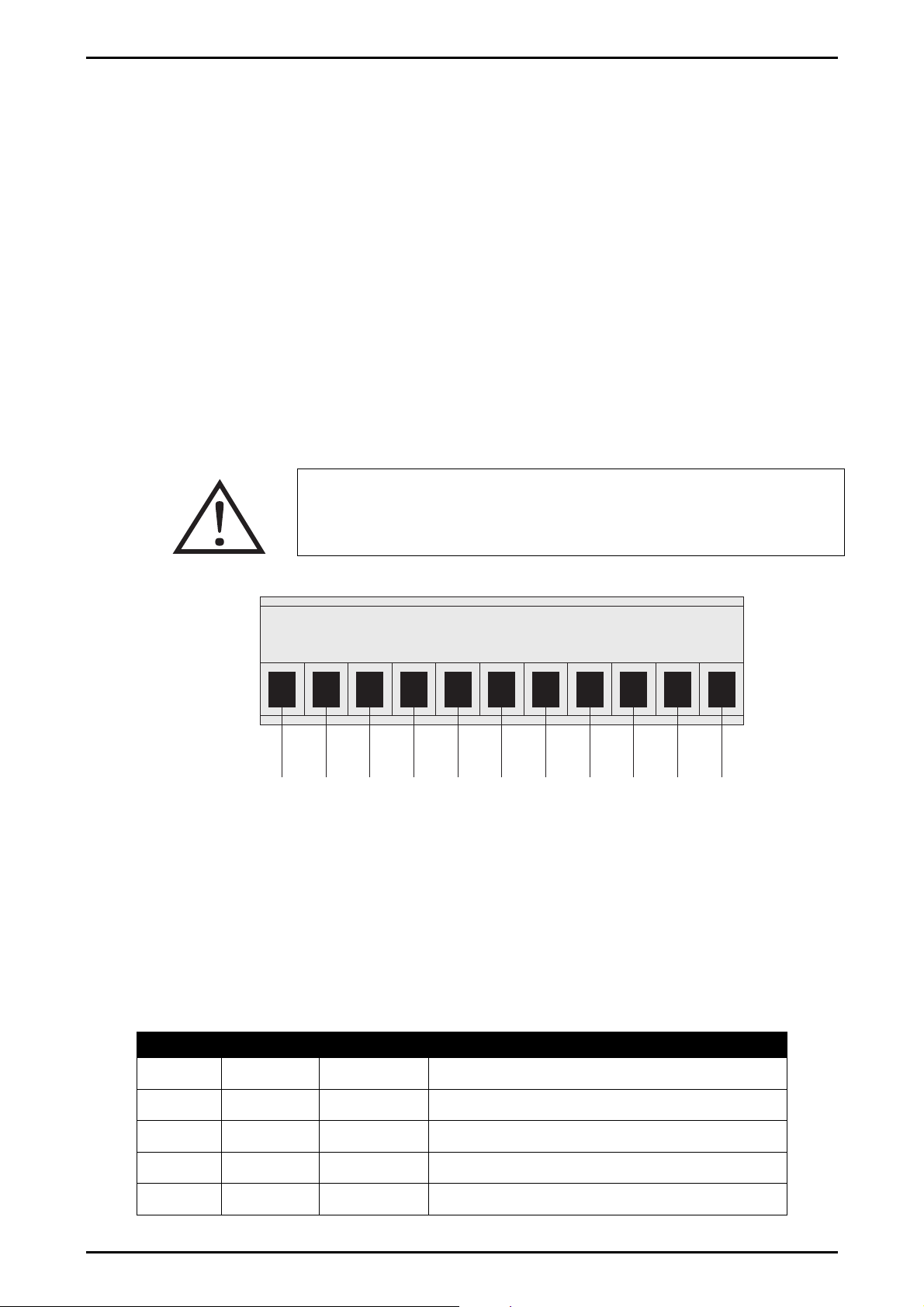

Figure 4 - Serial Connection Pin out

4.8.1. Baud Rate and Parity

Baud rate, parity and data bits are automatically detected. The baud rate can be 2400, 4800, 9600 or 19200. Parity and data bits supported are:

Parity Databits Examples Description

(N)one 8 N81, N82 No parity, 8 data bits, 1 or 2 stop bits (E)ven 7 E71, E72 Even parity, 7 data bits, 1 or 2 stop bits (O)dd 7 O71, O72 Odd parity, 7 data bits, 1 or 2 stop bits (M)ark 7 M71, M72 Mark parity, 7 data bits, 1 or 2 stop bits (S)pace

046D-600-150 Page 9

7 S71, S72 Space parity, 7 data bits, 1 or 2 stop bits

Reference Manual - Software Version 2.xx

RemoteDisplay

Serial

Connector

Shield

DataCables

Indicator

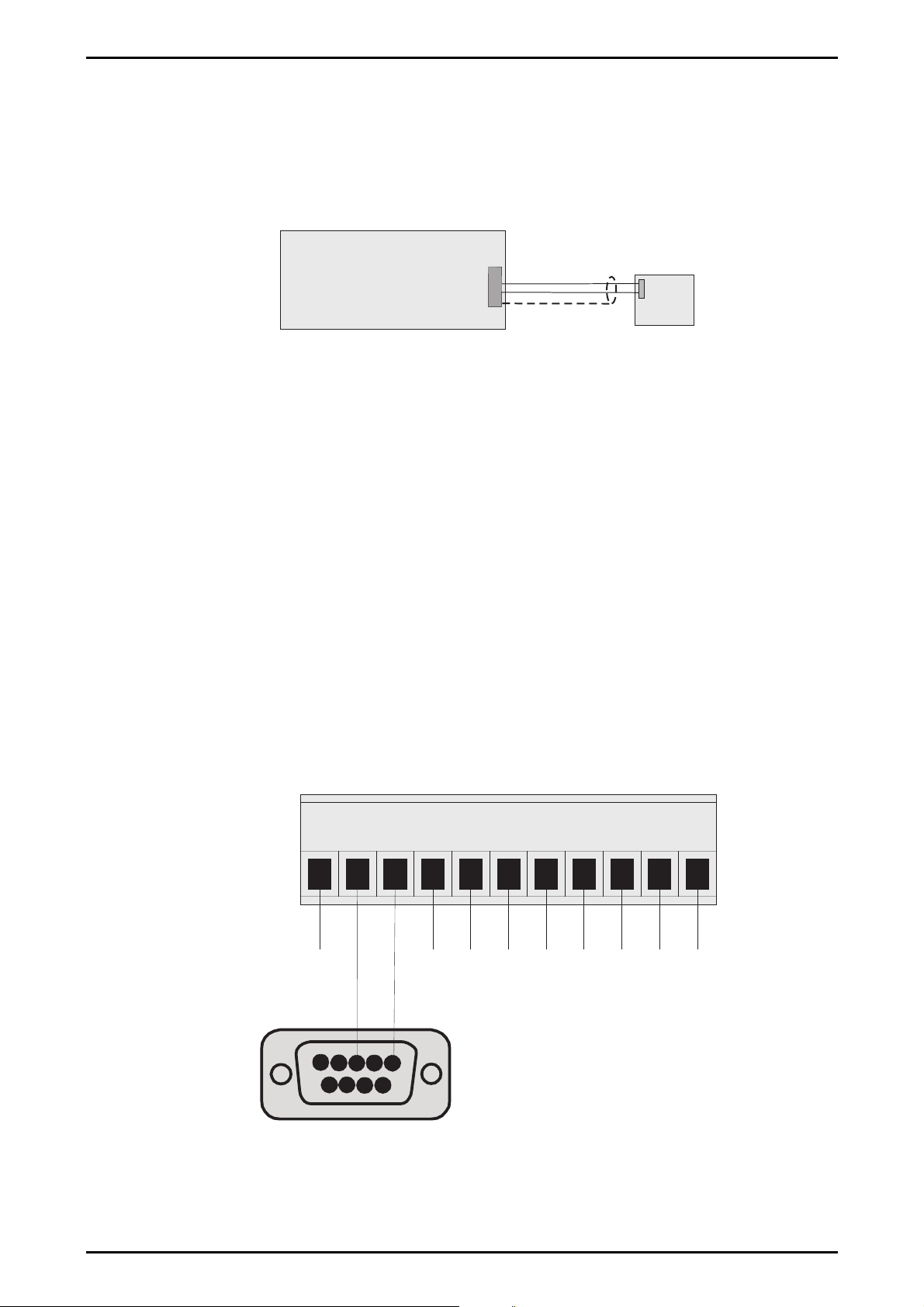

4.8.2. Earthing Requirements for Cable Shields

Cable shields should ideally be connected to earth at one end only for each of the communications options below. Pin 1 on the serial connection is internally connected to earth and provides a convenient location to terminate the serial cable shield.

Figure 5 - Shield Earthing

4.8.3. Powering Indicator from Remote Display (Pins 8 and 9)

Pins 8 and 9 provide a 24V DC supply at a maximum current draw of 250mA. This supply can be used to power the weighing indicator. In such installations a single serial cable with four (4) conductors joins the indicator and the remote display. Two conductors supply power to the indicator and two conductors are used for data transmission.

4.8.4. Dim LED Display (Pins 10 and 11)

For internal applications or for use in dimly lit areas, the LED display may be too bright for comfort. The display can be dimmed by shorting pins 10 and 11 and an external switch can be used.

4.8.5. RS232 Receive Only

RS232 is not suitable for long cable runs or electrically noisy environments. It uses pins 2 and 3 as shown in Figure 6 - RS232 Connection. Earthing is discussed in Earthing Requirements for Cable Shields page 10.

1 2

RS232RX

RS232GND

5 6

8 9 10

RS232F

Page 10 046D-600-150

Figure 6 - RS232 Connection

Reference Manual - Software Version 2.xx

1 2

5 6

8 9 10

RS485RA -

RS485RB+

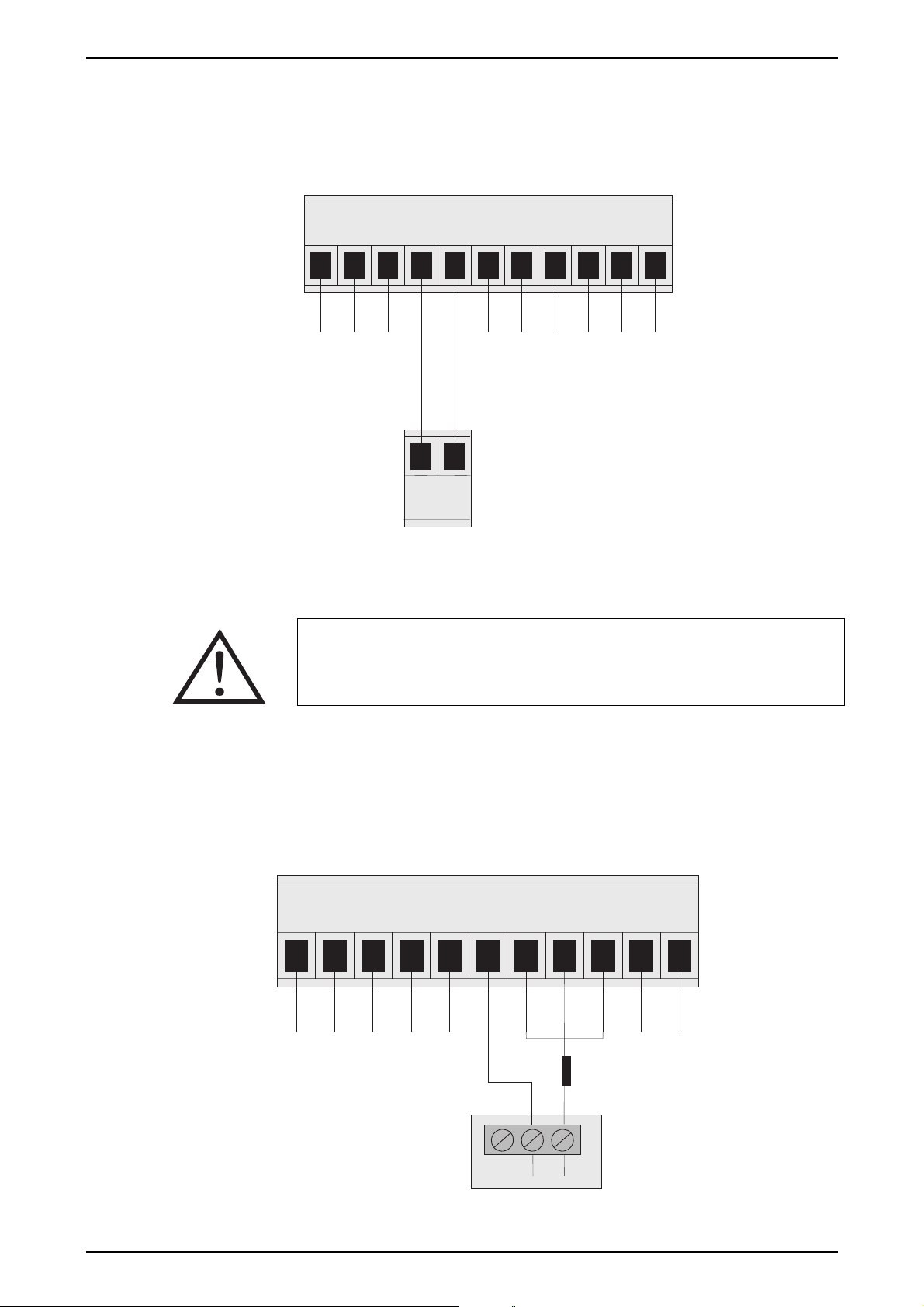

4.8.6. RS485 Receive Only

RS485 is the preferred serial connection and uses pins 4 and 5 as shown in Figure 7 - RS485 Connection. Earthing is discussed in Earthing Requirements for Cable Shields page 10.

Figure 7 - RS485 Connection

4.8.7. 20mA Current Loop Receive Only Warning: If using the 24V supply to power a current loop,

ensure that external current limiting is provided otherwise

damage may occur to both units.

Both units are fitted with a 20mA Current Loop receiver. It is a passive receiver meaning it is not current limited and requires external current limiting on the loop current. Therefore either your transmitter or an external device must limit the loop current. A 1.2k 0.5W resistor is recommended if using the 24V supply to power the current loop. The connection to a passive loop transmitter is shown in Figure 8 20mA Current Loop. Earthing is discussed in Earthing Requirements for Cable Shields page 10.

1 2

5 6

8 9 10

LoopData-

LoopData+

Passive Loop TX Device

0V

1.2k(0.5W)resistor

Figure 8 - 20mA Current Loop – Passive Loop Transmitter

046D-600-150 Page 11

Reference Manual - Software Version 2.xx

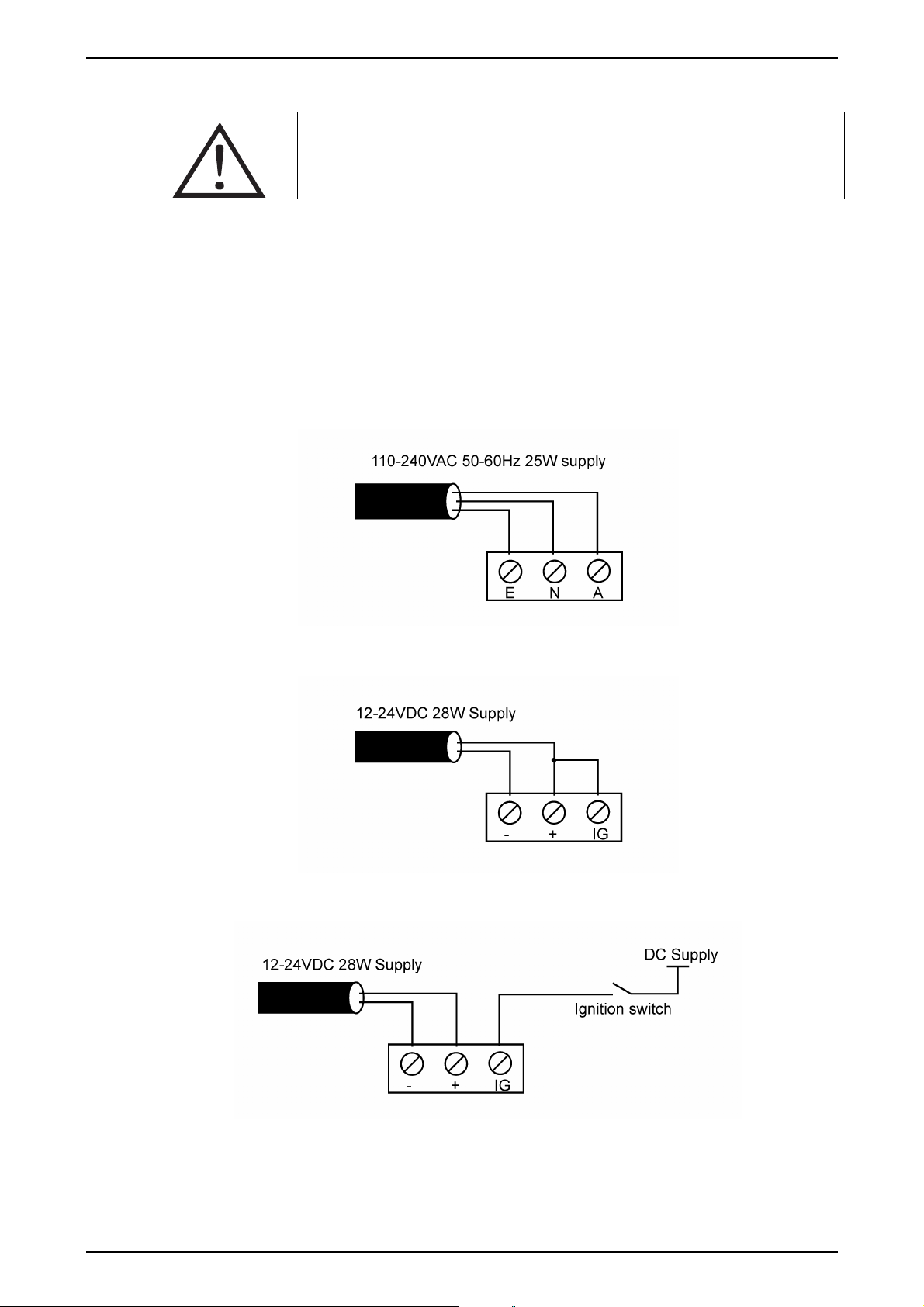

4.9. Power Connection

AC units operate from an AC power source between 110VAC and 240VAC. The power connection should be performed under local regulations. The earth MUST be connected for both safety and EMC regulation compliance.

DC units operate from a DC power source between 12VDC and 24VDC. For the display to power up, 12-24VDC must also be connected to the IG (ignition) input. The ignition input is a low current input, and is useful in applications where the display must be switched on by a low current source.

Run power cable through the gland of the end plate and connect as per the appropriate diagram below.

Warning: Both units contain Hazardous Voltages.

Disconnect power before opening

Figure 9 AC power supply connection

Figure 10 DC Always on connection

Figure 11 DC switched connection

Page 12 046D-600-150

Reference Manual - Software Version 2.xx

Mounting

Front Slot

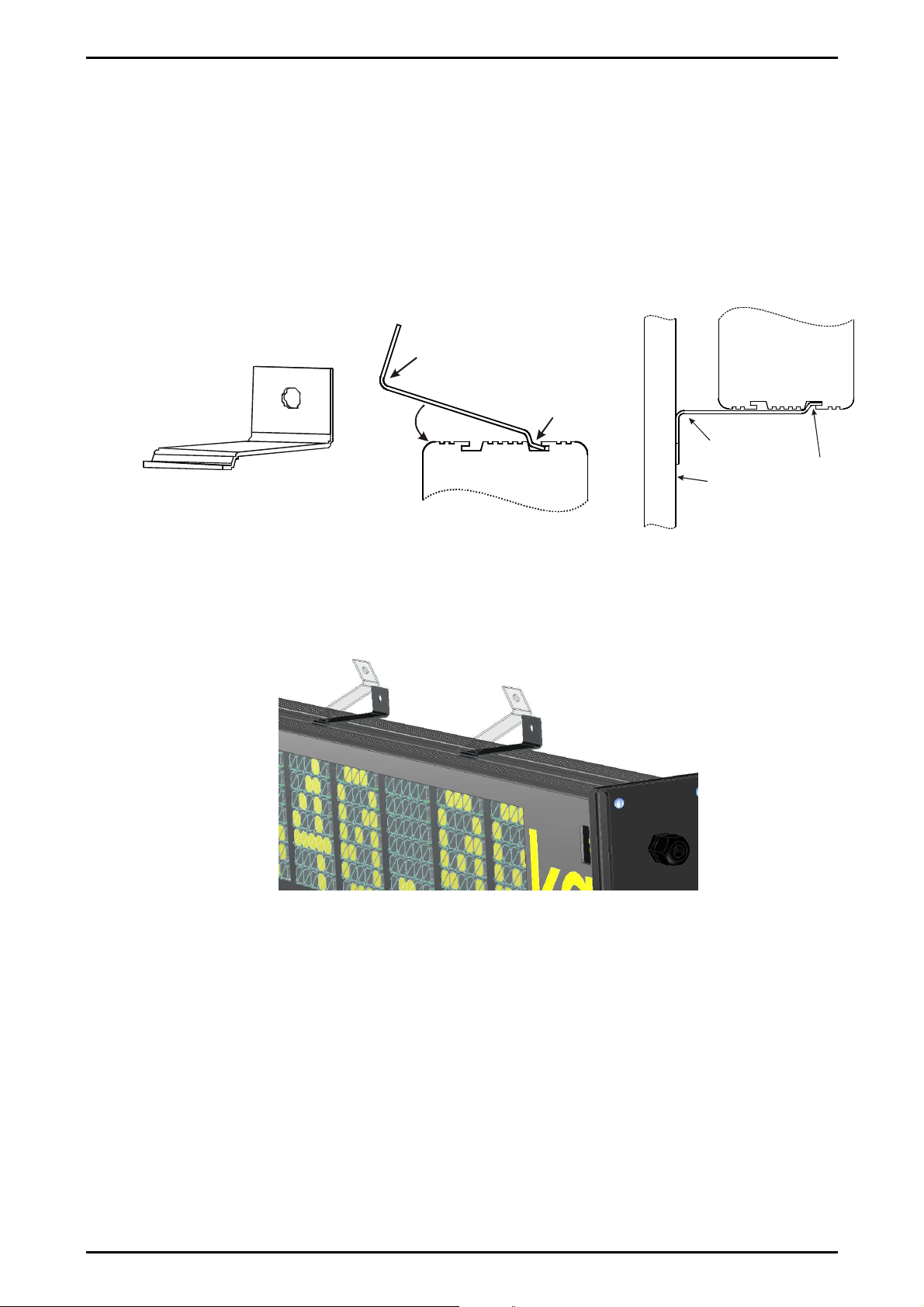

4.10. Mounting

4.10.1. Clip Attachment

Four stainless steel mounting clips (two top and two for the bottom) are used to mount the unit on a flat surface. The clips slot into the front channel in the top and bottom of the case, as shown in the figure. The hole in each clip is 7mm in diameter.

Clip

Case

Figure 12 - Mounting Clip Attachment 1

Case

Mounting Clip

Mounting Surface

Figure 13 - Mounting Clip Attachment 2

4.10.2. Wall Mounting

For wall mounting it is recommended that:

• 6mm or 1/4" bolts be used;

• all four clips are used (two on the top and two on the bottom) and

• to support the optional Weather Hood the mounting holes must be 268mm

apart as it connects to the top mounting clips.

It is suggested that the two lower clips are attached first. Then with the top of the unit angled outward from the wall the two clips can be inserted into the front channel on the bottom of the case. While holding the unit, the top brackets can be inserted to line up with the bottom brackets to allow the top holes to be marked for drilling.

046D-600-150 Page 13

Reference Manual - Software Version 2.xx

4.11. Weather Hood

These units are suitable to use in external applications and are designed to be weather resistant (note: on the underside of the extrusion are two breather holes and as such the area should not be subject to high pressure water). An optional weather hood is available to minimise effects of direct sunlight.

4.12. Mounting Options

Optional pole mounting and swivel mounting kits are available, along with a weather shield option. Swivel mount is shown below.

Page 14 046D-600-150

5.1. Overview

The protocols listed in this section are within Protocol Group 0. As discussed in section 4.3, Dipswitches, page 6, dipswitches 4 and 5 set the Protocol Group.

5.2. Protocol 1

Character Number 0 1 2 3 4 5 6 7 8 9 10 Description

Reference Manual - Software Version 2.xx

5. Protocol Group 0

STX

Sign

Weight

Status

Weight

Function Description

STX Start of Transmission Character (ASCII 02H). Sign Represents the sign of the weight reading (space for positive, dash

(-) for negative.

Weight These seven characters are a string containing the current weight

including the decimal point. If there is no decimal point, then the first character is a space.

Examples:

( 300) with a leading space would represent 300 units. ( 3.00) Is another acceptable string.

Status The status character provides information on the weight reading.

The characters G/N/U/O/M/E represent Gross/Net/Underload/Overload/Motion/Error, respectively. A space (ASCII 20H) can also be sent. This character may only represent one status at any one time.

ETX

ETX End of Transmission character (ASCII 03H).

046D-600-150 Page 15

5.3. Protocol 2

Character Number Description

Reference Manual - Software Version 2.xx

0 1 2 3 4 5 6 7 8 9 10

Character Number

STX

Status

11 12 13

Sign

Weight

Description

Units

ETX

Function Description

STX Start of Transmission Character (ASCII 02H). Sign Represents the sign of the weight reading (space for positive, dash

(-) for negative.

Weight These seven characters are a string containing the current weight

including the decimal point. If there is no decimal point, then the first character is a space.

Examples:

( 300) with a leading space would represent 300 units.

Units

( 3.00) Is another acceptable string.

Status The status character provides information on the weight reading.

The characters G/N/U/O/M/E represent Gross/Net/Underload/Overload/Motion/Error, respectively. A space (ASCII 20H) can also be sent. This character may only represent one status at any one time.

Units Not used by the remote display.

ETX End of Transmission character (ASCII 03H).

Page 16 046D-600-150

5.4. Protocol 3

Reference Manual - Software Version 2.xx

Character Number

Description

Character Number

Description

0 1 2 3 4 5 6 7 8 9 10

STX

11 12 13 14 15 16

Sign

Weight

Units

Weight

Units

Weight

ETX

Weight

Function Description

STX Start of Transmission Character (ASCII 02H). Sign Represents the sign of the weight reading (space for positive, dash

(-) for negative.

Weight These seven characters are a string containing the current weight

including the decimal point. If there is no decimal point, then the first character is a space.

Examples:

( 300) with a leading space would represent 300 units. ( 3.00) Is another acceptable string, note that when the decimal

point is added the leading space is removed.

S1 Can be G/N/U/O/E representing

Gross/Net/Underload/Overload/Error, respectively. A space (ASCII 20H) can also be sent. This character may only represent one

status at any one time. S2 Can be M representing motion or a space to represent stable. S3 Set to Z representing centre of zero or a space to represent non-

zero. S4 Set to one (1) to represent range one in dual-interval and dual

range mode, set to two (2) to represent range two in dual-interval

and dual range mode, otherwise send a dash (-). Units Not used by the remote display. ETX End of Transmission character (ASCII 03H).

046D-600-150 Page 17

5.5. Protocol 4

Character Number 0 1 2 3 4 5 6 7 8 9 Description

Reference Manual - Software Version 2.xx

STX

Sign

Weight

Function Description

STX Start of Transmission Character (ASCII 02H). Sign Represents the sign of the weight reading (space for positive, dash

(-) for negative.

Weight These seven characters are a string containing the current weight

including the decimal point. If there is no decimal point, then the

first character is a space.

Examples:

( 300) with a leading space would represent 300 units. ( 3.00) Is another acceptable string.

ETX End of Transmission character (ASCII 03H).

ETX

Page 18 046D-600-150

5.6. Protocol 5

Reference Manual - Software Version 2.xx

Character Number

Description

0 1 2 3 4 5 6 7 8 9 10 11 12

STX

Text

SPC

Address(0)

Function Description

STX Start of Transmission Character (ASCII 02H). Text These eight (8) characters will be displayed. They may be ASCII

characters instead of numbers in which case the display will show

text. These eight characters can include a decimal point and a

leading minus to indicate sign. Example:

( 300) would represent 300 units. ( - 3.00) a decimal point and minus sign can be used. ( CEMENT) text can be sent.

A capital L in position 1 will disable the remote display data timeout

and can be used to lock the message on the display until new data

is sent.

ETX

Address (1)

SPC Space character (ASCII 20H). Address A two character field specifying the address of the unit to display the

message. Where 00 is the broadcast address. Note the actual

address of a display is set by dipswitches 1-3 refer to 4.3

Dipswitches page 6. ETX End of Transmission character (ASCII 03H).

046D-600-150 Page 19

(0)

(1)

(0)

(1)

5.7. Protocol 6

Reference Manual - Software Version 2.xx

Character Number

Description

Character Number

Description

0 1 2 3 4 5 6 7 8 9 10 11 12

Data(1)

Command

Address(0)

Address(1)

13 14 15 16 17 18

Data(4)

Data(5)

Command

Data(6)

Data(7)

Terminator

Data(0)

Semicolon

Function Description

Address A two character field specifying the address of the unit to

display the message. Where 00 is the broadcast address. Note the actual address of a display is set by dipswitches 1-3 refer to 4.3 Dipswitches page 6.

Data(2)

Data(3)

Command(0-1) Must be 12 (ASCII 31H, ASCII 32H). Register(0-3) Must be 000E (ASCII 30H, ASCII 30H, ASCII 30H, ASCII 45H). Semicolon This byte must be a semicolon (ASCII 3BH). Data(0-7) This is the string to be displayed on the Remote Display and

may consist of text and or numbers.

Terminator(0-1) These two characters signify the end of the signal and are

represented by a carriage return and then a line feed or CRLF (ASCII 0D, ASCII 0A).

Note: When using this protocol the display timeout is disabled, which means that the message will remain on the display until new data is sent.

Page 20 046D-600-150

5.8. Protocol 7

Reference Manual - Software Version 2.xx

Character Number

Description

Character Number

Description

Character Number

Description

0 1 2 3 4 5 6 7 8 9 10 11 12

STX

Weight(1)

Weight(2)

Weight(3)

Weight(4)

Weight(0)

13 14 15 16 17 18 19 20 21 22 23 24 25

Units(4)

26 27

SPC

ETX

SPC

Con(0)

Weight(5)

Con(1)

Con(2)

SPC

Weight(6)

Con(3)

Con(4)

Units(1)

Units(0)

Con(5)

Units(2)

SPC

Ignore

Units(3)

Function Description

STX Start of Transmission Character (ASCII 02H). Weight The numbers to be displayed on the remote display. These

seven characters can include a decimal point and a leading minus to indicate sign. E.g.

( 300) with leading spaces would represent 300 units. ( 3.00) Is another acceptable string, this time with a decimal

point instead of one of the characters. (-30.000) Here we have the weight with the sign attached.

Note because of the sign and the decimal point only five

number characters are sent. Units Not used by the remote display. SPC Space character (ASCII 20H). S1 Can be G or N to indicate Gross or Net respectively. Con Consecutive numbers, are not used by the remote display. CR Carriage Return character (ASCII 0DH) LF Line Feed character (ASCII 0AH) ETX End of Transmission character (ASCII 03H).

046D-600-150 Page 21

5.9. Protocol 8

Reference Manual - Software Version 2.xx

Character Number

Description

Character Number

Description

0 1 2 3 4 5 6 7 8 9 10 11 12

STX

Weight(0)

13 14 15

SPC

Weight(1)

Weight(2)

Weight(3)

Weight(4)

Weight(5)

Weight(6)

ETX

Weight(7)

Function Description

STX Start of Transmission Character (ASCII 02H). Weight(0-7) The numbers to be displayed on the remote display. These

eight characters can include a decimal point and a leading minus to indicate sign. E.g.

Ignore

(00000300) with leading zeroes would represent 300 units.

(00003.00) Is another acceptable string, this time with a

decimal point instead of one of the characters.

(-0003.00) Here we have the weight with the sign attached.

Note because of the sign and the decimal point only six

number characters are sent. S1 Can be G or N to indicate Gross or Net respectively. S2 Can be M or S to indicate Motion or Stable respectively S3 Can be I,O or U to indicate In scale, Over range or Under

range respectively. SPC Space character (ASCII 20H). ETX End of Transmission character (ASCII 03H).

Page 22 046D-600-150

5.10. Protocol 9

Reference Manual - Software Version 2.xx

Character Number

Description

Character Number

Description

Character Number

Description

0 1 2 3 4 5 6 7 8 9 10 11 12

STX

13 14 15 16 17 18 19 20 21 22 23 24 25

Tare(4)

26 27 28 29 30 31

Gross(1)

Gross(2)

Gross(3)

Gross(4)

Gross(5)

Gross(0)

Net(0)

Tare(5)

Tare(6)

Tare(7)

SPC

Ignore

Net(1)

ETX

SPC

Gross(6)

Net(2)

Net(3)

Tare(0)

Tare(1)

Gross(7)

Net(4)

Net(5)

Tare(2)

Net(6)

Net(7)

Tare(3)

Function Description

STX Start of Transmission Character (ASCII 02H). Gross The numbers to be displayed on the remote display When S1

equals G. These eight characters can include a decimal point

and a leading minus to indicate sign. E.g.

(00000300) with leading zeroes would represent 300 units. (00003.00) Is another acceptable string, this time with a

decimal point instead of one of the characters. (-0003.00) Note because of the sign and the decimal point

only six number characters are sent. Tare Not used by the remote display Net The numbers to be displayed on the remote display When S1

equals N. These eight characters can include a decimal point

and a leading minus to indicate sign. Examples as for Gross. S1 Can be G or N to indicate Gross or Net respectively. S2 Can be M or S to indicate Motion or Stable respectively S3 Can be I,O or U to indicate In scale, Over range or Under

range respectively. SPC Space character (ASCII 20H). ETX End of Transmission character (ASCII 03H).

046D-600-150 Page 23

5.11. Protocol 10

Reference Manual - Software Version 2.xx

Character Number

Description

Character Number

Description

0 1 2 3 4 5 6 7 8 9 10 11 12

Sign

HeaderA(0)

13 14 15 16 17

Weight(6)

Comma

HeaderA(1)

Units(0)

HeaderB(0)

Units(1)

Comma

HeaderB(1)

Weight(1)

Weight(2)

Weight(3)

Weight(0)

Weight(4)

Function Description

HeaderA This header can be ST, UN or OL representing stable, unstable

and out of scale range. Comma Comma (ASCII 2CH).

Weight(5)

HeaderB This second header can be GS - gross weight, NT - Net weight,

TR - Tare and PT - Preset Tare.

The NET annunciator will be on for Net weight and off for all

other weights. Sign The sign of the weight reading (plus (+) for positive, dash (-) for

negative). It is also used to show the direction of out of scale

range: + for overload and – for underload. Weight These seven characters are a string containing the current

weight including the decimal point. If there is no decimal point,

then the last character is a period. Leading zero blanking

applies. During overload or underload the weight reading will be

spaces. E.g.

(000300.) Note the trailing period, this string would represent 300 units.

(0003.00) Is another acceptable string, note that when the

decimal point is added the period at the end is removed. Units Not used by the remote display. CR Carriage Return character (ASCII 0DH). LF Line Feed character (ASCII 0AH).

Page 24 046D-600-150

5.12. Protocol 11

Reference Manual - Software Version 2.xx

Character Number

Description

0 1 2 3 4 5 6 7 8 9 10

Sign

Header(0)

Comma

Header(1)

Weight(0)

Weight(1)

Weight(2)

Weight(3)

Weight(4)

Function Description

Header This header can be WT when in normal mode or OL to

represent out of scale range. Comma Comma (ASCII 2CH). Sign The sign of the weight reading (plus (+) for positive, dash (-) for

negative). If the unit rests at zero the sign will be a plus. It is

also used to show the direction of out of scale range: + for

overload and – for underload. Weight These five characters are a string containing the current weight

including the decimal point. If there is no decimal point, then a

preceding zero is used. Leading zero blanking applies. During

overload or underload the weight reading will be 99.99 with the

sign representing which one it is. E.g.

(00300) This string would represent 300 units. (03.00) Shows the string format when a decimal point is

added. CR Carriage Return character (ASCII 0DH). LF Line Feed character (ASCII 0AH).

046D-600-150 Page 25

5.13. Protocol 12

Reference Manual - Software Version 2.xx

Character Number

Description

Character Number

Description

0 1 2 3 4 5 6 7 8 9 10 11 12

STX

SW(A)

SW(B)

13 14 15 16

Tare(3)

Tare(4)

Tare(5)

SW(C)

Weight (0)

Weight (1)

Weight (2)

Weight (3)

Weight (4)

Tare(0)

Weight (5)

Function Description

STX Start of Transmission Character (ASCII 02H). SW SW A, B and C are each a collection of status bits. The

relevant bits of the three characters are shown below in tabular form. All other status bits are ignored.

Tare(1)

Tare(2)

Weight These six characters are a string containing the current gross

or net weight not including the decimal point or a sign. Tare Not used by the remote display CR Carriage return character ASCII 0D.

SW A Bits 0,1 and 2

Bits

0 1 2

Decimal Point

Location

Status

Bits

SW B Bits 0,1,2 and 3

Function

0 0 0 XXXX00 Bit 0 Gross = 0, Net = 1 1 0 0 XXXXX0 Bit 1 Sign, Positive = 0, Negative = 1

0 1 0 XXXXXX Bit 2

Out of Range = 1 (Either overload or

underload

1 1 0 XXXXX.X Bit 3 Motion = 1

Page 26 046D-600-150

5.14. Protocol 13

Character Number Description

Reference Manual - Software Version 2.xx

0 1 2 3 4 5 6 7 8 9 10 11 12

SPC

Weight(0)

Weight(1)

Weight(2)

Weight(3)

Weight(4)

Weight(5)

Weight(6)

Weight(7)

Units(0)

Units(1)

Units(2)

Units(3)

Character Number

13 14 15 16 17 18 19 20 21 22

Description

SPC

Units(4)

Mode(0)

Function Description

Weight The numbers to be displayed on the remote display. These

eight characters can include a decimal point and a leading

minus to indicate sign. E.g.

( 300) would represent 300 units. ( 3.00) Is another acceptable string, this time with a decimal

point instead of one of the characters. (- 3.00) Note because of the sign and the decimal point only

six number characters are sent.

Units Not used by the remote display.

Mode(1)

Mode(2)

Mode(3)

Mode(4)

Mode Gross, Net or Tare with trailing spaces. Used to actuate the

Net annunciator

S1 M = Motion, S = Stable, O = Overload or Underload, E = Error

CR Carriage return character (ASCII 0DH).

LF Line feed character (ASCII 0AH).

SPC Space character (ASCII 20H).

046D-600-150 Page 27

5.15. Protocol 14

Character Number Description

Reference Manual - Software Version 2.xx

0 1 2 3 4 5 6 7 8 9 10 11 12

SPC

Weight(0)

Weight(1)

Weight(2)

Weight(3)

Weight(4)

Weight(5)

Weight(6)

Weight(7)

Units(0)

Units(1)

Units(2)

Units(3)

Character Number

13 14 15 16 17 18 19 20 21 22 23

Description

SPC

Units(4)

Mode(0)

Function Description

Weight The numbers to be displayed on the remote display. These

eight characters can include a decimal point and a leading

minus to indicate sign. E.g.

( 300) would represent 300 units. ( 3.00) Is another acceptable string, this time with a decimal

point instead of one of the characters. (- 3.00) Note because of the sign and the decimal point only

six number characters are sent.

Units Not used by the remote display.

Mode(1)

Mode(2)

Mode(3)

Mode(4)

Mode Gross, Net or Tare with trailing spaces. Used to actuate the

Net annunciator

S1 M = Motion, S = Stable, O = Overload or Underload, E = Error S2 Z = Centre of Zero, Space for not centre of zero

CR Carriage return character (ASCII 0DH).

LF Line feed character (ASCII 0AH).

SPC Space character (ASCII 20H).

Page 28 046D-600-150

5.16. Protocol 15

Character Number Description

Reference Manual - Software Version 2.xx

0 1 2 3 4 5 6 7 8 9 10 11 12

Character Number

STX

Ignore

13 14 15 16 17 18 19 20 21 22 23

Ignore

Description

Tare(3)

Tare(4)

Tare(5)

Function Description

STX Start of Transmission Character (ASCII 02H).

Sign Represents the sign of the weight reading (space for positive,

dash (-) for negative.

Net The numbers to be displayed on the remote display. E.g.

( 300) would represent 300 units.

Tare Not used by the remote display.

Sign

Net(0)

Net(1)

Net(2)

Net(3)

Ignore

Tare(6)

Tare(7)

SPC

Tare(8)

Net(4)

Tare(0)

Tare(1)

Tare(2)

SPC Space character (ASCII 20H).

S1 ASCII character (0-F) with values as shown in the table below S2 ASCII character (0-F) with values as shown in the table below LF Line feed character (ASCII 0AH).

CR Carriage return character (ASCII 0DH).

S1 Bit S1 Status S2 Value S2 Status

0 Tare=0, preset Tare=1

0 Units = kg

Only used in net mode. 1 Motion = 0, Stable=1 1 Units = g 2 Not COZ=0, COZ=1 3 Units = T 3 Gross=0, Net=1 5 Weight longer than string,

Display will be blanked.

046D-600-150 Page 29

5.17. Protocol 16

Character Number Description

Reference Manual - Software Version 2.xx

0 1 2 3 4 5 6 7 8 9 10 11 12

Character Number

STX

Ignore

13 14 15 16 17 18 19 20 21 22 23 24 25

Ignore

Description

Tare(2)

Tare(3)

Tare(4)

Function Description

STX Start of Transmission Character (ASCII 02H).

Sign Represents the sign of the weight reading (space for positive,

dash (-) for negative.

Net The numbers to be displayed on the remote display. These six

characters include a decimal. E.g.

( 300.0) with leading spaces would represent 300 units.

Tare Not used by the remote display

Sign

Net(0)

Net(1)

Net(2)

Net(3)

Net(4)

Ignore

Tare(5)

Tare(6)

Tare(7)

Tare(8)

SPC

Tare(9)

Net(5)

Tare(0)

Tare(1)

SPC Space character (ASCII 20H).

S1 ASCII character (0-F) with values as shown in the table below S2 ASCII character (0-F) with values as shown in the table below LF Line feed character (ASCII 0AH).

CR Carriage return character (ASCII 0DH).

S1 Bit S1 Status S2 Value S2 Status

0 Tare=0, preset Tare=1

0 Units = kg

Only used in Net mode. 1 Motion = 0, Stable=1 1 Units = g 2 Not COZ=0, COZ=1 3 Units = T 3 Gross=0, Net=1 5 Weight longer than string,

Display will be blanked.

Page 30 046D-600-150

5.18. Protocol 17

Character Number Description

Reference Manual - Software Version 2.xx

0 1 2 3 4 5 6

STX

Address

Weight(0)

Weight(1)

Weight(2)

ETX

Weight(3)

Function Description

STX Start of Transmission Character (ASCII 02H).

Address A single character field specifying the address of the unit to

display the message. The address is fixed as 1 for this string so the unit must be set to address 1 to display this string.

Weight The numbers to be displayed on the remote display. These

four characters can include a decimal point and a leading minus to indicate sign. E.g.

( 300) with leading space would represent 300 units. (3.00) Is another acceptable string, this time with a decimal

point instead of one of the characters. (-3.0) Here we have the weight with the sign attached. Note

because of the sign and the decimal point only two number characters are sent.

ETX End of Transmission character (ASCII 03H).

046D-600-150 Page 31

5.19. Protocol 18

Character Number Description

Reference Manual - Software Version 2.xx

0 1 2 3 4 5 6 7 8 9 10

STX

Address

Text(0)

Text(1)

Text(2)

Text(3)

Text(4)

Text(5)

Text(6)

Text(7)

Function Description

STX Start of Transmission Character (ASCII 02H).

Address A single character field specifying the address of the unit to

display the message. The address is fixed as 2 for this string so the unit must be set to address 2 to display this string.

Text These eight (8) characters will be displayed. They may be

ASCII characters instead of numbers in which case the display will show text. These eight characters can include a decimal point and a leading minus to indicate sign. Example:

( 300) would represent 300 units. ( - 3.00) a decimal point and minus sign can be used. ( CEMENT) text can be sent.

ENQ Used as end of transmission character (ASCII 05H).

ENQ

Page 32 046D-600-150

5.20. Protocol 19

Character Number Description

Reference Manual - Software Version 2.xx

0 1 2 3 4 5 6 7 8 9 10 11 12

Sign

Ignore

SPC

Weight(0)

Weight (1)

Weight (2)

Weight (3)

Weight (4)

Character Number

13 14 15 16 17 18 19 20 21

Description

Weight (5)

Weight (6)

Function Description

Sign Represents the sign of the weight reading (+ for positive, dash

(-) for negative.

Weight The numbers to be displayed on the remote display. E.g.

( 300) would represent 300 units.

Units Not used by the remote display.

SPC Space character (ASCII 20H).

LF Line feed character (ASCII 0AH).

CR Carriage return character (ASCII 0DH).

SPC

Units(0)

Units(1)

Units(2)

046D-600-150 Page 33

5.21. Protocol 20

Character Number Description

Reference Manual - Software Version 2.xx

0 1 2 3 4 5 6 7 8 9 10

Weight(0)

Weight (1)

Weight (2)

Weight (3)

ESC

Units

Ignore

Weight (4)

Function Description

S1 N = Net, M = Net + COZ, O = COZ Units Set to zero (0) if there is motion, otherwise unused by the

display

Weight

The numbers to be displayed on the remote display. E.g.

( 300) would represent 300 units. ESC Escape character (ASCII 1BH). CR Carriage return character (ASCII 0DH). LF Line feed character (ASCII 0AH).

Page 34 046D-600-150

5.22. Protocol 21

Character Number Description

Reference Manual - Software Version 2.xx

0 1 2 3 4 5 6 7 8 9 10 11

Weight (1)

Weight (2)

Weight (3)

Weight (0)

Weight (4)

ESC

Ignore

Weight (5)

Units

Function Description

S1 N = Net, M = Net + COZ, O = COZ Units Set to zero (0) if there is motion, otherwise unused by the

display

Weight

The numbers to be displayed on the remote display. E.g.

( 300) would represent 300 units. ESC Escape character (ASCII 1BH). CR Carriage return character (ASCII 0DH). LF Line feed character (ASCII 0AH).

046D-600-150 Page 35

5.23. Protocol 22

This protocol is used when no matching protocol can be found. This protocol will usually display the weight correctly for unknown protocols.

Reference Manual - Software Version 2.xx

Character Number

Description

Function Description

Header Not required ~ This symbol represents an unknown number of characters.

- Sign The message is scanned for a minus sign (-). If found, the

Weight The string is scanned from the start of the data looking for any

weight is considered to be negative and the unit will display a negative sign (-) if there are sufficient digits.

number (0-9). The first number found is considered to be the start of the weight reading. Up to 8 numbers are considered the weight reading. The unit will then display as much of this weight reading (right justified) as possible given the number of digits of the display. Leading zero blanking will be applied.

1 2 3 4 5 6 7 8

- Sign Weight (0)

Weight (1)

Weight (2)

Weight (3)

Weight (4)

Weight (5)

Weight (6)

Weight (7)

Terminator

(123) on a 7 digit display will display as “0000123” (12345678) on a 7 digit display will display as “2345678” (-123456) on a 7 digit display will display as “-123456”

Terminator A Carriage Return (ASCII 0DH) or End of Transmission (ASCII

03H) is acceptable.

Page 36 046D-600-150

Reference Manual - Software Version 2.xx

6. Protocol Group 1 – Text Only

This protocol displays up to 8 printable characters terminated with a CR or ETX.

Character Number

Description

0 1 2 3 4 5 6 7 ~

Text (0)

Text (1)

Text (2)

Text (3)

Text (4)

Text (5)

Text (6)

Text (7)

Terminator

Function Description

Text Up to 8 printable characters will be considered as the message.

The unit will display as much of this message, right justified, given the number of digits of the display. Eg.

(abcd1234) on a 7 digit display will display as “bcd1234” (abc) on a 5 digit display will be displayed as “abc” (abcd123456) will be rejected as too many characters

Terminator A Carriage Return (ASCII 0DH) or End of Transmission (ASCII 03H)

is acceptable.

046D-600-150 Page 37

Reference Manual - Software Version 2.xx

7.1. Weighing Errors

These messages show errors that have occurred during the normal weighing operation.

Error Description

--U---- Underweight - the weight is below the minimum allowable weight reading.

--O---- Overweight - The weight is above the maximum allowable weight reading.

--E---- Error - The indicator is reporting an error.

------- No valid data from indicator

7. Error Messages

Page 38 046D-600-150

Reference Manual - Software Version 2.xx

Notes:

046D-600-150 Page 39

Notes

Rinstrum D640, D740 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
