The Confidence Of Superior Engineering.

THE COMFORT OF

CONSISTENT WARMTH.

ENERGYSAVER® DIRECT VENT WALL FURNACES

MAKE EVERY ROOM IN YOUR HOME

a comfortable one.

2

2

At Rinnai, we create all of our products to deliver the kind of performance
that makes you comfortable on every level. That means you can count

®

on Rinnai EnergySaver

Direct Vent Wall Furnaces to give you cozy
contentment that goes beyond warmth, all the way to unparalleled peace
of mind and eciency.

Transform any living space – from basement to sunroom, or even your
whole home – with self-adjusting heat that keeps room temperature
consistent, from oor to ceiling. Relax, knowing that nearly 100 years
of engineering, quality and condence go into every product we make.
Enjoy savings that only this kind of eciency and dependability can
deliver. Save time, with a simple, versatile installation that ts your
home seamlessly.

Get comfortable with Rinnai, a name trusted by pros and homeowners
alike. And start enjoying every room in your home, with Rinnai

®

EnergySaver

Direct Vent Wall Furnaces.

3

A Warm Welcome In Every Room.

THE RINNAI ENERGYSAVER® DIRECT VENT WALL FURNACE

Consistent warmth that transforms any space.

Looking for a cost-eective heating
solution for nearly any living space, or
even your whole home? Now you’ve
found it. Rinnai EnergySaver
Vent Wall Furnaces’ advanced heating
technology puts you in control of your
comfort throughout every part of any
room, completely and eciently.

Consistent, even heating: Unique
technology monitors room temperature,
adjusting within seconds to maintain the
pre-set temperature. So, your room stays
consistently comfortable without big
temperature swings.

®

Direct

Reduced cold spots: A variable­speed blower circulates warm air evenly
throughout the room, for consistent
warmth – even in corners. So it’s never too
cool at the oor or too warm up higher.

Quality and reliability that deliver peace of mind.

Beyond comfort, we build condence into every product we make. Our commitment to your peace of mind is
proven in the way we design and test our EnergySaver

Our reliable, low-maintenance products feature a durable stainless steel heat exchanger and the assurance of
proven engineering. With Rinnai’s experienced support and a 10-year heat exchanger warranty*, you can depend
on years of comfort and warmth.

Other features to ensure performance you can trust:

Onboard diagnostics: Onboard self diagnostics ensure your model is performing optimally and simplies

troubleshooting if maintenance or service is needed.

Auto restart: In case of gas or power outages, the model automatically resumes normal operation as soon as
possible following the outage.

®

Direct Vent Wall Furnaces.

Cool-touch cabinet: Even while heating your space, the cool-to-the-touch cabinet keeps you and your
family safe.

Control panel lock: The control panel locking feature prevents unintended operation – especially by children.

*For complete information and details regarding Rinnai’s warranty, please visit rinnai.us.

4

Ecient choices that save you money.

With a Rinnai EnergySaver® Direct Vent Wall Furnace, you’ll be as comfortable with your energy bill as you are with
your room temperature. Our technology modulates the usage of gas, optimizing energy eciency. With multiple
models, we have just the right size and conguration to heat your whole home or complement your existing
heating system.

Save energy – and money: Rinnai’s unique modulating technology produces the specic level of heat needed at
any given moment, responding immediately to even the smallest temperature changes.

Automatically manage room temperature: The easy-to-use programmable thermostat lets you automatically
operate your model at the optimum temperature, even when you’re away. Set your model to operate at a
comfortable temperature while you’re home, then automatically adjust to a lower setting when you’re gone.

Customized comfort: Tailor supplemental or zone heating to your usage, habits and needs, for the most comfort
in the most ecient way.

Complement existing heating: Rinnai EnergySaver
be used in a variety of congurations. That means you can supplement existing heating systems in the way that
best suits your installation needs.

Fast installation: No ductwork means quicker installation.

®

Direct Vent Wall Furnaces come in multiple sizes and can

Don’t just save energy.

Save time.

Your time is precious. So, at Rinnai, we designed

our EnergySaver

you time right from the start. Quick, professional

installation allows you to start enjoying more comfort

– sooner. Versatile venting options even give you the

luxury of placing your model in a variety of locations.

Easy to get started: With exible venting placement,

your model can be positioned along almost any

exterior wall. Your installer can help you choose the

best location and install your model the same day.

Easy installation: Simple one-hole venting makes

installation fast and straightforward. All the parts

your installer needs are included in the box with your

model, and installation by a trained experienced

contractor typically takes just four hours or less.

®

Direct Vent Wall Furnaces to save

Set it and forget it: Use the programmable thermostat to set your model based on your habits and usage, and
let your Rinnai EnergySaver

®

Direct Vent Wall Furnace do all the work.

5

On /Off Single-Stage Heating Appliance

74° F / 23° C

See How The Rinnai EnergySaver®

70° F / 21° C

68° F / 20° C

66° F / 19° C

72° F / 22° C

74° F / 23° C

74° F / 23° C

Direct Vent Wall Furnace

CAN WORK FOR YOU.

®

With a Rinnai EnergySaver

and warmth. Designed to constantly monitor room temperature, Rinnai’s unique modulating

technology can respond immediately to even the smallest temperature uctuations.

Direct Vent Wall Furnace, you can be assured of consistent comfort

RINNAI MODULATING TECHNOLOGY

72° F / 22° C

70° F / 21° C

68° F / 20° C

66° F / 19° C

Rinnai’s modulating technology responds to small
temperature changes, resulting in higher levels of comfort.

HOW IT WORKS

• Constantly monitors room temperature 2” (5 cm) from the oor

• Consistently detects temperature changes of less than 1° F

• Within seconds, the Rinnai EnergySaver® Direct Vent Wall
Furnace begins to gently heat the room

• Fan speed and BTU output increase as necessary to reach the
preset temperature

• As the room reaches the desired temperature, the EnergySaver
Direct Vent Wall Furnace reduces fan speed and BTU output

• In case of a sudden inux of cold air, the EnergySaver® Direct
Vent Wall Furnace automatically adjusts fan speed and BTU to
quickly restore warmth to the room

Heat is distributed evenly and heat loss is minimized since Rinnai
EnergySaver® Direct Vent Wall Furnaces require no ductwork.

1°F

SINGLE-STAGE HEATER (ON/OFF)

72° F / 22° C

70° F / 21° C

68° F / 20° C

66° F / 19° C

Traditional single-stage heating appliances have bigger swings in
air temperature.

®

6

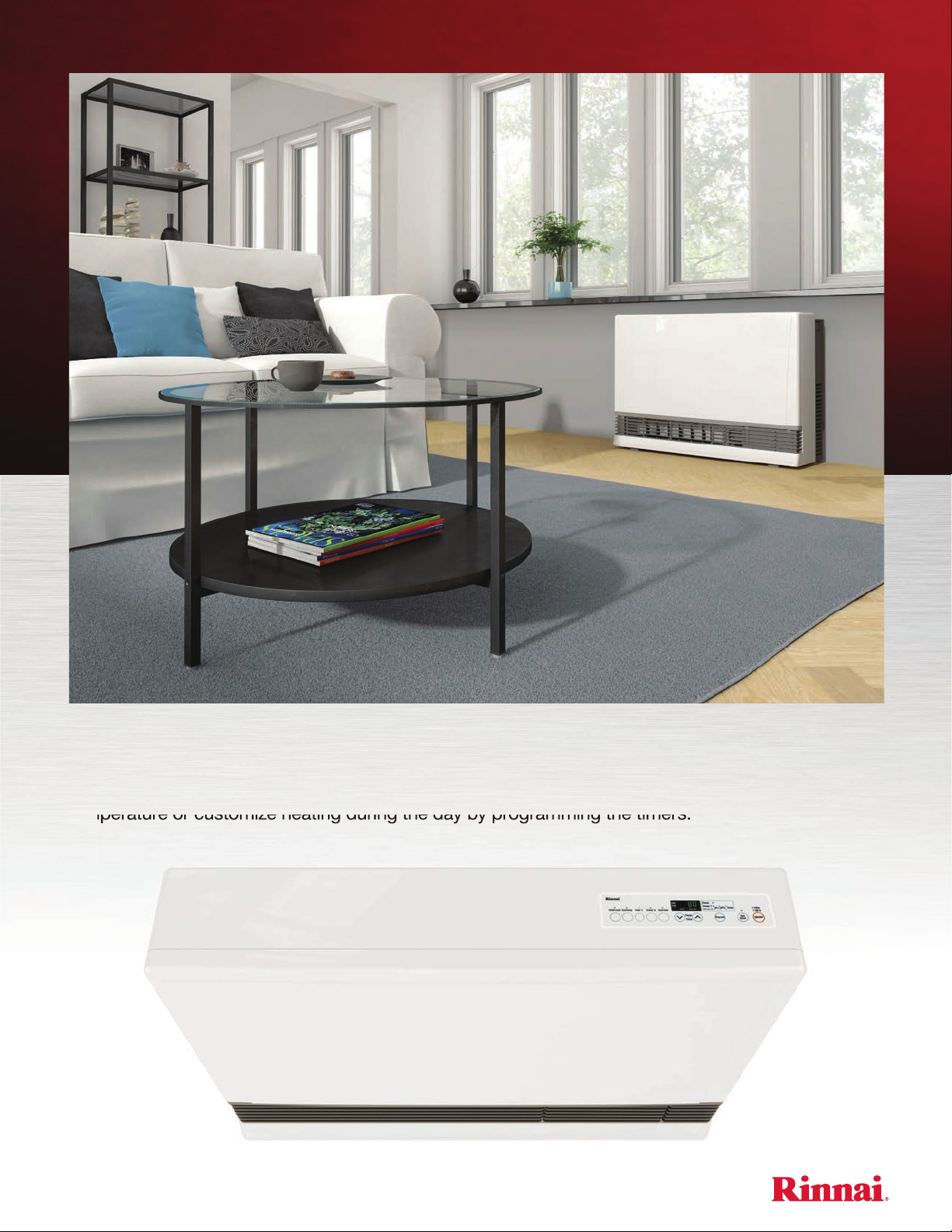

USER-FRIENDLY CONTROL PANEL

Manage the temperature in your home with our user-friendly control panel. Simply choose a set
temperature or customize heating during the day by programming the timers.

7

ENERGYSAVER® DIRECT VENT WALL FURNACES SPECIFICATIONS

EnergySaver® Direct Vent Wall Furnaces

Model

Color

Ga s Typ e

Input Range (BTU)
(Low / High)

AFUE Rating

Fan CFM (CMM) Output
(Low / High)

Dimensions - w, h, d
Inches (mm)

Shipping Weight (lbs/kg)

Power Consumption
(Electronic ignition)

Standby Power Consumption

Noise Level dB(A)

Total Extended Vent (ft /m)

EX08C

(RHFE-202FTA)

Beige Beige

NG LP NG LP

3,000 / 8,000 5,500 / 11,000 5,700 / 11,000

82% 81%

48.3 / 78.6 (1.4 / 2.2) 96.4 / 128.5 (2.7 / 3.6)

18.3 x 27.4 x 10.1
(465 x 695 x 257)

46 lbs / 21 kg

41 watts 44 watts

Less than 1 watt Less than 1 watt Less than 1 watt Less than 1 watt Less than 1 watt

27 – 36 31 – 38

Not Allowed 13 / 4

EX11C

(RHFE-265FTA)

18.3 x 27.4 x 10.1
(465 x 695 x 257)

46 lbs / 21 kg

Total Vertical Vent (ft/m)

Certications

Warranty*

Approved Altitude ­Feet (m)

† only 5’ allowed above 2000’ elevation.

*For complete information and details regarding Rinnai’s warranty, please visit rinnai.us.

8

†

Not Allowed 8

CSA, ICC-ES-PMG CSA, ICC-ES-PMG

10 years on the heat exchanger, 5 years on parts, 2 years on labor

10,200 (3,109 m) 10,200 (3,109 m)

/ 2.4 10 / 3 10 / 3 10 / 3

EX17C

(RHFE-434FTA)

Beige Beige / White Beige / White

NG LP NG LP NG LP

8,200 / 16,700 8,200 / 21,500 8,200 / 20,700 13,200 / 38,400 13,200 / 36,500

81% 81% 81%

111.3 / 141.5 (3.2 / 4.0) 111.3 / 162.7 (3.2 / 4.6) 190.7 / 263.0 (5.4 / 7.4)

EX22C (RHFE-559FTA) /

EX22CW (RHFE-559FTA-W)

EX38C (RHFE-1005FTA) /

EX38CW (RHFE-1005FTA-W)

29.9 x 22.9 x 10.1
(760 x 582 x 257)

57 lbs / 26 kg 57 lbs / 26 kg 88 lbs / 40 kg

46 watts 56 watts 117 watts

33 – 38 33 – 42 39 – 46

13 / 4 13 / 4 13 / 4

CSA, ICC-ES-PMG CSA, ICC-ES-PMG CSA, ICC-ES-PMG

10 years on the heat exchanger, 5 years on parts, 2 years on labor

10,200 (3,109 m) 10,200 (3,109 m) 10,200 (3,109 m)

29.9 x 22.9 x 10.1
(760 x 582 x 257)

36.6 x 26.4 x 13

(930 x 670 x 320)

9

Accessories For Flexible Installation.

THE RINNAI ENERGYSAVER® DIRECT VENT WALL FURNACE

Rinnai EnergySaver® Direct
Vent Wall Furnaces vent directly
through an exterior wall, with
discreet terminations only four
inches in diameter. Available
extension kits oer even more
freedom for applications where
the wall furnace isn’t on the
exterior wall.

VENT EXTENSION KITS

Part Number Extension Kit

FOT-155

FOT-156

FOT-157

FOT-158*

FOT-201*

FOT-219

FOT-220

FOT-221

FOT-102

FOT-103

FOT-114

FOT-115

*Please consult the Owner’s Operation and Installation Manual for complete venting information.

12" to 20" (304 to 508 mm)

21" to 40" (533 to 1,016 mm)

61" to 80" (1,550 to 2,032 mm)

Std Bent Elbow

Long Bent Elbow

12" to 20" (304 to 508 mm)

21" to 40" (533 to 1,016 mm)

61" to 80" (1,550 to 2,032 mm)

12" to 20" (304 to 508 mm)

21" to 40" (533 to 1,016 mm)

61" to 80" (1,550 to 2,032 mm)

Std Bent Elbow

EX11C EX17C

•

•

•

• • •

• • •

• •

• •

• •

EX2 2C/

EX22CW

EX38C/

EX38CW

•

•

•

•

CONVERSION KITS

Part Number Gas Type Fits Model Number

204000033

204000037

204000034

204000038

204000035

204000039

204000036

204000040

204000026

204000027

NG

LP

NG

LP

NG

LP

NG

LP

NG

LP

EX08C

EX11C

EX17C

EX22C/EX22CW

EX38C/EX38CW

10

EXTENSION PIPE COVER KITS (LIMITED AVAILABILITY)

Part Number Description

FOT-132

FOT-133

FOT-134

FOT-140

FOT-142

Manifold Cover Kit

Cover Kit

Elbow Cover Kit

Manifold Cover Kit

Elbow Cover Kit

EX11C EX17C

• • •

• • •

EX22CW

EX2 2C/

EX38C/

EX38CW

•

•

•

VENT TERMINATIONS

Part Number Description Fits Wall Thickness - in (mm)

DIRECT VENT

1 FOT-150

2 FOT-151**

3 FOT-152

4 FOT-153

5 FOT-154

**FOT-151 Standard termination, included with the model.

Discreet Vent Terminal,

only 4” (100 mm) in diameter.

S Vent 3 – 4.5 (76 – 114)

A Vent 4.5 – 9.5 (114 – 241)

B Vent 9.5 – 15.75 (241 – 400)

C Vent 15.75 – 23.63 (400 – 600)

D Vent 23.63 – 31.5 (600 – 800)

venting.

Direct,

1

2

3

4

5

Through-Wall
Vent Termination

Through-Wall
Vent Termination
with Extension Kit

Through-Wall
Vent Termination
with Extension Kit
and Elbow

Please consult the Owner’s Operation and Installation
Manual for installation requirements.

11

A tradition of

TRUE RELIABILITY.

For nearly 100 years , we at Rin nai have bee n erce ly committed to delivering noth ing

less than a superior experience at every touch point.

Beyond manufacturing the highest quality products, our people stand behind

all that we make—before, during and long after installation. From the 24/7/365

technical support for professionals, to our national network of independent

installers for homeowners, to on-sta engineers who can assist with choosing

the right products and sizes—we’re inspiring condence right along with the

comfort our solutions provide.

R-CNHT-E-06 r2
DV-V2

Learn more about Rinnai high-performance Tankless Water Heaters,

Hybrid Tank-Tankless Water Heaters, Boilers, Vent-Free Fan Convectors

and EnergySaver

®

Direct Vent Wall Furnaces at:

www.rinnai.us

Rinnai America Corporation • 103 International Drive, Peachtree City, GA 30269

Toll-Free: 1-800-621-9419 • Phone: [phone] • www.rinnai.us

©2015 Rinnai America Corporation. Rinnai is continually updating and improving products; therefore,

specications are subject to change without prior notice. Local, state, provincial,

federal and national fuel gas codes must be adhered to prior to and upon installation.

06/2015
