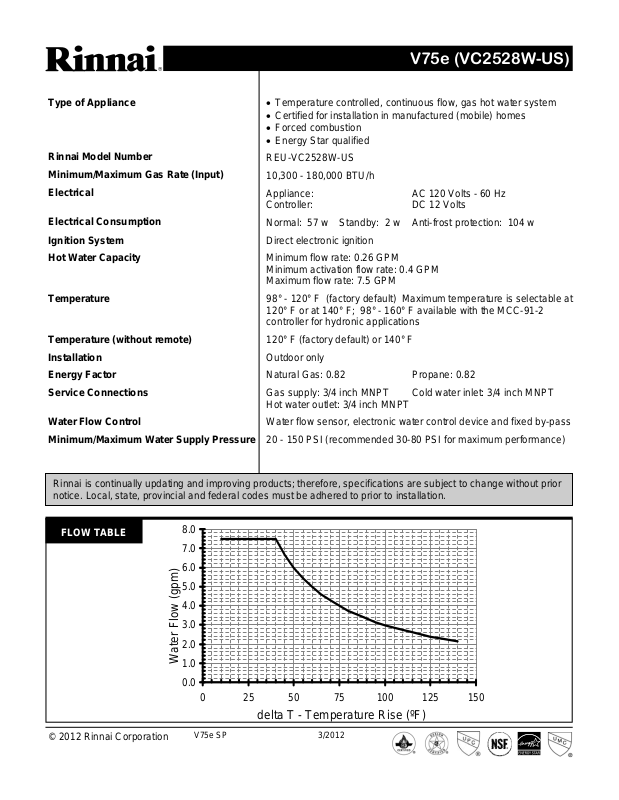

Rinnai V75e Specification
V75e (VC2528W-US)
Type of Appliance
Rinnai Model Number
Minimum/Maximum Gas Rate (Input)
Electrical
Electrical Consumption
Ignition System
Hot Water Capacity
Temperature
Temperature (without remote)
Installation
Energy Factor
Service Connections
Water Flow Control
• Temperature controlled, continuous flow, gas hot water system
• Certified for installation in manufactured (mobile) homes
• Forced comb ustion
• Energy Star qualified
REU-VC2528W-US
10,300 - 180,000 BTU/h
Appliance: AC 120 Volts - 60 Hz
Controller: DC 12 Volts
Normal: 57 w Standby: 2 w Anti-frost protection: 104 w
Direct electronic ignition
Minimum flow rate: 0.26 GPM
Minimum activation flow rate: 0.4 GPM
Maximum flow rate: 7.5 GPM
98° - 120° F (factory default) Maximum temperature is selectable at
120° F or at 140° F; 98° - 160° F available with the MCC-91-2
controller for hydronic applications
120° F (factory default) or 140° F
Outdoor only
Natural Gas: 0.82 Propane: 0.82
Gas supply: 3/4 inch MNPT Cold water inlet: 3/4 inch MNPT
Hot water outlet: 3/4 inch MNPT
Water flow sensor, electronic water control device and fixed by-pass
Minimum/Maximum Water Supply Pressure
Rinnai is continually updating and improving products; therefore, specifications are subject to change without prior
notice. Local, state, provincial and federal codes must be adhered to prior to installation.
FLOW TABLE
8.0
20 - 150 PSI (recommended 30-80 PSI for maximum performance)
7.0
6.0
5.0
4.0
3.0
2.0
1.0
Water Flow (gpm)
0.0
0 25 50 75 100 125 150
delta T - Temperature Rise (ºF)
© 2012 Rinnai Corporation
V75e SP 3/2012
V75e (VC2528W-US)
Water Temperature Control
Controller
Controller Cable
Safety Devices
Clearances from Combustibles
Clearances from Non-combustibles
* 24 inches required for serviceability
Min. / Max. Gas Supply Pressure
Manifold Gas Pressure (inches W.C.)
(sea level)
NOx
Simulation feed forward and feedback
MC-91-2US (included)
Deluxe controller: MC-100V-1US (optional)
Bathroom controller: BC-100V-1US (optional)
MCC-91-2US (optional; for hyrdonic applications)
Non-polarized two-core cable, minimum 22 AWG
• Flame failure - Flame Rod
• Boiling protection
• Combustion fan rpm check
• Over current - glass fuse
• Top of heater - 12 inches
• Front (Panel) - 24 inches
• Front (Exhaust) - 24 inches
• Top of heater - 2 inches
• Front (Panel) - 0 inches *
• Front (Exhaust) - 24 inches
• Remaining flame (OHS)
• Thermal fuse
• Automatic frost protection
• Back of heater - 0 inches
• Ground / bottom - 12 inches
• Sides of heater - 6 inches
• Back of heater - 0 inches
• Ground / bottom - 2 inches
• Sides of heater - 1/8 inch
Natural Gas: min 5” W.C. max 10.5” W.C.
Propane Gas: min 8” W.C. max 13.5” W.C.
Natural Gas: high fire 2.2” W.C. low fire 0.61” W.C.
Propane Gas: high fire 3.4” W.C. low fire 0.93” W.C.
Complies with South Coast Air Quality Management District 14 ng/J
or 20 ppm NOx emission levels
Limited
Warranty
DIMENSIONS
14.04 (356.6)
Heat exchanger: 10 years* for residential and hydronic applications, increased to 12 years* if
installed with an isolation valve kit; All other parts: 5 years*; Labor: 1 year
(* reduced to 3 years if used as a circulating water heater within a circulation loop, when the water
heater is in series with a circulation system and all circulating water flows through the water h eater)
Refer to the manual for complete warranty information.
WEIGHT: 43.6 lb (19.8 kg)
0.28 (7.2)
2.23 (56.6)
8.90 (226)
1.14 (29)
22.95 (583)
9.27 (235.5)
0.59 (15)
A
B
C
DIMEN-
SION
A (GAS) 1.31 (33.2) D 4.33 (110)
A (COLD) 1.93 (49) E 2.91 (73.8)
A (HOT) 1.35 (34.4) F 1.61 (40.8)
B 3.96 (100.7) G 2.87 (73)
C 1.17 (29.8)
Inches (mm)
E
D
DIMEN-
SION
F
G
Inches (mm)
