Operation / Installation Manual

To Suit Models:

REU-V1616W......... R42

REU-V1616WC...... C42

REU-V2020W......... R53

REU-V2020WC......

REU-V2526W......... R70

REU-V2532W......... R85

REU-V2532WC...... C85

REU-V2532WD......

REU-V2532WCD... C85PLUS

C53

R85PLUS

(Residential and Commercial outdoor unit)

ANS Z21.10.3=CSA 4.3

WARNING: If the information in these instructions is not followed exactly, a re

or explosion may result causing property damage, personal injury or death.

– Do not store or use gasoline or other ammable vapors and liquids in the vicinity

of this or any other appliance.

– WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the re department.

– Installation and service must be performed by a qualied installer, service agency

or the gas supplier.

V2532W

V2532WD

Natural Gas

Propane

Normal

Standby

Anti-frost Protection

Natural Gas

Prop

ane

Natural Gas

Propane

Safety Devices

Maximum Water Supply Pressure

mote Control Cable

nition System

Water Temperature Control

Water Supply Pressure

Electric Connections

Direct Electronic Ignition

Appliance: AC 120 Volts, 60Hz. Remote Control: DC 12 Volts (Digital)

Simulation Feedforward and Feedback.

Minimum Water Pressure: 20 PSI (Rinnai Recommends 30-80 PSI for maximum performance)

Gas Supply: 3/4" MNPT, Cold W ater Inlet: 3/4" MNPT, Hot Water Outlet: 3/4" MNPT

Efficiency Rating

Model

Minimum Gas Consumption Btu/h

Maximum Gas Consumption Btu/h

Approved Gas Type

Temperature controlled continuous flow gas hot water system.

With or without remote controls, mounted in kitchen, bathroom, ect.

rect Vent - Forced Combustion

Natural Gas or Propane - Ensure unit matches gas type it's being installed on.

Connections

By-Pass Control Minimum

Gas Supply Pressure

Maximum

Gas Supply Pressure

Type of Appliance

Operation

Exhaust System

Flame Failure - Flame Rod

Boiling Protection - 210°F

Electrical Consumption

Hot water capacity, (50°F rise)

Hot water capacity, (35°F rise)

Default Temperature Setting (no controller)

Controller Default Temperature Setting

Maximum Temperature Setting

Minimum Temperature Setting

Weight

Noi

se level

Over Current - Glass Fuse (3 amp)

Remaining Flame (OHS) 207°F Bi-Metal Switch

The

rmal Fuse 264°F

Automatic Frost Protection - Bi-Metal Sensor & Anti-Frost Heaters

Combustion Fan RPM Check - Integrated Circuit

150 PSI

Non-Polarized Two Core Cable

15,000 19,000 17,000

199,000 120,000150,000

140°F

185°F

98°F

120°F

140°F

98°F

120°F

140°F

98°F

120°F

140°F

98°F

120°F

140°F

98°F

140°F

185°F

120°F

140°F

140°F104°F 104°F 104°F 104°F140°F 140°F

185°F

120°F

46 Lbs.

％

85%

34 Lbs.

％

81%

32 Lbs.

％

81%

49 dB (A)

63 watts 52 watts 47 watts

5.5 watts

84 watts

5.5 watts

74 watts

Electronic Fixed None None Fixed

6" W.C.

10" W.C.

10.5" W.C.

13.5" W.C.

0.6 to 3.8 GPM0.6 to 4.8 GPM0.6 to 6.5 GPM

0.6 to 4.2 GPM0.6 to 5.3 GPM

0.6 to 7.0 GPM

0.6 to 8.5 GPM

V2532WC

V2532WCD

V2526W V2020W V2020WC V1616W V1616WC

S P E C I F I C A T I O N S

NOTE: Rinnai is continually updating and improving products, therefore, specifications are subject to change without prior notice. Local, state, provincial and federal codes must be adhered to prior to installation.

Rinnai America

W Models

L I M I T E D W A R R A N T Y

R i n n a i W a t e r H e a t e r

WHAT IS COVERED?

This Warranty covers any defects in materials or workmanship when the product is installed and operated according to Rinnai written installation instructions, subject to the terms within this limited

warranty document. This Warranty applies only to products that are installed by a state qualied

or licensed contractor. Improper installation may void this Warranty. Rinnai strongly suggests that you use an installer who has attended a Rinnai product knowledge class before installing this water heater. This Warranty extends to the original purchaser and subsequent owners, but only while the product remains at the site of the original installation. This Warranty only extends

through the rst installation of the product and terminates if the product is moved or reinstalled at

a new location.

HOW LONG DOES COVERAGE LAST?

Warranty031705COMM-V1

Item

Commercial Residential

Heat Exchanger 5 Years* 10 Years*

All other Parts and

Components

Reasonable Labor 1 Year

Period of Coverage

5 Years* 5 Years*

*Important

Period of coverage is 3 years from date of purchase when used as a circulating water heater within a hot water circulation loop, when the water heater is in series with a circulation system

and all circulating water ows through the water heater.

WHAT WILL RINNAI DO?

Rinnai will repair or replace the product or any part or component that is defective in materials or workmanship, except as set forth below: Rinnai will pay reasonable labor and shipping costs to repair the product. All repairs must be performed using genuine Rinnai parts. All repairs or replacements must be performed by an individual or servicing company that is properly trained,

state qualied or licensed to do this type of repair.

Replacement of the product or replacement of the heat exchanger may be authorized by Rinnai only. Rinnai does not authorize any person or company to assume for it any obligation or liability in connection with the replacement of a product or heat exchanger. If Rinnai determines that repair of a product is not possible, Rinnai will replace the product with a comparable product, at Rinnai’s discretion. If a component or product returned to Rinnai is found to be free of defects in material or workmanship, or damaged by improper installation or damaged during return shipping, the warranty claim for product, parts and labor may be denied.

Rinnai America

W Models

L I M I T E D W A R R A N T Y

R i n n a i W a t e r H e a t e r

HOW DO I GET SERVICE?

Simply contact a Rinnai authorized Dealer or Installer for the repair of products under this Warranty. Failure to use a Rinnai authorized Dealer or Installer to provide repair service

may void the Warranty. For the name of the qualied Service Dealer or Installer nearest you,

please contact the company that installed the water heater, or;

Your local HVAC/plumbing dealer, gas service technician or place of purchase

•

Visit the Rinnai website www.rinnai.us

•

Call Rinnai at 1-800-621-9419 or write to Rinnai, 103 International Drive, Peachtree City, Georgia

•

30269

Proof of purchase is required to obtain warranty service. You can show proof of purchase with a dated sales receipt, by completing and mailing the enclosed Warranty registration card within 30 days of purchasing the product or by registering online at www.rinnai.us . Please complete the Warranty registration either online or mail it to Rinnai at the address shown on the card.

Receipt of warranty registration by Rinnai will constitute proof-of-purchase for this product. However, Warranty registration is not necessary in order to validate this Warranty.

Warranty031705COMM-V1

WHAT IS NOT COVERED?

This Warranty does not cover any failures or operating difculties due to accident, abuse, misuse,

alteration, misapplication, acts of God, improper installation, improper maintenance or service, inadequate water quality, scale buildup, freeze damage or for any other causes other than defects in materials or workmanship. This warranty does not apply to any product whose serial number or manufacture date has been defaced. This Warranty does not cover any product when used as a pool or spa heater. (See Water Quality in Care & Lime Section.)

Rinnai is not liable for any special, incidental, indirect or consequential damages that may arise, including damage to person or property, loss of use, failure to install drain pan under unit, or inconvenience. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.

LIMITATION ON IMPLIED WARRANTIES

Any implied warranties of merchantability and tness arising under state law are limited in duration

to the period of coverage provided by this limited Warranty, unless the period provided by state law is less. Some states do not allow limitations on how long an implied Warranty lasts, so the above limitation may not apply to you.

This Warranty gives you specic legal rights, and you may also have other rights which vary from

state to state.

Rinnai America

W Models

C O N T E N T S

Specications ................................................................................ 2

Limited Warranty ........................................................................ 3,4

Owner’s Installation Information ................................................... 6

Features of Your New Water Heater ............................................ 7

Safety Issues ................................................................................ 8

Basic Operation ............................................................................ 9

About Hot Water ......................................................................... 10

Scalds-First Aid ........................................................................... 10

General Controller Information ................................................... 11

Remote Controller Operation ...................................................... 12

Deluxe Controllers .................................................. 13,14,15,16,17

Controllers Set Pattern/Temperature Tables ............................... 18

Error Messages ..................................................................... 19,20

Maintenance & Service Information ...................................... 21,22

Trouble Shooting and Common Questions ................................ 23

For Your Safety Read Before Operating .................................... 23

Operating Instructions ................................................................. 24

Care & Lime Condition Warning ................................................. 24

Installer’s Instructions ............................................................ 25-50

Rinnai America

W Models

O W N E R ’ S I N S T A L L A T I O N I N F O R M A T I O N

All Rinnai water heater(s) MUST be installed by a state qualied or licensed contractor. Failure to comply with state and local codes pertaining to water heater installations may void the warranty on your new water heater(s). It is the responsibility of the person having the water heater installed to ensure the installing contractor has proper licences and permits for installing water heater(s) in your location. In addition to licensing and permits, Rinnai encourages all installing contractors to attend a product knowledge class before installing any of our water heaters to help insure maximum customer satisfaction and maximum warranty coverage. Failure to comply with state and local codes may result in non-compliance and may void the warranty of the water heater(s).

This appliance must be installed in accordance with local codes, or in the absence of local codes, the National Fuel Gas Code, ANSI Z223.1/NFPA 54 and/or the CSA B149.1, Natural Gas and Propane Installation Code.

Install this product outdoors ONLY, DO NOT install indoors.

Do Not use this appliance if any part has been underwater. Immediately call

a qualied service technician to inspect the appliance and to replace any

part of the control system and any gas control which has been underwater.

Detailed instructions on the proper installation practices to follow for the installation of your new hot water heater(s) are included at the back of this manual.

Rinnai America

W Models

F E A T U R E S O F Y O U R N E W WATER HEATER

The Rinnai Water Heater is one of the most advanced water heaters available.

It supplies hot water continuously at the temperature preset in the unit or at the temperature set on the optional remote controller(s). Installation of remote controller(s) are recommended for optimum performance.

The Rinnai Water Heater never runs out of hot water. While electricity, water and gas

supplies are connected, the Rinnai Water Heater produces hot water whenever the hot tap is open.

The gas burner lights automatically when the hot water tap is opened, and goes out

when the tap is closed. Ignition is electronic, there is no pilot light. When the hot water tap is off, no gas is used. You save energy and money with the Rinnai Water Heater.

The temperature of the outgoing hot water is constantly monitored by a built in sensor. If

the temperature of the outgoing water rises to more than 6 degrees above the selected temperature (shown on the digital remote control) the gas burner will automatically go out. The gas burner will re-ignite once the outgoing hot water temperature falls below the selected temperature.

Built into the microprocessor of the Rinnai Water Heaters is the ability to LIMIT THE

MAXIMUM TEMPERATURE of the hot water supplied by the Rinnai Water Heaters. Without the connection of a remote controller(s), the Rinnai Water Heater is preset to deliver water at 120OF (Residential) and 140OF (Commercial).

Residential Unit: With the remote controller(s) the water temperature is adjustable from

98 to 140OF. The water temperature cannot be set to a temperature other than 120OF without the use of a remote controller unit.

Commercial Unit: With the remote controller the water temperature is adjustable up to

Error messages are displayed on the optional remote controller(s), simplifying service

The Rinnai Water Heater incorporates a device to minimize temperature uctuations

F. The water temperature cannot be set to a temperature other than 140OF

185

without the use of a remote controller unit.

calls.

(cold water sandwich effect) when the water is off, then on again. This effect can be eliminated by installing the Rinnai Water Heater with a circulation loop with a small storage tank.

The sound (noise) level from the Rinnai Water Heater is very low.

The Rinnai Water Heater is a very compact direct vented device. It saves valuable oor

and wall space.

Rinnai America

W Models

HOTHOT

COLD

ON!ON!

100oF

140oF

HOTHOT

COLD

ON!ON!

98 F

110 F

HOTHOT

COLD

ON!ON!

HOT!

S A F E T Y I S S U E S

Always check water temperature by hand before entering the shower or bath. The temperature may have been changed.

The Rinnai Water Heater controls the water temperature automatically. To do this, it

sometimes needs to change the water ow accordingly. The water ow from the hot water

tap may vary after the selected temperature at the remote controller(s) is altered. The water

ow may also vary from summer to winter, as

incoming water temperatures differ.

Depending on the weather conditions and the length of the pipe between the Rinnai Water Heater and the tap in use, there may be a variation between the temperatures displayed at the remote controller(s) and the temperature of the water at the tap.

Do not clean remote controller(s) with solvents. Use a soft damp cloth.

Summer 60°F Incoming water

Winter 40°F Incoming water

The water temperature can only be adjusted between 98°F and 110°F when the hot water

tap is open, and hot water is owing.

Rinnai America

The vent/air intake should be positioned away

from ammable materials, trees, shrubs, etc.

Do Not touch the unit cover or the flue outlet. Do Not insert objects into the flue outlet. On colder days steam may discharged from

the ue outlet. This condition is normal for high efciency appliances and does not

indicate a fault.

W Models

HOTHOT

COLDCOLD

ON!ON!

B A S I C O P E R A T I O N

Adjusting Temperature

The outlet water temperature of the Rinnai Water Heater can only be adjusted by the user using the remote controller(s). To adjust the setpoint temperature of the Rinnai Water Heater, all hot water taps must be closed, and all circulating pumps turned off (where applicable). The temperature displayed on this remote controller will also be displayed on all other remote controller(s).

NOTE: TEMPERATURE CANNOT BE ADJUSTED EXCEPT BETWEEN 98°F AND 110 °F WHEN ANY HOT WATER TAP IS OPEN.

To take control of the Rinnai Water Heater

all hot water taps must be closed. Press the "Priority button" on the Controller you want to set the temperature with, and the green "Priority" indicator light will

Simply press the or button until the required temperature is

displayed on the Digital Monitor.

There is a hot water scald potential if the thermostat is set to high.

NOTE: CHECK LOCAL CODES FOR THE MAXIMUM WATER TEMPERATURE SETTING ALLOWED WHEN USED IN NURSING HOMES, SCHOOL, DAY CARE CENTERS, AND ALL OTHER PUBLIC APPLICATIONS.

glow. This indicates that the Rinnai Water Heater is ready to supply hot water at the set temperature as soon as a tap is opened.

Note: Rinnai water heater will not provide hot water instantly at the hot water

xtures. Any cold water existing in the hot water lines must be purged rst.

Rinnai America

CHECK WATER TEMPERATURE BEFORE ENTERING SHOWER OR BATH.

To operate the Rinnai Water Heater simply turn any hot water tap on. This will automatically light the burner providing hot water at the preset temperature. If the optional remote controller(s) have been installed, the red “IN USE” indicator will glow on all remote controller(s).

NOTE: If a newly installed unit has not been powered for at least six hours then the temperature will return to the default setting if power is interrupted.

W Models

A B O U T H O T W A T E R

Hot Water Is Dangerous, especially for the young and the elderly or

the inrm. The Rinnai Water Heater allows you to precisely control the

temperature of your hot water, ensuring safe hot water temperatures.

Water Temperatures over 125°F can cause severe burns instantly or death from scalds.

Hot Water can cause rst degree burns with

exposure for as little as:

3 seconds at 140 °F 20 seconds at 130 °F 8 minutes at 120 °F

Test the temperature of the water with your elbow before placing a child in the bath or shower.

Do not leave a child or an inrm person in

the bath unsupervised.

BURN

S C A L D S - F I R S T A I D

1) Remove clothing; Remove all wet clothing, quickly. Wet clothing retains the heat.

2) Apply cold water for 30 minutes; Immediately submerge the burnt area in cold water for 30 minutes to reduce the heat in the skin, preventing deeper burning. Never use butter, oils or ointment to cover the burn. They may retain the heat.

3) Keep the scalded person warm; Place a blanket around the person.

4) Seek Medical Advice; Call your medical advice hotline and describe the scald, follow their directions.

Rinnai America

W Models

G E N E R A L C O N T R O L L E R I NF O R M AT I O N

REMOTE CONTROLLERS IDENTIFICATION

MC-91-1US (comes with the unit)

MC-100V-1US (optional)

BC-100V-1US (optional)

The controller(s) for the Rinnai Water Heater allow the customer to control the functions of the water heater and to diagnose certain fault conditions

Rinnai America

W Models

REM O T E CONT R O L LER O P E R A TION

In Use Indicator

Indicates that a hot water tap is open and that control of the temperature has been taken at another controller.

Digital Monitor

ndicates the selected water

temperature. Error messages

ash in the event of a failure.

Thermostat

Increases or decreases the desired water temperature.

DIAGNOSTIC USE OF CONTROLLER

1. maintenance codes, press ‘On/Off’ followed by the

To Display Maintenance Codes: Press ‘On/Off’ button. To sequence through stored

thermostat button.

To Display Water Flow through water heater: Press thermostat button, hold

for 2 seconds and simultaneously press ‘On/Off’ button.

To display Outlet Water Temperature: Press ‘thermostat button’, hold for 2

seconds and simultaneously press ‘On/Off’ button.

Priority Indicator

Indicates whether this controller has priority control over the water temperature

Priority

Pressing takes control of the water temperature by this controller only when all taps are off.

ON/OFF

Used to switch the water heater on and off

TO CHANGE TEMPERATURES FROM OF to OC

1. Press and hold ‘On/Off’ button for 5 seconds while water heater is OFF.

To change back from

C to OF, please repeat step 1.

MUTE To eliminate the beeping sound, press and hold

simultaneously until a ‘beep’ is heard (approximately 5 seconds).

Rinnai America

and button

W Models

Digital Monitor

Indicates the selected water temperature. Error messages flash in the event of a failure.

ON/OFF

Used to switch the water heater on and off.

Priority

Pressing takes control of the water temperature by this controller only when all taps are open.

Function

Enables the user to set the clock and sound volume functions.

Thermostat

Increases or decreases the desired water temperature.

In Use Indicator

Indicates that a hot water tap is open and that control of the temperature is taken at another controller.

Water Temperature Indicator

Indicates the selected hot water temperature.

Clock

12 Hour AM / PM clock. In the event of a fault, codes for error messages will flash here.

Call

Allows user to contact another controller. Can be used as a communication channel for errands or in emergency situations.

In Use Indicator

Indicates that a hot water tap is open and that control of the temperature is taken at another controller.

Priority

Pressing takes control of the water temperature by this controller only when all taps are off.

Call

Allows user to contact another controller. Can be used as a communication channel for errands or in emergency situations.

Clock

12 Hour AM / PM clock. In the event of a fault, codes for error messages will flash here.

Thermostat

Increases or decreases the desired water temperature.

Sound Volume

Used to select the voice prompt volume.

Water Smart / Bath Fill Indicator

Used to select Water Smart / Bath Fill Function.

ON/OFF

Used to switch the water heater on and off.

Water Smart / Bath Fill

Used to select Water Smart / Bath Fill Function.

Power Save

Indicates that the remote is in the energy saving mode.

Water Volume

Used to select Water Smart / Bath Fill volumes.

DELUXE CONTROLLERS

ABOUT THE DELUXE CONTROLLER (MC-100V-1US)

NOTE: With power interruption, water heater will automatically default to the ON position to provide hot water.

DELUXE BATHROOM CONTROLLERS

A B O U T TH E TH E DE LU X E BAT HR O O M CO NT R O L L ER ( B C - 1 00 V- 1U S )

Rinnai America

W Models

HOTHOT

COLDCOLD

ON!ON!

DELU X E CON T R O L L E R S

Setting The Sound Volume

To do this, press the ‘Function’ Button, the default voice prompt sound volume is medium, each subsequent press of the and Button will cycle through the available volume settings in

the following order: High Voice - Off Voice (beep) - Off Sound (no beep) - Low Voice - Medium Voice.

Setting The Clock (MC-100V Deluxe Controller ONLY)

The clock is a 12 hour AM/PM style display. To set the time, press the ‘Function’ Button twice within 10 seconds. Press the and Buttons to adjust the time. When you get close to

the time you wish to set, press the button intermittently to avoid going further than the desired time.

Press the ‘Function’ Button again to complete setting the clock and return to normal operation.

Adjusting Temperature

Simply press the or buttons until the required temperature is displayed on the Digital Monitor.

To Operate the hot water unit, open any hot water tap. This will automatically light the burner providing hot water. The ame of the water heater ‘In Use Indicator’ will illuminate on the Controller.

Once the hot water is running, if the set temperature is either too hot or cold, press the or

buttons until the desired temperature is reached.

NOTE: TEMPERATURE CANNOT BE ADJUSTED EXCEPT BETWEEN 98°F AND 110°F WHEN ANY HOT WATER TAP IS OPEN.

Rinnai America

W Models

D E LU X E B AT H R O O M CO N TR O L L E R

Setting the Sound Volume

The voice prompt sound volume for all Deluxe Controller(s) can be set individually. To do this, press the ‘Sound Vol.’ button. The default voice prompt sound volume is medium, each subsequent press of the ‘Sound Vol.’ will cycle through the available volume settings in the following order: High Voice - Off Voice (beep)

- Off Sound (no beep) - Low Voice - Medium Voice.

Adjusting Temperature

Simply press the ‘Hot water temp.’ or

buttons until the required temperature is

displayed on the Digital Monitor.

To Operate the hot water unit, open any hot water tap. This will automatically light the

burner providing hot water. The red ame of the

water heater ‘In Use Indicator’ will illuminate on the Temperature Controller.

Once the hot water is running, if the set temperature is either too hot or cold, press the

‘hot water temp. or buttons until the desired temperature is reached.

NOTE: TEMPERATURE CANNOT BE ADJUSTED EXCEPT BETWEEN 98°F AND 110°F WHEN ANY HOT WATER TAP IS OPEN.

CHECK WATER TEMPERATURE BEFORE USE. A parent should always check the temperature before a child is placed in contact with hot water.

NOTE: Avoid getting water in the speaker as this may cause damage.

Rinnai America

W Models

DEL U XE BAT HROO M CO N T ROLL E R

IT IS THE CUSTOMERS RESPONSIBILITY TO MONITOR THE BATH FILL REMOTE CONTROLLER FUNCTIONS.

OPERATING THE WATER SMART / BATH FILL BUTTON

The ‘Water Smart / Bath Fill’ button allows a preset water volume and temperature to be selected and run automatically.

Initial Settings

When you press the ‘Water Smart / Bath Fill’ Button, a Shower / Bath Volume will appear on the indicator. When a deluxe bathroom

controller(s) is rst turned on, the default shower / bath ll volume

is set to 25 gallons. The shower / bath volume can be lowered to a minimum of 10 gallons or raised to a maximum of 120 gallons.

Programming shower / Bath Volume and Temperature

With the system on, select a Deluxe Bathroom controller(s) and ensure that it currently has priority, If it does not have priority, press the ‘Priority’ button once and the ‘Priority’ button will illuminate.

To select the desired delivery temperature, use the ‘Temp.’ or buttons.

The selected temperature will be displayed on the bathroom controller monitor and will remain as the default temperature until it is changed.

To select the volume of water to be used by the shower / bath, use the ‘Water Vol.’ or buttons.

The selected volume is displayed at the Right of the controller monitor numerically.

When lling a bath for the rst time, it is recommended that a low bath ll volume such as 25 gallons or lower (if available) be used. During any subsequent bath lls,

the volume can then be adjusted to suit your known

bath volume and / or desired ll level.

Be careful not to overll the bath, an average bath volume is 60 gallons. It is recommended that when lling a bath for the rst time you should:

Remain by the bath during the lling process.

Use a low bath ll volume such as 25 gallons or less.

‘Water Smart / Bath Fill’ button is unavailable with the MSA Controller System.

Rinnai America

W Models

HOTHOT

COLDCOLD

ON!ON!

HOTHOT

COLD

ON!OFF!

COLD

DEL U XE BAT HROO M CO N T ROLL E R

Using Water Smart/ Bath Fill

Press ‘Water Smart / Bath Fill’ button once. The ‘Water Smart / Bath Fill’ button will illuminate and a tone will sound. The ‘Bath’ indicator will also be displayed in the kitchen Controller monitor (Deluxe Models ONLY).

The voice prompt will say “The hot water system is ready. Open the hot water tap”.

Open the hot water tap for the relevant shower or bath.

The ‘In Use’ indicator

will illuminate at all Deluxe Temperature

Controller(s) and the shower will run or the bath will start to fill.

To Stop Water Smart / Bath Fill Operation

If you wish to stop the water flow whilst the ‘Water Smart / Bath Fill’ button is in operation, simply press the ‘Water Smart / bath Fill’ button. The ‘Water Smart / Bath Fill’ button will flash and the voice prompt will say “Hot water is not available. Turn off all hot water taps, and push the Bath Fill button”. Follow the voice prompt instructions.

When Water Smart / Bath Fill Operations Finishes

Once the Water Smart / Bath fill operation finishes, the following events will occur:

1. The flow from the shower / bath hot water tap will cease.

The ‘Water Smart / Bath Fill’ button will flash.

3. The Kitchen Controller ‘Bath’ indicator will flash (Deluxe Models)

4. A tone will sound.

5. The voice prompt will say “Bath fill is complete. Turn off the

bath hot water tap, and push the Bath ll button.”

Follow the voice prompts instructions. Note that the

hot water unit will not allow hot water to ow from any xture until the ‘Water Smart / Bath Fill’ button has been

changed.

6. The ‘Water Smart / Bath Fill’ button light on the Bathroom Controller and the ‘Bath’ indicator on the Kitchen Controller monitor will go out.

COMBINING CONTROLLERS AND DELUXE CONTROLLERS

Controller and Deluxe Controller can be combined and will function as described in other sections of this manual. Refer to the table on page 18

Rinnai America

W Models

rellortn

)le

M FF( nret

U1-

19-C

SU1-19-C

M+S

U1-

19-C

U1-19-

CM+

SU1-19-C

M+S

U1-

19-C

U1-19

U1-

19-CM+SU1-19-C

M+

U1-

19-

001

-CM +V001-CB

U1-

19-C

5 V

001

001-C

B+

SU1-

19-

M+

U1-

19-C

eto

R exul

dna srel

lor

— — —

— —

—

led

UER - W6161V

W0202V-UER W6252V-UER

(°F)

04153103152102

401201

189

CW616

1V-UER

0202V-UER (°F)

5810

21———

———

—————

W2352V-UER WD2352V-UER

CW2352V-UER (°F) CDW2352V-UER

8106

40120

00189

A .xorpp

(°C) erutar

241

04938373

erutarepmet

Water Smart / Bath Fill Temperature Table

water smart/ bath fill temperature

02181161141121101180160140120100189

Approx. temperature

(°F)

(°C)

948

746

2414

938373

erutarepmet

CONTROLLERS SET PATTERN/TEMPERATURE TABLES

Temperature controllers allows precise temperature control by the user. When used correctly,

the hot water unit will deliver the selected temperature, even when the water ow is varied,

or more than one tap is in use. Each Temperature Controller can be individually programmed, however the water heater unit can only deliver one set temperature at any time. The available temperatures (OF) are as follows:

Temperature Table by Models

Suggested temperatures are:

Kitchen 120OF, Shower 98OF - 110OF, Bath ll 102OF - 114OF

These temperatures are suggestions only. You may nd higher or lower temperatures more comfortable. Maintaining lower temperatures helps save energy. To obtain water temperatures lower than 98OF, simply add cold water.

Deluxe Controllers are an optional extra. ‘Controller’ and ‘Deluxe’ Controllers can be installed together. Controllers allow temperature selection only. ‘Deluxe’ Controllers have temperature selection, bath

ll and clock functions.

Controllers allow the water temperature to be set from the various locations where they are installed. The temperature selected will be available to all outlets. Below are the combination of Controllers that are offered by Rinnai:

Controllers Combination Pattern

**See controller manual in controller carton box for more infomation detail.

Rinnai America

Water Smart / Bath Fill temperature cannot exceed 120 OF for the following commercial models with no by-pass: REU-V1616WC & REU-V2020WC.

W Models

Error

Faulty

No burner operation during freeze protection mode Power interruption during Bath fill (Water will not flow when power returns). Air Supply or Exhaust Blockage

No Ignition

Flame Failure

Remedy

Service Call

Turn off all hot water taps. Press ON/OFF twice.

Ensure Rinnai approved venting materials are being used. Check that nothing is blocking the flue inlet or exhaust. Check all vent components for proper connections. Ensure vent length is within limits. Ensure condensation collar was installed correctly. Verify dip switches are set properly. Check fan for blockage. Check that the gas is turned on at the water heater, gas meter, or cylinder. Ensure gas type and pressure is correct. Ensure gas line, meter, and/or regulator is sized properly. Bleed all air from gas lines. Verify dip switches are set properly. Ensure appliance is properly grounded. Disconnect all MSA controls. Ensure igniter is operational. Check igniter wiring harness for damage. Check gas solenoid valves for open or short circuits. Remove burner cover and ensure all burners are properly seated. Remove burner plate and inspect burner surface for condensation or debris. Check that the gas is turned on at the water heater and gas meter. Check for obstructions in the flue

outlet. Ensure gas line, meter, and/or regulator is sized properly. Ensure gas type and pressure is correct. Bleed all air from gas lines. Ensure proper Rinnai venting material was installed. Ensure condensation collar was installed properly. Ensure vent length is within limits. Verify dip switches are set properly. Ensure appliance is properly grounded. Disconnect keypad. Disconnect all MSA controls if installed. Check power supply for loose connections. Check power supply for proper voltage and voltage drops. Ensure flame rod wire is connected. Check flame rod for carbon build-up. Disconnect and re-connect all wiring harnesses on unit and PC board. Check all components for electrical short. Check gas solenoid valves for open or short circuits. Remove burner plate and inspect burner surface for condensation or debris.

E R R O R M E S S A G E S

The Rinnai Water Heater has the ability to check its own operation continuously. If a fault

occurs, an Error Message will ash on the Digital Dispaly of the Remote Controller. This assists

with diagnosing the fault, and may enable you to overcome a problem without a service call. Please identify the code displayed when inquiring about service.

Failure to remedy faults may result in severe burns, scalds, and/or death.

Rinnai America

W Models

Error

LC (00)

No code

Faulty

Thermal Fuse

Over Temperature Warning

Outgoing Water Temperature Sensor Fault

Heat Exchanger Outgoing Temperature Sensor Fault

Combustion Air Temperature Sensor Fault

Modulating Solenoid Valve Signal Abnormal Combustion Fan Failure

Water Flow Servo Faulty (Does not stop flow properly)

SV0, SV1, SV2, and SV3 Solenoid Valve Circuit Fault Flame Sensing Device Fault

Scale Build-up in Heat Exchanger (when checking maintenance code history “00” is substituted for “LC” ) Nothing happens when water flow is activated.

Remedy

Check gas type of unit and ensure it matches gas type being used. Check for restrictions in air flow around unit and vent terminal. Check for low water flow in a circulating system causing short-cycling. Ensure dip switches are set to the proper position. Check for foreign materials in combustion chamber and/or exhaust piping. Check heat exchanger for cracks and/or separations. Check heat exchanger surface for hot spots which indicate blockage due to scale build up. Refer to

instructions in manual for flushing heat exchanger. Measure resistance of safety circuit. Ensure high fire and low fire manifold pressure is correct. Check for improper conversion of product. Check for restrictions in air flow around unit and vent terminal. Check for low water flow in a circulating system causing short-cycling. Check for foreign materials in combustion chamber and/or exhaust piping. Check for clogged heat exchanger. Check sensor wiring for damage. Measure resistance of sensor. Clean sensor of scale build up. Replace sensor. Check sensor wiring for damage. Measure resistance of sensor. Clean sensor of scale build up. Replace sensor. Check for restrictions in air flow around unit and vent terminal. Check sensor wiring for damage. Measure resistance of sensor. Clean sensor of scale build up. Ensure fan blade is tight on motor shaft and is in good condition. Replace sensor. Check modulating gas solenoid valve wiring harness for loose or damage terminals. Measure resistance of valve coil. Ensure fan will turn freely. Check wiring harness to motor for damaged and/or loose connections. Measure resistance of motor winding. Water Flow Servo or wiring faulty. Check Water Flow Servo wiring harness connection. Measure resistance of Water Flow Servo wiring. If blank screen is present on remote control then the Water Flow Servo has shorted out. Unplug Water

Flow Servo. If remote lights up and unit starts operating then replace Water Flow Servo. Check wiring harness to all solenoids for damage and/or loose connections. Measure resistance of each solenoid valve coil. Ensure flame rod is touching flame when unit fires. Check all wiring to flame rod for damage. Remove flame rod and check for carbon build-up; clean with sand paper. Check inside burner chamber for any foreign material blocking flame at flame rod. Measure micro amp output of sensor circuit with flame present. Replace flame rod. Flush heat exchanger. Refer to instructions in manual. Replace heat exchanger.

Clean inlet water supply filter. On new installations ensure hot and cold water lines are not reversed. Check for bleed over. Isolate unit from building by turning off hot water line to building. Isolate the

circulating system if present. Open your pressure relief valve; if unit fires, there is bleed over in your

plumbing. Ensure you have at least the minimum flow rate required to fire unit. Ensure turbine spins freely. Measure the resistance of the water flow control sensor. Remote control does not light up but you have 12 VDC at the terminals for controls.

E R R O R M E S S A G E S

Rinnai America

W Models

M A I N T E N A N C E & S E R V I C E I N F O R M A T I O N

Always turn off the electrical power supply, the manual gas valve and the manual water control valve whenever servicing the unit.

The Rinnai Water Heater should be checked by a Properly Trained Technician once a year. A Properly Trained Rinnai Technician should perform any repairs that may be necessary.

The following items should be checked each inspection:

1) The area around the Rinnai unit should be free from combustible materials such as cloth, vegetation and building materials. (see page 8)

2) Check burners for presence of foreign debris, insects or bugs. These items are not covered by the unit’s warranty.

3) Remove and clean the inlet water lter.

Keep the appliance area clear and free from combustible materials, gasoline,

and other ammable vapors and liquids.

5) Do not obstruct ow of combustion and ventilation air.

In the case of any fault or error message from the Rinnai Water Heater,

rst turn all hot water taps off. Wait for 5 seconds. Turn the hot water tap back

on. If the error message still remains, call your Rinnai Authorized Service Representative or Rinnai at 800-621-9419.

Should overheating occur or the gas supply fail to shutoff, turn off the manual gas control valve to the appliance.

DO NOT ATTEMPT TO SERVICE YOUR Rinnai YOURSELF.

Call a Rinnai Authorized Service Technician or call your installer.

Rinnai America

W Models

M A I N T E N A N C E & S E R V I C E I N F O R M A T I O N

MAINTENANCE SUGGESTIONS

This water heater has been designed and constructed for a long performance life when installed and operated properly under normal conditions. Regular inspections, as outlined in this section, are strongly recommended

as a means of keeping your heater operating efciently.

Consideration should be given to periodic maintenance of scale removal in applications where the water hardness quality is elevated and the water heater runs for extended periods such as in commercial applications or applications with circulating loops.

1. Cleaning

The water heater should be cleaned annually. Keep the water heater clear of dust and debris especially in and around burner. Cleaning procedures for the Rinnai Water Heaters are as follows:

1) Turn off and disconnect electrical power. Allow to cool for one hour.

2) Remove the Front Panel by removing screws. See parts breakdown on panels.

3) Use pressurized air to remove dust from around main burner.

4) Use soft dry cloth to wipe cabinet.

DO NOT DAMAGE OR DISTORT ANY PARTS OF HEATER.

DO NOT USE WET CLOTH OR SPRAY CLEANERS ON BURNER.

2. Visual check of main burner ames.

The burner must ame evenly over the entire surface when operating correctly. The ame must burn with a clear, blue, stable ame. See the parts

breakdown of the burner for the location of view ports. Any and all parts removed for inspection or service must be replaced before operating the unit.

The ame pattern should be as shown in the

following Figures.

* VENT MAINTENANCE * VENT SYSTEM

Must be checked annually for blockage or deterioration. See vent installation instructions.

* MAINTENANCE-

ELECTRIC MOTORS

Motors are permanently lubricated and need no lubrication. Keep fan and motor free of dust and dirt, clean annually.

Rinnai America

W Models

TROUBLE SHOOTING AND COMMON QUESTIONS

- I don't have any hot water when I open the tap!

- Make sure there is gas, water and electricity to the Rinnai Water Heater

(the power is turned on and the gas is turned on)

- When I was using the hot water, the water got cold!

- If you adjusted the ow from the tap to lessen it, you may have gone below the minimum

ow required. The Rinnai Water Heater requires a minimum ow rate to operate (see specication page for ow rate of your unit). If you mix the water with a tap and attempt

to get a temperature well below the temperature being controlled by the unit, it may drop

the ow below the desired minimum ow rate. Decrease the temperature supplied by the Rinnai Water Heaters at the remote control or increase your total ow.

- White smoke comes out of the exhaust!

- During colder weather when the exhaust temperature is hotter than the air, the exhaust

fumes condense producing white steam.

- When I open a hot tap. I do not immediately get hot water!

- Hot water must travel through your plumbing from the Rinnai Water Heater to the faucet.

The time period for hot water to reach your xture is determined by the amount of water in your plumbing system between your water heater and the xture, water pressure, ow rate of xture in use, etc.

- After I turn off the hot water tap, the fan on the Rinnai Water Heaters continues to run!

- The fan is designed to be on for 65 seconds after the ow of water stops.This is to ensure

constant water temperatures during rapid starting and stopping, as well as exhausting any

residual gas ue products from the unit.

FOR YOUR SAFETY READ BEFORE OPERATING

If you do not follow these instructions

exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance does not have a pilot. It is

equipped with a direct ignition device which automatically lights the burner. Do not try to light the burner by hand.

B. BEFORE OPERATING: Smell all around the

appliance area for gas. Be sure to smell next

to the oor because some gas is heavier than air and will settle on the oor.

WHAT TO DO IF YOU SMELL GAS

Do not try to light any appliance.

•

Do not touch any electric switch, do not

•

use any phone in your building.

Immediately call your gas supplier from a

•

neighbor’s phone. Follow the gas supplier’s instructions. If you cannot reach your gas supplier, call

•

the re department.

C. Use only your hand to operate remote control

keypad. Never use tools. If the remote keypad doesn’t work, do not try to repair

it, call a qualied service technician. Force or attempted repair may result in a re or

explosion.

D. Do not use this appliance if any part has

been under water. Immediately call a

qualied service technician to inspect the

appliance and to replace any part of the control system and any gas control which has been under water.

Rinnai America

W Models

O P E R A T I N G I N S T R U C T I O N S

1) STOP! Read the safety information above

Closed manual valve

before proceeding.

(“OFF” position)

2) Set the thermostat to lowest setting.

3) Turn off all electric power to the appliance.

4) This appliance does not have a pilot. It is equipped with a direct ignition device which

Open Manual valve

(“ON” position)

automatically lights the burner. Do not try to light the burner by hand.

5) Turn the manual valve located at gas inlet of the appliance clockwise

to “OFF”.

6) Wait 5 minutes to clear out any gas. If you then smell gas, STOP! Follow “B” in the safety information above on this label. If you don’t smell gas, go to next step.

7) Turn the manual valve located at the gas

inlet of appliance counterclockwise

to “ON”.

8) Turn on all electric power to the appliance.

9) Set thermostat to desired setting.

10)

If the appliance will not operate,

Follow the instructions “To Turn Off Gas To Appliance” and call your service technician or gas supplier.

To Turn Off Gas To Appliance

1) Set the thermostat to lowest setting.

2) Turn off all electric power to the appliance if service is to be performed.

Turn the manual valve at gas inlet of appliance clockwise

to “OFF”

C A R E & L I M E C O N D I T I O N W A R N I N G

Care of Unit’s Exterior:

Keep the exterior cabinet clean. Use a soft cloth and warm water when cleaning the cabinet. Do Not use volatile substances such as benzene and thinners, as they may ignite, or cause fading of the paint.

Lime Condition Warning Signal:

If you notice “LC” ashing on the remote key pad, this means the unit is beginning to lime up, and MUST be ushed. Contact a qualied Rinnai service technician to ush the appliance. Failure to ush the appliance when “LC” is ashing, will cause damage to the heat exchanger.

Damage caused by lime build up is not covered by the unit’s warranty. To reset the LC Fault Code, turn the power off to the unit. Once power is restored, the LC code will be reset.

Water Quality:

Consideration of care for your water heater should include evaluation of water quality. If the water quality exceeds the target levels provided in the table, you may want to treat or condition the water.

TDS

Description

Maximum

Levels

6.5 to 8.5

(Total

Dissolved Solids)

Up to

500 mg/L

Total

Hardness

Up to

200 mg/L

Aluminum Chlorides Copper Iron Manganese Zinc

Up to

0.2 mg/L

Up to

250 mg/L

Up to

1.0 mg/L

Up to

0.3 mg/L

Up to

0.05 mg/L

Up to

5 mg/L

Rinnai America

W Models

Installer’s Instructions

This section is for the Qualified Installer only. If you are not properly trained, you should not install this unit. The warranty may be voided due to installation

by a non-qualied installer. For information

on Rinnai Training Courses, call 1-800-621-9419.

Warnings ................................................................ 26,27

Locating the Vent Terminal ......................................... 28

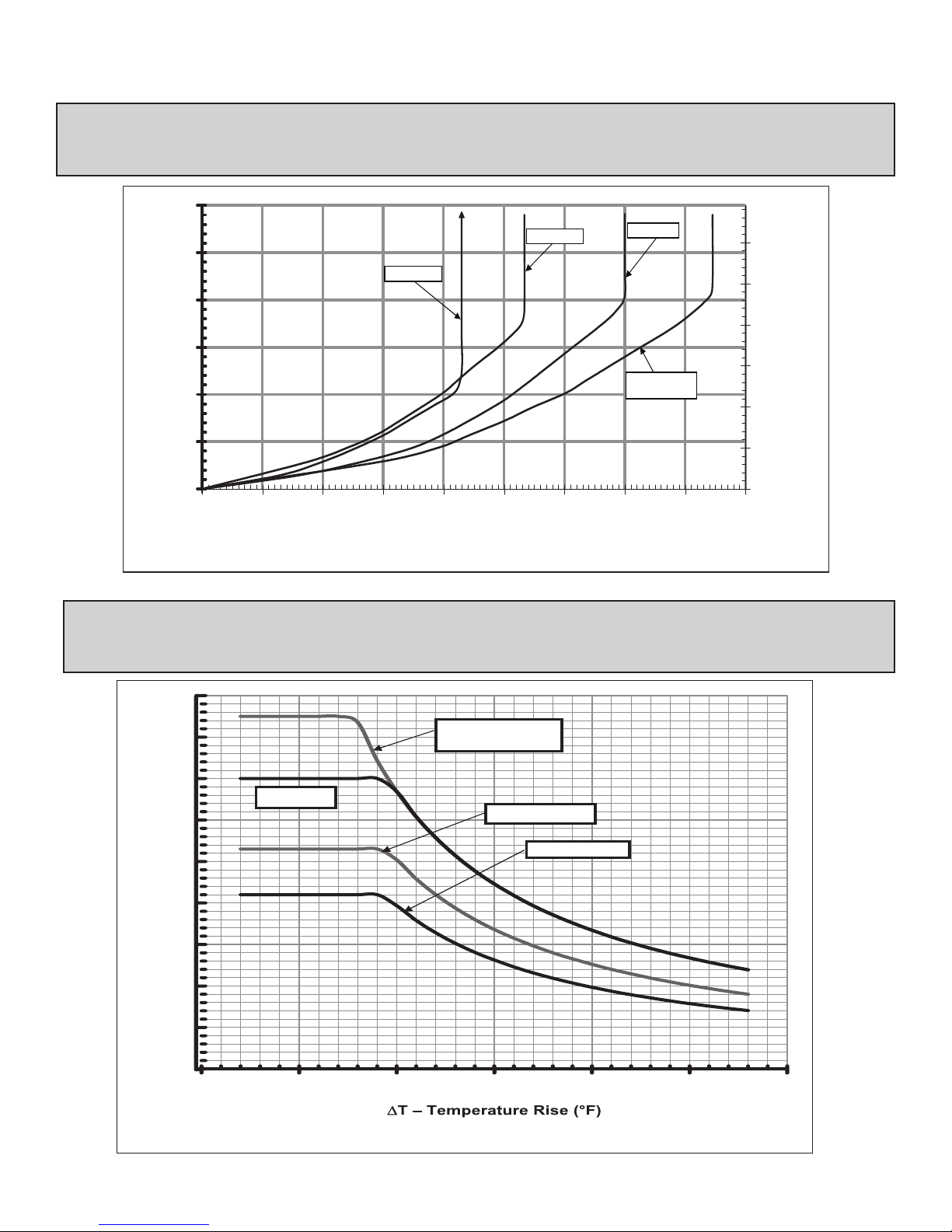

Performance Data ....................................................... 29

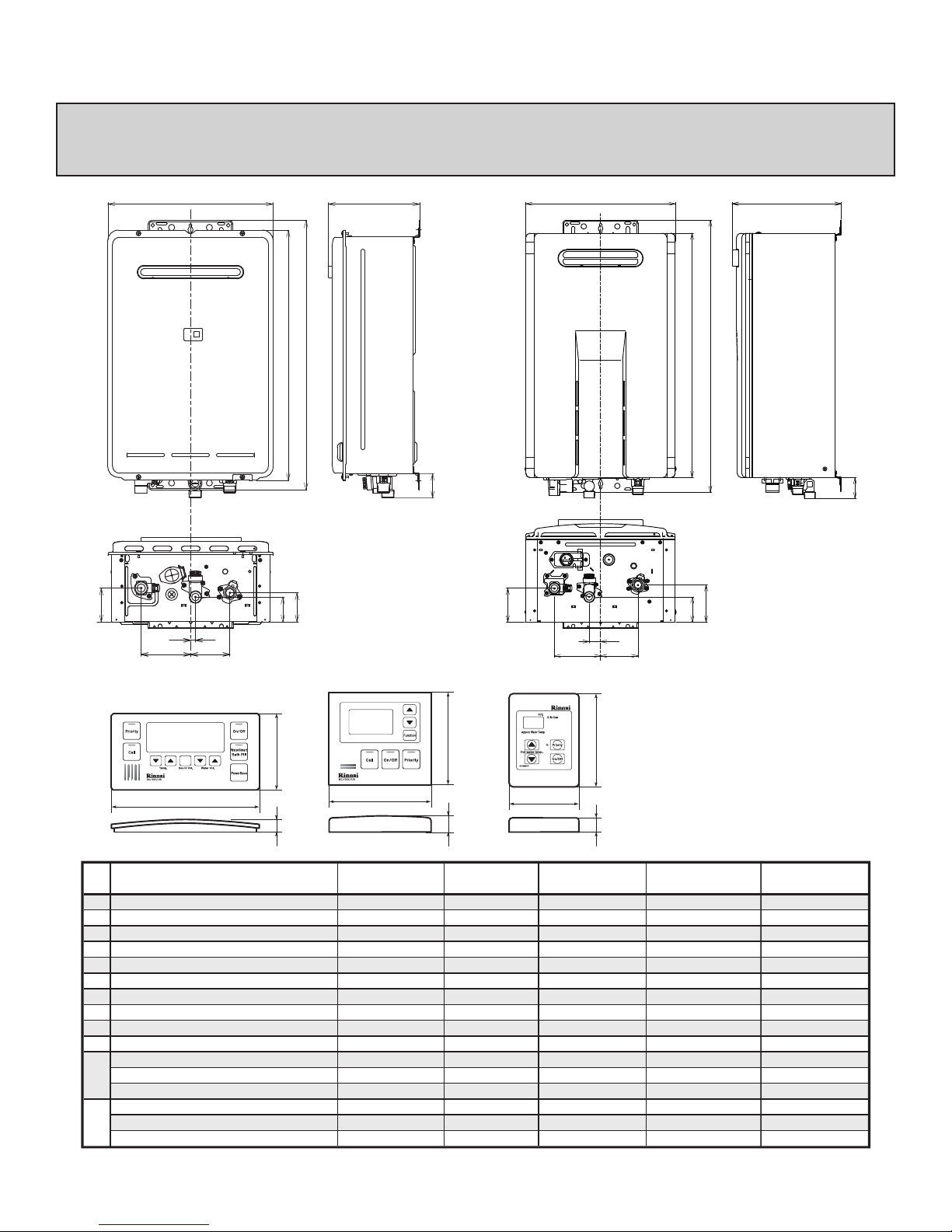

Dimensions ................................................................. 30

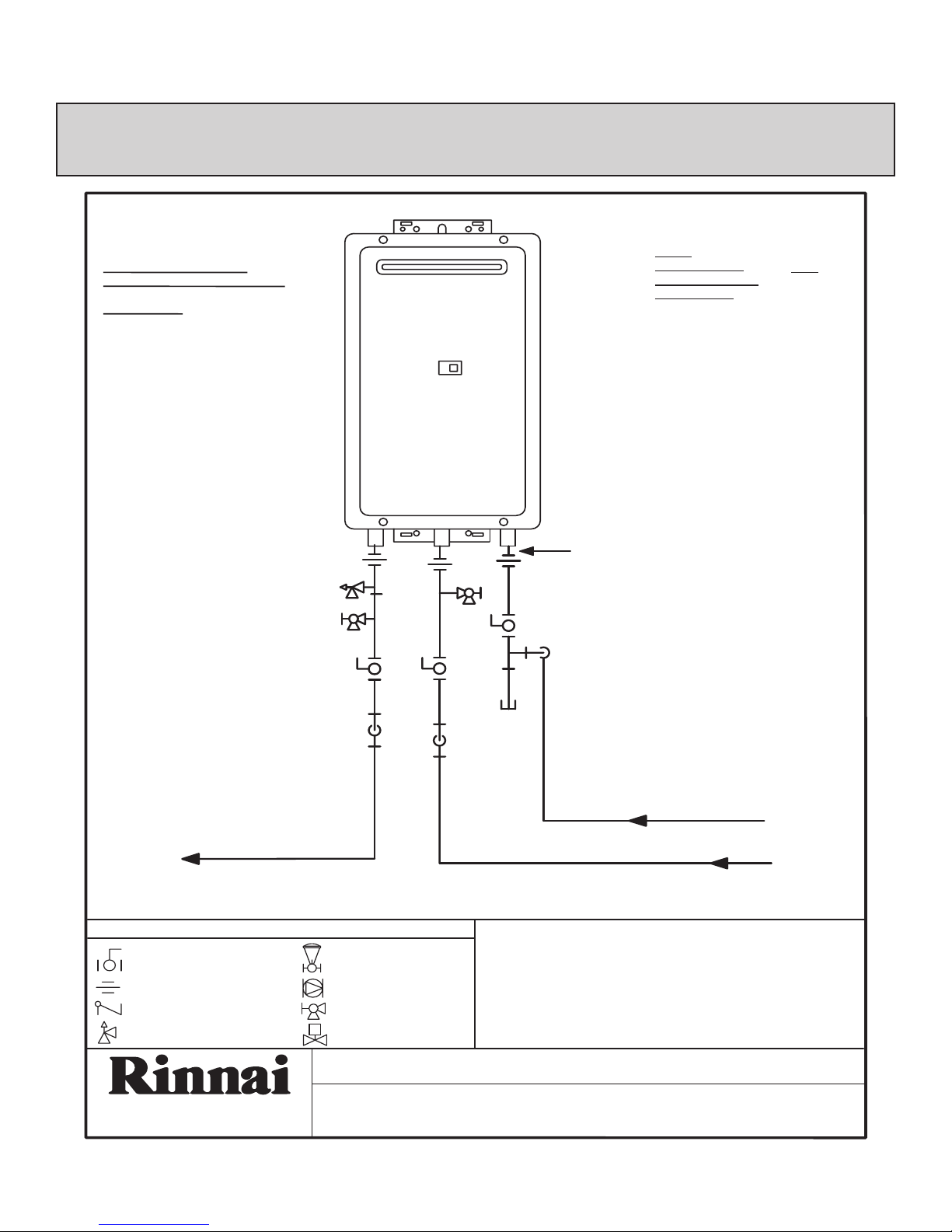

Recommended Piping for Installation ..... 31,32,33,34,35

Contents

of Installer’s

Manual

Freeze Protection ....................................................... 36

Gas Piping Sizing Chart ............................................. 37

Gas Piping Notes ....................................................... 38

Water Piping Notes..................................................... 39

Pressure Relief Valve ................................................. 39

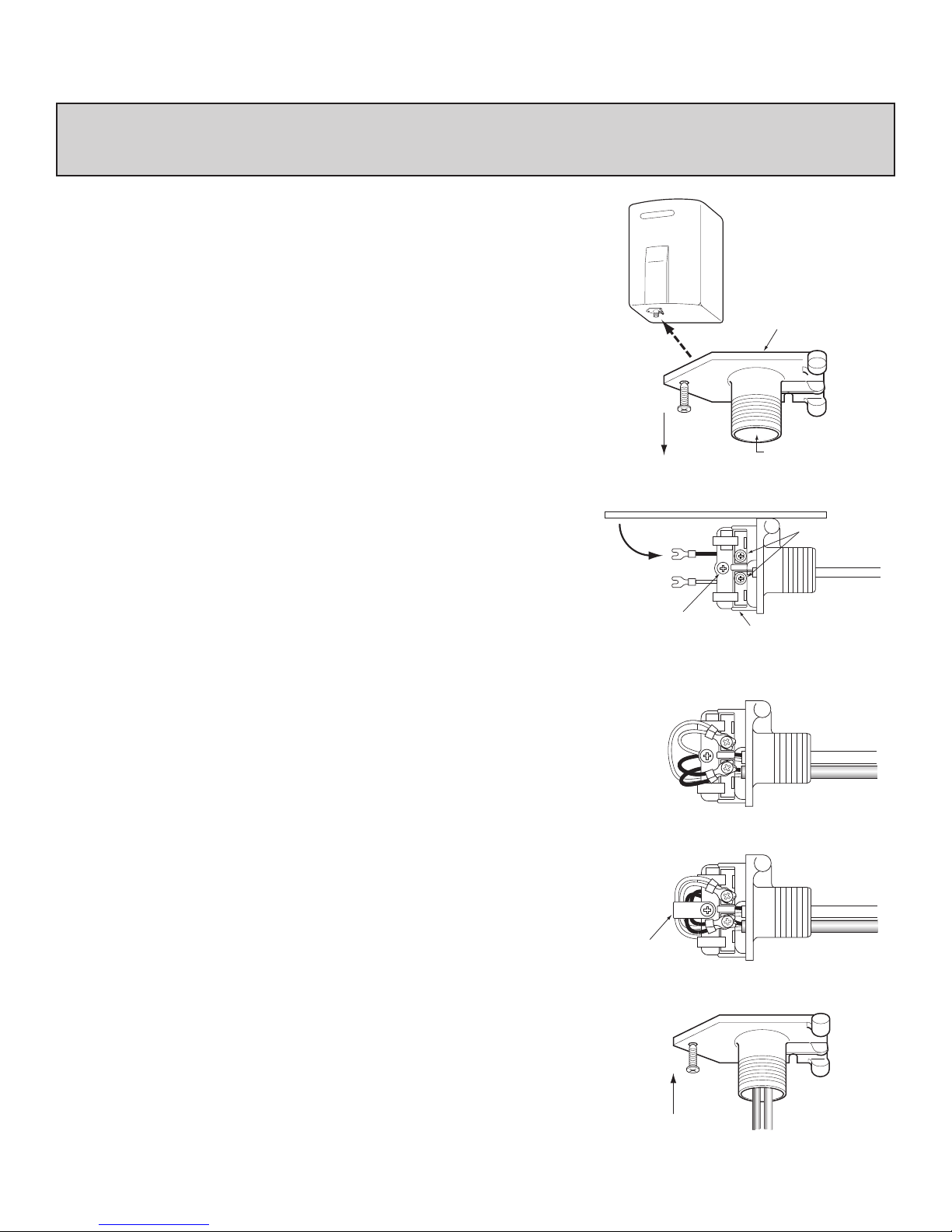

Electrical Connection Notes ....................................... 40

Lighting the Unit ......................................................... 41

Remote Controller....................................................... 42

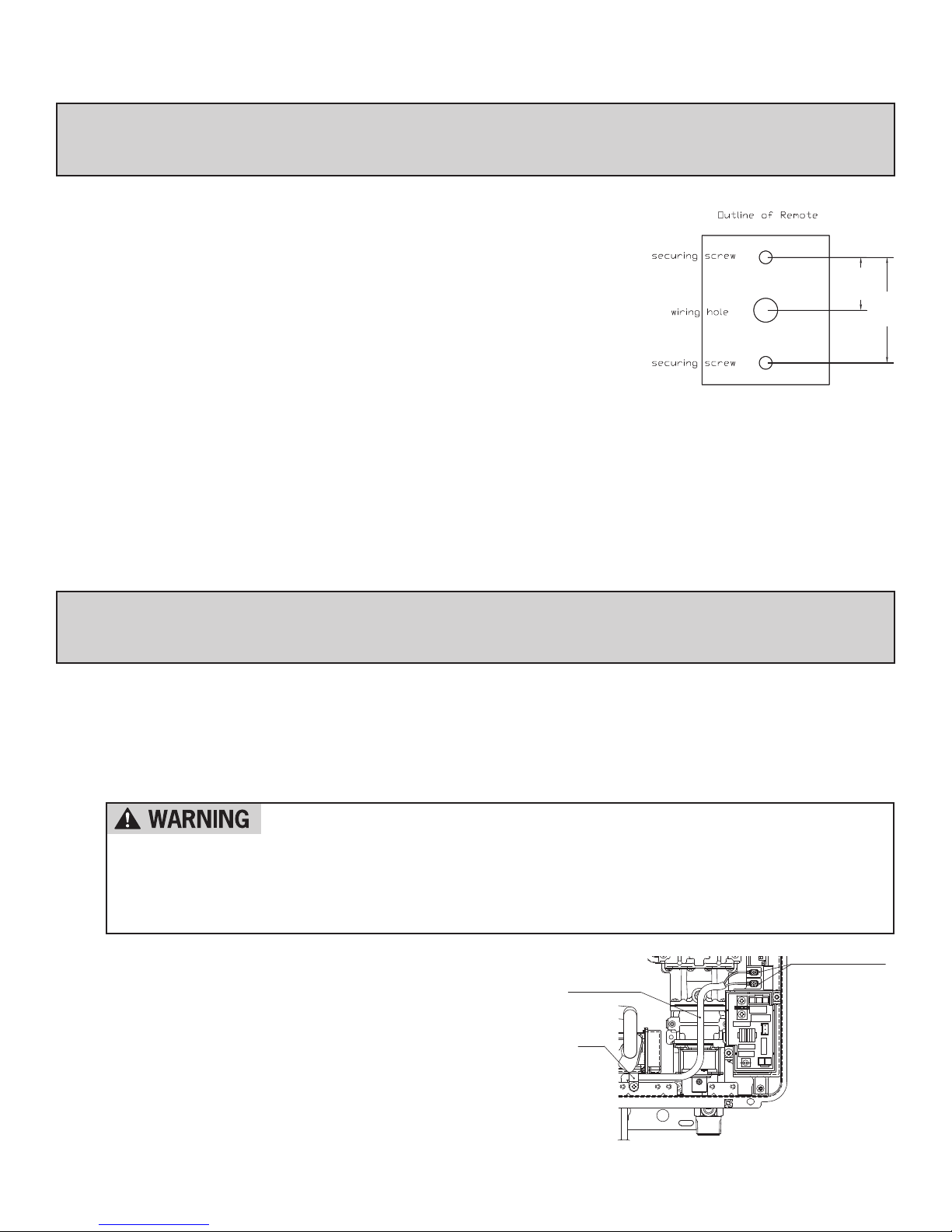

Remote Controller Installation ............................... 43,44

Testing ........................................................................ 45

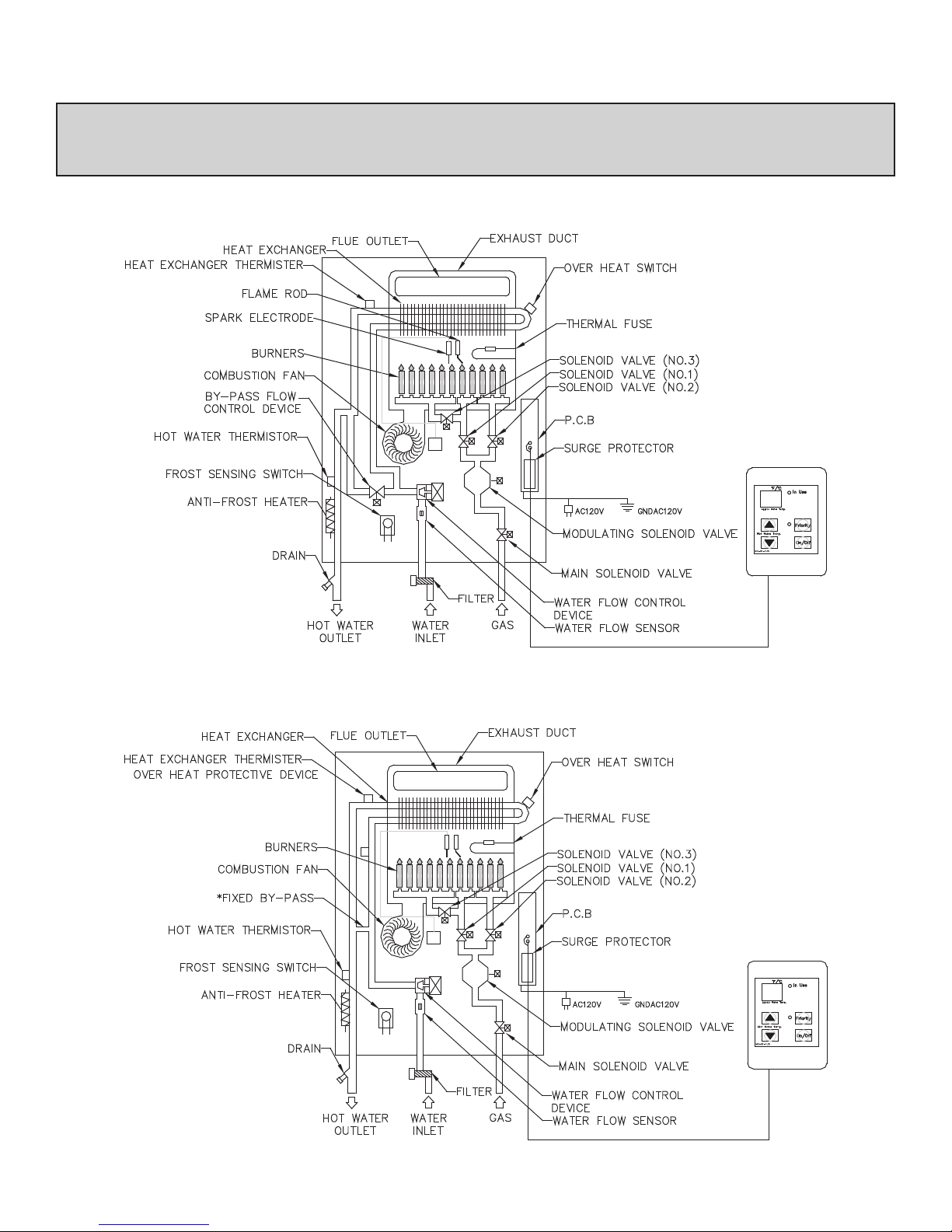

Schematic Diagram ............................................... 46,47

Rinnai America

www.rinnai.us 800-621-9419

W Models

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

-Warnings- (Residential Unit)

This manual must be followed exactly.

1) Read the safety issues completely before installing the Rinnai Water Heater.

2) This water heater is suitable for residential water (potable) heating ONLY. DO NOT use this water heater for space heating, combination space heating/ domestic water heating, or commercial water heating applications.

3) The Rinnai Water Heater is not suitable for use in pool or spa applications.

4) Install the water heater outdoors only.

Maintain proper space around the unit for proper servicing and operation.

5) Minimum clearances from combustible materials are listed below.

Top of Heater 12 inches Back of Heater 0 inch Front of Heater 24 inches Sides of Heater 6 inches Ground 12 inches

Minimum clearances from non-combustible materials are listed below.

Top of Heater 2 inches Back of Heater 0 inch Front of Heater 24 inches Sides of Heater 1/2 inch Bottom 2 inches

DO NOT install the Rinnai Water Heater under an overhang less than 3 feet

from the top of the unit. When the overhang protrudes out over the Rinnai Water Heater greater than 3 feet, the area under the overhang must be open on 3 sides.

When the water heater is installed within a Rinnai recess box, the clearances

from the top, bottom, sides, and back sufaces of the recess box to combustible materials are 0 inches. The clearance from combustibles from the front of the recess box is 24 inches.

6) Installer must install a Pressure relief valve. Pipe pressure relief discharge to a drain or outside environment (See pressure relief valve section).

Rinnai America

W Models

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

-Warnings- (Commercial Unit)

This manual must be followed exactly.

1) Read the safety issues completely before installing the Rinnai Water Heater.

2) This water heater is suitable for water (potable) heating or space heating.

- The piping and components connected to the Rinnai must approved for use in

portable water systems.

- Toxic chemicals such as those used for boiler water treatment are NOT to be

introduced to the portable water used for space heating.

- The Rinnai Water Heater, if it will be used as a potable water source, must not be

connected to a system that was previously used with a nonpotable water heating appliance.

- When the system requires water for space heating at temperatures higher

than required for other uses, a means such as mixing valve shall be installed to temper the water for other uses in order to reduce the scald hazard potential.

3) The Rinnai Water Heater is not suitable for use in pool or spa applications

Install the water heater outdoors only.

5) Maintain proper space around the unit for proper servicing and operation.

Minimum clearances from combustible Minimum clearances from non-combustible

Top of Heater 12 inches Top of Heater 2 inches Back of Heater 0 inch Back of Heater 0 inch Front of Heater 24 inches Front of Heater 24 inch Sides of Heater 6 inches Sides of Heater 1/2 inch Ground 12 inches Bottom 2 inches

DO NOT install the Rinnai Water Heaters under an overhang less than 3 feet from the top of the unit. When the overhang protrudes out over the Rinnai Water Heaters greater than 3 feet, the area under the overhang must be open on 3 sides.

When the water heater is installed within a Rinnai recess box, the clearances from the top, bottom, sides, and back sufaces of the recess box to combustible materials are 0 inches. The clearance from combustibles from the front of the recess box is 24 inches.

6) Installer must install a Pressure relief valve. Pipe pressure relief discharge to a

drain or outside environment (See pressure relief valve section).

Rinnai America

W Models

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

Locating the vent terminal

R E C O M M E N D E D VE N T/ A I R IN TA K E TE R MI N A L PO SI T I O N

Terminals should be so positioned as to avoid products of

combustion entering openings into buildings or other ues

or vents.

NOTE: Maintain 12” of clearance above the highest anticipated snow level or grade, or whichever is greater. Please refer to your local codes for the snow level in your area.

NOTE: PLEASE CONSULT WITH LOCAL CODES BEFORE INSTALLING THIS UNIT

llatsnI

R sn

elCG

aelCI

p or

re y

NOITPIRCSED

rgevobaecnaraelC

tecnaraelCE

ylbmessa

cnaraelC

tnevn

uo ootecnarael

sotecnar

ali

enrocedistu

renrocedisniotecnara

naottelnirianoitsubmoc

o p

iadecrofaotecnarael

isdevapevobae

dnarev,eda

wodniwdesolcyltnenamrepotecnaraelCC

reht

p ecnai

oklawed

o,kced,hcrop,a

denepoebyamtahtroodrowodniwotecnaraelCB

rosevae,tiffosdetalitnevotecnaraelclacitreV

gnidliubaotniteln

ynoclabr

gnahre

gnahrevorosevae,tiffosdet

rotaluger/retemevobadednetxeenilretnecfoedishcaeotecnaraelC

htrognidliubottelniylppusrialacinahcemnonotecnaraelC

cilbupnodetacolyawevirddevapr

)sedis3nonepo(ynoclabro,hcrop,adnarev,kcedrednuecnaraelC

o45APFN/1.322ZISNAnideificepstonsecnaraelc

.reilppussagehtfotnemeriuqerehtdnasedocnoitallatsni

su,941B-AGC/NA

f1 * * * * *

*teltuotnevrotalugerecivre

3 feet above if within

10 feet horizontally

arael

noit

oof1

too

teef

/rete

wecnad

allatsnInaidanaC

oof

t tee

* * * * * ihtiw

atee

ehtev

otaluger

ylbmessa

eef

eef6

eef7*

oof1

oit

thgi

NOTE: For high altitude installations contact Rinnai at 1-800-621-9419.

Rinnai America

W Models

0.0

0.5

0.0

0.5

0.0

0.5

0.03

765

210

( wolF retaW

Pressure Loss (psi)

0.0

Pressure Loss (ft head)

V2532W/WC V2532WD/WCD

V2020W/WC

5V2

V1616W/WC

0.2

0.5

0.6

0.7

0.8

051

521

00157055

Hot Water Flow Rate (gpm)

V2526W

V2020W/WC

V1616W/WC

V2532W/WC V2532WD/WCD

I N S TA LL ER ’S IN S TA L LAT IO N I N STR U C T ION S

PRESSURE DROP CURVE

I N S TA LL ER ’S IN S TA L LAT IO N I N STR U C T ION S

OUTLET FLOW DATA

Rinnai America

W Models

8”

7/8” 4-1/8”

BC-100V-1US

FITTING

DIAMETER

3/4”

5”

4-3/4”

MC-100V-1US

3/4”

3-1/2”

4-3/4”

MC-91-1US

A B

NOITPIRCSED

352

-UER CW235

2V-U

W625

0202V-U

2V-

6161V-UE

V-UE

"8.

htdiWA

"6.

7"6.

7"9.9"9.

htp

eDB

"9.

"6.

"6.32

tinU -

ieHC

6.3

26.2

1.52

1.5

stekcarB gni

ulcnI

- thg

eHD

"4.

8.3

f( teltuO retaW toHE

1.4

1.4"3.4

"3.

)retnec m

f( teltuO retaW toHF

7.2

"9.2

"9.

Inlet (from wall)

retaW

loCG

Inlet (from center) retaW d

oCH

3"3"1.

"1.4)

noit

cenn

"3.

3"3.3"5.

"5.3)retnec

morf(

noitce

noC sa

"6.

1"6.1"6.

"6.1)esab morf( noitcen

noC o

t htg

:sa

"2"

)esab morf(

noi

tcenno

ot htg

eL :d

loC

"6.

1"6.1"6.

"6.

1)esab morf( noitcennoC

ot ht

:toH

TPN"4/3T

N"4/3

TPN"4/

TPN"4/3ret

aiD

gnit

F :saG

TPN"4/3T

"4/

"4/3TPN"4/3retemaiD gnit

etemaiD gnitti

F :toH

"4/

TPN"4/

TPN"4/3

REU-V2532WD

REU-V2532WCD

10.2"

22.9"

25.4"

14.0"

8.3 "3.

"9.

"1.4 "5.3 "6.1

"6.

TPN"4/3 TPN"4/3 TPN"4/3

INSTALLER’S INSTALLATION INSTRUCTIONS

Dimensions

Rinnai America

W Models

103 International Drive Peachtree City, Georgia 30269

RINNAI WATER HEATERS

Domestic Hot Water - Standard Installation

1 Rinnai Water Heater

This is not an engineered drawing, it is intended only as a guide and no

t as a replacement for professionally engineered project drawings. This drawing is not intended to describe a complete system, it is up to the contractor/engineer to determine the necessary components fo

r and configuration of the particular system being installed. The drawing does not imply compliance with local building code requirements. It is the engineer/contractor responsiblity to ensure the installation is in accordance with all local building codes. Confer with

local building officials before installation.

Pressure Relief Valve

3/4" Ball Valve

3/4" Union

Check Valve

Pressure Regulator

Circulating Pump

Soleno

id Valve

Boiler Drain Valve

KEY

lyL

3/4" Hot Water Supply Line

Rinnai

Water Heater

Rinnai

Equipment List

(Residential and

Commercial)

Rinnai Water Heaters (Outdoor)

MC-91 Controller (Included)

MC-100V and BC-100V Controllers Optional

RIK-KIT (Optional) (3/4" Fittings Include: 2 Unions, 2 Ball Valves, 2 Drain Valves and 1 Pressure Relief Valve.)

tio

Ven

doo

llati

al.

For Building Fixtures

(Residential and Commercial)

I N S TA LL ER ’S IN S TA L LAT IO N I N STR U C T ION S

RECOMMENDED PIPING FOR BASIC INSTALLATION

Rinnai America

W Models

103 International Drive Peachtree City, Georgia 30269

RINNAI WATER HEATERS

This is not an engineered drawing, it is intended only as a guide and not as a replacement for professionally engineered project drawings. This drawing is not intended to describe a complete system, it is up to the contractor/engineer to determine the necessary components for an

d configuration of the particular system being installed. The drawing does not imply compliance with local building code requirements. It is the engineer/contractor responsiblity to ensure the installation is in accord

ance with all local building codes. Confer with local building

officials befo

re installation.

Pressure Relief Valve

3/4" Ball Valve

3/4" Union

Check Valve

Pressure

Regulator

Cir

culating Pump

Solenoid Valve

Boiler Drain Valve

KEY

Minimum 3/4" Cold Water Supply Line

2-5 Gallon

Electric Water

Heater

120°F

Building Flow

Building Return (Not required to be 3/4" Line)

Build

ing Supply

Sup

QTY

Rinnai

Water Heater

Notes:

PLEASE NOTE FOR RESIDENTIAL

APPLICATIONS, THIS PIPING

ARRANGEMENT

MAINTAINS FULL

WARRANTY

10 Years On Heat Exchanger 5 Years On Parts

Commercial

Application Warranty:

5 Years On Heat Exchanger 5 Years On Parts

Rinnai

Equipment List

(Residential and

Commercial)

Rinnai Water Heaters (Outdoor)

MC-91 Controller (Included)

MC-100V and BC-100V Controllers Optional

RIK-KIT (Optional) (3/4" Fittings Include: 2 Unions, 2 Ball Valves, 2 Drain Valves and 1 Pressure Relief Valve.)

Important: Install return line to the hot supply as close as possible to the Rinnai Water Heater.

Pump Should be Controlled by an Aquastat, Timer or Combination Aquastat and Timer. Pump to be sized for Pressure Drop through Building Supply and Return Piping. Pump to

be Bronze or Stainless Construction

doo

Non

,Pl

lle

al.

Domestic Hot Water - Circulation Systems

1 Rinnai

Water Heater with Electric Storage Tank

(Residential and Commercial)

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

RECOMMENDED PIPING FOR CIRCULATION SYSTEMS

Rinnai America

W Models

103 International Drive Peachtree City, Georgia 30269

RINNAI WATER HEATERS

Domes

tic Hot Water with Circulation

1 Rinnai Water Heater

This is not an engineered drawing, it is intended only as a guide and no

local building officials before installation.

Pressure Relief Valve

3/4" Ball Valve

3/4" Union

Check

Valve

Pressure Regulator

Cir

culating Pump

Solenoid Valve

Boiler Drain Valve

KEY

Minimum 3/4" Hot Water

Supply Line

ild

(Optional) 2-6 Gallon Storage Tank

(To eliminate cold water sandwich effect caused by frequent On/Off operation)

Pump Should be Controlled by an

Aquastat, Timer or Combination

Aquastat and Timer

Pump to be sized for 3.0 gpm flow @ 12 feet head. Flow Balancing Valv

e to be adjusted to 3 GPM flow through water heater with no hot

ter taps open. Pump to be of Bronze or Stainless Construction.

Cold Water Supply and Circulation Return Lines Must Be 3/4" Tubing Throughout Circulation Loop.

Note:

Water heater outlet temperature cannot be adjusted when cir

culation pump is running.

QTY

Rinnai

Wate

r Heater

Note:

PLEASE NOTE FOR RESIDENTIAL

APPLICATIONS, THIS PIPING

ARRANGEMENT REDUCES

WARRANTY TO THE FOLLOWING:

3 Years On Heat Exchanger 3 Years On Parts

Rinnai

Equipment List

(Residential and

Commercial)

Rinnai Water Heaters (outdoor)

MC-91 Controller (Included)

MC-100V and BC-100V Controllers Optional

RIK-KIT (Optional) (3/4" Fittings Include: 2 Unions, 2 Ball Valves, 2 Drain Valves and 1 Pressure Relief Valve.)

"Ga

Commercial Application Warranty:

5 Years On Heat Exchanger 5 Years On Parts

qui

(Residential and Commercial)

str

tio

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

OPTIONAL PIPING FOR CIRCULATION SYSTEMS

Rinnai America

W Models

103 International Drive Peachtree City, Georgia 30269

RINNAI WATER HEATERS

Domestic Hot Water - Optional Freeze Protection

1 Rinnai Water Heater

This is not an engineered drawing, it is intended only as a guide and no

d configuration of the particular system being installed. The drawing does not imply compliance with local building code requirements. It is the engineer/contractor responsiblity to ensure the ins

tallation is in accordance with all local building codes. Confer with

loc

al building officials before installation.

Pressure Relief Valve

3/4" Ball Valve

3/4" Union

Check Valve

Pressure Regulator

Cir

culating Pump

Solenoid Valve

Boiler Drain Valve

KEY

Minimum 3/4" Hot Water

Supply Line

1/2" Minimum Normally Open Solenoid Valve

3/4" Minimum Normally Closed Solenoid Valve

Route to Floor Drain

Vacuum Breaker

NOTE:

ALL pipe and fittings shown below dashed line should be located inside home or building structure.

NOTE:

Heat trace ALL water pipe and fittings located outside home (attic, crawl space) or building st

ructure. (ALL water pipe and fittings shown

above the dashed line in the drawing.)

IMPORTANT!

With electrical power supplied to a Rinnai water heater, it will not freeze in environments as cold as -30ºF, when protected from direct wind exposure.

In the event of a power failure at temperatures below freezing, the water heater should be drained of all water to prevent freezing damage.

The unit may be drained manually, or through the installation of the Optional solenoid valves as shown shown.

The electrical connections for the two solenoid valves should be tied to the 120V power terminals provided on the PCB of the water heater.

When the electrical power to the water heater fails, the 3/4" solenoid valve closes (stopping the flow of water into the heater) and the 1/2" solenoid valve opens (allowing the water heater and associated piping to drain. Insure that you run the drain for the solenoids to the outside environment to prevent discharging water inside the building, causing water damage.

Rinnai

Wate

r Heater

Rinnai

Equipment List

(Residential and

Commercial)

Rinnai Water Heaters (Outdoor)

MC-91 Controller (Included)

MC-100V and BC-100V Controllers Optional

RIK-KIT (Optional) (3/4" Fittings Include: 2 Unions, 2 Ball Valves, 2 Drain Valves and 1 Pressure Relief Valve.)

QTY

ipm

ntL

(Residential and Commercial)

doo

Non

,Pl

vie

ler

tio

cti

NOTE: Pipe and fittings can be installed inside pipe enclosure or recess box and packed with in

sulation for added

protection.

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

RECOMMENDED PIPING FOR FREEZE PROTECTION

Rinnai America

W Models

Rinnai

Wate

r Heater

103 International Drive Peachtree City, Georgia 30269

RINNAI WATER HEATERS

Domestic Hot Water - Scale Flush Procedure

1 Rinnai Water Heater

This is not an engineered drawing, it is intended only as a guide and no

local building officials before installation.

Pressure Relief Valve

3/4" Ball Valve

3/4" Union

Check Valve

Pressure Regulator

Cir

culating Pump

Solenoid Valve

Boiler Drain Valve

KEY

RINNAI Water Heater Flush Procedure

1. Disconnect power to Rinnai water heater.

2. Close valves V3 and V4.

3. Connect pump outlet hose H1 to service valve V2.

4. Connect drain hose H3 to valve V1.

5. Pour approximately 4 gallons of virgin, food grade, white vinegar (or virgin, food grade, citric acid) into pail.

6. Place free ends of hose H2 and H3 into pail.

7. Open valves V1 and V2.

8. Turn on power to circulating pump and allow solution to circulate through water heater for 45 minutes.

9. Turn off power to circulating pump.

10.

Remove free end of hose H3 from pail.

11. Close valve V2 and open valve V4, only. Do NOT open valve V3 at this time.

12. Allow water to flow out of hose H3 for 5 minutes, rinsing cleaning solution from water heater.

13. Close valve V1 and open valve V3.

14.

Disconnect hoses H1 and H3 from service valves.

15. Remove in-line filter from water heater cold water inlet and clean out any residue. Place filter back into unit.

16. Restore power to water heater.

Circulating Pump

5 gallon pail of virgin, food grade, white vinegar (or virgin,

food

grade, citric acid).

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

RECOMMENDED SCALE FLUSH PROCEDURE

Rinnai America

W Models

Filter

Drain

Gas

Valve

GasColdHot

Turn Water Off

Turn Gas Off

Drain Water

Valve

Water

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

Freeze Protection

If the Rinnai Water Heater is disconnected from either the electrical supply or gas supply, or if there is an error that prevents the water heater from functioning normally, there is NO FREEZE PROTECTION. Freeze protection of the water heater is only possible when electricity, gas supply and normal water heater functions are enabled. If you expect freezing conditions while either electricity or gas supply is interrupted, water must be completely drained from water heater.

This water heater and venting system is designed to withstand temperatures to as low as -30OF, so long as electricity and gas are supplied to the product and normal water heater functions are enabled. If either gas or electricity is interrupted NO FREEZE PROTECTION is available.

The installation of auto drain down solenoid valves is optional. However, Rinnai strongly recommends that these valves be installed to prevent damage from freezing in case the normal freeze protection should become disabled. If the valves are not installed then any product damage due to freezing will not be covered by the warranty.

Climate conditions can dictate special applications. Please refer to local codes before installing product.

Rinnai America

W Models

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

Gas Piping Sizing Chart

Capacity Table for Natural Gas

cubic feet / hour

(table assumes .3 inch pressure drop, specic gravity of .60)

Nominal Length of Pipe in Feet Iron Pipe Size Inches 10 20 30 40 50 60 70 80 90 100 125 150 175 200

278 190 152 130 115 105 96 90 84 79 72 64 59 55

3/4 1 520 350 285 245 215 195 180 170 160 150 130 120 110 100 1-1/4 1050 730 590 500 440 400 370 350 320 305 275 250 225 210

1600 1100 890 760 670 610 560 530 490 460 410 380 350 320

1-1/2

After determining the length of pipe required select the pipe size that will supply the cubic feet per hour of gas required for the input rating of the Rinnai Water Heaters.

The formula for guring the cubic feet per hour required is:

Gas Input of Rinnai water heater (BTU/HR) CFH =

Heating Value of Gas(BTU/FT

)

*Gas input requirement is on the water heater data plate *The heating value of the gas can be obtained from the local Natural Gas Utility

Capacity Table for LP Gas

BTUH of undiluted liquied petroleum gases

(table assumes 11 inches of water column pressure at the inlet, .5 inch drop)

Nominal Length of Pipe in Feet Iron Pipe Size Inches 10 20 30 40 50 60 70 80 90 100 125 150

275 189 152 129

1/2 3/4 567 393 315 267 237 217 196 185 173 162 146 1 1071 732 590 504 448 409 378 346 322 307 275 252

2205 1496 1212 1039 913 834 771 724 677 630 567 511

1-1/4

Rinnai America

W Models

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

Gas Piping Notes

1) A manual gas control valve must be placed upon the gas supply line to the Rinnai Water Heaters. A union can be used on the connection above the shut off valve for the future servicing or disconnection of the unit.

2) Check the type of gas and the gas inlet pressure before connecting the Rinnai Water Heaters if the Rinnai Water Heaters is not of the gas type that the building is supplied with, DO NOT connect the water heater. Contact the dealer for the proper unit to match the gas type.

3) Minimum and Maximum Gas pressures are listed below:

* Minimum value is for input adjustment

Natural Gas: Minimum 6" WC Propane Gas: Minimum 10"WC Maximum 10.5" WC Maximum 13.5" WC

Conversion of this unit from natural gas to propane or propane to natural gas

CANNOT be done in the eld.

4) After completion of gas pipe connections, all joints including the heater must be checked for gas-tightness by means of leak detector solution, soap and water, or an equivalent

nonammable solution, as applicable.

Since some leak test solutions, including soap and water, may cause corrosion or stress cracking, the piping must be rinsed with water after testing, unless it has been determined that the leak solution is non-corrosive.

5) The Rinnai Water Heaters must be leak tested before it is placed into operation.

6) The Rinnai Water Heaters and its individual shut-off valve must be disconnected from the gas supply piping system when pressure testing of the gas supply piping system at test pressures greater than 1/2 psi (3.5 kPa).

7) Always use approved connectors to connect the unit to the gas line. Always purge the gas line of any debris before connection to the water heater.

8) The Rinnai Water Heaters must be isolated from the gas supply piping system by closing it's individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).

9) The Rinnai Water Heaters Installation location must provide adequate Combustion and

Ventilation airow.

Rinnai America

W Models

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

Water Piping Notes

1) A manual water control valve must be placed upon the water inlet connection to the Rinnai Water Heater before it is connected to the water line. Unions may be used on both the hot/ cold water supply lines, for the future servicing or disconnection of the unit.

2) All soldering materials and piping must be compatible with potable water.

3) Purge the water line to remove from it all debris and air. Debris will damage the Rinnai Water Heaters.

4) There is a wire mesh strainer on the Rinnai Water Heater’s inlet to discourage the introduction of debris to the unit. It will need to be cleaned periodically. DO NOT operate

unit without lter in place. Clean this lter before leaving the job site.

DO NOT reverse the inlet and outlet (cold and hot water) connections on the unit. This would cause the Rinnai to operate dangerously or not at all.

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

Pressure Relief Valve

1) ANSI code calls for the addition of an approved pressure relief valve to all water heating systems.

The pressure relief valve must meet the following criteria: The relief valve must comply with the

2) standard for Relief Valves and Automatic Gas Shutoff Devices for Hot Water Supply Systems ANSI Z21. 22 and/or the standard CAN1-4.4 Temperature, Pressure, Temperature and Pressure Relief Valves and Vacuum Relief Valves. This relief valve must be rated up to 150 PSI of pressure.

3) The relief valve should be added to the hot water outlet line per manufacturer's instructions. DO NOT place any other type valve or shut off device between the relief valve and the hot water heater.

4) The discharge from the pressure relief valve should be piped to the ground or into a drain system to prevent exposure or possible burn hazards to humans or other plant or animal life. Water discharged from the relief valve could cause severe burns instantly, scalds and/or death.

5) Do not plug the relief valve and do not install any reducing ttings or other restrictions in the relief

line. The relief line should allow for complete drainage of the valve and the line.

6) If a relief valve discharges periodically, this may be due to thermal expansion in a closed water supply system. Contact the water supplier or local plumbing inspector on how to correct this situation. Do not plug the relief valve.

7) Pressure relief valve must be manually operated once a year to check for correct operation.

Caution: See Item 4 before manually operating relief valve.

Should overheating occur or the gas supply fail to shut off, turn off the manual gas valve on

8) the Rinnai.

Rinnai America

W Models

PCB

GROUND

OFF

TERMINAL

DISCONNECT SWITCH

120VAC CONNECTION WIRES (Black-Hot/White-Neutral)

INSTALLER’S INSTALLATION INSTRUCTIONS

Electrical Connection Notes

The Rinnai Water Heater must be electrically grounded in accordance with local codes or in the absence of local codes with the most recent edition of the National Electrical Code, ANSl/NFPA 70. In Canada, all electrical wiring to the Rinnai Water Heaters should be in accordance with local codes and the Canadian Electrical Code, CSA C22.1 Part 1. Do not rely on the gas or water piping to ground the metal parts of the water heater.

Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.

1 The Rinnai Water Heater requires

120VAC/60Hz. Power from a properly grounded circuit.

2 An on/off switch must be provided and

installed for the incoming 120VAC power.

3 Wire the Rinnai Water Heater exactly as

shown on the inside of the cover panel. The black wire is the hot leg wire; the white wire is the neutral wire.

4 A green screw is provided in the junction

box for the grounding connection.

Your disconnect switch should be a type that is suitable for outdoor use. Check National Electrical Codes for proper type switch to use in your area.

Rinnai America

W Models

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

Lighting the Unit

If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

1) This water heater does not have a pilot. It is equipped with a direct ignition device which automatically lights the burner. DO NOT TRY TO LIGHT THE BURNER BY HAND.

2) Before operating the Rinnai Water Heater smell all around the unit for gas.

Be sure to smell near the ground as leaking gas may settle there.

Turn the manual gas control valve on.

STOP!! READ THE SAFETY ISSUES ON PAGES 8

4) Turn on any hot water tap. The Rinnai Water Heater should light and begin heating your water.

If the Rinnai Water Heater fails to light

1) DO NOT ATTEMPT TO LIGHT BY HAND.

2) Turn off the electrical power to the unit.

3) Turn off the manual gas control.

Wait 5 minutes, if you smell gas, go to a neighbor's house and call the gas

company or the re department. If you do not smell gas, go to the next step.

5) Turn the manual gas control valve on.

6) Turn the electrical power to the unit on.

Turn on any hot water tap.

8) If the unit still fails to light, turn off the electricity and gas to the unit and call Rinnai 1-800-621-9419.

Rinnai America

W Models

Bath Controller

Main Controller

Controller Connection in Parallel

RINNAI

IN S TA L L E R’ S I N S TA L LAT I ON I NS T RU CT IO N S

Remote Controllers- General

The remote controls for the Rinnai Water Heater allow the customer to control the functions of the water heater and to diagnose certain fault conditions.

Before installing the remote controllers, determine the most convenient location(s). When deciding on the best location for the remote controllers, consider the following items:

1) Place the controllers out of reach of small children.

2) Avoid locations where the controller(s) will become hot (over the stove, near the oven or a radiant heater).

3) Avoid direct sunlight (The digital display can be difcult to read in direct

sunlight).

4) Avoid areas where the remote controller can be splashed with water, oil, sauce, etc.

5) The remote controller cables carry low voltage, 12VDC digital.

NOTE: Controllers have to be wired in Parallel. Each Controller can share the same feeder circuit wire.

Controllers cannot be wired in series.

When the Temperature Controller is used in public applications, it should be installed where it can not be adjusted by the public (i.e. a

maintenance room or manager’s ofce).

NOTE: The Temperature Controller(s) have default temperature settings for the Rinnai Water Models. See Controllers Set Pattern page for details.

Rinnai America

W Models

1-21/32”

3-5/16”

CABLE

REMOTE CONTROL

CABLE

CLAMP

CONNECTION TERMINALS

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

Remote Controllers - Installation

1) Determine a suitable location for the controller.

2) Make three holes on the wall as shown.

Run the cable between the controller and the

3) Rinnai Water Heaters or the controller and the other controller.

4) Remove the face plate from the remote controller.

5) Connect the cable to the remote controller.

Mount the controller to the wall using the holes drilled in step 2.

Re m ot e C on t ro lle rs In s ta ll a ti o n to A pp lia nc e

For models : V1616W/WC, V2020W/WC, V2526W and V2532W/WC

7) Disconnect the power from the Rinnai Water Heater.

8) Remove the cover of the Rinnai Water Heater.

9) Remove the plastic cover from the PCB and electrical connections.

DO NOT ATTEMPT TO CONNECT THE REMOTE CONTROLLERS WITH THE POWER ON, THERE'S 120 VOLT POTENTIAL, NEXT TO THE REMOTE CONTROLLER CONNECTIONS INSIDE THE UNIT. DO NOT CONNECT THE REMOTE CONTROLLER TO THE 120VAC TERMINALS PROVIDED FOR THE OPTIONAL SOLENOID DRAIN VALVES.

All service and wiring should be performed by a certied installer.

10) Thread the cable through the access hole at the base of the unit and connect the wires to the controller terminals.

11) Secure the controller cable using the clamp provided.

12) Replace plastic cover over PCB and then replace the cover of the Rinnai.

Rinnai America

W Models

Quick Cable Connector

Cable Access Hole

Terminals For Controls

Cable Screw

Clamp Screw

Clamp

Re m ot e C on t ro lle rs In s ta ll a ti o n to A pp lia nc e

Fo r m od e ls : V25 32 W D a nd V 2 53 2 WC D

7) Disconnect the power from the Rinnai Water

Heater.

8) Remove a screw on the Quick Cable Connector.

(Fig1)

9) To access Cable Screws rotate the Quick Cable

Connector 90° counter clock wise. (Fig.2)

Fig.1

10) Insert wire cable through the Cable Access Hole

so that it can be accessed from the back. (Fig.2)

11) Loosen two Cable Screws on the Terminals For

Controls and connect the cable accordingly. You can not connect more than two cables at a time. If more than two, please connect in parallel. (Fig.3)

12) Loosen the Clamp Screw and afx wire cable

with clamp. Clamp is in a carton box of Remote Controller. Please make allowance for wire to eliminate tension. (Fig.4)

13) Install the Quick Cable Connection as before.

(Fig.5)

Fig.2

Fig.3

Fig.4

Rinnai America

Fig.5

W Models

Model # REU-V1616W Series REU-V2020W Series REU-V2526W Series REU-V2532W Series REU-V2532WD Series

Model #

Inlet Gas Pressur

e Manifold Forced Low Fire Manifold Forced High Fire

Inlet Gas Pressure Manifold Forced Low Fire Manifold Forced High Fire REU-V1616W Series REU-V2020W Series REU-V2526W Series REU-V2532W Series REU-V2532WD Series

6" - 10.5

" 0.73" 3.5" 6" - 10.5" 0.74" 3.7" 6" - 10.5" 0.56" 3.4" 6" - 10.5

" 0.56" 3.4" 6" - 10.5" 0.56" 3.4"

10" - 13.5

" 0.72" 3.3"

10" - 13.5

" 0.74" 3.5"

10" - 13.5

" 0.88" 5.1"

10" - 13.5" 0.88" 5.1" 10" - 13.5

" 0.88" 5.1"

Natural Gas Inlet and Manifold Gas Pressure by Model

Propane Gas Inlet and Manifold Gas Pressure by Model

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

Testing

1) Turn on the gas and water.

2) Check for water and gas leaks. Use soapy water to test for gas leaks.

3) Remove pressure test point screw, attach pressure gauge to test point.

4) Turn Power on.

Open any hot water tap fully.

6) Check test point or supply pressure in water columns per inch.

NOTE: The pressure may be low due to too little ow, too high an incoming

temperature, and/or undersized gas piping. Examine these areas before determining that the pressure needs to be adjusted. Contact Rinnai before adjusting manifold pressures at 1-800-621-9419. Failure to contact Rinnai, could void unit’s warranty.

7) If it is determined that the gas pressure needs adjusting, rst check the incoming pressure at the test point on the gas inlet. If it is correct follow the adjusting procedure contained in the pouch of the unit EXACTLY. If in doubt call Rinnai 1-800-621-9419.

The regulator is pre-set at the factory, it should not need resetting.

8) Turn the hot water off. Turn the power off. Remove the pressure guage and replace the test point screw. Check for a gas leak around the test point screw.

9) Replace the front cover.

10) Turn the power back on.

11) Check the operation of the unit. Check the operation of each of the remote controllers. Check the operation of the Power failure protection system.

12) Explain the proper operation of the Rinnai Water Heaters to the customer.

Rinnai America

W Models

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

Schematic Diagram

V2532W (R85) & V2532WC (C85)

V2020W (R53), V1616W (R42) & V2526W (R70) - Fixed By-Pass

*V2020WC (C53) & V1616WC (C42) - No By-Pass

Rinnai America

W Models

IN S TA L L ER ’S IN S TA LL AT I O N I NS TR UC TI ON S

Schematic Diagram

V2532WD (R85PLUS) & V2532WCD (C85PLUS)

Rinnai America

W Models

       

U245-2600X03(00)

Printed in Japan_06/03

Rinnai V2532W, V2532WD, V2532WC, V2532WCD, V2526W Operation & Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
