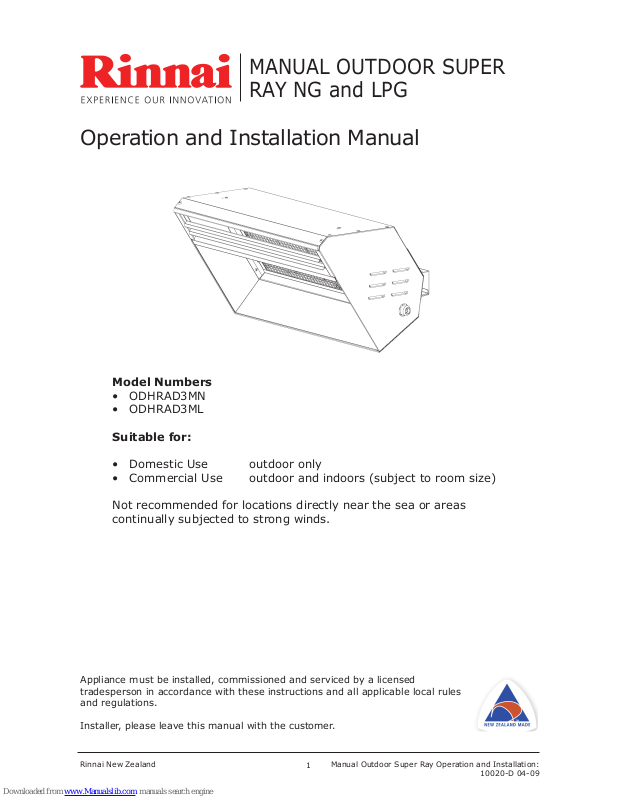

Page 1
Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:
10020-D 04-09
1
MANUAL OUTDOOR SUPER
RAY NG and LPG
Operation and Installation Manual
Model Numbers
ODHRAD3MN
ODHRAD3ML
Suitable for:
Domestic Use outdoor only
Commercial Use outdoor and indoors (subject to room size)
Not recommended for locations directly near the sea or areas
continually subjected to strong winds.
•
•
•
•
Appliance must be installed, commissioned and serviced by a licensed
tradesperson in accordance with these instructions and all applicable local rules
and regulations.
Installer, please leave this manual with the customer.
Page 2
Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:
10020-D 04-09
2
LIMITED WARRANTY
Please keep these instructions in a safe place for future reference.
RECORD AND ATTACH YOUR PROOF OF PURCHASE BELOW:
Your Retailer:__________________________________________________
Name:________________________________________________________
Address:______________________________________________________
_____________________________________________________________
Telephone:( _______ ) __________________________________________
Date of Purchase: ______ / ______ / _________
TERMS AND CONDITIONS
1. During the 24 month period from date of
purchase and subject to clauses 2 and
3 below, Rinnai New Zealand Limited
(“Rinnai”) will, at its own discretion, either
replace or repair any defective product at
no charge to the customer.
2. This warranty covers manufacturing defects
only. This warranty will not apply if (for
example) the product has been improperly
installed or is otherwise installed contrary
to manufacturer’s recommendations, has
been damaged during or after installation,
has not been operated in accordance
with operating instructions, or has been
subjected to damage or abuse beyond that
expected from conditions of normal use.
3. Warranty claims may be invalid if not
accompanied by details of the installing or
supervising gas tter’s registration number
and the gas tting certication number.
4. This warranty commences from the date of
purchase. Proof of purchase is required at
the time of any warranty claim.
5. Servicing of the product is to be carried out
by a Rinnai authorised service centre.
All Rinnai appliances meet or exceed the
safety standards required by New Zealand
gas and electrical regulations. The company
is constantly improving its products and as
such specications are subject to change or
variation without notice.
Rinnai brings you peace of mind
with a 2 year minimum warranty.
Page 3
Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:
10020-D 04-09
3
Contents
WARNING
Improper installation, adjustment, alteration, service or maintenance
can cause property damage, personal injury or loss of life.
For assistance or additional information contact Rinnai on 0800
RINNAI (0800 746 624).
Customer Information
Limited Warranty 2
Appliance Location - Important 4
Denition of an Outdoor Area 5
General Information 6
Operation 7
Installation Information
Before Installation 8
Specication Information 8
Installation 9
Installer Details 10
Customer Contacts 12
Page 4
Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:
10020-D 04-09
4
Appliance Location - Important
As a gas appliance there are some stringent criteria governing where it can be located. In
addition to the clearances stated below you must also ensure the following:
For commercial indoor use this appliance must not be used in a room smaller than 120 m3
and ventilation requirements must comply with NZS:5261 2.6.6
Outdoor locations comply with ‘Denition of an Outdoor Area’ on following page
Outdoor use only for domestic applications
The diagram below shows the required minimum clearances for the appliance to walls, oor
and ceiling or loose materials such as umbrellas, ags etc.
•
•
•
The heater discharges products of combustion from the top of the unit. If ceiling clearance is not maintained this
could potentially be a re hazard and surfaces may discolour.
The appliance heats via infra-red rays which discharge heat energy upon striking a surface. They do not pass
through solid materials. When installing the heater obstructions to the path of the rays must be taken into
account.
500 mm
300 mm from ceiling
1800 mm
from oor
from wall or other materials
Page 5
Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:
10020-D 04-09
5
Denition of an Outdoor Area
This appliance shall only be used in an above ground open air situation with natural ventilation,
without stagnant areas and where gas leakage and products of combustion are rapidly
dispersed by wind and natural convection.
Any enclosure in which the appliance is used shall comply with one of the following:
With walls on all sides, but at least one permanent opening at ground level and no
overhead cover
•
open both
ends
a)
b)
With a partial enclosure that includes an overhead cover and no more than 2 walls •
Within a partial enclosure that includes an overhead cover and more than 2 walls, the
following shall apply:
a) at least 25% of the total wall area is completely open
b) at least 30% of the remaining wall area is open and unrestricted
•
In the case of balconies, at least 20% of the total wall area shall be and remain open and
unrestricted
•
Page 6
Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:
10020-D 04-09
6
General Information
Before operation
Read these instructions to get an overview of how to operate, maintain and service your
Rinnai Manual Super Ray.
Maintenance and servicing
Maintenance
Although all external covers are made from 304 stainless steel, it should be cleaned regularly
to keep the exterior looking good. This is especially important in coastal areas.
Stainless steel should be cleaned using warm water and a mild detergent. Never use products
containing abrasive liquid cleaners.
Servicing
Rinnai has a service and spare parts network with personnel who are fully trained and
equipped to give the best advice on your Rinnai appliance. If your appliance needs
servicing, please call Rinnai (0800 746 624) from a land line and select option 1 for a
service centre in your area.
For reliable operation Rinnai Super Rays should be serviced every 2 years. If they are in a
harsh outdoor environment or intensively used (for example, in a commercial application),
annual servicing would be benecial. Regular servicing is not covered by the Rinnai warranty.
If you have any faults or problems, please refer to your installer or contact Rinnai.
Possible damage by radiant heat
This product emits radiant heat, any materials or objects stored near this appliance could
sustain damage.
Safety
High surface temperatures
Please be aware of the high surface temperatures on the heater. Young children should
be supervised at all times. Hand or body contact with the heater must be avoided.
Flammable materials and aerosols
Do not spray aerosols while the appliance is operating. Most aerosols contain butane
gas which can be a re hazard if used near the appliance.
Do not use or store ammable materials near this appliance.
Obstructions
Do not place articles on or against this appliance.
Page 7
Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:
10020-D 04-09
7
Operation
To turn on
Pull the cord down slowly until a click is heard and check for ignition while
holding the cord down.
Should the heater fail to ignite, release the cord and repeat step above.
After ignition, continue to hold down the cord for a further 20 seconds for
the gas valve to fully open.
To turn off
Gently pull the cord down and let it go.
Page 8
Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:
10020-D 04-09
8
Installation
Information
Page 9
Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:
10020-D 04-09
9

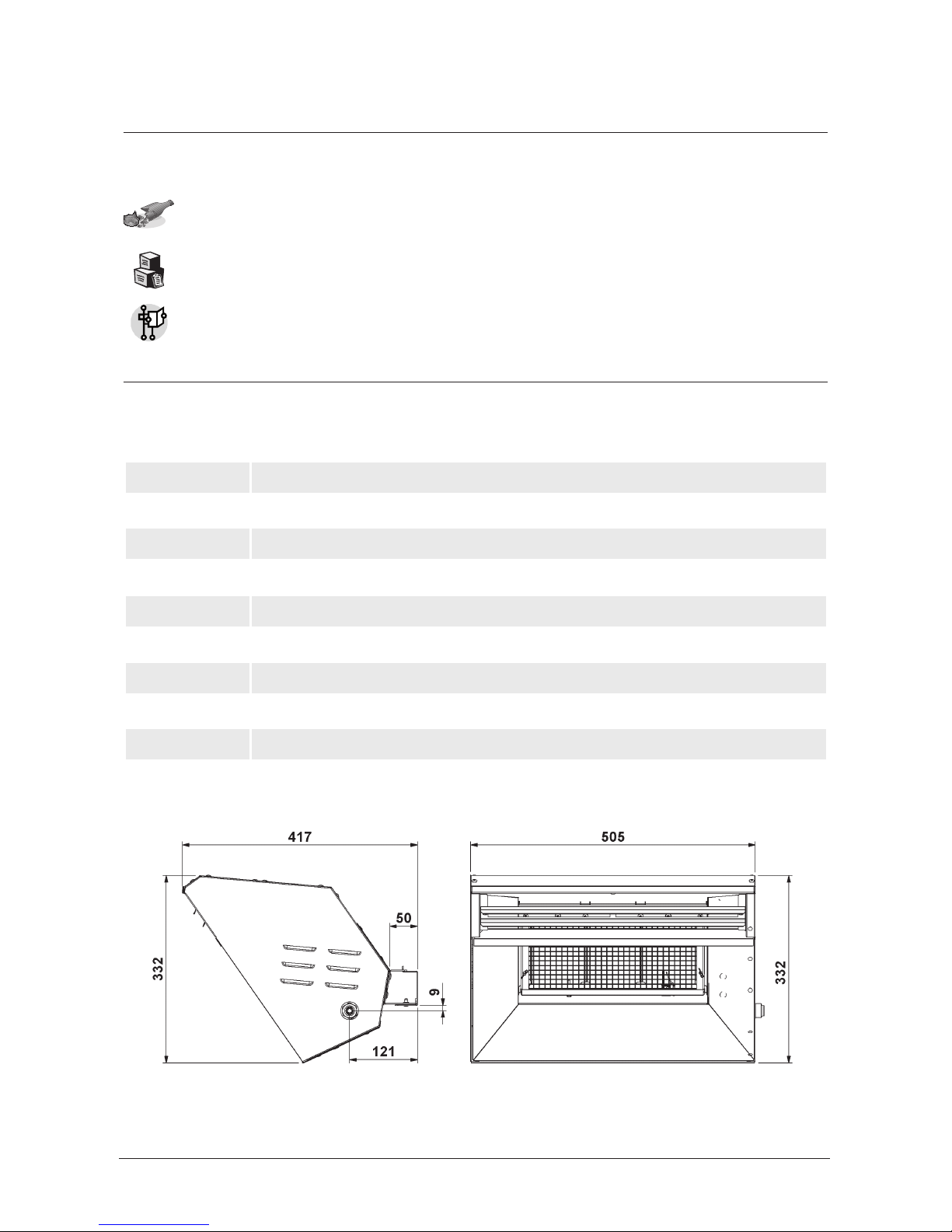

General
Specication
Model ODHRAD3MN and ODHRAD3ML
Description Stainless steel radiant plaque gas heater
Data Plate Right hand surround panel near gas connection
Gas Inlet NG ½ ” copper are union
LPG ⅜ ” copper are union
Gas Input 24 MJ/h
Gas Type NG and LPG/Propane
Ignition Piezo ignitor
Regulator inbuilt
Weight 10 kg
Before installation
Unpack the appliance and components and check for damage. DO NOT install any
damaged items.
Check all components have been supplied and that you have the correct gas type.
Read these instructions to get an overview of the steps required before starting the
installation. Failure to follow these instructions could cause a malfunction of the
appliance. This could result in serious injury and property damage.
Page 10
Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:
10020-D 04-09
10
Installation
Select a suitable position.
Unscrew the wall bracket from the rear of the heater using a 4 mm Allen key. The wall on
which the heater is mounted must be capable of supporting the heater - 10 kg.
Place the wall bracket in position and mark the xing location holes on the wall. Ensure
minimum clearances as shown on page 4. The heater must be securely attached to the
building or structure using the following xtures:
- For brick and masonry 8 mm dynabolt or equivalent
- For wood/timber number 12 screws or equivalent
Hang the heater on the bracket and secure with safety screws.
Remove lower surround panel and prepare to connect the gas. A manual isolation valve
must be tted.
The inlet connection sizes are as follows:
- Natural Gas ½ “ copper are union
- Propane/LPG ⅜ “ copper are union
Tighten all connections, turn on gas supply and check for leaks with a solution of soapy
water. Under no circumstances should a naked ame be used to test of any gas leakage.
When the installation and testing is completed, explain to the customer about the use
and care of the unit and understands the instructions. Leave these instructions with the
customer.
1.
2.
3.
4.
5.
unscrew these screws to remove wall bracket
Page 11
Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:
10020-D 04-09
11
Installer Details
Company name:______________________________________________________________
Installer name:_______________________________________________________________
Address:____________________________________________________________________
___________________________________________________________________________
Phone:_______________________________ Mobile:______________________________
Certicate of Compliance number for installation: ____________________________________
Signed:______________________________ Date:_______________________________
Page 12
Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:
10020-D 04-09
12
Consumers: 0800 RINNAI (746 624)
Installers: 0800 TO RINNAI (86 746 624)
Address: 105 Pavilion Drive, Airport Oaks, Mangere, Manukau
PO Box 53177, Auckland Airport, Manukau 2150
Phone: (09) 257 3800
Fax: (09) 257 3899
Email: info@rinnai.co.nz
Websites: www.rinnai.co.nz and www.rinnai-tradesmart.co.nz
