Rinnai HSNRQ25B, HINRQ25B, HONRQ25B, HSNRQ35B, HINRQ35B User Manual

...

Download

COOL

SPEED

SWING

Operation Manual

Split Type Wall Mounted Air Conditioner

RUN

TURBO

LRSWING

COOL

SWING

ON/OFF

FAN

HEAT

SWING

Rinnai Systems Models

System Indoor Outdoor

HSNRQ25B HINRQ25B HONRQ25B

HSNRQ35B HINRQ35B HONRQ35B

HSNRQ50B HINRQ50B HONRQ50B

HSNRQ70B HINRQ70B HONRQ70B

HSNRQ80B HINRQ80B HONRQ80B

This appliance shall be installed in accordance with:

• Manufacturer’s Installation Instructions

• Current AS/NZS 3000

• Local Regulations and Municipal Building Codes including local OH&S requirements This appliance must be installed, maintained and removed only by an Authorised Person. For continued safety of this appliance it must be installed and maintained in

accordance with the manufacturers instructions.

REFRIGERANT

R32

This page is intentionally blank

Rinnai 2 Split AC OM

TABLE OF CONTENTS

Warnings and Important Information 4

Air Conditioner Basics 6

Appliance Components �� 6

Remote Control Batteries �� 6

Remote Control Cradle �� 6

Controller Operating Basics �� 6

Remote Control Layout �� 7

Basic Operation 8

On �� 8

O󰀨 �� 8

Cooling �� 8

Heating �� 8

Fan Speed �� 8

Adjusting Vertical Air ow �� 9

Adjusting Horizontal Air Flow ��9

Advanced Operation 10

Mode - Auto �� 10

Mode - Dry (Dehumidifying) �� 10

Mode - Fan Only �� 10

Turbo �� 11

Quiet �� 11

Health (Wi-Fi) �� 11

Sleep Mode �� 11

Delay ON Timer �� 12

Delay OFF Timer �� 12

Cancelling ON/OFF Timers ��12

Room Temperature Display �� 12

Large Temperature Display �� 13

Auto Fresh �� 13

Spot Swing �� 13

Economy (Cooling Only) �� 13

Cleaning Operation �� 14

Operating the Air Conditioner Without the Remote Control ��14

Power Interruption Automatic Restart ��14

Care & Maintenance 15

Installation Record - Installer Details �� 15

Installation Record - System Details �� 15

Customer Care Program �� 15

Service Maintenance Schedule - Non Ducted Air Conditioning Systems ��16

General Maintenance �� 17

Cleaning the Air Filter �� 17

Save a Service Call �� 18

When to Call for Service �� 18

Warranty 19

Contacts 24

Rinnai 3 Split AC OM

WARNING

WARNINGS AND IMPORTANT INFORMATION

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

Always comply with the following precautions to avoid dangerous situations and to ensure optimum performance.

Failure to carefully read and follow all instructions in this manual can result in equipment malfunction, property damage, personal injury and/or death.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in personal injury or death.

WARNINGS: Indicates a potentially hazardous situation which, if not avoided, could result in personal injury or death.

CAUTIONS: Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury or damage to the appliance. It may also be used to alert against unsafe practices.

REGULATORY / INSTALLATION

This appliance shall be installed in accordance with:

Manufacturer’s Installation Instructions.

Current AS/NZS 3000.

Local Regulations and Municipal Building Codes including local OH&S requirements.

This appliance must be installed, maintained and removed by an Authorised Person.

For continued safety of this appliance it must be installed and maintained in accordance with the manufacturers instructions.

This appliance uses R32 refrigerant.

This appliance is heavy, use 2 people or mechanical lifting device. Improper lifting may result in serious injury.

Take care when opening or unpacking this appliance. Failure to do so may result in serious injury or product failure.

DO NOT modify the electrical wiring of this appliance. If the control power wiring is damaged or deteriorated then it must be replaced by an authorized person. Failure to do so may result in

electric shock, re, serious injury or product failure.

DO NOT install the air conditioner on an unstable or non level surface or where there may be a danger of it falling. It may result in death, serious injury, or product failure.

DO NOT install the outdoor unit where noise may cause nuisance.

DO NOT install the outdoor unit where it will be exposed to sea wind (salt spray) as this will

reduce durability.

REFRIGERANT

This appliance uses R32 (diuoromethane) refrigerant, which is a ammable gas class 2.2

according to AS 1677 and must be handled by a refrigeration mechanic with appropriate Australian refrigerant handling licence.

WARNING Risk of re / ammable material. If the refrigerant is leaked, together with an

external ignition source, there is a possibility of ignition.

Read the OPERATING INSTRUCTIONS carefully before operation.

Service personnel are required to carefully read the OPERATING INSTRUCTIONS and INSTALLATION MANUAL before operation.

Further information is available in the OPERATING INSTRUCTIONS, INSTALLATION MANUAL, and the like.

Rinnai 4 Split AC OM

WARNING

WARNINGS AND IMPORTANT INFORMATION

OPERATION

DO NOT let the air conditioner run for extended periods when the humidity is very high or when

doors or windows are left open. As this may result in an excessive operational loading and lead to product failure.

DO NOT cover or place articles on any part of this appliance.

DO NOT touch, operate or clean the air conditioner with wet hands. It may result in electric

shock or product failure.

DO NOT insert hands or other objects through the air inlet or outlet while the appliance is operating. It may result in electric shock or product failure.

DO NOT place a heater or other heating appliances near this appliance, always ensure su󰀩cient

ventilation when using this appliance and a heating appliance at the same time. Failure to do so may result in product mis-operation.

Turn main power o󰀨 before cleaning. Failure to do so may result in re, electric shock, or product

failure.

DO NOT use solvents, abrasives or harsh detergent to clean any part or surface of this appliance or spray water or allow liquids to enter the indoor unit. The enclosure of the appliance and remote control can be cleaned using a soft, damp cloth and a mild detergent.

NEVER touch the metal parts of the air conditioner when you remove the air lter. It may result

in electric shock or product failure.

DO NOT leave ammable materials near the appliance. It may result in explosion or re.

If there is excessive noise, smell or smoke coming from the appliance, turn the appliance o󰀨,

isolate the power supply and contact a service agent.

DO NOT operate the appliance if it has been submerged into water due to ooding, contact a service agent. Failure to do so may result in electric shock, re, serious injury, or product failure.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they DO NOT play with the appliance.

The air conditioning system is designed to achieve consumer comfort. It is NOT designed for commercial applications required a controlled atmosphere (i.e. computer rooms, food preservation, etc.)

DO NOT block the inlet or outlet of air ow. It may result product failure.

DO NOT drink the condensate water drained from the appliance. This condensate is not potable

and may present a health risk if consumed.

DO NOT expose people, animals or plants directly to the cold or hot discharge of the appliance. It may result in serious injury.

DO NOT mix the batteries for the remote control with other types of batteries or mix new batteries with used batteries. Failure to do so may result in product failure. STOP using the remote control

if there is a battery uid leak.

OPERATION RANGE LIMITATIONS

The table below indicates the temperature ranges the air conditioner can be operated within.

MODE Cool Mode Heat Mode Dry Mode

Room Temperature > 17°C < 27°C > 17°C

Outdoor Temperature -7°C ~ 52°C -7°C ~ 24°C -7°C ~ 52°C

Rinnai 5 Split AC OM

NOTE

IMPORTANT

NOTE

AIR CONDITIONER BASICS

APPLIANCE COMPONENTS

1. Indoor unit air inlet

2. Filter (located behind front access panel)

3. Manual ON/OFF (Auto) override button (located behind front access panel)

4. Indoor unit air outlet (with louvres and

vanes for setting air ow direction)

5. Remote control

6. Signal receiver window and set temperature display (the display is built into the front access panel)

7. Refrigerant pipes, electrical cable(s) (covered with binding tape)

8. Condensate drain hose (covered with binding tape)

9. Refrigerant entry (for service and installer use only)

10. Outdoor unit air inlet (on rear & left side of unit)

11. Outdoor unit air discharge and protective grille (on front of unit)

REMOTE CONTROL BATTERIES

INDOOR UNIT

OUTDOOR UNIT

RUN

COOL

TURBO

SPEED

SWING

LRSWING

ON/OFF

FAN

COOL

HEAT

SWING

Insert batteries before using the remote control. The battery type used is AAA (1.5 V).

1. Remove the battery cover at the rear of the remote control.

2. Insert the new batteries and make sure that the + and - terminals of the batteries are installed correctly.

3. Reattach the battery cover.

If the LCD screen of the remote control starts to fade or fails to transmit, replace the batteries.

REMOTE CONTROL CRADLE

For convenience a slide-in cradle is provided for xing the remote control to a wall.

To Install:

Choose a safe and easily-accessible place. DO NOT mount the cradle in direct sunlight as this may damage the controller.

Fix the cradle to the wall using the holes provided using 2 screws.

CONTROLLER OPERATING BASICS

Point the remote control towards the signal receiver window (6) of the air conditioner to operate it (as shown in the image above).

The remote control may operate other electronic devices if pointed towards them. Make sure to point the remote control towards the signal receiver of the air conditioner.

For proper operation, use a soft cloth to clean the signal transmitter LED and the receiver window.

Rinnai 6 Split AC OM

DISPLAY

TIMER

ECO

TURBO

LRSWING

SLEEP

HEALTH

ECO

DISPLAY

AUTO COOL

DRY

HEAT

FAN

RUN ROOM

PIR

AUTO

SILE

POWERCON

iFEEL

SWING

SPEED

OFF

Anti-F

iCLEAN LOCK

ELE.H

SWING

SPOT

ROOM°C

CLEAN

FRESH

SLEEP

QUIET

TURBO

ON/OFF

HEALTH

FAN

MODE

Buttons

AIR CONDITIONER BASICS

REMOTE CONTROL LAYOUT

The external buttons are for basic operations, the buttons located behind the door are for advanced operations.

1. ON / OFF button

AUTO COOL

DRY

HEAT

FAN

HEALTH

SLEEP

DISPLAY iCLEAN

Anti-F

ELE.H

LOCK

PIR

ECO

RUN ROOM

SILE

AUTO

SPEED

SWING

POWERCON

iFEEL

TURBO

LRSWING

FAN

OFF

Turns the power on/o󰀨.

2. FAN speed button Adjusts the fan speed: AUTO / LOW /MEDIUM / HIGH.

3. Temperature adjustment buttons Adjusts room temperature when cooling and heating.

4. COOL One touch cooling operation.

5. HEAT One touch heating operation.

6. SWING↕ button (vertical)

Adjusts the air ow direction vertically.

7. SWING↔ button (horizontal)

Adjusts the air ow direction horizontally.

8. Operation MODE selection button Selects the operation mode: AUTO / COOLING / DRY (dehumidifying) / HEATING / FAN (fan only).

ON/OFF

9. TURBO cooling / heating button Warms or cools rooms at the fastest rate.

10. HEALTH button Used to access Wi-Fi operation.

11. QUIET button Sets appliance operation to lowest noise output level.

12. SLEEP button Sets the sleep mode auto operation.

13. TIMER button Sets the count down timer to turn the power ON / OFF.

14. ROOM°C Temperature display button Displays the temperatures: ROOM / SET.

15. DISPLAY button Turns indoor temperature display ON / OFF.

16. FRESH button

Keeps the head unit free of excess moisture by running a 3 min cycle every time the unit is turned o󰀨.

17. CLEAN button End of season cleaning process to dry the inside of the indoor unit or when the appliance is not going to be

used for an extended period of time.

8 1

COOL

SWING

HEAT

SWING

Basic

Operation

Buttons

109

18. SPOT SWING button

Sets a xed direction for air ow horizontally.

19. ECO button

Sets appliance to the most e󰀩cient operation.

20. Wireless Transmitter LED

21. LCD screen Displays settings and operation modes.

22. Blank buttons Not used.

Rinnai 7 Split AC OM

15 17

22 22 22

16 18

Advanced Operation

NOTE

BASIC OPERATION

BASIC OPERATION BUTTONS

The external buttons are for basic operations, the buttons located behind the door are for advanced operations.

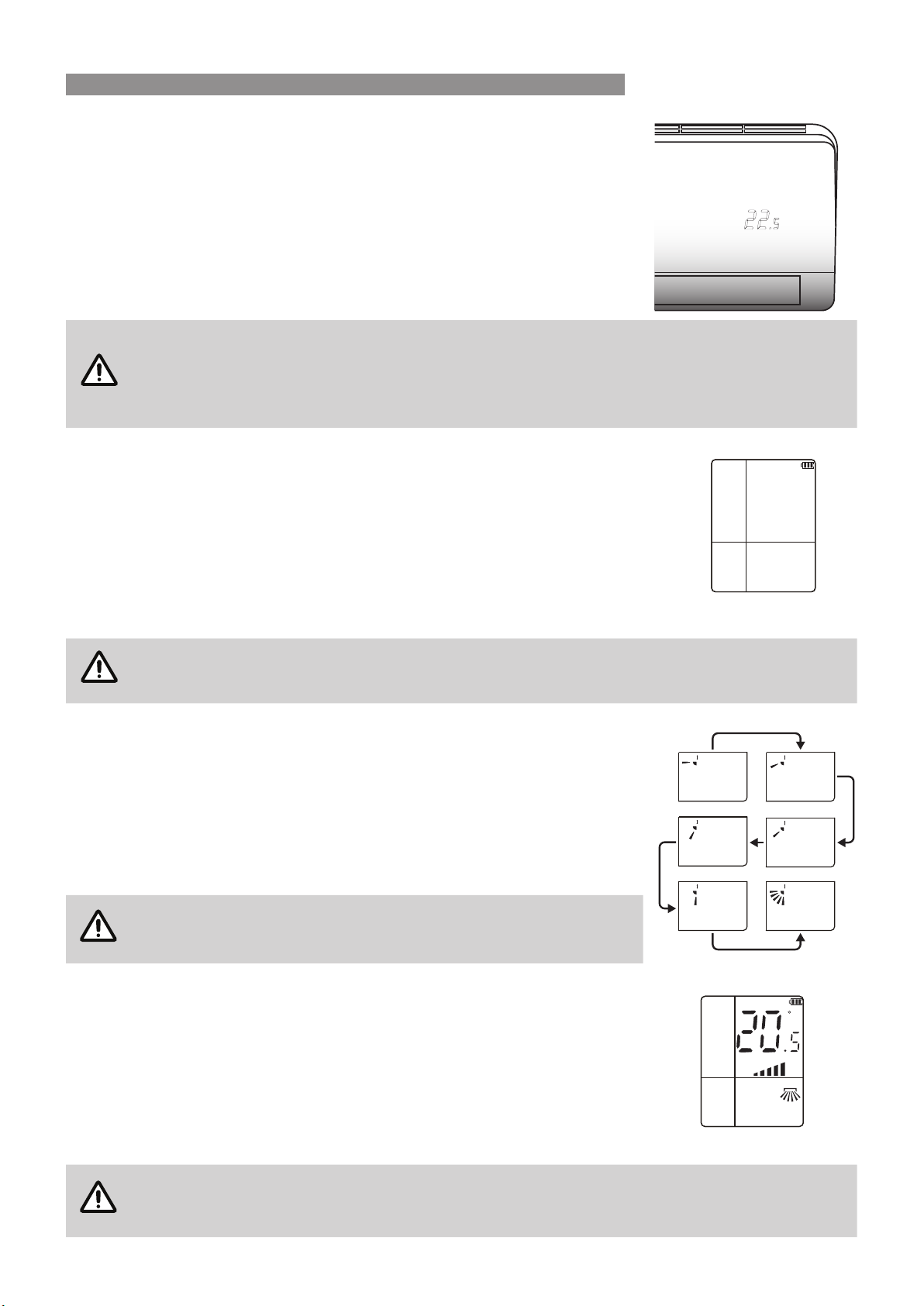

When the appliance is o󰀨 (standby):

1. Press the "ON/OFF" button to turn on appliance. The appliance will begin to operate.

All current operational settings, modes and the battery status are shown on the LCD screen.

When the appliance is turned on via the "ON/OFF" button it will return to operation using the last operational settings and modes that were set.

OFF

When the appliance is running:

1. Press the "ON/OFF" button to turn o󰀨 appliance. The appliance will be placed into standby.

The previous operation mode and the remote control battery status are shown on the LCD screen.

When the appliance is turned o󰀨 via the "ON/OFF" button it will retain the last operational settings

and modes that were in use and be placed into standby.

COOL

RUN

SPEED

SWING

POWERCON

iFEEL

POWERCON

iFEEL

LRSWING

OFF

LRSWING

OFF

COOLING

When selected this mode operates the air conditioner as a cooling appliance.

1. Press the "COOL" button.

2. Press or to set the desired temperature (the available temperature range is 16°C ~ 32°C in 0.5°C increments).

The fan speed defaults to that which was last used (see FAN SPEED below).

HEATING

When selected this mode operates the air conditioner as a heating appliance.

1. Press the "Heat" button.

2. Press or to set the desired temperature (the available temperature range is 16°C ~ 32°C in 0.5°C increments)).

The fan speed defaults to that which was last used (see FAN SPEED below).

Refer to "Operation Range Limitations" on page 5 for the operational temperature range of the appliance when using for both cooling and heating.

FAN SPEED

The fan speed can be adjusted manually or set to automatic.

RUN

COOL

HEAT

RUN

AUTO

SPEED

SWING

RUN

AUTO

SPEED

SWING

POWERCON

iFEEL

POWERCON

iFEEL

RUN

LRSWING

OFF

LRSWING

OFF

1. Press the "FAN" button until the desired fan speed is shown on the LCD screen (displayed below the temperature display), the available fan speeds are AUTO / low (2 bars) / medium (4 bars) / high (6 bars).

Select "AUTO" if you wish the fan speed to be adjusted automatically by the appliance.

Rinnai 8 Split AC OM

SPEED

Low Medium

High

Auto

AUTO

SPEED

CAUTION

BASIC OPERATION

COOL

RUN

AUTO

SPEED

SWING

POWERCON

iFEEL

LRSWING

OFF

ADJUSTING VERTICAL AIR FLOW

Continuous Circulation

1. To adjust the direction of the air ow vertically for an even air circulation, press the "SWING↕" button, this activates a continuous cyclic movement of the louvre. When cycling, "SWING↕" and the swing icon are shown on the LCD screen.

Fixed Direction

1. To adjust the direction of the air ow vertically in a xed direction, press the "SWING↕" button once to activate a continuous cyclic movement of the louvre."SWING↕" and the swing icon are shown on the LCD screen.

2. When the desired ow direction has been reached press the "SWING↕" button again to stop the movement of the louvre. "SWING↕" and the swing icon are no longer shown on the LCD screen.

3. Repeat the above steps to further adjust the ow direction or press the "SWING↕" button once to return to a continuous cyclic movement of the louvre. When cycling, "SWING↕" and the swing icon are shown on the LCD screen.

DO NOT attempt to adjust the air deector louvre manually as this can result in damage to the

louvre movement mechanisms.

COOL

RUN

ADJUSTING HORIZONTAL AIR FLOW

Continuous Circulation

1. To adjust the direction of the air ow horizontally for an even air circulation, press the "SWING↔" button to enable a continuous cyclic movement of the vanes. When cycling, “L R SWING” and the swing icon are shown on the LCD screen.

AUTO

SPEED

POWERCON

iFEEL

LRSWING

OFF

Fixed Direction

1. To adjust the direction of the air ow horizontally in a xed direction, press the "SWING↔" button once to enable a continuous cyclic movement of the vanes. “L R SWING” and the swing icon are shown on the LCD screen.

2. When the desired ow direction has been reached press the "SWING↔" button again to stop the movement of the vanes. "SWING↔" and the swing icon are no longer shown on the LCD screen.

3. Repeat the above steps to further adjust the ow direction or press the "SWING↔" button once to a return to a continuous cyclic movement of the vanes. When cycling, "SWING↔" and the swing icon are shown on the LCD screen.

DO NOT attempt to adjust the air deector vanes manually as this can result in damage to the

louvre movement mechanisms.

Rinnai 9 Split AC OM

NOTE

ADVANCED OPERATION

ADVANCED OPERATION BUTTONS

The external buttons are for basic operations, the buttons located behind the door are for advanced operations,

when the door is opened the basic operation buttons are de-activated until the door is again closed.

ON/OFF BUTTON (Functions the same as the "ON/OFF" button in basic operation on page 8).

FAN BUTTON (Functions the same as the "FAN" button in basic operation on page 8).

MODE - AUTO

RUN

In this mode, fan speed, temperature and operational mode (cooling, dry and

AUTO

heating) are all adjusted automatically by the appliance, based on the current room temperature.

1. Press the "ON/OFF" button to turn on appliance.

2. Press the "MODE" button until "AUTO" is shown on the LCD screen.

AUTO

SPEED

SWING

POWERCON

iFEEL

LRSWING

OFF

3. To cancel the "AUTO" mode an return the appliance to manual control select another mode.

The table below describes the relationship between room temperature and modes of operation when set to Auto.

Room Temperature Set Temperature Operation Mode

≥ 27°C 24°C Cooling Mode

20°C ~ 27°C 24°C Dry Mode

≤ 20°C 24°C Heating Mode

In this mode, you cannot adjust the temperature, however the swing operations for air direction and the fan speeds can still be adjusted.

MODE - COOL (Functions the same as the "COOL" button in basic operation on page 8).

MODE - DRY (DEHUMIDIFYING)

In periods of high humidity this mode removes excess moisture from the room, in

order to prevent mould and mildew. This mode adjusts the room temperature and the fan speed automatically to maintain the optimal level of humidity.

1. Press the "ON/OFF" button to turn on appliance.

2. Press the "MODE" button until "DRY" is shown on the LCD screen.

In this mode changes to the room temperature or fan speed are not applied as the appliance will automatically adjust both room temperature or fan speed to maintain the optimal level of humidity.

MODE - HEAT (Functions the same as the "HEAT" button in basic operation on page 8)

MODE - FAN ONLY

This mode uses the fan to circulate room air without changing the room temperature.

1. Press the "ON/OFF" button to turn on appliance.

2. Press the "MODE" button until "FAN" is shown on the LCD screen.

3. Press the "SPEED" button until the desired speed is shown on the LCD screen (the available fan speeds are low (2 bars) / medium (4 bars) / high (6 bars).

In this mode, Swing operations for air direction can still be adjusted, however the AUTO setting for the fan speed is not available.

DRY

FAN

RUN

AUTO

SPEED

SWING

POWERCON

RUN

AUTO

SPEED

Low Medium

High

iFEEL

LRSWING

OFF

Rinnai 10 Split AC OM

NOTE

SLEEP MODE

SLEEP MODE with OFF timer

ADVANCED OPERATION

TURBO

This mode allows you to cool indoor air quickly in summer or warm it quickly in winter.

1. Press the "ON/OFF" button to turn on appliance.

2. Conrm that either "COOL" or “HEAT” modes are selected as shown on the LCD screen.

3. Press the "TURBO" button, "TURBO" is shown on the LCD screen and an addition fan speed bar is also displayed.

When the appliance is operating in AUTO, FAN or DRY modes the Turbo function is not available.

In turbo mode the fan is set to operate at the maximum output. Attempting to alter the fan speed during TURBO mode operation will cancel this mode and return the appliance to manual operation.

QUIET

This mode operates the appliance at it's quietest, ideal for when minimal indoor noise levels are desired.

1. Press the "ON/OFF" button to turn on appliance.

2. Conrm that either "COOL" or “HEAT” modes are selected as shown on the LCD screen.

3. Press the "QUIET" button, "SILE" is shown on the LCD screen and a single fan speed bar is also displayed.

COOL

RUN

AUTO

SPEED

Low Medium

High

Turbo

RUN

SPEED

Quiet

TURBO

SILE

Attempting to alter the fan speed during Quiet mode operation will cancel this mode and return the appliance to manual operation.

HEALTH (WI-FI)

When pressed 8 times in quick succession, this button activates and or resets the Wi-Fi module of the appliance.

The appliance will respond with a double beep to conrm Wi-Fi activation or reset.

For further details refer to the Wi-Fi Operation Manual, a copy of the manual may be downloaded from the Rinnai web site: http://www.rinnai.com.au/cooling/

SLEEP MODE

1. Press the "ON/OFF" button to turn on appliance.

COOL

RUN

COOL

RUN

2. Set the desired mode, temperature and fan setting as per basic operations.

3. Press the "SLEEP" button, "SLEEP" is shown on the LCD screen:

For Cooling: Allows the set temperature to increase and decrease over

SLEEP

SPEED

SWING

POWERCON

iFEEL

LRSWING

OFF

SLEEP

SPEED

SWING

POWERCON

iFEEL

LRSWING

OFF

a 10 hour period at pre-set time intervals to maintain your comfort while saving energy (see graph right).

For Heating: Allows the set temperature to decrease and increase over a 10 hour period at pre-set time intervals to maintain your comfort while saving energy (see graph right).

Sleep mode is not available in FAN only mode.

The Delay O󰀨 Timer (see page 12) can be used in conjunction with SLEEP mode to turn o󰀨 the air conditioner automatically.

4. Pressing the "SLEEP" button again will cancel sleep mode, "SLEEP" will no longer be shown on the LCD screen.

1 107

1°C

C°C

Sleep mode 1O hours

C°C = Set cooling temperature

Starts

Sleep Mode

H°C = Set heating temperature

H°C

-1°C

21 1070

Finishes

Sleep Mode

Rinnai 11 Split AC OM

NOTE

ADVANCED OPERATION

DELAY ON TIMER

1. With the appliance "OFF", press the "TIMER" button once, up to three digits and a blinking "ON" are shown at the bottom of the LCD screen.

COOL

2. Press or to set the desired time period (the available time range is in 1/2 hour increments from 24 to 0.5 hours).

3. Press the "TIMER" button again to lock in the setting, both "TIMER" and a "ON" are shown on the LCD screen. The timer will count down the time remaining in half hour in increments. When the countdown is complete the appliance will turn on.

When setting a timer function, at each step failure to press buttons within 10 seconds will terminate the timer setup. If this happens you will need to re-start the timer setup procedure at step 1.

4. Set the mode, temperature and fan setting you wish the appliance to operate with when the "ON" time period is reached.

DELAY OFF TIMER

1. With the appliance "ON", press the "TIMER" button once, both "TIMER" and a blinking "OFF" are shown on the LCD screen.

2. Press or to set the desired time period (the available time range is in 1/2 hour increments from 24 to 0.5 hours).

appliance will turn o󰀨.

COOL

HEAT

COOL

SWING

SPEED

SWING

RUN

SPEED

SWING

RUN

POWERCON

iFEEL

POWERCON

iFEEL

POWERCON

iFEEL

LRSWING

OFF

LRSWING

OFF

LRSWING

OFF

When setting a timer function, at each step failure to press buttons within 10 seconds will terminate the timer setup. If this happens you will need to re-start the timer setup procedure at step 1.

HEAT

SPEED

SWING

POWERCON

iFEEL

LRSWING

OFF

4. Set the mode, temperature and fan setting you wish the appliance to operate with until the "OFF" time period is reached.

CANCELLING ON/OFF TIMERS

1. When a timer is set, pressing the "TIMER" button will cancel any timer settings and the timer "OFF" or "ON" indicator will no longer be shown on the LCD screen.

ROOM TEMPERATURE DISPLAY

The remote control is capable of displaying either the set temperature or the current

COOL

RUN ROOM

ambient room temperature.

1. To display the current room temperature, press the "ROOM °C" button once. "ROOM" is shown on the LCD screen and the temperature digits display the current room temperature.

SPEED

SWING

POWERCON

iFEEL

LRSWING

OFF

2. To display the current set temperature, press the "ROOM °C" button again. "SET" is shown on the LCD screen and the temperature digits display the current set temperature.

The "SET" temperature display is the default display for the remote control and will be reset when

the controller is turned o󰀨 and on.

When the room temperature mode is selected any changes to the set temperature will ash

on the display for 5 seconds, after which the display will revert to displaying the current room temperature.

Rinnai 12 Split AC OM

LARGE TEMPERATURE DISPLAY

NOTE

CAUTION

NOTE

The set and current room temperatures can be displayed via a large digital display that is built into appliance and illuminates through the front cover of the indoor unit.

To turn the display on

1. Press the "ON/OFF" button to turn on appliance.

2. Press the "DISPLAY" button, to activate the large digital temperature display.

3. Press the "DISPLAY" button again, to deactivate the large digital temperature display.

The large temperature display will display the same temperature setting as that currently in use by remote control.

When the room temperature mode is selected any changes to the set temperature will ash

on the display for 5 seconds, after which the display will revert to displaying the current room temperature.

AUTO FRESH

Cooling and dehumidifying operations, can generate moisture inside the appliance. Using the "FRESH" function removes such moisture by allowing the fan to run for 3 minutes after every shut-down, avoiding odours and keeping the unit fresh.

1. With the appliance "OFF" press the "FRESH" button, "Anti-F" is shown on the LCD screen.

2. Pressing the "FRESH" button again will cancel the mode, "FRESH" will no longer be shown on the LCD screen.

ADVANCED OPERATION

COOL

SWING

LRSWING

POWERCON

iFEEL

Anti-F

OFF

This function will not operate in TIMER OFF or SLEEP modes.

SPOT SWING

1. Press the "SWING↕" button.

2. There are 5 pre-set xed air ow directions available, pressing the “SPOT

SWING” button will allow you to cycle through each of these xed directions.

3. To select a di󰀨erent xed direction or to return to continuous circulation press the “SPOT SWING” button until the desired xed direction is achieved or until

the swing icon is again displayed.

DO NOT attempt to adjust the air deector louvre manually as this

can result in damage to the louvre movement mechanisms.

ECONOMY (COOLING ONLY)

In this mode the appliance automatically sets the operation to achieve the most economical cooling of the room.

1. Press the "ON/OFF" button to turn on appliance and select a cooling mode.

2. Press the "ECO" button, the appliance will run in ECO mode.

3. Pressing the “ECO” button again will cancel the mode, “ECO” will no longer be shown on the LCD screen.

SWING

POWERCON

iFEEL

POWERCON

iFEEL

POWERCON

iFEEL

COOL

ECO

LRSWING

OFF

LRSWING

OFF

LRSWING

OFF

RUN

SPEED

SWING

POWERCON

iFEEL

POWERCON

iFEEL

POWERCON

iFEEL

POWERCON

iFEEL

LRSWING

OFF

LRSWING

OFF

ECO mode operation runs for an 8 hour period, after which normal cooling operations will be resumed, to restart ECO mode after this period repeat step 2 above.

Be aware that ECO mode cooling times may be longer than those for non ECO mode cooling.

Rinnai 13 Split AC OM

NOTE

Cover

recess

ADVANCED OPERATION

CLEANING OPERATION

Cooling and dehumidifying operations, can generate moisture inside the appliance.

COOL

If the appliance is not going to be used for a long period (in excess of one month),

it is suggested to run the cleaning operation to remove dust and moisture to help

SWING

avoid odours.

1. With the appliance "OFF" press the “CLEAN” button, “iClean” is shown on the LCD screen.

iCLEAN

POWERCON

iFEEL

LRSWING

OFF

2. Pressing the “CLEAN” button again will cancel the mode, “iClean” will no longer be shown on the LCD screen.

This cleaning operation takes approximately 35mins and the appliance automatically shuts o󰀨 at

completion of the cleaning cycle.

OPERATING THE AIR CONDITIONER WITHOUT THE REMOTE CONTROL

You can use the Manual ON/OFF (Auto) button of the indoor unit to operate the air conditioner when the remote control is unavailable.

When operated in this manner the appliance is set to AUTO OPERATION mode (as described in "Mode - Auto" on page 10, cooling, heating and fan speed are all adjusted automatically by the appliance.

Manual ON/OFF

(Auto) button

Finger

1. Open the front cover by locating the nger recesses located at each side and then lightly pull up both sides of the cover simultaneously to unlatch. Continue to rotate the cover upwards until it locks into the open position.

2. Press the Manual ON/OFF (Auto) button (located on the right side of the appliance).

3. Return the cover to the closed position.

4. To turn o󰀨, repeat steps 1 through 3.

POWER INTERRUPTION AUTOMATIC RESTART

Should a power outage occur while the appliance is operating, when the power is restored the system will restart automatically using the same settings as those that were set before the power outage.

After power restoration, the automatic restart cycle will take approximately 5 minutes. DO NOT adjust setting during the restart cycle period.

Finger

Rinnai 14 Split AC OM

NOTE

CARE & MAINTENANCE

INSTALLATION RECORD - INSTALLER DETAILS

Company Name: ________________________________________________________________

Company Address: ________________________________________________________________

________________________________________________________________

Telephone: ________________________________________________________________

Mobile Phone: ________________________________________________________________

Email: ________________________________________________________________

Certicate of Compliance / Certication No. ___________________________________________________

Authorised Persons - Licence No. ___________________________________________________

Installers Name: ________________________________________________________________

Installers Signature: ________________________________________________________________

Installation Date: ________________________________________________________________

INSTALLATION RECORD - SYSTEM DETAILS

Model Number : ________________________________________________________________

Serial Number Indoor Unit: ________________________________________________________________

Serial Number Outdoor Unit: ________________________________________________________________

Installation Address: ________________________________________________________________

________________________________________________________________

CUSTOMER CARE PROGRAM

Please ensure you register your product warranty on line at rinnai.com.au.

The Rinnai Customer Care Program is designed to help you get the most out of your new system.

Service and maintenance in accordance with the Service Maintenance Schedules on page 16 is essential in ensuring the prolonged useful life of your system, and help ensure it operates at optimum e󰀩ciency. We may contact you before each winter or summer season with preferential o󰀨ers for preventative maintenance services which will keep your Rinnai system in great condition.

Service maintenance is not covered under warranty and is a chargeable service. All units must have safe and reasonable access and be installed in compliance with the installation instructions supplied with the unit. Some installations may require two service personnel to attend, in accordance with Health and Safety requirements.

Also note that all refrigerated air conditioning systems have air lters that require regular

inspection and cleaning. Please refer to "Cleaning the Air Filter" on page 17

Rinnai 15 Split AC OM

DateofInstallation // InstalledBy:

ServiceYear 123456

ServiceDate // // // // // //

ServiceCompany/Technician

AmbientTemperatureatCDU(°C)

Wiring,Electricalconnections

FanMotors

Capacitors(ifapplic)

Printedcircuitboards

Outdoorunitclearances

Outdoorunitcondensatetray

Outdoorunitcondensatedrain

Outdoorunitfixing

Indoorunitcondensatetray

Indoorunitcondensatedrain/pump

Refrigerantcharge

Refrigerationconnections

Fanassemblies

ReturnAirgrille&filters

CONTROLS

Louveroperation

Remoteoperation

Sequenceofoperation

ReturnAirTemp‐Cooling/Heating

OutletAirTemp‐Cooling/Heating

Outdoorunit‐Liquidlinepressure kPa kPa kPa kPa kPa kPa

Outdoorunit‐Suctionlinepressure kPa kPa kPa kPa kPa kPa

Airflowthroughsystem

Refrigerantpipework

Safetytray

Wallmounting

CONSUMABLES**

Capacitors

Filters

Batteries(Ifapplic)

AdjustedPart CleanedPart ReplacedPart RepairedPart ReferredtoInstaller

A C R RP RI

*Installationandotherfield‐suppliedcomponents arenotcoveredbyRinnaiProductWarranty.Theseinclude,butarenotlimitedto,controlwiring,refrigerantgas andelectrical connectionstotheappliance.Theseshouldbeinspectedastheycanaffecttheperformance,reliabilityandsafetyofthesystem. **UnitscontainconsumableitemsthatmayrequireperiodicreplacementandarenotcoveredbyRinnaiproductwarranty(e.g.filters,capacitorsandbatteries)

ACTIONCODES

Inspected‐WorkingCorrectly‐NoActionRequired



ELECTRICAL

MAJORCOMPONENTS

SystemOperation

GENERALINSTALLATION‐RELATEDAND3rdPARTYCOMPONENTS(NOTRINNAIPRODUCTS)*

CARE & MAINTENANCE

SERVICE MAINTENANCE SCHEDULE - NON DUCTED AIR CONDITIONING SYSTEMS

Your Rinnai Air Conditioning System should be maintained annually after the date of installation by a qualied licensed technician in accordance with the Schedule below. Failure to do so during the product warranty period may void your warranty. This periodic service and maintenance will prolong the useful life of the unit, and help keep it running safely and at optimum e󰀩ciency.

Rinnai 16 Split AC OM

CAUTION

NOTE

CARE & MAINTENANCE

GENERAL MAINTENANCE

COMPONENT DESCRIPTION INTERVAL

Indoor unit Clean the Indoor unit outer surface by using a soft, dry cloth. Regularly

Replace the remote control batteries. As needed or once per year

Professional service Once per year

Outdoor unit Professional service Once per year

Turn o󰀨 the power before you perform any maintenance; otherwise it may cause electric shock.

NEVER use water that is hotter than 40°C when you clean the lters. It may cause deformation or discolouration.

NEVER use volatile substances when you clean the lters. They may damage the surface of the product.

Make sure have your appliance professionally serviced once per year, failing to do so may

decrease the operational e󰀩ciency or increase energy consumed.

CLEANING THE AIR FILTER

Clean the air lter once every 2 weeks or more if necessary.

1. Turn o󰀨 the power

2. Open the front cover.

3. Hold the tab of the air lter, lift it up slightly and remove it from the unit.

4. Clean the lter with a vacuum cleaner or with warm water. If dirt is di󰀩cult to remove, wash the lter in lukewarm water with mild detergent.

5. Dry the lter in the shade.

6. Ensure to re-insert the lter securely after cleaning, observing the same orientation as when removed.

Failure to clean the lters regularly can cause condensation to form and drip from the indoor unit

when operated in cooling mode during humid conditions.

If you need more lters, please contact Rinnai.

Rinnai 17 Split AC OM

CARE & MAINTENANCE

SAVE A SERVICE CALL

SYMPTOM CAUSE

Water owing noise. This is the sound of refrigerant owing inside the indoor unit and

is normal.

Mist emanating form the indoor unit. Condensation e󰀨ect that can occur during cooling operations and

is normal.

No display on remote control. Possible at batteries, replace the batteries with two fresh 1.5V

(AAA) batteries, if after changing batteries the remote control still does not work contact Rinnai.

Remote control does not operate the indoor unit.

Check for interference or obstructions that may be blocking the remote control signals, if interference or obstructions are not responsible then contact Rinnai.

The air conditioner stops running. Check power supply or contact Rinnai.

If a power failure has occurred. Turn o󰀨 the air conditioner when a power failure occurs. When the power is restored, wait 3 minutes, and then turn on the air conditioner.

Check the air conditioner has not been turned o󰀨 automatically by a programmed o󰀨 timer. Press the power button on the remote control.

The air conditioner does not generate cool / hot air.

Air is not circulating properly. Make sure that there are no curtains, blinds or furniture blocking the front of the air conditioner.

The air lter is dirty. Clean the air lter once every 2 weeks. See “Cleaning Air Filter” for more information.

The room temperature is too high. In summer, it may take some time to cool indoor air. In this case, select the turbo cool operation to cool indoor air quickly.

The desired temperature is higher than the set temperature. Set the desired temperature to a level lower than the current temperature.

There is a heating source nearby. Avoid using a heat generator such as an electric oven or a gas burner while the air conditioner

is in operation

The FAN ONLY mode of operation is selected. In this mode, air blows from the air conditioner without cooling or heating the indoor air. Switch the operation mode to the cooling, heating or auto.

It is not possible to adjust the fan speed.

In some operation modes, such as the turbo or dehumidifying operation modes, you cannot adjust the fan speed. Select an operation mode in which you can adjust the fan speed.

It is not possible to adjust the

temperature.

In some operation modes, such as the auto, fan only or dehumidifying modes, you can not adjust the temperature. Select an operation mode in which you can adjust the temperature.

WHEN TO CALL FOR SERVICE

SYMPTOM CAUSE

There is a burning smell and a strange

Turn o󰀨 the air conditioner, and contact Rinnai.

sound coming from the unit.

Water leaks from the indoor unit even when the humidity level is low.

When operated if a circuit breaker (safety, ground) is thrown or a fuse is blown.

Rinnai 18 Split AC OM

WARRANTY

TERMS OF WARRANTY – AUSTRALIA

Rinnai Australia Pty. Ltd. ABN 74 005 138 769, 100 Atlantic Drive, Keysborough VIC 3173.

NOTICE TO CONSUMERS UNDER AUSTRALIAN CONSUMER LAW

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonable foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benets provided by this Warranty are in addition to any other rights and remedies of a consumer under

the Australian Consumer Law and any other law which may apply to the Product.

1 DEFINITIONS

The terms listed below shall have the following meanings:

1.1 “Authorised Service Representative” means an independent service contractor authorised by Rinnai or Rinnai service personnel.

1.2 “Rinnai” means Rinnai Australia Pty. Ltd. ABN 74 005 138 769 and any related company.

1.3 “Certicate(s) of Compliance” means certicate(s) issued by licensed personnel (including plumbers,

refrigeration mechanics, electricians or other relevant tradespeople) to certify that any prescribed works

comply with applicable regulatory requirements.

1.4 “Certicate(s) of Occupancy” means certicate(s) issued by the local government authority (or similar

organisation) which certies that a home can be occupied.

1.5 “Installation Site” means the site at which the Product is originally installed.

1.6 “Normal Business Hours” means 8:30am to 5:00pm Monday to Friday, excluding public holidays.

1.7 “Operating/Installation Instructions” means the user manual or other documentation which provides detailed instructions on the proper operation and maintenance of the Product.

1.8 “Other Applications” means any Product used for purposes other than Residential and Light Commercial Applications. Other Applications may include but are not limited to factory, IT/Server room, telephone

exchange, processing area (e.g. bakery, kitchen, warehouse, swimming pool, agricultural facilities such as a nursery). Any Product which has been installed, for whatever purpose, as a retrot component to an existing

system, will also be classed as being part of an “Other Application” regardless of the purpose of use of the existing system into which such product has been installed.

1.9 “Purchaser” means the end user of the Product, the person named as owner in the Warranty certicate, the holder of the Proof of Purchase or the holder of a property transfer document where the Product is included as part of the chattels.

1.10 “Product” means the equipment purchased by the Purchaser and described in Section 2 of this document.

1.11 “Proof of Purchase” means a Tax Invoice or Receipt in respect of the Product. In the case of new constructions,

a Certicate of Occupancy or a Certicate of Compliance that details the date of installation or commissioning will su󰀩ce.

1.12 “Qualied Installer” means the qualied installation contractor who is responsible for performing the installation work in the manner prescribed by local and statutory regulations, including compliance with any relevant and to Rinnai specications, including Australian Standards.

1.13 “Residential & Light Commercial Applications” applications where

a) the Product is solely used for the purpose of human comfort; and

b) the ambient temperature of the space the Product is intended to heat or cool is inuenced solely or

primarily by natural exterior weather conditions rather than by man-made or mechanical heat sources.

1.14 Examples of Residential and Light Commercial Applications include, homes, o󰀩ces, hotels, apartments, nursing homes, hospitals, health care premises, shopping centres, and retail stores.

Rinnai 19 Split AC OM

WARRANTY

2 TERMS OF WARRANTY

2.1 Subject to the Terms of Warranty set out in this document, e󰀨ective from the date of purchase by the Purchaser, the Product is warranted to be free from defects in materials and factory workmanship for the period set out

in the table below:

PRODUCT GROUPS PARTS LABOUR

Evaporative Coolers & Ducted Gas Heaters (excluding Compact Classic Series)

Ducted Gas Heaters - Compact Classic Series 3 Years 3 Years

Residential and Light Commercial

Other Applications All Product Groups 2 Years 1 Year

After Market Spare Parts 1 Year N/A

*Extended Warranty Option

Refrigerated Airconditioning Products 5 Years 5 Years

Ducted Gas Heaters - Heat Exchangers and Burners Evaporative Coolers - Structural components only

Portable Airconditioning 2 Years N/A

Wi-Fi Devices 1 Year 1 Year

Up to 4 year extended warranty (in addition to the standard warranty period listed above)

applies on selected products when you opt in to the Rinnai Service Advantage program. This program has terms and conditions, including the requirement for scheduled servicing of the product by Rinnai. To participate in the program you must register your product online at: www.rinnai.com.au/

support-resources/ warranty-registration/ within the rst 12 months of the product being

installed.

5 Years

*Extended 4

Years Option

10 Years N/A

5 Years

*Extended 4

Years Option

2.2 Rinnai will determine in its sole discretion, which classication the Product ts into and the corresponding

Warranty that shall apply.

2.3 An Authorised Service Representative will repair or replace, at its option, the Product or any part of the Product that its examination shows to be defective. The repair or replacement shall be performed during Normal Business Hours by an Authorised Service Representative. Repair by persons other than an Authorised

Service Representative may void the Warranty.

2.4 Alternatively to clause 2.3 above, Rinnai can at its discretion elect to pay you an amount equivalent to the cost of repairing or replacing the Product.

2.5 If Rinnai provides you with either the replacement costs or replacement product, ownership of the original Product shall immediately transfer to Rinnai.

2.6 Rinnai is responsible for reasonable costs associated with legitimate warranty claims, including call-out of an Authorised Service Representative to inspect the Product. Rinnai is not responsible for:

a) costs for tradespeople engaged by you that are not Rinnai Authorised Service Representatives.

b) any costs, including call out costs for a Rinnai Authorised Service Representatives, associated with a

Product which is determined upon inspection not to be covered by this warranty.

2.7 Rinnai will reimburse any reasonable costs associated with making a legitimate warranty claim against Rinnai

which are not otherwise specied above.

2.8 The Warranty of the Product requires that, in addition to all other conditions, the Purchaser conducts regular and/or preventative maintenance as may be specied by the Operating/Installation Instructions or otherwise

directed by Rinnai and required by the level of usage and the usage environment, including the use of

correct and uncontaminated refrigerants and lubricants. Refrigeration, plumbing and electrical works must be undertaken by licensed personnel.

2.9 Where a Product or failed component is replaced under warranty, the time remaining on the original Product warranty period will continue to apply and the replacement product or part will be subject to the original warranty period only.

Rinnai 20 Split AC OM

WARRANTY

3 CONDITIONS OF WARRANTY

3.1 The Purchaser may only obtain the benet of the Warranty if the Purchaser:

a) maintains and has the Product serviced in accordance with the instructions set out in the service section

of the relevant Service or Owner’s Manual;

b) complies with clause 7 below (titled “Purchaser’s Responsibilities”);

c) noties Rinnai within 30 days of a defect occurring or, in the case of a latent defect, becoming apparent,

that a claim is being made under this Warranty; and

d) provides, in support of the claim made under this Warranty, a Proof of Purchase. This document (and any

statutory consumer guarantees) represents the only Warranty given by Rinnai in respect of the Product. No other person or organisation is authorised to o󰀨er any alternative warranty on behalf of Rinnai.

3.2 If the date of purchase cannot be established to Rinnai’s satisfaction, the date shall be deemed to be 2 months after the date of manufacturer or the date of sale by Rinnai, whichever is the latter.

3.3 This warranty applies to Products which are manufactured on or after the date of publication of this warranty but before the next date of publication of this warranty.

4 EXCLUSIONS

4.1 This Warranty does NOT cover:

a) damage, problems or failure resulting from improper operation and/or inadequate maintenance by the

Purchaser (refer Purchaser’s Responsibilities section below);

b) damage, problems or failure resulting from improper or faulty installation. The Product must be installed

by a Qualied Installer in accordance with applicable regulations. Where applicable, Certicate(s) of Compliance must be obtained by the purchaser from Qualied Installer and present it to the Authorised

Service Representative;

c) damage, problems or failure caused by factors external to the Product including, but not limited to, faulty

or poor external electrical wiring, incorrect or faulty power supply, voltage uctuations, over voltage

transients or electromagnetic interference,inadequate or faulty gas, drainage services, or water services, including water pressure, and non potable water;

d) damage, problems or failure caused by acts of God, re, wind, lightning, ood, storm, hail storm fallout,

vandalism, earthquake, war, civil insurrection, misuse, abuse, negligence, accident, pests, animals, pets,

vermin, insects, spiders/bugs or entry of foreign objects or matter into the Product such as dirt, debris, soot or moisture;

e) damage, problems or failure caused by environmental conditions including, but not limited to, excessive

moisture, salt or other corrosive substances or atmospheric conditions;

f) Product which has been installed in a portable or mobile building, structure or application including, but

not limited to, a caravan, boat or trailer;

g) Product which is being re-installed at a location other than the original site;

h) any consumable item supplied with the Product including, but not limited to, an air lter, battery, fan belt,

igniter or cooler pad;

i) installation of third-party components that may be attached to the Product. These include, but are

not limited to, control wiring, ducting, return air lter(s) grille, register, di󰀨user, zone motors, controls/ thermostats, pipe work and fabricated or added components. These items remain solely the responsibility of the Qualied Installer;

j) installations where electrics/electronics may be subjected to moisture/chemicals (e.g. swimming pools

or nurseries);

k) any repair, which is needed as a result of an accident, misuse, abuse or negligence;

l) product that is utilised in an environment (indoor and outdoor) outside its specied operating range; and

m) fair wear and tear to the Product.

n) on-site labour warranty on portable (non-xed installation) Products - In respect of such Products the

Purchaser must return the Product to the Supplier for repair or replacement).

Rinnai 21 Split AC OM

WARRANTY

5 LIMITATIONS

5.1 Third parties are often involved in providing advice to consumers about the climate control solutions best suited to the consumer’s needs. Any advice or recommendations given by such parties, including advice

about Product tness for purpose and overall system design, sizing and application are not the responsibility of Rinnai. This includes but is not limited to the heat load calculations, airow and system balancing.

5.2 This Warranty does not apply to any Product installed at an Installation Site which is outside Australia.

5.3 Except where inconsistent with the purchaser’s statutory rights and the rights given by this Warranty, all liabilities of Rinnai for any direct, special, indirect or consequential loss or damage, any damage or expense for personal injury or any loss or destruction of property, arising directly or indirectly from the use or inability to use the Product or any of its parts and/or servicing the Product, are expressly excluded.

6 TRAVEL, TRANSPORT & ACCESS COSTS

6.1 The Purchaser must pay freight charges, in-transit insurance expenses and travelling costs for repairs/

replacements under this Warranty, that are required to be performed 50km from the nearest Rinnai branch or

Authorised Service Representative.

6.2 Subject to clause 6.3, Rinnai will pay freight charges, in-transit insurance expenses and travelling costs for

repairs/replacements that are required to be performed less than 50km from the nearest Rinnai branch or

Authorised Service Representative, subject to the following:

a) Rinnai will arrange for such repairs/replacements and make any payment directly to the third party to

provide the freight, in-transit insurance or travel services; or

b) if Rinnai considers appropriate, it will authorise the Purchaser in writing to pay for the relevant freight

charges, in-transit insurance expenses or travelling costs and then, upon provision by the Purchaser to Rinnai of a tax invoice showing those costs have been incurred, reimburse the Purchaser for such costs which are within the terms of the authorisation. If the Purchaser pays for the relevant freight charges, in-transit insurance expenses or travelling costs without written authorisation from Rinnai, Rinnai will not reimburse the Purchaser for such costs.

6.3 The Purchaser must pay all costs and expenses in respect of:

a) any service call out fee if the Product is not accessible for service;

b) making the Product accessible for service, for example, restricted access or working at heights, or the

labour cost for an additional person due to OHS requirements;

c) providing a safe working environment for installation, service, maintenance or repair of the product;

d) any surcharge applicable in respect of supplying replacement parts outside Normal Business Hours; and

e) any other costs and expenses in relation to claiming the Warranty that is not covered by clause 6.2.

7 PURCHASER’S RESPONSIBILITIES

7.1 The Purchaser must operate and maintain the Product in accordance with the Operating Instructions and service maintenance schedule, including conducting an appropriate number of services to the unit during the

Warranty period, based on usage and the usage environment including but not limited to;

a) regularly cleaning the air lter(s) and replacing them where necessary;

b) replacing expired batteries or other consumables as required;

c) ensuring that the condensate drain is kept clean and clear of obstructions.

HOW TO MAKE A WARRANTY CLAIM:

If you wish to make a warranty claim in respect of any Portable Product, please return it to the place of purchase,or

if that is not possible, contact Rinnai to enquire about alternative arrangements.

If you wish to make a warranty claim in respect of any xed Product, please contact Rinnai on the details set out below to make arrangements for an Authorised Service Representative to inspect the product.

As per clause 2.6 of the Terms and Conditions of Warranty, purchasers are responsible for the costs of any repair

and/or call out fee where, on inspection, the alleged defect is found by Rinnai’s Authorised Service Representative not to be covered by this warranty or any statutory consumer guarantee applicable to the Product.

The Terms and Conditions of Warranty contain important information about your rights and obligations under this warranty. Please read them fully and carefully before making a claim.

Rinnai 22 Split AC OM

NOTES

Rinnai 23 Split AC OM

CONTACTS

Australia Pty. Ltd.

ABN 74 005 138 769

Product Sales & Service National Help Line

Tel: 1300 555 545* Fax: 1300 555 655

100 Atlantic Drive

Monday to Friday, 8.00am to 5.30pm EST

Keysborough, Victoria 3173

For further information visit www.rinnai.com.au

P.O. Box 460

or email enquiry@rinnai.com.au

Braeside, Victoria 3195

AU45204

Rinnai has a Service and Spare Parts network with personnel

who are fully trained and equipped to give the best service on

your Rinnai appliance. If your appliance requires service,

please call our National Help Line. Rinnai recommends that this

right to change, or discontinue at any time, specifications or

Rinnai 24 Split AC OM R32 Issue 4 - December 2018

appliance be serviced at least every 2 years.

With our policy of continuous improvement, we reserve the

designs without notice.

Rinnai HSNRQ25B, HINRQ25B, HONRQ25B, HSNRQ35B, HINRQ35B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
