RIKA IMPERA, IMPERA XL Operating Manual

Download
Page 1
IMPERA / XL
Operating Manual
Page 2
TABLE OF CONTENTS
1. PREFACE 3
Spare part overview exploded diagram Impera .........................................................................................................................................4
Spare part overview exploded diagram Impera XL ..................................................................................................................................6
Spare part overview article numbers Impera ............................................................................................................................................8
Spare part overview article numbers Impera XL ......................................................................................................................................9
2. IMPORTANT INFORMATION 10
General warning and safety information ................................................................................................................................................10
3. BRIEF INFORMATION ON COMBUSTIBLE - LOGS 12
4. INSTALLING THE STOVE 13
5. MANUAL OPERATION 14

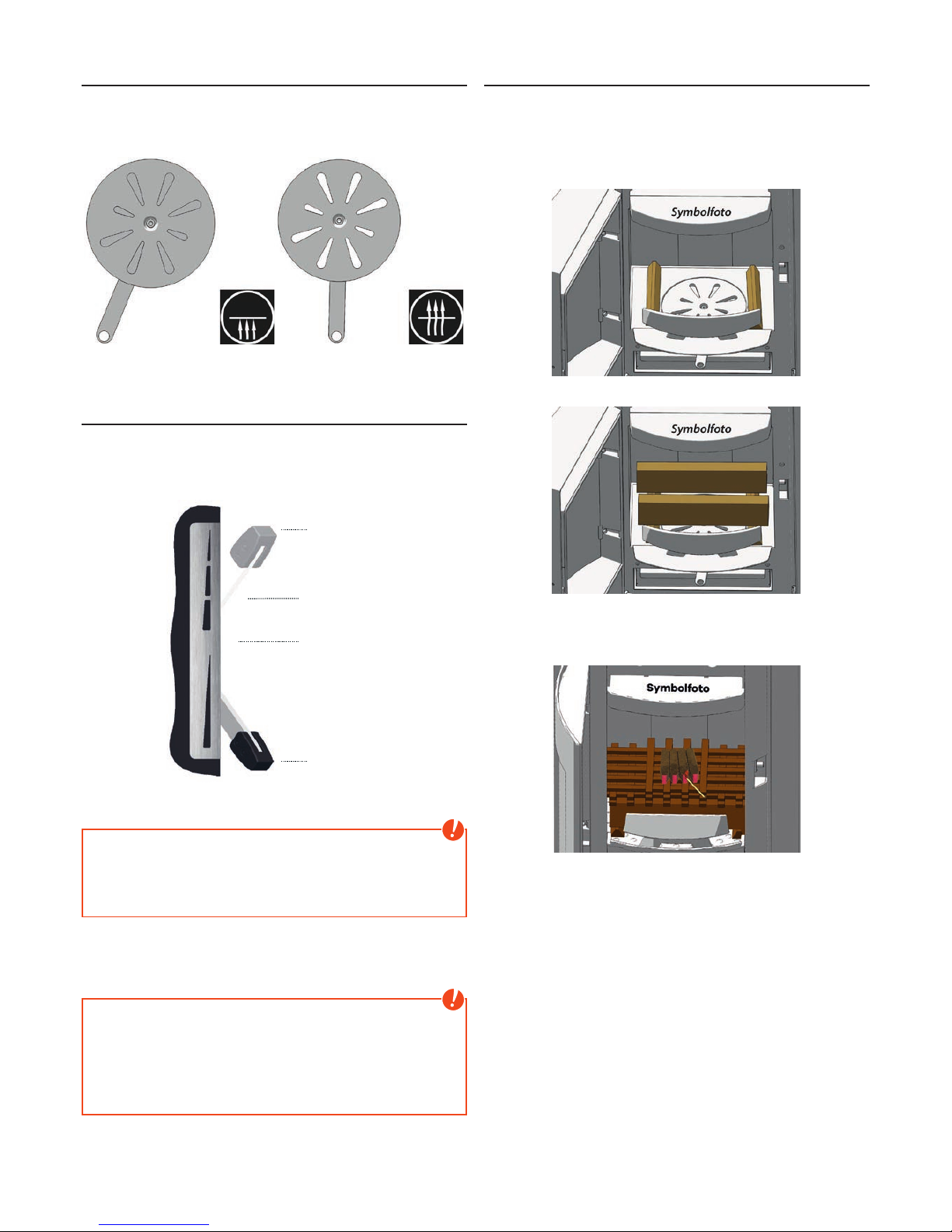

Operating the riddle grate ......................................................................................................................................................................14
6. CLEANING AND MAINTENANCE 15
7. ASSEMBLY / DISASSEMBLY 17

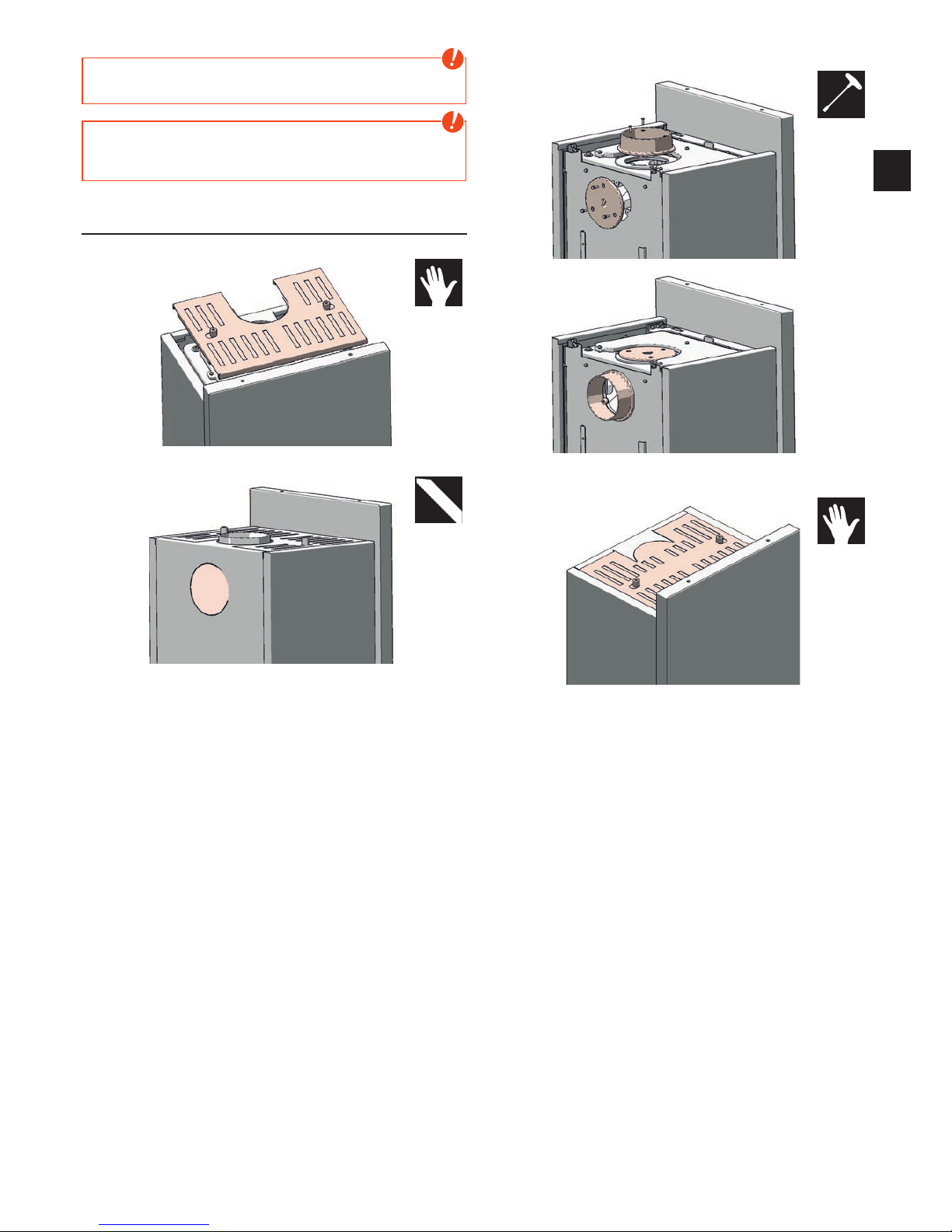

Changing to rear connected flue gas .......................................................................................................................................................17
8. PROBLEMS - POSSIBLE SOLUTIONS 18
9. GUARANTEE 19
Page 3
|
3
EN
2

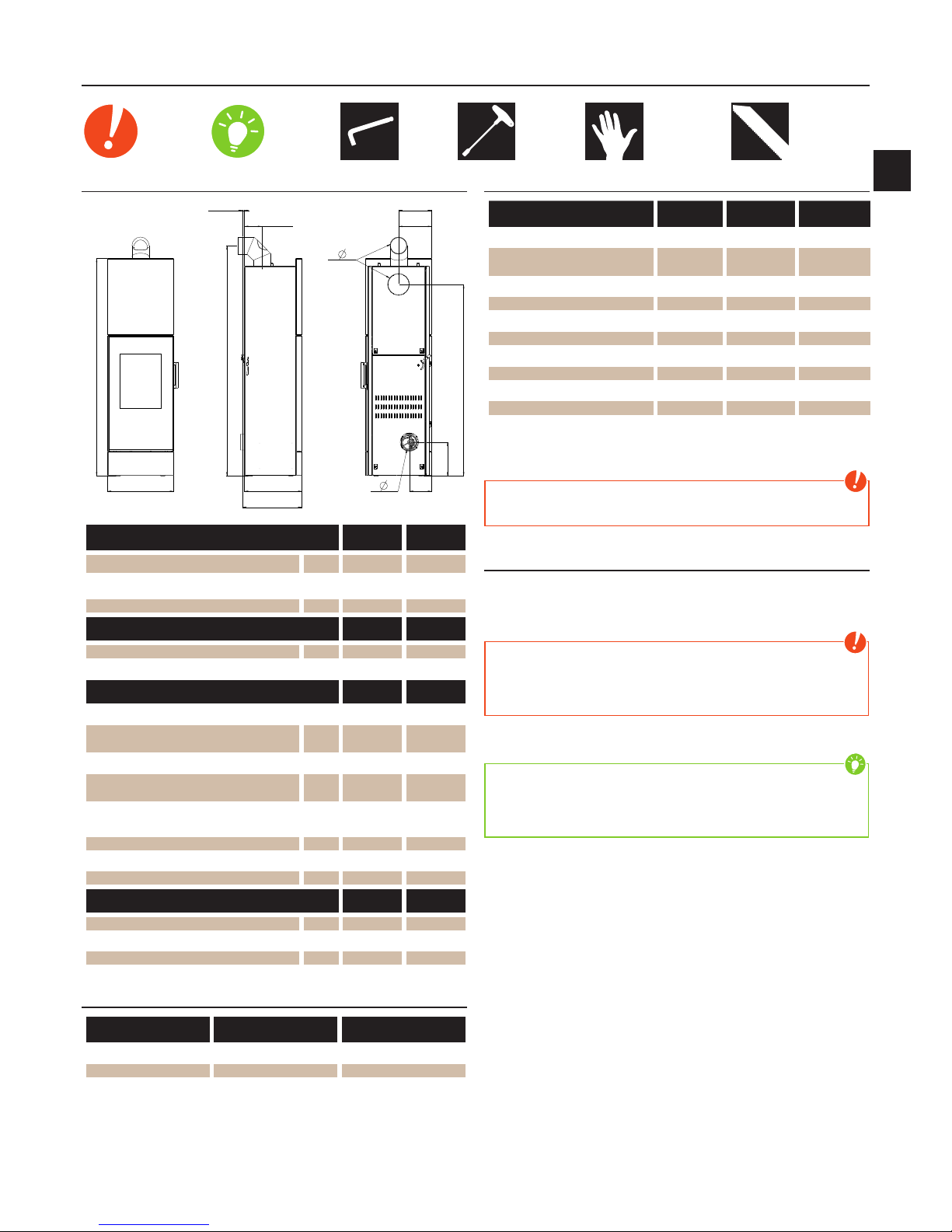

1. PREFACE
Explanations to symbols
Important note
...Useful tip
#4
...Allen key #4
#10
...Hex #10
...Manually ...Hacksaw
Dimensions
H
B T
RO-T1
RO-H
RO-T2
RO-T3
F-H
F-S
R-H
RO-S
R-S
R-
F-
Dimensions Impera XL
Height [mm] 1704 1834
Width [mm] 520 570
Corpus depth [mm] 451 451
Weight Impera XL
Weight without stones [kg] ~230 ~250 Weight with stones [kg] ~485 ~540
Flue pipe connection Impera XL
R - Ø flue pipe outlet [mm] 130 150 RO - H original angle pipe connection
height
[cm] 180 189
RO - T1 original angle pipe total depth [cm] 47 48 RO - T2 original angle pipe distance to
rear wall
[cm] 2 3
RO - T3 deapth from rear wall to middle of flue pipe
[cm] 14 14
RO - S original angle pipe side distance [cm] 26 29 R - H rear connection height [cm] 150 157 R - S rear connection side distance [cm] 26 29
Fresh air connection Impera XL
F - Ø diameter [mm] 125 125 F - H connection height [cm] 26 35 F - S side distance [cm] 18 18
Amount of fuel
Nominal load Part load
Impera ~1,7 kg* ~0,9 kg* Impera XL ~2,3 kg* ~1,2 kg*
*Practical values may vary depending on pellet quality.
Technical data
Description Measure Impera Impera XL
Heating capacity range [kW] 3 - 6 4 - 8 Room heating capacity
depending on house coating
[m³] 70 - 160 90 - 210
Fuel consumption [kg/h] up to 1,7 up to 1,7 Efficiency [%] 88,5 90,2 CO
2
[mg/m
N
3
] 9,4 11 CO-emission on 13% O [g/s] 435 431 Dust emission [°C] 18 18,5 Exhaust [g/s] 7,0 6,9 Exhaust temperature [°C] 153,9 136,6 Chimney draft requirement [Pa] 12 12
The owner of small firing systems or the person authorised for the small firing system is to keep the technical documentation and is to submit it to the authorities or the chimney sweep on request.
Note
Please observe the national and European standards as well as local regulations concerning the installation and operation of firing installations!
Packaging
Your first impression is important to us!
The packaging of your new stove provides excellent protection against damage. However damage to the stove and accessories may still occur during transport.
Note
Therefore please check your stove on receipt for damage and completeness! Report any deficiencies to your dealer immediately! Pay particular attention during unpacking that the stone panels remain intact. Scratches to the material can easily occur. Stone panels are excluded from the warrant.
The packaging of your new stove is environmentally neutral to a great extent.
Tip
The wood used in the packaging has not been surface treated and may therefore be burnt in your woodburning stove (not in a pelletstove!). The cardboard and film (PE) can be depolluted via the municipal waste collection for recycling.
Page 4
1
2
4
578
6
9
11
11
10
10
12
12
13
14
15
16
17
19
18
202322
21
24
25
26
27
28
29
30
31
35
34
33
37
36
32
3
38
39
40
41
42
43
43
44
45
46
47
48
49

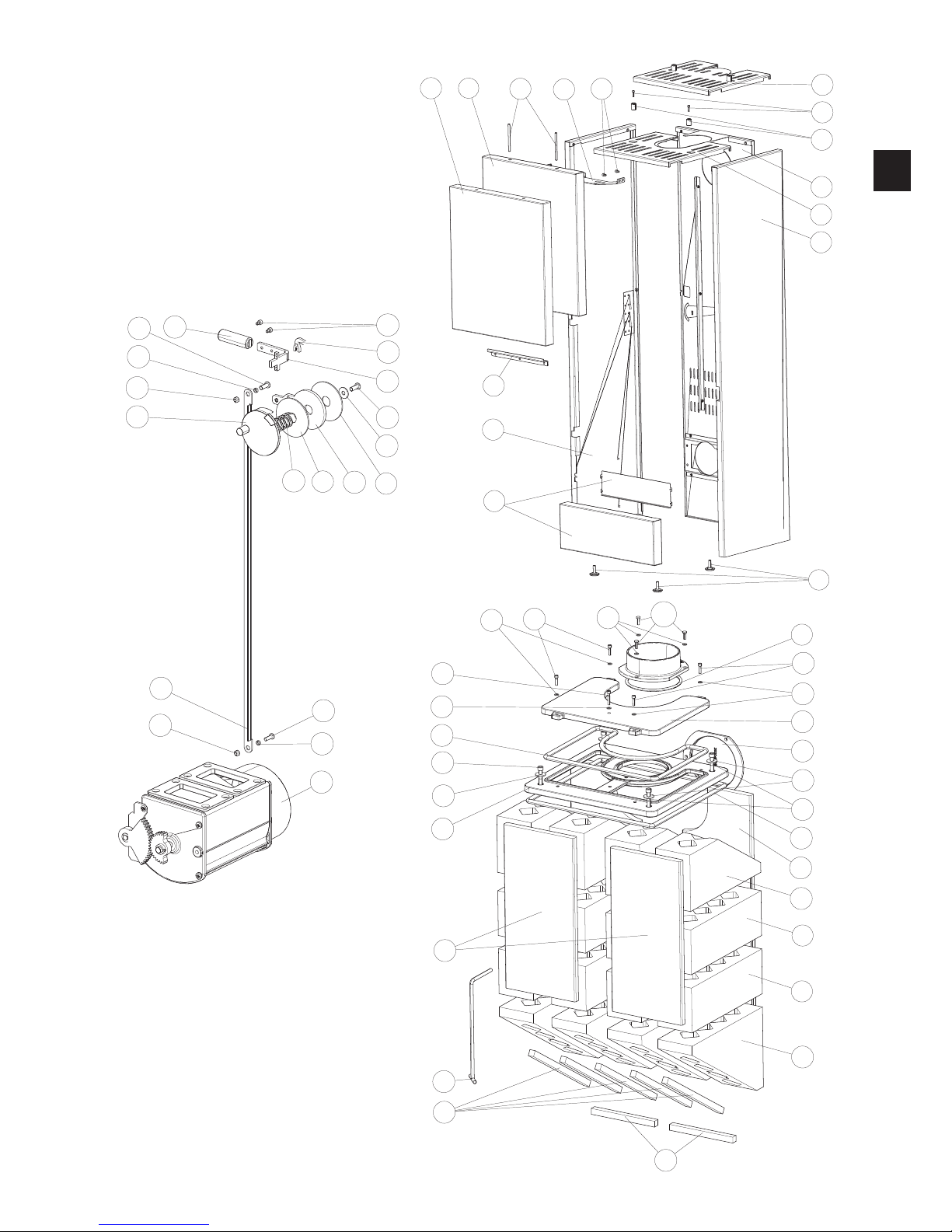

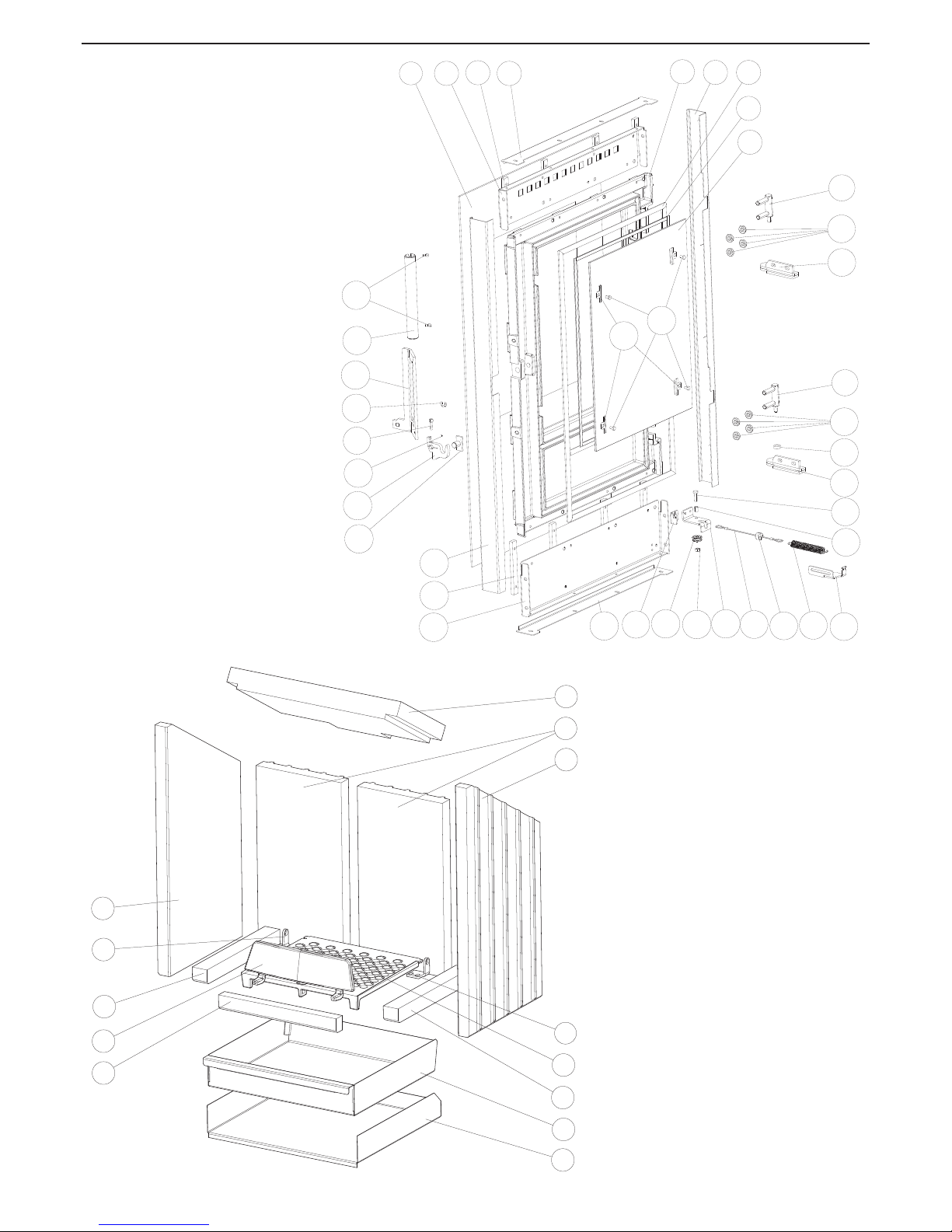

Spare part overview exploded diagram Impera
Page 5
|
5
EN
4
50
51
525354
55
58
59
57
56
60
61
62
64
65
66
67
68
69
70
71
71
72
73
69
76
75
777875
747779
80
82
85
83
83
82
84
9883100
97
81
88
86
86
87
87
93
94
92
91
91
90
96
89
83
99
95
Page 6

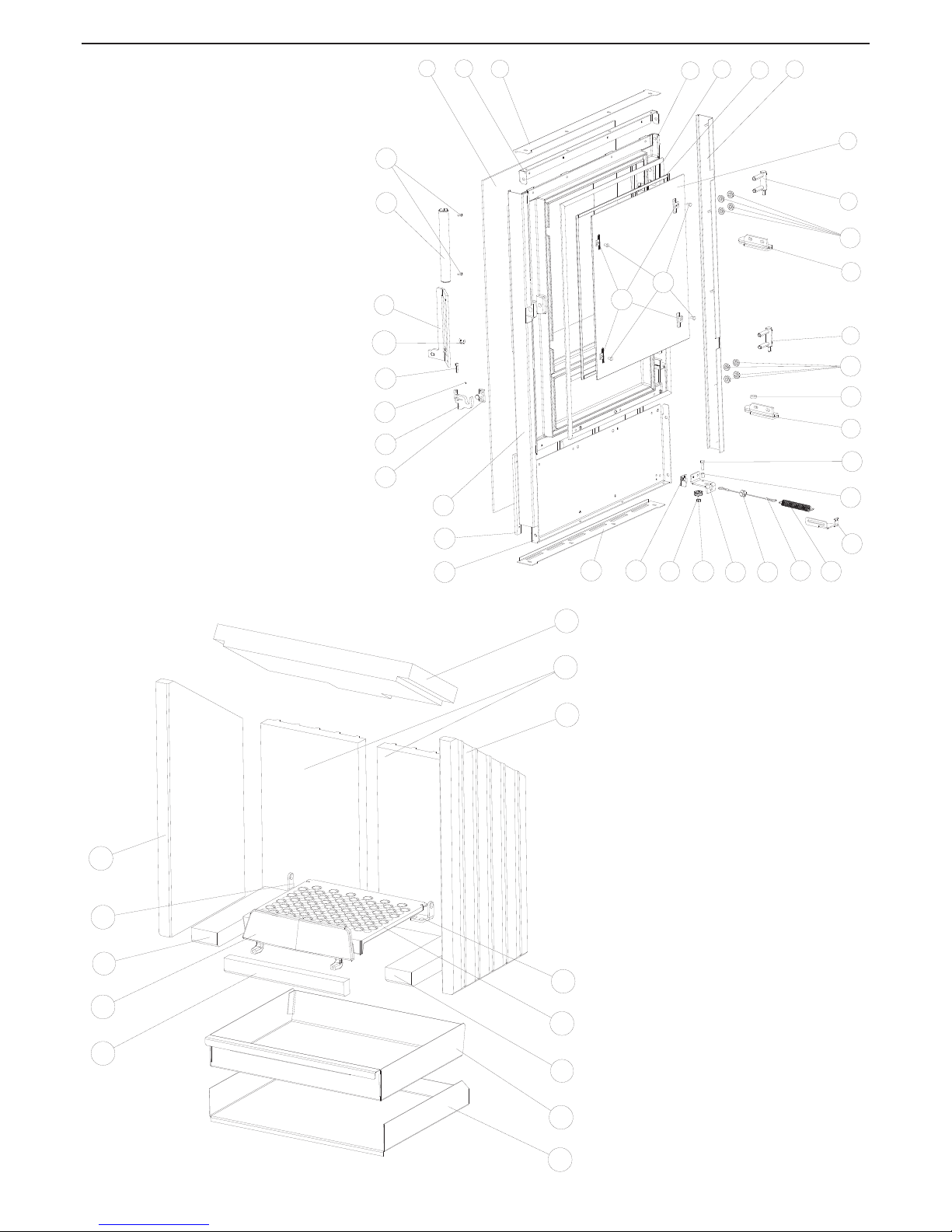

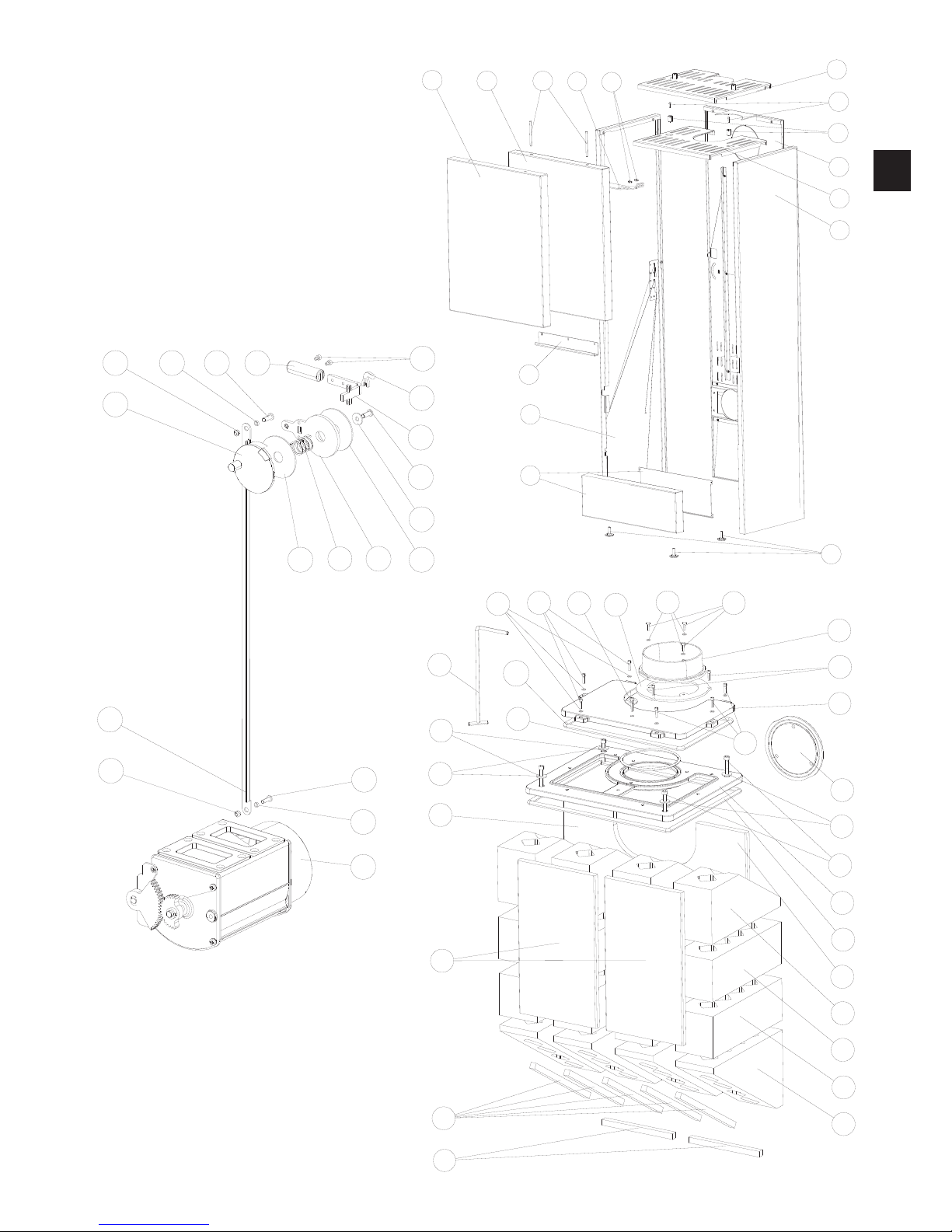

Spare part overview exploded diagram Impera XL
271111
12
4
6
8
34
35
24
2
25
31
33
32
28
30
29
1
9
10
10
9
23
3
7265
22
100
15
16
17
19
21
13
14
20
18
46
39
40
45
43
42
37
47
38
41
41
36
44
Page 7
|
7
EN
6
59
56
58
62
60
63
51
495250
57
55
54
48
53
74
76
73
72
75
68
67
716970
69
77
6773756665
78
64
82
91
92
90
89
89
88
99
93
87
87
85
94
97
80
86
79
95
98
83
83
84
84
81
101
80
95
80
96
Page 8
Spare part overview article numbers Impera
Nr. Art.Nr.: Description
1 Z34837 Decorative glass 2 Z35138 Door bracket top 3 L02290 Spacer bar above 4 L02516 Glass frame top 4 *1 Z35372 Glass frame top 5 Z34834 Combustion chamber door 6 L02504 Glass frame left 6 *1 Z35373 Glass frame left 7 E13858 Round sealing strip - Set D12 8 N103693 Culimeta flat seal black 8x2 9 Z34838 Inside glass 10 N111780 Hexagonal nut 11 B17004 Hinge 12 B17002 Hinge 13 Z22480 Door hinge ring 14 N111968 Hexagonal screw M06 15 Z10709 Distance 16 L02280 Spring tensioner 17 N111999 Tension spring (door) 18 N111943 Wire cable stop 19 Z34342 Wire cable 20 L02197 Cable sheave holder 21 L02196 Cable holder 22 Z33895 Cable sheave 23 N103988 Hexagonal nut M06 24 L02515 Glass frame bottom 24 *1 Z35371 Glass frame bottom 25 Z35137 Door bracket, lower 26 L02289 Distanc bar bottom 27 L02505 Glass frame right 27 * Z35374 Glass frame right 28 B12322 Door lock 29 L02190 Door latch 30 N111864 Grub screw 31 N110017 Allen screw 32 N104718 Circlips 33 B17195 Door handle compl. 34 B17003 Door handle cpl. 35 N103990 Allen screw M04 x08 36 N111799 Hexagonal screw M05x08 37 L00475 Glass holder 38 Z35136 Baffle plate bottom 39 Z35134 Fire brick rear 40 Z35055 Fire brick right 41 Z31567 Grate support right 42 Z30993 Grate 43 Z35135 Fire brick bottom right and left 44 L02286 Ash drawer 45 L02285 Ash drawer support 46 Z35122 Fire brick bottom 47 Z35105 Wood retainer 48 Z31566 Grate support left 49 Z35054 Fire brick left 50 E15460 Front stone soapstone
E15461 Front stone white stone 51 E15515 Steel front 51 *1 E15462 Steel front 52 Z34860 Safety bolt 53 L02302 Stone holder 54 N111967 Allen screw M06x10 55 E15266 Cover rear connection
Nr. Art.Nr.: Description
55 *1 B17867 Convection cover AH complete 56 N110017 Allen screw 57 Z35123 Slider handle 58 L02512 Rear wall top
L02513 Rear wall bottom 58 *1 Z35455 Rear wall top 58 *1 Z35456 Rear wall bottom 59 B17044 Cover top connection 59 *1 B17866 Cover top connection 60 L02916 Side casing panel, right 60 *1 Z36571 Side casing panel, right 61 N111695 Height adjustment screw 62 B17869 Bottom front panel complete 62 *1 B17280 Bottom front panel complete 64 L02917 Side casing panel, left 64 *1 Z36572 Side casing panel, left 65 Z35142 Stone holder bar 66 N111990 Hexagon socket M04x06 67 L02201 Regulator stop 68 L02200 Regulator handle 69 N110045 Flat allen screw M06 70 N100173 Washer D06 71 Z34373 Spring plate 72 L02282 Slider 73 N111831 Pressure spring 74 N100751 Flat allen screw M05 75 Z27866 Distance 76 B17001 Airbox 77 N111974 Self-locking nut 78 L02312 Switching rod 79 Z34317 Sliding lever 80 Z34975 Regulator handle 81 N103066 Round sealing strip black D06 82 N110017 Allen screw 83 N111965 Washer D05 84 Z35118 Cleaning cover 85 Z35057 Blind cover 86 N111843 Washer D08 87 N111599 Allen screw M08 88 E13856 Sealing cord black - Set Ø10mm 89 Z35386 Power stone rear 90 Z35387 Power stone top 91 Z35388 Power stone middle 92 Z35389 Power stone bottom 93 Z35140 Power stone support 94 Z35331 Power stone support 95 B17221 Power stone lifting tool 96 Z35390 Power stone front 97 Z35117 Power stone cover 98 E13856 Sealing cord black - Set Ø10mm 99 N111992 Allen screw M05x20 100 N111203 Hexagonal screw M05x08
*1 up to serial number 1318322
Note: Please consider the powdercoated parts can differ slightly in colour and colour effects though they are elaborated in high quality.
Page 9
|
9
EN
8
Spare part overview article numbers Impera XL
Nr. Art.Nr.: Description
1 Z34835 Decorative glass 2 Z35021 Door bracket top 3 L02518 Glass frame top 3 *1 Z35361 Glass frame top 4 Z34833 Combustion chamber door 5 E13858 Round sealing strip - Set D12 6 N103693 Culimeta flat seal black 8x2 7 L02519 Glass frame left 7 *1 Z35362 Glass frame left 8 Z34836 Inside glass 9 B17004 Hinge 10 N111780 Hexagonal nut 11 B17002 Hinge 12 Z22480 Door hinge ring 13 N111968 Hexagonal screw M06 14 Z10709 Distance 15 L02280 Spring tensioner 16 N111999 Tension spring (door) 17 Z34342 Wire cable 18 N111943 Wire cable stop 19 L02197 Cable sheave holder 20 N103988 Hexagonal nut M06 21 Z33895 Cable sheave 22 L02196 Cable holder 23 L02517 Glass frame bottom 23 *1 Z35360 Glass frame bottom 24 Z35020 Door bracket, lower 25 L02188 Distanc bar bottom 26 L02520 Glass frame right 26 *1 Z35363 Glass frame right 27 B12322 Door lock 28 L02190 Door latch 29 N111864 Grub screw 30 N110017 Allen screw 31 B17195 Door handle compl. 32 N103990 Allen screw M04 x08 33 B17003 Door handle cpl. 34 L00475 Glass holder 35 N111799 Hexagonal screw M05x08 36 Z35121 Baffle plate bottom 37 Z35053 Fire brick rear 38 Z35055 Fire brick right 39 Z31567 Grate support right 40 Z30993 Grate 41 Z35056 Fire brick bottom 42 L01943 Ash drawer 43 L02183 Ash drawer support 44 Z35122 Fire brick bottom 45 Z35105 Wood retainer 46 Z31566 Grate support left 47 Z35054 Fire brick left 48 E15463 Front stone soapstone
E15464 Front stone white stone 49 E15516 Steel front 49 *1 E15465 Steel front 50 Z34860 Safety bolt 51 L02209 Stone holder 52 N111967 Allen screw M06x10 53 E15403 Cover rear connection 53 *1 B17864 Convection cover AH complete 54 N110017 Allen screw
Nr. Art.Nr.: Description
55 Z35123 Slider handle 56 L02523 Rear wall top
L02524 Rear wall bottom 56 *1 Z35457 Rear wall top 56 *1 Z35458 Rear wall bottom 57 B17036 Cover top connection 57 *1 B17861 Cover top connection 58 L02914 Side casing panel, right 58 *1 Z35035 Side casing panel, right 59 N111695 Height adjustment screw 60 B17868 Bottom front panel complete 60 *1 B17342 Bottom front panel complete 62 L02915 Side casing panel, left 62 *1 Z35036 Side casing panel, left 63 Z35046 Stone holder bar 64 N111990 Hexagon socket M04x06 65 L02201 Regulator stop 66 L02200 Regulator handle 67 N110045 Flat allen screw M06 68 N100173 Washer D06 69 Z34373 Spring plate 70 L02282 Slider 71 N111831 Pressure spring 72 N100751 Flat allen screw M05 73 Z27866 Distance 74 B17001 Airbox 75 N111974 Self-locking nut 76 L02312 Switching rod 77 Z34317 Sliding lever 78 Z34975 Regulator handle 79 Z20556 Flue pipe connection black 150mm 80 N110017 Allen screw 81 Z34962 Cleaning cover 82 Z21690 Blind cover metallic 83 N111843 Washer D08 84 N111599 Allen screw M08 85 B17034 Power stone cover 86 E13856 Sealing cord black - Set Ø10mm 87 Z35042 Power stone rear 88 Z35045 Power stone top 89 Z35044 Power stone middle 90 Z35043 Power stone bottom 91 Z35330 Power stone support 92 Z35331 Power stone support 93 Z35041 Power stone front 94 N103066 Round sealing strip black D06 95 N111965 Washer D05 96 N111992 Allen screw M05x20 97 Z35130 Adapter plate 98 N111203 Hexagonal screw M05x08 99 B17221 Power stone lifting tool 100 N104718 Circlips 101 E13856 Sealing cord black - Set Ø10mm
*1 up to serial number 1318322
Note: Please consider the powdercoated parts can differ slightly in colour and colour effects though they are elaborated in high quality.
Page 10
2. IMPORTANT INFORMATION
General warning and safety information
Observance of the introductory general warning information is imperative.
Q Read the entire manual thoroughly before installing and putting the stove into
service. Observe the national provisions and laws as well as the regulations and rules applicable locally.
Q RIKA stoves should only be installed in rooms with normal humidity (dry
areas according to VDE 0100 Part 200). The furnaces are not splash water protected and may not be installed in wet areas.
Q Only approved transport equipment with sufficient load carrying capacity
may be used with your heating appliance.
Q Your heating appliance is not suitable for use as a ladder or stationary
scaffolding.
Q The burning of fuel releases heat energy that lead to extensive heating of
the stove surfaces, doors, door and operating handles, glass, flue pipes and possibly the front wall. Refrain from touching these parts without appropriate protective clothing or equipment e.g. heat-resistant gloves or means of operation (operating handle).
Q Make your children aware of this particular danger and keep them away from
the stove during heating.
Q Only burn approved heating materials.
Q The combustion or introduction of highly flammable or explosive materials
such as empty spray cans etc. in the combustion chamber and storing them near the stove is strictly prohibited due to the danger of explosion.
Q No light or inflammable clothing is to be worn when post-heating.
Q Use the heat-resistant gloves supplied to open the doors of your stove.
Q Only use suitable tools from our range of accessories when handling embers
and make sure that no embers fall out of the combustion chamber onto inflammable material.
Q Push the embers together to form a firebed when you add new fuel (logs).
Q Placing non-heat resistant objects on the stove or near it is prohibited.
Q Do not place clothing on the stove to dry.
Q Laundry racks etc. must be placed at a sufficient distance to the stove –
ACUTE DANGER OF FIRE!
Q When your stove is burning, the use of highly inflammable and explosive
materials in the same or adjacent rooms is prohibited.
Note
Waste and liquids may not be burnt in the stove!
Note
To prevent your stove from overheating of the internal components, do never cover the convection fins!
Note
Your stove will expand and contract during the heating and cooling phase. This can sometimes lead to slight bending or cracking noises. This is normal and is no reason for a complaint.
First heating
The stove body, just as various steel parts, cast iron parts and the flue pipes are painted with a heat resistant paint. During the first heating the paint dries out completely. This may cause a slight smell. Touching or cleaning the painted surfaces during the curing should be avoided. The hardening of the paint is finished after the first heating with high power.

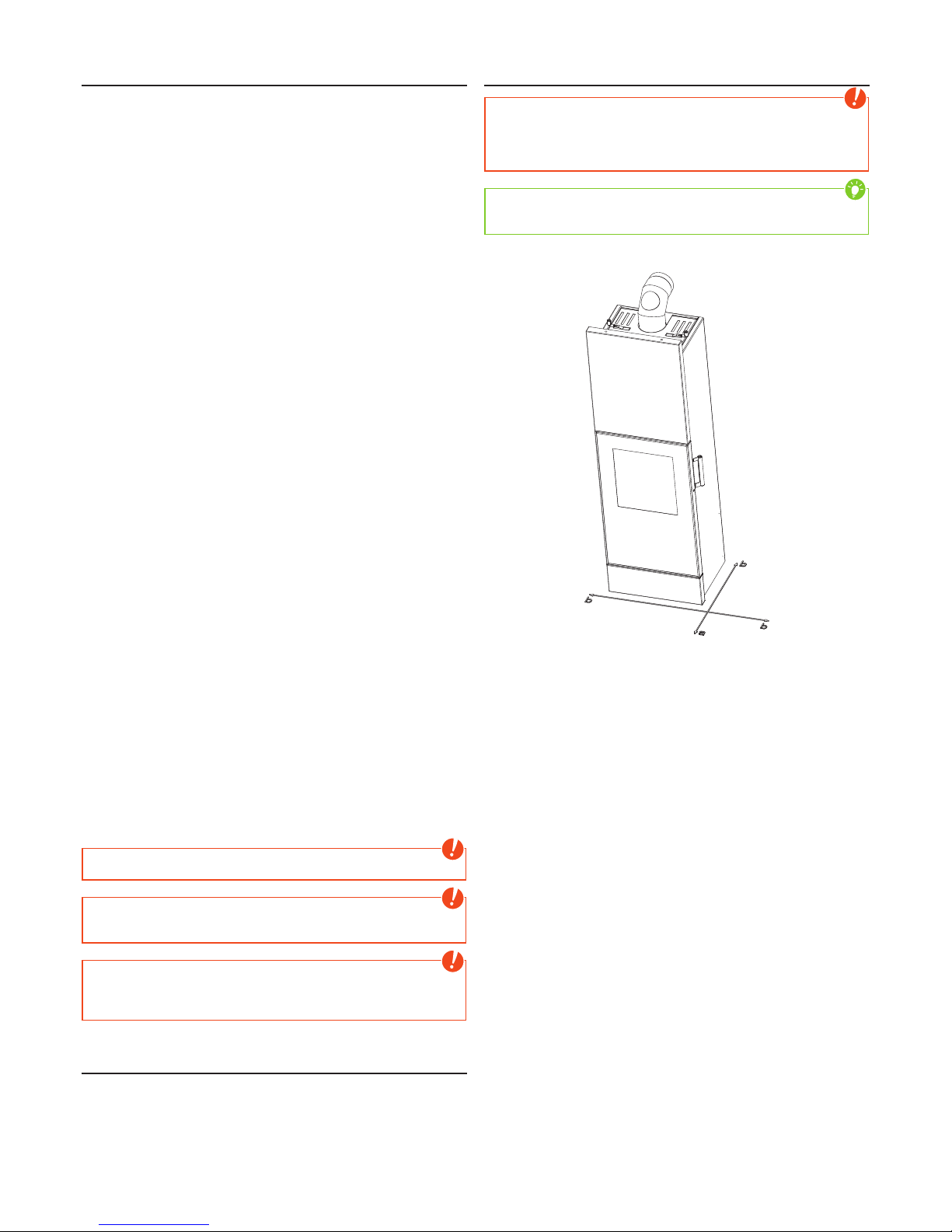

Safety distances
Note
1. To non-combustible objects a > 40 cm b > 10 cm
2. To combustible objects and reinforced concrete load-bearing walls a > 80 cm b > 20 cm
Tip
please observe a minimum distance of 20 cm behind and sideways the stove for maintenance.
15
Page 11
|
11
EN
10
Prior to set up
Floor bearing capacity
Ensure that the substructure is capable of bearing the weight of the stove prior to set-up.
Note
No modifications may be made to the firing installation. This also leads to loss of warranty and guarantee.
Floor protection
A base is required (glass, sheet steel or ceramic) if the floor is combustible (wood, carpet, etc.).
Flue pipe connection
Q Flue pipes pose a particular source of hazard regarding gas leaks and
fire. Get the advice of an authorised specialist company for the layout and assembly.
Q Please observe the corresponding installation guidelines for walls panelled
with wood when connecting your flue pipes to the stove.
Q Observe the formation of flue gas (atmospheric inversion) and draughts
when the weather is unfavourable.
Q Infeed of too little combustion air can lead to smoke in the rooms or to flue
gas leaks. Hazardous deposits in the stove and chimney may also occur.
Q If flue gas escapes, let the fire burn out and check whether all the air inlet
openings are free and the flue gas pipes and the stove pipe are clean. If in doubt notify the master chimney sweep since draught malfunctions may be connected to your chimney.
Stoves type 1 (BA 1):
Q Suitable for multiple occupancy. (Note the different country regulations.)
Q These may only be operated with the combustion chamber door closed.
Q The combustion chamber door may only be opened to add fuel and must
then be closed again otherwise other firing installations connected to the chimney may be endangered.
Q The combustion chamber door is to be kept closed when the stove is not
in operation.
Q Fouling of the chimney i.e. deposits of highly inflammable materials such as
soot and tar and subsequently fire in the chimney may occur if wet fuel is used and operation is damped too much.
Q If this occurs, close the fresh air support (slider, regulator, flaps - depending
on model)! Disconnect the mains plug at the stoves type Rikatronic. Phone the fire brigade and get yourself and other residents out of harm’s way.
Note
on ROOM-AIR DEPENDENT and ROOM-AIR INDEPENDENT OPERATION:
Your stove has been tested as a room-air independent stove according to EN 13240 and can be installed as well room-air dependent and independent.
When installed room-air dependent in combination with room-air installations (e.g. controlled ventilation and venting systems (extractors etc.) it must be ensured that the stove and the room air system are monitored and safeguarded mutually (e.g. via a differential pressure controller etc.). The combustion air infeed of approx. 20 m3/h must be ensured.
Please observe the respective local regulations and rules in consultation with your master chimney sweep. For changes after the printing of this manual, we can not assume any liability. We reserve the right to change without notice.
Page 12
3. BRIEF INFORMATION ON COMBUSTIBLE - LOGS
Suitable fuels and fuel amounts
Your stove is generally suitable for burning dry firewood. You can also burn combustibles such as wood briquettes.
Note
A stove is not a waste incinerator. The warranty lapses if waste or non­approved materials such as plastic, treated wood (chipboard), coals or clothes are burnt! This leads to damage to the stove and chimney and to environmental pollution!
Note
FUEL AMOUNTS The stove is fitted with a construction-specific flat firebox. This means only one layer of logs may be laid on the base embers. Please observe that adding greater quantities of logs leads to emission of high temperatures, higher than the stove is designed for. This may cause damage to your stove. This is reflected in particular on the glass of the combustion chamber door, which will get a gray haze in case of overheating the stove, which can not be removed.
Wood types
Different types of wood have different calorific values. Wood from deciduous trees is particularly suitable. It burns with a constant flame and forms long­lasting embers. Coniferous wood has higher levels of resin and burns off faster as do all softwoods and tends to spray sparks.
Wood type
Calorific value
kWh/m
3
Calorific value
kWh/kg
Maple 1900 4,1 Birch 1900 4,3 Beech 2100 4,2 Oak 2100 4,2 Alder 1500 4,1 Ash 2100 4,2 Spruce 1700 4,4 Larch 1700 4,4 Poplar 1200 4,1 Robinia 2100 4,1 Fir 1400 4,5 Elm 1900 4,1 Willow 1400 4,1
Output controlling
The output of your stove is regulated manually or via the Rikatronic-control. Please observe that the output of your stove also depends on the chimney draught and the amount of fuel added.
Clean combustion
1. The firewood must be dry and untreated.
The should-be value is between 14% and 18% relative wood moisture.
Wood has to be stored dry and ventilated for 2 – 3 years.
2. Correct firewood amount and size:
Q Too much firewood leads to overheating. This can damage your stove and
increases the exhaust emission values.
Q If you take too little firewood or if the logs you place are too large the stove
will not reach the optimum operating temperature. The flue gas values also increase in this case.
Q For right quantity of firewood see AMOUNT OF FUEL.
Page 13
|
13
EN
12
4. INSTALLING THE STOVE
General information
Note
Assembly may only be performed by authorised specialist companies.
Note
Please observe the regional safety and building regulations. Please contact your master chimney sweep in this context.
Note
Only use heat-resistant sealing materials as well as corresponding sealing strips, heat-resistant silicon and rock wool.
Note
Also take care that the flue does not project into the free cross-section of the chimney.
Note
In case of room-air independent operation the stove pipe connections must be tightly sealed permanently. Use a heat-proof silicon to position the stove pipe on the conical supports of the flue tube nozzles and for insertion in the chimney flue lining.
Note
The stove should not be pushed on unprotected floors.
Tip
Strong corrugated cardboard, cardboard or e.g. old carpet is useful to assist assembly and as a base. The stove can also be pushed on this cardboard or carpet.
We recommend original flue pipes from RIKA for proper connection.
Connection to the chimney
Q The device must be connected to an approved chimney for solid fuels.
The chimney must have a diameter of min. 100mm for pellet stoves and 130mm -150mm for log wood stoves depending on the diameter of the flue pipes.
Q Avoid long flue pipes to the chimney. The horizontal length of the flue pipe
should not exceed 1.5 m.
Q Avoid to many bends of the flue gas pipes. There should not be more than
3 bends in the exhaust pipe.
Q If you just can not connect directly to the chimney, please use a connection
with a cleaning opening.
Q Connections must be made of metal and must meet the requirements of the
standard (install the connections airtight).
Q Before installing a chimney calculation must be made. The evidence must be
performed for single occupancy to EN13384-1 and EN13384-2 for multiple occupancy.
Q The maximum draft of the chimney should not exceed 15Pa.
Q The derivation of the flue gases must be guaranteed even during a temporary
power outage.
Note
If connecting to multiple connection chimneys additional safety equipment is required. Your local chimney sweep will advise you in this case.
Connecting to a steel chimney
The connection must be calculated and shown with EN13384-1 and EN13384-2.
Use only insulated (double) stainless steel tubes (flexible aluminum or steel tubes are not permitted).
An inspection door for regular inspection and cleaning must be present.
The flue pipe connection to the chimney has to be air-tight.
Combustion air
Every combustion process requires oxygen from the surrounding air. This so­called combustion air is removed from the living are in the case of individual stoves without external air connections.
This air removed must be replaced in the living space. Very tightly sealed windows and doors in modern flats may mean that too little air replaces that used. The situation also becomes problematical due to additional venting in flats (e.g. in the kitchen or WC). If you cannot feed in external combustion air, then air the room several times a day to prevent negativce pressure in the room or poor combustion.
Feeding in external combustion air
only for devices which are able to run in room-air independent operation.
Q Combustion air must be fed to the stove from outside via a sealed pipe
for operation independent of the room air. According to EnEV, it must be possible to shut off the combustion air pipe. The open/closed setting must be clearly recognisable.
Q Cut the perforated rear wall out with a hacksaw.
Q Connect at the air intake either a pipe Ø125mm (log wood and combi
stoves) or Ø50mm (pellet stoves) and fix it with a hose clamp (not included!). At pellet stoves with longer intake pipes than 1m the diameter should be increased to 100mm. (see RIKA range).
Q To ensure sufficient air intake, the intake pipe should not exceed max. 4m
and have max. 3 bends.
Q If the line leads outside it must have a windbreak.
Q In extreme cold pay attention to icing on the air intake opening (check).
Q It is also possible to suction in combustion air directly from another
sufficiently vented room (e.g. cellar).
Q The combustion air pipe must be tightly connected (adhesive or cement)
permanently to the air nozzles of the stove.
Q If you do not use the stove for a long time, please close the combustion air
intake to prevent the stove from moisture.
Note
Please note that problems may arise due to updrafts in the case of combustion air supply from an integrated chimney ventilation shaft. If the combustion air flowing downwards is heated it may rise and thus counter the chimney with a resistance which in turn reduces the negative pressure in the combustion chamber. The chimney manufacturer is to guarantee that the resistance for the combustion air is a maximum 2 Pa even in the least favourable operating state of the chimney.
If one or more of these conditions does NOT apply, the result is poor combustion in the stove and negative pressure in the installation room.
Page 14
5. MANUAL OPERATION
Operating the riddle grate
(only stoves with riddle grate)
The ash is moved from the combustion chamber to the ash drawer by pushing the riddle grate handle back and forth. This frees the way for the primary air intake which is necessary for heating up.
In general the riddle grate should stay open. The air regulation is made completely with the control knob at the rear wall.
Combustion air regulation
The control knob for combustion air regulation is situated on the rear wall.
The performance of your stove also depends on the chimney draught; therefore the control knob must be used according to your own experience.
zero setting
0% secondary air
0% primary air
ideal position
33-66% secondary air
0% primary air
middle position
100% secondary air
0% primary air
Heating-up position
100% secondary air
100% primary air
The “Heating-up position“ may only be used for heating up.
Note
The air control seals to 100%. Complete closing of the air regulator (zero setting of control knob) during operation poses a hazard of deflagration and is strictly prohibited. A stop to prevent inadvertent closing of the air intake has been integrated for safety reasons.
If the stove is not in use, warm air can release through the chimney. The Zero position of the control knob can prevent this. To prevent air intake completely, the control knob must be pressed back slightly, only then the zero position can be set and the air regulator thus be closed.
Note
Sometimes a lot of smoke develops when wood is placed on a low firebed or when there is too less fresh air for combustion. An explosive gas/air mixture may arise and cause an eventual heavy deflagration. For safety reasons it is recommended to leave the combustion chamber door closed and press the control knob at the rear wall down completely into “heating-up position”. If the log wood is not igniting, start a new heating-up procedure after it stopped smoking.
Correct heating up
1. Press the control knob down into “Heating-up position” – primary and secondary air intakes are opened completely. Open the combustion chamber door and sweep the ashes into the ashtray. Then open the riddle grate completely (only stoves with riddle grate).
Place 2 small pieces of chipboard lengthways left and right in the bottom of the combustion chamber.
Place 2 logs crossways on top of this chipboard.
2. Now place further pieces of chipboard in crosswise layers on top of the logs and place 2-4 ribs of the RIKA-firelighter on the left on top of the chipboard. Some uncoated paper can be placed underneath the chipboard in case there is no firelighter available.
3. Now light the firelighter (or the uncoated paper) and close the combustion chamber door. “Correct heating up” primarily counteracts excessive smoke.
If the combustible is well lit, set the control knob to middle position some minutes later. The primary air intake is now closed and the secondary air intake is completely open. The control knob can be set to ideal position (see COMBUSTION AIR REGULATION) another few minutes later (depending on draught and fuel quality / amount).
After the first burn-off, again add 2 logs (see AMOUNT OF FUEL). Set the control knob to “Heating-up position” again until the wood is well lit. Further regulation is effected as described in Item 3.
Please proceed in the same way for every further addition of wood.
Page 15
|
15
EN
14
6. CLEANING AND MAINTENANCE
Basic information
Note
When you vacuum clean around the stove ensure that you do not vacuum into the combustion air intake during heating operation. You could vacuum out embers – FIRE RISK!
Note
Your stove must be cooled before any maintenance work is performed.
The frequency with which the stove requires cleaning and the maintenance intervals depend on the fuel you use. High moisture content, ash, dust and chips may more than double the maintenance required. Only use wood that has been stored properly and is dry and untreated.
Tip
Wood as fertiliser - The mineral content of the wood remains in the combustion chamber as ash as a residue of the combustion. This is an excellent fertiliser for all plants in the garden; it is a completely natural product. The ash should be stored first and extinguished with water.
Note
Ash may contain embers – only place ash in sheet steel containers.

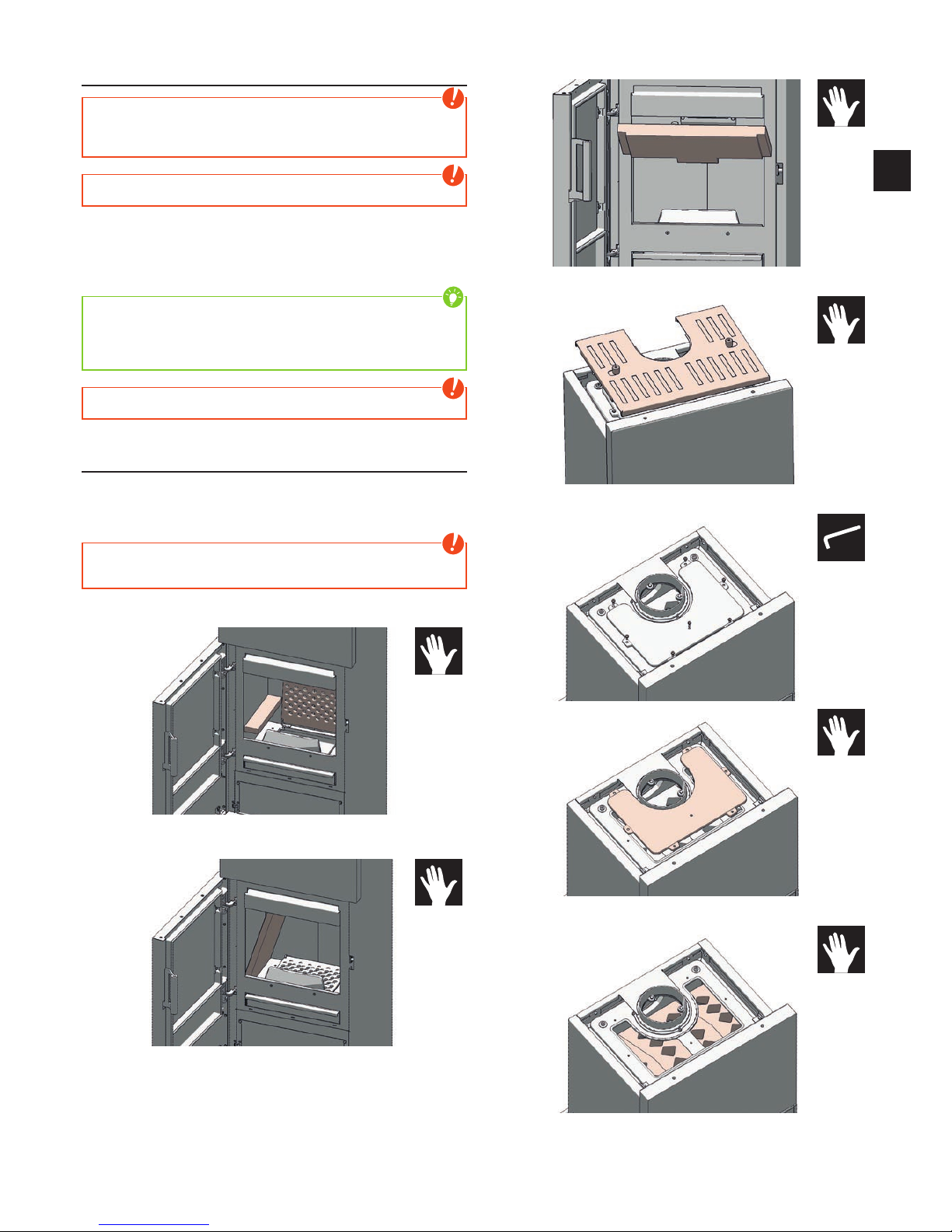

Cleaning flue pipes
The exhaust pipes should be cleaned twice a year.
Remove the flue pipes. Inspect and clean chimney connection. Brush off any soot and dust deposits in the flue pipes and vacuum.
Note
Accumulated fly ash in the flue gas channels may impair the performance of the stove and pose a safety risk.
Open the firebox door. Open the grate and remove the left bottom fire brick.
Close the grate again. Now lift the upper baffle plate slightly and remave the left fire brick.
Now you can remove the top baffle plate.
Remove the cover by simply lifting.
Open the 7 screws and remove the cover plate.
Clean the flue gas passes with the supplied wire brush
Then clean the combustion chamber well.
Install the removed parts in reverse order again.
#4
Page 16

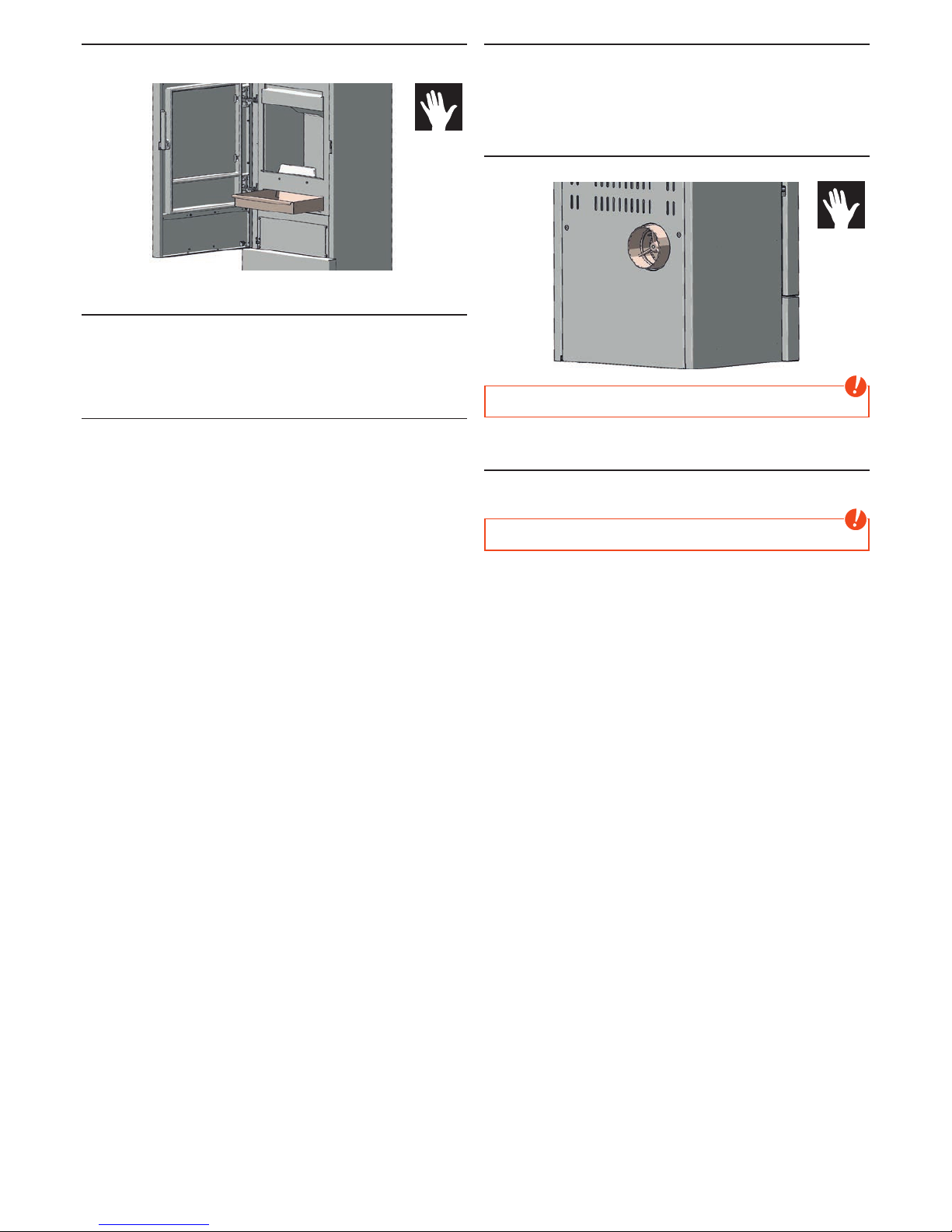

Empty the ash drawer
Empty the ash drawer regularly. You can simply pull forward the ash drawer with open fire door
Cleaning the door glass
The glass can be cleaned best with a moist cloth. Stubborn dirt can be removed with a special cleaner (free from corrosive acids and solvents - otherwise there is a risk of damage to the glass surface) available from your stove dealer. Usual cleaners containing acid or solvents can be too harsh and damage the glass.
Cleaning of painted surfaces
Wipe of the painted surfaces with a damp cloth, do not scrub. Do not use solvent-containing cleaners.
Cleaning the convection air openings
Vacuum clean any dust deposits from the convection air openings at regular intervals.
The stove should be cleaned thoroughly prior to the start of the heating season to prevent excess odour.
Combustion air - air intake
If necessary, please also clean the air intake with a hoover.
Note
Only when the stove is cold! You could vacuum out embers – FIRE RISK!
Checking door seal
The condition of the seals at doors and glass should be checked at least once a year. Repair or replace seals depending on condition.
Note
Only intact seals ensure your stove works perfectly.
Page 17
|
17
EN
16
7. ASSEMBLY / DISASSEMBLY
Note
Only perform manipulation of the unit when the stove has cooled down completely.
Note
Take special care of your fingers and all stove panels and stove attachments during any conversion work. Select soft bases to prevent scratches to your living space furniture and stove panels.
Changing to rear connected flue gas
Remove the stove cover by simply lifting
Remove the rear panel and cut it out along the perforation.
Replace the flue outlet to the cover plate.
Finally the rear wall and the optional stove cover (# E15266-Impera, # E15403 Impera XL) can be mounted
#10
Page 18
8. PROBLEMS - POSSIBLE SOLUTIONS
Problem 1
Fire burns with weak, orange flame, window is sooted up.
Cause(s)
Q Poor chimney draught
Q Damp wood
Q Incorrect heating up
Q Stove is sooted over inside
Possible solutions
Q Check whether flue gas pipes are blocked with ash
(see CLEANING AND MAINTENANCE).
Q Use dry wood and correct fuel amounts
(see BRIEF INFORMATION ON FUEL - LOGS)
Q Check whether the suction nozzles and air inlet pipe or flue tube are blocked.
Q Check door and cleaning cover seals for leaks
(see CLEANING AND MAINTENANCE)
Q Have service performed by authorised specialist company.
Q Every glass plate must be cleaned from time to time (depending on use)
with glass cleaner.
Problem 2
Stove smells strongly and / or fumes are emitted.
Cause(s)
Q Burning-in phase (taking into service)
Q Stove has accumulated dust and/or dirt
Possible solution(s)
Q Wait to end of burning-in phase and vent sufficiently
Q Suction off any dust deposits from the convection air openings at regular
intervals
Problem 3
Flue gas discharge when wood is added and during heating phase.
Cause(s)
Q Combustion chamber door opened too fast
Q Too much ash in combustion chamber
Q Adding logs to snappy
Q Chimney draught too low
Q Flue pipe connection leaks
Q Logs combustion still running (visible flame)
Possible solution(s)
Q open the combustion chamber door moderate
Q regular cleaning of combustion chamber (vacuum)
Q Adding logs carefully
Q Check chimney
Q Check connections and if necessary re-seal
Q Add logs after flame is gone
Q Check seals and replace (fire door, ..)
Page 19
|
19
EN
18
9. GUARANTEE
These warranty conditions are only valid for the following countries: Austria, Germany and Switzerland. Separate conditions imposed by the importer apply for all other countries. In case of doubt as well as missing or incorrect translations, the German version is the only valid one.
For the purpose of timely damage limitation, the warranty claim on the part of the claimant is to be enforced at the RIKA dealer in writing using the invoice and stating the purchase date, model name, serial number and reason for complaint.
WARRANTY
5 years on the welded stove body. This exclusively applies to defects in materials and workmanship as well as free replacement. Labour and travel times are not included in the manufacturer’s warranty.
Only original parts supplied by the manufacturer should be used. Loss of warranty on non-observance!
The precondition for the warranty is that the stove has been installed and commissioned properly according to the User and installation manuals valid at the time of purchase. Connection must be performed by a specialist for such stoves.
Any costs incurred by the manufacturer due to unjustified warranty claims are to be charged to the claimant.
Wear parts and parts affected by fire are excluded, such as glass, coating, surface coatings (e.g. handles, panels), seals, fire trough, grates, draught plates, deflector plates, combustion chamber liners (e.g. fireclay), ceramics, natural stone, thermo stone, ignition elements, sensors, combustion chamber sensors and temperature controller.
Damage arising from non-observance of the manufacturer’s instructions for operation of the unit or any damage that is caused by action such as overheating, use of non-approved fuels, tampering with the device or the flue gas pipe, electrical excess voltage, an incorrect, insufficient or excessive flue draught, condensation, non-performance or deficient maintenance and cleaning, non-observance of the relevant and applicable building regulations, incorrect operation by the user or third parties, transport and handling damage is also excluded.
THE WARRANTY DOES NOT AFFECT THE STATUTORY WARRANTY PROVISIONS.
02.12.2015
Page 20
RIKA Innovative Ofentechnik GmbH 4563 Micheldorf / Austria, Müllerviertel 20 Telefon: +43 7582 686 - 41, Fax-DW: 43 E-Mail: [email protected]
RIKA.AT
Technical and design changes, as well as typesetting and printing errors reserved
© 2017 | RIKA Innovative Ofentechnik GmbH
Z35345_EN_Impera | 26.04.2017
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
