Operating Manual
20 pgs2.65 Mb0

RIKA BACK Operating Manual

Download
Page 1
Operating manual
BACK
Page 2
TABLE OF CONTENTS
1. PREFACE 3
2. IMPORTANT INFORMATION 8
3. BRIEF INFORMATION ON COMBUSTIBLE  LOGS 10
4. INSTALLING THE STOVE 11
5. ASSEMBLY  DISMANTLING PANELS AND OPTIONS 12
6. MANUAL OPERATION 13
Page 3
|3
EN
2
1. PREFACE
Explanations to symbols
...Important note
#25
...Hexalobular T25
#8
...Hex #8
...Useful tip ...Manually
7. CLEANING AND MAINTENANCE 15
8. PROBLEMS  POSSIBLE SOLUTIONS 17
9. GUARANTEE 19
Page 4

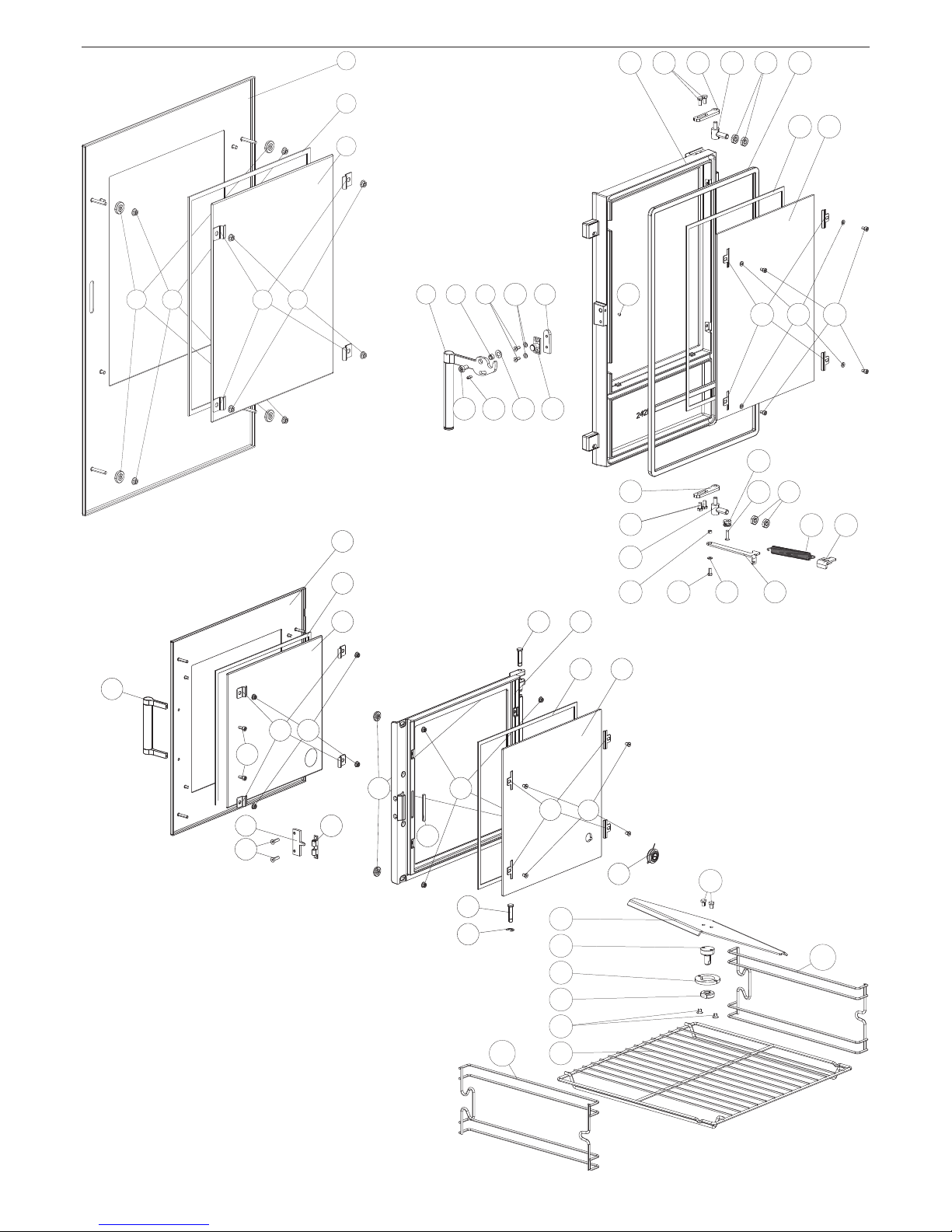

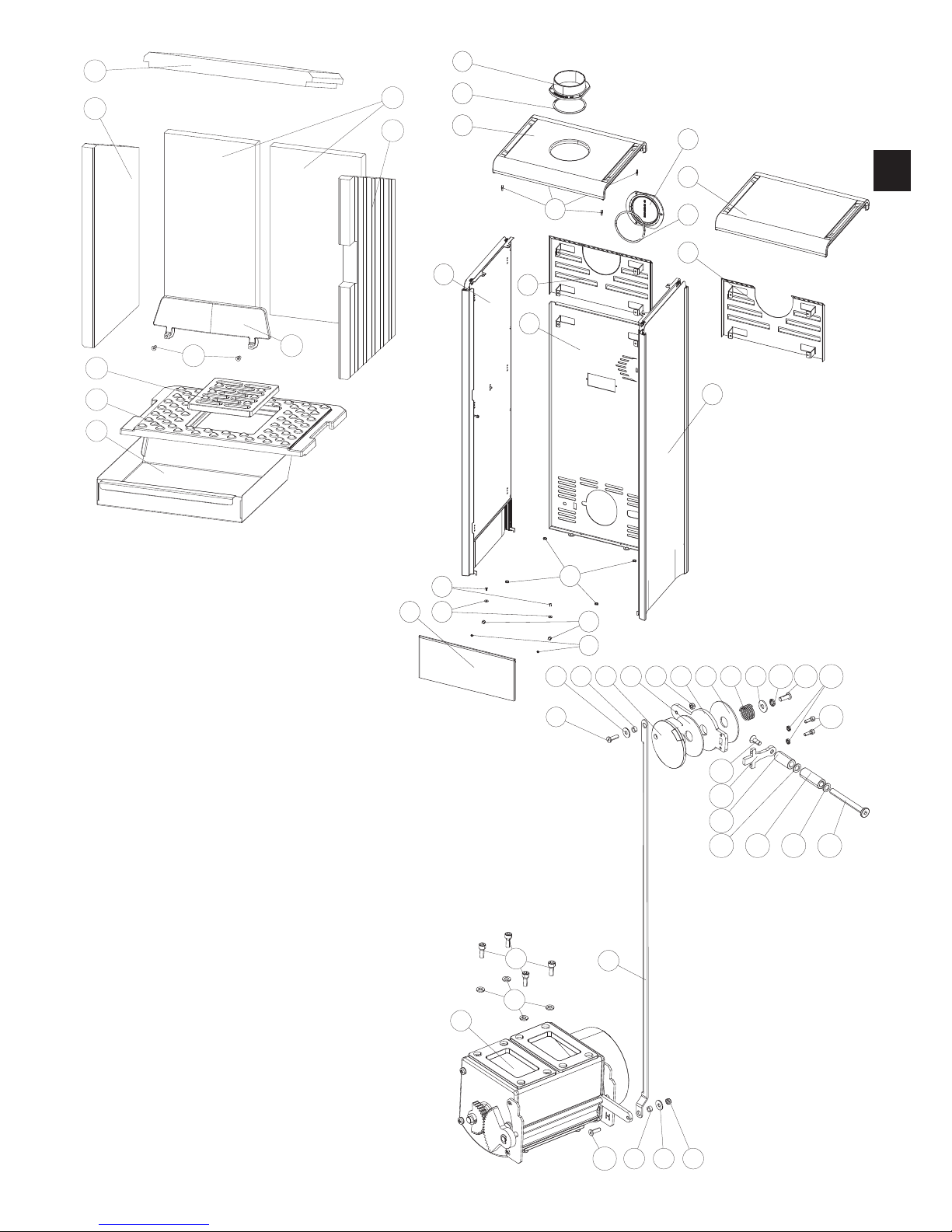

Spare part overview exploded diagram
1
23654
5
11109
15
20
212128
27
30
17
22
23
24
25
110
26
19
19
18
20
18
8
12
33
101432
71316
31
29
47
48
49
50
51
52
46
35
36
373940
34
38
44
40
41
42
45
53
46
43
57
55
58
565960
54
111
111
Page 5
|5
EN
4
80
81
80
82
75
78
85
70
71
72
73
74
76
77
798683
84
87
88
89
949597959899100
101
105
102
103
109
107
108
90
939296
107
106
104
939296
91
91
62
63
66
64
67
65
68
69
61
Page 6
Spare part overview article numbers
Note: Please consider the powdercoated parts can differ slightly in colour and colour effects though they are elaborated in high quality.
Nr. Art.Nr. Description
1 B18407 Decorative door
2 N100475 Flat packing white 8x2
3 Z37178 Decorative glass
4 N112281 Milled nut
5 N112142 Flange nut
6 L03426 Glass holder
7 B18373
Front door handle complete
8 Z14937 Distance
9 N100751 Flat allen screw M05
10 N111965 Washer D05
11 Z37339 Retaining plate
12 N108203
Door handle fillister head screw
13 N108427 Headless screw
14 N100699 Disc spring
15 B12322 Door lock
16 N102434 Grub screw
17 Z37134
Combustion chamber door
18 N110032 Hexagonal screw
19 L03447 Hinge plate
20 B17405 Hinge
21 N111780 Hexagonal nut
22 N100485
Round sealing strip black D12
23 N103693 Flat seal black 8x2
24 Z37177 Front door glass
25 L00475 Glass holder
26 N112075 Allen screw
27 Z36256 Stop bolt
28 L01982 Spring tensioner
29 N111999 Tension spring (door)
30 N112082 Self-tapping screw
31 L03448 Door stop
32 N111910 Allen screw
33 Z33758 Distance
34 B18414 Door handle oven
35 B18413 Decorative door
36 N100475 Flat packing white 8x2
37 Z37180 Decorative glass
38 N112169 Hexagon socket screw
39 L03426 Glass holder
40 N112142 Flange nut
41 L03451 Lock tongue
42 N110586
Hexagonal countersunk screw
43 N110461 Double ball catch
44 N112281 Milled nut
45 N103066
Round sealing strip black D06
46 Z37227 Hinge pin
47 Z37135 Door oven
48 N103693 Flat seal black 8x2
Nr. Art.Nr. Description
49 Z37182 Doorglass oven
50 L00475 Glass holder
51 N108830
Door handle fillister head screw
52 N112467 Thermometer
53 N104718 Circlips
54 Z37435 Grill
55 N112501
Hexagonal countersunk screw
56 Z37452 Lock nut
57 L03449 Bearing plate
58 Z37434 Shaft of soot remover
59 L03450
Mechanical soot remover
60 N111981 Hexagonal screw
61 L03467 Ash drawer
62 Z35812 Bottom plate
63 Z35813 Grate
64 Z37251 Fire brick left
65 Z37238 Deflector 1
66 Z35134 Fire brick rear
67 Z37252 Fire brick right
68 Z35105 Wood retainer
69 N108485 Allen screw
70 B18417
Bottom front panel complete
71 N111975 Hexagonal nut
72 N112027 Magnet
73 N112009 Flat washer
74 N108485 Allen screw
75 N111730 Grommet
76 Z37383 Rear wall bottom
77 Z37424 Rear wall top
78 B18415
Left side panel black cpl.
B18422
Side panel glass black left cpl.
B18424
Side panel rust effect left cpl.
B18426
Side panel rust effect metallic left cpl.
B18428
Left side panel white cpl.
B18430
Left side panel wood cpl.
B18432
Left side panel cream­coloured cpl.
79 B18420 Cover RAO compl.
80 N111631
Round sealing cord grey Ø6mm
81 Z17799
Flue pipe attachment 130mm black
82 Z35057 Blind cover
83 B18421 Cover AH compl.
84 Z37425 Rear wall top
Nr. Art.Nr. Description
85 B18416
Right side panel black cpl.
B18423
Side panel glass black right cpl.
B18425
Side panel rust effect right cpl.
B18427
Side panel rust effect metallic right cpl.
B18429
Right side panel white cpl.
B18431
Right side panel wood cpl.
B18433
Right side panel cream-coloured cpl.
86 N112127 Locking bolt
87 B16501
Air regulator control top
88 N100172 Washer
89 N106721 Cylinder screw
90 L03466 Driving plate
91 N108231 Allen screw
92 N112009 Flat washer
93 Z33758 Distance
94 Z34317 Sliding lever
95 Z34373 Spring plate
96 N111974 Self-locking nut
97 L01912 Slider
98 N111831 Pressure spring
99 N100173 Washer D06
100 N112070 Wedge retaining ring
101 N110045 Flat allen screw M06
102 N112071 Wedge retaining ring
103 N112248 Hexagon socket screw
104 N108439
Hexagonal countersunk screw
105 Z37384 Regulator handle
106 Z37390 Distance
107 Z37387 Silicone ring
108 Z37388 Wood handle
109 Z37386 Actuator
110 N100170 Washer
111 Z32838 Insertion
Page 7
|7
EN
6

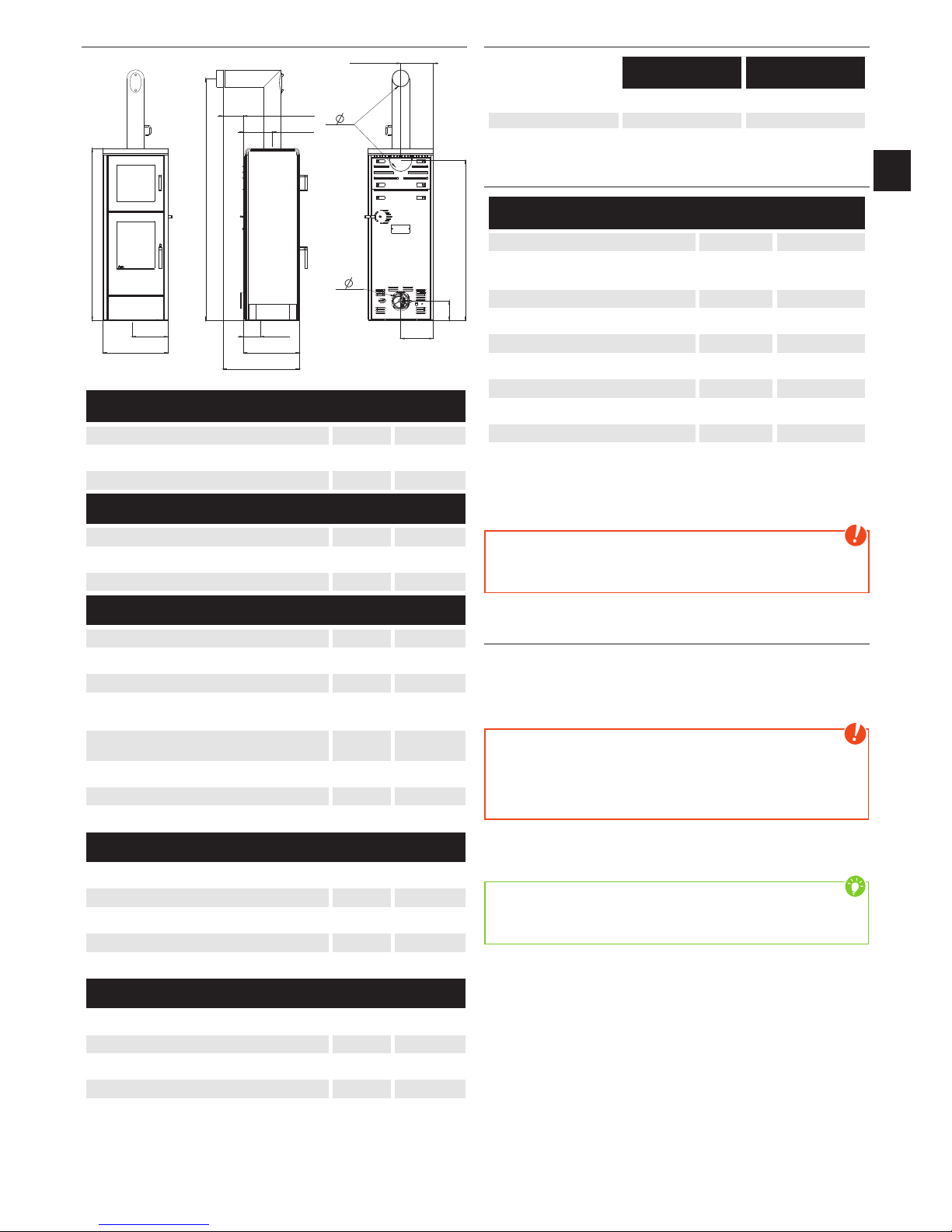

Dimensions
B
FB-S
H
T
FB-T
RO-T1
RO-H
RO-T2 RO-T3
RO-S=R-S
R-H
F-S
F-H
R-
F-
Dimensions
Height [mm] 1336
Width [mm] 505
Corpus depth [mm] 435
Weight
Weight without shell [kg] ~
Weight with steelshell [kg] ~
Weight with decor side panels [kg] ~
Flue pipe connection
R - Ø Flue pipe outlet [mm] 
RO - H connection height [cm] 
RO - T1 original angle pipe total depth [cm] 
RO - T2 original angle pipe distance to rear wall
[cm] 
RO - T3 Depth from rear wall to middle of flue pipe
[cm] 
RO - S original angle pipe side distance [cm] 
R - H rear connection height [cm] 
R - S rear connection side distance [cm] 
Fresh air connection
F - Ø Diameter [mm] 
F - H Connection height [cm] 
F - S Side distance [cm] 
FB - S Floor connection side distance [cm] 
FB - T Floor connection depth [cm] 
Oven
Slide-in width of baking tray
(1)
[cm] ,
Depth of baking tray
(1)
[cm] ,
Slide-in width of cooking grate [cm] ,
Depth of cooking grate [cm] ,
(1) Available with optional baking trays #E16210
Amount of Fuel
Nominal load Part load
Amount of fuel ~2,2kg* ~1,1kg*
Oven temperature ~300 °C ~150 °C
*Practical values may vary depending on wood quality.
Technical data
Technical data
Heating power range [kW]  - 
Room heating capacity (depending on house insulation)
[m]  - 
Fuel consumption [kg/h] till ,
Efficiency [%] ,
CO
2
[%] ,
CO-emission on 13% O
2
[mg/m
N
] 
Dust emission [mg/m
N
] ,
Exhaust [g/s] ,
Exhaust temperature [°C] ,
Chimney draft requirement [Pa] 
The owner of small firing systems or the person authorised for the small firing system is to keep the technical documentation and is to submit it to the authorities or the chimney sweep on request.
Note
Please observe the national and European standards as well as local regulations concerning the installation and operation of firing installations!
Packaging
Your first impression is important to us!
The packaging of your new stove provides excellent protection against damage. However damage to the stove and accessories may still occur during transport.
Note
Therefore please check your stove on receipt for damage and completeness! Report any deficiencies to your dealer immediately! Pay particular attention during unpacking that the stone panels remain intact. Scratches to the material can easily occur. Stone panels are excluded from the warrant.
The packaging of your new stove is environmentally neutral to a great extent.
Tip
The wood used in the packaging has not been surface treated. The cardboard and film (PE) can be disposed of via the municipal waste collection for recycling.
Page 8
2. IMPORTANT INFORMATION
General warning and safety information
Observance of the introductory general warning information is imperative.
Q Read the entire manual thoroughly before installing and putting
the stove into service. Observe the national provisions and laws as well as the regulations and rules applicable locally.
Q RIKA stoves should only be installed in rooms with normal humidity
(dry areas according to VDE 0100 Part 200). The furnaces are not splash water protected and may not be installed in wet areas.
Q Only approved transport equipment with sufficient load carrying
capacity may be used with your heating appliance.
Q Your heating appliance is not suitable for use as a ladder or
stationary scaffolding.
Q The burning of fuel releases heat energy that lead to extensive
heating of the stove surfaces, doors, door and operating handles, glass, flue pipes and possibly the front wall. Refrain from touching these parts without appropriate protective clothing or equipment e.g. heat-resistant gloves or means of operation (operating handle).
Q Make your children aware of this particular danger and keep
them away from the stove during heating.
Q Only burn approved heating materials.
Q The combustion or introduction of highly flammable or explosive
materials such as empty spray cans etc. in the combustion chamber and storing them near the stove is strictly prohibited due to the danger of explosion.
Q No light or inflammable clothing is to be worn when post-heating.
Q Use the heat-resistant gloves supplied to open the doors of your
stove.
Q Only use suitable tools from our range of accessories when
handling embers and make sure that no embers fall out of the combustion chamber onto inflammable material.
Q Push the embers together to form a firebed when you add new
fuel (logs).
Q Placing non-heat resistant objects on the stove or near it is
prohibited.
Q Do not place clothing on the stove to dry.
Q Laundry racks etc. must be placed at a sufficient distance to the
stove – ACUTE DANGER OF FIRE!
Q When your stove is burning, the use of highly inflammable and
explosive materials in the same or adjacent rooms is prohibited.
Note
Waste and liquids may not be burnt in the stove!
Note
To prevent your stove from overheating of the internal components, do never cover the convection fins!
Note
Your stove will expand and contract during the heating and cooling phase. This can sometimes lead to slight bending or cracking noises. This is normal and is no reason for a complaint.
First heating
The stove body, just as various steel parts, cast iron parts and the flue pipes are painted with a heat resistant paint. During the first heating the paint dries out completely. This may cause a slight smell. Touching or cleaning the painted surfaces during the curing should be avoided. The hardening of the paint is finished after the first heating with high power.
Safety distances
Note
1. To non-combustible objects a > 40 cm b > 10 cm
2. To combustible objects and reinforced concrete load-bearing walls a > 80 cm b > 20 cm
Tip
please observe a minimum distance of 20 cm behind and sideways the stove for maintenance.
10
Page 9
|9
EN
8
Prior to set up
Floor bearing capacity
Ensure that the substructure is capable of bearing the weight of the stove prior to set-up.
Note
No modifications may be made to the firing installation. This also leads to loss of warranty and guarantee.
Floor protection
A base is required (glass, sheet steel or ceramic) if the floor is combustible (wood, carpet, etc.).
Flue pipe connection
Q Flue pipes pose a particular source of hazard regarding gas leaks
and fire. Get the advice of an authorised specialist company for the layout and assembly.
Q Please observe the corresponding installation guidelines for walls
panelled with wood when connecting your flue pipes to the stove.
Q Observe the formation of flue gas (atmospheric inversion) and
draughts when the weather is unfavourable.
Q Infeed of too little combustion air can lead to smoke in the rooms
or to flue gas leaks. Hazardous deposits in the stove and chimney may also occur.
Q If flue gas escapes, let the fire burn out and check whether all the
air inlet openings are free and the flue gas pipes and the stove pipe are clean. If in doubt notify the master chimney sweep since draught malfunctions may be connected to your chimney.
Stoves type 1 (BA 1):
Q Suitable for multiple occupancy. (Note the different country
regulations.)
Q These may only be operated with the combustion chamber door
closed.
Q The combustion chamber door may only be opened to add fuel
and must then be closed again otherwise other firing installations connected to the chimney may be endangered.
Q The combustion chamber door is to be kept closed when the
stove is not in operation.
Q Fouling of the chimney i.e. deposits of highly inflammable
materials such as soot and tar and subsequently fire in the chimney may occur if wet fuel is used and operation is damped too much.
Q If this occurs, close the fresh air support (slider,
regulator, flaps - depending on model)! Disconnect the mains plug at the stoves type Rikatronic. Phone the fire brigade and get yourself and other residents out of harm’s way.
Note
on ROOM-AIR DEPENDENT and ROOM-AIR INDEPENDENT OPERATION:
Your stove has been tested as a room-air independent stove according to EN 13240 and can be installed as well room-air dependent and independent.
When installed room-air dependent in combination with room­air installations (e.g. controlled ventilation and venting systems (extractors etc.) it must be ensured that the stove and the room air system are monitored and safeguarded mutually (e.g. via a differential pressure controller etc.). The combustion air infeed of approx. 20 m3/h must be ensured.
Please observe the respective local regulations and rules in consultation with your master chimney sweep. For changes after the printing of this manual, we can not assume any liability. We reserve the right to change without notice.
Page 10
3. BRIEF INFORMATION ON COMBUSTIBLE  LOGS
Suitable fuels and fuel amounts
Your stove is generally suitable for burning dry firewood. You can also burn combustibles such as wood briquettes.
Note
A stove is not a waste incinerator. The warranty lapses if waste or non-approved materials such as plastic, treated wood (chipboard), coals or clothes are burnt! This leads to damage to the stove and chimney and to environmental pollution!
Note
FUEL AMOUNTS The stove is fitted with a construction-specific flat firebox. This means only one layer of logs may be laid on the base embers. Please observe that adding greater quantities of logs leads to emission of high temperatures, higher than the stove is designed for. This may cause damage to your stove. This is reflected in particular on the glass of the combustion chamber door, which will get a gray haze in case of overheating the stove, which can not be removed.
Wood types
Different types of wood have different calorific values. Wood from deciduous trees is particularly suitable. It burns with a constant flame and forms long-lasting embers. Coniferous wood has higher levels of resin and burns off faster as do all softwoods and tends to spray sparks.
Wood type
Calorific
value
kWh/m
3
Calorific
value
kWh/kg
Maple  ,
Birch  ,
Beech  ,
Oak  ,
Alder  ,
Ash  ,
Spruce  ,
Larch  ,
Poplar  ,
Robinia  ,
Fir  ,
Elm  ,
Willow  ,
Output controlling
The output of your stove is regulated manually or via the Rikatronic­control. Please observe that the output of your stove also depends on the chimney draught and the amount of fuel added.
Clean combustion
1. The firewood must be dry and untreated.
The should-be value is between 14% and 18% relative wood moisture.
Wood has to be stored dry and ventilated for 2 – 3 years.
2. Correct firewood amount and size:
Q Too much firewood leads to overheating. This can damage your
stove and increases the exhaust emission values.
Q If you take too little firewood or if the logs you place are too large
the stove will not reach the optimum operating temperature. The flue gas values also increase in this case.
Q For right quantity of firewood see AMOUNT OF FUEL.
Page 11
|11
EN
10
4. INSTALLING THE STOVE
General information
Note
Assembly may only be performed by authorised specialist companies.
Note
Please observe the regional safety and building regulations. Please contact your master chimney sweep in this context.
Note
Only use heat-resistant sealing materials as well as corresponding sealing strips, heat-resistant silicon and rock wool.
Note
Also take care that the flue does not project into the free cross­section of the chimney.
Note
In case of room-air independent operation the stove pipe connections must be tightly sealed permanently. Use a heat-proof silicon to position the stove pipe on the conical supports of the flue tube nozzles and for insertion in the chimney flue lining.
Note
The stove should not be pushed on unprotected floors.
Tip
Strong corrugated cardboard, cardboard or e.g. old carpet is useful to assist assembly and as a base. The stove can also be pushed on this cardboard or carpet.
We recommend original flue pipes from RIKA for proper connection.
Connection to the chimney
Q The device must be connected to an approved
chimney for solid fuels. The chimney must have a diameter of min. 100mm for pellet stoves and 130mm -150mm for log wood stoves depending on the diameter of the flue pipes.
Q Avoid long flue pipes to the chimney. The horizontal length of the
flue pipe should not exceed 1.5 m.
Q Avoid to many bends of the flue gas pipes. There should not be
more than 3 bends in the exhaust pipe.
Q If you just can not connect directly to the chimney, please use a
connection with a cleaning opening.
Q Connections must be made of metal and must meet the
requirements of the standard (install the connections airtight).
Q Before installing a chimney calculation must be made. The
evidence must be performed for single occupancy to EN13384-1 and EN13384-2 for multiple occupancy.
Q The maximum draft of the chimney should not exceed 15Pa.
Q The derivation of the flue gases must be guaranteed even during
a temporary power outage.
Note
If connecting to multiple connection chimneys additional safety equipment is required. Your local chimney sweep will advise you in this case.
Connecting to a steel chimney
The connection must be calculated and shown with EN13384-1 and EN13384-2.
Use only insulated (double) stainless steel tubes (flexible aluminum or steel tubes are not permitted).
An inspection door for regular inspection and cleaning must be present.
The flue pipe connection to the chimney has to be air-tight.
Combustion air
Every combustion process requires oxygen from the surrounding air. This so-called combustion air is removed from the living are in the case of individual stoves without external air connections.
This air removed must be replaced in the living space. Very tightly sealed windows and doors in modern flats may mean that too little air replaces that used. The situation also becomes problematical due to additional venting in flats (e.g. in the kitchen or WC). If you cannot feed in external combustion air, then air the room several times a day to prevent negativce pressure in the room or poor combustion.
Feeding in external combustion air
only for devices which are able to run in room-air independent operation.
Q Combustion air must be fed to the stove from outside via a sealed
pipe for operation independent of the room air. According to EnEV, it must be possible to shut off the combustion air pipe. The open/closed setting must be clearly recognisable.
Q Connect at the air intake either a pipe Ø125mm (log wood and
combi stoves) or Ø50mm (pellet stoves) and fix it with a hose clamp (not included!). At pellet stoves with longer intake pipes than 1m the diameter should be increased to 100mm. (see RIKA range).
Q To ensure sufficient air intake, the intake pipe should not exceed
max. 4m and have max. 3 bends.
Q If the line leads outside it must have a windbreak.
Q In extreme cold pay attention to icing on the air intake opening
(check).
Q It is also possible to suction in combustion air directly from
another sufficiently vented room (e.g. cellar).
Q The combustion air pipe must be tightly connected (adhesive or
cement) permanently to the air nozzles of the stove.
Q If you do not use the stove for a long time, please close the
combustion air intake to prevent the stove from moisture.
Note
Please note that problems may arise due to updrafts in the case of combustion air supply from an integrated chimney ventilation shaft. If the combustion air flowing downwards is heated it may rise and thus counter the chimney with a resistance which in turn reduces the negative pressure in the combustion chamber. The chimney manufacturer is to guarantee that the resistance for the combustion air is a maximum 2 Pa even in the least favourable operating state of the chimney.
If one or more of these conditions does NOT apply, the result is poor combustion in the stove and negative pressure in the installation room.
Page 12
5. ASSEMBLY  DISMANTLING PANELS AND OPTIONS
Note
Only work on the unit when the mains plug has been disconnected and the stove has cooled down completely.
Note
During any conversion work, take particular care of your fingers and any panels and stove attachments. Select soft bases to prevent scratches to your living space furniture and stove panels.

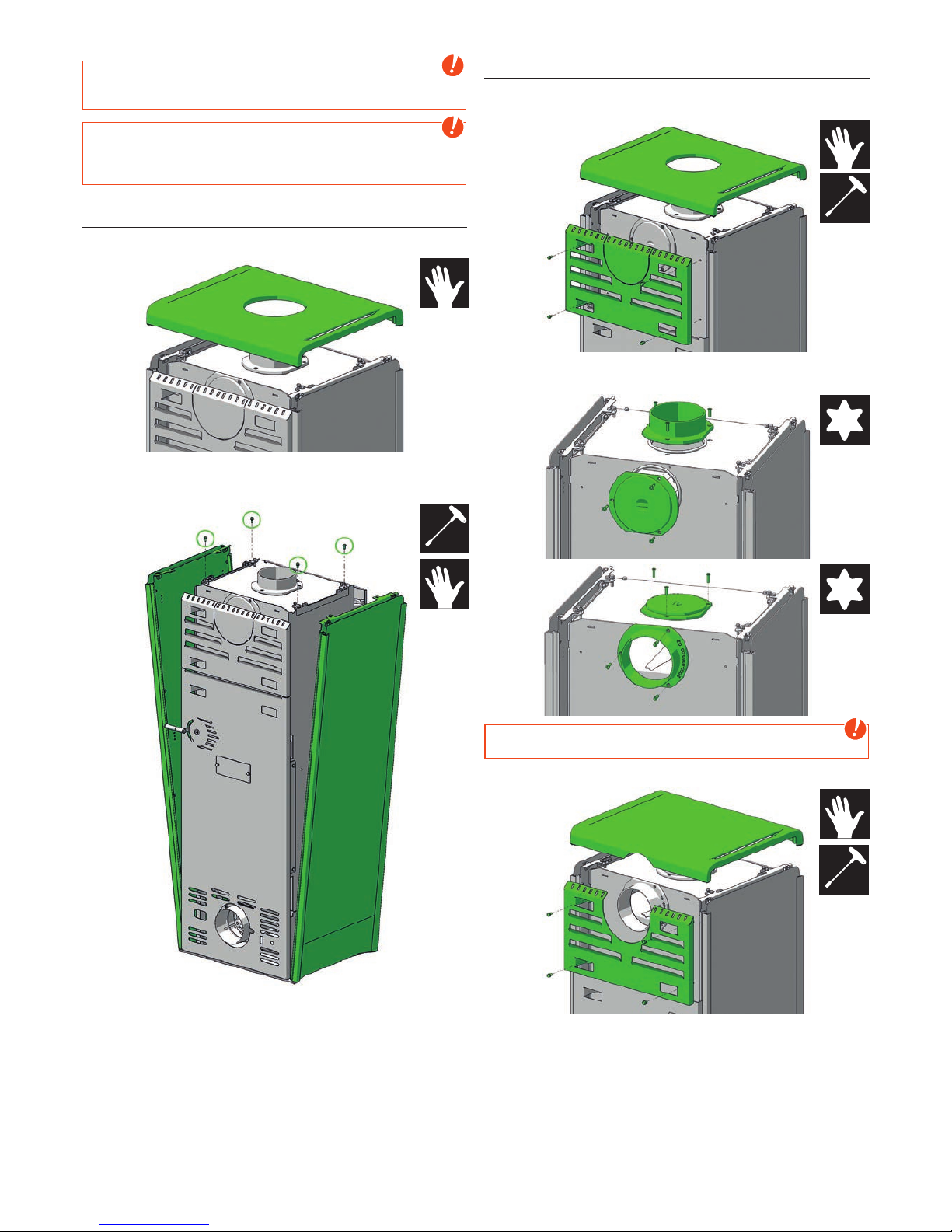

Assembly / dismantling panels
Lift the top straight up.
Now loosen the hexagonal screws and tilt the side panel. Subsequently, lift the side panel to remove it.
Install the removed parts in reverse order.
Converting to rear flue pipe connection
(to be ordered separately)
Lift the top straight up and remove the rear wall.
Replace the flue outlet from the top and the cover from behind against each other.
Note
Make sure that everything is air tight!
Finally mount the optional rear wall and top.
#8
#8
#25
#25
#8
Page 13
|13
EN
12
6. MANUAL OPERATION
Each combustion process needs oxygen. Before ignition the combustion chamber must be regularly cleaned from ash to ensure an adequate supply of air.
The right fill amount for heating up is 2 - 3 logs of the quantity given in AMOUNT OF FUEL.
Correct heating up primarily according to instructions counteracts excessive smoke during heating up.

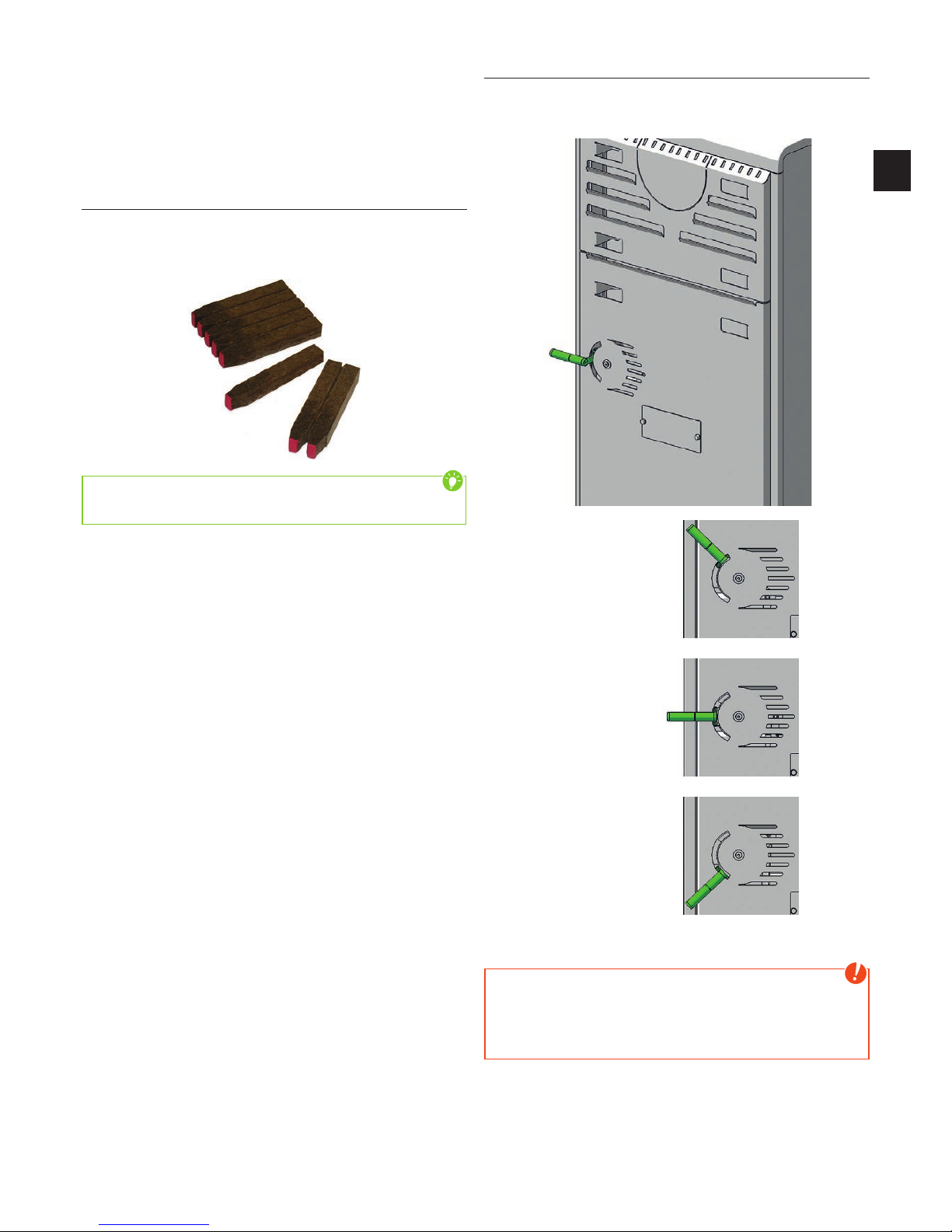

RIKA firelighter
Always ignite the RIKA firelighter on the red tip. One block consists out of 8 ribs which can be divided to the desired size. The amount of RIKA firelighters also depends on the size and humidity of your firewood. Ideally, one rib is enough to light up the fire.
Tip
You can order the RIKA firelighter with the number E15834 at your RIKA dealer.
Combustion air regulation
The performance of your stove also depends on the chimney draught; therefore the control knob for combustion air regulation must be used according to your own experience.
Zero setting
Middel position
Heating up position
The heating-up position may only be used for heating up or refilling.
Note
The air control seals to 100%. Complete closing of the air regulator (zero setting of control knob) during operation poses a hazard of deflagration and is strictly prohibited. A stop to prevent inadvertent closing of the air intake has been integrated for safety reasons.
If the stove is not in use, warm air can release through the chimney. The Zero position of the control knob can prevent this. To prevent air intake completely, the control knob must be pressed back slightly, only then the zero position can be set and the air regulator thus be closed.
Page 14

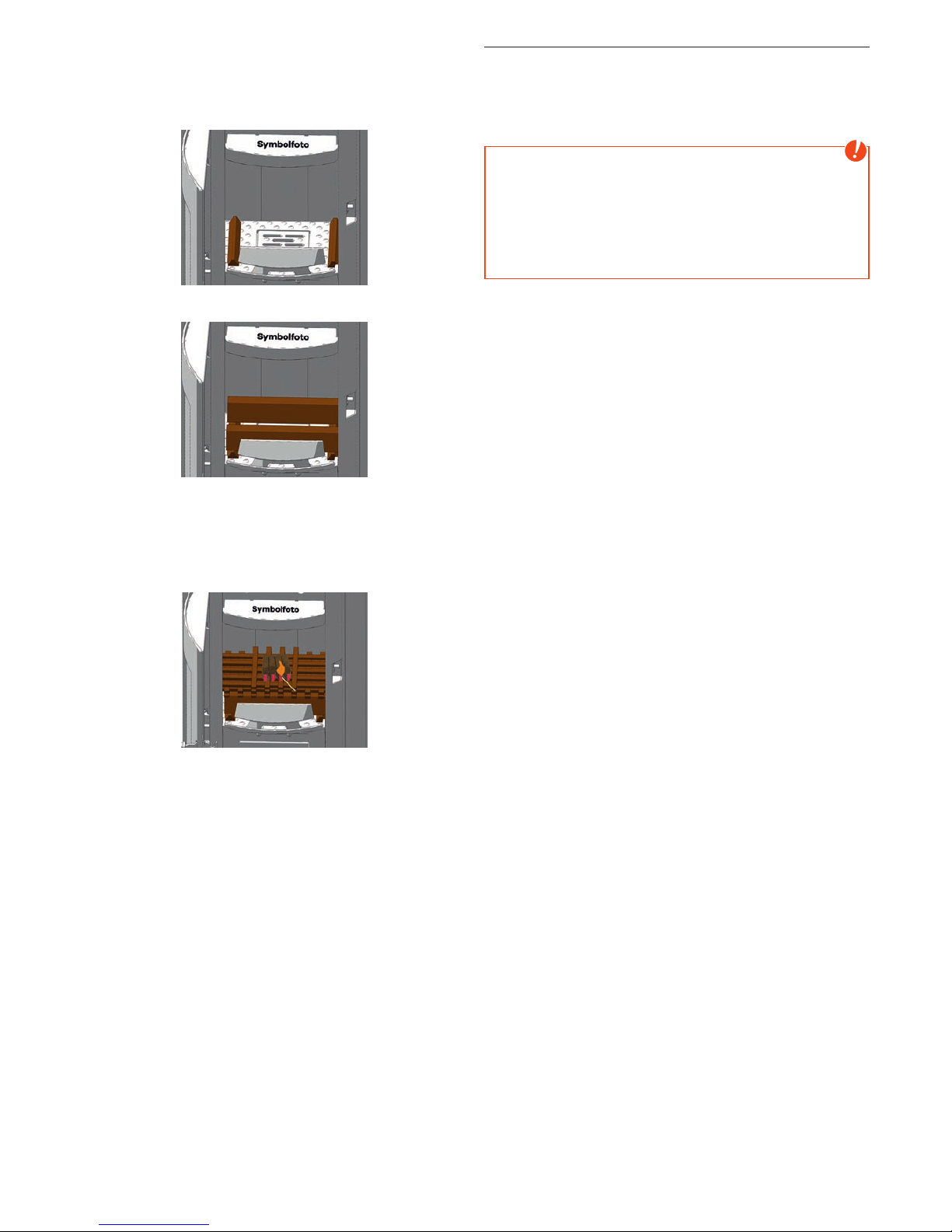

Correct heating up
1. Move the control lever completely to “heating-up position”. Open the combustion chamber door and sweep the ashes into the ashtray.
Place left and right two small pieces of chipboard lengthways in the bottom of the combustion chamber.
Place two logs crossways on top of this chipboard.
2. Now place further pieces of chipboard in crosswise layers on top of the logs and place 2-4 ribs of the RIKA-firelighter on top of the chipboard. Some uncoated paper can be placed underneath the chipboard in case there is no firelighter available.
3. Now light the firelighter (or the uncoated paper) and close the combustion chamber door.
Set the control knob for combustion air regulation to middle position some minutes later. If the logs are well lit the control knob can be set one step further to zero position another few minutes later (depending on draught and fuel quality / amount).
Refilling
After the first burn-off, add one or two logs (see AMOUNT OF FUEL) to the blaze. Set the control knob to heating-up position again until the wood is well lit.
For optimum combustion, the air regulator should be set between medium and zero position.
Note
Sometimes a lot of smoke develops when wood is placed on a low firebed or when there is too less fresh air for combustion. An explosive gas/air mixture may arise and cause an eventual heavy deflagration. For safety reasons it is recommended to leave the combustion chamber door closed and press the control knob at the rear wall down completely into “heating-up position”. If the log wood is not igniting, start a new heating-up procedure after it stopped smoking.
Please proceed in the same way for every further addition of wood.
Page 15
|15
EN
14
7. CLEANING AND MAINTENANCE
Basic information
Note
When you vacuum clean around the stove ensure that you do not vacuum into the combustion air intake during heating operation. You could vacuum out embers – FIRE RISK!
The frequency with which the stove requires cleaning and the maintenance intervals depend on the fuel you use. High moisture content, ash, dust and chips may more than double the maintenance required. Only use wood that has been stored properly and is dry and untreated.
Tip
Wood as fertiliser - the mineral content of the wood remains in the combustion chamber as ash as a residue of the combustion. This is an excellent fertiliser for all plants in the garden; it is a completely natural product. The ash should be stored first and slaked with water.
Note
Ash may contain embers – only place ash in sheet steel containers!

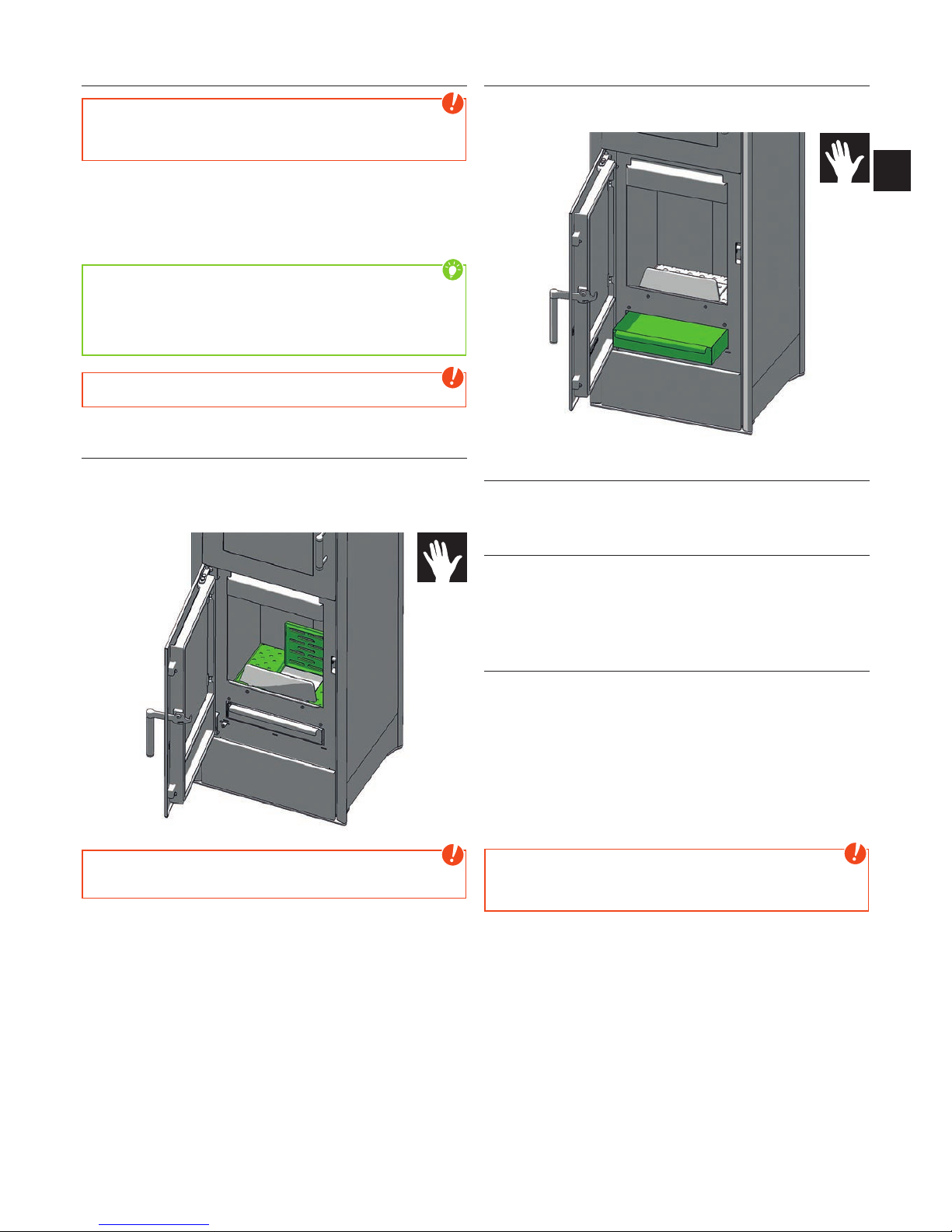

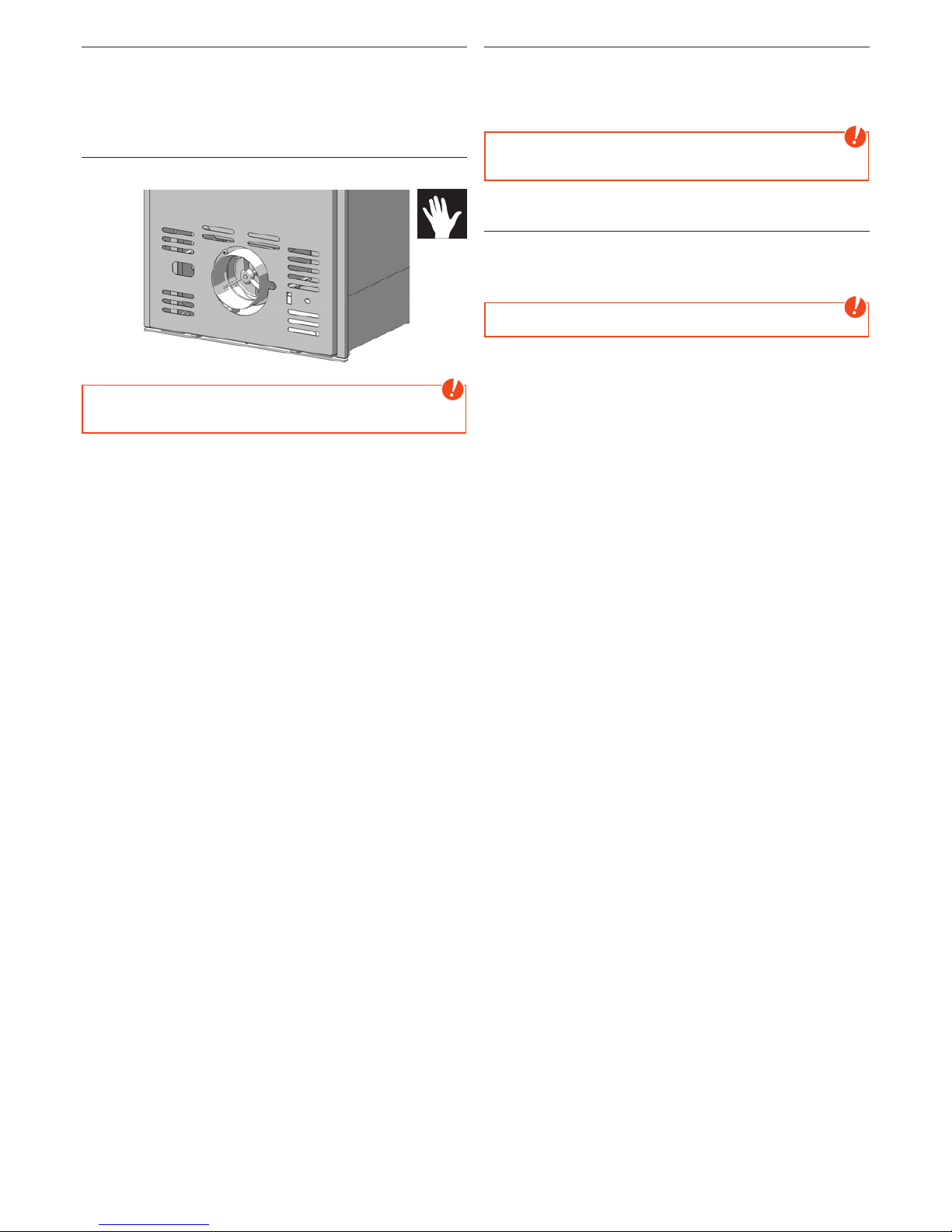

Cleaning the combustion chamber
The combustion chamber must be regularly cleaned from ash to ensure an adequate supply of air. If you tilt the grate, you can sweep the ashes with a broom in the ash tray. You can also use an ash vacuum cleaner.
Note
Only when the stove is cold! You could vacuum out embers – FIRE RISK!
Empty the ash drawer
Empty the ash drawer regularly. The ash drawer is simply pulled forward with the combustion chamber door open.
Cleaning painted surfaces
Wipe the painted surfaces with a damp cloth, do not scrub. Do not use solvent-containing cleaners.
Cleaning the door glass
The glass can be cleaned best with a moist cloth. Stubborn dirt can be removed with a special cleaner (free from corrosive acids and solvents - otherwise there is a risk of damage to the glass surface) available from your stove dealer. Usual cleaners containing acid or solvents can be too harsh and damage the glass.
Cleaning the oven
Clean the oven and the accessories each time after use to prevent dirt from burning in. Remove grease with warm soapy water as long as the oven is warm.
Stubborn or very strong contaminations are removed with a commercial oven cleaner. After cleaning please thoroughly wipe the oven with a cloth and water to remove any residue of the cleaner. Never clean the oven with aggressive detergents such as abrasive cleaners, abrasive pot sponges, or with rust or stain removers.
Use hot water and a dishwashing detergent to clean the accessories (tray, grate, ...)
Note
Do not use the oven as a heat retaining compartment. The oven may exclusively be used for foodstuffs. For safety reasons it is prohibited to dry textiles.
Page 16
Cleaning the convection air openings
Vacuum clean any dust deposits from the convection air openings at regular intervals.
The stove should be cleaned thoroughly prior to the start of the heating season to prevent excess odour.
Combustion air - intake
If necessary, please also clean the air intake with a hoover.
Note
Only when the stove is cold! You could vacuum out embers – FIRE RISK!
Cleaning the flue pipes
annually!
Remove the flue pipes. Inspect and clean the chimney connection. Brush off any soot and dust deposits in the fire and in the flue pipes and vacuum.
Note
Accumulated fly ash in the flue gas channels may impair the performance of the stove and pose a safety risk.
Checking door seal
annually!
The condition of the seals at doors and glass should be checked at least once a year. Repair or replace seals depending on condition.
Note
Only intact seals ensure your stove works perfectly!
Page 17
|17
EN
16
8. PROBLEMS  POSSIBLE SOLUTIONS
Problem 1
Fire burns with weak, orange flame, window is sooted up.
Cause(s)
Q Poor chimney draught
Q Damp wood
Q Incorrect heating up
Q Stove is sooted over inside
Possible solutions
Q Check whether flue gas pipes are blocked with ash
(see CLEANING AND MAINTENANCE).
Q Use dry wood and correct fuel amounts
(see BRIEF INFORMATION ON COMBUSTIBLE - LOGS)
Q Check whether the suction nozzles and air inlet pipe or flue tube
are blocked.
Q Check door and cleaning cover seals for leaks
(see CLEANING AND MAINTENANCE)
Q Have service performed by authorised specialist company.
Q Every glass plate must be cleaned from time to time (depending
on use) with glass cleaner.
Problem 2
Stove smells strongly and / or fumes are emitted.
Cause(s)
Q Burning-in phase (taking into service)
Q Stove has accumulated dust and/or dirt
Possible solution(s)
Q Wait to end of burning-in phase and vent sufficiently
Q Suction off any dust deposits from the convection air openings at
regular intervals
Problem 3
Flue gas discharge when wood is added and during heating phase.
Cause(s)
Q Combustion chamber door opened too fast
Q Too much ash in combustion chamber
Q Adding logs to snappy
Q Chimney draught too low
Q Flue pipe connection leaks
Q Logs combustion still running (visible flame)
Possible solution(s)
Q open the combustion chamber door moderate
Q regular cleaning of combustion chamber (vacuum)
Q Adding logs carefully
Q Check chimney
Q Check connections and if necessary re-seal
Q Add logs after flame is gone
Q Check seals and replace (fire door, ..)
Page 18
Page 19
|19
EN
18
9. GUARANTEE
These warranty conditions are only valid for the following countries: Austria, Germany and Switzerland. Separate conditions imposed by the importer apply for all other countries. In case of doubt as well as missing or incorrect translations, the German version is the only valid one.
For the purpose of timely damage limitation, the warranty claim on the part of the claimant is to be enforced at the RIKA dealer in writing using the invoice and stating the purchase date, model name, serial number and reason for complaint.
WARRANTY
5 years on the welded stove body. This exclusively applies to defects in materials and workmanship as well as free replacement. Labour and travel times are not included in the manufacturer’s warranty.
Only original parts supplied by the manufacturer should be used. Loss of warranty on non-observance!
The precondition for the warranty is that the stove has been installed and commissioned properly according to the User and installation manuals valid at the time of purchase. Connection must be performed by a specialist for such stoves.
Any costs incurred by the manufacturer due to unjustified warranty claims are to be charged to the claimant.
Wear parts and parts affected by fire are excluded, such as glass, coating, surface coatings (e.g. handles, panels), seals, fire trough, grates, draught plates, deflector plates, combustion chamber liners (e.g. fireclay), ceramics, natural stone, thermo stone, ignition elements, sensors, combustion chamber sensors and temperature controller.
Damage arising from non-observance of the manufacturer’s instructions for operation of the unit or any damage that is caused by action such as overheating, use of non-approved fuels, tampering with the device or the flue gas pipe, electrical excess voltage, an incorrect, insufficient or excessive flue draught, condensation, non-performance or deficient maintenance and cleaning, non-observance of the relevant and applicable building regulations, incorrect operation by the user or third parties, transport and handling damage is also excluded.
THE WARRANTY DOES NOT AFFECT THE STATUTORY WARRANTY PROVISIONS.
02.12.2015
Page 20
Technical and design changes, as well as typesetting and printing errors reserved
© 2017 | RIKA Innovative Ofentechnik GmbH
Z37363_Back_EN | 13.09.2017
RIKA Innovative Ofentechnik GmbH
Müllerviertel 20
4563 Micheldorf / AUSTRIA
Tel.: +43 (0)7582/686 - 41, Fax: -43
E-Mail: [email protected] www.rika.at
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
