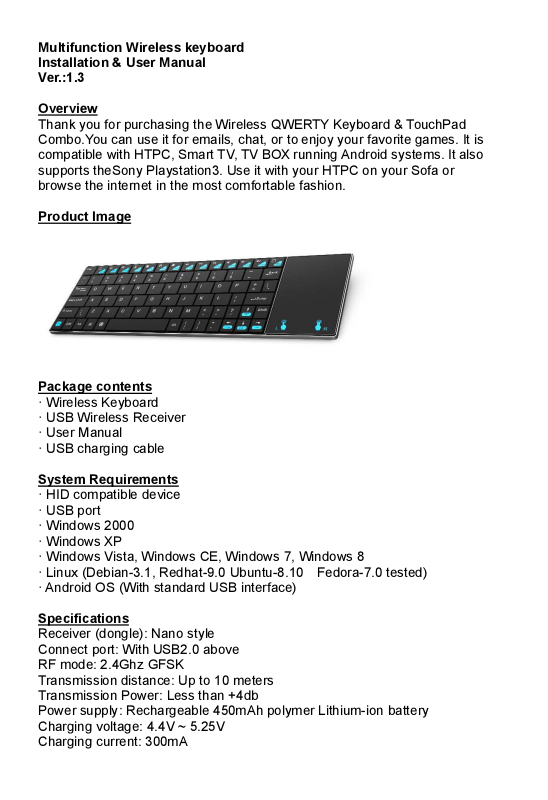

Multifunction Wireless keyboard
Installation & User Manual
Ver.:1.3
Overview
Thank you for purchasing the Wireless QWERTY Keyboard & TouchPad
Combo.You can use it for emails, chat, or to enjoy your favorite games. It is
compatible with HTPC, Smart TV,TV BOX running Android systems. It also
supports theSony Playstation3. Use it with your HTPC on your Sofa or
browse the internet in the most comfortable fashion.
Product Image
Package contents
· Wireless Keyboard
· USB Wireless Receiver
· User Manual
· USB charging cable
System Requirements
· HID compatible device
· USB port
· Windows 2000
· Windows XP
· Windows Vista, Windows CE, Windows 7, Windows 8
· Linux (Debian-3.1, Redhat-9.0 Ubuntu-8.10 Fedora-7.0 tested)
· Android OS (With standard USB interface)
Specifications
Receiver (dongle): Nano style
Connect port: With USB2.0 above
RF mode: 2.4Ghz GFSK
Transmission distance: Up to 10 meters
Transmission Power: Less than +4db
Power supply: Rechargeable 450mAh polymer Lithium-ion battery
Charging voltage: 4.4V ~ 5.25V
Charging current: 300mA
Sleeping Current: 86uA
Operation Voltage: 3.3V
Product weight: 210g
Product Size: 260*83*13.5mm
Installation
·Open the gift box and pick up USB receiver from back cover of the
keyboard.
·Insert the USB Receiver into an available USB port.
·Turn on the keyboard. The keyboard will be found automatically.No further
actions are required – you are now ready to use your keyboard!
NOTE：USB cable can be used for battery charging
Connecting the receiv er
Slide the receiver out from the side of keyboard, and insert to the devices with a
standard USB interface. Once connected, slide the pow er sw itch to the "ON"
position located on the left side of the unit to establish the connection.
Touchpad
This touchpad supports multi-finger functions.
(1) When a s ingle finger click, on behalf of the left mouse function keys
(2) When two-finger click, on behalf of the right mouse function keys
(3) When a s ingle finger sliding pointer can be controlled
(4) When a s ingle finger double-click, you can achieve open the file pointer is
positioned.
Auto sleep and wake up feature
The keyboard also have an auto sleep and wake up feature.Within three
minutes, if having no key pres sed, the keyboard will automatically go into
sleep mode. In sleep mode, all lights extinguished state. Users can click on
any key to activate the device
Switching off the keyboard after use
After using the keyboard, push the switch to the “OFF” position. This turns
off the keyboard. The USB receiver does not need to be pulled out from the
PC. You can use it directly next time.
Charging the battery
The device uses built-in lithium-ion battery. Please use only approved data
cables and chargers.
Note: Fully charge the unit before initial operation. This device can be used
when charging, but charging time will be extended.
When the battery is low, the low-voltage light will blink to warn the user. The
unit will be automatically turned off if the battery has been depleted.
Warning
·When charging finishes, pull out the charge cable.
·Never try to open or repair this product yourself.
·Keep this device aw ay from fluids, such as water.
Maintenance
·Do not attempt to disassemble the device or replace the rechargeable
battery. Doing so will void the w arranty.
·The battery will discharge if it is stored for a long time without operation.
·Use the specified charger. Disconnect the device w hen the battery is fully
charged.Overcharging the battery will shorten the battery life.
·Do not expose the device in extreme heat or cold environment, which will
shorten the battery life.
Disposal
Always dispos e the used appliance at a recycling centre. Do not
dispose the used appliance together with the household waste.
Note:
Due to the device uses 2.4G radio waves technology to communicate, The
connection can be subject to interference from obstacles, like w alls, metals,
or other electronic devices，so please keep the keyboard and dongle in a line
as pos sible.
In line with the policy of continued development, the manufacturer res erves
the right to amend The specifications w ithout prior notification. The
illustrations in the us er manual are for reference only. Please operate
according to the real des ign.
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly approved by Shenzhen
Riitek Technology Co., Ltd may void the FCC authorization to operate this device.
Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.
