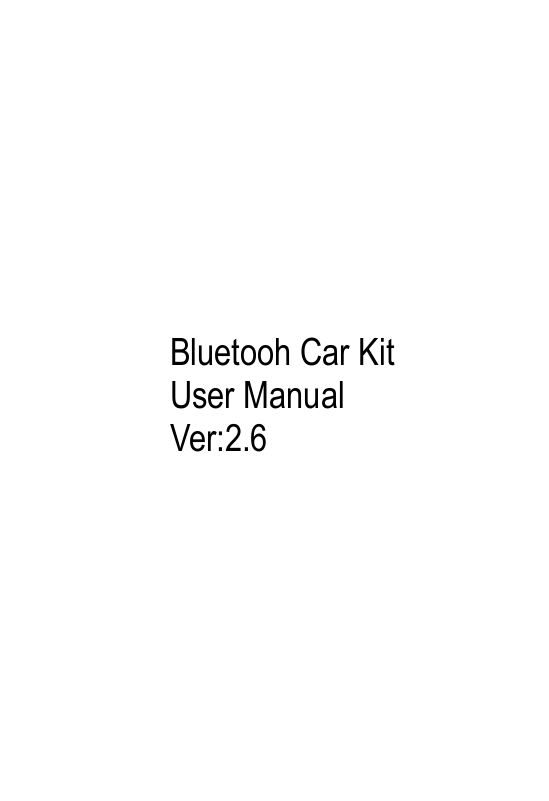

Bluetooh Car Kit
User Manual
Ver:2.6
1
Overview:
Thanks for purchasing of this Bluetooth car Kit,
which can bring you much convenience in daily life.
This product is designed for in-car use. By the
adoption of Bluetooth connection technology,
mobile phone audio is transmitted to the car audio
terminal. Thus, you can use the car stereo system
to listen to the music stored in mobile phone or
answer your mobile phone calls. In driving, you can
answer calls without picking up the mobile phone
and you can play the music you like. You have
made the right choice! Be ready for the endless fun
and excitement!
- Compliant with Bluetooth Specification v.3.0 +
EDR
- Class 2 Bluetooth radio with 4dBm transmit power
and -91dBm receiver sensitivity
- completely backward:compatible with Bluetooth
2.0 to 3.0 systems.
- 16-bit/32-bit run time configurable audio
Features:
2
processor
- Noise and echo reduction
- Build-in High performance stereo audio codec
- Two sets of mobile phone terminals are supported
to connect.
Package Contents:
- Bluetooth Car Kit
- Bluetooth Car Kit Base
- Power adapter with Dual USB power port
- User Manual
Installation:
3
- Open the gift box and pick up Bluetooth Car Kit
and Power adapter.
- Insert the Power adapter into car's 12V -24V
cigarette lighter port.
- Insert the Bluetooth Car Kit’s USB port into One
of Power adapter USB interface
- Insert the Bluetooth Car Kit’s Audio connector into
the car’s audio input interface(AUX in)
- When power supply is connected, press and hold
the button A 5 seconds, and the LED light around
the button blinks fast.
- Turn on the mobile phone Bluetooth and search
for devices. You can find HB01 device and
4
connect.
- The LED light is on after connection is done. If
there is speaker connected, there will be
reminding sound of Buzz.
- Now, you can use it to enjoy music and answer
calls.
Private Answer button :
We offer a Private Answer button (Button A), simple,
large, and very easy to operate.
Notice: in Private Answer mode, others in the car
can not hear the caller's voice. In calling, double
click the button A to perform Private answer.
Double click again to return to Car Bluetooth Kit
mode.
- Product name: Bluetooth Car Kit
- Version: Bluetooth 3.0+EDR
- Bluetooth Profile: HFP HSP A2DP AVRCP
- Power Supply: 4.3V-5V
- Working current: ≦ 45mA
Parameters:
5
- Effective Distance between Mobile Phone and
Bluetooth Car Kit: within 10 meters
- Effective Distance between the Voice Source and
the Microphone: within 1 .2 meter
- Bluetooth converter(Including base):
Size: 42*42*17mm
Weight: 25g
- Power adapter:
Size: 60*30* 30mm(LXHX)
Weight: 20g
Car Charger:
- There are two sets of USB charger ports.
- Current for one set: 2A
- Current for the other set: 1A
- Input Voltage: DC 12V-24V
Notice:Two USB ports Total output current 2A
This device has 3 buttons, one button A and button
B and Button C (as shortcut for much playing
contro).
Button Features:
6
Press and hold the button A to enter Pairing mode,
and the LED will blink. After paring, the LED will be
on.
In music broadcasting mode, button A functions as
Play/Pause.
When calling is coming, button A can be used to
answer calls.
In answering a call, press once to hang up the call
and press twice to switch to mobile phone
answering mode; press twice again, the audio will
be switched to the Car Bluetooth Kit.
7
Sleep mode
If there is no connection between mobile phone
and Bluetooth 10~20 seconds, the device will enter
sleep mode. Auto reconnection is available if the
mobile phone enters effective range and press the
button A
Always dispose the used appliance at a
recycling centre. Do not dispose the used
appliance together with the household
waste.
In line with the policy of continued development,
the manufacturer reserves the right to amend The
specifications without prior notification. The
illustrations in the user manual are for reference
only. Please operate according to the real design.
Recycling:
Notice:
FCC Information and Copyright
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or televisi on reception, which can be determined by turning t he
equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
