User’s Guide
RP7000S Series
Single-Ended Active Probe
RIGOL Technologies, Inc.
Nov. 2013
RIGOL
I
Guaranty and Declaration
Copyright
© 2013 RIGOL Technologies, Inc. All Rights Reserved.
Trademark Informat ion
RIGOL is a registered trademark of RIGOL Technologies, Inc.
Publicatio n Number
UGE21101-1110
Notices
RIGOL products are protected by patent law in and outside of P.R.C.
RIGOL reserves the right to modify or change parts of or all the
specifications and pricing policies at company’s sole decision.
Information in this publication replaces all previously corresponding
materials.
RIGOL shall not be liable for losses caused by either incidental or
consequential in connection with the furnishing, us e or perf ormance of this
manual as well as any information contained.
Any part of this document is forbidden to be copied or photocopied or
rearranged without prior written approval of RIGOL.
Product Certification
RIGOL guarantees this product conforms to the national and industrial
standards in China as well as the ISO9001:2008 standard and the
ISO14001:2004 standard. Other international standard conformance
certification is in progress.
Contact Us
If you have any problem or requirement when using our products or this
manual, please contact RIGOL Technologies, Inc.
E-mail: service@rigol.com
Website: www.rigol.com
RP7000S User’s Guide
RIGOL
High
Safety
Protective
Chassis
Test
Safety Terms and Symbols
Terms in this Ma n ual. The following terms may appe ar in this
manual:
WARNING
Warning statements indica te the conditions or practices that could
result in injuries or loss of life.
CAUTION
Caution statements indicate the conditions or practices that could
result in damage to this product or loss of data.
Terms on the Product. The following terms may appear on the
product:
DANGER indicates a hazard may immediately happen.
WARNING indicates potential hazard may happen.
CAUTION indicates damage to the instrument or other devices connected to
the instrument may happen.
Symbols on the Product. The following symbols may appear on
the product:
Voltage
II RP7000S User’s Guide
Warning
terminal
Earth
Ground
Ground
RIGOL
III
Document Overview
This document is used to guide users to get a quick understanding of the
RP7000S series single-ended active probe as well as its using method. Besides,
this document gives service information relating to general care and cleaning.
RP7000S series single-ended active probe includes the following model.
Model Bandwidth
PR7150S >1.5GHz
PR7080S >800MHz
Main topics in this manual:
RP7000S Series Overview
This chapter gives a brief introduction of the probe, including general
inspection, probe dimensions, standard accessories etc.
To Use RP7000S Series
This chapter introduces how to use the probe, including how to connect to
the oscilloscope, how to use the probe head, how to replace probe
accessories, how to adjust the offset voltage, how to calibrate the probe
etc.
General Care and Cleaning
Warranty
Specifications
RP7000S User’s Guide
RIGOL
Contents
Guaranty and Declaration .................................................................... I
Safety Terms and Symbols ................................................................. II
Document Overview .......................................................................... III
RP7000S Series Overview ....................................................................1
Probe Introduction ............................................................................ 2
General Inspection ............................................................................ 2
Probe Dimensions ............................................................................. 3
Accessories and Options .................................................................... 4
Active Probe Amplifier ....................................................................... 6
Probe Head ...................................................................................... 7
To Use RP7000S Series ........................................................................9
To Connect to the Oscilloscope......................................................... 10
To Use Hand-held Single-ended Probe Head ...................................... 12
To Replace Probe Accessories .......................................................... 13
To Adjust Offset Voltage .................................................................. 14
To Calibrate the Probe ..................................................................... 14
General Care and Cleaning ................................................................ 16
Warranty ............................................................................................ 17
Specifications .................................................................................... 18
IV RP7000S User’s Guide
RIGOL
1
RP7000S Series Overview
This chapter guides users to quickly get familiar with the RP7000S series
single-ended active probe.
Main topics:
Probe Introduction
General Inspection
Probe Dimensions
Accessories and Options
Active Probe Amplifier
Probe Head
RP7000S User’s Guide
RIGOL
Probe Introduction
RP7000S is a single-ended active probe solution for high frequency application.
RP7000S uses plug-in probe head to optimize the performance and usability.
Besides, its replaceable probe tip prolongs the serv i c e lif e of t h e probe and the
spacing between probe tip and ground collar can be precisely adjusted to fit
different test point spacing. RP7000S is compatible with the auto-identification
port of RIGOL DS6000/DS4000 series oscilloscope and can be recognized and
configured automatically by this port. Its snap-in BNC connector enables easier
connection with the oscilloscope. RP7000S provides various accessories and
options and multiple replaceable components which make it applicable to be
used in different tests and measurements.
General Inspection
1. Inspect the shipping container for damage.
If your shipping container appears to be damaged, keep the shipping
container or cushioning material until you have inspected the contents of
the shipment for completeness and have checked the probe electrically
and mechanically.
If your probe has damaged during shipping, please contact your shipper
and carrier for compensation. RIGOL will provide no free repair or
replacement.
2. Inspect the probe.
If there is any mechanical damage or defect, or if the probe does not pass
electrical and mechanical tests, please contact your RIGOL sales
representative.
2 RP7000S User’s Guide
3. Check the Accessories.
Please check the accessories according to Accessories and Options in
this guide. If the accessories are incomplete or damaged, please contact
your RIGOL sales representative.
Probe Dimensions
Figure 1 shows the dimensions of the main parts of RP7000S series
single-ended active probe.
RIGOL
Figure 1 Probe Dimensions
RP7000S User’s Guide 3
RIGOL
Accessories and Options
This section lists the probe kits, standard accessories of the RP7000S series
single-ended active probe respectively. All the components listed below can be
ordered from RIGOL. RP7150S Single-ended Active Probe Kit (the ordering
number is RP7150S) contains all the accessories listed in Table 1. If any
accessory or option needs to be ordered separately, please refer to Table 1.
RP7080S Single-ended Active Probe Kit (the ordering number is RP7080S)
contains all the accessories listed inTable 2. If any accessory or option needs
to be ordered separately, please refer to Table 2.
Table 1 Standard Accessories of RP7150S Single-Ended Active Probe Kit
(Ordering No. is RP7150S)
Name Ordering NO. Qty
PCK100 Active Differential Probe
Calibration Kit
RP7150S Single-ended Active Pro be
Amplifier
Hand-held Single-ended Probe Head RP7S-0205 1
91Ω Probe Tip RP7-0405 9
Straight Acuminate Ground Collar RP7-0501 2
Curved Acuminate Ground Collar RP7-0502 2
Straight Dentiform Ground Collar RP7-0503 2
Curved Dentiform Ground Collar RP7-0504 2
Marker Rings
(Yellow/Pink/Light Blue/Dark Blue)
User’s Guide RP7S-0601 1
Probe Bag RP7-0602 1
Storage Box RP7-0603 1
PCK100 1
RP7S-0150 1
RP-0203 8
4 RP7000S User’s Guide
RIGOL
Table 2 Standard Accessories of RP7080S Single-Ended Active Probe Kit
(Ordering No. is RP7080S)
Name Ordering NO. Qty
PCK100 Active Differential Probe
Calibration Kit
RP7080S Single-ended Active Pro be
Amplifier
Hand-held Single-ended Probe Head RP7S-0205 1
91Ω Probe Tip RP7-0405 9
Straight Acuminate Ground Collar RP7-0501 2
Curved Acuminate Ground Collar RP7-0502 2
Straight Dentiform Ground Collar RP7-0503 2
Curved Dentiform Ground Collar RP7-0504 2
Marker Rings
(Yellow/Pink/Light Blue/Dark Blue)
User’s Guide RP7S-0601 1
Probe Bag RP7-0602 1
Storage Box RP7-0603 1
Note: the accesso ries listed in this s ection are only for referen ce, the actual
product is the sta n d ar d.
PCK100 1
RP7S-0080 1
RP-0203 8
RP7000S User’s Guide 5
RIGOL
er
Active Probe Amplifier
The active probe amplifier (Figure 2), with more than 1.5GHz bandwidth, is a
main component of the active probe. One end of the active probe amplifier can
be connected to the DS6000 and DS4000 series oscilloscope and the other end
can be connected to the desired probe head.
+ -
Pos/Neg Mark
Figure 2 Active Probe Amplifier
When connecting a probe head to an active probe amplifier, push it
straight in. For single-ended probe, when connecting them, pay attention to
their polarities. If the polarity is reversed, the performance of the active probe
would reduce and the active probe might even be damaged.
CAUTION
There are Pos/Neg markers on the hand-held single-ended pr o be
head and black mark sleeve on the negative pole of the solder-in
single-ended probe head.
6 RP7000S User’s Guide
RIGOL
Probe Head
RP7000S supports hand-held single-ended probe head. Before using it,
rotating the single-ended ground collar adjusts the spacing bet w een t h e
single-ended ground collar and probe tip, as shown in Figure 3.
Figure 3 Hand-held Single-ended Probe Head
Wherein, as shown in Figure 4 and Figure 5, probe tip and single-ended
ground collar are standard accessories and are both replaceable. If any of them
is damaged during use, you can easily replace it with a new one (refer to To
Replace Probe Accessories).
RP7000S provides 4 kinds of single-ended ground collars for different
measurement requirements, the structures of the ground collars are as shown
in Figure 5.
a) Straight Acuminate Ground Collar: applicable to measurement of test point
that is close to the ground point.
b) Curved Acuminate Ground Collar: applicable to measurement of test point
that is relatively far from the ground point .
c) Straight Dentiform Ground Collar: applicable to measurement of chip pin
test point that is close to the ground point.
d) Curved Dentiform Ground Collar: applicable to measurement of chip pin
test point that is relatively far from the ground point.
RP7000S User’s Guide 7
RIGOL

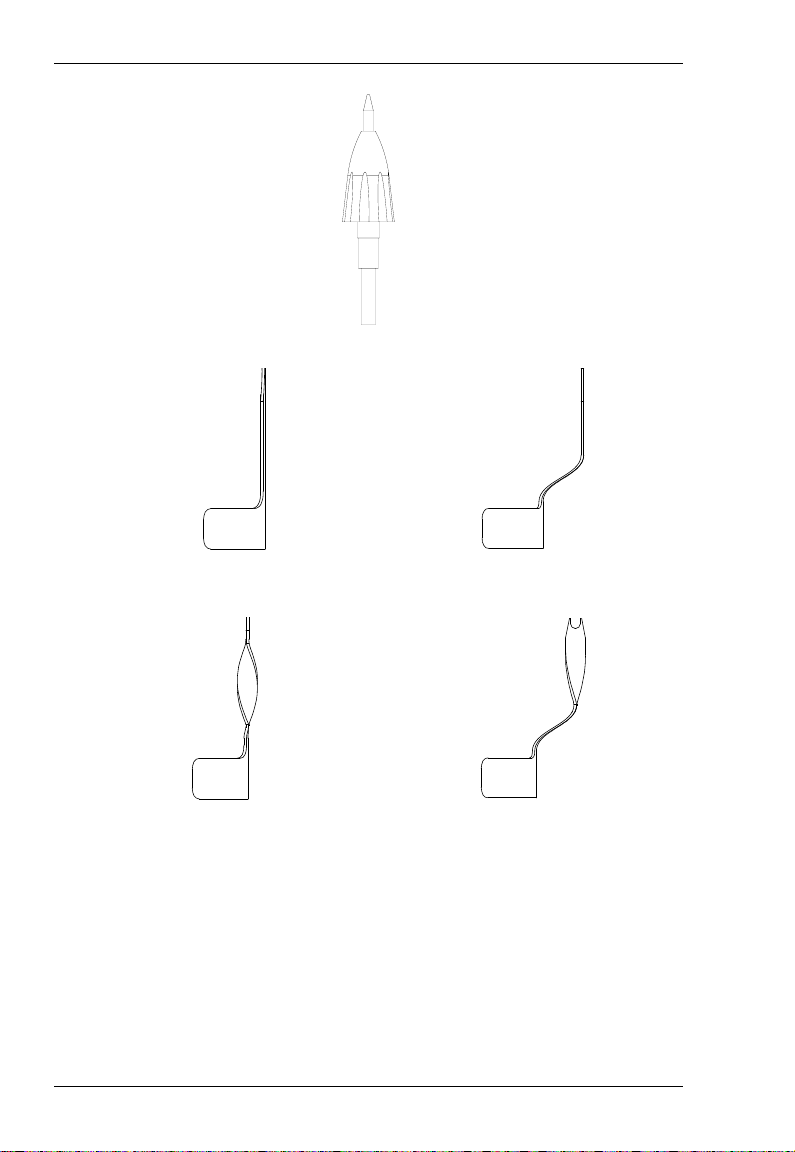

Figure 4 Probe Tip
(a)
Straight Acuminate Ground Collar
(c)
Straight Dentiform Ground Collar
Figure 5 Ground Collar
8 RP7000S User’s Guide
Curved Acuminate Ground Collar
Curved Dentiform Ground Collar
(b)
(d)
RIGOL
To Use RP7000S Series
During the use of RP7000S series single-ended active probe, correct operati ons
can ensure the probe performance, prolong the service life of the probe and
ensure the effectiveness of the signal measurement result. This chapter
introduces in detail the using method of the RP7000S series single-ended active
probe.
Main T opics:
To Connect to the Oscilloscope
To Use Hand-held Single-ended Probe Head
To Replace Probe Accessories
To Adjust Offset Voltage
To Calibrate the Probe
RP7000S User’s Guide 9
RIGOL
To Connect to the Oscilloscope
After RP7000S is connected correctly to a RIGOL DS6000 or DS4000 series
oscilloscope, the oscilloscope recognizes the probe automatically and provides
both power and offset voltage to the probe. You can adjust the offset voltage
(refer to To Adjust Offset Voltage) and calibrate the probe (refer to To
Calibrate the Probe) by the front panel menu of the oscilloscope.
Please connect the probe to the oscilloscope following the steps below:
1. Connect the probe head (in the figure, taking a hand-h e l d differential
probe head for example) with the active probe amplifier. If single-ended
probe head is used, during the connection, pay attention to their polarities.
2. Connect the other end of the active probe amplifier to the channel input or
external trigger input connector of the oscilloscope and make sure the
connection is tight.
10 RP7000S User’s Guide
RIGOL
3. Use any probe auxiliary device to connect the probe to the circuit to be
tested.
4. To disconnect the probe from the oscilloscope, press the button on the
probe (as shown in the left figure below), pull the connector straight out of
the oscilloscope (as shown in the right figure below) and then release the
button.
CAUTION
Do not twist the probe on the BNC connector of the oscilloscope,
or else, the probe might be damaged.
RP7000S User’s Guide 11
RIGOL
To Use Hand-held Single-ended Probe Head
Known from Probe Head, RP7000S can easily change the probe head by using
the method introduced in To Replace Probe Accessories. This chapter
introduces how to use the probe heads respectively.
The hand-held single-ended probe head provides an effective bandwidth of
more than 1.5GHz. Besides, the spacing between the single-ended ground
collar and probe tip can be adjusted by rotating the ground collar and the
replaceable probe tip and single-ended ground collar prolong the service life of
the probe.
The hand-held single-ended probe head can be used to measure single-ended
signal. During the measurement, the single-ended ground collar must be
grounded. Pay attention to their polarities when connecting the probe head and
active probe amplifier.
The structure of the hand-held single-ended probe head is as shown in Figure
6.
①
③
②
Figure 6 Hand-held Single-ended Probe Head
12 RP7000S User’s Guide
RIGOL
① Hand-held single-ended probe head (RP7S-0205).
② 91Ω probe tip (RP7-0405).
③ Straight acuminate ground collar: rotating the ground collar adjusts the
spacing (0mm to 5mm) between the ground collar and probe tip
(RP7-0501).
CAUTION
Ground the ground collar when using the hand-held single-ended
probe.
To Replace Probe Accessories
1. To replace the probe head
Take care not to damage the connecting part to avoid affecting the probe
performance when replacing the probe head.
Replacing Method:
① Disconnect the current probe head from the active probe amplifier.
② Push the new probe head into the active probe amplifier straightly.
When single-ended probe head is used, pay attention to their
polarities.
2. Replace the probe tip
The probe tip and probe head are connected with screw thread, so please
note the screw rotation and strength when removing and installing the
probe tip.
3. Replace the single-ended ground collar
Make sure the single-ended ground collar is firmly connected to the
copper pipe to ensure the probe performance when replacing it.
RP7000S User’s Guide 13
RIGOL
To Adjust Offset Voltage
RIGOL DS6000/DS4000 series oscilloscope can provide offset voltage to the
RP7000S series single-ended active probe. The offset voltage adjusts the
measured signal which exceeds the input dynamic range of the probe within an
appropriate range to ensure the measured signal’s integrity.
You can adjust the offset voltage by operating the front panel menu of the
oscilloscope and the operation method is as shown below.
1. Connect the RP7000S series si n gle-ended active probe to the channel
input terminal (such as CH1) of the DS6000/DS4000 oscilloscope,
referring to To Connect to the Oscilloscope.
2. Open the probe offset voltage control menu of the DS6000/DS4000
oscilloscope (front panel operation: CH1 Probe Bias Volta ge) and
rotate the knob to adjust the value.
To Calibrate the Probe
Before using RP7000S series single-ended active pro be, you can calibrate it
using the PCK100 active probe calibration kit. The calibration procedures are
shown as below:
1. Connect one BNC-SMA connector to the calibration board and the female
BNC of the cable respectively and then connect the other BNC-SMA
connector to the other part of the calibration board (called part 1).
2. Connect the RP7000S active probe to the analog channel (CH1 to CH4 of
the oscilloscope, illustrations here are based on CH1).
14 RP7000S User’s Guide
RIGOL
3. Open the probe calibration control menu (front panel operation: CH1
Probe Probe-Cal). At this point, calibration prompt message is
displayed in the user interface of the oscilloscope. Follow th e pro m pt
message to connect part 1 to the oscilloscope. Generally, connect the BNC
(male) of the connector to the corresponding analog channel and the male
BNC of the cable to the [Trig Out/Calibration] port at the rear panel of
the oscilloscope.
4. Adjust the spacing between the probe tip and the ground collar so as to
connect the probe tip to the middle signal line on the calibration board and
the ground collar to the both sides of the middle signal line. Note: it is
recommended to place the probe tip at the middle of the calibrat ion boa rd.
5. Press Start and the oscilloscope starts to calibrate the probe. The
calibration will last for about 40 to 50 seconds. When probe calibration
finished, “Probe calibration finished!” or “Probe calibration failure!” is
displayed in the user interface of the oscilloscope. Note: to ensure the
calibration precision, the probe tips must be firmly connected to the
calibration board duri n g th e calibration.
Note: Relative specifications of the RP7000S series single-ended active probe
depend on the calibration operation. After the calibration is finished, the DC
gain, offset voltage zero and offset gain will be calibrated. User can query the
information about the manufacturer, model, serial number and the last
calibration time of the probe through CH1 Probe Probe Info.
RP7000S User’s Guide 15
RIGOL
General Care and Cleaning
General Care:
Do not place the probe and its accessories in places where they will be exposed
to sun light for long peri ods of tim e .
CAUTION
Keep the probe and its accessories away from any corrosive liquid.
Cleaning:
Clean the probe and its accessories regularly according to their operation
conditions using the method below.
1. Disconnect the probe from the oscilloscope or voltage source.
2. Remove the loose dust on the exterior of the probe and its accessories
using a lint-free cloth (with mild detergent or water).
WARNING
Make sure the probe is completely dry before using it to avoid
short circuit and personal injuries.
16 RP7000S User’s Guide
RIGOL
Warranty
RIGOL warrants that its products mainframe and accessories will be fr ee from
defects in materials and workmanship within the warranty period.
If a product is proven to be defective within the respective period, RIGOL
guarantees the free replacement or repair of products which are approved
defective. For detailed warranty description, please refer to RIGOL official
website or the warranty card. To get repair service or a complete copy of the
warranty description, please contact with your nearest RIGOL sales and
service office.
RIGOL does not provide any other warranty items except the one being
provided by this summary and the warranty statement. The warranty items
include but not being subjected to the hint guarantee items related to tradable
characteristic an d an y par ti c u lar purpose. RIGOL will not take any
responsibility in cases regarding to indirect, particular and ensuing damage.
RP7000S User’s Guide 17
RIGOL
Specifications
Technical Specifi cat ion s
Item RP7150S RP7080S
Bandwidth >1.5GHz >800MHz
Rise Time <265ps <465ps
System
Bandwidth
Input Capacitance <1pF
Input Resistance 100kΩ±2%
Input Dynamic
Range
DC Attenuation 10:1 ±2%
Zero Offset Error
[1]
Offset Voltage
Range
Offset Accur acy
Input Noise 70mVpp
Propagation Delay 7ns
Max Input Voltage 30V Peak CAT I
Electrostatic
Protection
1GHz (DS6104 or DS6102) 800MHz (DS6104 or DS6102)
±6.25V
<30mV before calibration
<5mV after calibration
±12V
[1]
<3% of current range before calibration
<1% of current range after calibration
[2]
>8kV
18 RP7000S User’s Guide
RIGOL
General Characteristics
Environmental
Operating Non-operating
Conditions
Temperature +5°C to +40°C -40°C to +70°C
Humidity 0 RH to 80% RH 0 RH to 90% RH
Altitude 4600m 15300m
Power Consumption 1.2W N/A
Weights 132g±10g
[3]
1305g±50g
[4]
Wire Length 1.4m
[1] Typical value. The specifications would change when different scales are
selected.
[2] CAT I and CAT II Definitions
Installation Category (Overvoltage Category) I: signal le vel, s pecial
equipment or parts of equipment, telecommunication, electronic, etc.,
with smaller transient voltages than installation category (Overvoltage
Category) II.
Installation Category (Overvoltage Category) II: local level, appliance,
portable equipment etc., with smaller transient voltages than installation
category (Overvoltage Category) III.
[3] The weight of the probe with the hand-held single-ended probe head.
[4] The weight of the RP7000S series single-ended active probe kit with the
probe bag and PCK100.
RP7000S User’s Guide 19
Loading...
