Quick Guide
MSO8000 Series Digital
Oscilloscope
RIGOL (SUZHOU) TECHNOLOGIES INC.
Aug. 2019
RIGOL
English
Guaranty and Declaration
Copyright
© 2019 RIGOL (SUZHOU) TECHNOLOGIES INC. All Rights Reserved.
Trademark Information
RIGOL is a registered trademark of RIGOL (SUZHOU) TECHNOLOGIES INC.
Publication Number
QGA26102-1110
Notices
RIGOL products are covered by P.R.C. and foreign patents, issued and
pending.
RIGOL reserves the right to modify or change parts of or all the
specifications and pricing policies at the company’s sole decision.
Information in this publication replaces all previously released materials.
Information in this publication is subject to change without notice.
RIGOL shall not be liable for either incidental or consequential losses in
connection with the furnishing, use, or performance of this manual, as
well as any information contained.
Any part of this document is forbidden to be copied, photocopied, or
rearranged without prior written approval of RIGOL.
Product Certification
RIGOL guarantees that this product conforms to the national and industrial
standards in China as well as the ISO9001:2015 standard and the
ISO14001:2015 standard. Other international standard conformance
certifications are in progress.
Contact Us
If you have any problem or requirement when using our products or this
manual, please contact RIGOL.
E-mail: service@rigol.com
Website: www.rigol.com
MSO8000 Quick Guide 1
RIGOL
English
1. Only the exclusive power cord
designed for the instrument
and authorized for use within
the local country could be
used.
2. Ensure that the instrument is
safely grounded.
3. Observe all terminal ratings.
4. Use proper overvoltage
protection.
5. Do not operate without covers.
6. Do not insert objects into the
air outlet.
7. Use the proper fuse.
8. Avoid circuit or wire exposure.
9. Do not operate the instrument
with suspected failures.
10. Provide adequate ventilation.
11. Do not operate in wet conditions.
12. Do not operate in an explosive
atmosphere.
13. Keep instrument surfaces clean
and dry.
14. Prevent electrostatic impact.
15. Handle with caution.
WARNING
Indicates a potentially hazardous situation or practice which, if not
avoided, will result in serious injury or death.
CAUTION
Indicates a potentially hazardous situation or practice which, if not
avoided, could result in damage to the product or loss of
important data.
DANGER
It calls attention to an operation, if not correctly performed,
could result in injury or hazard immediately.
WARNING
It calls attention to an operation, if not correctly performed,
could result in potential injury or hazard.
CAUTION
It calls attention to an operation, if not correctly performed,
could result in damage to the product or other devices
connected to the product.
General Safety Summary
Safety Notices and Symbols
Safety Notices in this Manual:
Safety Terms on the Product:
2 MSO8000 Quick Guide
RIGOL
English
Hazardous
Voltage
Safety
Warning
Protective Earth
Terminal
Chassis Ground
Test Ground
CAUTION
To avoid damage to the instrument, do not expose it to caustic
liquids.
WARNING
To avoid short-circuit resulting from moisture or personal injuries,
ensure that the instrument is completely dry before connecting it
to the power supply.
Tip
For the latest version of this manual, download it from the official website
of RIGOL (www.rigol.com).
Safety Symbols on the Product:
Care and Cleaning
Care
Do not store or leave the instrument where it may be exposed to direct sunlight
for long periods of time.
Cleaning
Clean the instrument regularly according to its operating conditions.
1. Disconnect the instrument from all power sources.
2. Clean the external surfaces of the instrument with a soft cloth dampened
with mild detergent or water. When cleaning the LCD, take care to avoid
scarifying it.
Document Overview
This manual gives you a quick review about the front and rear panel of
MSO8000 series, the user interface, and the basic operation method.
MSO8000 Quick Guide 3
RIGOL
English
Label
Knob
Label
Knob
Horizontal
SCALE
Horizontal Time
Base Knob
Vertical
SCALE
Vertical Scale
Knob
Horizontal
POSITION
Horizontal
Position Knob
Vertical
OFFSET
Vertical Offset
Knob
Wave Vertical
SCALE
Waveform Vertical
Scale Knob
Trigger
LEVEL
Trigger Level
Knob
Wave Vertical
POSITION
Waveform Vertical
Position Knob
Multifunction
Knob
Model
Max.
Analog
Bandwidth
No. of
Analog
Channels
No. of Function/Arbitrary
Waveform Generator
Channels
No. of
Digital
Channels
MSO8064
600 MHz
4
2 (Opt.)
16 (Required
to purchase
the probe)
MSO8104
1 GHz
4
2 (Opt.)
16 (Required
to purchase
the probe)
MSO8204
2 GHz
4
2 (Opt.)
16 (Required
to purchase
the probe)
Format Conventions in this Manual
1. Key
The key on the front panel is denoted by the format of "Key Name (Bold)
+ Text Box" in the manual. For example, Utility denotes the "Utility" key.
2. Menu
The menu items are denoted by the format of "Menu Word (Bold) +
Character Shading". For example, System denotes the "System" menu
item under Utility.
3. Operation Procedures
denotes the next step of operation. For example, Utility System
denotes that first press Utility, and then press the System softkey.
4. Knob
Content Conventions in this Manual
MSO8000 series includes the following models. Unless otherwise specified, this
manual takes MSO8204 as an example to illustrate the functions and operation
methods of MSO8000 series digital oscilloscope.
4 MSO8000 Quick Guide
RIGOL
English
General Inspection
1． Inspect the packaging
If the packaging has been damaged, do not dispose the damaged
packaging or cushioning materials until the shipment has been checked
for completeness and has passed both electrical and mechanical tests.
The consigner or carrier shall be liable for the damage to the instrument
resulting from shipment. RIGOL would not be responsible for free
maintenance/rework or replacement of the instrument.
2． Inspect the instrument
In case of any mechanical damage, missing parts, or failure in passing the
electrical and mechanical tests, contact your RIGOL sales
representative.
3． Check the accessories
Please check the accessories according to the packing lists. If the
accessories are damaged or incomplete, please contact your RIGOL
sales representative.
Product Overview
MSO8000 series is a medium and high-end mixed signal digital oscilloscope
designed on the basis of the ASIC chip (RIGOL self-owns its intellectual
property right) and UltraVision II technical platform developed by RIGOL.
Integrating 7 independent instruments into one, the MSO8000 series is
equipped with the analog bandwidth of up to 2 GHz, extremely high memory
depth of 500 Mpts, sound waveform display effects, excellent waveform
capture rate, and powerful data analysis functions. Many of its specifications
have reached the top level in the industry. Meanwhile, it supports the real-time
eye diagram measurement and jitter analysis. Its cost-effective features and
high performance make it prominent as the 2 GHz mixed signal digital
oscilloscope.
For descriptions of the front panel, refer to Figure 1 and Table 1; for
descriptions of the rear panel, refer to Figure 2 and Table 2; and for
descriptions of the main interface (display screen), refer to Figure 3 and Table
3.
MSO8000 Quick Guide 5
RIGOL
English
No.
Description
No.
Description
1
Capacitive Touch Screen
11
RUN/STOP Key
2
Function Menu Operation Keys
12
Single Trigger Control Key
3
Quick Key (Shortcut Key)
13
Trigger Control System
4
Multifunction Knob
14
Vertical Control System
5
Common Operation Keys
15
Analog Channel Input Terminals
6
Touch Lock Key
16
Probe Compensation Signal Output
Terminal/Ground Terminal
7
Horizontal Control System
17
Digital Channel Input Interface
8
CLEAR Key
18
Dual-channel Function/Arbitrary
Waveform Generator Output
Terminals
[1]
9
Auto Waveform Display Key
19
USB HOST Interface
10
Waveform Control System
20
Power Key
1 2 3 4 5 6 7 8 9 10 11 12 13
20 19 18 17 16 15 14

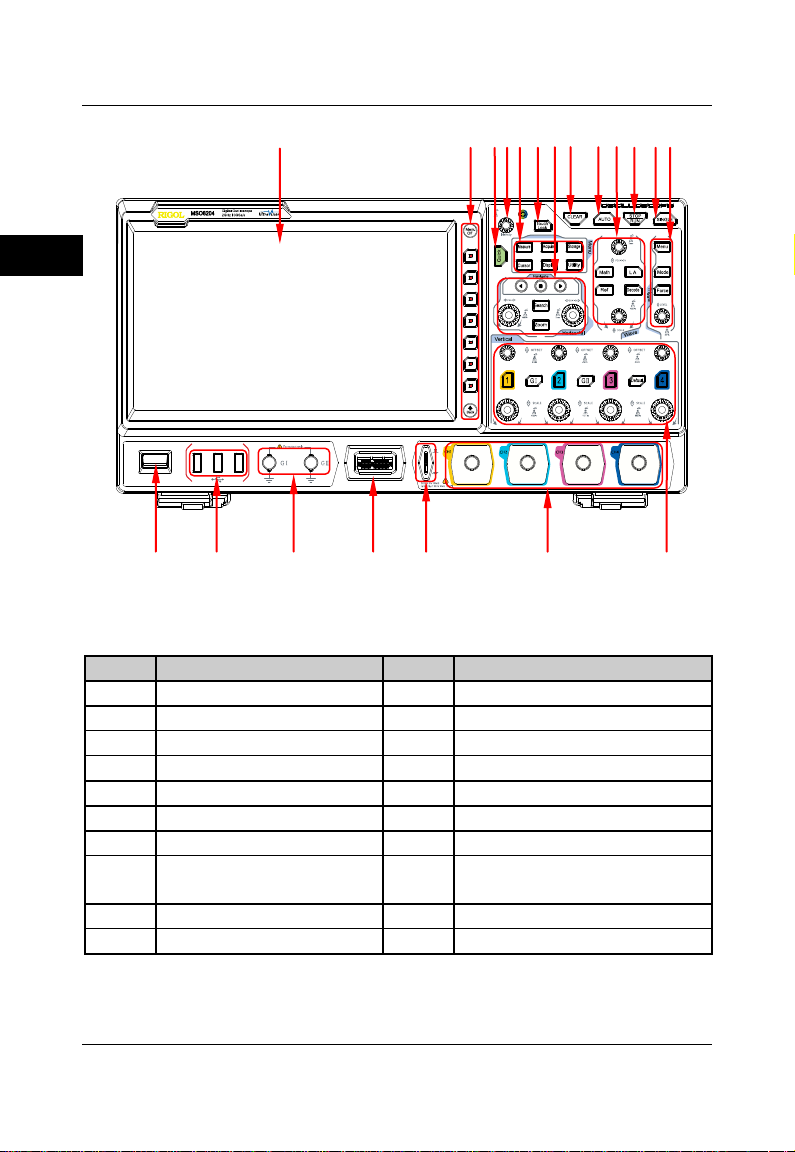

Figure 1 Front Panel
Table 1 Front Panel Description
[1]
Note:
This port function needs to be activated by purchasing the MSO8000-AWG option.
6 MSO8000 Quick Guide
RIGOL
English
No.
Description
1
Handle
2
LAN Interface
3
USB DEVICE Interface
4
USB HOST Interface
5
HDMI Video Output
6
Reference Clock Input/Output
7
EXT Trigger Input
8
Trigger Output Interface
9
Kensington Security Lock Hole
10
Fuse
11
AC Power Cord Connector
1 2 3 4 5
11 10 9 8 7 6
Figure 2 Rear Panel
Table 2 Rear Panel Description
MSO8000 Quick Guide 7
RIGOL
English
No.
Description
No.
Description
1
Analog Channel Label and Waveform
13
Operation Menu
2
Operating Status
14
Notification Area
3
Horizontal Time Base
15
Arbitrary Waveform Generator 2
Waveform Label
4
Sample Rate and Memory Depth
16
Arbitrary Waveform Generator 1
Waveform Label
5
Auto Measurement Label
17
Digital Channel Status Area
6
Waveform Memory
18
CH4 Status Label
7
Trigger Position
19
Message Box
8
RUN/STOP Label
20
CH3 Status Label
9
Horizontal Position
21
CH2 Status Label
10
Trigger Type
22
CH1 Status Label
11
Trigger Source
23
Digital Channel Label and Waveform
12
Trigger Level/Threshold Level
24
Function Navigation
24 23 22 21 20 19 18 17 16 15 14 13
1 2 3 4 5 6 7 8 9 10 11 12
Table 3 User Interface Icons
8 MSO8000 Quick Guide

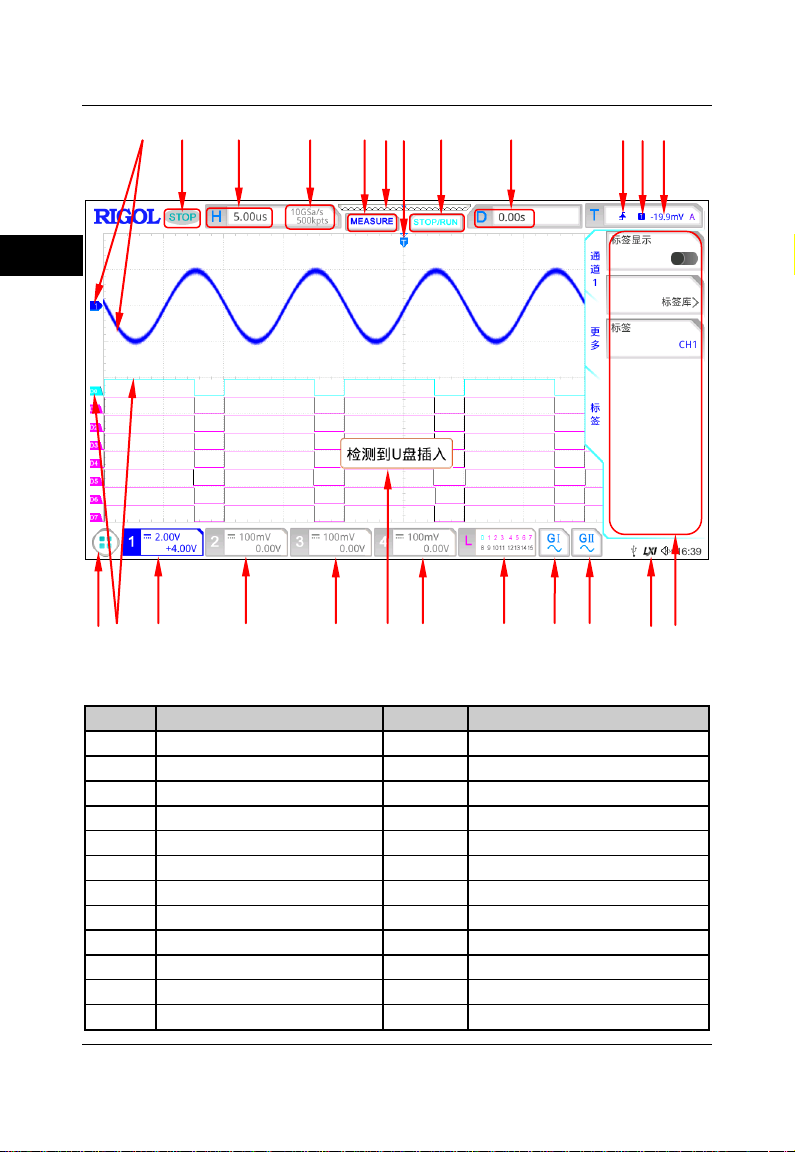

Figure 3 User Interface
RIGOL
English
(a) To unfold the supporting legs
(b) To fold the supporting legs
Power Cord Connector
Supporting Legs
To Prepare for Use
To Adjust the Supporting Legs
Adjust the supporting legs properly to use them as stands to tilt the oscilloscope
upwards for stable placement of the oscilloscope as well as better operation
and observation, as shown in Figure 4.
To Connect to AC Power
The input AC power requirements of the oscilloscope are 100~240 V, 45~440
Hz. Please use the power cord provided in the accessories to connect the
oscilloscope to the AC power source via the power cord connector, as shown in
Figure 5.
MSO8000 Quick Guide 9
Figure 4 To Adjust the Supporting Legs

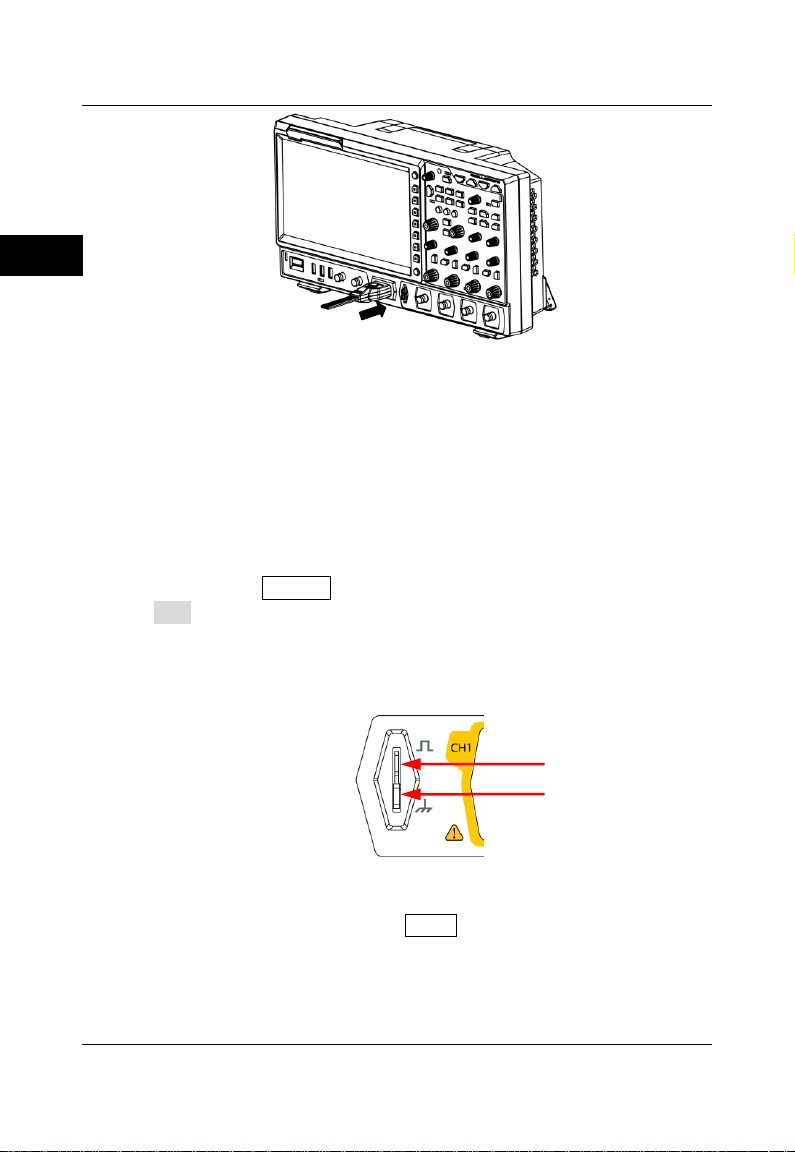

Figure 5 To Connect to AC Power
RIGOL
English
Turn-on Checkout
When the oscilloscope is connected to power, press the Power key at the
lower-left corner of the front panel to start the oscilloscope. (You can also press
Utility System Power status, and select "Switch On". After the
instrument is connected to power source, it will start directly.) During the
start-up process, the oscilloscope performs a series of self-tests. After the
self-test, the welcome screen is displayed.
To Set the System Language
MSO8000 series oscilloscope supports multiple system languages. You can
press Utility Language to set the system language.
To Connect the Probe
RIGOL provides the passive probe, the active probe, and the logic probe for
MSO8000 series. For specific probe models, please refer to
Datasheet
specified Probe User’s Guide.
Connect the passive probe:
1. Connect the BNC terminal of the probe to an analog channel input
2. Connect the ground alligator clip or spring of the probe to the circuit
. For detailed technical information of the probes, please refer to the
terminal of the oscilloscope on the front panel, as shown in Figure 6.
ground terminal, and then connect the probe tip to the circuit point to be
tested.
MSO8000 Series
Figure 6 To Connect the Passive Probe
After you connect the passive probe, check the probe function and probe
10 MSO8000 Quick Guide
RIGOL
English
compensation adjustment before making measurements. For detailed
procedures, refer to "Function Inspection" and the "Probe
Compensation" sections introduced in this manual.
Connect the active probe:
Take RP7150 (the active differential probe) as an example.
1. Connect the probe head to the preamp of the active probe, as shown in
Figure 7.
Figure 7 To Connect the Probe Head to the Preamp of the Active Probe
2. Connect the other end of the preamp to an analog channel input terminal
of the oscilloscope on the front panel, as shown in Figure 8. Note that you
should push the probe to the end to ensure that it is tightly connected.
Figure 8 To Connect the Active Probe
3. Use the probe auxiliary equipment to connect the probe front to the circuit
under test. For details about the probes, refer to
Probe User's Guide
.
RP7000 Series Active
After connecting the active probe, you can perform probe calibration and offset
voltage adjustment if necessary. For detailed procedures, refer to the
descriptions of the active probe in user's guide.
MSO8000 Quick Guide 11
RIGOL
English
Connect the logic probe:
1. Connect the output terminal of the logic probe to the digital channel input
terminal on the front panel of the oscilloscope in the correct direction, as
shown in Figure 9.
2. Connect the other terminal of the logic probe to the signal terminal under
test. RIGOL's MSO8000 series has a configuration of a logic probe
RPL2316. To apply to different application scenarios, RPL2316 provides
three connection methods to connect the signal under test. For details,
refer to
RPL2316 Logic Probe User’s Guide
.
Figure 9 To Connect the Logic Probe
Note:
Before you connect the logic probe to the signal under test, connect logic
probe's adapter provided in the accessories to its corresponding channel
group.
The digital channel input terminal does not support hot plugging. Please
do not insert or pull out the logic probe when the instrument is in
power-on state.
Function Inspection
1. Press Default on the front panel, and then a prompt message "Restore
default?" is displayed. Press or tap OK to restore the oscilloscope to its
factory default settings.
2. Connect the ground alligator clip of the probe to the "Ground Terminal" as
shown in Figure 10 below.
3. Use the probe to connect the input terminal of CH1 of the oscilloscope and
the "Compensation Signal Output Terminal" of the probe, as shown in
Figure 10.
12 MSO8000 Quick Guide
RIGOL
English
WARNING
To avoid electric shock when using the probe, please make sure
that the insulated wire of the probe is in good condition. Do not
touch the metallic part of the probe when the probe is connected
to high voltage source.

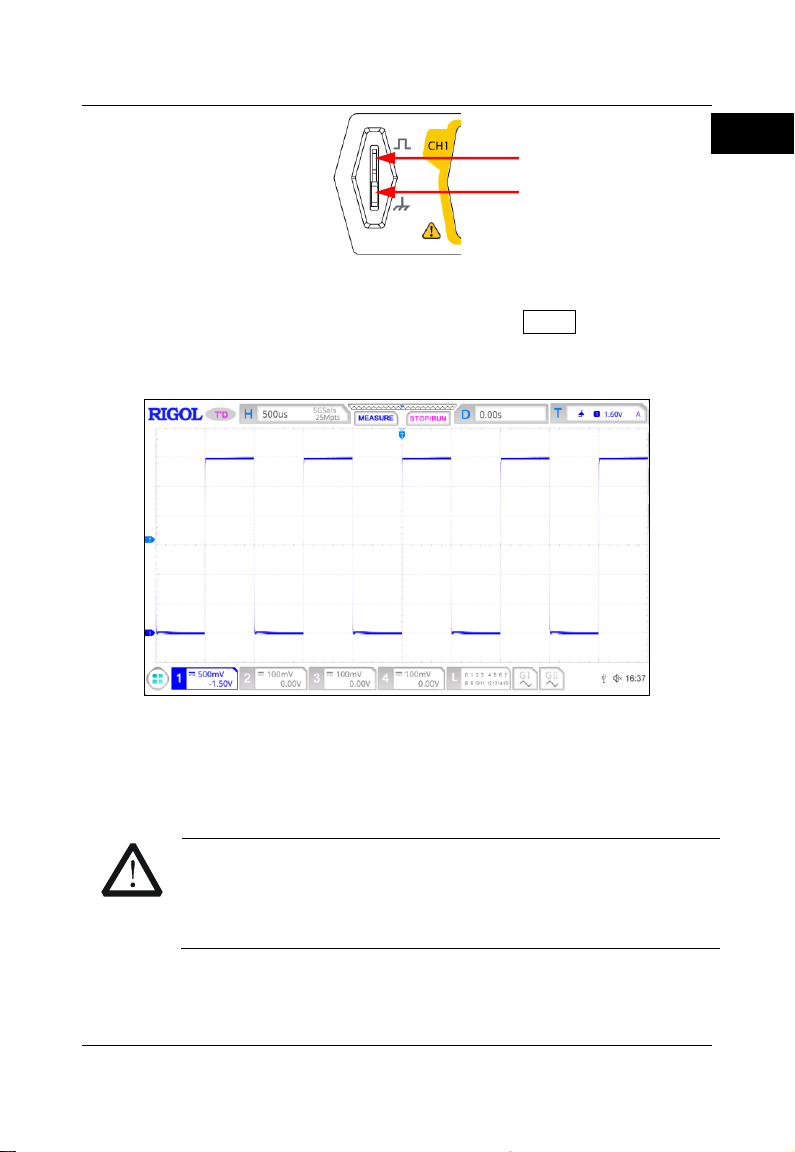

Compensation Signal
Output Terminal
Ground Terminal
Figure 10 To Use the Compensation Signal
4. Set the probe attenuation to 10X, and then press AUTO.
5. Observe the waveform on the display. In normal condition, the square
waveform as shown in Figure 11 should be displayed.
Figure 11 Square Waveform Signal
6. Use the same method to test the other channels. If the square waveforms
actually shown do not match that in the figure above, please perform
"Probe Compensation" introduced in this manual.
MSO8000 Quick Guide 13
RIGOL
English
Over compensated Perfectly compensated Under compensated
Probe Compensation
When the probes are used for the first time, you should compensate the probes
to make them match the input channels of the oscilloscope. Non-compensated
or poorly compensated probes may cause measurement inaccuracy or errors.
The probe compensation procedures are as follows:
1. Perform Step 1, 2, 3 and 4 specified in "Function Inspection".
2. Check the displayed waveforms and compare them with Figure 12.
Figure 12 Probe Compensation
3. Use a nonmetallic screwdriver to adjust the low-frequency compensation
adjustment hole on the probe until the waveform is displayed as "Perfectly
compensated" in the figure above.
Touch Screen Operation
MSO8000 series provides a 10.1-inch super large capacitive touch screen,
which supports multi-touch and gesture operation. It has strong waveform
display capability and excellent user experience. It features great convenience,
high flexibility, and great sensitivity. The actions supported by the touch screen
controls include tapping, pinching&stretching, dragging as well as rectangle
drawing.
Tap
Use one finger to touch the symbol or characters on the screen slightly, as
shown in Figure 13. The actions supported by the tap action include:
Tap and operate the menus on the menu.
Tap the function navigation icon at the lower-left corner of the touch
screen to enable the function navigation.
Tap the displayed numeric keypad to set the parameters.
Tap the virtual keypad to set the label name and the filename.
Tap close button at the upper-right corner of the message box to close it.
Tap and operate the windows on the screen.
14 MSO8000 Quick Guide
RIGOL
English
Figure 13 Tap Gesture
Pinch&Stretch
Pinch or stretch two points on the screen with two fingers to zoom in or out the
waveform. To zoom in the waveform, first pinch the two fingers and then
stretch the fingers; to zoom out the waveform, first stretch the two fingers, and
then pinch the fingers together, as shown in Figure 14. The actions supported
by the pinch action include:
Pinching&stretching in the horizontal direction can adjust the horizontal
time base of the waveform.
Pinching&stretching in the vertical direction can adjust the vertical scale of
the waveform.
Figure 14 Pinch&Stretch Gesture

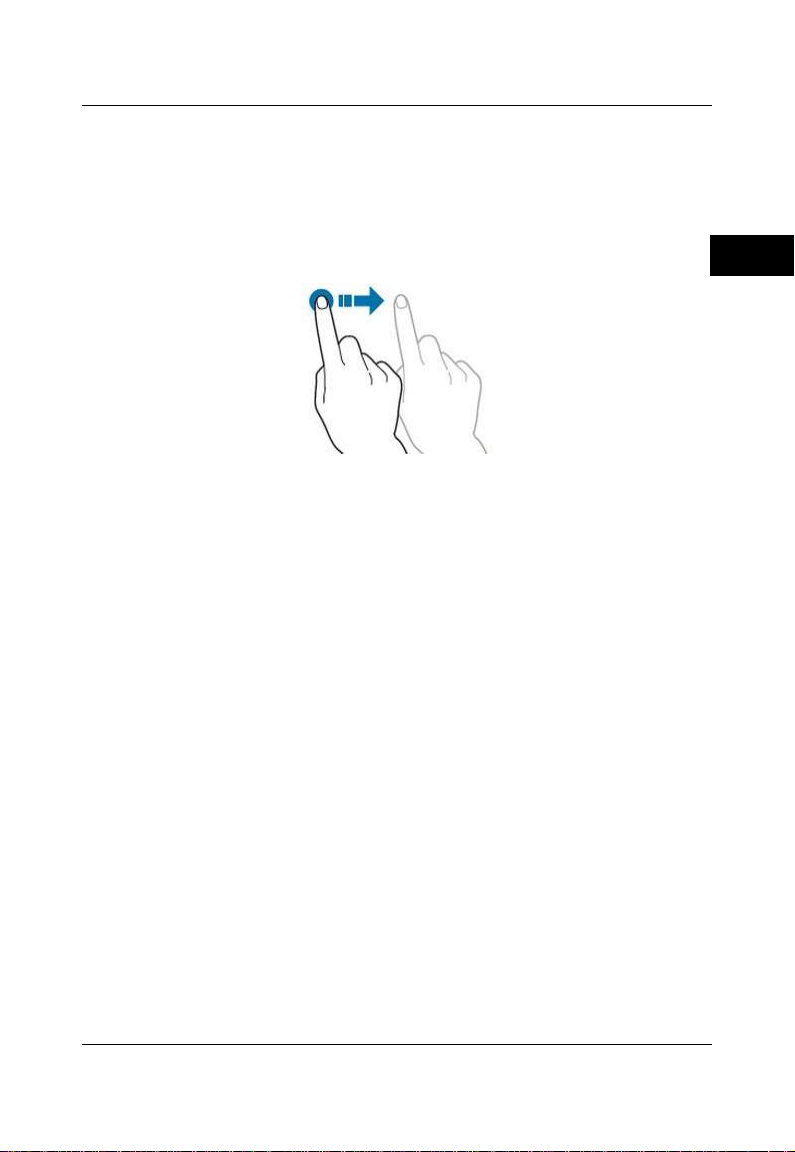

Drag
Use one finger to select the object, and then drag the object to a destination
place, as shown in Figure 15. The actions supported by the drag action include:
Drag the waveform to change its position or offset.
Drag the window controls to change the positions of the controls (e.g.
numeric keypad).
Drag the marker to change the position of the marker.
MSO8000 Quick Guide 15
RIGOL
English
Figure 15 Drag Gesture
Rectangle Drawing
Enable the function navigation, and then tap the "Draw rect" icon to switch to
the rectangle drawing mode. Drag to draw a rectangle on the screen, as shown
in Figure 16. The actions supported by the rectangle drawing include:
Select "Trigger zone A":
Draw the region for Trigger zone A;
Open Trigger zone A;
Open the "Zone trig" menu.
Select "Trigger zone B":
Draw the area for Trigger zone B;
Open Trigger zone B;
Open the "Zone trig" menu.
Select "Histogram":
Draw the region for the histogram;
Open the "Histogram" menu.
Select "Horizontal zoom": expands the waveforms in the horizontal
direction.
Select "Vertical zoom": expands the waveforms in the vertical direction.
Select "waveform zoom": expands the waveforms both in the horizontal
and vertical direction.
Figure 16 Rectangle Drawing Gesture
16 MSO8000 Quick Guide
RIGOL
English
Help Options Help Display Area
To Use the Built-in Help System
The help system of this oscilloscope provides instructions for all the function
keys on the front panel and their corresponding menu keys. The steps for
opening the built-in help system are as follows:
1. Press Utility System Help, and then the "Help" menu is displayed
on the screen. You can also use the touch screen function, tap the
function navigation icon at the lower-left corner of the touch screen to
enable the function navigation. Tap the "Help" icon, and then the "Help"
menu is displayed on the screen.
2. Press Help, and then the help information is displayed on the screen, as
shown in Figure 17. The help interface mainly consists of two sections.
The left section lists "Help Options", and the right section is the "Help
Display Area".
After opening the help interface, you can get its help information in the "Help
Display Area" through the following three methods:
Method 1:
For the keys, you can directly press the front-panel keys (except the Power key
, the Menu Off key and Back key) to obtain the help information. For the
buttons, you can rotate the knob or press down the knob to get the help
information (except the multifunction knob ). As the function of rotating the
MSO8000 Quick Guide 17
Figure 17 Help Information
RIGOL
English
Tip
Help information for other keys and buttons:
Power key : powers on/off the instrument.
Menu Off key: displays or hides menus. By default, menus are
displayed. If menus are hidden, pressing this key can display
the menus again.
Back key: returns to the previous menu or the last set function
menu.
Multifunction knob : In non-menu-operation mode, rotate
this knob to adjust the brightness of waveform display. When
you operate on the menu, this knob is illuminated. For the
menu item that has multiple parameters under it, when you
press the menu softkey, rotate the knob to select the parameter
item, then press down the knob to select it (sometimes, the
specified parameter item can be selected by rotating the knob).
It can also be used to modify parameters, input a filename, etc.
If the menu item is grayed out, you cannot press the corresponding
front-panel menu key to obtain the help information. What you can
do is only to follow the above Method 2 or 3 to get the help
information.
knob is different from that of pressing down the knob, these two operations will
give you different help information.
Method 2:
In the "Help Options", rotate the multifunction knob to switch among the
help options to get the corresponding help information.
Method 3:
Enable the touch screen and tap the desired help option to get the
corresponding help information.
18 MSO8000 Quick Guide
RIGOL
English

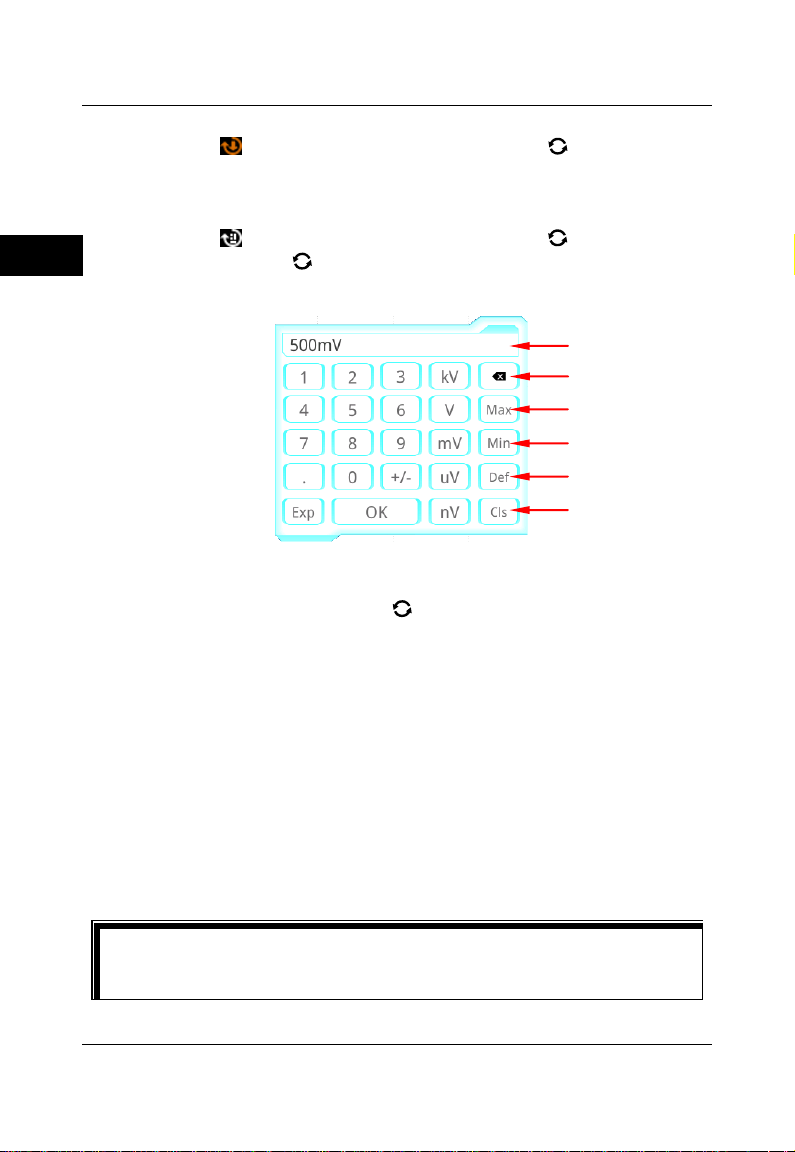

Parameter Input Field
Delete Key
Max. Value Key
Min. Value Key
Default Key
Clear Key
Parameter Setting Method
For the MSO8000 series, you can use the multifunction knob or enable the
touch screen to set the parameters of MSO8000 series. The common parameter
setting methods are as follows:
Method 1:
For the parameters with the sign , rotate the multifunction knob on the
front panel directly to select the parameter item or modify the parameter value.
Method 2:
For the parameters with the sign , rotate the multifunction knob on the
front panel and press it down to select the parameter item or modify the
parameter value.
Method 3:
For the parameters with displayed on the menu, rotate the multifunction
knob on the front panel directly to set the parameter, or press down the
multifunction knob or the specified menu softkey, and then the numeric
keypad is shown in Figure 18 below.
In the numeric keypad, rotate the multifunction knob to select the
parameter, then press down the knob to select it. Then input the value or the
unit. You can also enable the touch screen and tap the value or unit in the
numeric keypad to input them. After you input all the values and select the
desired units, the numeric keypad is turned off automatically. This indicates
that you have completed parameter setting. Besides, after you have input the
MSO8000 Quick Guide 19
Figure 18 Numeric Keypad
RIGOL
English
Tip
The above method is commonly used for the parameter settings of the
oscilloscope. For other methods of parameter settings, refer to details in
relevant chapters of
MSO8000 User's Guide
.
values, you can also press OK directly to close the numeric keypad. At this time,
the unit of the parameter is the default unit. In the numeric keypad, you can
also perform the following operations:
Delete the parameter value that has been input.
Set the parameter to a maximum or minimum value (sometimes, the
maximum or minimum value are the specified one for the current state).
Set the parameter to a default value.
Clear the parameter input field.
Method 4:
For the parameters without the above signs, press the desired menu softkey to
switch between the parameter items. This method is applicable to the
parameters with only two available options.
20 MSO8000 Quick Guide
RIGOL
English
WARNING
To avoid electric shock, please ensure that the instrument has
been turned off, the power source has been cut off, and the
fuse to be used conforms to the fuse rating.

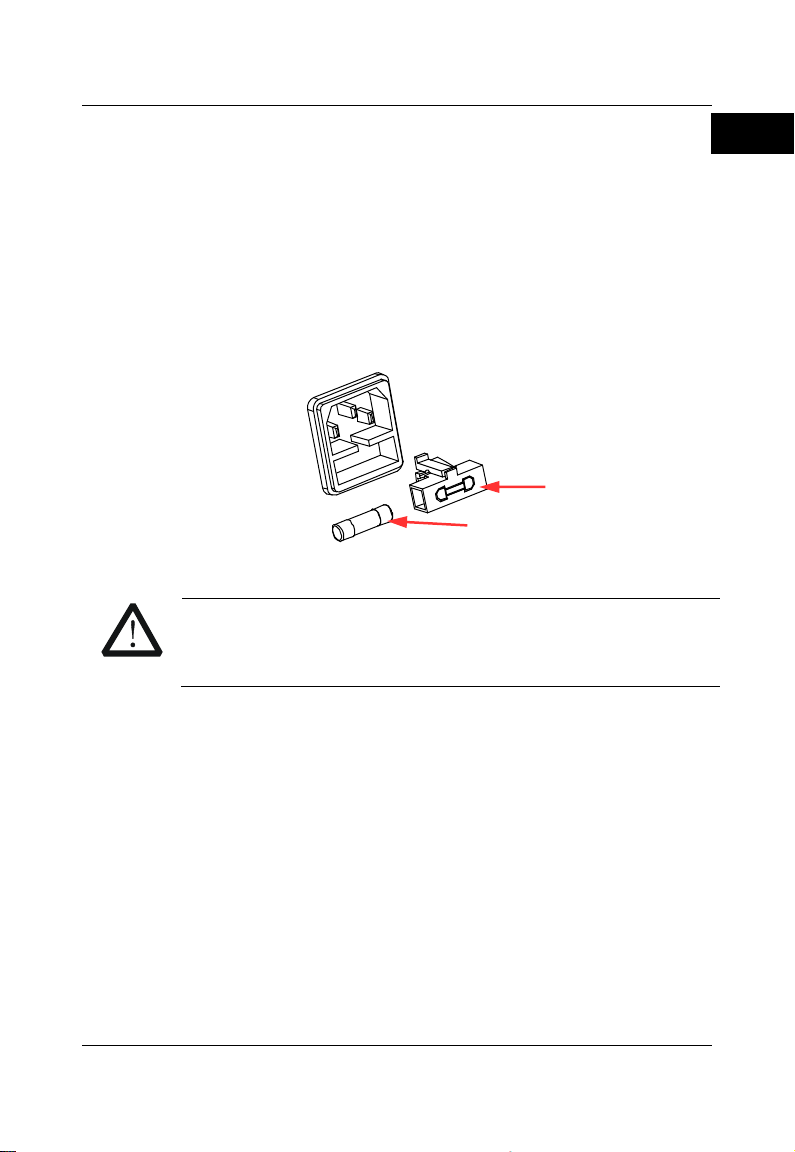

Fuse Holder
Fuse
Fuse Replacement
If you need to replace the fuse, use only the specified fuse (AC 250 V, T3.15 A;
5.2 mm× 20 mm) and perform the following operations, as shown in Figure 19:
1．Turn off the instrument, cut off the power, and remove the power cord.
2．Use a small straight slotted screwdriver to pry out the fuse holder.
3．Take out the fuse.
4．Replace the old fuse with a specified fuse.
5．Install the fuse holder.
Figure 19 Fuse Replacement
MSO8000 Quick Guide 21
RIGOL
English
Remote Control
MSO8000 series digital oscilloscope can be connected to the PC via the USB,
LAN, or GPIB interface to set up communication and realize remote control
through the PC. The remote control can be realized by using SCPI (Standard
Commands for Programmable Instruments) commands. MSO8000 series digital
oscilloscope supports three ways of remote control: user-defined programming,
PC software (e.g. RIGOL Ultra Sigma), and Web Control.
More Product Information
1. Obtain the device information
Press Utility System About to obtain the information of the
instrument, such as the manufacturer, model, serial number, hardware
version number, etc. You can also open the "Help" menu, and then press
About to obtain the device information.
2. View the option information and the option installation
The instrument is installed with the trial versions of the options before
leaving factory. When you power on the instrument for the first time after
leaving factory, the trial time is about 2,160 minutes. Open the "Help"
menu, and then press Option list to view the options currently installed
on the oscilloscope and their information. Press Option setup to install
the option. For detailed setting methods, refer to descriptions in
User's Guide
For more information about this instrument, refer to the relevant manuals by
logging in to the official website of RIGOL (www.rigol.com) to download them.
MSO8000 User's Guide
operation methods, remote control methods, possible failures and solutions in
using the instrument, the technical specifications, and order information.
MSO8000 Programming Guide
commands and programming examples of the instrument.
MSO8000 Datasheet
the instrument.
.
: introduces the functions of the instrument and the
: provides detailed descriptions of SCPI
: provides the main features and technical specifications of
MSO8000
22 MSO8000 Quick Guide
中文
快速指南
MSO8000 系列数字示波器
RIGOL (SUZHOU) TECHNOLOGIES INC.
2019 年 8 月
RIGOL
中文
保证和声明
版权
© 2019 苏州普源精电科技有限公司
商标信息
RIGOL 是苏州普源精电科技有限公司的注册商标。
文档编号
QGA26002-1110
声明
本公司产品受中国及其他国家和地区的专利（包括已取得的和正在申请的
专利）保护。
本公司保留改变规格及价格的权利。
本手册提供的信息取代以往出版的所有资料。
本手册提供的信息如有变更，恕不另行通知。
对于本手册可能包含的错误，或因手册所提供的信息及演绎的功能以及因
使用本手册而导致的任何偶然或继发的损失，RIGOL 概不负责。
未经 RIGOL 事先书面许可，不得影印、复制或改编本手册的任何部分。
产品认证
RIGOL 认证本产品符合中国国家产品标准和行业产品标准及 ISO9001:2015 标
准和 ISO14001:2015 标准，并进一步认证本产品符合其他国际标准组织成员的
相关标准
联系我们
如您在使用此产品或本手册的过程中有任何问题或需求，可与 RIGOL 联系：
电子邮箱：service@rigol.com
网址：www.rigol.com
MSO8000 快速指南 1
RIGOL
中文
1. 请使用所在国家认可的本产品
专用电源线。
2. 请确保产品可靠接地。
3. 查看所有终端额定值。
4. 请使用合适的过压保护。
5. 请勿开盖操作。
6. 请勿将异物插入排风口。
7. 请使用合适的保险丝。
8. 避免电路外露。
9. 怀疑产品出故障时，请勿进行操
作。
10. 请保持适当的通风。
11. 请勿在潮湿环境下操作。
12. 请勿在易燃易爆的环境下操作。
13. 请保持产品表面的清洁和干燥。
14. 请注意防静电保护。
15. 请注意搬运安全。
警告
警告性声明指出可能会造成人身伤害或危及生命安全的情况或操
作。
注意
注意性声明指出可能导致本产品损坏或数据丢失的情况或操作。
DANGER
表示您如果不进行此操作，可能会立即对您造成危害。
WARNING
表示您如果不进行此操作，可能会对您造成潜在的危害。
CAUTION
表示您如果不进行此操作，可能会对本产品或连接到本产品
的其他设备造成损坏。
高电压
安全警告
保护性接地端
壳体接地端
测量接地端
一般安全概要
安全术语和符号
本手册中的安全术语：
产品上的安全术语：
产品上的安全符号：
2 MSO8000 快速指南
RIGOL
中文
注意
请勿使任何腐蚀性的液体沾到仪器上，以免损坏仪器。
警告
重新通电之前，请确认仪器已经干透，避免因水分造成电气短路甚
至人身伤害。
提示
本手册的最新版本可登陆 RIGOL 网址（www.rigol.com）进行下载。
保养与清洁
保养
请勿将仪器放置在长时间受到日照的地方。
清洁
请根据使用情况定期对仪器进行清洁。方法如下：
1. 断开电源。
2. 用柔和的清洁剂或清水浸湿软布擦拭仪器外部。清洁带有液晶显示屏的仪
器时，请注意不要划伤液晶显示屏。
文档概述
本文档用于指导用户快速了解MSO8000系列数字示波器的前后面板、用户界面
及基本操作方法等。
文档格式的约定
1. 按键
用“按键字符（加粗）+文本框”表示前面板按键，如 Utility 表示“Utility”
按键。
2. 菜单
用“菜单文字（加粗）+字符底纹”表示一个菜单选项，如 系统 表示 Utility
按键下的“系统”菜单选项。
MSO8000 快速指南 3
RIGOL
中文
标识
旋钮
标识
旋钮
水平 SCALE
水平时基旋钮
垂直 SCALE
垂直档位旋钮
水平 POSITION
水平位移旋钮
垂直 OFFSET
垂直偏移旋钮
波形垂直 SCALE
波形垂直档位旋钮
触发 LEVEL
触发电平旋钮
波形垂直 POSITION
波形垂直位移旋钮
多功能旋钮
型号
最高模拟带宽
模拟通道数
函数/任意波形发
生器通道数
数字通道数
MSO8064
600 MHz
4
2（选件）
16（需选配探头）
MSO8104
1 GHz
4
2（选件）
16（需选配探头）
MSO8204
2 GHz
4
2（选件）
16（需选配探头）
3. 操作步骤
用箭头“”表示下一步操作，如 Utility 系统 表示按下前面板上的
Utility 按键后，再按 系统 菜单键。
4. 旋钮
文档内容的约定
MSO8000系列数字示波器包含以下型号。如无特殊说明，本手册以MSO8204为
例说明MSO8000系列及其基本操作。
4 MSO8000 快速指南
RIGOL
中文
一般性检查
1． 检查运输包装
如运输包装已损坏，请保留被损坏的包装或防震材料，直到货物经过完全
检查且仪器通过电性和机械测试。
因运输造成仪器损坏，由发货方和承运方联系赔偿事宜。RIGOL公司恕不
进行免费维修或更换。
2． 检查整机
若存在机械损坏或缺失，或者仪器未通过电性和机械测试，请联系您的
RIGOL 经销商。
3． 检查随机附件
请根据装箱单检查随机附件，如有损坏或缺失，请联系您的RIGOL经销商。
产品简介
MSO8000 系列数字示波器是基于 RIGOL 自主知识产权的 ASIC 芯片和
UltraVision II 技术平台的中高端混合信号数字示波器。示波器模拟通道带宽高达
2 GHz，集 7 种仪器于一身，具有 500 Mpts 超大存储深度、良好的波形显示效
果、优异的波形捕获率和强大的数据分析功能，多项指标均达业界一流水平，并
且支持实时眼图测量和抖动分析，是业内最具性价比优势的 2 GHz 混合信号数
字示波器。
前面板、后面板和主界面（显示屏）的简要介绍请分别参考图 1（具体说明见表
1）、图 2（具体说明见表 2）和图 3（具体说明见表 3）。
MSO8000 快速指南 5
RIGOL
中文
编号
说明
编号
说明
1
电容触摸屏
11
运行/停止控制键
2
功能菜单操作键
12
单次触发控制键
3
Quick 快捷键
13
触发控制系统
4
多功能旋钮
14
垂直控制系统
5
常用操作键
15
模拟通道输入
6
触摸屏锁定键
16
探头补偿信号输出端/接地端
7
水平控制系统
17
数字通道输入
8
全部清除键
18
双通道函数/任意波形发生器
输出端
[1]
9
波形自动显示键
19
USB HOST 接口
10
波形控制系统
20
电源键
1 2 3 4 5 6 7 8 9 10 11 12 13
20 19 18 17 16 15 14
图 1 前面板
表 1 前面板说明
[1]
注
：该端口功能需购买 MSO8000-AWG 选件进行激活。
6 MSO8000 快速指南
中文
编号
说明
1
手柄
2
LAN 接口
3
USB DEVICE 接口
4
USB HOST 接口
5
HDMI 高清视频输出
6
参考时钟输入/输出端
7
EXT 触发输入端
8
触发输出接口
9
Kensington 安全锁孔
10
保险丝
11
AC 电源插孔
1 2 3 4 5
11 10 9 8 7 6
RIGOL
图 2 后面板
表 2 后面板说明
MSO8000 快速指南 7
RIGOL
中文
编号
说明
编号
说明
1
模拟通道标签和波形
13
操作菜单
2
运行状态
14
通知区域
3
水平时基
15
任意波发生器 2 波形标签
4
采样率和存储深度
16
任意波发生器 1 波形标签
5
自动测量标签
17
数字通道状态区
6
波形存储器
18
CH4 状态标签
7
触发位置
19
消息框
8
运行/停止控制标识
20
CH3 状态标签
9
水平位移
21
CH2 状态标签
10
触发类型
22
CH1 状态标签
11
触发源
23
数字通道标签和波形
12
触发电平/阈值电平
24
功能导航
24 23 22 21 20 19 18 17 16 15 14 13
1 2 3 4 5 6 7 8 9 10 11 12
图 3 用户界面
表 3 用户界面标识
8 MSO8000 快速指南
RIGOL
中文
支撑脚
电源插孔
使用前准备
调节支撑脚
适当的调整支撑脚，将其作为支架使示波器向上倾斜，以稳定放置示波器，便于
更好的操作和观察显示屏，如图 4 所示。
（a）打开支撑脚 （b）关闭支撑脚
图 4 调节支撑脚
连接电源
本示波器可输入交流电源的规格为：100~240 V，45~440 Hz。请使用附件提供
的电源线按图 5 所示将示波器连接到电源中。
图 5 连接电源
MSO8000 快速指南 9
RIGOL
中文
开机检查
当示波器处于通电状态时，按前面板左下角的电源键 即可启动示波器。（您
也可以通过按 Utility 系统 电源状态，选择“开关常开”，示波器通电后
直接开机）。开机过程中示波器执行一系列自检，自检结束后出现开机画面。
设置系统语言
MSO8000 系列示波器支持多种系统语言，您可以按 Utility Language 设置
系统语言。
连接探头
RIGOL 为 MSO8000 系列提供无源探头、有源探头和逻辑探头。探头的具体型
号请参考《MSO8000 系列数据手册》。有关探头的详细技术信息请参考相应的探
头用户手册。
连接无源探头：
1. 将探头的 BNC 端连接至示波器前面板的模拟通道输入端，如图 6 所示。
2. 将探头接地鳄鱼夹或接地弹簧连接至电路接地端，然后将探针连接至待测
电路测试点中。
图 6 连接无源探头
连接无源探头后，您需要在测量前进行探头功能检查和探头补偿调节，具体步骤
请参考本手册中“功能检查”和“探头补偿”一节介绍的内容。
10 MSO8000 快速指南
RIGOL
中文
连接有源探头：
以 RP7150（差分有源探头）为例：
1. 将探头前端与有源探头放大器连接，如图 7 所示。
图 7 连接探头前端与有源探头放大器
2. 将有源探头放大器的另一端连接至示波器前面板的模拟通道输入端，如 图
8 所示。注意将探头推到紧闭的位置。
图 8 连接有源探头
3. 使用探头辅助装置将探头前端 连接到待测 电路中。探头详细信息请参考
《RP7000 系列有源探头用户手册》。
连接有源探头后，您可以根据需要进行探头校准和偏移电压调整等，具体步骤请
参考本产品用户手册中关于有源探头内容的介绍。
连接逻辑探头：
1. 将逻辑探头输出端按正确的方向连接至示波器前面板的数字通道输入端，如
图 9 所示。
2. 将逻辑探头另一端连接至待测信号端。RIGOL 为 MSO8000 配置 RPL2316
逻辑探头，为适应不同的应用场合，RPL2316 提供了三种连接被测信号的方
法，具体请参考《RPL2316 逻辑探头用户手册》。
MSO8000 快速指南 11
RIGOL
中文
补偿信号输出端
接地端
图 9 连接逻辑探头
注意：
将逻辑探头连接至待测信号前，须将附件提供的逻辑探头适配器与其对应
的通道组连接。
数字通道输入接口不支持热插拔，请勿在仪器带电的情况下插入或拔出逻
辑探头。
功能检查
1. 按示波器前面板 Default 键，屏幕弹出“确定恢复默认设置？”提示框，
按 确定 键或点击“确定”选项将示波器恢复为出厂默认配置。
2. 将探头的接地鳄鱼夹连接至图 10 所示的“接地端”。
3. 使用探头连接示波器的通道 1（CH1）输入端和图 10 所示的“补偿信号输
出端”。
图 10 使用补偿信号
4. 将探头衰减比设定为 10X，然后按 AUTO 键。
5. 观察示波器显示屏上的波形，正常情况下应显示图 11 所示的方波信号。
12 MSO8000 快速指南
RIGOL
中文
警告
为避免使用探头时被电击，请首先确保探头的绝缘导线完好，并
且在连接高压源时不要接触探头的金属部分。
补偿过度 补偿正确 补偿不足
图 11 方波信号
6. 用同样方法检查其他通道。如实际显示的方波形状与上图不相符，请执行
本手册中“探头补偿”一节介绍的内容。
探头补偿
首次使用探头时，应进行探头补偿调节，使探头与示波器输入通道匹配。未经补
偿或补偿偏差的探头会导致测量误差或错误。探头补偿步骤如下：
1. 执行上一节“功能检查”介绍中的步骤 1、2、3 和 4。
2. 检查所显示的波形形状并与图 12 所得波形进行对比。
图 12 探头补偿
3. 使用附件中提供的探头补偿调节棒调整探头上的低频补偿调节孔，直到显
示的波形如上图 12 所示的“补偿正确”。
MSO8000 快速指南 13
RIGOL
中文
触摸屏操作
MSO8000 系列提供 10.1 英寸超大电容触摸屏，支持多点触控和手势操作，兼顾
了强大的波形显示能力及优异的用户体验，具有简捷方便、灵活和高灵敏度等特
点。触摸屏控件支持的功能包括触摸、捏合、拖动和矩形绘制。
触摸
用一个手指轻轻点碰屏幕上的图符或文字，如图 13 所示。触摸可实现的功能包
括：
触摸屏幕上显示的菜单，可对菜单进行操作。
触摸屏幕左下角的功能导航图标 ，可打开功能导航。
触摸弹出的数字键盘，可对参数进行设置。
触摸虚拟键盘，设置标签名和文件名。
触摸信息弹出框右上角的关闭按钮，关闭弹出框。
触摸屏幕上显示的其他窗口，对窗口进行操作。
图 13 触摸手势
捏合
将两根手指靠拢在一起或分开。捏合手势可放大或缩小相关波形。需放大时，先
将两根手指先靠拢在一起，然后滑动分开；需缩小时，先将两根手指分开，然后
滑动在一起，如图 14 所示。捏合可实现的功能包括：
水平方向捏合可调整波形的水平时基。
垂直方向捏合可调整波形的垂直档位。
图 14 捏合手势
14 MSO8000 快速指南
RIGOL
中文
拖动
用单指按住拖动目标不放，然后将其拖至目标位置，如图 15 所示。拖动可实现
的功能包括：
拖动波形以改变波形位移或偏移。
拖动窗口控件以改变窗口位置（如数字键盘）。
拖动光标以改变光标位置。
图 15 拖动手势
矩形绘制
打开功能导航，然后点击“矩形绘制”图标，切换为矩形绘制模式，在屏幕上拖
动手指以绘制矩形，如图 16 所示。矩形绘制可实现的功能包括：
选择“区域触发 A”：
绘制区域触发 A 的区域；
打开区域触发 A；
打开“区域触发”菜单。
选择“区域触发 B”：
绘制区域触发 B 的区域；
打开区域触发 B；
打开“区域触发”菜单。
选择“直方图”：
绘制直方图的范围；
打开“直方图”菜单。
选择“水平缩放”：水平方向扩展波形。
选择“垂直缩放”：垂直方向扩展波形。
选择“波形缩放”：水平方向和垂直方向同时扩展波形。
MSO8000 快速指南 15
RIGOL
中文
帮助选项 帮助显示区
图 16 矩形绘制手势
使用内置帮助系统
本示波器的帮助系统提供了前面板各功能按键及相应菜单键的说明。打开帮助系
统的步骤如下：
1. 按 Utility 系统 帮助，进入“帮助”功能菜单。您也可以使用触摸
屏功能，点击屏幕左下角的功能导航图标 ，然后点击“帮助”图标进入
“帮助”功能菜单。
2. 按前面板的 帮助 键，屏幕弹出帮助界面，如 图 17 所示。帮助界面主要分
两部分，左边为“帮助选项”，右边为“帮助显示区”。
16 MSO8000 快速指南
图 17 帮助信息
RIGOL
中文
提示
其他按键和旋钮帮助信息：
电源键 ：电源开/关键。
Menu Off 键：菜单隐藏键，按此键可隐藏菜单。
Back 键：菜单返回键，按此键可返回上一级菜单或返回前一次
设置的功能菜单。
多功能旋钮 ：非菜单操作时，转动该旋钮可调整波形显示的亮
度。菜单操作时，该旋钮背光灯变亮，对于含有多个参数选项的
菜单项，按下相应的菜单软键后，旋转该旋钮选择参数项然后再
按下该旋钮选中（有时旋转该旋钮即可选中指定的参数项）。该旋
钮还可以用于修改参数、输入文件名等。
若菜单项置灰，您无法直接按前面板相应的菜单键获取相应的帮助信
息，您只能通过上述介绍的方法二或方法三获取帮助信息。
打开帮助界面后，您可以通过以下三种方法在帮助显示区中获得相应的帮助信
息：
方法一：
对于按键，您可以直接按仪器前面板上的按键获取帮助信息（电源键 、
Menu Off 键、Back 键除外）；对于旋钮，您可以旋转旋钮或按下旋钮获取帮
助信息（多功能旋钮 除外），由于旋转旋钮和按下旋钮的功能不同，所以获
取不同的帮助信息。
方法二：
您可以在“帮助选项”中，旋转多功能旋钮 切换帮助选项获取帮助信息。
方法三：
使用触摸屏功能，通过触摸手势直接点击所需的帮助选项获取帮助信息。
参数设置方法
MSO8000 系列的参数设置主要支持多功能旋钮和触摸屏两种输入方式，常用的
参数设置方法如下：
方法一：
对于菜单上显示 的参数，直接旋转前面板上的多功能旋钮 即可选择参
数项或修改参数值。
MSO8000 快速指南 17
RIGOL
中文
提示
上述方法是示波器常用的参数设置方法，若某些参数有其他设置方法，将
在本产品用户手册的相关章节中详细介绍。
参数输入框
删除键
最大值键
最小值键
默认值键
清零键
方法二：
对于菜单上显示 的参数，旋转前面板上的多功能旋钮 选择选项后再按
下即可选中参数项或修改参数值。
方法三：
对于菜单上显示 的参数，旋转前面板上的多功能旋钮 进行设置，或按
下前面板上的多功能旋钮 或者对应菜单软键，通过弹出的数字键盘进行设
置，如图 18 所示。
图 18 数字键盘
在数字键盘中，您可以旋转多功能旋钮 进行选择然后再按下该旋钮选中即可
输入该数值或单位，或者使用触摸屏功能，点击数字键盘中的数值或单位进行输
入。输入全部数值并选择所需的单位后，数字键盘自动关闭，则完成参数设置。
另外，完成数值输入后，您也可以直接点击数字键盘中的“OK”键关闭数字键
盘，此时参数的单位为默认单位。在数字键盘中，您还可以进行以下操作：
删除已输入参数数值。
将参数设置为最大值或最小值（有时特指当前状态下的最大值或最小值）。
将参数设置为默认值。
清空参数输入框。
方法四：
对于菜单上无图标显示的参数，直接按相应的菜单软键即可切换设置所需的参数
（此方法适用于只有两个可选选项的参数）。
18 MSO8000 快速指南
RIGOL
中文
警告
为避免电击，更换保险丝之前，请确保仪器已关闭并且已断开
与电源的连接，且确保更换的保险丝规格符合要求。
保险丝座
保险丝
更换保险丝
如需更换保险丝，请使用仪器指定规格（AC 250 V，T3.15 A；5.2 mm×20 mm）
的保险丝，按如下步骤进行更换（如图 19 所示）：
1． 关闭仪器，断开电源，拔去电源线；
2． 使用小一字螺丝刀撬出保险丝座；
3． 取出保险丝；
4． 更换指定规格的保险丝；
5． 重新安装保险丝座。
图 19 更换保险丝
MSO8000 快速指南 19
RIGOL
中文
远程控制
MSO8000 系列数字示波器支持通过 USB 接口、LAN 接口和 GPIB 接口与计算机
进行通信从而实现远程控制。远程控制基于 SCPI（Standard Commands for
Programmable Instruments）命令集实现。MSO8000 系列数字示波器支持三种
远程控制方式：用户自定义编程、使用 PC 软件（如 RIGOL Ultra Sigma）和
Web Control 控制。
更多产品信息
1. 获取设备信息
按 Utility 系统 关于此示波器，您可获取设备信息，包括厂商、产
品型号、产品序列号和硬件版本号等。您也可以打开“帮助”功能菜单，
然后再按 关于此示波器 键获取设备信息。
2. 查看选件信息及选件安装
仪器出厂时我们将为用户提供选件的试用版本，试用时间将从出厂后首次
打开示波器电源开始，试用时间约为 2160 分钟。打开“帮助”功能菜单，
按 选件列表 键，可查看示波器当前已安装的选件及其相关信息；按 选件
安装 键，进行选件安装，选件安装的具体方法请参考本产品用户手册中的
详细介绍。
欲了解本产品更多信息，请查阅相关手册（您可登录RIGOL网站
（www.rigol.com）下载）。
《MSO8000系列用户手册》：提供本产品的功能介绍及操作方法、远程控制方
法、在使用过程中可能出现的故障及处理方法、性能指标以及订货信息。
《MSO8000系列编程手册》：提供本产品的SCPI命令集以及编程实例。
《MSO8000系列数据手册》：提供本产品的主要特色和技术指标。
20 MSO8000 快速指南
Loading...
