Quick Guide
MSO5000 Series
Digital Oscilloscope
May. 2020
RIGOL TECHNOLOGIES CO., LTD.

RIGOL
MSO5000 Quick Guide 1
Guaranty and Declaration
Copyright
© 2020 RIGOL TECHNOLOGIES CO., LTD. All Rights Reserved.
Trademark Information
RIGOL® is the trademark of RIGOL TECHNOLOGIES CO., LTD.
Publication Number
QGA25103-1110
Notices
⚫ RIGOL products are covered by P.R.C. and foreign patents, issued and
pending.
⚫ RIGOL reserves the right to modify or change parts of or all the
specifications and pricing policies at the company’s sole decision.
⚫ Information in this publication replaces all previously released materials.
⚫ Information in this publication is subject to change without notice.
⚫ RIGOL shall not be liable for either incidental or consequential losses in
connection with the furnishing, use, or performance of this manual, as
well as any information contained.
⚫ Any part of this document is forbidden to be copied, photocopied, or
rearranged without prior written approval of RIGOL.
Product Certification
RIGOL guarantees that this product conforms to the national and industrial
standards in China as well as the ISO9001:2015 standard and the
ISO14001:2015 standard. Other international standard conformance
certifications are in progress.
Contact Us
If you have any problem or requirement when using our products or this
manual, please contact RIGOL.
E-mail: service@rigol.com
Website: www.rigol.com

RIGOL
2 MSO5000 Quick Guide
1. Only the exclusive power cord
designed for the instrument
and authorized for use within
the local country could be
used.
2. Ensure that the instrument is
safely grounded.
3. Observe all terminal ratings.
4. Use proper overvoltage
protection.
5. Do not operate without covers.
6. Do not insert objects into the
air outlet.
7. Use the proper fuse.
8. Avoid circuit or wire exposure.
9. Do not operate the instrument
with suspected failures.
10. Provide adequate ventilation.
11. Do not operate in wet conditions.
12. Do not operate in an explosive
atmosphere.
13. Keep instrument surfaces clean
and dry.
14. Prevent electrostatic impact.
15. Handle with caution.
Safety Notices and Symbols
Safety Notices in this Manual:
WARNING
Indicates a potentially hazardous situation or practice which, if not
avoided, will result in serious injury or death.
CAUTION
Indicates a potentially hazardous situation or practice which, if not
avoided, could result in damage to the product or loss of
important data.
Safety Terms on the Product:
It calls attention to an operation, if not correctly performed,
could result in injury or hazard immediately.
It calls attention to an operation, if not correctly performed,
could result in potential injury or hazard.
It calls attention to an operation, if not correctly performed,
could result in damage to the product or other devices
connected to the product.

RIGOL
MSO5000 Quick Guide 3
Safety Symbols on the Product:
Protective Earth
Terminal
Care and Cleaning
Care
Do not store or leave the instrument where it may be exposed to direct sunlight
for long periods of time.
Cleaning
Clean the instrument regularly according to its operating conditions.
1. Disconnect the instrument from all power sources.
2. Clean the external surfaces of the instrument with a soft cloth dampened
with mild detergent or water. Avoid having any water or other objects into
the chassis via the heat dissipation hole. When cleaning the LCD, take care
to avoid scarifying it.
CAUTION
To avoid damage to the instrument, do not expose it to caustic
liquids.
WARNING
To avoid short-circuit resulting from moisture or personal injuries,
ensure that the instrument is completely dry before connecting it
to the power supply.
Document Overview
This manual gives you a quick review about the front and rear panel of
MSO5000 series, the user interface, and the basic operation method.
Tip
For the latest version of this manual, download it from the official website
of RIGOL (www.rigol.com).

RIGOL
4 MSO5000 Quick Guide
Format Conventions in this Manual
1. Key
The key on the front panel is denoted by the format of "Key Name (Bold)
+ Text Box" in the manual. For example, Utility denotes the "Utility" key.
2. Menu
The menu items are denoted by the format of "Menu Word (Bold) +
Character Shading". For example, System denotes the "System" menu
item under Utility.
3. Operation Procedures
→ denotes the next step of operation. For example, Utility → System
denotes that first press Utility, and then press the System softkey.
4. Knob
Horizontal Time
Base Knob
Content Conventions in this Manual
MSO5000 series includes the following models. Unless otherwise specified, this
manual takes MSO5354 as an example to illustrate the functions and operation
methods of MSO5000 series digital oscilloscope.
No. of Function/Arbitrary
Waveform Generator
Channels

RIGOL
MSO5000 Quick Guide 5
General Inspection
1. Inspect the packaging
If the packaging has been damaged, do not dispose the damaged
packaging or cushioning materials until the shipment has been checked
for completeness and has passed both electrical and mechanical tests.
The consigner or carrier shall be liable for the damage to the instrument
resulting from shipment. RIGOL would not be responsible for free
maintenance/rework or replacement of the instrument.
2. Inspect the instrument
In case of any mechanical damage, missing parts, or failure in passing the
electrical and mechanical tests, contact your RIGOL sales
representative.
3. Check the accessories
Please check the accessories according to the packing lists. If the
accessories are damaged or incomplete, please contact your RIGOL
sales representative.
Product Overview
The MSO5000 series is a high-performance digital oscilloscope designed on the
basis of the RIGOL UltraVision II technology. It has a 9-inch capacitive touch
screen, and integrates 7 instruments into one. With a compact and portable
design, it delivers excellent specifications, such as super high sample
bandwidth ratio and high memory depth. All the MSO5000 series support
multiple channels, bandwidths, and the upgrade of the analysis software. They
integrate the functions of multiple instruments. Different user groups can have
more choices in selecting their desired product based on their needs, helping
them save their budget to a large extent while enjoying the superior test
support and user experience.
For descriptions of the front panel, refer to Figure 1 and Table 1; for
descriptions of the rear panel, refer to Figure 2 and Table 2; and for
descriptions of the main interface (display screen), refer to Figure 3 and Table
3.

RIGOL
6 MSO5000 Quick Guide
Figure 1 Front Panel
Table 1 Front Panel Description
Function Menu Operation Keys
Dual-channel
Function/Arbitrary Waveform
Generator Setting Key
[1]
Horizontal Control System
Probe Compensation Signal Output
Terminal/Ground Terminal
Analog Channel Input Terminals
Auto Waveform Display Key
Digital Channel Input Interface
[2]
Dual-channel Function/Arbitrary
Waveform Generator Output
Terminals
[1]
Single Trigger Control Key
Note:
[1]
This function is only available for the model installed with the MSO5000-AWG option.
Note:
[2]
PLA2216 active logic probe option is required to be ordered.

RIGOL
MSO5000 Quick Guide 7
Figure 2 Rear Panel
Table 2 Rear Panel Description
Kensington Security Lock Hole

RIGOL
8 MSO5000 Quick Guide
Figure 3 User Interface
Table 3 User Interface Icons
Analog Channel Label and Waveform
Arbitrary Waveform Generator 2
Waveform Label
Sample Rate and Memory Depth
Arbitrary Waveform Generator 1
Waveform Label
Digital Channel Status Area
Digital Channel Label and Waveform
Trigger Level/Threshold Level
24 23 22 21 20 19 18 17 16 15 14 13
1 2 3 4 5 6 7 8 9 10 11 12

RIGOL
MSO5000 Quick Guide 9
To Prepare for Use
To Adjust the Supporting Legs
You can unfold the supporting legs to use them as stands to tilt the instrument
upwards for easier operation and observation, as shown in Figure 4. You can
also fold the supporting legs for easier storage or shipment when the
instrument is not in use.

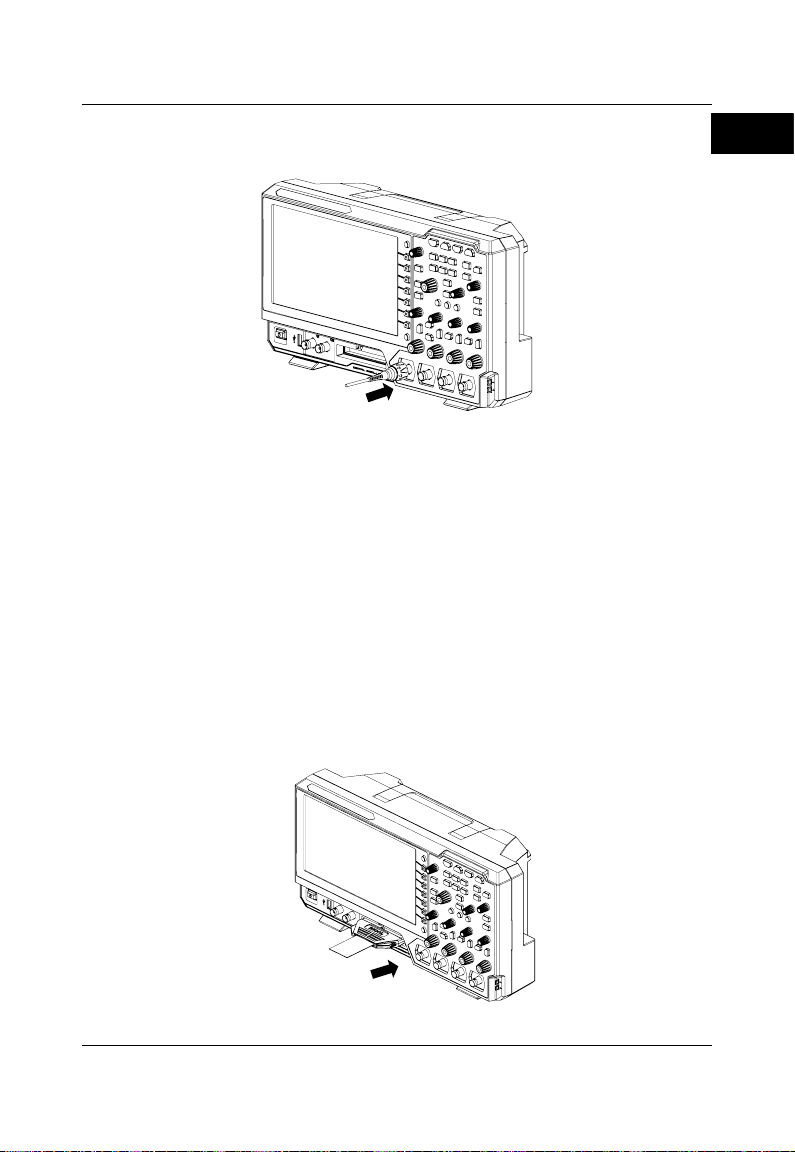

Figure 4 To Adjust the Supporting Legs
To Connect to AC Power
The input AC power requirements of the oscilloscope are 100~240 V, 45~440
Hz. Please use the power cord provided in the accessories to connect the
oscilloscope to the AC power source via the power cord connector, as shown in
Figure 5.
To fold the supporting legs
To unfold the supporting legs

RIGOL
10 MSO5000 Quick Guide
Figure 5 To Connect to AC Power
Turn-on Checkout
When the oscilloscope is connected to power, press the Power key at the
lower-left corner of the front panel to start the oscilloscope. During the start-up
process, the oscilloscope performs a series of self-tests. After the self-test, the
welcome screen is displayed.
To Set the System Language
MSO5000 series oscilloscope supports multiple system languages. You can
press Utility → Language to set the system language. You can also enable
the touch screen to perform the above menu operation.
To Connect the Probe
RIGOL provides the passive probe and the logic probe for MSO5000 series. For
specific probe models, please refer to
MSO5000 Datasheet
. For detailed
technical information of the probes, please refer to the specified Probe User
Guide.
Connect the passive probe:
1. Connect the BNC terminal of the probe to an analog channel input
terminal of the oscilloscope on the front panel, as shown in Figure 6.

RIGOL
MSO5000 Quick Guide 11
2. Connect the ground alligator clip or spring of the probe to the circuit
ground terminal, and then connect the probe tip to the circuit point to be
tested.
Figure 6 To Connect the Passive Probe
After you connect the passive probe, check the probe function and probe
compensation adjustment before making measurements. For detailed
procedures, refer to "Function Inspection" in this manual and the "Probe
Compensation" section introduced in
MSO5000 User Guide
.
Connect the logic probe:
1. Connect the output terminal of the logic probe to the digital channel input
terminal on the front panel of the oscilloscope in the correct direction, as
shown in Figure 7.
2. Connect the other terminal of the logic probe to the signal terminal under
test. RIGOL's MSO5000 series is equipped with PLA2216 active logic
probe option. To apply to different application scenarios, PLA2216 provides
two connection methods to connect the signal under test. For details, refer
to
PLA2216 Active Logic Probe User’s Guide
.
Figure 7 To Connect the Logic Probe

RIGOL
12 MSO5000 Quick Guide
Note: The digital channel input terminal does not support hot plugging. Please
do not insert or pull out the logic probe when the instrument is in power-on
state.
Function Inspection
1. Press Default on the front panel, and then a prompt message "Restore
default settings?" is displayed. Press OK to restore the oscilloscope to its
factory default settings.
2. Connect the ground alligator clip of the probe to the "Ground Terminal" as
shown in Figure 8 below.
3. Use the probe to connect the input terminal of CH1 of the oscilloscope and
the "Compensation Signal Output Terminal" of the probe, as shown in
Figure 8.
Figure 8 To Use the Compensation Signal
4. Set the probe attenuation to 10X, and then press AUTO.
5. Observe the waveform on the display. In normal condition, the square
waveform as shown in Figure 9 should be displayed.
Compensation Signal
Output Terminal
Ground Terminal

RIGOL
MSO5000 Quick Guide 13
Figure 9 Square Waveform Signal
6. Use the same method to test the other channels. If the square waveforms
actually shown do not match that in the figure above, please perform
"Probe Compensation" introduced in
MSO5000 User Guide
.
WARNING
To avoid electric shock when using the probe, please make sure
that the insulated wire of the probe is in good condition. Do not
touch the metallic part of the probe when the probe is connected
to high voltage source.
Touch Screen Operation
MSO5000 series provides a 9-inch super large capacitive touch screen, which
supports multi-touch and gesture operation. It has strong waveform display
capability and excellent user experience. It features great convenience, high
flexibility, and great sensitivity. The actions supported by the touch screen
controls include tapping, pinching&stretching, dragging as well as rectangle
Tip
The probe compensation signal can only be used for probe compensation
adjustment and cannot be used for calibration.

RIGOL
14 MSO5000 Quick Guide
drawing.
Tap
Use one finger to touch the symbol or characters on the screen slightly, as
shown in Figure 10. The actions supported by the tap action include:
⚫ Tap and operate the menus on the screen.
⚫ Tap the function navigation icon at the lower-left corner of the touch
screen to enable the function navigation.
⚫ Tap the displayed numeric keypad to set the parameters.
⚫ Tap the virtual keypad to set the label name and the filename.
⚫ Tap close button at the upper-right corner of the message box to close it.
⚫ Tap and operate the windows on the screen.
Figure 10 Tap Gesture
Pinch&Stretch
Pinch or stretch two points on the screen with two fingers to zoom in or out the
waveform. To zoom in the waveform, first pinch the two fingers and then
stretch the fingers; to zoom out the waveform, first stretch the two fingers, and
then pinch the fingers together, as shown in Figure 11. The actions supported
by the pinching&stretching action include:
⚫ Pinching&stretching in the horizontal direction can adjust the horizontal
time base of the waveform.
⚫ Pinching&stretching in the vertical direction can adjust the vertical scale of
the waveform.
Tip
The touch screen function is available for all the menus displayed on the
screen and the buttons enabled.

RIGOL
MSO5000 Quick Guide 15
Figure 11 Pinch&Stretch Gesture
Drag
Use one finger to select the object, and then drag the object to a destination
place, as shown in Figure 12. The actions supported by the drag action include:
⚫ Drag the waveform to change its position or offset.
⚫ Drag the window controls to change the positions of the controls (e.g.
numeric keypad).
⚫ Drag the marker to change the position of the marker.
Figure 12 Drag Gesture
Rectangle Drawing
Enable the function navigation, and then tap the "Draw rect" icon to switch to
the rectangle drawing mode. Drag a finger from upper left to lower right across
the screen to draw a rectangle on the screen, as shown in Figure 13 (a). Move
your finger away from the screen, and then a menu is displayed on the screen.
At this time, you can tap to select "Trigger zone A", "Trigger zone B",
"Histogram", "Horizontal zoom in", "Vertical zoom in", or "Waveform zoom in".
Drag a finger from lower right to upper left across the screen to draw a
rectangle on the screen, as shown in Figure 13 (b). Move your finger away from
the screen, and then a menu is displayed on the screen. At this time, you can
tap to select "Trigger zone A", "Trigger zone B", "Histogram", "Horizontal zoom
out", "Vertical zoom out", or "Waveform zoom out".

RIGOL
16 MSO5000 Quick Guide
(a) (b)
Figure 13 Rectangle Drawing Gesture
⚫ Select "Trigger zone A":
➢ Draw the region for Trigger zone A;
➢ Open Trigger zone A;
➢ Open the "Zone Trigger" menu.
⚫ Select "Trigger zone B":
➢ Draw the region for Trigger zone B;
➢ Open Trigger zone B;
➢ Open the "Zone Trigger" menu.
⚫ Select "Histogram":
➢ Draw the region for the histogram;
➢ Open the "Histogram" menu.
⚫ Select "Horizontal zoom in": expands the waveforms in the horizontal
direction. Select "Horizontal zoom out": compresses the waveforms in the
horizontal direction.
⚫ Select "Vertical zoom in": expands the waveforms in the vertical direction.
Select "Vertical zoom out": compresses the waveforms in the vertical
direction.
⚫ Select "Waveform zoom in": expands the waveforms both in the horizontal
and vertical direction. Select "Waveform zoom out": compresses the
waveforms both in the horizontal and vertical direction.
Tip
Tap the "Draw rect" icon to switch between the rectangle drawing and
waveform operation modes.
Tap the "Draw rect" icon, if is displayed, it indicates that the rectangle
drawing mode is enabled. Tap the "Draw rect" icon, if is displayed, it
indicates that the waveform operation mode is enabled. By default, the
waveform operation mode is enabled.

RIGOL
MSO5000 Quick Guide 17
To Use the Built-in Help System
The help system of this oscilloscope provides instructions for all the function
keys on the front panel and their corresponding menu keys. The steps for
opening the built-in help system are as follows:
1. Press Utility → System → Help, and then the "Help" menu is displayed
on the screen. You can also use the touch screen function, tap the
function navigation icon at the lower-left corner of the touch screen
to enable the function navigation. Tap the "Help" icon, and then the "Help"
menu is displayed on the screen.
2. Press Content or tap the "Content" menu item, and then the help
information is displayed on the screen, as shown in Figure 14. The help
interface mainly consists of two sections. The left section lists "Help
Options", and the right section is the "Help Display Area".
Figure 14 Help Information
After opening the help interface, you can get its help information in the "Help
Display Area" through the following three methods:
Method 1:
For the keys, you can directly press the front-panel keys (except the Power key
, the Menu off key and Back key) to obtain the corresponding help
information.
For the buttons, you can rotate the knob or press down the knob to get the
corresponding help information (except the multifunction knob ). As the
function of rotating the knob is different from that of pressing down the knob,
Help Options Help Display Area

RIGOL
18 MSO5000 Quick Guide
these two operations will give you different help information.
Method 2:
In the "Help Options", rotate the multifunction knob to switch among the
help options to get the corresponding help information.
Method 3:
Enable the touch screen and tap the desired help option to get the
corresponding help information.
Parameter Setting Method
For the MSO5000 series, you can use the multifunction knob or enable the
touch screen to set the parameters of MSO5000 series. The common parameter
setting methods are as follows:
Method 1:
For the parameters with the sign , rotate the multifunction knob on the
front panel directly to select the parameter item or modify the parameter value.
Tip
⚫ Help information for other keys and buttons:
➢ Power key : powers on/off the instrument.
➢ Menu off key: displays or hides menus. By default, menus are
displayed. If menus are hidden, pressing this key can display
the menus again.
➢ Back key: returns to the previous menu or the last set function
menu.
➢ Multifunction knob : In non-menu-operation mode, rotate
this knob to adjust the brightness of waveform display. In
menu-operation mode, for the menu item that has multiple
parameters under it, when you press the menu softkey, rotate
the knob to select the parameter item, then press down the
knob to select it (sometimes, the specified parameter item can
be selected by rotating the knob).
It can also be used to modify parameters, input a filename, etc.
⚫ If the menu item is grayed out, you cannot press the corresponding
front-panel menu key to obtain the help information. What you can
do is only to follow the above Method 2 or 3 to get the help
information.

RIGOL
MSO5000 Quick Guide 19
Method 2:
For the parameters with the sign , rotate the multifunction knob on the
front panel and press it down to select the parameter item or modify the
parameter value.
Method 3:
For the parameters with displayed on the menu, rotate the multifunction
knob on the front panel directly to set the parameter, or press down the
multifunction knob or the specified menu softkey, and then the numeric
keypad is shown in Figure 15 below.
Figure 15 Numeric Keypad
In the numeric keypad, rotate the multifunction knob to select the
parameter, then press down the knob to select it. Then input the value or the
unit. You can also enable the touch screen and tap the value or unit in the
numeric keypad to input them. After you input all the values and select the
desired units, the numeric keypad is turned off automatically. This indicates
that you have completed parameter setting. Besides, after you have input the
values, you can also press OK directly to close the numeric keypad. At this time,
the unit of the parameter is the default unit. In the numeric keypad, you can
also perform the following operations:
⚫ Delete the parameter value that has been input.
⚫ Set the parameter to a maximum or minimum value (sometimes, the
maximum or minimum value are the specified one for the current state).
⚫ Set the parameter to a default value.
⚫ Clear the parameter input field.
Method 4:
For the parameters without the above signs, press the desired menu softkey to
switch between the parameter items. This method is applicable to the
Parameter Input Field
Delete Key
Max. Value Key
Min. Value Key
Default Key
Clear Key

RIGOL
20 MSO5000 Quick Guide
parameters with only two available options.
Remote Control
MSO5000 series digital oscilloscope can be connected to the PC via the USB,
LAN, or GPIB interface to set up communication and realize remote control
through the PC. The remote control can be realized by using SCPI (Standard
Commands for Programmable Instruments) commands. MSO5000 series digital
oscilloscope supports three ways of remote control: user-defined programming,
PC software (e.g. RIGOL Ultra Sigma), and Web Control.
More Product Information
1. Obtain the device information
Press Utility → System → About to obtain the information of the
instrument, such as the manufacturer, model, serial number, hardware
version number, etc. You can also refer to descriptions in "To Use the
Built-in Help System" to open the "Help" menu, and then press About
to obtain the device information. You can also enable the touch screen to
perform the above menu operation.
2. View the option information and the option installation
The instrument is installed with the trial versions of the options before
leaving factory. When you power on the instrument for the first time, the
trial time is about 2,160 minutes. Refer to descriptions in "To Use the
Built-in Help System" to open the "Help" menu, and then press Option
list to view the options currently installed on the oscilloscope and their
information. Press Option install to install the option. For detailed
setting methods, refer to descriptions in
MSO5000 User Guide
. You can
also enable the touch screen to perform the above menu operation.
For more information about this instrument, refer to the relevant manuals by
logging to the official website of RIGOL (www.rigol.com) to download them.
Tip
The above method is commonly used for the parameter settings of the
oscilloscope. For other methods of parameter settings, refer to details in
relevant chapters of
MSO5000 User Guide
.

RIGOL
MSO5000 Quick Guide 21
MSO5000 User Guide
: introduces the functions of the instrument and the
operation methods, remote control methods, possible failures and solutions in
using the instrument, the technical specifications, and order information.
MSO5000 Programming Guide
: provides detailed descriptions of SCPI
commands and programming examples of the instrument.
MSO5000 Datasheet
: provides the main features and technical specifications of
the instrument.
