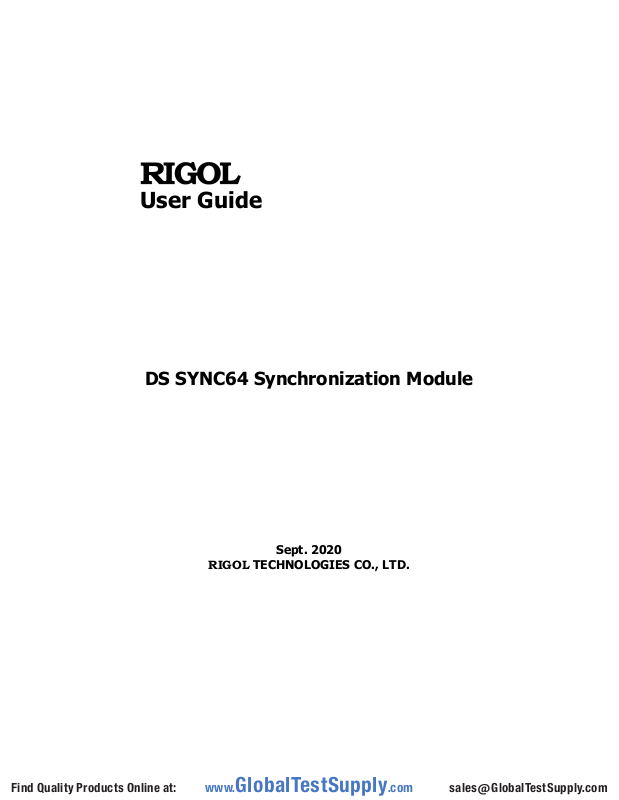

RIGOL DS SYNC64 User manual

User Guide
DS SYNC64 Synchronization Module
Sept. 2020
RIGOL TECHNOLOGIES CO., LTD.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
DS SYNC64 User Guide I

Guaranty and Declaration

Copyright
© 2020 RIGOL TECHNOLOGIES CO., LTD. All Rights Reserved.
Trademark Information
RIGOL
®
is the trademark of RIGOL TECHNOLOGIES CO., LTD.
Publication Number
UGS01100-1110
Notices
RIGOL products are covered by P.R.C. and foreign patents, issued and
pending.
RIGOL reserves the right to modify or change parts of or all the specifications
and pricing policies at the company’s sole decision.
Information in this publication replaces all previously released materials. Information in this publication is subject to change without notice. RIGOL shall not be liable for either incidental or consequential losses in
connection with the furnishing, use, or performance of this manual, as well as any information contained.
Any part of this document is forbidden to be copied, photocopied, or rearranged
without prior written approval of RIGOL.
Product Certification
RIGOL guarantees that this product conforms to the national and industrial standards in China as well as the ISO9001:2015 standard and the ISO14001:2015 standard. Other international standard conformance certifications are in progress.
Contact Us
If you have any problem or requirement when using our products or this manual, please contact RIGOL.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
II DS SYNC64 User Guide

Safety Requirement

General Safety Summary

Please review the following safety precautions carefully before putting the instrument into operation so as to avoid any personal injury or damage to the instrument and any product connected to it. To prevent potential hazards, please follow the instructions specified in this manual to use the instrument properly.
Use Proper Power Cord.
Only the exclusive power cord designed for the instrument and authorized for use within the local country could be used.
Observe All Terminal Ratings.
To avoid fire or shock hazard, observe all ratings and markers on the instrument and check your manual for more information about ratings before connecting the instrument.
Use Proper Overvoltage Protection.
Ensure that no overvoltage (such as that caused by a bolt of lightning) can reach the product. Otherwise, the operator might be exposed to the danger of an electric shock.
Do Not Operate Without Covers.
Do not operate the instrument with covers or panels removed.
Avoid Circuit or Wire Exposure.
Do not touch exposed junctions and components when the unit is powered on.
Do Not Operate With Suspected Failures.
If you suspect that any damage may occur to the instrument, have it inspected by RIGOL authorized personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel.
Provide Adequate Ventilation.
Inadequate ventilation may cause an increase of temperature in the instrument, which would cause damage to the instrument. So please keep the instrument well ventilated and inspect the air outlet and the fan regularly.
Do Not Operate in Wet Conditions.
To avoid short circuit inside the instrument or electric shock, never operate the instrument in a humid environment.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
DS SYNC64 User Guide III
Do Not Operate in an Explosive Atmosphere.
To avoid personal injuries or damage to the instrument, never operate the instrument in an explosive atmosphere.
Keep Product Surfaces Clean and Dry.
To avoid dust or moisture from affecting the performance of the instrument, keep the surfaces of the instrument clean and dry.
Prevent Electrostatic Impact.
Operate the instrument in an electrostatic discharge protective environment to avoid damage induced by static discharges. Always ground both the internal and external conductors of cables to release static before making connections.
Handle with Caution.
Please handle with care during transportation to avoid damage to keys, knobs, interfaces, and other parts on the panels.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
IV DS SYNC64 User Guide

Safety Notices and Symbols

Safety Notices in this Manual:
WARNING
Indicates a potentially hazardous situation or practice which, if not avoided, will result in serious injury or death.
CAUTION
Indicates a potentially hazardous situation or practice which, if not avoided, could result in damage to the product or loss of important data.
Safety Terms on the Product:
DANGER
It calls attention to an operation, if not correctly performed, could result in injury or hazard immediately.
WARNING
It calls attention to an operation, if not correctly performed, could result in potential injury or hazard.
CAUTION
It calls attention to an operation, if not correctly performed, could result in damage to the product or other devices connected to the product.
Safety Symbols on the Product:
Hazardous
Voltage
Safety
Warning
Protective
Earth Terminal
Chassis Ground
Test Ground
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
DS SYNC64 User Guide V

Care and Cleaning

Care
Do not store or leave the instrument where it may be exposed to direct sunlight for long periods of time.
Cleaning
Clean the instrument regularly according to its operating conditions. WARNING
1. Disconnect the instrument from all power sources.
2. Clean the external surfaces of the instrument with a soft cloth dampened with
mild detergent or water.
CAUTION
To avoid damage to the instrument, do not expose it to caustic liquids.
WARNING
To avoid short-circuit resulting from moisture or personal injuries, ensure that the instrument is completely dry before connecting it to the power supply.

Environmental Considerations

The following symbol indicates that this product complies with the WEEE Directive 2002/96/EC.
Product End-of-Life Handling
The equipment may contain substances that could be harmful to the environment or human health. To avoid the release of such substances into the environment and avoid harm to human health, we recommend you to recycle this product appropriately to ensure that most materials are reused or recycled properly. Please contact your local authorities for disposal or recycling information.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
VI DS SYNC64 User Guide
Content
Guaranty and Declaration .................................................................... I
Safety Requirement ............................................................................ II
General Safety Summary ................................................................... II
Safety Notices and Symbols ............................................................... IV
Care and Cleaning ............................................................................. V
Environmental Considerations ............................................................. V
Overview of DS SYNC64 ....................................................................... 1
Appearance and Dimensions ............................................................... 1
Front Panel Overview ......................................................................... 2
Rear Panel Overview .......................................................................... 2
To Use DS SYNC64 Synchronization Module ....................................... 3
General Inspection ............................................................................. 3
Procedures for Using the Synchronization Module ................................. 3
Specifications ....................................................................................... 4
Specifications .................................................................................... 4
General Specification.......................................................................... 4
Appendix ............................................................................................... 5
Appendix A Order Information ............................................................ 5
Appendix B: Warranty ........................................................................ 5
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
DS SYNC64 User Guide 1

Overview of DS SYNC64

In many scenarios, oscilloscopes with four channels or above are required. However, for most oscilloscopes in the current market, most oscilloscopes can provide at most 4 channels and no synchronous clock interface for the external input is available for most of them.
For those users who demand for multi-channel synchronous data acquisition, DS SYNC64 synchronization module can be used as the trigger source of the oscilloscope to connect the output interface to the EXT trigger input terminal of the oscilloscope to realize synchronous trigger for multiple oscilloscopes. It can be used for channel calibration. Connect the coaxial cable to the input terminal of the analog channel of the oscilloscope to calibrate each analog channel. In this way, multiple oscilloscopes in cascaded connection can achieve synchronous data acquisition to improve the reliability of the measurement results.
DS SYNC64 has 64 analog channels, and each DS SYNC64 supports up to 64 sets of oscilloscopes in cascaded connection.

Appearance and Dimensions

Figure 1 Front View Unit: mm
Figure 2 Side View Unit:mm
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
2 DS SYNC64 User Guide

Front Panel Overview

Figure 3 Front Panel
Power Indicator
When the synchronization module is connected to power, the power indicator lights on and the synchronization module is launched normally.
SMA Interface
Indicates the input interface of the sync signal.

Rear Panel Overview

Figure 4 Rear Panel
SMA Interface (OUT1~OUT64)
Output interface of the sync signal: the signal input from the front-panel SMA interface is shaped and output through 64 channels.
Power Interface
Provides DC 12 V , 4 A power supply for the synchronization module.
SMA Interface
SMA Interface
Power Interface
Power Indicator
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
DS SYNC64 User Guide 3

To Use DS SYNC64 Synchronization Module

General Inspection

1 Inspect the packaging
If the packaging has been damaged, do not dispose the damaged packaging or cushioning materials until the shipment has been checked for completeness and has passed both electrical and mechanical tests.
The consigner or carrier shall be liable for the damage to the instrument resulting from shipment. RIGOL would not be responsible for free maintenance/rework or replacement of the instrument.
2 Inspect the instrument
In case of any mechanical damage, missing parts, or failure in passing the electrical and mechanical tests, contact your RIGOL sales representative.
3 Check the accessories
Please check the accessories according to the packing lists. If the accessories are damaged or incomplete, please contact your RIGOL sales representative.

Procedures for Using the Synchronization Module

1. Connect the synchronization module to the standard power adapter and then
connect it to the AC power. The AC power specification for DS SYNC64 is 100-240 V, 45-440 Hz. Please use the specified power adapter to provide power to the synchronization module.
2. After being connected to power, the power indicator lights on. This indicates
that the synchronization module is launched normally.
3. Connect the single-route trigger signal to the front-panel SMA input interface.
4. Connect one end of the phase match cable set to the SMA output interface, and
the other end to the EXT input interface of the oscilloscopes that need to be triggered synchronously. Select EXT as the trigger source of the oscilloscopes. Then, the multiple oscilloscopes can be triggered synchronously.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
4 DS SYNC64 User Guide

Specifications

All the technical specifications are guaranteed when the instrument has been working for more than 30 minutes under the specified operating temperature (23± 5).

Specifications

Trigger Input
Input Voltage
20 Vpp
Minimum Input Voltage
500 mV
Polarity
Positive/Negative
Input Impedance
50 Ω
Maximum Input Power
1 W
Minimum Pulse Width
1 ns
Connector
SMA
Trigger Output
No. of Channels
64
Output Voltage
1.2 Vpp (nom.) to 50 Ω
Impedance
50 Ω
Connector
SMA
Rise Time
<1 ns

General Specification

Environment
Operating Environment
Non-operating Environment
Temperature
0 to 50
-50 to +70
Humidity
Below 30: 90%RH (without condensation) 30℃ to 40℃: 75%RH (without condensation) 40℃ to 50: 45%RH (without condensation)
Below 65: 90%RH (without
condensation)
Altitude
3,000 m
15,000 m
Weight
<4 kg
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
DS SYNC64 User Guide 5

Appendix

Appendix A Order Information

Model
Order No.
DS SYNC64 Synchronization Module
DS SYNC64
Standard Accessories
Order No.
Power cord conforming to the standard of the destination country
-
Power adapter conforming to the safety standard of the destination country
-

Appendix B: Warranty

RIGOL TECHNOLOGIES CO., LTD. (hereinafter referred to as RIGOL) warrants that the product will be free from defects in materials and workmanship within the warranty period. If a product proves defective within the warranty period, RIGOL guarantees free replacement or repair for the defective product.
To get repair service, please contact with your nearest RIGOL sales or service office.
There is no other warranty, expressed or implied, except such as is expressly set forth herein or other applicable warranty card. There is no implied warranty of merchantability or fitness for a particular purpose. Under no circumstances shall RIGOL be liable for any consequential, indirect, ensuing, or special damages for any breach of warranty in any case.
