User Guide
DSG3000B Series RF Signal
Generator
Aug. 2020
RIGOL TECHNOLOGIES CO., LTD.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
DSG3000B User Guide I
Guaranty and Declaration
Copyright
© 2020 RIGOL TECHNOLOGIES CO., LTD. All Rights Reserved.
Trademark Information
RIGOL® is the trademark of RIGOL TECHNOLOGIES CO., LTD.
Publication Number
UGG03100-1110
Software Version
00.01.00
Software upgrade might change or add product features. Please acquire the latest
version of the manual from RIGOL website or contact RIGOL to upgrade the
software.
Notices
⚫ RIGOL products are covered by P.R.C. and foreign patents, issued and pending.
⚫ RIGOL reserves the right to modify or change parts of or all the specifications
and pricing policies at the company’s sole decision.
⚫ Information in this publication replaces all previously released materials.
⚫ Information in this publication is subject to change without notice.
⚫ RIGOL shall not be liable for either incidental or consequential losses in
connection with the furnishing, use, or performance of this manual, as well as
any information contained.
⚫ Any part of this document is forbidden to be copied, photocopied, or rearranged
without prior written approval of RIGOL.
Product Certification
RIGOL guarantees that this product conforms to the national and industrial
standards in China as well as the ISO9001:2015 standard and the ISO14001:2015
standard. Other international standard conformance certifications are in progress.
Contact Us
If you have any problem or requirement when using our products or this manual,
please contact RIGOL.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
II DSG3000B User Guide
Safety Requirement
General Safety Summary
Please review the following safety precautions carefully before putting the
instrument into operation so as to avoid any personal injury or damage to the
instrument and any product connected to it. To prevent potential hazards, please
follow the instructions specified in this manual to use the instrument properly.
Use Proper Power Cord.
Only the exclusive power cord designed for the instrument and authorized for use
within the local country could be used.
Ground the Instrument.
The instrument is grounded through the Protective Earth lead of the power cord. To
avoid electric shock, connect the earth terminal of the power cord to the Protective
Earth terminal before connecting any input or output terminals.
Connect the Probe Correctly.
If a probe is used, the probe ground lead must be connected to earth ground. Do not
connect the ground lead to high voltage. Improper way of connection could result in
dangerous voltages being present on the connectors, controls or other surfaces of
the oscilloscope and probes, which will cause potential hazards for operators.
Observe All Terminal Ratings.
To avoid fire or shock hazard, observe all ratings and markers on the instrument and
check your manual for more information about ratings before connecting the
instrument.
Use Proper Overvoltage Protection.
Ensure that no overvoltage (such as that caused by a bolt of lightning) can reach the
product. Otherwise, the operator might be exposed to the danger of an electric
shock.
Do Not Operate Without Covers.
Do not operate the instrument with covers or panels removed.
Do Not Insert Objects into the Air Outlet.
Do not insert objects into the air outlet, as doing so may cause damage to the
instrument.
Use Proper Fuse.
Please use the specified fuses.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
DSG3000B User Guide III
Avoid Circuit or Wire Exposure.
Do not touch exposed junctions and components when the unit is powered on.
Do Not Operate with Suspected Failures.
If you suspect that any damage may occur to the instrument, have it inspected by
RIGOL authorized personnel before further operations. Any maintenance,
adjustment or replacement especially to circuits or accessories must be performed by
RIGOL authorized personnel.
Provide Adequate Ventilation.
Inadequate ventilation may cause an increase of temperature in the instrument,
which would cause damage to the instrument. So please keep the instrument well
ventilated and inspect the air outlet and the fan regularly.
Do Not Operate in Wet Conditions.
To avoid short circuit inside the instrument or electric shock, never operate the
instrument in a humid environment.
Do Not Operate in an Explosive Atmosphere.
To avoid personal injuries or damage to the instrument, never operate the
instrument in an explosive atmosphere.
Keep Instrument Surfaces Clean and Dry.
To avoid dust or moisture from affecting the performance of the instrument, keep the
surfaces of the instrument clean and dry.
Prevent Electrostatic Impact.
Operate the instrument in an electrostatic discharge protective environment to avoid
damage induced by static discharges. Always ground both the internal and external
conductors of cables to release static before making connections.
Use the Battery Properly.
Do not expose the battery (if available) to high temperature or fire. Keep it out of the
reach of children. Improper change of a battery (lithium battery) may cause an
explosion. Use the RIGOL specified battery only.
Do Not Overload the Output.
In order to avoid damage to the instrument, the reverse DC voltage on the RF output
connector cannot exceed 50 V; the reverse power must be less than +40 dBm (10 W)
in the frequency range from 1 MHz to 12 GHz.
Handle with Caution.
Please handle with care during transportation to avoid damage to keys, knobs,
interfaces, and other parts on the panels.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
IV DSG3000B User Guide
Safety Notices and Symbols
Safety Notices in this Manual:
WARNING
Indicates a potentially hazardous situation or practice which, if not
avoided, will result in serious injury or death.
CAUTION
Indicates a potentially hazardous situation or practice which, if not
avoided, could result in damage to the product or loss of important data.
Safety Terms on the Product:
DANGER
It calls attention to an operation, if not correctly performed, could
result in injury or hazard immediately.
WARNING
It calls attention to an operation, if not correctly performed, could
result in potential injury or hazard.
CAUTION
It calls attention to an operation, if not correctly performed, could
result in damage to the product or other devices connected to the
product.
Safety Symbols on the Product:
Hazardous
Voltage
Safety
Warning
Protective
Earth
Terminal
Chassis
Ground
Test
Ground
Ventilation Requirement
The instrument uses a fan to force cooling. Please make sure that the air intake and
exhaust areas are free from obstructions and have free air. When using the
instrument in a bench-top or rack setting, provide at least 10 cm clearance beside,
above and behind the instrument for adequate ventilation.
WARNING
Inadequate ventilation may cause an increase of temperature in the
instrument, which would cause damage to the instrument. So please
keep the instrument well ventilated and inspect the air outlet and the fan
regularly.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
DSG3000B User Guide V
Working Environment
Temperature
Operating: 0℃ to +50℃
Non-operating: -20℃ to +70℃
Humidity
Operating:
0℃ to 30℃: ≤95%RH (without condensation)
30℃ to 40℃: ≤75%RH (without condensation)
40℃ to 50℃: ≤45%RH (without condensation)
WARNING
To avoid short circuit inside the instrument or electric shock, never
operate the instrument in a humid environment.
Altitude
Operating: below 3 km
Installation (Overvoltage) Category
This product is powered by mains conforming to installation (overvoltage) category
II.
WARNING
Ensure that no overvoltage (such as that caused by a bolt of lightning)
can reach the product. Otherwise, the operator might be exposed to the
danger of an electric shock.
Installation (Overvoltage) Category Definitions
Installation (overvoltage) category I refers to signal level which is applicable to
equipment measurement terminals connected to the source circuit. Among these
terminals, precautions are done to limit the transient voltage to a low level.
Installation (overvoltage) category II refers to the local power distribution level
which is applicable to equipment connected to the AC line (AC power).
Pollution Degree
Pollution Degree 2
Pollution Degree Definition
Pollution Degree 1: No pollution or only dry, nonconductive pollution occurs. The
pollution has no effect. For example, a clean room or air-conditioned office
environment.
Pollution Degree 2: Normally only nonconductive pollution occurs. Temporary
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
VI DSG3000B User Guide
conductivity caused by condensation is to be expected. For example, indoor
environment.
Pollution Degree 3: Conductive pollution or dry nonconductive pollution that
becomes conductive due to condensation occurs. To be found in industrial
environment or construction sites (harsh environments). For example, sheltered
outdoor environment.
Pollution Degree 4: The pollution generates persistent conductivity caused by
conductive dust, rain, or snow.
For example, outdoor areas.
Safety Class
Class 1 – Grounded Product
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
DSG3000B User Guide VII
Care and Cleaning
Care
Do not store or leave the instrument where it may be exposed to direct sunlight for
long periods of time.
Cleaning
Clean the instrument regularly according to its operating conditions.
1. Disconnect the instrument from all power sources.
2. Clean the external surfaces of the instrument with a soft cloth dampened with
mild detergent or water. Avoid having any water or other objects into the
chassis via the heat dissipation hole. When cleaning the LCD, take care to avoid
scarifying it.
CAUTION
To avoid damage to the instrument, do not expose it to caustic liquids.
WARNING
To avoid short-circuit resulting from moisture or personal injuries, ensure
that the instrument is completely dry before connecting it to the power
supply.
Environmental Considerations
The following symbol indicates that this product complies with the WEEE Directive
2002/96/EC.
Product End-of-Life Handling
The equipment may contain substances that could be harmful to the environment or
human health. To avoid the release of such substances into the environment and
avoid harm to human health, we recommend you to recycle this product
appropriately to ensure that most materials are reused or recycled properly. Please
contact your local authorities for disposal or recycling information.
download the latest version of the RoHS&WEEE certification file.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
VIII DSG3000B User Guide
DSG3000B Series Overview
The DSG3000B series is a high-performance RF signal generator. It provides
comprehensive modulation solutions: AM/FM/ΦM analog modulation; pulse
modulation with user-defined pulse train; and I/Q modulation. All the modulations
support internal and external modulation sources. In addition, to meet the demands
of production environments, the DSG3000B series has undergone a strict verification
through the experiments in its design and production stages to ensure its high
stability and reliability. The DSG3000B series also features a clear user interface,
compact size and light weight. It is easy to operate and can output stable, precise
and pure signals. It is an ideal tool in various fields such as communication,
computers, instrumentation, R&D, education, production and maintenance.
Main Features:
⚫ Highest frequency: 6.5 GHz/13.6 GHz
⚫ Amplitude accuracy: <0.5 dB (typical)
⚫ Output amplitude range: -130 dBm to +27 dBm (settable)
⚫ High signal purity, phase noise: <-116 dBc/Hz@20 kHz (typical)
⚫ Standard 0.5ppm internal clock; optional 5ppb high stable clock
⚫ Standard AM/FM/
Φ
M analog modulation
⚫ Support pulse modulation; on/off ratio up to 70 dB; user-defined pulse train
generator
⚫ I/Q modulation and I/Q baseband output
⚫ All modulation schemes support internal and external modulation modes
⚫ Standard 2U height design to save rack space. Rack mount kit is available
⚫ Support USB/LAN/GPIB remote control interfaces; SCPI command set
⚫ Wear-free electronic attenuator design
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
DSG3000B User Guide IX
Document Overview
Main contents in this manual
Chapter 1 Quick Start
This chapter introduces the front panel, rear panel and user interface of the RF signal
generator as well as the precautions when using the instrument for the first time.
Chapter 2 Front Panel Operations
This chapter describes the front panel function keys of the RF signal generator and
introduces the menu functions under each key in details.
Chapter 3 Remote Control
This chapter introduces the remote control method of RF signal generator.
Chapter 4 Application Examples
This chapter describes intuitively RF signal generator with operation examples.
Chapter 5 Troubleshooting
This chapter lists commonly encountered failures that may appear during the use of
the RF signal generator and their solutions.
Chapter 6 Appendix
This chapter provides the information about the options and accessories, as well as
other points for attention.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL
X DSG3000B User Guide
Format Conventions in this Manual
1. Key
The key on the front panel is denoted by the format of "Key Name (Bold) + Text
Box" in the manual. For example, FREQ denotes the FREQ key.
2. Menu
The menu items are denoted by the format of "Menu Word (Bold) + Character
Shading". For example, Frequency denotes the "Frequency" menu item under
FREQ.
3. Connector
The connectors on the front or rear panel are usually denoted by the format of
"Connector Name (Bold) + Square Brackets (Bold)". For example, [RF OUTPUT
50Ω].
4. Operation Procedures
The next step of the operation is denoted by an arrow "→" in the manual. For
example, FREQ → Frequency denotes pressing FREQ on the front panel first
and then pressing Frequency.
Content Conventions in this Manual
The DSG3000B series RF signal generator includes DSG3065B, DSG3065B-IQ,
DSG3136B, and DSG3136B-IQ. This manual takes DSG3136B-IQ as an example to
illustrate the functions and operation methods of DSG3000B series.
Model
RF Frequency Range
IQ Frequency Range
DSG3065B
9 kHz to 6.5 GHz
N/A
DSG3065B-IQ
9 kHz to 6.5 GHz
50 MHz to 6.5 GHz
DSG3136B
9 kHz to 13.6 GHz
N/A
DSG3136B-IQ
9 kHz to 13.6 GHz
50 MHz to 6.5 GHz
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Contents RIGOL
DSG3000B User Guide XI
Contents
Guaranty and Declaration ......................................................................... I
Safety Requirement ................................................................................ II
General Safety Summary ........................................................................... II
Safety Notices and Symbols ...................................................................... IV
Care and Cleaning .................................................................................. VII
Environmental Considerations .................................................................. VII
DSG3000B Series Overview ................................................................ VIII
Document Overview ............................................................................... IX
Chapter 1 Quick Start ......................................................................... 1-1
General Inspection ................................................................................ 1-2
Appearance and Dimensions ................................................................... 1-3
Front Panel Overview ............................................................................. 1-5
Rear Panel Overview ............................................................................. 1-12
To Use DSG3000B for the First Time ....................................................... 1-16
To Connect the Power Supply .......................................................... 1-16
Turn-on Checkout .......................................................................... 1-16
To Set the System Language ........................................................... 1-17
To Replace the Fuse ............................................................................. 1-18
User Interface ...................................................................................... 1-19
Normal Display Mode ..................................................................... 1-19
Parameter Zoom-in Mode ................................................................ 1-22
To Use the Built-in Help System ............................................................. 1-23
Chapter 2 Front Panel Operations ...................................................... 2-1
To Set the Frequency Parameters ............................................................ 2-2
Frequency ...................................................................................... 2-2
Frequency Offset ............................................................................ 2-2
Phase Offset ................................................................................... 2-3
To Set the Amplitude Parameters ............................................................ 2-4
Amplitude ...................................................................................... 2-4
Amplitude Limit .............................................................................. 2-4
Amplitude Offset ............................................................................. 2-5
Flatness Calibration ......................................................................... 2-6
Amplitude Unit ................................................................................ 2-6
Sweep .................................................................................................. 2-7
Sweep Manner ................................................................................ 2-7
Sweep Direction .............................................................................. 2-7
Sweep Type .................................................................................... 2-8
Sweep Mode.................................................................................. 2-11
Single Sweep ................................................................................. 2-11
Reset Sweep ................................................................................. 2-11
Trigger Mode ................................................................................. 2-11
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Contents
XII DSG3000B User Guide
Modulation .......................................................................................... 2-15
Amplitude Modulation (AM) ............................................................ 2-15
Frequency Modulation (FM) ............................................................ 2-18
Phase Modulation (ΦM) .................................................................. 2-21
Pulse Modulation ........................................................................... 2-24
I/Q Modulation .............................................................................. 2-30
LF Output ............................................................................................ 2-36
To Enable the LF Output ................................................................. 2-36
To Set the LF Parameters ............................................................... 2-36
Store and Recall ................................................................................... 2-38
File Type ....................................................................................... 2-38
Save ............................................................................................. 2-39
Recall ........................................................................................... 2-43
Rename ........................................................................................ 2-43
Delete .......................................................................................... 2-43
Copy ............................................................................................ 2-43
To Create a Directory ..................................................................... 2-44
Filename Prefix .............................................................................. 2-44
Disk Management .......................................................................... 2-44
System Update .............................................................................. 2-44
To Set the System Parameters ............................................................... 2-46
Language ..................................................................................... 2-46
Reset............................................................................................ 2-46
I/O Configuration ........................................................................... 2-47
Display Setting .............................................................................. 2-49
Power Status ................................................................................. 2-49
Information ................................................................................... 2-50
License ......................................................................................... 2-50
Self-test ........................................................................................ 2-51
Sanitation ..................................................................................... 2-52
Chapter 3 Remote Control ................................................................. 3-1
Remote Control Overview ....................................................................... 3-2
Control Via USB ..................................................................................... 3-3
Control Via LAN ...................................................................................... 3-5
Chapter 4 Application Examples ........................................................ 4-1
To Output RF Signal ............................................................................... 4-2
To Output RF Sweep Signal ..................................................................... 4-4
To Output RF Modulated Signal ............................................................... 4-6
Chapter 5 Troubleshooting ................................................................ 5-1
Chapter 6 Appendix ........................................................................... 6-1
Appendix A: DSG3000B Accessories and Options ....................................... 6-1
Appendix B: Warranty ............................................................................. 6-2
Index ........................................................................................................ 1
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 1 Quick Start RIGOL
DSG3000B User Guide 1-1
Chapter 1 Quick Start
This chapter guides users to quickly get familiar with the appearance, dimensions,
front panel, rear panel, and the user interface of DSG3000B series RF signal
generator.
The contents of this chapter are as follows:
◼ General Inspection
◼ Appearance and Dimensions
◼ Front Panel Overview
◼ Rear Panel Overview
◼ To Use DSG3000B for the First Time
◼ To Replace the Fuse
◼ User Interface
◼ To Use the Built-in Help System
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 1 Quick Start
1-2 DSG3000B User Guide
General Inspection
1. Inspect the packaging
If the packaging has been damaged, do not dispose the damaged packaging or
cushioning materials until the shipment has been checked for completeness and
has passed both electrical and mechanical tests.
The consigner or carrier shall be liable for the damage to the instrument
resulting from shipment. RIGOL would not be responsible for free
maintenance/rework or replacement of the instrument.
2. Inspect the instrument
In case of any mechanical damage, missing parts, or failure in passing the
electrical and mechanical tests, contact your RIGOL sales representative.
3. Check the accessories
Please check the accessories according to the packing lists. If the accessories
are damaged or incomplete, please contact your RIGOL sales representative.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 1 Quick Start RIGOL
DSG3000B User Guide 1-3
Appearance and Dimensions
Figure 1-1 Front View (unit: mm)

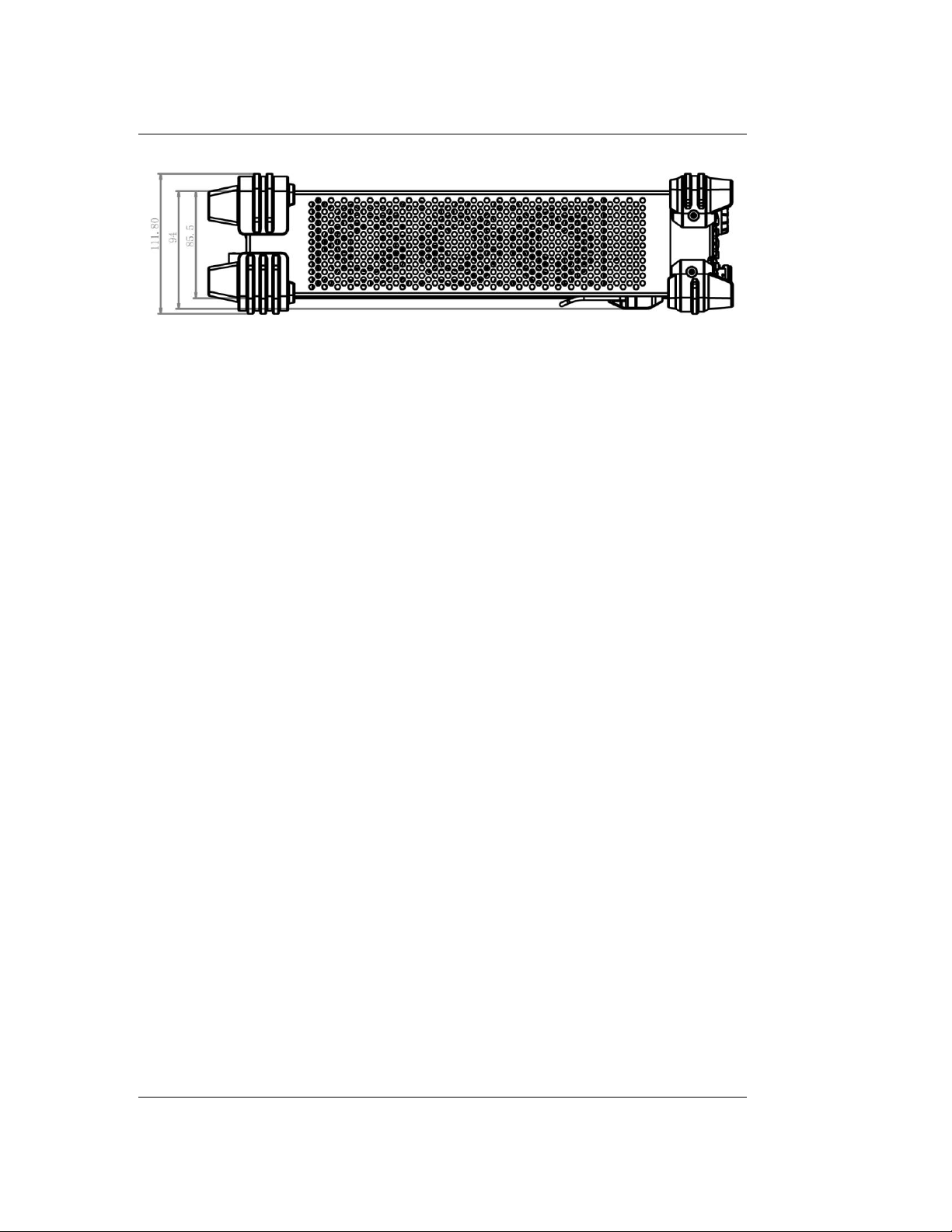

Figure 1-2 Top View (unit: mm)
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 1 Quick Start
1-4 DSG3000B User Guide
Figure 1-3 Side View (unit: mm)
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 1 Quick Start RIGOL
DSG3000B User Guide 1-5
Front Panel Overview
The front panel of DSG3000B series RF signal generator is as shown in the figure
below. Click the number in the figure to view the corresponding introduction.
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
Figure 1-4 Front Panel
1. Restore to Preset Key
Restore the instrument to the preset state (factory state or
user-stored state). For detailed information, refer to
"Reset".
2. LCD Display
4.3-inch TFT high-resolution (480× 272) color LCD display.
The current settings and state of the instrument can be
clearly displayed. For detailed information, refer to "User
Interface".
3. Menu Control Keys
Quit the current menu and return to the previous menu.
Menu softkey. Corresponds to the menu label at the left of
the softkey on the display. Press the softkey to activate the
corresponding menu.
Menu page up/down key.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 1 Quick Start
1-6 DSG3000B User Guide
4. Function Keys
Set the frequency, frequency offset and phase offset of the
RF output signal. For details, refer to "To Set the
Frequency Parameters".
Set the amplitude of the RF output signal and provide the
flatness calibration function. For details, refer to "To Set
the Amplitude Parameters".
Set the sweep type, sweep manner and sweep mode. For
details, refer to "Sweep".
Set the parameters relating to amplitude modulation (AM).
For details, refer to "Amplitude Modulation (AM)".
Set the parameters relating to frequency modulation (FM)
and phase modulation (ΦM). For details, refer to
"Frequency Modulation (FM)" and "Phase Modulation
(ΦM)".
Set the parameters relating to pulse modulation and pulse
generator. For details, refer to "Pulse Modulation".
Set the parameters relating to I/Q modulation and I/Q
modulation source.
Set the parameters relating to LF output.
Store and recall state files and other types of files. For
details, refer to "Store and Recall".
Set the system-related parameters. For details, refer to "To
Set the System Parameters".
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 1 Quick Start RIGOL
DSG3000B User Guide 1-7

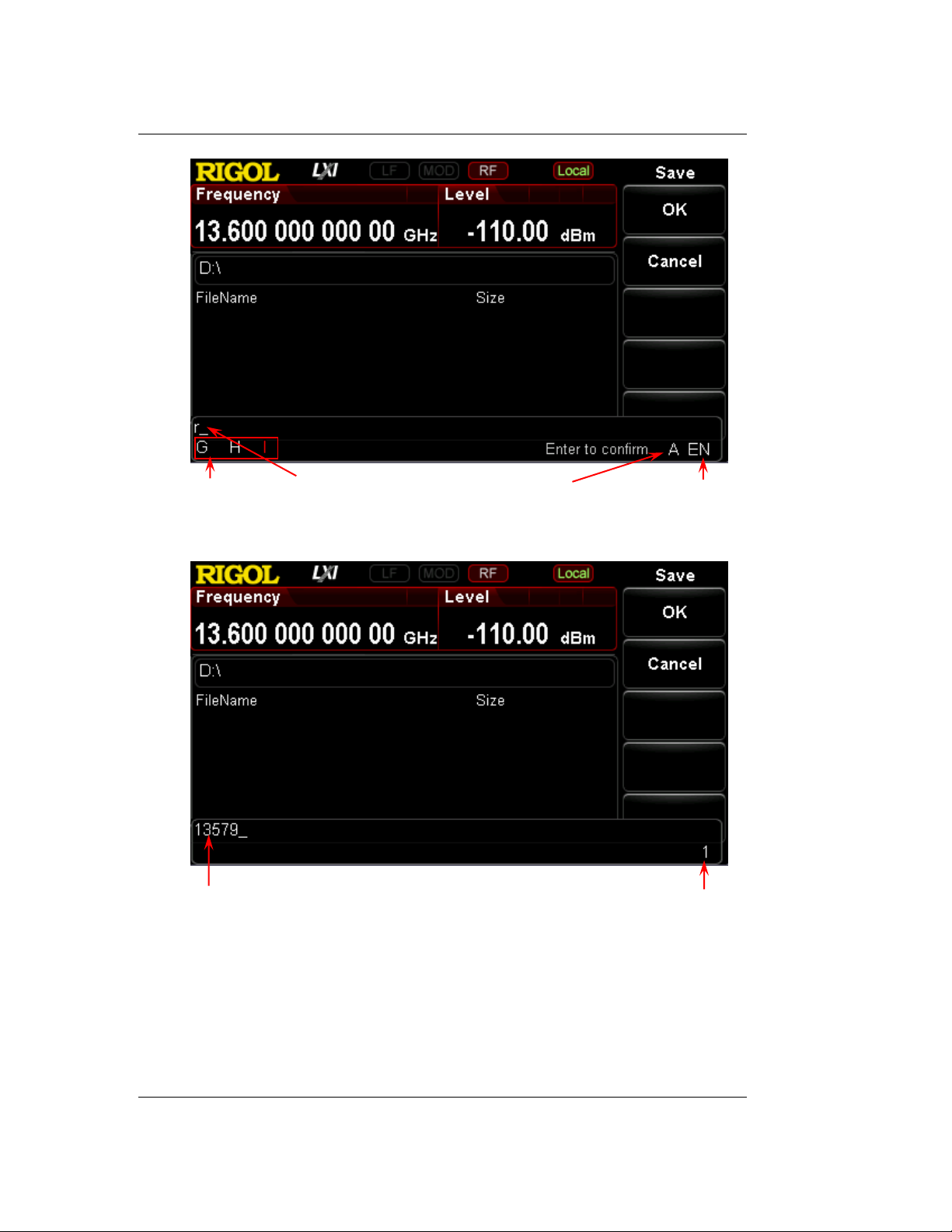

5. Numeric Keyboard
The numeric keyboard supports Chinese characters, English uppercase
/lowercase characters, numbers and commonly used symbols (include the
decimal point, #, space and positive/negative sign+/-). It is mainly used to edit
the file or folder name or set parameters.
The multiplexing key of number and letter is used to directly input the desired
number or letter.
Used to switch among Chinese, English and number input
modes.
When setting parameters, the input mode is fixed at
number and this key is used to input the sign ("+" or "-")
of the value.
In number input mode, press this key to input 1.
In English input mode, press this key to switch between
uppercase and lowercase letter input.
The multiplexing key of 0 and space:
In number input mode, press this key to input 0.
In Chinese or English input mode, press this key to input a
space.
In number input mode, press this key to insert a decimal
point at the current cursor.
In English input mode, press this key to input "#".
In Chinese input mode, this key is invalid.
Used to set the unit of the parameter.
When setting a parameter, after using the numeric
keyboard to input the numbers, press one of these keys to
select the corresponding unit. The unit selected is related
to the type of the parameter to be set.
Parameter
GnV
MμV
kmV
X1
dBm
Frequency
GHz
MHz
kHz
Hz
Amplitude
nV
μV
mV
dBm
Period
s
ms
μs
ns
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 1 Quick Start
1-8 DSG3000B User Guide
When setting parameters, use this key to clear the
number in the editing window and exit the parameter
input state.
When editing filenames, use this key to clear the
characters in the input bar.
During the keyboard test, use this key to exit the current
test state.
When the instrument is in remote mode, use this key to
return to local mode.
When setting parameters, use this key to delete the
number at the left of the cursor.
When editing filenames, use this key to delete the
character at the left of the cursor.
For the storage function, it is used to collapse the
directory currently selected.
When setting parameters, use this key to finish the
parameter input and add the default unit for the
parameter.
When editing filenames, use this key to input the
character currently selected by the cursor.
For the storage function, it is used to expand the directory
currently selected.
6. Arrow Keys/Step Key
When setting the parameters, Step is used to set the
step of the parameter currently selected.
The left/right arrow keys are used to enter the parameter
editing state and move the cursor to the specified digit.
The up/down arrow keys are used to modify the value at
the cursor or modify the parameter value at the current
step.
For the storage function, the left/right arrow keys are
used to collapse or expand the directory currently
selected.
The up/down arrow keys are used to select the current
directory or file.
When editing filenames, they are used to select the
desired character.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 1 Quick Start RIGOL
DSG3000B User Guide 1-9
7. Knob
When setting parameters, the knob is used to modify
the value at the cursor or modify the parameter value at
the current step.
When editing filenames, it is used to select the desired
character.
For the storage function, it is used to select the current
directory or file.
8. Output Control Keys
Used to turn on or off the LF output.
— Press this key, the backlight lights on and the LF label
is displayed in the status bar in the user interface.
The LF output is turned on. At this point, the [LF
OUTPUT] connector outputs the LF signal according
to the current configuration.
— Press this key again, the backlight goes out and the
LF output is turned off.
Used to turn on or off the RF output.
— Press this key, the backlight lights on and the RF label
is displayed in the status bar in the user interface.
The RF output is turned on. At this point, the [RF
OUTPUT 50Ω] connector outputs RF signal or RF
sweep signal according to the current configuration.
— Press this key again, the backlight goes out and the
RF output is turned off.
Used to turn on or off the RF modulation output.
— Press this key, the backlight lights on and the MOD
label is displayed in the status bar in the user
interface. The RF modulation output is turned on. At
this point, the [RF OUTPUT 50Ω] connector
outputs modulated RF signal according to the current
configuration (the backlight of RF must light on).
— Press this key again, the backlight goes out and the
RF modulation output is turned off.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 1 Quick Start
1-10 DSG3000B User Guide
9. Power Key
Turn on or off the signal generator. When this key is
turned off, the signal generator is in standby state,
indicated by a pulsing LED. In addition, this key has a
delayed switching function. The instrument can be
turned on or off only when pressing this key and holding
it down for a certain time. With this feature, you can
avoid turning off the instrument because of accidentally
touching the key.
Press System → Power Status to select "Open" or
"Default". When "Default" is selected, after the
instrument is powered on, you need to press this key to
start the instrument. When "Open" is selected, the
instrument will start automatically after it is powered on.
10. Built-in Help System
To get the help information of any front panel key or
menu softkey, press this key and then press the desired
key.
11. View Switch Key
It is used to switch the interface display mode to normal
mode or parameter zoom-in mode. For details, please
refer to "User Interface".
12. Trigger Control Key
When the trigger type of SWEEP is "Key", press this key
once to trigger a sweep.
When the trigger mode of Pulse is "Key", press this key
once to enable a pulse modulation.

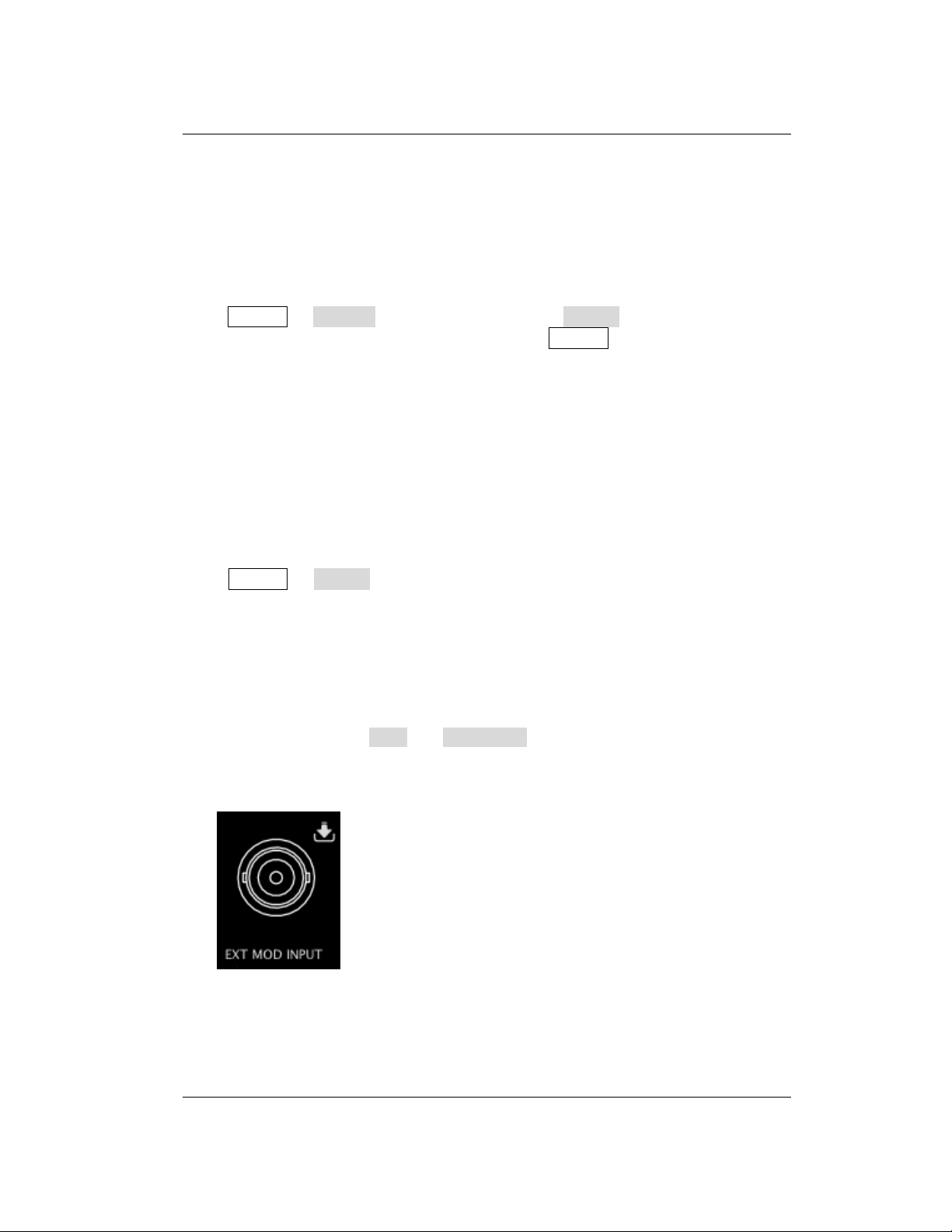

13. External Modulation Input Connector
When the modulation source of AM, FM and ΦM is
external, this connector is used to input the external
modulating signal.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 1 Quick Start RIGOL
DSG3000B User Guide 1-11
14. LF Output Connector
When the backlight of LF lights on, this connector is
used to output LF signal.
15. RF Output Connector
When the backlight of RF lights on, this connector is
used to output RF signal and RF sweep signal.
When the backlights of RF and MOD light on, this
connector is used to output RF modulated signal.
CAUTION
To avoid damage to the instrument, the reverse DC voltage on
the RF output connector cannot exceed 50 V, and the reverse
power must be less than 1 W.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 1 Quick Start
1-12 DSG3000B User Guide
Rear Panel Overview
The rear panel of DSG3000B series RF signal generator is as shown in the figure
below. Click the number in the figure to view the corresponding introduction.
1 2 3 4
5 6 7 8 9 10 11
Figure 1-5 Rear Panel
1. Pulse Signal Input/Output Connector
The function of this connector is determined by the
current working mode of the pulse modulation.
PULSE IN:
When the modulation source of Pulse is external,
this connector is used to input the external pulse
signal.
PULSE OUT:
When the modulation source of Pulse is internal
and the switch of pulse output is "on", this connector
is used to output the pulse signal of the internal
generator. This output signal is related to the choice
of pulse mode which can be set to "Single" or
"Train".
2. Signal Valid Output Connector
When the RF output frequency or amplitude is
modified, after a certain response and processing
time, the internal circuit of the instrument
outputs RF signal with specified frequency and
amplitude via the RF output connector on the
front panel. During this process, the [SIGNAL
VALID] connector outputs a pulse sync signal,
indicating that the RF output signal is valid.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 1 Quick Start RIGOL
DSG3000B User Guide 1-13
— High Level (+3.3 V): indicates that the RF
signal is in configuration;
— Low Level (0 V): indicates that the RF signal
is stable (namely, the signal is valid).
3. External Trigger Input Connector
When the trigger type of SWEEP is "Ext", this
connector is used to input the external trigger
signal. You can set the polarity of trigger signal by
pressing Trig Slope to select "Pos" or "Neg".
When the trigger mode of I/Q modulation
baseband output is "Ext", this connector is used
to input the external trigger signal.
When the pulse modulation source is "Int" and
the trigger mode is "Ext Trig", it is used to input
the external trigger signal.
When the pulse modulation source is "Int" and
the trigger mode is "Ext Gate", it is used to input
the external gated signal.

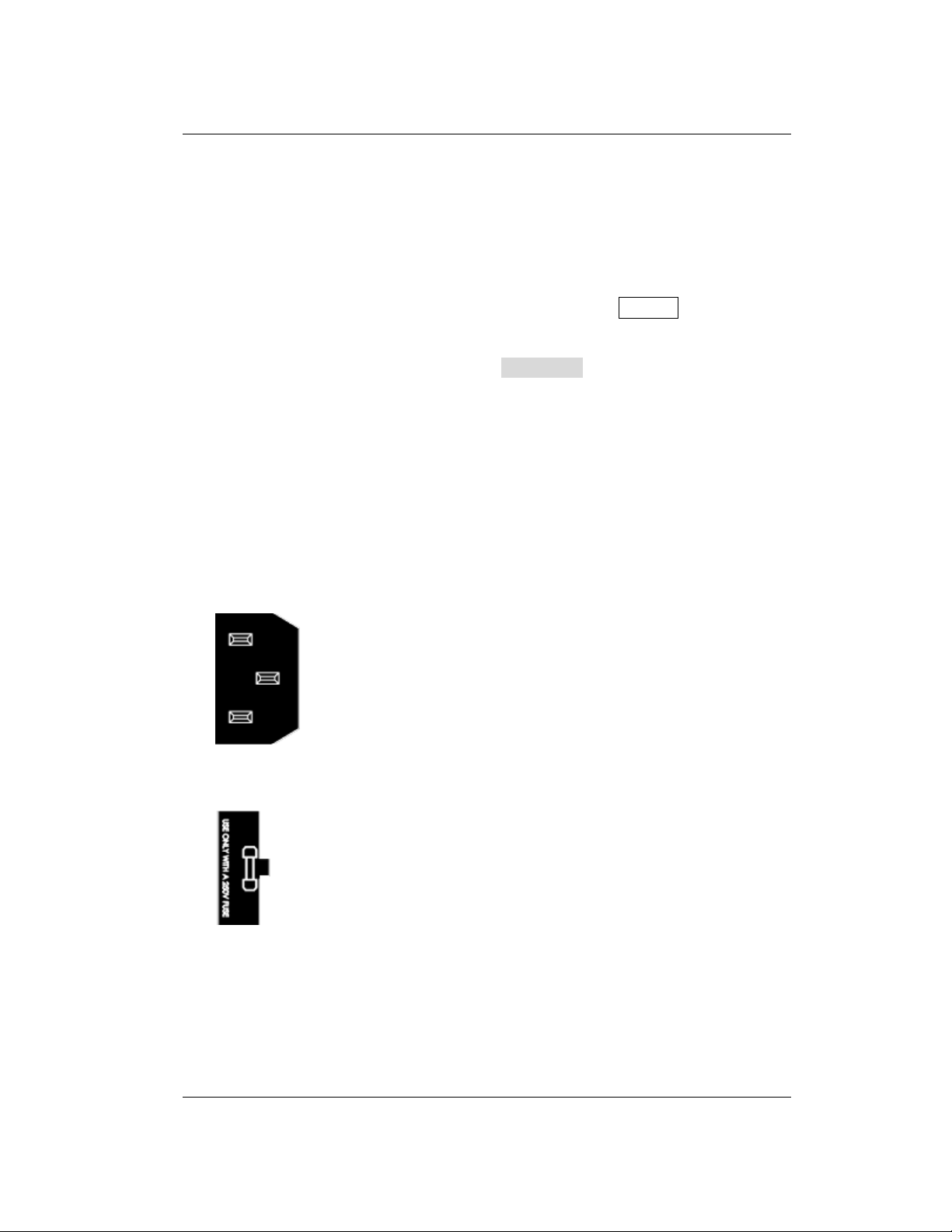

4. Power Input Connector, Fuse and Switch
Power input connector.
This signal generator supports 100-240 V,
45-440 Hz; 100-240 Vac, 45-65 Hz. The power
consumption of the instrument cannot exceed
100 W. When the signal generator is
connected to AC power supply via this
connector, the instrument selects the correct
voltage range automatically and users do not
need to select the voltage range manually.
Fuse.
The fuse specification of this signal generator
is AC 250 V, T3.15 A.
If the fuse needs to be replaced, please refer
to "To Replace the Fuse".
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 1 Quick Start
1-14 DSG3000B User Guide
5. Reference Signal Output Connector
It is used to output the internal 10 MHz reference
clock signal used to synchronize the generator with
other instruments. For more information about the
output clock signal specification of this connector,
please refer to
DSG3000B Data Sheet.
6. Reference Signal Input Connector
It is used to input the external 10 MHz reference
clock signal which is used to synchronize the
generator with other instruments. For more
information about the external clock signal
specification of this connector, please refer to
DSG3000B Data Sheet
.
7. LAN
The instrument complies with LXI Device
Specification 2011 standard, and supports
WebServer, Socket and other remote control modes.
This interface is used to connect the PC or network
for remote instrument control.
8. USB Device
The instrument complies with USBTMC class
protocol.
This interface is used to connect to a PC for remote
instrument control.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 1 Quick Start RIGOL
DSG3000B User Guide 1-15
9. USB Host
This input is used to connect the USB storage device
to update the system, store system states and
sweep lists.
10. OCXO (option OCXO-B08)
OCXO is an oven-controlled crystal oscillator. It is a
frequency reference source with higher temperature
stability.
NOTE: Forty minutes of warm-up is required for the
OCXO to reach its rated frequency.
For ordering information of this option, please refer
to
DSG3000B Data Sheet
.

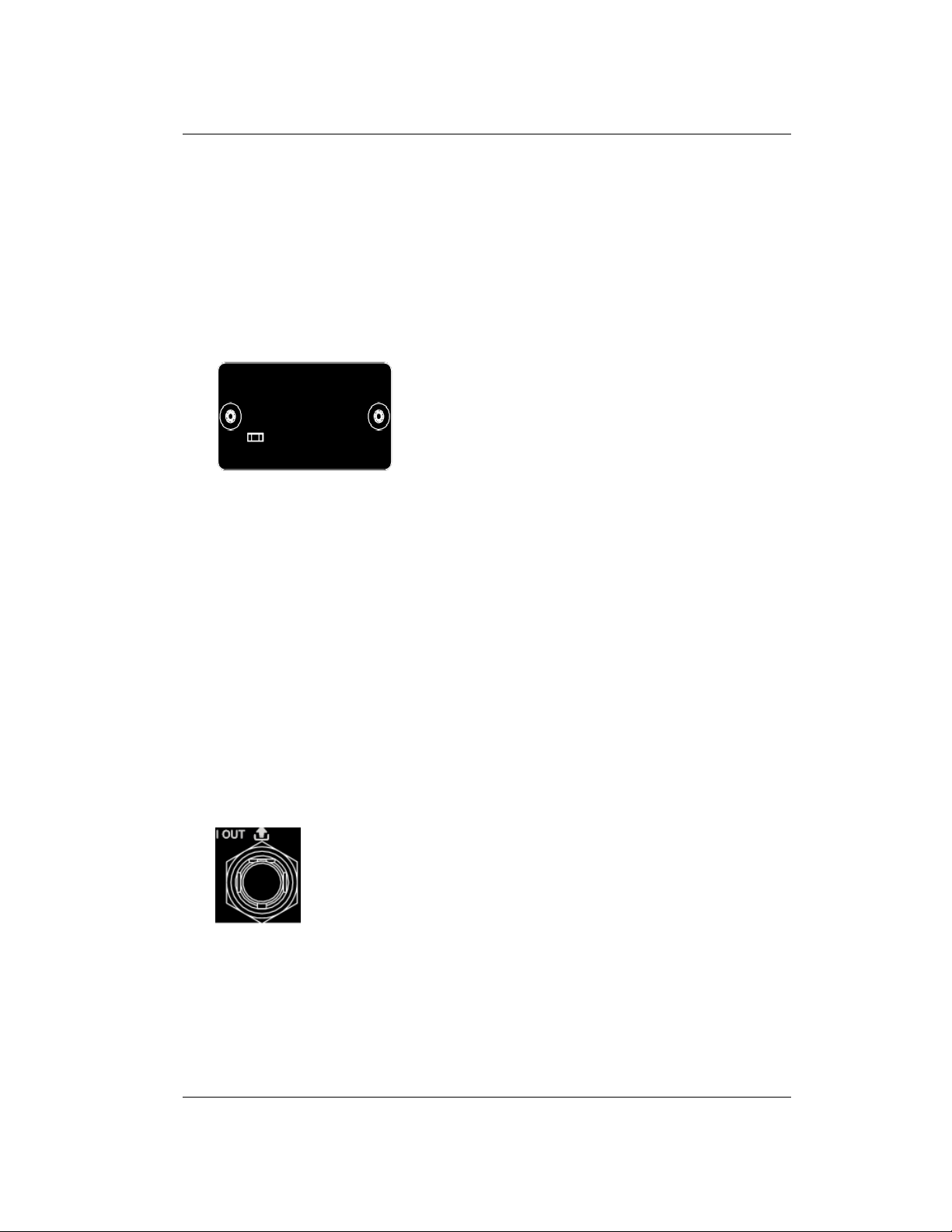

11. I/Q Modulating Signal In/Out Connectors
When I/Q modulation type is "external", it is used to
input the I (In-Phase) baseband signal of I/Q
modulation.
When I/Q modulation type is "external", it is used to
input the Q (Quadrature Phase) modulating signal of
I/Q modulation.
It is used to output the I (In-Phase) components of
the I/Q modulation of the built-in baseband
generator.
It is used to output the Q (Quadrature Phase)
components of the I/Q modulation of the built-in
baseband generator.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 1 Quick Start
1-16 DSG3000B User Guide
To Use DSG3000B for the First Time
To Connect the Power Supply
Please connect the signal generator to AC power supply using the power cord
supplied in the accessories as shown in the figure below. This signal generator
supports 100-240 V, 45-440 Hz; 100-240 Vac, 45-65 Hz. The power consumption of
the instrument cannot exceed 100 W. When the signal generator is connected to AC
power supply via this connector, the instrument selects the correct voltage range
automatically and users do not need to select the voltage range manually.
Figure 1-6 To Connect the Power Supply
CAUTION
To avoid electric shock, use the standard power cable.
Turn-on Checkout
After the power supply is correctly connected, press the power key on the front
panel to turn on the signal generator. During the start-up, the instrument performs
initialization and self-test. After that, the instrument enters the default interface.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 1 Quick Start RIGOL
DSG3000B User Guide 1-17
To Set the System Language
DSG3000B series RF signal generator supports multiple system languages. You can
press System→ Language to switch the system language.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 1 Quick Start
1-18 DSG3000B User Guide
To Replace the Fuse
To replace the fuse, please use the specified fuse and follow the steps below.
1． Turn off the instrument, cut off the power and remove the power cord.
2． Insert a slotted screwdriver into the slot of the fuse holder to pry it out.
3． Take out the fuse.
4． Replace the old fuse with a specified fuse (AC 250 V, T3.15 A).
5． Install the fuse holder.
Figure 1-7 To Replace the Fuse
WARNING
To avoid electric shock, make sure that the instrument is turned off, the
power supply is disconnected and the fuse used is up to standard
before replacing the fuse.
Location of the Fuse
Holder
Fuse
Fuse Holder
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 1 Quick Start RIGOL
DSG3000B User Guide 1-19
User Interface
The user interface of DSG3000B series RF signal generator provides two display
modes: normal display mode and parameter zoom-in mode. At power-on, the
instrument enters the normal display mode by default. In this manual, the normal
display mode of DSG3136B-IQ is taken as an example to illustrate the user interface
of the instrument.
Normal Display Mode
1 2 3 4
5 6 7
Figure 1-8 User Interface (Normal Display Mode)
1. Frequency Area
Display the current frequency setting of the RF signal generator.
— : Displayed when the frequency offset is not 0 Hz.
— : Continuous sweep label. Displayed when the sweep type is "Freq" or
"Freq&Lev" and the sweep mode is "Cont".
— : Single sweep label. Displayed when the sweep type is "Freq" or
"Freq&Lev" and the sweep mode is "Single".
— : Forward sweep label. Displayed when the sweep type is "Freq" or
"Freq&Lev" and the sweep direction is "Fwd".
— : Down sweep label. Displayed when the sweep type is "Freq" or
"Freq&Lev" and the sweep direction is "Down".
— : Frequency sweep progress bar. Displayed when the
sweep type is "Freq" or "Freq&Lev".
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 1 Quick Start
1-20 DSG3000B User Guide
2. Status Bar
Indicate the states of some of the RF signal generator functions.
— : Displayed when the LF output is enabled. This is grayed out when
the LF output is disabled.
— : Displayed when the RF modulation output is enabled. This is
grayed out when the RF modulation output is disabled.
— : Displayed when the RF output is enabled. This is grayed out when
the RF output is disabled.
— : The RF signal generator is operating in remote control mode.
— : The RF signal generator is operating in local mode.
3. Amplitude Area
Display the current level setting of the RF signal generator.
— : Displayed when the flatness calibration switch is "On".
— : Displayed when the equal level switch is "On".
— : Displayed when the amplitude offset is not 0 dB.
— : Continuous sweep label. Displayed when the sweep type is "Level" or
"Freq&Lev" and the sweep mode is "Cont".
— : Single sweep label. Displayed when the sweep type is "Level" or
"Freq&Lev" and the sweep mode is "Single".
— : Forward sweep label. Displayed when the sweep type is "Level" or
"Freq&Lev" and the sweep direction is "Fwd".
— : Down sweep label. Displayed when the sweep type is "Level" or
"Freq&Lev" and the sweep direction is "Down".
— : Amplitude sweep progress bar. Displayed when the
sweep type is "Level" or "Freq&Lev".
4. Menu Display Area
The menus in this area correspond to the softkeys at the right of the screen.
Pressing any softkey can enable the corresponding menu function.
5. Message Display Area
Display the operation error messages and prompt messages. You can press
System → Information → System Msg to view the messages. When
multiple messages are generated, you can use the up/down arrow keys or knob
to select the message row to be viewed. When the messages cannot be
displayed completely in the list, press Verbose to view the complete
information of the current row selected in the message list.
6. Function Status Area
Display the current active states of each function. Each function corresponds to
at most four kinds of states as shown in the table below.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 1 Quick Start RIGOL
DSG3000B User Guide 1-21
Type
Remarks
Example
Gray text on a
black background
The function is not selected and enabled.
Black text on a
gray background
The function is selected and you can set
the corresponding parameters.
White text on a
gray background
The function is selected and enabled.
White text on a
black background
The function is not selected but it is
enabled.
The status labels in the function status area as shown in the figure below.
The frequency parameters
can be set .
The level parameters
can be set .
The sweep parameters can be set .
Enable any type of “Freq”, ”Level”
or “Freq &Level” to sweep.
The LF output, power meter
(option), RX1000 (option)
parameters can be set.
Select LF as the currently active
function, and turn on the LF switch.
Select other operations (except LF)
as the currently active function,
and turn on the LF switch.
The AM parameters can
be set.
Select and turn on the
AM switch.
Select other operations
(except AM) as the
currently active function,
and turn on the AM switch.
The FM parameters can be set.
Select and turn on the FM switch.
Select other operations (except
PM) as the currently active
function, and turn on the PM
switch.
The PM parameters can be set.
Select and turn on the PM switch.
Select other operations (except
SWEEP) as the currently active
function, and enable the sweep.
The pulse modulation parameters
can be set.
Select and turn on the
pulse modulation switch.
Select other operations (except
Pulse) as the currently active
function, and turn on the pulse
modulation switch.
The I/Q modulation parameters
can be set.
Select and turn on the I/Q
modulation switch.
The system parameters
can be set .
Select other operations (except I/Q)
as the currently active function, and
turn on the I/Q modulation switch.
The AM function is not
selected and enabled.
The sweep function is not
selected and enabled.
The LF output is not
selected and enabled.
The PM function is not
selected and enabled.
The pulse modulation function
is not selected and enabled.
The I/Q modulation function is
not selected and enabled.
The system parameters
setting is not selected.
The frequency parameters
setting is not selected.
Figure 1-9 Labels in Function Status Area
7. Text Display Area
Display the corresponding parameter information of the current function of the
RF signal generator.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 1 Quick Start
1-22 DSG3000B User Guide
Parameter Zoom-in Mode
In normal display mode, pressing the display switch key View at the left of the
screen can switch to the parameter zoom-in mode as shown in the figure below.
Figure 1-10 User Interface (Parameter Zoom-in Mode)
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 1 Quick Start RIGOL
DSG3000B User Guide 1-23
To Use the Built-in Help System
The DSG3000B built-in help system provides help information for all the function
keys and menu softkeys located on the front panel. Users can view the help of any
key when operating the instrument.
1. Acquire the built-in help
Press Help and the prompt message about how to acquire the help information
is displayed in the test display area of the user interface, as shown in Figure 1-11.
Then, press the desired key and the help information of that key is displayed in
the text display area.
Figure 1-11 Help Interface
2. Page up/down
When the help information is displayed on multiple pages, users can acquire the
help information on the previous or next page using the arrow keys or knob.
3. Turn off the current help information
When the help information is displayed in the text display area, pressing any key
(except the arrow keys and knob) on the front panel will turn off the help
information currently displayed.
4. Acquire the help information of a menu softkey
Press Help and help information is displayed in the text display area. Then,
press the desired menu softkey, the help information of the menu item
corresponding to this menu softkey is displayed in the text display area.
5. Acquire the help information of any function key
Press Help and help information is displayed in the text display area. Then,
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 1 Quick Start
1-24 DSG3000B User Guide
press any function key and the function help information of this key is displayed
in the text display area.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-1
Chapter 2 Front Panel Operations
This chapter introduces each function key on the front panel and the menu functions
under it in details.
The contents of this chapter are as follows:
◼ To Set the Frequency Parameters
◼ To Set the Amplitude Parameters
◼ Sweep
◼ Modulation
◼ LF Output
◼ Store and Recall
◼ To Set the System Parameters
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-2 DSG3000B User Guide
To Set the Frequency Parameters
Frequency
Set the RF output frequency.
Press FREQ → Frequency, then use the numeric keyboard to input the value of the
frequency and select the desired unit from the pop-up unit menu or unit keys.
⚫ The frequency units available are GHz, MHz, kHz and Hz.
⚫ Press Enter to select the current frequency unit by default.
⚫ You can also press the left/right arrow keys to enter the parameter editing state
and move the cursor to the specified digit; and then use the up/down arrow
keys or knob to modify the value.
⚫ After the frequency is set, you can use the up/down arrow keys or knob to
modify the frequency at the current step.
⚫ Press FREQ → Frequency and then press Step to set the step.
Frequency Offset
Set the frequency offset relative to the RF output frequency.
When using an external mixer and other devices, you can set and read the frequency
value through the external mixer on the RF source by setting the frequency offset.
Press FREQ → Offset, then use the numeric keyboard to input the value of the
frequency offset and select the desired unit from the pop-up unit menu or unit keys.
⚫ The frequency offset units available are GHz, MHz, kHz and Hz.
⚫ Press Enter to select the default unit (MHz).
⚫ You can also press the left/right arrow keys to enter the parameter editing state
and move the cursor to the specified digit; and then use the up/down arrow
keys or knob to modify the value.
⚫ You can also use the up/down arrow keys or knob to modify the frequency offset
at the current step.
⚫ Press FREQ → Offset and then press Step to set the step.
Remarks
1. When the frequency offset is 0 Hz, the frequency displayed in the interface
(namely setting frequency) is equal to the actual output frequency.
2. When frequency offset is not 0 Hz, the output frequency is determined by
setting frequency and frequency offset. The three parameters satisfy the
equation: setting frequency (display frequency) = output frequency +
frequency offset
3. The deviation (namely the actual output frequency) between interface
display frequency and frequency offset cannot exceed the frequency range
of instrument.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-3
Phase Offset
Set the phase offset of the RF signal.
When multiple RF signal generators are used to output signals, you can adjust the
phase offset of the instrument to synchronize the phase or set a fixed phase offset
for the signals.
Press FREQ → Phase Offset, then use the numeric keyboard to input the value of
the phase offset, and press deg or the unit key.
⚫ Press Enter to select the default unit (deg).
⚫ Press the left/right arrow keys to enter the parameter editing state.
⚫ You can also use the up/down arrow keys or knob to modify the phase offset at
the current step.
⚫ Press FREQ → Phase Offset and then press Step to set the step.
⚫ Press Rst Phase to reset the current phase offset to 0 deg.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-4 DSG3000B User Guide
To Set the Amplitude Parameters
Amplitude
Set the RF output amplitude.
Press LEVEL → Level, use the numeric keyboard to input the amplitude value and
select the desired unit from the pop-up unit menu or unit keys.
⚫ The amplitude units available are dBm, -dBm, mV, μV and nV.
⚫ Press Enter to select the default unit (dBm).
⚫ You can also press the left/right arrow keys to enter the parameter editing state
and move the cursor to the specified digit and then use the up/down arrow keys
or knob to modify the value.
⚫ You can also use the up/down arrow keys or knob to modify the amplitude at the
current step.
⚫ Press LEVEL → Level and then press Step to set the step.
Amplitude Limit
Set the limit of the RF output amplitude. This value is the upper limit of the RF output
amplitude.
To limit the output amplitude, you can use the amplitude limit function to avoid
damage caused by delivering a high-powered signal to the external circuit.
Press LEVEL → Limit, use the numeric keyboard to input the value of the amplitude
limit and select the desired unit from the pop-up unit menu or unit keys.
⚫ The amplitude limit units available are dBm, -dBm, mV, μV and nV.
⚫ Press Enter to select the default unit (dBm).
⚫ You can also press the left/right arrow keys to enter the parameter editing state
and move the cursor to the specified digit; and then use the up/down arrow
keys or knob to modify the value.
⚫ You can also use the up/down arrow keys or knob to modify the amplitude limit
at the current step.
⚫ Press LEVEL → Limit and then press Step to set the step.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-5
Amplitude Offset
Set the amplitude offset relative to the RF output amplitude.
If the external device or circuit has a fixed attenuation or gain, you can set and read
the amplitude value after through the external device or circuit on the RF source by
setting the amplitude offset.
Press LEVEL → Offset, use the numeric keyboard to input the amplitude offset
value and press dB or the unit key.
⚫ The amplitude offset unit available is dB.
⚫ Press Enter to select the default unit (dB).
⚫ You can also press the left/right arrow keys to enter the parameter editing state
and move the cursor to the specified digit and then use the up/down arrow keys
or knob to modify the value.
⚫ You can also use the up/down arrow keys or knob to modify the amplitude offset
at the current step.
⚫ Press LEVEL → Offset and then press Step to set the step.
Remarks
1. When amplitude offset is 0 Hz, the amplitude displayed in the interface
(namely setting amplitude) is equal to the actual output amplitude.
2. When amplitude offset is not 0 Hz, output amplitude is determined by setting
amplitude and amplitude offset. The three parameters satisfy the equation:
setting amplitude (display amplitude) = output amplitude + amplitude offset
3. The deviation (namely the actual output amplitude) between interface display
amplitude and amplitude offset cannot exceed the amplitude range of
instrument.
4. The current amplitude range of instrument is related to the amplitude limit
and RF output frequency.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-6 DSG3000B User Guide
Flatness Calibration
The flatness calibration function can adjust the RF output amplitudes corresponding
to the frequency points within the frequency range of the instrument to compensate
for the external loss caused by the cables, switches or other devices. You can load
the flatness calibration lists stored in the internal or external memory to DSG3000B
and view the list contents.
1. Set the flatness calibration state
Press LEVEL → Flatness → Switch to set the flatness calibration to "On" or
"Off". When the flatness calibration is enabled, the UF label will be displayed in
the amplitude area in the user interface.
2. Create the flatness calibration list
Press LEVEL → Flatness → Cal List to enter the flatness calibration list menu.
Load a list
Press Load to open the store and recall interface. At this point, you can select
and read the flatness calibration list files stored. For the detailed operations,
refer to "Store and Recall".
The format of the calibration list file loaded is as shown in the table below. Note
that while you edit the value in the flatness calibration list, if no unit is added,
then the default frequency unit is mHz and the default amplitude unit is dB.
SN
Freq
Level
[1]
1
207.854 000 00 MHz
-70.50 dB
2
304.000 000 00 MHz
7.45 dB
3
800.000 000 00 MHz
-17.80 dB
Note
[1]
: Amplitude calibration value. When calibrating the amplitude of the current
frequency point, only the actual output amplitude will be affected and the amplitude
display value will not change.
Amplitude Unit
Set the unit of the RF output amplitude.
Press LEVEL → Level Unit and select the desired unit from the pop-up unit menu.
The output amplitude units available are dBm, dBmV, dBuV, Volts and Watts. Wherein,
dBm, dBmV and dBuV are logarithmic units; Volts and Watts are linear units. The
default is dBm.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-7
Sweep
When the sweep function is enabled, the RF signal generator outputs RF sweep
signal from the [RF OUTPUT 50Ω] connector (as shown in the figure below) on the
front panel (at this point, RF output switch is turned on).
NOTE: The Sweep function and I/Q Modulation function cannot be enabled at the
same time. If the IQ Modulation has already been enabled before you enable the
Sweep function, then once you enable the Sweep function, the IQ Modulation will be
disabled automatically.
Sweep Manner
DSG3000B provides three sweep manners ("Freq", "Level" and "Freq & Lev"). The
sweep function is enabled when any of the sweep manners is selected and the Swp
label will be displayed in the function status area in the user interface. By default, the
sweep function is turned off.
Press SWEEP → Sweep to select the desired manner.
⚫ Off: the default state. Turn off the sweep function.
⚫ Freq: enable the frequency sweep function. At this point, the frequency sweep
progress bar is displayed in the frequency area in the user interface.
⚫ Level: enable the amplitude sweep function. At this point, the amplitude sweep
progress bar is displayed in the amplitude area in the user interface.
⚫ Freq & Lev: enable the frequency and amplitude sweep functions at the same
time. At this point, the frequency and amplitude sweep progress bars are
displayed in the frequency and amplitude areas in the user interface
respectively.
Sweep Direction
Press SWEEP and use the page up/down key to open the 3/3 menu page; then,
press Direct to select "Fwd" or "Down" and the default is "Fwd".
⚫ Fwd: the RF signal generator sweeps from the start frequency or start level to
the stop frequency or stop level. The progress bar in the frequency area and
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-8 DSG3000B User Guide
amplitude area in the user interface sweeps from left to right.
⚫ Down: the RF signal generator sweeps from the stop frequency or stop level to
the start frequency or start level. The progress bar in the frequency area and
amplitude area in the user interface sweeps from right to left.
Sweep Type
DSG3000B provides two sweep types ("List" and "Step") and the default is "Step".
List Sweep
1. Select the list sweep mode
Press SWEEP → Type to select "List". At this point, the RF signal generator
sweeps according to the current sweep list.
2. Create the sweep list
Press SWEEP and use the page up/down key to open the 2/3 menu page;
then, press List Swp to enter the editing interface of sweep list.
Load a list
Press Load to open the store and recall interface. At this point, you can select
and read the sweep list files stored. For the detailed operations, refer to "Store
and Recall".
The format of the sweep list file loaded is as shown in the table below. Note that
when you edit the value in the sweep list, the unit must be added. If no unit is
added, then you may fail to load the list.
SN
Freq
Level
[1]
Time
[2]
1
2.000 000 000 10 GHz
-10.00 dBm
500.00 ms
2
1.994 152 687 00 GHz
-50.00 dBm
500.00 ms
3
1.888 000 000 00 GHz
-60.85 dBm
500.00 ms
Note
[1]
: The amplitude corresponding to the frequency point set.
Note
[2]
: The duration of a sweep step.
Step Sweep
1. Select the step sweep mode
Press SWEEP → Type to select "Step". At this point, the RF signal generator
performs a step sweep according to the current settings.
2. Set the sweep parameters
Press SWEEP and use the page up/down key to open the 2/3 menu page;
then, press Step Swp to set the start frequency, stop frequency, start level,
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-9
stop level, sweep points and so on.
⚫ Start Frequency
Press Start Freq, use the numeric keyboard to input the start frequency
value and select the desired unit from the pop-up unit menu or unit keys.
You can also press Enter to select the default unit (MHz).
⚫ Stop Frequency
Press Stop Freq, use the numeric keyboard to input the stop frequency
value and select the desired unit from the pop-up unit menu or unit keys.
You can also press Enter to select the default unit (MHz).
Remarks
The start frequency and stop frequency are the frequency upper and
lower limits of the frequency sweep.
⚫ When the sweep direction is forward, the RF signal generator
sweeps from the start frequency to the stop frequency.
⚫ When the sweep direction is down, the RF signal generator sweeps
from the stop frequency to the start frequency.
When the "Start Freq" or "Stop Freq" is modified, the RF signal
generator will restart the sweep and output from the specified "Start
Freq" or "Stop Freq".
⚫ Start Level
Press Start Lev, use the numeric keyboard to input the start level value
and select the desired unit from the pop-up unit menu or unit keys. You can
also press Enter to select the default unit (dBm).
⚫ Stop Level
Press Stop Lev, use the numeric keyboard to input the stop level value and
select the desired unit from the pop-up unit menu or unit keys. You can also
press Enter to select the default unit (dBm).
Remarks
The start level and stop level are the amplitude upper and lower limits of
the amplitude sweep.
⚫ When the sweep direction is forward, the RF signal generator sweeps
from the start level to the stop level.
⚫ When the sweep direction is down, the RF signal generator sweeps
from the stop level to the start level.
When the "Start Lev" or "Stop Lev" is modified, the RF signal generator will
restart the sweep and output from the specified "Start Lev" or "Stop Lev".
⚫ Sweep Points
Press Points, use the numeric keyboard to input the number of sweep
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-10 DSG3000B User Guide
points and then press OK or Enter.
⚫ Dwell Time
The dwell time indicates the duration of a sweep step.
Press Dwell Time, use the numeric keyboard to input the time value and
select the desired unit from the pop-up unit menu or unit keys. You can also
press Enter to select the default unit (s).
⚫ Sweep Space
The sweep space indicates the mode in which the instrument changes from
one frequency or amplitude to another within one step.
Press Swp Space to select "Log" or "Lin" sweep space. Note that the level
sweep only supports the "Lin" sweep space.
⚫ Sweep Shape
The sweep shape indicates the cycle mode of multiple sweeps.
Press Shape to select "Ramp" or "Triangle" sweep shape. When the sweep
direction is "Fwd", the "Ramp" and "Triangle" sweep shapes are as shown in
the figure below.
F
T
Start
Frequency
Stop
Frequency
Start
Frequency
Stop
Frequency
Ramp
Triangle
Ramp: the sweep period always starts from the start frequency or start level
to the stop frequency or stop level and the sweep sequence is similar to a
ramp waveform.
Triangle: the sweep period always starts from the start frequency or start
level to the stop frequency or stop level and then returns back to the start
frequency or start level. The sweep sequence is similar to a triangle
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-11
waveform.
Sweep Mode
Press SWEEP → Mode to select "Cont" or "Single" sweep and the default is "Cont".
⚫ Cont: after selecting continuous sweep, the continuous sweep label is displayed
in the frequency or amplitude area in the user interface. When the trigger
condition is met, the instrument starts to sweep continuously according to the
current setting.
⚫ Single: after selecting single sweep, the single sweep label is displayed in the
frequency or amplitude area in the user interface. When the trigger condition is
met, the instrument performs one sweep according to the current setting and
then stops.
Single Sweep
If the current sweep mode is "Cont", press Single to switch the sweep mode to
"Single" and the instrument will perform one sweep if the trigger condition is met.
If the current sweep mode is "Single", press Single and the instrument will perform
one sweep if the trigger condition is met.
Reset Sweep
If the current sweep direction is "Fwd", press Reset Swp, the instrument stops the
current sweep and restarts the sweep from the start frequency or start level.
If the current sweep direction is "Down", press Reset Swp, the instrument stops the
current sweep and restarts the sweep from the stop frequency or stop level.
Trigger Mode
1. Trigger Mode
Select the trigger mode of the whole sweep period.
Press SWEEP and use the page up/down key to open the 2/3 menu page;
then, press Trig Mode to select "Auto", "Key", "Bus" or "Ext" trigger.
NOTE: The following descriptions are valid when the trigger mode of each point
in the sweep period is met.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-12 DSG3000B User Guide
⚫ Auto Trigger
The default mode is auto. If the sweep mode is set to "Cont", the
instrument will start sweeping once a sweep type is selected. If the sweep
mode is set to "Single", press Single to meet the single sweep condition.
The instrument will start a sweep and then stops.
⚫ Key Trigger
After selecting "Key" trigger, if the sweep mode is set to "Cont", the
instrument starts a sweep each time Trigger on the front panel is pressed.
If the sweep mode is "Single", press Single to meet the single sweep
condition. After that the instrument starts a sweep and then stops each
time Trigger on the front panel is pressed.
⚫ Bus Trigger
After selecting "Bus" trigger, if the sweep mode is set to "Cont", the
instrument starts a sweep each time the "*TRG" command is sent. If the
sweep mode is "Single", press Single to meet the single sweep condition.
After that the instrument starts a sweep and then stops each time the
"*TRG" command is sent.
⚫ External Trigger
In external trigger, the RF signal generator accepts the trigger signal input
from the [TRRIGER IN] connector (as shown in the figure below) on the
rear panel. If the sweep mode is set to "Cont", the instrument starts a
sweep each time a TTL pulse signal with specified polarity is received. If the
sweep mode is "Single", press Single to meet the single sweep condition.
After that the instrument starts a sweep and then stops each time a TTL
pulse signal with the specified polarity is received.
To specify the polarity of the TTL pulse signal, press Trig Slope to select
"Pos" or "Neg" and the default is "Pos".
2. Point Trigger Mode
Select the trigger mode of each sweep point in a sweep period.
Press SWEEP and use the page up/down key to open the 2/3 menu page;
then, press Point Trig to select "Auto", "Key", "Bus" or "Ext" trigger.
NOTE: The following descriptions are valid when the corresponding trigger
mode of sweep period is met.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-13
⚫ Auto Trigger
The default mode is auto. If the sweep mode is set to "Cont", the
instrument will start sweeping each sweep point continuously within a
sweep period once a sweep type is selected. If the sweep mode is set to
"Single", press Single to meet the single sweep condition. After that the
instrument starts to sweep and then stops after the sweep period is
finished.
⚫ Key Trigger
After selecting "Key" trigger, if the sweep mode is set to "Cont", the
instrument starts to sweep a point each time Trigger on the front panel is
pressed. If the sweep mode is "Single", press Single to meet the single
sweep condition. At this point, the instrument starts to sweep a point and
stops after the sweep period is finished each time Trigger on the front
panel is pressed.
⚫ Bus Trigger
After selecting "Bus" trigger, if the sweep mode is set to "Cont", the
instrument starts to sweep a point each time the "*TRG" command is sent.
If the sweep mode is "Single", press Single to meet the single sweep
condition. At this point, the instrument starts to sweep a point and stops
after the sweep period is finished each time the "*TRG" command is sent.
⚫ External Trigger
In external trigger mode, the RF signal generator accepts the trigger signal
input from the [TRRIGER IN] connector (as shown in the figure below) on
the rear panel. If the sweep mode is set to "Cont", the instrument starts to
sweep a point each time a TTL pulse signal with specified polarity is
received. If the sweep mode is "Single", press Single to meet the single
sweep condition. At this point, the instrument starts to sweep a point and
stops after the sweep period is finished each time a TTL pulse signal with
specified polarity is received.
To specify the polarity of the TTL pulse signal, press Trig Slope to select
"Pos" or "Neg" and the default is "Pos".
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-14 DSG3000B User Guide
Remarks
When executing the sweep operation, the priority order of the conditions is
Single Sweep → Trigger Mode → Point Trigger Mode. For example, when
both the trigger mode and point trigger mode are set to "Key" trigger:
⚫ In "Cont" sweep mode, press Trigger to meet the trigger mode of the
whole period and then press Trigger again to meet the trigger mode
of points within the sweep period; then, the instrument starts to
sweep.
⚫ In "single" sweep mode, press Single to meet the single sweep
condition and then press Trigger twice to meet the sweep period
trigger mode and point trigger mode respectively. Then, the
instrument starts to sweep.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-15
Modulation
Amplitude Modulation (AM)
During amplitude modulation (AM), the modulating signal changes the amplitude of
the RF carrier waveform linearly. This function only supports the frequency band
below 3.6 GHz.
To Enable AM
Press AM → Switch to select "On" or "Off".
⚫ On: enable the AM function. The backlight of AM lights on and the AM label is
displayed in the function status area in the user interface.
⚫ Off: disable the AM function and this is the default state.
NOTE: When a sweep type is selected, if the step sweep time is lower than 30 ms
and amplitude modulation is turned on, "You can turn on the AM when sweep time is
greater than 30ms" will be displayed in the user interface.
To Select the Modulation Source
Press AM → Source to select "Int" or "Ext" modulation source.
1. Internal Source
After selecting "Int", the internal modulation source is turned on. At this point,
the instrument provides the modulating signal and you can set the modulation
frequency and modulation waveform of the modulating signal.
2. External Source
After selecting "Ext", Freq and Waveform are grayed out and disabled. The RF
signal generator receives the external modulating signal input from the [EXT
MOD INPUT] connector (as shown in the figure below) on the front panel. This
modulating signal can be any waveform.
NOTE: The input amplitude of the external modulating signal cannot exceed
+/-3 V (HighZ). To ensure the modulation performance, the input amplitude of
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-16 DSG3000B User Guide
the external modulating signal should be less than 1 Vpp.
To Set the Modulation Depth
The modulation depth indicates the extent of output amplitude variation and is
expressed as a percentage. The range of AM modulation depth is from 0% to 100%.
Press AM → Depth to set the AM modulation depth.
1. Select "Int" modulation source
AM modulation depth (
a
m
) and the amplitude difference (
sb
ΔP
) between the
carrier and sidebands satisfy the following relation:
asb
mΔP lg206−=
⚫ When modulation depth is 0%, the instrument outputs a single frequency
carrier signal.
⚫ The greater the modulation depth is, the smaller the difference between the
output amplitude and carrier amplitude and the better the symmetry of the
output amplitudes of the upper and lower sidebands.
2. Select "Ext" modulation source
⚫ 100% modulation depth refers to the modulation depth corresponding to 1
Vpp input amplitude of the external modulation source.
⚫ When the input amplitude of the external modulation source is 0.5 Vpp, the
modulation depth actually measured is 50%.
To Select the Modulation Waveform
Press AM → Source to select "Int" modulation source. Press Waveform to select
"Sine" or "Square". The default is "Sine".
NOTE: When "Ext" modulation source is selected, this menu is grayed out and
disabled.
To Set the Modulation Frequency
Press AM → Source to select "Int" modulation source. Then press Freq to
set the modulation frequency.
⚫ Use the numeric keyboard or knob to input the desired frequency value.
⚫ For sine waveforms, the range of the modulation frequency is from 10 Hz to 100
kHz.
⚫ For square waveforms, the range of the modulation frequency is from 10 Hz to
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-17
20 kHz.
NOTE: When "Ext" modulation source is selected, this menu is grayed out and
disabled.
External Coupling
Press EXT Coup to select "AC" or "DC" coupling. The default is "AC".
⚫ When "AC" is selected: the DC components of the external signal input from the
[EXT MOD INPUT] connector on the rear panel of the instrument will be
blocked and the AC components can pass through the connector. The external
modulation input port is similar to a high-pass filter whose lower cut-off
frequency is less than 5 Hz.
⚫ When "DC" is selected: all the AC components and DC components of the
external input signal can pass through the connector.
NOTE: When "Int" modulation source is selected, this menu is grayed out and
disabled.
Input Impedance
Press Impedance to select "50ohm", "600ohm" or "100kohm ". You can set the
impedance of the [EXT MOD INPUT] input channel.
NOTE: When "Int" modulation source is selected, this menu is grayed out and
disabled.
Equal Level
The equal level output function is available under the AM menu. That is, when AM
modulation is used in setting the amplitude value for the continuous waveforms, the
output signal peak remains unchanged, as is shown in the following figure.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-18 DSG3000B User Guide
NOTE:
⚫ This function is only valid when the amplitude modulation, MOD, and equal level
output are enabled. It is grayed out and disabled in other states.
⚫ When AM and other modulation functions are enabled, the equal level menu is
disabled automatically and invalid.
⚫ This function is disabled by default.
Frequency Modulation (FM)
During frequency modulation (FM), the modulating signal changes the frequency of
the RF carrier waveform. This function only supports the frequency band below 3.6
GHz.
To Enable FM
Press FM/ø M → FM/ΦM to select "FM" and press Switch to select "On" or "Off".
⚫ On: enable the FM function. The backlight of FM/øM lights on and the FM label
is displayed in the function status area in the user interface.
⚫ Off: disable the FM function and this is the default state.
NOTE: The frequency modulation and phase modulation cannot be enabled at the
same time. In addition, when a sweep type is selected, if the step sweep time is
lower than 200 ms and frequency modulation is turned on, "You can turn on the FM
or PM when sweep time is greater than 200ms" will be displayed in the user
interface.
To Select the Modulation Source
Press Source to select "Int" or "Ext" modulation source.
1. Internal Source
After selecting "Int", the internal modulation source is turned on. At this point,
the instrument provides the modulating signal and you can set the modulation
frequency and modulation waveform of the modulating signal.
2. External Source
After selecting "Ext", Rate and Waveform are grayed out and disabled. The RF
signal generator receives the external modulating signal input from the [EXT
MOD INPUT] connector (as shown in the figure below) on the front panel. This
modulating signal can be any waveform.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-19
NOTE: The input amplitude of the external modulating signal cannot exceed
+/-3 V (HighZ). To ensure the modulation performance, the input amplitude of
the external modulating signal should be less than 1 Vpp.
To Set the Frequency Deviation
The frequency deviation is the deviation of the frequency of the modulating
waveform relative to that of the carrier waveform and the unit is Hz.
Press FM/ø M → Deviation to set the FM frequency deviation.
⚫ Use the numeric keyboard or the knob to input the desired frequency value.
⚫ The different RF frequency setting corresponds to different maximum frequency
deviation.
To Select the Modulation Waveform
Press FM/ø M → Source to select "Int" modulation source. Use the page Up/Down
key to open the 2/2 menu page, and then press Waveform to select "Sine" or
"Square". The default is "Sine".
NOTE: When "Ext" modulation source is selected, this menu is grayed out and
disabled.
To Set the Modulation Frequency
Press FM/ø M → Source to select "Int" modulation source. Then press Rate to
set the modulation frequency.
⚫ Use the numeric keyboard or the knob to input the desired frequency value.
⚫ For sine waveforms, the range of the modulation frequency is from 10 Hz to 100
kHz.
⚫ For square waveforms, the range of the modulation frequency is from 10 Hz to
20 kHz.
NOTE: When "Ext" modulation source is selected, this menu is grayed out and
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-20 DSG3000B User Guide
disabled.
External Coupling
Press EXT Coup to select "AC" or "DC" coupling. The default is "AC".
⚫ When "AC" is selected: the DC components of the external signal input from the
[EXT MOD INPUT] connector on the rear panel of the instrument will be
blocked and the AC components can pass through the connector. The external
modulation input port is similar to a high-pass filter whose lower cut-off
frequency is less than 5 Hz.
⚫ When "DC" is selected: all the AC components and DC components of the
external input signal can pass through the connector.
NOTE: When "Int" modulation source is selected, this menu is grayed out and
disabled.
Input Impedance
Press Impedance to select "50ohm", "600ohm" or "100kohm ". You can set the
impedance of the [EXT MOD INPUT] input channel.
NOTE: When "Int" modulation source is selected, this menu is grayed out and
disabled.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-21
Phase Modulation (ΦM)
During phase modulation (ΦM), the modulating waveform changes the phase of the
RF carrier waveform. This function only supports the frequency band below 3.6 GHz.
To Enable ΦM
Press FM/ø M → FM/ΦM to select "ΦM" and press Switch to select "On" or "Off".
⚫ On: enable the
Φ
M function. The backlight of FM/øM lights on and the ΦM
label is displayed in the function status area in the user interface.
⚫ Off: disable the
Φ
M function and this is the default state.
NOTE: The frequency modulation and phase modulation cannot be enabled at the
same time. In addition, when a sweep type is selected, if the step sweep time is
lower than 200 ms and phase modulation is turned on, "You can turn on the FM or
PM when sweep time is greater than 200ms" will be displayed in the user interface.
To Select the Modulation Source
Press FM/ø M → Source to select "Int" or "Ext" modulation source.
1. Internal Source
After selecting "Int", the internal modulation source is turned on. At this point,
the instrument provides the modulating signal and you can set the modulation
frequency and modulation waveform of the modulating signal.
2. External Source
After selecting "Ext", Rate and Waveform are grayed out and disabled. The RF
signal generator receives the external modulating signal input from the [EXT
MOD INPUT] connector (as shown in the figure below) on the front panel. This
modulating signal can be any waveform.
NOTE: The input amplitude of the external modulating signal cannot exceed
+/-3 V (HighZ). To ensure the modulation performance, the input amplitude of
the external modulating signal should be less than 1 Vpp.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-22 DSG3000B User Guide
To Set the Phase Deviation
The phase deviation is the deviation of the phase of the modulating waveform
relative to that of the carrier waveform and the unit is rad.
Press FM/ø M → Deviation to set the ΦM phase deviation.
⚫ Use the numeric keyboard or knob to input the desired phase value.
⚫ The different RF frequency setting corresponds to different maximum phase
deviation.
To Select the Modulation Waveform
Press FM/ø M → Source to select "Int" or "Ext" modulation source; use the page
up/down key to open the 2/2 menu page and press Waveform to select "Sine"
or "Square". The default is "Sine".
NOTE: When "Ext" modulation source is selected, this menu is grayed out and
disabled.
To Set the Modulation Frequency
Press FM/ø M → Source to select "Int" modulation source. Then press Rate to set
the frequency of the modulating waveform.
⚫ Use the numeric keyboard or knob to input the desired frequency value.
⚫ For sine waveforms, the range of the modulation frequency is from 10 Hz to 100
kHz.
⚫ For square waveforms, the range of the modulation frequency is from 10 Hz to
20 kHz.
NOTE: When "Ext" modulation source is selected, this menu is grayed out and
disabled.
External Coupling
Press EXT Coup to select "AC" or "DC" coupling. The default is "AC".
⚫ When "AC" is selected: the DC components of the external signal input from the
[EXT MOD INPUT] connector at the rear panel of the instrument will be
blocked and the AC components can pass through the connector. The external
modulation input port is similar to a high-pass filter which low cutoff frequency is
less than 5 Hz.
⚫ When "DC" is selected: all the AC components and DC components of the
external input signal can pass through the connector.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-23
NOTE: When "Int" modulation source is selected, this menu is grayed out and
disabled.
Input Impedance
Press Impedance to select "50ohm", "600ohm" or "100kohm ". You can set the
impedance of the [EXT MOD INPUT] input channel.
NOTE: When "Int" modulation source is selected, this menu is grayed out and
disabled.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-24 DSG3000B User Guide
Pulse Modulation (Option DSG3000B-PUG)
During pulse modulation, the RF carrier waveform is modulated by the pulse signal.
This function only supports the frequency band below 3.6 GHz. To enable this
function, you need to install the option DSG3000B-PUG. For the installation methods,
refer to introductions in "License".
To Enable Pulse Modulation
Press Pulse → Switch to select "On" or "Off".
⚫ On: enable the pulse modulation function. The backlight of Pulse lights on and
the Pulse label is displayed in the function status area in the user interface.
⚫ Off: disable the pulse modulation function and this is the default state.
NOTE: When a sweep type is selected, if the step sweep time is lower than 50 ms
and pulse modulation is turned on, "You can turn on the Pulse Mode when sweep
time is greater than 50ms" will be displayed in the user interface.
To Select the Modulation Source
Press Pulse → Source to select "Ext" or "Int" modulation source.
1. Internal Source
After selecting "Int", the internal modulation source is turned on. At this point,
the instrument provides the modulating signal and you can set the pulse mode,
pulse period and pulse width of the modulating signal.
2. External Source
After selecting "Ext", Mode, Period, Width, Trig Mode, and Pulse Out are
grayed out and disabled. The RF signal generator receives the external pulse
signal input from the [PULSE IN/OUT] connector (as shown in the figure
below) on the rear panel as the modulating signal.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-25
To Select the Pulse Mode
Press Pulse → Source to select "Int" modulation source. Then press Mode to
select "Single" or "Train".
⚫ Single: only one pulse signal is generated for a pulse period. This is the default
pulse mode.
⚫ Train: multiple pulse signals are generated for a pulse period. At this point,
Period and Width are grayed out and disabled. You can press Train List to
load the desired pulse train.
NOTE: When "Ext" modulation source is selected, this menu is grayed out and
disabled. When selecting "Train" or loading "Train List", you need to install the option
DSG3000B-PUG. For the specific installation methods, please refer to "License".
To Set the Pulse Period
The pulse period is the time interval between two neighboring pulses in
periodically-repeating pulse sequence.
Press Pulse → Source to select "Int" modulation source. Then press Period to set
the period of the "Single" pulse modulating signal.
⚫ Use the numeric keyboard to input the desired value and select the desired unit
from the pop-up unit menu or unit keys. You can also press Enter to select the
default unit (s).
⚫ You can also use the Up/Down arrow keys or the knob to modify this parameter.
⚫ The range of pulse period is from 40 ns to 170 s.
⚫ The pulse period determines the repeating frequency of the internal pulse
modulating signal.
NOTE: When "Ext" modulation source or "Train" pulse mode is selected, this menu is
grayed out and disabled.
To Set the Pulse Width
The pulse width is the time that the pulse can hold at the maximum value.
Press Pulse → Source to select "Int" modulation source. Then press Mode to
select "Single". The single pulse is as shown in the figure below.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-26 DSG3000B User Guide
Pulse Width
Period
Press Width to set the width of the single-pulse modulating signal.
⚫ Use the numeric keyboard or knob to input the desired pulse width value.
⚫ The range of the pulse width is from 10 ns to (170 s – 10 ns).
⚫ The pulse width is limited by the minimum pulse width and pulse period.
Pulse Width ≥ Minimum Pulse Width
Pulse Width ≤ Pulse Period – 10 ns
NOTE: When "Ext" modulation source or "Train" pulse mode are selected, the
above-mentioned menus are grayed out and disabled. For the "Train" pulse width
and the settings of the related parameters, refer to "Pulse Train List".
To Select the Trigger Mode
Press Pulse → Source to select "Int" modulation source. Then press Trig Mode to
select "Auto", "Ext Trig", "Ext Gate", "Key", or "Bus" trigger mode.
⚫ Auto
The default mode is auto. The RF signal generator meets the trigger condition at
any time and will start the pulse modulation once the Pulse function is enabled.
⚫ External Trigger
In external trigger, the RF signal generator receives the external trigger signal
input from the [TRIGGER IN] connector (as shown in the figure below) on the
rear panel. The instrument starts a pulse modulation each time a TTL pulse
signal with a specified polarity is received. To specify the polarity of the TTL
pulse, press Trig Slope to select "Pos" or "Neg". The default is "Pos".
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-27
⚫ External Gate
In external gate mode, the RF signal generator receives the external gated
signal input from the [TRIGGER IN] connector on the rear panel. The
instrument starts a pulse modulation within the valid level range each time a
gated signal with a specified polarity is received (as shown in the figure below).
To specify the polarity of the gated signal, press Gate Polar to select "Normal"
or "Inverse". The default is "Normal".
External Gated Signal
Pulse Modulating Signal
The Valid Pulse Modulating Signal
⚫ Key Trigger
In key trigger mode, the instrument starts a pulse modulation each time
Trigger on the front panel is pressed.
⚫ Bus Trigger
In bus trigger mode, the instrument starts a pulse modulation each time the
"*TRG" command is sent.
NOTE: When "Ext" modulation source is selected, the above-mentioned menus are
grayed out and disabled.
Pulse Output
Press Pulse → Source to select "Int" modulation source. Then press Pulse Out to
select "On" or "Off".
⚫ On: enable the pulse output function. At this point, the RF signal generator can
output the pulse signal generated by internal pulse generator from the [PULSE
IN/OUT] connector on the rear panel. Note, this output signal is related to
Mode settings.
⚫ Off: disable the pulse output function and this is the default state.
NOTE: When "Ext" modulation source is selected, this menu is grayed out and
disabled.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-28 DSG3000B User Guide
Trigger Delay
Press Pulse → Source to select "Int" modulation source. After selecting Ext Trig
mode, press Trig Delay set the delay from the start of receiving the external trigger
signal to the start of the #1 pulse of the pulse modulating signal, as shown in the
following below.
External Trigger Signal
Pulse Modulating Signal
… …
Trig Delay
#1Width #2Width
… …
⚫ Use the numeric keyboard or knob to input the desired trigger delay value.
⚫ The range of the trigger delay is from 10 ns to 170 s.
NOTE: When "Ext" modulation source is selected, this menu is grayed out and
disabled.
To Set the Polarity
Press Pulse → Polarity to select "Normal" or "Inverse" to set the polarity of the
current pulse modulating signal. The default is "Normal".
Pulse Train List
Press Train List to enter the train list menu.
Load a list
Press Load to open the store and recall interface. At this point, you can select and
read the train list files stored. For the detailed operations, refer to "Store and
Recall".
The format of the train list file loaded is as shown in the table below. Note that when
you edit the value in the train list, if no unit is added, then the default time unit is us.
SN
[1]
OnTime
[2]
OffTime
[3]
Repeat
[4]
DwellTime
[5]
1
4.00 ms
5.00 ms
2
18.00 ms
2
2.00 ms
4.00 ms
5
30.00 ms
3
15.55 ms
100.5 us
2
31.30 ms
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-29
Note
[1]
: The number of the pulse set.
Note
[2]
: The duration of the high level corresponding to the pulse set.
Note
[3]
: The duration of the low level corresponding to the pulse set.
Note
[4]
: The number of repetitions of the pulse set.
Note
[5]
: The duration of the pulse currently set.
The pulse train (the number of repetitions of pulse 1 is 2) loaded is as shown in the
figure below.
OnTime
OffTime
… …
DwellTime
Repeat: 1
Repeat: 2
Tip: To load the train list, you need to install the option DSG3000B-PUG. For the
installation methods, refer to "License".
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-30 DSG3000B User Guide
I/Q Modulation
I/Q modulation can improve the spectrum utilization. In IQ modulation, two
orthogonal carrier signals (with the same frequency and 90° phase difference,
generally expressed with Sin and Cos) are modulated with the I (In-Phase
component) and Q (Quadrature Phase component) signals respectively and then
they are transmitted together. This function is only available for DSG3065B-IQ and
DSG3136B-IQ. This function only supports the frequency band below 6.5 GHz.
To Enable I/Q Modulation
Press I/Q → Switch to select "On" or "Off".
⚫ On: enable the I/Q modulation function. The backlight of I/Q lights on, and the
I/Q label is displayed in the function status area in the user interface.
⚫ Off: disable the I/Q modulation function and this is the default state.
NOTE: When a sweep type is selected, if the step sweep time is smaller than 50 ms
and I/Q modulation is turned on, "You can turn on the IQ Mode when sweep time is
greater than 50ms" will be displayed in the user interface.
To Select the Modulation Source
Press I/Q → Source to select "Int" or "Ext" modulation source.
1. Internal Source
When "Int" is selected, the built-in baseband generator (wavetable) provides the
modulating signal. At this point, if the baseband output switch is turned on, the
RF signal generator will output the I (In-Phase) components and Q (Quadrature
Phase) components of the I/Q modulation baseband signal from the [I OUT]
and [Q OUT] connectors (as shown in the figures below) on the rear panel.
2. External Source
When "Ext" is selected, the RF signal generator receives the in-phase baseband
signal and quadrature phase modulating signal of the I/Q modulation input from
the [I IN] and [Q IN] connectors (as shown in the figures below) on the rear
panel.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-31
Tip: When an external baseband signal is input and the baseband output switch
is turned on, the instrument can output the I (In-Phase) components and Q
(Quadrature Phase) components of the I/Q modulation baseband signal
generated by the built-in baseband generator (wavetable) from the [I OUT]
and [Q OUT] connectors on the rear panel respectively.
Baseband Signal
1. Baseband Output
Press I/Q → BaseBand → Switch to select "On" or "Off".
⚫ On: enable the baseband output function. The RF signal generator outputs
the I (In-Phase) and Q (Quadrature Phase) components of the I/Q
modulation baseband signal from the [I OUT] and [Q OUT] connectors on
the rear panel.
⚫ Off: disable the baseband output function.
2. Baseband Level
Press I/Q → BaseBand → Level to set the amplitude of the baseband output
signal.
⚫ Use the numeric keyboard to input the amplitude value and select the
desired unit from the pop-up unit menu or unit keys. You can also press
Enter to select the default unit (dBm).
⚫ The amplitude units available are V, mV, μV, nV and dBm.
⚫ You can press the Left/Right arrow keys to enter the parameter editing
state. Then, move the cursor to the specified digit and use the Up/Down
arrow keys or the knob to modify the parameter value.
⚫ You can also use the Up/Down arrow keys or the knob to modify the
amplitude at the current step.
⚫ Press Step to set the step.
Tips: When the baseband level unit is set to dBm, this level is converted to the
value in Volts and displayed in the menu.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-32 DSG3000B User Guide
3. ARB
Press I/Q → BaseBand → ARB to enter the store and recall interface. At this
time, the message "You can load the ARB files" is displayed in the user interface.
Press Enter or the right direction key to unfold the current directory and select
the ARB file (namely wavetable file; the format is *.arb) to be loaded. Then
press Recall to load this file. The message "File loading succeeded" is displayed
after the file is loaded. For more information about how to load a file, please
refer to "Store and Recall".
Tips:
The loadable ARB files should be edited and downloaded to DSG3000B using
the Ultra IQ Station PC software. For more information about how to
download the ARB file, please refer to
Ultra IQ Station_Help Document
.
4. Clock Frequency
Press I/Q → BaseBand → Clock Freq to set the clock rate of the ARB output.
You can modify this parameter by using the numeric keyboard or the knob.
⚫ The units available are GHz, MHz, kHz and Hz.
⚫ Press Enter to select the default unit (MHz).
⚫ You can press the Left/Right arrow keys to enter the parameter editing
state and move the cursor to the specified digit and use the Up/Down arrow
keys or the knob to modify the parameter value.
⚫ You can also use the Up/Down arrow keys or the knob to modify the clock
frequency at the current step.
⚫ Press Step to set the step.
NOTE: When loading the ARB file, this value will be automatically set to the
clock frequency of the current ARB file.
5. Trigger
1) Trigger Mode
Select the trigger mode of IQ modulation baseband output.
Press Trig Mode to select "Auto", "Key", "Bus" or "Ext".
⚫ Auto Trigger
This is the default mode. The RF signal generator fulfills the trigger
condition at any time and it will output the IQ baseband signal
continuously.
⚫ Key Trigger
After selecting the "Key" trigger mode, the instrument will output the
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-33
baseband signal each time Trigger on the front panel is pressed.
⚫ Bus Trigger
After selecting the "Bus" trigger mode, the instrument will output the
baseband signal each time the *TRG command is sent.
⚫ External Trigger
When selecting the "Ext" trigger mode, the RF signal generator receives
the trigger signal input from the [TRIGGER IN] connector (as shown
in the figure below) on the rear panel. The instrument will output the
baseband signal each time a TTL pulse signal with the specified polarity
is received.
2) Operation Mode
Select the operation mode after the I/Q modulation baseband signal is
triggered.
Press Opt Mode to select "Retrig", "Arm Auto", "Arm Retrig" or "Single".
NOTE: When the "Auto" trigger mode is selected, this menu is grayed out
and disabled.
⚫ Retrig
After selecting the "Retrig" mode, the instrument outputs the baseband
signal continuously and restarts to output the signal each time a trigger
is received.
⚫ Arm Auto
After selecting the "Arm Auto" mode, the instrument starts outputting
the signal continuously each time a trigger is received until "Arm ARB"
is selected and then waits for the next trigger.
⚫ Arm Retrig
After selecting the "Arm Retrig" mode, the instrument starts outputting
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-34 DSG3000B User Guide
the signal continuously each time a trigger is received. The instrument
restarts outputting the signal when a trigger is received until "Arm
ARB" is selected and then waits for the next trigger.
⚫ Single
After selecting the "Single" mode, the instrument outputs the specified
length (specified in "Duration") of waveform each time a trigger is
received, and then stops and waits for the next trigger.
3) Arm ARB
Press Arm ARB to manually stop the waveform output and wait for the next
trigger.
NOTE: This menu is valid only when the "Arm Auto" or "Arm Retrig"
operation mode is selected.
4) Duration Unit
Press Dur Unit to select the duration unit of the IQ modulation wavetable in
"Single" trigger.
⚫ SL: take the waveform segment as the unit.
⚫ SA: take the data point as the unit.
5) Duration
Press Duration to set the duration of the single trigger signal.
NOTE: This menu is only available when selecting the "Single" operation
mode. This value defines the number of points (
r
N
) and the instrument
acquires the actual time (
r
T
) according to the current sample rate (
a
S
).
They satisfy the following relation:
arr
SN T =
.
6) External Delay
Press Ext Delay to set the trigger delay when the external trigger signal is
received.
NOTE: This menu is only available when selecting the "Ext" trigger mode.
This value defines the number of points (
d
N
) and the instrument acquires
the actual time (
d
T
) according to the current sample rate (
a
S
).They satisfy
the following relation:
add
SN T =
.
7) External Inhibit
Press Ext Inhibit to set the time from when an external trigger signal is
received to when the instrument receives the next trigger signal.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-35
NOTE: This menu is only available when selecting the "Ext" trigger mode.
This value defines the number of points (
i
N
) and the instrument acquires
the actual time (
i
T
) according to the current sample rate (
a
S
). They satisfy
the following relation:
aii
SN T =
.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-36 DSG3000B User Guide
LF Output
LF output refers to the output of the low-frequency signal generated by the internal
generator of the RF signal source. LF outputs two common waveforms: Sine and
Square. You can set the frequency and amplitude of the low-frequency signal.
To Enable the LF Output
Press LF to enable the LF output. The backlight of the key lights on and the LF label
is displayed in the status bar and the function status area in the user interface. At this
point, the [LF OUTPUT] connector (as shown in the figure below) outputs the LF
signal according to the current configuration.
To Set the LF Parameters
Press → LF to set the "Waveform", "Level" and "Freq" of the LF output signal.
To Select the LF Waveform
Press → LF → Waveform to set the waveform of the LF output signal to "Sine"
or "Square". The default is "Sine".
To Set the LF Amplitude
Press → LF → Level to set the amplitude of the LF signal.
⚫ Use the numeric keyboard to input the amplitude value and select the desired
unit from the pop-up unit menu or unit keys. You can also press Enter to select
the default unit (dBm).
⚫ The amplitude units available are V, mV, μV, nV and dBm.
⚫ You can press the Left/Right arrow keys to enter the parameter editing state and
move the cursor to the specified digit and use the Up/Down arrow keys or the
knob to modify the parameter value.
⚫ You can also use the Up/Down arrow keys or the knob to modify the amplitude
at the current step.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-37
⚫ Press Step to set the step.
⚫ The settable ranges of the amplitudes of sine and square are both from 0 V to 3
V. Note that when the frequency is 0 Hz, the LF outputs a DC signal and the
settable range of the amplitude is from -3 V to 3 V.
Tips: When the LF level unit is set to dBm, this level is converted to the value in Volts
and displayed in the menu.
To Set the LF Frequency
Press → LF → Freq to set the frequency of the LF signal.
⚫ Use the numeric keyboard to input the frequency value and select the desired
unit from the pop-up unit menu or unit keys. You can also press Enter to select
the default unit (MHz).
⚫ The frequency units available are GHz, MHz, kHz and Hz.
⚫ You can press the Left/Right arrow keys to enter the parameter editing state and
move the cursor to the specified digit and use the Up/Down arrow keys or knob
to modify the parameter value.
⚫ After setting the frequency, you can use the Up/Down arrow keys or knob to
modify the frequency at the current step.
⚫ Press Step to set the step.
Remarks
The settable range of sine frequency is from 0 Hz to 200 kHz.
The settable range of square frequency is from 0 Hz to 20 kHz.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-38 DSG3000B User Guide
Store and Recall
DSG3000B allows users to store various types of files to internal or external memory
and recall them when required.
DSG3000B provides a local memory (D disk) and an external memory (E disk).
⚫ D disk: provide storage locations for train list, flatness, sweep list and state files.
⚫ E disk: available when USB storage device is detected on the USB Host interface
on the rear panel. You can store the files whose types are the same as those
stored in Disk D.
Press Storage on the front panel to enter the store and recall interface, as shown in
Figure 2-1.
Figure 2-1 store and recall interface
NOTE: DSG3000B can recognize files whose filenames consist of Chinese characters,
English characters and numbers. If other characters are used in the file or folder
name, it might not be displayed in the store and recall interface normally.
File Type
In the store and recall interface, use the Up/Down arrow keys or the knob to select
the current saving directory (when USB storage device detected is available, you can
switch between Disk D and Disk E). Press Enter or the right arrow key to unfold the
current directory. Press File Type to select the desired file type.
The file types available are "All", "State", "Arb", "Flat csv", "Swp csv", and "Train csv".
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-39
The default is "All". The description of each file type is as shown in the table below.
File Type
Format
Suffix
Remarks
State
BIN
.STA
Store the current system state in binary
format.
Arb
BIN
.arb
The arbitrary waveform
[1]
wavetable file
stored in binary format. You can load the
file when necessary.
Flat csv
CSV
.CSV
The flatness list file stored in csv format.
You can open the file using Excel on the
PC to view the list information.
Swp csv
CSV
.CSV
The sweep list file stored in csv format.
You can open the file using Excel on the
PC to view the list information.
Train csv
CSV
.CSV
The train list file stored in csv format.
You can open the file using Excel on the
PC to view the list information.
Note
[1]
: The wavetable files should be edited and downloaded to the RF signal generator via the
Ultra IQ Station PC software.
Tip: You can generate csv format files using Excel on the PC. Then, you can open the
file, edit the required parameter values (the unit is required to be added) according
to the corresponding file format requirements directly in the Excel table and save it to
a USB storage device. In addition, you can also load the file to the RF signal
generator when required.
Save
1. Select the file type
Please select the desired file type according to the introduction in "File Type".
NOTE: If File Type is set to "All", the save operation is not available.
2. Open the filename input interface
Press Save to enter the filename editing interface. You can press to
switch among Chinese, English and number input modes.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-40 DSG3000B User Guide
(a) English Input Mode
(b) Number Input Mode
Letter Selection Area Letters Entered Uppercase/Lowercase English Input Mode
Numbers Entered Number Input Mode
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-41

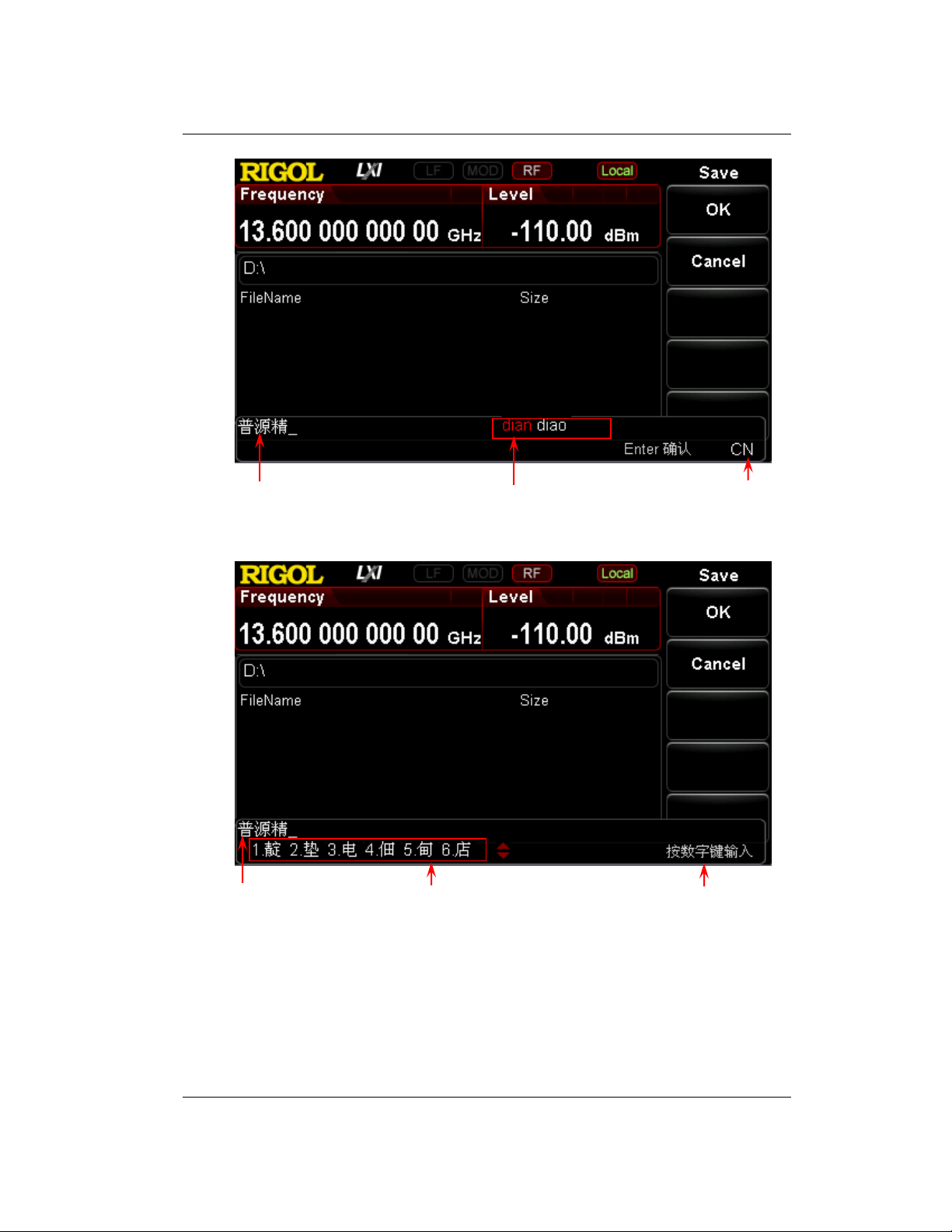

(c1) Chinese Input Mode 1
(c2) Chinese Input Mode 2
Figure 2-2 Filename Input Interface
3. Input the filename
Input the new filename in the filename input interface. The length of the
filename cannot exceed 28 English characters or numbers (or 14 Chinese
characters).
Chinese Characters Entered Pinyin Selection Area Chinese Input Mode
Chinese Characters Entered Chinese Character Selection Area Operation Tips
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-42 DSG3000B User Guide
⚫ Input English filename
a) Press to switch to English input mode. You can use to
switch between uppercase and lowercase. At this point, the
corresponding label is displayed at the lower-right corner of the
filename input interface.
b) Press the key of the desired letter. At this point, the letters available are
displayed in the letter selection area. Press this key continuously or
the Left/Right arrow keys or rotate the knob until the background of
the desired letter turns red. Then, press Enter to input the letter.
c) Use the above method to input the other letters in the filename.
⚫ Input Chinese filename
a) Press to switch to Chinese input mode. At this point, the
corresponding label is displayed at the lower-right corner of the
filename input interface.
b) Press the key of the first letter of the pinyin of the desired Chinese
character and the pinyins available are displayed in the pinyin
selection area. If the desired pinyin is displayed, refer to step c). If
the desired pinyin is not displayed, input the whole pinyin and then
refer to c).
c) Press the Left/Right arrow keys or rotate the knob until the background
of the desired pinyin turns red. Press Enter to select that pinyin. At
this point, the Chinese characters in the Chinese character
selection area are numbered. Use the numeric keys to select the
desired Chinese character. You can use the up/down arrow keys or
rotate the knob to open the previous page and next page of the
Chinese character selection area.
d) Use the same method to input the other Chinese characters.
⚫ Input number filename
If you want to use numbers as the filename (or a part of the filename),
press to switch to number input mode and use the numeric keyboard
to input the desired numbers.
4. Save the file
After inputting the filename in the filename input interface, press OK and the RF
signal generator will save the file with the specified filename in the specified file
type under the directory currently selected. Press Cancel to cancel the save
operation.
⚫ Replace File: when the current path has contained a file or folder with the
same name, you can press this key to replace the original file or folder.
⚫ Reenter: when the current path has contained a file or folder with the same
name, you can press this key to back the filename input interface and
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-43
reenter the filename.
Recall
After selecting a file stored, press Recall to read the file selected and load it into the
system.
Rename
Modify the filename of the stored file.
After selecting a file stored, press Rename to enter the filename input interface. Edit
a new filename by referring to the introduction in "Input the filename" and press
OK to store the file with the new filename.
Delete
After selecting a file stored, press Delete to delete the file selected.
Copy
After selecting a file stored, press Copy to select "Copy" or "Paste".
1. Copy
Copy the file or folder selected under the current directory.
2. Paste
Paste the file or folder.
⚫ When the copy path is the same as the paste path and the current path has
contained a file or folder with the same name, the corresponding copy file
with the "dup" prefix name is generated after performing paste operation.
⚫ When the copy path is different from the paste path and the current path
has contained a file or folder with the same name,
— Replace File: press this key to replace the original file or folder.
— Cancel: press this key to cancel the paste operation.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-44 DSG3000B User Guide
To Create a Directory
Create a new folder. The length of the folder name cannot exceed 28 English
characters or numbers (or 14 Chinese characters).
In the store and recall interface, use the Up/Down arrow keys or the knob to select
the current saving directory (when USB storage device detected is available, you can
switch between Disk D and Disk E). Press Enter or the Left/Right arrow keys to
unfold the current directory. Press Create Dir to enter the filename input interface.
To edit the folder name, refer to the introduction in "Input the filename". Press
OK to create an empty folder under the current directory.
Filename Prefix
Press Storage → Name Prefix to select "Prefix State" or "Edit Prefix".
1. Prefix State
Press Prefix State to select "On" or "Off" to enable or disable the prefix edited.
When "On" is selected, the edited prefix will be added into the filename input
box automatically when saving file.
2. Edit Prefix
Press Edit Prefix to enter the filename input interface and you can use the
numeric keyboard to edit the prefix.
Disk Management
Press Storage → Disk Mgr to select "Format D" or "Disk Info".
1. Format D
After selecting "Disk D", press Format D → OK to format the local disk.
2. Disk Information
Press Disk Info to view the disk information, including the disk name, type, file
system, used space and total space.
System Update
After selecting the update file in the USB storage device, press Storage → Update
to update the software of the RF signal generator.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-45
Warning
During system update, please strictly follow the instructions below.
1. In the RIGOL official website, find and download the specified
firmware for the DSG3000B series RF signal generator.
2. Please carefully read the installation instructions and version
information to determine whether the firmware matches your instrument
model.
3. During system upgrade, please keep the power supply work normally.
Do not disconnect the instrument from power during upgrade.
4. Do not press any key on the instrument during system upgrade.
5. Do not perform remote control over the instrument during system
upgrade. It is recommended to disconnect the communication interface.
6. If any problem occurs during the upgrade process, please power off
the instrument and restart it again. Then perform the upgrade operation
again.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-46 DSG3000B User Guide
To Set the System Parameters
Set the system-related parameters.
Language
DSG3000B supports Chinese/English menus, help, interface display and
Chinese/English input methods.
Press System → Language to select the desired language ("English" or "中文").
Reset
Press System → Reset to perform "Power On", "Preset Type" and "Save Preset"
operations.
1. Power On
Press Power On to select "Last" or "Preset".
⚫ When "Last" is selected, the system setting before the last power-off will be
loaded automatically at power-on.
⚫ When "Preset" is selected, the setting defined in Preset Type will be
loaded automatically at power-on.
2. Preset Type
Press Preset Type to select "Factory" or "User".
⚫ When Power On is set to "Preset", the specified preset type will be loaded
at power-on.
⚫ After power-on, press Preset on the front panel under any operation
interface to recall the factory setting or user setting.
3. Save Preset
Press Save Preset to store the current system configuration as user-defined
setting in the internal non-volatile memory. When Preset Type is set to "User",
the configuration will be loaded when you recall the "Preset" configuration.
NOTE: When Preset Type is set to "Factory", this menu is grayed out and
disabled.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-47
I/O Configuration
The RF signal generator supports LAN, USB, and USB-GPIB interface communication.
Press System → I/O Config to set the "Remote I/O", "LAN" or "GPIB" parameters.
1. Remote I/O
Press Remote I/O to select "LAN", "USB", "GPIB", "Auto" or "Off" all interfaces.
2. LAN
Press LAN to set the LAN parameters.
Figure 2-3 To Set the LAN Parameters
⚫ Reset
Turn on the DHCP and auto IP and turn off the manual IP. Clear the network
password set to restore it to factory setting.
⚫ Apply
After configuring LAN parameters, press Apply → OK to apply the
configuration.
⚫ DHCP
One of the IP address setting methods. Turn on the DHCP and the DHCP
server will assign network parameters (such as the IP address, subnet mask
and gateway) for the RF signal generator according to the current network
configuration.
⚫ Auto-IP
One of the IP address setting methods. Turn on the auto IP and the RF
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-48 DSG3000B User Guide
signal generator will acquire an IP address from 169.254.0.1 to
169.254.255.254 and subnet mask 255.255.0.0 automatically according to
the current network configuration.
⚫ Manual-IP
One of the IP address setting methods. Turn on the manual IP and users
can define the IP address of the RF signal generator.
⚫ IP
Set the IP address, subnet mask and gateway manually.
a) Press IP Address and use the numeric keyboard to input the desired
IP address.
The format of the IP address is nnn.nnn.nnn.nnn. Wherein, the first
segment ranges from 1 to 223 (except 127) and the other three
segments range from 0 to 255. You are recommended to ask your
network administrator for an available IP address.
b) Press Sub Mask and use the numeric keyboard to input the desired
subnet mask.
The format of the subnet mask is nnn.nnn.nnn.nnn. Wherein, the
range of the segment "nnn" is from 0 to 255. You are recommended to
ask your network administrator for an available subnet mask.
c) Press Gateway and use the numeric keyboard to input the desired
gateway.
The format of the gateway is nnn.nnn.nnn.nnn. Wherein, the first
segment (nnn) ranges from 1 to 223 (except 127) and the other three
segments range from 0 to 255. You are recommended to ask your
network administrator for an available gateway.
NOTE: The RF signal generator always tries to acquire the IP address
configuration in the order of DHCP, auto IP and manual IP. The three
methods cannot be disabled at the same time.
⚫ DNS
Press DNS to set the IP address of the DNS server. The format of the DNS
address is nnn.nnn.nnn.nnn. Wherein, the first segment ranges from 1 to
223 (except 127) and the other three segments range from 0 to 255. You
are recommended to ask your network administrator for an available
address.
3. GPIB
DSG3000B supports USB-GPIB (option) control. Press this key to set the GPIB
address.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-49
You can use the numeric keys, the knob or arrow keys to modify the parameter.
The range is from 0 to 30.
Display Setting
Control the screen display.
Press System → Display to set the "Scr State", "Brightness" and "Time/Date".
1. Screen State
Press Scr State to set the state of the screen.
⚫ On: the default state. Turn on the screen.
⚫ Off: turn off the screen. At this point, the screen stops updating and is
locked. Press Esc to unlock the screen. Screen locking is used during
remote operation mode.
2. Brightness
Press Brightness to set the brightness of the LCD backlight of the RF signal
generator.
⚫ Use the numeric keys, the knob or arrow keys to modify this parameter.
⚫ The range of the brightness is from 0 to 7.
3. Time/Date
You can press Time/Date to set the system time of the RF signal generator.
⚫ Set Time
Set the time displayed on the RF signal generator. The input format of the
time is "hhmmss".
For example, 23:12:11 is expressed as 231211.
⚫ Set Date
Set the date displayed on the RF signal generator. The input format of the
date is "YYYYMMDD".
For example, 2014/10/21 is expressed as 20141021.
⚫ Time/Date
Turn on or off the display of the time and date.
Power Status
Press System → Power Status to select "Default" or "Open".
⚫ Default: after the instrument is powered on, you need to press the power key on
the front panel to start the instrument.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-50 DSG3000B User Guide
⚫ Open: after the instrument is powered on, the instrument starts automatically.
Information
Press System → Information to view the "System Info", "HW Info", "System Msg"
or the "Verbose" of system message.
1. System Information
⚫ Model
⚫ Serial No.
⚫ FW Version
⚫ Boot Version
⚫ Option
2. Hardware Configuration
⚫ RFB Version
⚫ DB Version
⚫ RFB FPGA
⚫ RFB CPLD
⚫ DB FPGA
⚫ DB CPLD
⚫ I/Q FPGA
⚫ I/Q Board
3. System Message
Display the messages recently displayed.
4. Verbose
Press System Msg to light the Verbose menu. At this point, you can press this
softkey to view the complete information of the current row selected in the
message list.
License
DSG3000B provides various options to fulfill your measurement requirements. To
order the corresponding option, please contact RIGOL.
Press System → License to enter the option management interface. You can view
the option status of the instrument and the license of the option installed as well as
install an option.
1. Option Information
Press Option Info and the option status of this instrument will be displayed.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 2 Front Panel Operations RIGOL
DSG3000B User Guide 2-51
2. License Information
Press License Info and the license of the option installed will be displayed.
3. Install
Press Install and input the option license to activate the corresponding option.
Acquire the license:
1) Order the corresponding option to acquire the option key.
Activation to enter the "Registered product license code" interface.
3) In the software license registration interface, input the correct key, serial
number (press System → Information → System Info to acquire the
instrument serial number), and the verification code. Click Generate to
obtain the download link of the option license file. If you need to use the
option license file, please click the link to download the file to the root
directory of the USB storage device.
Tips:
You can also install an option by operating the RF signal generator remotely.
1. Build the communication between the RF signal generator and PC. You can
use the USB, LAN or USB-GPIB interface (option). For the connecting
methods, please refer to "Remote Control".
2. Send the :SYSTem:LKEY <license key> command (for
example, :SYSTem:LKEY QA7ZCZEH6AC54SFNKA853MS5CB3A); the RF
signal generator identifies the license received and matches it with the
corresponding option. At this point, the corresponding option is installed
and activated.
Self-test
1. Screen Test
Press Screen Test to enter the screen test interface. The system provides five
colors (including white, blue, green, red and black) to test whether the screen
has a dot defect. Press any key to switch the screen color and exit the test.
2. Key Test
Press Key Test to enter the key test interface. Press the function keys on the
front panel one by one and check whether the corresponding key is illuminated.
If not, failure might occur to that key. Press Esc for three consecutive times to
exit the test.
NOTE: If the keys on the front panel are transparent buttons, the corresponding
backlight will light on when testing.
2) Log in to the RIGOL official website, click License
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 2 Front Panel Operations
2-52 DSG3000B User Guide
Sanitation
Press System → Sanitation to clear all data set by users and restore them to
factory settings. The operation includes:
⚫ Formatting NAND FLASH;
⚫ Restoring user data saved in the NVRAM and NorFlash to factory settings.
⚫ Restoring HOST NAME, IP address and password in LXI to factory settings.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 3 Remote Control RIGOL
DSG3000B User Guide 3-1
Chapter 3 Remote Control
DSG3000B series RF signal generator can communicate with USB, LAN and GPIB
interfaces. This chapter describes the basic information and methods of remote
control.
The contents of this chapter are as follows:
◼ Remote Control Overview
◼ Control Via USB
◼ Control Via LAN
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 3 Remote Control
3-2 DSG3000B User Guide
Remote Control Overview
The DSG3000B supports to build communication with the PC via USB, LAN or
USB-GPIB interface (option) to realize remote control. The DSG3000B utilizes a SCPI
command set (Standard Commands for Programmable Instruments) for remote
instrumentation control. There are two modes as follows.
1. User-defined programming
Users can program and control DSG3000B by using the SCPI (Standard Commands
for Programmable Instruments) commands. For more information about the
commands and programming, refer to the
DSG3000B Programming Guide
.
2. Use PC software
Users can use the common PC software (Ultra Sigma) provided by RIGOL to send
SCPI commands to control DSG3000B remotely.
This chapter will give a detailed introduction of how to use Ultra Sigma to control
DSG3000B remotely through various interfaces. Acquire the Ultra Sigma software
NOTE: When the instrument is in remote mode, is displayed in the user
interface and all the front panel keys (except Esc) are locked. At this point, you can
press Esc to exit the remote mode.
and install it and its components according to the instructions.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 3 Remote Control RIGOL
DSG3000B User Guide 3-3
Control Via USB
1. Connect the device
Connect the RF signal generator (USB Device) and PC (USB Host) using USB
cable.
2. Install USB drive
This RF signal generator is a USBTMC device and the New Hardware Wizard
will be displayed after the RF signal generator is correctly connected to the PC
(the signal generator will be automatically configured to USB interface) and both
of them are started. Please install the "USB Test and Measurement Device (IVI)"
drive program according to the instructions.
3. Search for device resource
Start Ultra Sigma and the software will search for the RF signal generator
resource currently connected to the PC automatically. You can also click
to search for the resource manually.
4. View device resource
The instrument model and USB interface information will be displayed under the
"RIGOL Online Resource" directory, as shown in the figure below.
Figure 3-1 View USB Device Resource
5. Communication test
Right-click the resource name "DSG3136B-IQ
(USB0::0x1AB1::0x099C::DSG3G223200001::INSTR)" and select "SCPI Panel
Control" to open the remote command control panel through which you can
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 3 Remote Control
3-4 DSG3000B User Guide
send commands and read data. For more information about the SCPI commands,
refer to the
DSB3000B Programming Guide
.

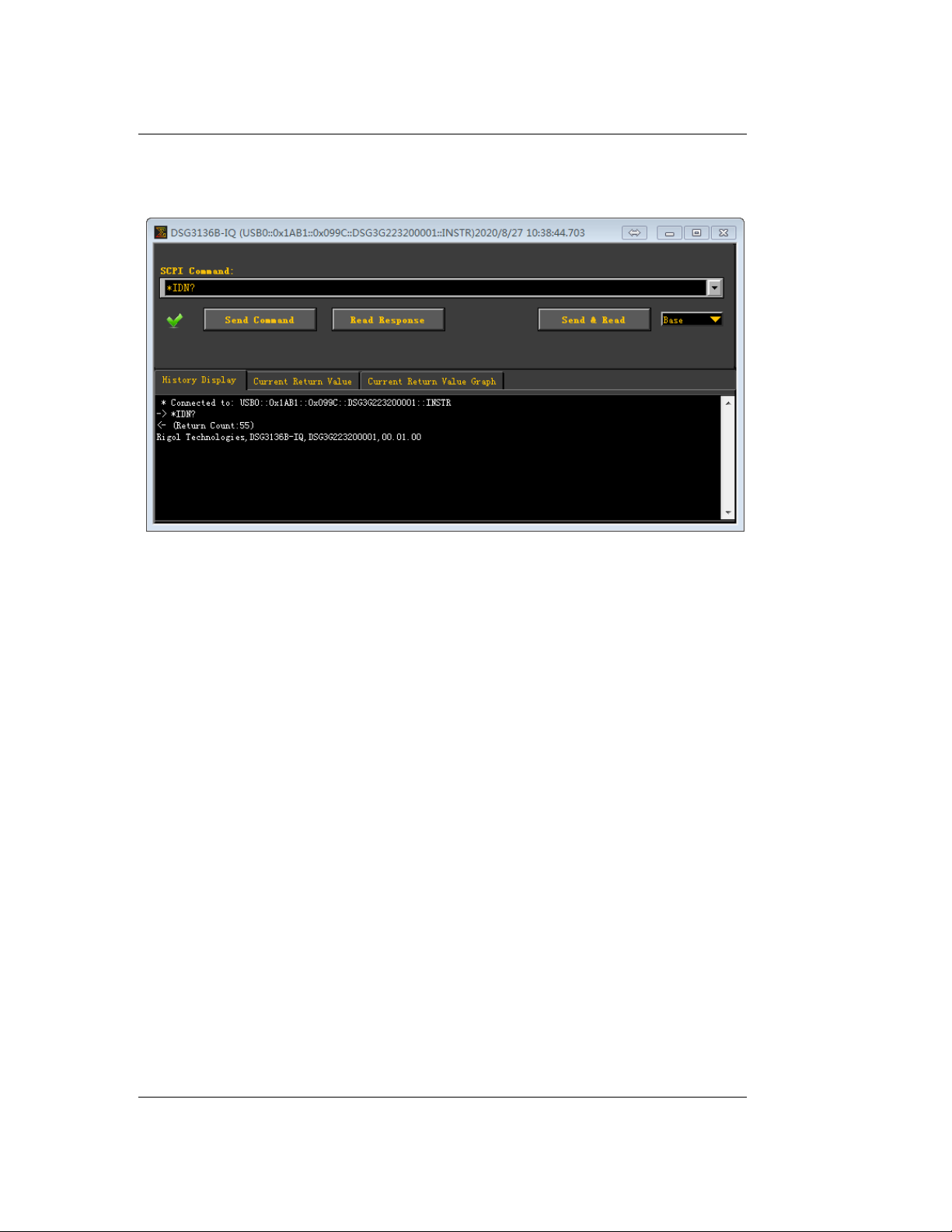

Figure 3-2 Read and Write Command via USB
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 3 Remote Control RIGOL
DSG3000B User Guide 3-5
Control Via LAN
1. Connect the devices
Connect the RF signal generator to your LAN using network cable.
2. Configure LAN parameters
Set the LAN parameters of the RF signal generator according to the description
in "I/O Config → LAN".
3. Search device resource
Start-up Ultra Sigma and click , then click in the
pop-up window, the software starts seaching the RF signal generator resources
connected to LAN. Instrument resources seached will be displayed in the right of
the window. Select your desired resource and click , as shown in the
following figures.

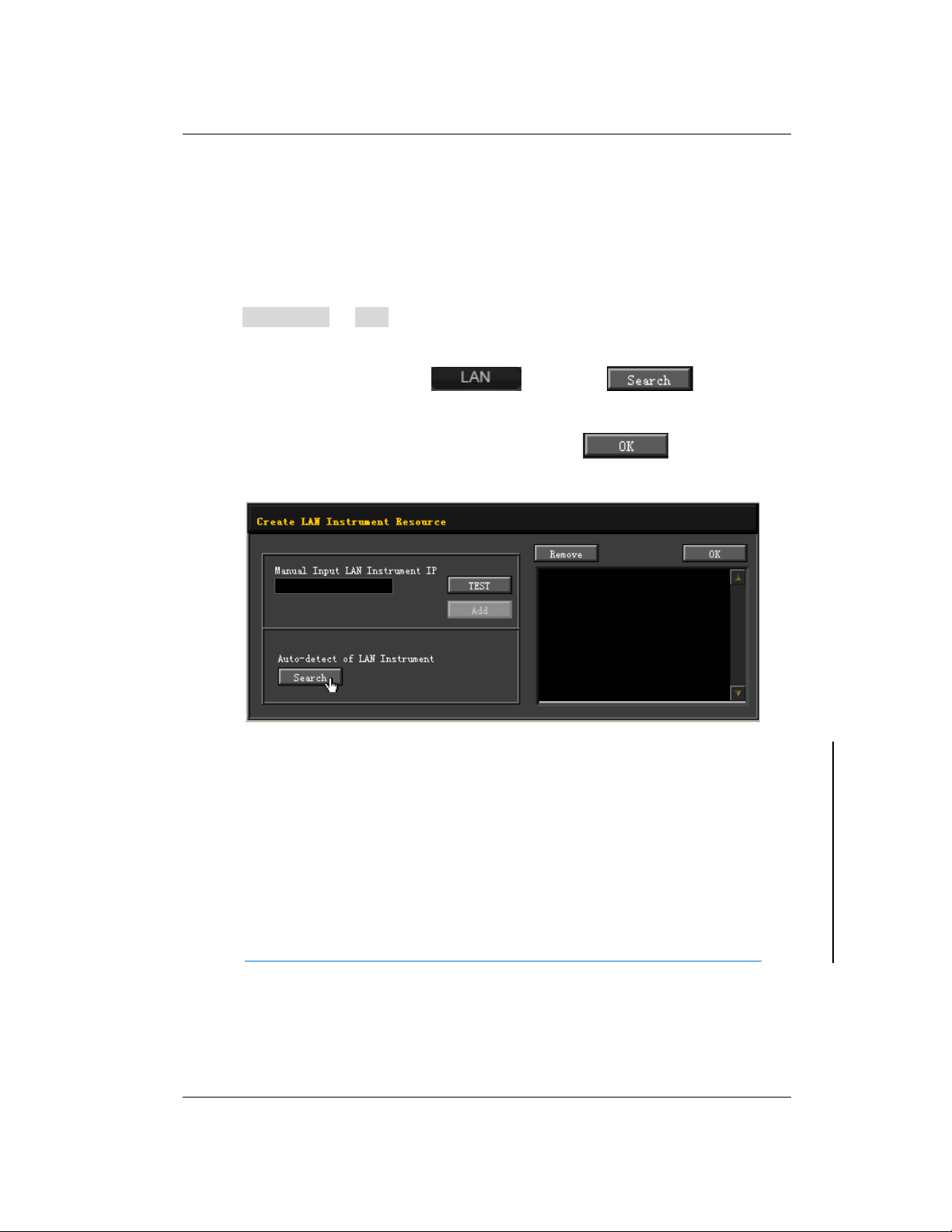

(a)
(b)
Figure 3-3 Search LAN resource
NOTE: The resource selected should keep consistency with IP address of the
DSG3000B LAN interface.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 3 Remote Control
3-6 DSG3000B User Guide
4. View the resource
The resources that have been searched successfully are shown in the "RIGOL
Online Resource" catalog. See figure below.
Figure 3-4 View the resource
5. Communication test
Right-click the resource name "DSG3136B-IQ (TCPIP::172.16.3.13::INSTR)"
and select "SCPI Panel Control" to open the interface below, from which you can
write and read commands as shown in the figure below.
Figure 3-5 Write and read commands via LAN
6. Load LXI webpage
The RF signal generator confirms to LXI Device Specification 2011 standard. You
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 3 Remote Control RIGOL
DSG3000B User Guide 3-7
can load LXI webpage conveniently by right-clicking the resource name and
selecting "LXI-Web". From the webpage, you can see some important
information about the instrument such as the model, manufacturer, serial
number, description, MAC address and IP address, as shown in the figure below.
Figure 3-6 LXI Webpage
NOTE: If you want to view or modify the current network setting of the instrument,
click and input the initial password "RIGOL" (must be uppercase
letters) in the pop-up window (the user name is empty by default). Besides, you can
also click to reset the password.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Chapter 4 Application Examples RIGOL
DSG3000B User Guide 4-1
Chapter 4 Application Examples
This chapter introduces the basic operations of the instrument as well as a few
specific examples so that the user can quickly master the operation method of the RF
signal generator.
The contents of this chapter are as follows:
◼ To Output RF Signal
◼ To Output RF Sweep Signal
◼ To Output RF Modulated Signal
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
RIGOL Chapter 4 Application Examples
4-2 DSG3000B User Guide
To Output RF Signal
Output a RF signal with 1 GHz frequency and -40 dBm amplitude from the [RF
OUTPUT 50Ω] connector.
1. Restore to factory setting
Press System → Reset → Preset Type → "Factory" and then press Preset to
restore the factory setting (by default, the frequency offset is 0 Hz and the
amplitude offset is 0 dB).
2. Frequency setting
Press FREQ → Frequency, use the numeric keyboard to input the frequency
value (1) and select the desired unit (GHz) from the pop-up unit menu or unit
keys.
⚫ The frequency units available are GHz, MHz, kHz and Hz.
⚫ Pressing Enter to select the current frequency unit by default.
⚫ You can also press the Left/Right arrow keys to enter the parameter editing
state and move the cursor to the specified digit and then use the Up/Down
arrow keys or the knob to modify the value.
⚫ After the frequency is set, you can use the Up/Down arrow keys or the knob
to modify the frequency at the current step value.
⚫ Press FREQ → Frequency and then press Step to set the step value.
3. Amplitude setting
Press LEVEL → Level, use the numeric keyboard to input the amplitude value
(-40) and select the desired unit (dBm) from the pop-up unit menu or unit keys.
You can also press Enter to select the default unit dBm.
⚫ The amplitude units available are dBm, -dBm, mV, uV and nV.
⚫ You can also press the Left/Right arrow keys to enter the parameter editing
state and move the cursor to the specified digit and then use the Up/Down
arrow keys or the knob to modify the value.
⚫ You can also use the Up/Down arrow keys or the knob to modify the
amplitude at the current step value.
⚫ Press LEVEL → Level and then press Step to set the step value.
4. Enable the RF output
Press RF, the backlight lights on and the RF label is displayed in the status bar
of the user interface. The RF output is enabled. At this point, the [RF OUTPUT
50Ω] connector outputs RF signal according to the current configuration.
Find Quality Products Online at: sales@GlobalTestSupply.com
