RIGOL DSA1030 User Manual

Download
RIGOL
Quick Guide
DSA1000 Series
Spectrum Analyzer
Apr. 2015
RIGOL Technologies, Inc
Guaranty and Declaration
Copyright
© 2010 RIGOL Technologies, Inc. All Rights Reserved.
Trademark Information
RIGOL is registered trademark of RIGOL Technologies, Inc.
Publication Number
QGD02108-1110
Notices
RIGOL products are covered by P.R.C. and foreign patents, issued and
pending.
RIGOL reserves the right to modify or change parts of or all the
specifications and pricing policies at company’s sole decision.
Information in this publication replaces all previously corresponding
material.
Information in this publication is subject to change without notice. RIGOL shall not be liable for either incidental or consequential losses in
connection with the furnishing, use or performa nce of this manua l as well as any information contained.
Any part of this document is forbidden to be copied, photocopied or
rearranged without prior written approval of RIGOL.
Product Certification
RIGOL guarantees this product conforms to the national and industrial
standards in China as well as the ISO9001:2008 standard and the ISO14001:2004 standard. Other International standard conformance certification is in progress.
Contact Us
If you have any problem or requirement when using our products or this manual, please contact RIGOL. E-mail: service@rigol.com Websites: www.rigol.com
Quick Guide for DSA1000 Series I
General Safety Summary
Please review the following safety precautions carefully before putting the instrument into operation so as to avoid any personal injury or damage to the instrument and any product connected to it. To prevent potential hazards, please use the instrument only specified by this manual.
Use Proper Power Cord.
Only the power cord designed for the instrument and authorized for use within the local country could be used.
Ground the Instrument.
The instrument is grounded through the Protective Earth lead of the power cord. To avoid electric shock, it is essential to connect the earth terminal of power cord to the Protective Earth terminal befor e any inputs or outputs.
Connect the Probe Correctly.
If a probe is used, do not connect the ground lead to high voltage since it has the isobaric electric potential as ground.
Observe all Terminal Ratings.
To avoid fire or shock hazard, observe all ratings and markers on the instrument and check your
manual for more information about ratings before connecting.
Use Proper Overvoltage Protection.
Make sure that no ov ervol tage (such as that caused by a thunderstorm) can reach the product, or else the operator might expose to danger of electrical shock.
Do Not Operate Wit hout C overs.
Do not operate the instrument with covers or panels removed.
Do Not Insert Anything Into the Holes of Fan.
Do not insert anything into the holes of the fan to avoid damaging the instrument.
Use Proper Fuse.
Please use the specified fuses.
Avoid Circuit or Wire Exposure.
Do not touch exposed junctions and
II Quick Guide for DSA1000 Series
components when the unit is powered.
Do Not Operate With Suspect ed Failures.
If you suspect damage occurs to the instrument, have it inspected by RIGOL authorized personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel.
Keep Well Ventilation.
Inadequate ventilation may cause increasing of temperature or damages to the device. So please keep well ventilated and inspect the intake and fan regularly.
Do Not Operate in Wet Conditions.
In order to avoid short circuiting to the interior of the device or electric shock, please do not operate in a humid environment.
Do Not Operate in an Explosive Atmosphere.
In order to avoid damages to the device or personal injuries, it is important to operate the device
Quick Guide for DSA1000 Series III
away from an explosive atmosphere.
Keep Product Surfaces Clean and Dry.
To avoid the influence of dust and/or moisture in air, please keep the surface of device clean and dry .
Electrostatic Prevention.
Operate in an electrostatic discharge protective area environm en t t o avoid damages induced by static discharges. Always ground both the internal and external conductors of the cable to rele ase static before connecting.
Protect the Input Terminals of Instrument.
Do not exert excessive deformative physical and mechanical stress on the input terminals and the connected devices, (such as filter, attenuator, etc.) as such stress may cause damages to devices and the instrument. Do not mix the use of 50Ω and 75Ω connectors and/or cables.
Do Not Overload the Input.
To avoid damaging the instrument, make sure the signals at input terminal must be less than 50V DC
voltage components and 30 dBm (1W) AC (RF) components.
Appropriate Use of Power Meter.
If you are not sur e of the characteristics of signal under measure, follow these recommendations to ensure safe operations: if a RF power meter is available, use it to measure the power level of this signal first; or add a rated external attenuator between signal cable and input terminal of the instrument. Maximum attenuation, reference level and maximum span frequency should be selected, so as to make the signals displayed within the screen.
Know About the Specification Conditions of the Instrument.
For maximum performance of the instrument, use the analyzer under specified conditions.
Proper Use of Battery.
If a battery is supplied, it must not be exposed to high temperature or in contact with fire. Keep it out of the reach of children. Improper change of battery (note: lithium battery) may cause explosion. Use RIGOL specified battery only.
Handling Safety.
Please handle with care during transportation to avoid damages to buttons, knob, interfaces and other parts on the panels.
IV Quick Guide for DSA1000 Series
Hazardous
Safety
Protective
Chassis
Test
Safety Terms and Symbols
Terms Used in this Manual. These terms may appear in this manual:
WARNING
Warning statements indicate the conditions or practices that could result in injury or loss of life.
CAUTION
Caution statements indicate the conditions or practices that could result in damage to this product or other property.
Terms Used on the Product. These terms may appear on the product:
DANGER It calls attention to an operation, if not correctly performed,
could result in injury or hazard immediately .
WARNING It calls attention to an operation, if not correctly performed,
could result in
CAUTION It calls attention to an operation, if not correctly performed,
could result in connected to the product.
Symbols Used on the Product. These symbols may appear on the product:
potential injury or hazard.
damage to the product or other devices
Voltage
Warning
Earth Terminal
Ground
Ground
Quick Guide for DSA1000 Series V
Allgemeine Sicherheits Informationen
Überprüfen Sie diefolgenden Sicherheitshinweise sorgfältigumPerson en sc h ädenoderSchä den am Gerätundan damit verbundenen weiteren Gerätenzu vermeiden. Zur Vermeidung vonGefahren, nutzen Sie bitte das Gerät nur so, wiein diesem Handbuchangegeben.
Um Feuer oder Verletzungen zu vermeiden, verwend en Sie ein ordnungsgemäßes N etz k ab el.
Verwenden Sie für dieses Gerät nur das für ihr Land zugelassene und genehmigte Netzkabel.
Erden des Gerätes.
Das Gerät ist durch den Schutzleiter im Netzkabel geerdet. Um Gefahren durch elektrischen Schlag zu vermeiden, ist es unerlässlich, die Erdung durchzuführen. Erst dann dürfen weitere Ein- oder Ausgänge verbunden werden.
Anschluss einesTastkopfes.
Die Erdungsklemmen der Sonden sindauf dem gleichen Spannungspegel des Instruments geerdet. SchließenSie die Erdungsklemmen an keine hohe Spannung an.
Zur Vermeidung von Feuer oder Stromschlag, beachten Sie alle Bemerkungen und Markierungen auf dem Instrument. Befolgen Sie die Bedienungsanleitung für weitere Informationen, bevor Sie weitere Anschlüsse an das Instrument legen.
Verwenden Sie einen geeigneten Überspannungsschutz.
Stellen Sie sicher, daß keinerlei Überspannung (wie z.B. durch Gewitter verursacht) das Gerät erreichen kann. Andernfallsbestehtfür den Anwender die GefahreinesStromschlages.
Nicht ohne Abdeckung einschalten.
Betreiben Sie das Gerät nicht mit entfernten Gehäuse-Abdeckungen.
Beachten Sie alle Anschlüsse.
VI Quick Guide for DSA1000 Series
Betreiben Sie das Gerät nicht
geöffnet.
Der Betrieb mit offenen oder entfernten Gehäuseteilen ist nicht zulässig. Nichts in entsprechende Öffnungen stecken (Lüfter z.B .)
Passende Sicherung verwenden.
Setzen Sie nur die spezifikationsgemäßen Sicherungen ein.
Vermeiden Sie ungeschützte Verbindungen.
Berühren Sie keine unisolierten Verbindungen oder Baugruppen, während das Gerät in Betrieb ist.
Betreiben Sie da s Gerät n icht im Fehlerfall.
Wenn Sie am Gerät einen Defekt vermuten, sorgen Sie dafür, bevor Sie das Gerät wieder betreiben, dass eine Untersuchung durch RIGOL autorisiertem Person al durchgeführt wird. Jedwede Wartung, Einstellarbeiten oder Austausch von Teilen am Gerät, sowie am Zubehör dürfen nur von RIGOL autorisiertem Person al du rchgeführt werden.
Belüftung sicherstellen.
Unzureichende Belüftung kann zu Temperaturanstiegen und somit zu thermischen Schäden am Gerät führen. Stellen Sie deswegen die Belüftung sicher und kontrollieren regelmäßig Lüfter und Belüftungsöffnungen.
Nicht in feuchter Umgebung betreiben.
Zur Vermeidung von Kurzschluß im Geräteinneren und Stromschlag betreiben Sie das Gerät bitte niemals in feuchter Umgebung.
Nicht in explosiver Atmosphäre betreiben.
Zur Vermeidung von Personen- und Sachschäden ist es unumgänglich, das Gerät ausschließlich fernab jedweder explosiven Atmosphäre zu betreiben.
Geräteoberfläch en sa ub er u nd trocken halten.
Um den Einfluß von Staub und Feuchtigkeit aus der Luft auszuschließen, halten Sie bitte die Geräteoberflächen sauber und trocken.
Schutz gegen elektrostatische Entladung (ESD).
Quick Guide for DSA1000 Series VII
Sorgen Sie für eine elektrostatisch geschützte Umgebung, um somit Schäden und Funktionsstörungen durch ESD zu vermeiden. Erden Sie vor dem Anschluß immer Innen- und Außenleiter der Verbindungsleitung, um statische Aufladung zu entladen.
Die richtige Verwendu ng desAkku.
Wenneine Batterieverwendet wird, vermeiden Sie hohe Temperaturen bzw. Feuer ausgesetzt werden. Bewahren Sie es außerhalbder Reichweitevon Kindern a uf.
VIII Quick Guide for DSA1000 Series
UnsachgemäßeÄnderung derBatterie (Anmerkung: Lithium-Batterie) kann zu einer Explosion führen. VerwendenSie nur von RIGOL angegebenenAkkus.
Sicherer Transport.
Transportieren Sie das Gerät sorgfältig (Verpackung!), um Schäden an Bedienelementen, Anschlüssen und anderen Teilen zu vermeiden.
WARNING
können.
CAUTION
Gefahrenquellen die Schäden am Gerät hervorrufen können.
DANGER
weist auf eine Verletzung oder Gefährdung hin, die sofort geschehen kann.
WARNING
weist auf eine Verletzung oder Gefährdung hin, die möglicherweise nicht sofort geschehen.
CAUTION
weist auf eine Verletzung oder Gefährdung hin und bedeutet, oder anderer Gegenstände auftreten kann.
Sicherheits Begriffe und S ymb ole
Begriffe in diesem Guide. Diese Begriffe können in die sem Handbuch
auftauchen:
Die Kennzeichnung WARNING beschreibt Gefahrenquellen die leibliche Schäden oder den Tod von Personen zur Folge haben
Die Kennzeichnung Cauti on (Vorsicht) beschreibt
Begriffe auf dem Produkt. Diese Bedingungen können auf dem Produkt erscheinen:
bedeutet, dass eine mögliche Beschädigung des Instruments
Symbole auf dem Produkt. Diese Symbole können auf dem Produkt erscheinen:
GefährlicheS pannung
Quick Guide for DSA1000 Series IX
Sicherheits­Hinweis
Schutz-erde
Gehäuse masse
Erde
General Care and Cleaning
General Care
Do not store or leave the instrument in where the instrument will be exposed to direct sunlight for long periods of time.
Cleaning
Clean the instrument regularly according to its operating conditions. To clean the exterior surface, perform the following steps:
1. Disconnect the instrument from all power sour c es.
2. Clean the loose dust on the outside of the instrument with a lint- free cloth (with a mild detergent or water). When cleaning the LCD, take care to avoid scarifying it.
CAUTION
To avoid damages to the instrument, do not expose them to liquids which have causticity.
WARNING
To avoid injury resulting from short circuit, make sure the instrument is completely dry before reconnecting to a power source.
X Quick Guide for DSA1000 Series
Environmental Considerations
The following symbol indicates that this product complies with the WEEE Directive 2002/96/EC.
Product End-of-Life Handling
The equipment may contain substances that could be harmful to the environment or human health. In order to avoid release of such substances into the environment and harm to human health, we encourage you to recycle this product in an appropriate system that will ensure that most of the materials are reused or recycled appropriately. Please contact your local authorities for disposal or recycling information.
Quick Guide for DSA1000 Series XI
RIGOL Contents
Contents
Front Panel ...........................................................................................1
Front Panel Function K ey .................................................................... 2
Front Panel Backlight Key ................................................................... 5
Front Panel Connector ........................................................................ 7
Rear Panel.......................................................................................... 10
Prepare for Use .................................................................................. 14
General Inspection ........................................................................... 14
Disassemble the Front Panel Cover .................................................... 16
Adjust the Supporting Legs ............................................................... 16
Connect the Power ........................................................................... 16
Power-on Check ............................................................................... 19
Self Calibration ................................................................................ 19
Use the Lock ................................................................................... 19
Replace Fuse ................................................................................... 20
Charge the Battery ........................................................................... 21
User Interface .................................................................................... 22
Menu Operation ................................................................................. 27
Parameter Input ................................................................................ 29
Numerical Keyboard ......................................................................... 29
Knob .............................................................................................. 31
Directional Keys ............................................................................... 31
Basic Measurement ........................................................................... 32
On-line Help System .......................................................................... 35
Troubleshooting ................................................................................ 37
XII Quick Guide for DSA1000 Series

Front Panel

Table 1 Front Panel Description
⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳
No. Description No. Description
①
LCD
②
Menu keys
③
Page up
④
Numeric keyboard
⑤
Function key area
⑥
knob
⑦
Down
⑧
Up
⑨
Power key
⑩
USB Host interface
① ② ③ ④ ⑤ ⑥ ⑦ ⑧
Figure 1 Front panel overview
⑪
Full screen
⑫
Zoom window
⑬
Switch window
⑭
One-button help
⑮
Back
⑯
Page down
⑰
Tracking generator output*
⑱
Probe power output
⑲
Battery status indicator (China only)
⑳
RF input
Note: *For DSA1030-TG only.
Quick Guide for DSA1000 Series 1
RIGOL
Basic keys Sweep keys System keys
Function setup Advanced measure Marker measure

Front Panel Function Key

Figure 2 Function key area
Table 2 Function keys description
Keys Description Sweep keys
Sets the center, start and stop frequency, as well as the signal tracking function.
Sets the frequency sweep span.
Sets the reference lev el, RF attenuator, scale and the unit of Y-axis, etc. Sets the resolution bandwi dt h and video bandwidth of the analyzer. Sets the sweep time, sweep mode, sweep numbers in single mode and the sweep points.
2 Quick Guide for DSA1000 Series
Function keys description (Continued)
Keys Description
Searches signals automatically within full frequency range.
Sets the trigger mode and corresponding parameters.
Sets the sweep mode to Single.
Sets the sweep mode to Continue.
Function setup
Sets the detection mode of the analyzer.
Sets the parameters relate to sweep trace.
Sets the demodula ti o n .
Sets the tracking generator*.
Advanced measure**
Select a desired advanced measurement function.
Sets the parameters for the selected measurement function.
Marker measure
Reads the amplitude, frequency and sweep time of a certain point on the trace. Sets other system parameters based on the current marker value.
Quick Guide for DSA1000 Series 3
RIGOL
Function keys description (Continued)
Keys Description
Special function such as noise marker, N dB bandwidth measure and frequency counting.
Searches the peak and opens the Peak menu immediately.
Measures the left peak directly.
Measures the right peak directly.
System keys
Sets the system parameters.
Sets the display parameters.
Executes the selected preset function; resets the system into specified status; modifies all sweep parameters, measurement settings and system parameters for following measure.
Enter the storage interface.
Sets the print parameters.
Print or save current screen.
Note: *For DSA1030-TG only. ** This function is the option of DSA1030/DSA1030-TG.
4 Quick Guide for DSA1000 Series

Front Panel Backlight Key

The backlight status of some keys at the front panel, off, bright or different color indicates different working mode.
1. Auto Tune
When Auto Tune is pressed, the backlight turns on, which indicates that the instrument starts sweeping at full range, searching the signal of maximum amplitude, and moves it to the center of the screen. Then the backlight turns off.
2. Single, Continue
When backlights of Single or Continue are on, it indicates the current sweep mode is Single or Continue, respectively.
3. Meas**
The backlight of Meas will be automatically turned on once any measurements ar e ac t ive, and stay on until all measurement functions are disabled.
4. Source*
When backlight of Source is on, it indicates that the tracking generator is enabled, and vice versa.
5. Power light In AC power supply mode:
Flashes on and off alternatively: indicating the unit is in stand-by state. Constant on: indicating the unit is in normal operating cond i t ion.
In battery power supply mode (China only):
Off: indicating the standby state. Constant on: indicating the normal operating condition.
Quick Guide for DSA1000 Series 5
RIGOL
6. Battery status indicator (China Only)
It is used to indicate the installation status and the current amount of electricity of the battery.
Green: battery electricity > 80%Orange: 20% < battery electricity < 80%Red: battery electricity < 20%Off: the battery is not installed or the battery contains no electricity
Note: * For DSA1030-TG only. ** This function is the option of DSA1030/DSA1030-TG.
6 Quick Guide for DSA1000 Series

Front Panel Connector

Figure 3 Front Panel Connectors
1. USB Host
The analyzer may serve as a “host” device to connect to external USB devices. This interface is available for USB flash device and the USB-GPIB module. See the following connections:
USB flash device connection GPIB extended connection
Figure 4 USB Host interface connections
2. GEN OUTPUT 50Ω
The output of the tracking generator can be connected to a receiver through an N male connector, see figure below. Note that the tracking generator is valid only when the instrument is DSA1030-TG.
Quick Guide for DSA1000 Series 7
RIGOL
Figure 5 Tracking generator output connection
CAUTION
Reverse power or voltage mustn’t be higher than 1 W or 50 V DC to avoid damages to the tracking generator.
3. PROBE POWER
This connector provides two lines of power supply to a RF probe: 15 V, 150 mA, and -12.6 V, 150 mA.
4. RF INPUT 50Ω
The RF input may be connected to a device unde r measure via an N male connector, see figure below.
Figure 6 RF input connection
8 Quick Guide for DSA1000 Series
CAUTION
To avoid damages to the instrument, signals at the input terminal must be less than 50 V DC voltage components and 30 dBm (1 W) AC (RF) components.
Quick Guide for DSA1000 Series 9
RIGOL

Rear Panel

TRIGGER IN 10MHz IN/OUT VGA port Battery AC Power connector
Lock hole LAN interface USB Device interface
Figure 7 Rear panel overview
1. AC power connector
Available AC power supply types: AC: 100 V – 120 V, 45 Hz – 440 Hz AC: 200 V – 240 V, 45 Hz – 65 Hz
2. Rechargeable battery (China Only)
An optional power source of 10 V – 18 V, a fully charged bat tery can provide 3 hours of continuous operation.
3. TRIGGER IN
A BNC external trigger signal input port, see figure below.
10 Quick Guide for DSA1000 Series
Figure 8 TRIGGER IN connection
4. 10 MHz IN/OUT
The BNC input or output of the 10 MHz reference clock, see figur e belo w.
Figure 9 10 MHz IN/OUT connection
5. VGA port
This port provides a VGA signal output which is used through a VGA cable, see figure below.
Quick Guide for DSA1000 Series 11
RIGOL
Figure 10 VGA port connection

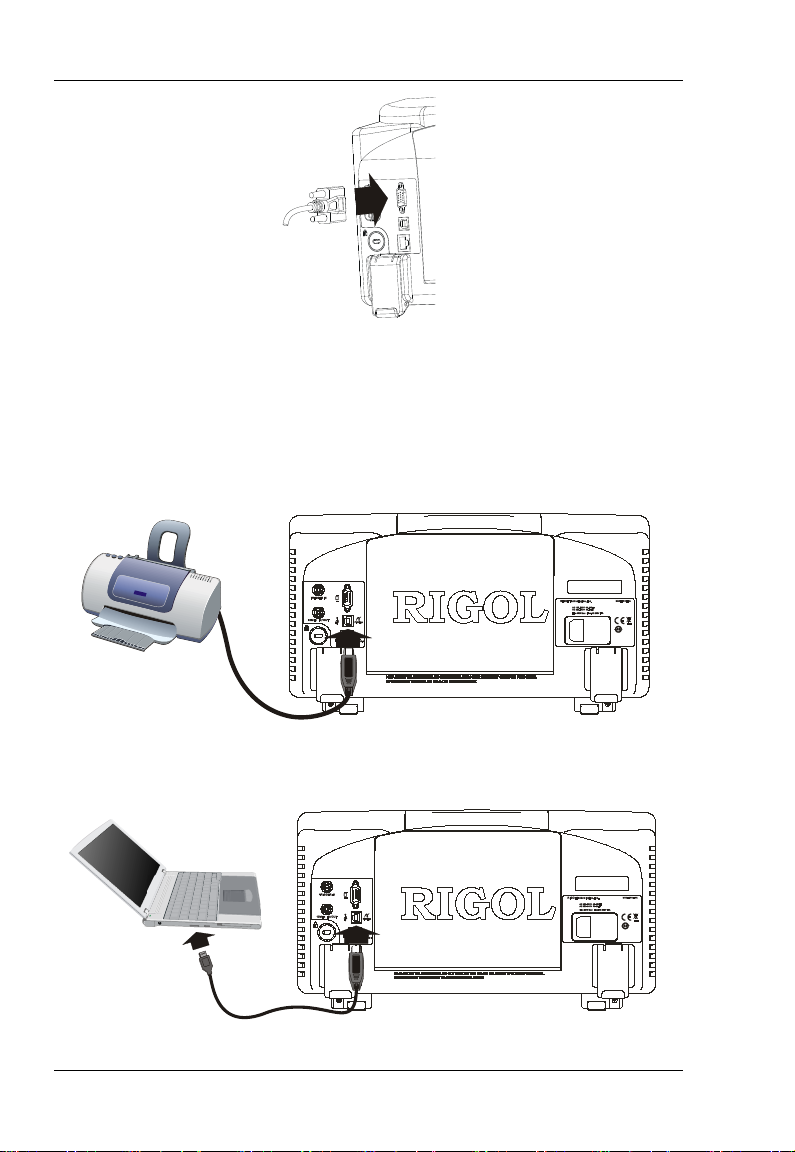

6. USB Device Interface
This configurable USB port permits interface external USB devices. It supports PictBridge printer and remote control connection.
Figure 11 PictBridge printer connection
Figure 12 USB remote control connection
12 Quick Guide for DSA1000 Series
7. LAN interface
Through this interface, the analyzer can be connected to your local network for remote control. An integrated testing system can be built quickly, as the analyzer conforms to the LXI Core 2011 Device class instrument standards.
Figure 13 LAN connection
Quick Guide for DSA1000 Series 13
RIGOL

Prepare for Use

General Inspection

Please inspect your new analyzer according to the followi n g st e ps:
1. Inspect the shipping container for damage
Keep the damaged shipping container or cushioning material until the contents of the shipment have been checked for completeness and the instrument has passed both electrical and mechanical tests.
The consigner or carrier shall be liable for the damage to instrument resulting from shipment. RIGOL would not be responsible for free maintenance/rework or replacement of the unit.
2. Inspect the instrument
In case of any damage, or defect, or failure, notify your RIGOL Sales Representative.
3. Check the accessories
The accessories supplied with the instrument are listed as follows. If your contents are incomplete or damaged, please notify your RIGOL Sales Representative.
14 Quick Guide for DSA1000 Series
A power cord that meets the A USB Cable standard of destination country
A Quick Guide A CD*
Front Panel Cover
Note*: CD contains user documentation such as
User’s Guide.
Quick Guide for DSA1000 Series 15
RIGOL

Disassemble the Front Panel Cover

Before putting your analyzer into action, remove the front panel cover by releasing latches at both sides, and sliding in the direction of the arrows as shown in the figure below.
Figure 14 Disassemble the front panel cover

Adjust the Supporting Legs

If necessary, adjust the supporting legs of the analyzer to an appropriately position in the direction of the arrows as shown in the figure below.
Figure 15 Adjust the supporting legs

Connect the Power

The spectrum analyzer can use AC power or rechargeable battery (China only) for power supply.
16 Quick Guide for DSA1000 Series

Connect the AC Power

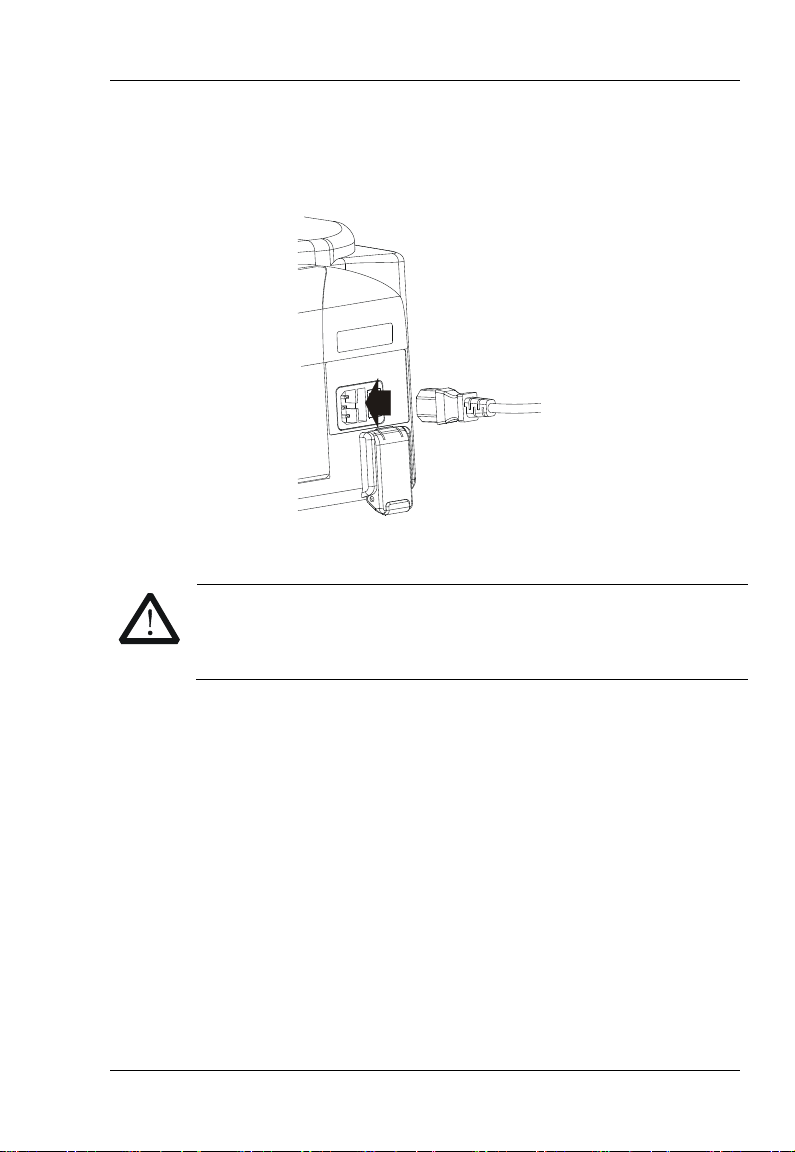

Please use the power cord provided for AC powering, see figure below. For the AC voltage and frequency requirements, refer to “Rear Panel”.
Figure 16 Power cord connection
CAUTION
Please ensure the instrument has been grounded correctly to avoid electrical shock.
Quick Guide for DSA1000 Series 17
RIGOL

Use the Battery (China Only)

The spectrum analyzer provides optional rechargeable battery. Please install
the battery according to Figure 17. The battery status indicator front panel indicates the installation status and the current amount of
electricity of the battery.
Green: battery electricity>80% Orange: 20%< battery electricity <80% Red: battery electricity <20% Off: the battery is not installed or the battery contains no electricity
Figure 17 Install the Battery
The battery is rechargeable. For the charge method, refer to the introduction in “Charge the Battery”.
WARNING
Make sure the instrument is not connected to the AC power before installing the battery.
at the
18 Quick Guide for DSA1000 Series

Power-on Check

Turn on the power switch at the rear panel, then press down the power button
on the front panel. You can monitor the initiali z a ti o n pr o c ess according
to the progress indicator during power-on. Upon completion of the initialization process, a sweep curve would be displayed.

Self Calibration

Press System Calibrate Cal Now, to use internal calibration resources to calibrate the system.

Use the Lock

If necessary, use a security lock to lock the analyzer in a desired location. See figure below, place the key into the lock hole in the direction of the arrow, turn it clockwise and then remove the key.
Lock
Key
Figure 18 Use the lock
Quick Guide for DSA1000 Series 19
Lock hole
RIGOL

Replace Fuse

Please replace with specified fu se according to the follo w i n g steps when needed:
1. Turn off the instrument, cut off the power and remove the power cord;
2. Prize out the fuse holder using a small straight screwdriver;
3. Take out the fuse;
4. Replace the old fuse with a specified one;
5. Re-install the fuse holder.
Fuse
Fuse holder
Figure 19
WARNING
Please ensure that the instrument has been turned off and the power source has been cut off before replacing the fuse in order to avoid electrical shock.
20 Quick Guide for DSA1000 Series
Replace Fuse

Charge the Battery (China Only)

Please install the battery by referring to the introduction in “Use the Battery”. Then, connect the AC power and turn on the power switch at the rear panel to charge the battery. At this point, the power key at the front panel can be in any state.
The battery status indicator progress. If the battery status indicator does not go on, the battery contains
no electricity currently. If the battery status indicator still does not go on after the battery has been charged for half an hour , please cut off the AC power and check whether the battery is correctly installed or whether it is damaged.
No matter whether the spectrum analyzer is in start-up or standby state, about 10 hours are required for the battery to be fully charged.
at the front pane l indi cates the charg e
Quick Guide for DSA1000 Series 21
RIGOL
1 2 3 4 5 6 7 8 9 10
11 12
13 14 15 16 17 18
31 30 29 28 27 26 2324
25 22
19 20
21
32
33
34
35
36
37
38
41
40
39
42

User Interface

Figure 20 User interface
22 Quick Guide for DSA1000 Series
Table 3 User interface legends
NO. Name Explanation
1 LOGO Logo of RIGOL 2 System status
(“UNCAL” and “Identification…” are in different locations)
3 External reference Ext Ref
4 Time System time. 5 Input impedance Show “75Ω” if the curre nt input impedance is
6 Printer status
7 Print process Show current print copy and total print
8 Power status
9 USB flash device Show if USB flash device is inserted; the mark
10 Operation status Local or Rmt (Remote). 11 Menu title Function of current menu belongs to.
Auto Tune Auto Range Wait for Trigger Calibrating UNCAL (Measurement Uncalibrated) Identification… (LXI Identification)
Ext Ref Invalid
75Ω.
: Alternate display, denotes the
printer now is connecting.
: Successful connection, print finish or
idle.
: Alternate display, denotes printing. : Denotes print has been pau sed.
copies. AC supply:
Battery supply (China only): show electric quantity left
indicates successfully installed.
Quick Guide for DSA1000 Series 23
RIGOL
User interface legends (Continued)
NO. Name Explanation
12 Menu item Menu item of current function. 13 Reference level Reference level. 14 Activ e are a Current parameter and value. 15 Attenuator
settings
16 Display line Reading reference and threshold condition for
17 Trigger level Sets the trigger level in video trigger. 18 Average times Average times of trace. 19 Cursor X Current value of Cursor X. Note that X indicates
20 Cursor Y
21 Invalid data Current measured data is invalid as a full sweep
22 Menu pages Show total number of pages and current page
23 Sweep position Current sweep position. 24 Sweep time Sweep time. 25 Span or stop
frequency
26 Manual symbol Parameters non-auto coupling. 27 VBW Video resolution bandwidth.
Sets the Attenuator.
peak value.
different physical quantity in different functions. Current value of Cursor Y. Note that Y indicates different physical quantity in different functions.
didn’t complete after the system parameters have been modified.
number.
The frequency range of current sweep channel can be expressed by a combination of center frequency and span or a combination of start frequency and stop frequency.
28 Spectrum line
area
24 Quick Guide for DSA1000 Series
For displaying spectrum line.
User interface legends (Continued)
NO. Name Explanation
29 RBW Resolution bandwidth of frequency. 30 Center or
starting frequency
31 Y scale Label of Y scale. 32 Parameter
status
33 Detection type Pos peak, Neg peak, Sample, Normal, RMS Avg
34 Trigger type Free, video and external. 35 Sweep mode Continuous or Single sweep (with current
36 Correction
switch 37 Signal tracking Enable or disable signal tracking. 38 Preamplifier
status* 39 Trace 1 types
and status
40 Trace 2 types
and status
The frequency range of current sweep channel can be expressed by a combination of center frequency and span or a combination of starting frequency and stop frequency.
Icons on the left side of the screen indicate the status of system parameters.
Voltage Avg and Quasi-Peak.
sweeping times sho wing) Turn the Correction On or Off.
Enable or disable the preamplifier.
Trace types: Clear Write, Max Hold, Min Hold, Video Avg and Power Avg. Trace status: yellow denotes On, and gray denotes Off. Trace types: Clear Write, Max Hold, Min Hold, Video Avg and Power Avg. Trace status: purple denotes O n , and gray denotes Off.
Note*: This function is the option of DSA1030/DSA1030-TG.
Quick Guide for DSA1000 Series 25
RIGOL
User interface legends (Continued)
NO. Name Explanation
41 Trace 3 types
and status
42 MATH trace
types and stat us
Trace types: Clear Write, Max Hold, Min Hold, Video Avg and Power Avg. Trace status: light blue denotes On, and gray denotes Off. Trace types: A-B, A+C, A-C. Trace status: green denotes On, and gray denotes Off.
26 Quick Guide for DSA1000 Series
directly.

Menu Operation

There are 7 different menus with respect to different modes of operation:
1. Parameter Input
When selected, use the keyboard to modify the parameters directly. For example: select Center Freq, input desired
2. State Switching
3. Enter Lower Menu (with parameter)
4. Enter Lower Menu (without parameter)
numbers using the keyboard and select the desired unit from the pop-up unit menu or unit keys. You can also press Enter to select the default unit (MHz).
Press corresponding menu key to switch the sub option shown. For example: press Signal Track On/Off to turn on or off the tracking.
Press corresponding menu key to enter the lower menu and change its options. For example: press Units to enter and select dBmV, the unit for Y axis will be changed into dBmV after you return to the previous menu.
Press corresponding menu key to enter the lower menu. For example: press Signal Track to enter
Quick Guide for DSA1000 Series 27
RIGOL
5. Direct Execution
Execute the function after each press of the menu key. For example: press Peak->CF to execute a peak
6. Function Switch + Parameter Input
7. Selected State
search and the center frequency of the analyzer will be set to the frequency of the current peak signal.
Press corresponding menu key to switch between functions; change parameter directly from the keyboard. For example: press CF Step and switch between Auto and Manual; if select Manual, you can directly input desired numbers to change CF Step.
Press corresponding menu key to modify parameter and return to the menu one level up. For example: press Trig Type Free Run, which indicates the analyzer is in Free Run state at the present.
28 Quick Guide for DSA1000 Series

Parameter Input

In this part, you will learn how to enter desired parameter values from the numerical keyboard, the knob and the directional keys.

Numerical Keyboard

Figure 21 The Numerical keyboard
The numerical keyboard is consists of:
1. Numerical keys
Numbers 0~9 are available to be used.
2. Decimal point
A decimal point “.” will be inserted at the cursor position when this key is pressed.
3. Sign key
Sign key “+/-” is to toggle the sign of a parameter. When pressed the first time, a “-” will be inserted and changed into “+” following the second press.
4. Unit keys
Unit keys include GHz/dBm/s, MHz/dB/ms, kHz/dBmV/µs and Hz/mV/ns. After entering the desired numbers, choose an appropriate unit to complete the parameter input. The specific meaning of unit is decided by the type of current input parameter (“frequency”, “amplitude” or “time”).
Quick Guide for DSA1000 Series 29
RIGOL
5. Enter
When pressed, the system will complete the input process and insert a default measuring unit for the parameter automatically.
6. Esc
(1) During parameter editing process this key can clear the inputs in the
active area and exit editing mode at the same time. (2) Turn off the display of active area. (3) Exit current test mode while in keyboard test. (4) Unlock the screen while it is locked.
7. Back
(1) During the process of parameter editing, this key will delete the
characters on the left side of the cursor. (2) While in the process of file name editing, pressing thi s key will delete
character that have been entered.
30 Quick Guide for DSA1000 Series

Knob

Figure 22 The knob
The knob has following functions:
1. During parameter editing, turn the knob clockwise to increase, or counterclockwise to decrease the parameter values at specified steps.
2. While editing a file name, the knob may select different character from the soft keyboard.
3. Press AMPT Corrections Edit, and use the knob to select different reference points.

Directional Keys

Figure 23 Up and down directional keys
The directional keys have following functions:
1. Increase or decrease the parameter value at specific steps while editing a parameter.
2. Move the cursor among root directory in Storage function.
3. Select the character in the upper or lower of roll of the soft keyboard while
editing file name.
4. Select the adjacent ref er en c e po i n t s in Edit menu: AMPT  Corrections  Edit.
Quick Guide for DSA1000 Series 31
RIGOL

Basic Measurement

In this section, we introduce how to use the analyzer to do basic measurements. Considering a 50 MHz, 0 dBm sine signal produced from a generator (such as RIGOL DG3101A).
CAUTION
The signal amplitude must be less than 30 dBm (equal to 1 W), when its frequency range is from 10 MHz to 3 GHz, or else it will switch the input to a high power impedance state, and consequently the signal cannot be measured by the instrument.
Procedures:
1. Power on
2. Reset to factory settings
Press System Reset Preset Type Factory, and then Preset. The instrument will reset all the parameters to factory settings.
3. Equipment Connection
Connect the signal output terminal of generator to the RF INPUT 50Ω terminal at the front panel of analyzer.
4. Setup the Center Frequency
(1) Press FREQ, a corresponding menu will appear on the right of the
screen, and Center Freq is in high-bright state, meanwhile, the center frequency parameter is shown at the top left corner of the display gird, which indicates the Center Frequency is active.
(2) Center frequency could be changed through the numerical keyboard, the
knob or the directional keys.
(3) Input 50 and select MHz as its unit using the numerical keyboard, then
the center frequency of analyzer is set to 50 MHz.
32 Quick Guide for DSA1000 Series
5. Setup Span (1) Press SPAN, a corresponding menu will appear on the screen, and
Span is in high-bright state, meanwhile, also the span parameter is
shown at the top left corner of the display gird, which indicates Span is active.
(2) Span value could be changed through the numerical keyboard, the knob
or the directional keys.
(3) Input 20 and select MHz as its unit using the numerical keyboard, then
the span of analyzer is se t to 20 MHz.
6. Setup Amplitude
(1) Press AMPT, Ref Level is in high-bright state, the reference level will
be shown at the top left corner of the display gird, which indicates Reference Level is active.
(2) Reference level could be changed through the numerical keybo ar d, the
knob or the directional keys.
(3) If necessary, you can change the reference level using the knob so as to
bring the signal peak value near the top of the grid based on the signal
display. When all the steps above are finished, a 50 MHz RF curve will be shown on the analyzer.
7. Read Results
The value of frequency and amplitude could be read from the Marker. Press Marker Select Mkr 1 to activate Marker 1 and set the marker frequency to “50 MHz”, then the frequency and amplitude of where the marker is located would be shown at the upper right of the displ ay grid.
Quick Guide for DSA1000 Series 33
RIGOL
Figure 24 Measuring results
34 Quick Guide for DSA1000 Series

On-line Help System

The built-in help provides information refers to every function key and menu key on the front panel. Users can view this help informa ti on if required.
1. How to acquire on-line help
Press Help; a prompt about how to obtain help information will be shown, then, repress the key related to the desired function, and the relevant information will be shown on the screen.
2. Page up and down
If there is more than one page of information, you can read the complete information by using the directional keys or the knob.
3. Close the current help information
Press any key on the front panel (except for up and down directional keys or the knob) to close the help.
4. Acquire the help information of menu
Press Help, a message about how to obtain help information will be shown, then, press the menu keys F1-F7 to get corresponding help.
5. Acquire the help information of any function key
Press Help, a message about how to obtain help information will be shown, then, press any function key to get corresponding help.
The help information includes the menu construction, the corresponding SCPI command and the help contents. See figu r e belo w:
Quick Guide for DSA1000 Series 35
RIGOL
Figure 25 On-line help
36 Quick Guide for DSA1000 Series

Troubleshooting

To help you solve commonly encountered problems we have listed some typical issues with their respective solutions. If the problems persist contact RIGOL and prepare your device information (System Information
System Info).
1. The screen still dark (no display) after power on:
(1) Check if the fan is running :
— If running, the connection of the internal screen cable may be
loose.
— If not, the instrument has failed to power up, please refer to step (2)
or (3).
(2) If the battery (China only) is used for power supply:
— Check whether the battery is in good condition and whether it is
correctly installed.
— Check whether the battery status indicator
goes on; if not, the battery contains no electricity and please charge the battery.
(3) If AC power is used for power supply:
— Check if the power supply has been connected correctly and power
switch has been turned on.
— Check if the power fuse is burned. If a new fuse needs to be
installed, please select one with these specifications: 250V AC, T2A; 5 mm×20 mm.
at the front panel
2. Unresponsive keys or wrong response
(1) Press all the keys on the front panel to make sure that each of them is
normal after power on.
(2) Press System Self-Test Key Test to see if all keys are working
properly.
(3) If a key is not working, do not disassemble the instrument by yourself
Quick Guide for DSA1000 Series 37
RIGOL
and contact RIGOL.
3. The spectrum lines on the screen do not update for long periods:
(1) Check if the screen is locked, if so, press Esc to unlock. (2) Check if the instrument is in Remote control. (3) Verify if all the trigger conditions have been met and if there is a valid
trigger signal. (4) Check if the analyzer is in Single sweep. (5) Check if the current sweep time is too long.
4. Wrong measurement results or poor precisions:
To verify the system errors and view the measurement accuracies and precision, refer to the tolerance specifications or characteristics from the
User’s Guide
(1) Check if all the peripheral equipment has been successfully connected
and is working normally. (2) Review the signal under measure and set appropriate instrument
parameters. (3) Make measurements under proper conditions, for example: warm-up the
instrument appropriately and operate with in the specified environm ent
and temperature. (4) Calibrate the instrument regularly to reduce or avoid errors that can
occur over time.
— Press System Information System Info to get the last
— The analyzer provides a self-calibration function. If required, press
— Press System Calibrate Cal Now to do a self-calibration
. T o get the characteristics listed in the
calibration time and decide if a new calibration is required. If you need a specific calibration after the stated calibration period, contact RIGOL for service options.
System Calibrate Self-Cal, and the instrument will do a
self-calibration once the operating temperature has changed.
immediately.
User’s Guide
, please:
38 Quick Guide for DSA1000 Series
5. Prompt Message:
The instrument may give common prompts, error prompts, or state prompts according to the current status to assist in proper use of the analyzer or to show warnings that some fault might happen to the instrument.
Quick Guide for DSA1000 Series 39
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
