Wireless TVWireless TV
Splash ProofSplash Proof
W104X4
User Manual
5.8GHz
Accessories
User Manual
AVCablex2
AC Adaptor +12V- 2A
AC Adaptor +12V- 2.5A
Remote control
25
FCC
Features
FCC Caution:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
FCC Notes:
The manufacturer is not responsible for and radio or
TV interference caused by unauthorized
modifications to this equipment. Such modifications
could void the user's authority to operate the
equipment.
Connecting the signal to the transmitter box and
you can watch TV by wireless transmission.
Thetransmissionisusedby5.8GHz,itcanconvey
and receive images through the transmitter box.
The transmission of remote control is used by 433
MHz. ( please meet the transmitter box hen making
use of remote control )
The transmitter box provide four channels to use
and it also can avoid the interference of wireless air
waves.
ThewirelessdisplaymeetsIPX6withthedustand
waterresistance,itcanevenbeusedifthesurface
of display and remote control have water, airwater
and snowflakes. (the transmitter box isn’t
waterproof )
24
The TV with great performance of LCD panel, offer
the best picture quality.
Provide several signals , including A/V input,
digitalTVandAnalogTV.
Available for VHF-H 174~230MHz, and UHF
470~860MHz.
Built –in regargeable battery makes it suitable for
ourdoor use.
A/Voutputisincluded.
01
Precaution
,,
Thanks on your purchase of the 10.4 Wireless
LCD TV. Please read the directions to familiarize
yourself with the product and to ensure that you
obtain from your equipment.
Pleasedon’tputthedisplayinairtightvehicles
and keep away from the sunlight and heaters.
Using the unit over 30 C will cause insufficient
charging.
Usingtheunitunder0Corhigherthan40Cmay
damage the TV but it will work in normal in
operation temperature.
Please pull out the power plug of display after
charing or watching . It is dangerous to keeping
plug in and also may cause the TV damage .
,
It s not recommended to be long time used in
highly humidity environments, for example:
bathroom, shower room.
Pleasedon’tputthedisplayinthewaterorthe
place easliy dropping into the water.
It can use 2hr after charging around 3~4hr.
(the operating time relates to the reception,
volume and local channel)
Don’t connect to AC adaptor when using the TV
in bathroom, shower room.
around
Specifications
ITEM
Screen size
Display Resolution
Brightness
Viewing Angle
Video source
Power input
Weight
Dimension(RX)
Dimension
The charging time
The operating time
Battery type
Antenna type
Receive range
channel frequency
R/C frequency
Certification
(TX)
SPECIFICATION
10.4
inch
680(H) x 480(V)
350
(cd/m )
Top= 0 Bottom=40
Left=70 Right=70
Analog TV
Video input
DC 12V__2A DC 12V__2.5A(TX)
1.8kg 40g 0
357(L)x65(D)x217(H)
303 6 D 56 H
(L)x1 3( )x ( ) mm
Around ~ hr
Around hr
4200mah Ni-Mh battery
5.8 Ghz permanent antenna
30m (Outdoor no interference)
chA: 5740 MHz chB: 5760 MHz
chC: 5780 MHz chD: 5820 Mhz
RF 433 MHz
CE FCC RoHS IPX6
2
7
and ATSC
(NTSC/PAL/SECAM)
(RX)
(RX) .5kg 30g(TX)
34
2
mm
02
Please keep away from water when the connector
coverisopen.
Don’tconnecttheantennaandplugofACadaptor
when thundering.
23
Other Functions
1. Program List:
Enter channel in the program list
Select item in the program list
2. Favorite List:
Set favorite channel in the favorite list
Select item in the favorite list
3. Guide:
Switch the current page in program
scheduler.
4. Information menu
1) Audio List: display current audio
language.
2) Clock: display current time in the
program.
3) Format: display current screen mode.
4) Audio List: display current status of
parent control.
5. Volume
1) Vol+/Vol- key: increase or decrease
Volume value.
Hold down Vol+/Vol- key to increase
or decrease Volume value continuously.
2) options: 0-40
Program List
Label
CH.
WGB-SD
2-1
PBS-HD
2-2
WGBH-DX
2-10
Figure 25-Program List menu
Favorite List
FAV.1
FAV.2
FAV.3
FAV.4
FAV.5
Figure 26-Favorite List menu
Guide
8:00 AM-11:00 AM ABCD
TINATIC
11:00 AM-2:00 AM ABCD
APPLE PIE
2 : 00 PM-6:00 PM ABCD
6 : 00 PM-8:00 PM ABCD
2-1 ABCD
Audio (English)
Format (Normal)
Figure 28-Information menu
Volume 20
Skip
On
On
Off
2-1
2-2
2-10
NONE
NONE
HEARO
SPORT
Figure 27-Guide menu
12: 00 PM
Block (Off)
Figure 29-Volume menu
The distance of transmission in unobstructed
place is 30m.
ThesignalofATSCinmountaindistrict,
underground passages , airtight building may be
interrupted.
Reinforced concrete building , the inference of
electromagnetic wave , airtight building will
influence the reception of wireless transmission.
Connector cover and the cover of remote control
are the most important components to keep the
TV away from water . Please fix it tightly and
make sure there is not any tiny impuruties
around the cover.
PleaseturnofftheTVimmediatelyifsmokesand
smells something bad, and unplug the AC
adaptor, then contact with your retailer.
Please note the transmitter box isn’t waterpoof.
,
Don t reconstruct and separate the TV. Any
problems, please contact with your retailer for
inspection, adjustment and repair.
Avoid any silts fall into the speaker.
Don’taddpressuretotheLCDpanelandhitthe
TV set.
Please turn the unit off to start charging.
Please use the cotton cloth for screen to clean
the display , in case scrape the screen .
22
03

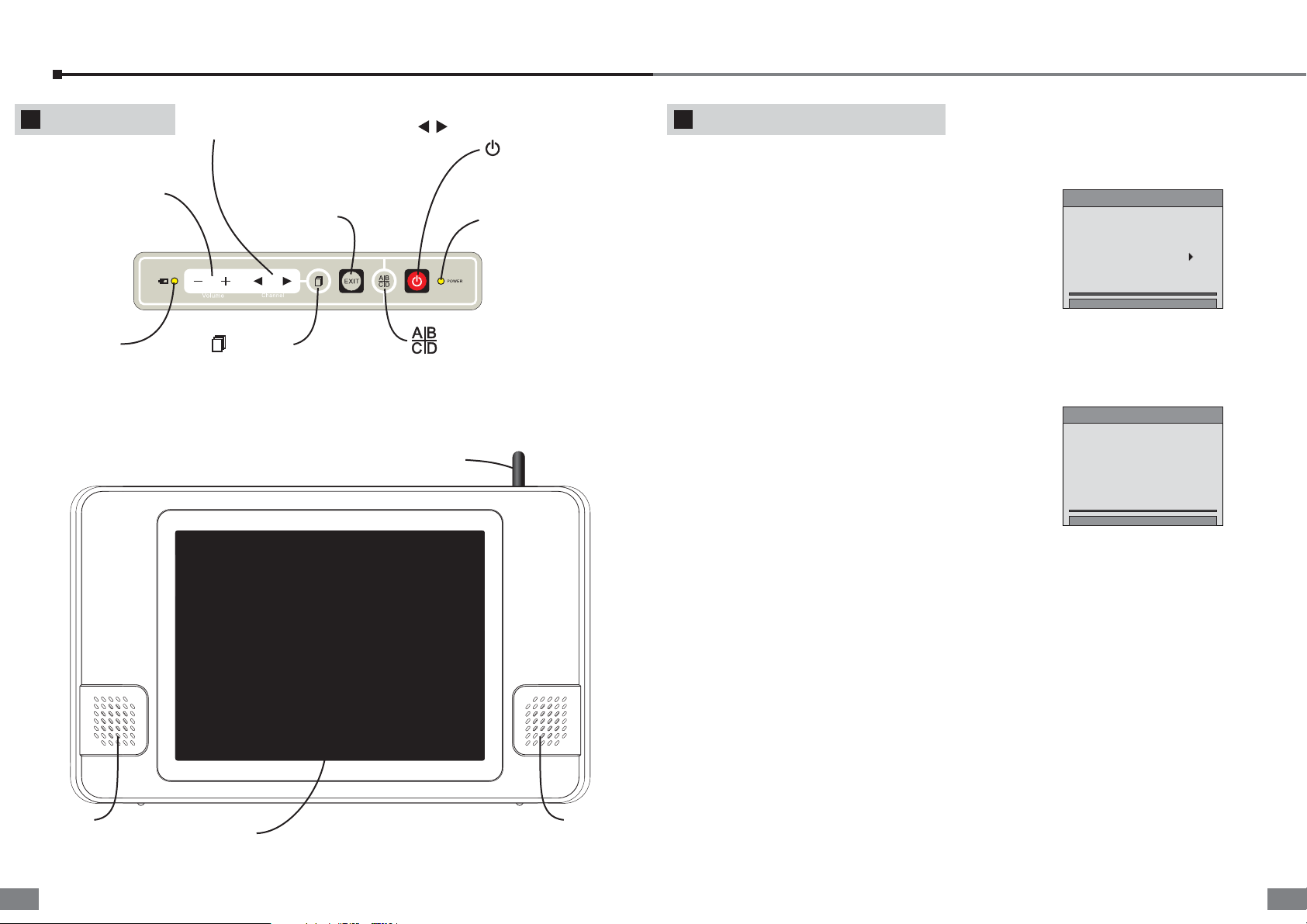

Parts Description-Main Unit
Monitor
Volume (+/-)Volume (+/-)
Battery LEDBattery LED
Flash indicator of
charging.
V1/V2
(MENU UP/DOWN )(MENU UP/DOWN )
Please press 2 seconds .
EXIT
MENU
Accesses the OSD.
5.8GHz Antenna5.8GHz Antenna
Power
Please press 2
seconds .
Power LEDPower LED
CHANNEL A/B/C/DCHANNEL A/B/C/D
Avoid the interference
of wireless air waves.
System Setting
System Setting
1. OSD Langue: Select the OSD Langue
options: English, Spanish and French.
default: English
2. Audio Langue: Select the Audio Langue
options: English, Spanish and French.
default: English
3. Format:
Select the Format option list options: Normal, Crop, Squeeze
and Letter Box. default: Normal
4. Time Setup: Enter Time Setup menu
1) Clock:
Notes: the Clock displays the current
time from programs
2) Time Zone:
Select the Time Zone options: Eastern, Samoa, Hawaii,
Alaska, Pacific, Mountain, Central,Atlantic, Newfoundland.
default: Eastern
3) Daylight Sav.:
Switch the Daylight Sav. between on and off. default: off
System Setting
OSD Langue
Audio Langue
Format
Time Setup
ANT Power Switch off CH3
RF Modulator
Figure 23-System Setting menu
Time Setup
Clock
Time Zone
Daylight Sav.
English
English
Normal
1:56 AM
Eastern
On
Figure 24-Time Setup menu
Speaker
04
Display
Speaker
5. Ant power switch
Switch ANT power Supply between on and off. default: off
Note: select "on" to turn on the 5V power supply for active antenna.
If ANT circuit is short, the ANT power supply will turn off
automatically. Select "off" for NON-active antenna.
6. RF Modulator: Select CH3 or CH4 RF output for the modulator
21
Canada Ratings
Note: blocking a rating affects all the higher ratings, so that
blocking "13 ans+" in the example above automatically
blocks "16 ans+"and "18 ans+", whatever previous state
of these ratings was. If a password is defined while a TV
program warning is received for the current channel,
sound is muted and the following menu is displayed on the
center of screen; what's more, the rating information should
be consistent with current active program rating.
This Channel is blocked by the French
Canada Rating of "G"
SPECIFICATION
Locker
Fix the connector cover
tightly.
Earphone JackEarphone Jack
AV INAV IN
Video input.
POWER ON/OFFPOWER ON/OFF
Please always charge the
unit when power off, to
avoid damaging the
batteries.
20
RRT Setting
1. RRT Setting:
Enter Rating Value setting in current
dimension Name.
Rating value Setting
1. Rating value Setting:
Set Block or View in current Rating
Value.
RRT Setting
Dimension Name 1
Dimension Name 2
Dimension Name 3
Dimension Name 4
Figure 19-RRT Setting menu
Dimension Name1
Rating V alue 1 B
Rating V alue 2 B
Rating V alue 3 B
Rating V alue 4 B
Figure 20-Rating Region Dimension menu
DC JackDC Jack
12V DC Power Adaptor
Socket.
Connector coverConnector cover
Keep away water into the
sockets and switch.
Note
Connector cover is the most important
component to keep away water into W104X4,
please make sure it was fixed tightly.
05
Transmission BOX
VIDEO SELECTVIDEO SELECT
CHANNEL
Analog TV LEDAnalog TV LED
Show OFF is power off.
ATSC LEDATSC LED
A/V input LEDA/V input LED
ANALOG SCANANALOG SCAN
Please press 3 seconds
to auto scan analog TV.
Pad
Power
Canada Ratings
Canada English Ratings
1. C-18+:
Switch the check box between
view and block. default: View
Note: blocking a rating affects all the
higher ratings, so that blocking
"PG" in the example above auto
matically blocks "14+" and "18+", whatever previous state
of these ratings was. If a password is defined while a TV
program warning is received for the current channel, sound
is muted and the following menu is displayed on the center
of screen; what's more, the rating information should be
Canada English Ratings
C
C8+
G
PG
14+
18+
Figure 17-Canada English Ratings menu
View
View
Block
Block
Block
Block
5.8GHz ANTENNA5.8GHz ANTENNA Fixed
CHANNEL A/B/C/DCHANNEL A/B/C/D
Avoid the interference
of wireless air waves.
06
A/V outputA/V output
A/V inputA/V input
Analog TV connectorAnalog TV connector
PAL or NTSC.
ATSC connectorATSC connector
DC jackDC jack
12V-2.5ADC Power
Adaptor Socket.
Power on/offPower on/off
consistent with current active program rating.
This Channel is blocked by the English
Canada Rating of "C8+"
Canada French Ratings
1. G-18 ans+:
Switch the check box between view
and block. default: View
Canada French Ratings
G
8ans+
13 ans+
16 ans+
18 ans+
Figure 18-Canada French Ratings menu
View
View
Block
Block
Block
19
