RIGADO BMD-3 Series, BMD-301, BMD-300, BMD-350, BMD-330 User Manual

...

BMD-3xx-EVAL User Guide

BMD-3xx-EVAL User Guide Rev 2.0

Table of Contents

Contents ............................................................................................................................................... 1

Introduction ......................................................................................................................................... 2

2.1 Key Features ................................................................................................................................. 2

Hardware Kit ......................................................................................................................................... 2

Development Tools .............................................................................................................................. 1

Application Firmware Development ................................................................................................... 2

5.1 Set up the tool chain .................................................................................................................... 2

5.2 Connect BMD-300-EVAL to computer .......................................................................................... 2

5.3 Prepare the module for programming ........................................................................................ 4

5.4 Open an example project ............................................................................................................. 4

Hardware Description .......................................................................................................................... 5

6.1 Power ............................................................................................................................................ 5

6.1.1 Powering the Board: ............................................................................................................... 6

6.2 Reset ............................................................................................................................................. 6

6.3 Buttons ......................................................................................................................................... 7

6.4 LEDs .............................................................................................................................................. 8

6.5 Virtual COM Port ........................................................................................................................... 8

6.6 32kHz Crystal Oscillator ............................................................................................................... 8

6.7 NFC Connector ............................................................................................................................. 9

6.8 Current Sensing Headers ............................................................................................................. 9

6.9 External Segger J-Link™ Debug Interface .................................................................................. 10

6.10 GPIO Jumpers ............................................................................................................................. 11

6.11 Header Pin-out ........................................................................................................................... 12

Related Documents ............................................................................................................................ 14

Life Support and other High-Risk Use Warning ................................................................................. 14

Environmental .................................................................................................................................... 14

9.1 RoHS ........................................................................................................................................... 14

9.2 REACH ......................................................................................................................................... 14

9.3 California Proposition 65 (P65) .................................................................................................. 14

Contact Information ........................................................................................................................... 15

List of Tables ....................................................................................................................................... 16

List of Figures ..................................................................................................................................... 16

Document History .............................................................................................................................. 16

BMD-3xx-EVAL User Guide Rev 2.0

Introduction

The BMD-3xx-EVAL kits from Rigado allow for stand-alone use of the BMD-300, BMD-301, and BMD-350 modules featuring the Nordic nRF52832 RF System on Chip (SoC) and the BMD-330 module featuring the Nordic nRF52810 RF SoC. Other Rigado modules have evaluation kits covered by other documents.

These Evaluation Kits provide a great starting point for almost any Bluetooth 5 Low Energy project. All features of the BMD-3xx are easily accessed from the evaluation board. A simple USB connection provides power, programming, and a virtual COM port. Four user buttons are available, as well as four LEDs and a reset button. All 32 GPIO are available on headers that are compatible with the Arduino form factor. This allows easy use of any existing Arduino shields. Current sense resistors allow for measuring current into the BMD-3xx module and into the shield.

This guide provides setup instructions for starting development and describes the hardware functionality of the BMD-3xx-EVAL boards.

2.1 Key Features

• BMD-300 Series Module

• On-board programming and debug

(Segger J-Link-OB)

• Able to program external modules

• Virtual COM port over USB

• Full GPIO of the BMD-300 / nRF52832

• Buttons and LEDs for user interaction

• NFC antenna connector

• 32.768kHz Crystal

• CR2032 battery holder

Hardware Kit

Figure 1 – BMD-300 Evaluation Board (Top View)

BMD-300-EVAL:

• BMD-300 Evaluation Board

• Micro-USB Cable

• NFC antenna

BMD-350-EVAL:

• BMD-350 Evaluation Board

• Micro-USB Cable

• NFC Antenna

BMD-330-EVAL:

• BMD-330 Evaluation Board

• Micro-USB Cable

BMD-301-EVAL:

• BMD-301 Evaluation Board

• Micro-USB cable

• NFC Antenna

• Patch antenna

• Tilt-whip antenna

• U.FL to RP-SMA jumper cable

BMD-3xx-EVAL User Guide Rev 2.0

Development Tools

The tools listed below will aid in development with the BMD-300 Series Bluetooth modules. Not all tools will be required depending on which software suite is used.

Tool

Description

Segger Embedded Studio

Segger Embedded Studio is an easy-to-use integrated development environment with project management tools, editor and debugger supporting ARM Cortex devices. Full debug support including Real Time Terminal (RTT) output is also available. Available for Windows, macOS, and Linux.

Free license for use with the Nordic nRF5 ICs and modules:

http://license.segger.com/Nordic.cgi

Segger J-Link Software and Documentation Pack

J-Link Commander (JLink.exe) is a command line-based utility that can be used for verifying proper functionality of J-Link as well as for simple analysis of the target system. It supports some simple commands, such as memory dump, halt, step, go etc. to verify the target connection. Available for Windows, macOS, and Linux.

Nordic Semiconductor SDK

The nRF5 SDK is your first stop for building fully featured, reliable and secure applications with the nRF52 and nRF51 Series. It offers developers a wealth of varied modules and examples right across the spectrum including numerous Bluetooth Low Energy profiles, Device Firmware Upgrade (DFU), GATT serializer and driver support for all peripherals on all nRF5 Series devices.

SDKs for Bluetooth Mesh, Thread, Zigbee and other protocols are also available.

Nordic Semiconductor

nRF Connect for Desktop

nRF Connect is a cross-platform tool that enables testing and development with Bluetooth® Low Energy (previously called Bluetooth Smart). It allows easy setup of connections with other devices and uses these connections to read and write the external nodes. Available for Windows, macOS, and Linux.

Nordic Semiconductor

nRF Connect for Mobile

nRF Connect for Mobile, previously known as nRF Master Control Panel, is a powerful generic tool that allows you to scan and explore your Bluetooth Low Energy devices and communicate with them. nRF Connect for Mobile supports several Bluetooth SIG adopted profiles, as well as the Device Firmware Update profile (DFU) from Nordic Semiconductor or Eddystone from Google. Available for iOS and Android.

Nordic Semiconductor

Mobile Apps

Additional mobile utilities for your application development. Available for iOS and Android.

Table 1 – Useful Tools

BMD-3xx-EVAL User Guide Rev 2.0

Application Firmware Development

This section walks through how to set up and program the BMD-300 Series Evaluation Kit with an example application.

5.1 Set up the tool chain

1) Install Segger Embedded Studio and request a license.

2) Download the latest nRF5 SDK. Unzip it to a convenient working directory. Be sure not to alter

the directory trees. The examples are configured for relative path positions.

3) Install nRF Connect on desktop PC and optionally one of the mobile versions. nRF Connect can

be used directly with the Device Under Test (DUT) Eval board for programming and other features. If using nRF Connect on a desktop, a second Eval board or a nRF52 USB Dongle will be needed to make BLE connections with your DUT.

4) Install the Segger J-Link Commander. If presented with a screen to select different IDEs,

ensure at least the “SEGGER Embedded Studio ARM” line is selected:

Figure 2 – SEGGER J-Link Commander Install

5) You may need to add the install location to the system PATH. The default location for the J-

Link Commander is: C:\Program Files (x86)\SEGGER\JLink_Vnnn

… where “nnn” is the version number.

6) Install nRF Toolbox for your mobile device. This will be used with the example below.

5.2 Connect BMD-300-EVAL to computer

The evaluation board is provided with an on-board Segger J-Link programmer/debugger.

1. Connect the board to a computer using the USB cable provided.

2. The status LED, D5, will flash and then turn solid once the USB device is enumerated.

BMD-3xx-EVAL User Guide Rev 2.0

3. After a few seconds the computer will recognize the Evaluation Board as a J-Link device and

install the USB-Virtual COM Port device driver.

4. Run the J-Link Commander: a. JLink on Windows b. JLinkExe on macOS and Linux

5. Type “connect” at the J-Link> prompt

6. Enter the device type at the Device> prompt a. Type nRF52832_XXAA for the BMD-300, BMD-301, or BMD-350 b. Type nRF52810_XXAA for the BMD-330

7. Enter S to select the SWD interface and accept the default for the speed.

8. J-Link will respond with several items. Here is a sample output:

Figure 3 – J-Link Commander Output

BMD-3xx-EVAL User Guide Rev 2.0

9. This confirms that the Eval board is properly recognized.

10. While still in the J-Link Commander session, save the Rigado-programmed public MAC

address by typing in:

savebin mac_addr.bin 0x10001080 8

11. Exit the J-Link session by typing

exit

12. At this point, a file titled mac_addr.bin will be saved in the current directory. The contents will

contain the MAC address in little-endian format:

33 22 11 93 54 94 FF FF

to correspond to the address 94:54:93:11:22:33. The last two FF values are only fillers to complete the 8-byte read. Rigado MAC addresses begin with the IEEE-assigned company ID (94:54:93). The remaining bytes are printed on the 2D and human-readable label on the module. See the MAC Address Provisioning KB article for additional information.

13. This file may be used to restore the MAC address after performing an erase or recover with the

J-Link command

loadbin mac_address.bin 0x10001080

5.3 Prepare the module for programming

The BMD-3xx module is shipped from the factory with factory firmware to support legacy designs. This firmware must be removed prior to programming new code. Run the following at a command prompt:

nrfjprog -f nrf52 --recover

5.4 Open an example project

Note: When selecting examples from the SDK, note the following cross reference:

Rigado Eval Board

Nordic SoC

Compatible Nordic DK

BMD-300-EVAL

nRF52832

PCA10040 / nRF52 DK

BMD-301-EVAL

nRF52832

PCA10040 / nRF52 DK

BMD-350-EVAL

nRF52832

PCA10040 / nRF52 DK

BMD-330-EVAL

nRF52810

PCA10040e / nRF52 DK (If PCA10040e is not available, select PCA10040)

Table 2 – Rigado EVAL to Nordic DK cross reference

For this guide, the nRF SDK v15.2.0 Heart Rate Service example for the BMD-300-EVAL will be used.

1. Navigate to the location of the heart rate example from the SDK, typically

<unzipped location>\nRF5_SDK_15.2.0_9412b96\examples\ble_peripheral\ble_app_hrs

2. Select the DK Board, SoftDevice and IDE directories. Here is the full path:

<unzipped location>\nRF5_SDK_15.2.0_9412b96\examples\ble_peripheral\ble_app_hrs\ pca10040\s132\ses

3. Open the project file (ble_app_hrs_pca10040_s132.emProject) to start the Segger Embedded

Studio IDE

4. Build the project (<F7>)

5. Once the build is successful, you can download the application code onto the module Board

(Target | Download ble_app_hrs_pca10040_s132) The first time the board is loaded, both the SoftDevice and the application will be downloaded to the BMD-300. Once the SoftDevice is loaded, subsequent downloads will only transfer the

BMD-3xx-EVAL User Guide Rev 2.0

application. If you need to change SoftDevice versions, repeat section 5.3 Prepare the module for programming above.

6. On a mobile device, open the nRF Toolbox application. Select the Heart Rate Monitor.

7. Tap Connect. You should see the Eval board advertising as Nordic_HRM.

8. Select this device to see the simulated heart rate being transmitted from the BMD-300.

Additional training videos may be viewed here.

Hardware Description

Design files for each of the BMD-3xx-EVAL boards may be found on the Rigado website.

Figure 4 – Assembly Drawing (Top View)

6.1 Power

The BMD-300 Evaluation Board has three possible power sources: USB, a CR2032 coin cell battery, and a 0.1” through-hole connector. These power sources use protection diodes to prevent reverse voltage to any supply. This allows them to be used simultaneously. Solder jumpers are provided to allow bypassing any of the protection diodes eliminating the voltage drop across them. Care should be taken to not damage the supplies when the protection is by-passed.

BMD-3xx-EVAL User Guide Rev 2.0

6.1.1 Powering the Board:

Typically, power will be provided by USB though VBUS, which will supply +5V to the 3.3V LDO regulator and to the shield connector. The 3.3V LDO regulator will then power the VIO, VSHLD, and VBMD.

When powering the board from the CR2032 coin cell (3VDC) or the external power header, USB can be left disconnected. In this configuration, the interface IC is held in reset to conserve power. Only if the

power protection diodes are left intact, USB can be connected at the same time the coin cell or external power is still applied allowing for easy programming of the module.

Figure 5 – Schematic – Power Supply

6.2 Reset

The BMD-300 Series module has a configurable hardware reset. However, P0.21 is assumed to be used as the reset pin for all Rigado and Nordic example projects, and thus the evaluation board hardware is configured to use P0.21 as a reset. The Reset button can be configured to connect to an input on the interface IC or to directly connect to P0.21.

The Reset button is connected to the IC used for the J-Link interface by default. Pressing reset while the interface IC is powered will caused a momentary reset signal on the nRESET output of the interface IC, which is connected via solder jumper to P0.21 of the BMD-300 Series module. If the Reset

BMD-3xx-EVAL User Guide Rev 2.0

button is held down during power on, it will cause the interface IC to enter its bootloader mode, allowing either Segger J-Link or mbed programmer firmware to be programmed.

When the Reset button is directly connected to P0.21, it can be used as a 5th user button or as a reset button directly connected to the BMD module.

Solder jumper J21 is used to connect P0.21 of the BMD module to the nRESET net. nRESET is connected to the interface IC and to the reset connections on the Arduino headers.

Figure 6 – Schematic – Reset

6.3 Buttons

The Evaluation Board has four user buttons: User 1, User 2, User 3, and User 4. All buttons are active low; they will connect to ground when pressed. The button GPIO pins must be configured with internal pull-up resistors for proper operation when using the user buttons. The buttons and ESD protection can be completely removed from the circuit by breaking the associated jumper.

Figure 7 – Schematic – User Buttons

BMD-3xx-EVAL User Guide Rev 2.0

6.4 LEDs

Four User LEDs are provided on the Evaluation Board; two red and two green. LEDs are powered by VIO and are active low. The GPIO should be enabled for high drive when sinking current for the LEDs. The LEDs can be completely removed from the circuit by breaking the associated jumper.

Figure 8 – Schematic – User LEDs

6.5 Virtual COM Port

The evaluation board allows for easy serial communication with the BMD-300 Series Modules and a connected computer. The Interface IC provide a virtual COM USB device that connects to 4 GPIO pins on the module, allowing for UART communication with or without hardware flow control. The UART lines can be completely removed from the circuit by breaking the associated jumpers.

BMD-3xx

Pin Name

BMD-3xx Function

Jumper

Interface

Function

P0.05

RTS

J05

CTS

P0.06

TXD

J06

RXD

P0.07

CTS

J07

TRS

P0.08

RXD

J08

TXD

Table 3 – Virtual COM Port

6.6 32kHz Crystal Oscillator

The evaluation board has a 32.768kHz Crystal Oscillator connected to the BMD-3xx module by default. This allows the module to use any of the three available low frequency (LF) clock sources: an internal calibrated RC oscillator, an internal synthesized clock (derived from the 32MHz clock), or an external crystal oscillator. The external crystal oscillator is the most accurate and lowest power LF clock option. For applications without strict time keeping requirements, the internal calibrated RC oscillator is often suitable. The crystal is connected to the module through a solder select jumper, allowing either the crystal or the IO header to be connected to the module’s GPIO pins.

BMD-3xx-EVAL User Guide Rev 2.0

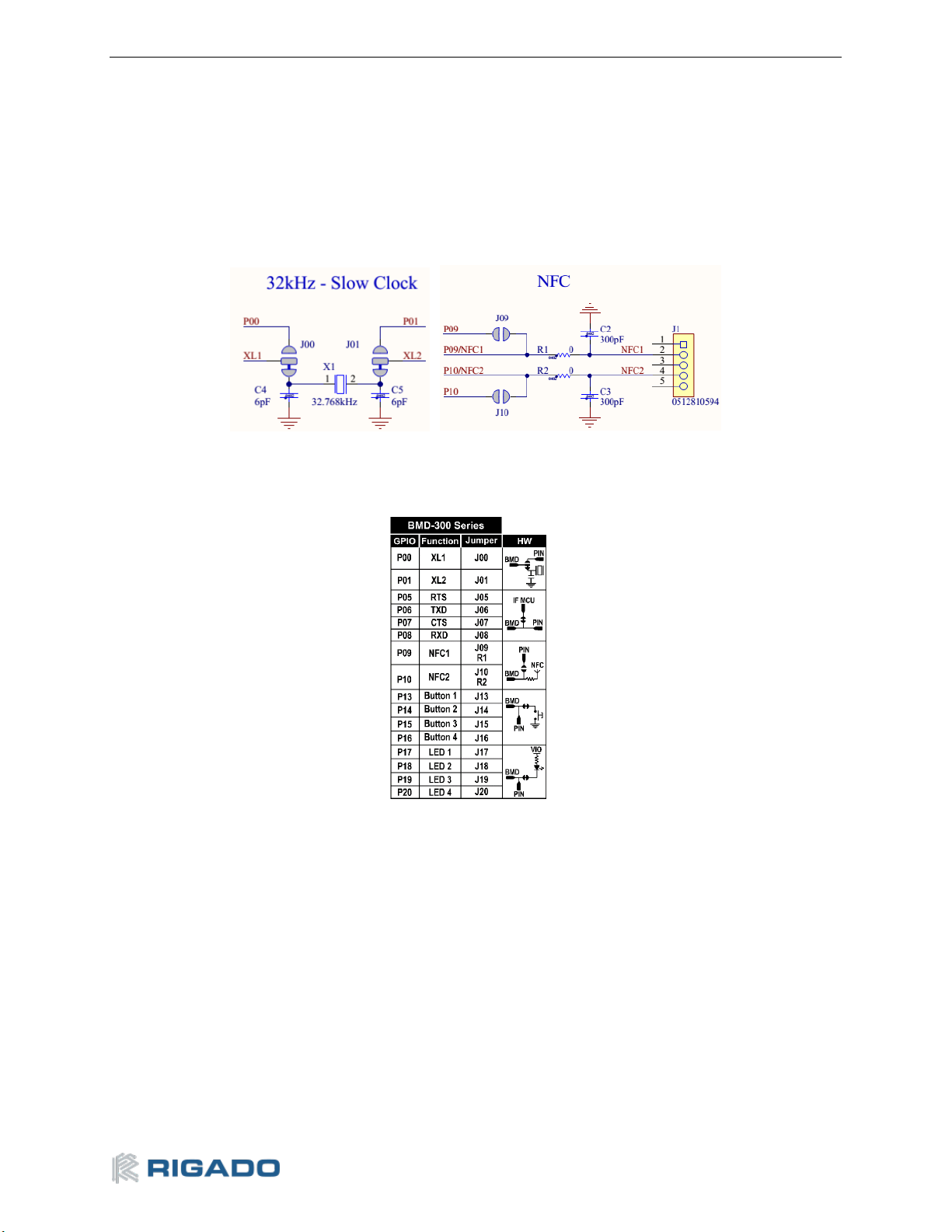

Figure 9 – Schematic - 32KHz Crystal

6.7 NFC Connector

Connection to an external NFC antenna is provided through a Molex flat-flex connector, Part number 051281-0594. Capacitors ‘C2’ and ‘C3’ provide tuning of the NFC antenna for resonance at

15.56MHz.

Note: NFC is not supported on the BMD-330. These components are not populated on the BMD_330-EVAL.

Figure 10 – NFC Connector

6.8 Current Sensing Headers

The evaluation board provides two current sensing headers. ‘JBMD’ allows for power consumption measurement of the BMD-300 Series Module and ‘JSHD’ allows for power consumption measurement of shields connected to the Arduino-style headers (‘VSHLD’ power only).

Each 3-pin 0.1” pitch header has two pins connected across a 1Ω current-sense resistor powering the module or the shield, and the third pin to ground. To measure current consumption, use a multimeter or other precision voltage measurement device to measure voltage drop across pins one and two. Current can also be measured directly by removing ‘RBMD’ / ‘RSHD’ and using a current meter in series with the two voltage pins. The default hardware configuration does not require any modification of the current sense headers for the BMD-3xx-EVAL to perform properly.

Note: Only current flowing through ‘VBMD’ into the module is measured; current sunk through GPIO pins is not measured.

BMD-3xx-EVAL User Guide Rev 2.0

Figure 11 – Current Sensing Header Layout

6.9 External Segger J-Link™ Debug Interface

External target hardware can be connected to J3 for firmware programming and debug. The Segger debug interface is implemented as shown in Figure 12. J3 is implemented with a 2x5 10-pin header on

0.05” centers.

Figure 12 – External J-Link Debug Interface

In order to enable the external J-Link connection, ensure the following are implemented on the target hardware:

• EXT_VTG is used by the debug interface as an input to sense power applied to the external circuit.

Only voltages of ~3.0V to ~3.3V are supported. Other operating voltages require the use of an external J-Link Debug Probe. Connect EXT_VTG to the BMD-300 Series power supply (VCC) on the target hardware.

• EXT_GND_DETECT is used by the debug interface to detect the presence of external target

hardware. Connect EXT_GND_DETECT to GND on the target hardware.

• Connect EXT_SWDIO and EXT_SWCLK to SWDIO and SWDCLK on the target BMD-3xx, respectively.

• (Optional) Connect EXT_SWO and/or EXT_RESETn to P0.18 and P0.21 on the target BMD-3xx,

respectively.

• Connect external power to the target hardware, then connect the BMD-300 Series Evaluation

Board to USB.

• At this point, the debug interface will interact with the target hardware instead of the on-board

BMD-3xx.

BMD-3xx-EVAL User Guide Rev 2.0

6.10 GPIO Jumpers

There are many solder bridge jumpers on the board available to allow for configurability of the GPIO. Most solder jumpers are used to remove on-board components from the module’s GPIO nets, should they interfere with external circuitry added on the I/O headers. All GPIOs are directly connected to the I/O Headers by default, except P0.00 & P0.01 (32kHz crystal) and P0.09 & P0.10 (NFC antenna). These are disconnected from the I/O headers as they would interfere with the default functions.

Figure 13 – GPIOs disconnected from I/O headers

The GPIO jumpers are shown on the bottom side of the BMD-300 Series Evaluation Board:

Figure 14 – GPIO Jumper Summary

BMD-3xx-EVAL User Guide Rev 2.0

6.11 Header Pin-out

Headers J5 through J9 and J11 break-out the IO signals from the BMD-300 on 0.1” pitch headers.

Figure 15 – BMD-300 Series Evaluation Board Pin-out

BMD-3xx-EVAL User Guide Rev 2.0

Header J11

Header

Pin Name

nRF52

Port

Function

P0.24

GPIO

5V0

+5.0V USB Power

P0.25

GPIO

P0.23

GPIO

RESET

P0.21

nRESET

GND

Ground

The tables below are presented relative to the positioning on the BMD-300 Series Evaluation Board

Header J8

Header

Pin Name

nRF52

Port

Function

P0.31

GPIO / AIN7

P0.30

GPIO / AIN6

P0.29

GPIO / AIN5

P0.28

GPIO / AIN4

P0.04

GPIO / AIN2

P0.03

GPIO / AIN1

Header J5

Header

Pin Name

nRF52

Port

Function

8 - -

GND

Ground

GND

Ground 5 5V0

+5.0V USB Power

VSHLD

+3.3V Shield Power

RESET

P0.21

nRESET

VSHLD

+3.3V Shield Power

VSHLD

+3.3V Shield Power

Header J9

Header

Pin Name

nRF52

Port

Function

GND

Ground

P0.00

OPEN / GPIO

P0.01

OPEN / GPIO

P0.21

RESET / GPIO

P0.05

GPIO / AIN3

P0.06

GPIO 4 P0.07

P0.07

GPIO

P0.08

GPIO

P0.09

OPEN / GPIO

P0.10

OPEN / GPIO

Header J7

Header

Pin Name

nRF52

Port

Function

P0.11

GPIO 7 P0.12

P0.12

GPIO 6 P0.13

P0.13

GPIO 5 P0.14

P0.14

GPIO / TRACED[3]

P0.15

GPIO / TRACED[2]

P0.16

GPIO / TRACED[1]

P0.17

GPIO

P0.18

GPIO / TRACED[0]

Header J6

Header

Pin Name

nRF52

Port

Function

P0.19

GPIO

P0.20

GPIO / TRACECLK

P0.22

GPIO

P0.23

GPIO 6 P0.24

P0.24

GPIO 5 P0.25

P0.25

GPIO 4 GND

Ground

P0.02

GPIO / AIN0

P0.26

GPIO

P0.27

GPIO

Table 4 – Header Pin-Outs

BMD-3xx-EVAL User Guide Rev 2.0

Life Support and other High-Risk Use Warning

This product is not designed nor intended for use in a life support device or system, nor for use in other fault-intolerant, hazardous or other environments requiring fail-safe performance, such as any application in which the failure or malfunction of the product could lead directly or indirectly to death, bodily injury, or physical or property damage (collectively, “High-Risk Environments”). RIGADO EXPRESSLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR USE IN HIGH-RISK ENVIRONMENTS. The customer using this product in a High-Risk Environment agrees to indemnify and defend Rigado from and against any claims and damages arising out of such use.

Environmental

9.1 RoHS

Rigado’s modules are in compliance with Directive 2011/65/EU, 2015/863/EU of the European Parliament and the Council on the restriction of the use of certain hazardous substances in electrical and electronic equipment. The declaration may be found here: https://go.rigado.com/RoHS-Modules

9.2 REACH

Rigado’s modules listed below do not contain the 191 SVHC (Substance of Very High Concern), as

defined by Directive EC/1907/2006 Article according to REACH Annex XVII. The compliance statement may be found here: https://go.rigado.com/REACH-Modules

9.3 California Proposition 65 (P65)

This product can expose you to Nickel (metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

BMD-3xx-EVAL User Guide Rev 2.0

Contact Information

Headquarters

Rigado Inc.

3950 Fairview Industrial Drive SE, Suite 100 Salem, Oregon 97302

Portland

Rigado Inc. 101 SW Main Street, Suite 2000 Portland, Oregon 97204

Tel: +1 971 208 9870

Fax: +1 971 208 9869

Sales: https://www.rigado.com/contact/

modules@rigado.com

Support: https://rigado.zendesk.com/hc

support@rigado.com

BMD-3xx-EVAL User Guide Rev 2.0

List of Tables

Table 1 – Useful Tools .................................................................................................................................. 1

Table 2 – Rigado EVAL to Nordic DK cross reference .................................................................................. 4

Table 3 – Virtual COM Port ........................................................................................................................... 8

Table 4 – Header Pin-Outs ......................................................................................................................... 13

Table 5 – Document History ....................................................................................................................... 16

List of Figures

Figure 1 – BMD-300 Evaluation Board (Top View) ....................................................................................... 2

Figure 2 – SEGGER J-Link Commander Install ............................................................................................ 2

Figure 3 – J-Link Commander Output ......................................................................................................... 3

Figure 4 – Assembly Drawing (Top View) ..................................................................................................... 5

Figure 5 – Schematic – Power Supply .......................................................................................................... 6

Figure 6 – Schematic – Reset ....................................................................................................................... 7

Figure 7 – Schematic – User Buttons ........................................................................................................... 7

Figure 8 – Schematic – User LEDs ................................................................................................................ 8

Figure 9 – Schematic - 32KHz Crystal .......................................................................................................... 9

Figure 10 – NFC Connector ........................................................................................................................... 9

Figure 11 – Current Sensing Header Layout .............................................................................................. 10

Figure 12 – External J-Link Debug Interface .............................................................................................. 10

Figure 13 – GPIOs disconnected from I/O headers ................................................................................... 11

Figure 14 – GPIO Jumper Summary ........................................................................................................... 11

Figure 15 – BMD-300 Series Evaluation Board Pin-out ............................................................................. 12

Document History

Revision

Date

Changes / Notes

1.0

2016-05-04

Initial release

1.0.1

2016-05-06

Added link to reference design files in Section 4, updated logo

1.1

2016-07-28

Updated images, Added section on External J-Link connector, corrected section numbering

1.2

2016-09-09

Added BMD-350 ordering information, document links

1.3

2017-05-09

Corrected BMD-350 hardware kit list

2.0

2018-12-14

Updated to new document format Changed tools to recent Nordic Semiconductor versions

Table 5 – Document History

RIGADO BMD-3 Series, BMD-301, BMD-300, BMD-350, BMD-330 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction

2.1 Key Features

Hardware Kit

Development Tools

Application Firmware Development

5.1 Set up the tool chain

5.2 Connect BMD-300-EVAL to computer

5.3 Prepare the module for programming

5.4 Open an example project

Hardware Description

6.1 Power

6.1.1 Powering the Board:

6.2 Reset

6.3 Buttons

6.4 LEDs

6.5 Virtual COM Port

6.6 32kHz Crystal Oscillator

6.7 NFC Connector

6.8 Current Sensing Headers

6.9 External Segger J-Link™ Debug Interface

6.10 GPIO Jumpers

6.11 Header Pin-out

Related Documents

Life Support and other High-Risk Use Warning

Environmental

9.1 RoHS

9.2 REACH

9.3 California Proposition 65 (P65)

Contact Information

List of Tables

List of Figures

Document History
