Rieber 1/1-CH-800, 1/1-CK-2200, 1/1-CK-2200 2z, 2/3-IK-2300, 1/1-IK-3600 Q Operating Instruction
...
Issue: 2015-09-30
Example
K | POT-1/1 IK 3600 Q
With Ceran® glass hob
1/1-CH-800 For hot holding of food
2/3-CK-1600
1/1-CK-2200 For keeping food warm, automatic regeneration, cooking
1/1-CK-2200 2Z For keeping food warm, automatic regeneration, cooking, with 2 zones
With Ceran® glass induction hob
2/3-IK-2300 For keeping food warm, automatic regeneration, cooking
1/1-IK-3600 Q For keeping food warm, automatic regeneration, cooking, with 2 zones
Appliances of size 2/3 and 1/1 Gastronorm
Translation of the Original Operating Instructions
Contents
2
Rieber GmbH & Co. KG
80 % of food served in the public sector is prepared in advance and its quality deteriorates on its way to
consumers.
This is the starting point for the " – the oven on the table".
Our solutions guarantee high quality, safety and, above all, excellent energy efficiency and cost
effectiveness.
THE INTELLIGENT BUFFET SOLUTION + THE MAGIC OF INDUCTION
Contents
1 Revision index ................................................................................................................................................. 4
2 Important Information ..................................................................................................................................... 4
2.1 Use of this guide ................................................................................................................................................... 4
2.2 Representation conventions in the text ................................................................................................................. 5
2.3 Structure of safety instructions .............................................................................................................................. 5
3 General Safety Instructions ............................................................................................................................ 6
3.1 Personnel qualification .......................................................................................................................................... 9
3.2 Provide protective equipment for personnel ......................................................................................................... 9
3.3 Appliance-specific safety instructions ................................................................................................................... 9
3.4 Safety and monitoring devices ............................................................................................................................ 12
3.5 Information about regulations to be followed ...................................................................................................... 13
3.6 Instructions on behaviour in an emergency ........................................................................................................ 13
4 Purpose .......................................................................................................................................................... 13
4.1 Generally, the following are intended uses for the product ................................................................................ 13
4.2 Prevent any predictable misuse and abuse ........................................................................................................ 14
4.3 Special intended use for appliances with a Ceran® glass surface ..................................................................... 14
4.4 Special intended use for appliances with an induction hob ................................................................................ 14
5 Equipment Descriptions ............................................................................................................................... 15
5.1 Identification of components ............................................................................................................................... 15
5.2 Technical details ................................................................................................................................................. 16
5.3 Cooking units, accessories and their use ........................................................................................................... 17
6 Before first use .............................................................................................................................................. 17
7 Use .................................................................................................................................................................. 18
7.1 Safety instructions on use ................................................................................................................................... 18
7.2 General mode of operation ................................................................................................................................. 19
7.3 Equip the appliance with suitable accessories ................................................................................................... 21
7.4 Use of the K | POT -1/1-CH-800 ......................................................................................................................... 22
7.5 Use of the K | POT -…-CK-… ............................................................................................................................. 23
7.6 Use of the K | POT -…-IK-… ............................................................................................................................... 29
Contents
Rieber GmbH & Co. KG
3
8 Cleaning, Maintenance and Care ................................................................................................................. 32
8.1 Safety information relating to cleaning, maintenance and care .......................................................................... 32
8.2 Choose the correct cleaning method .................................................................................................................. 32
8.3 Clean and service stainless steel parts .............................................................................................................. 33
8.4 Clean and service plastic parts ........................................................................................................................... 33
8.5 Ensure preservation of the product identification ............................................................................................... 33
8.6 Keep ready for next use in dry condition ............................................................................................................ 33
9 Fault – What now? ........................................................................................................................................ 34
9.1 Notes on troubleshooting .................................................................................................................................... 34
9.2 Disposing of your product ................................................................................................................................... 35
10 Warranty and liability .................................................................................................................................... 35
11 Excerpt from EC Declarations of Conformity ............................................................................................. 36
12 Contact address ............................................................................................................................................ 36
Revision index
4
Rieber GmbH & Co. KG
Revision
Change
2014-04-10
New edition
2014-12-04
CH 800 technical change, page 22; general change
2015-09-30
Optimisation of details
IMPORTANT
Protect yourself against potential hazards and prevent damage to your appliance.
► It is essential that you read the user guide before using the product for the first time.
► Keep this guide in a safe place and pass it onto the next owner should you wish to part
with the product.
Please add your notes here
1 Revision index
2 Important Information
2.1 Use of this guide
This guide contains important information about how you can use the appliance safely and correctly.
Our customers often express the wish to have one compact guide instead of a number of different
guides for these product variants, which have similar functions.
If there are any shortcomings in your opinion, please do not hesitate to let us know. With your help, we
will try to become even better.
Rieber GmbH & Co. KG
5
ATTENTION
indicates possible damage to property.
Failure to follow these instructions may cause damage to property.
User tip
► Useful information or tip
DANGER
indicates imminent danger.
Failure to follow these warning instructions will result in serious bodily injury or even
death.
WARNING
indicates a potentially hazardous situation.
Failure to follow these warning instructions may cause serious bodily injury or even
death.
CAUTION
indicates a potentially harmful situation.
Failure to follow these warnings may cause minor bodily injury.
2.2 Representation conventions in the text
. . . Highlighting . . . , is a text fragment which needs to be emphasized
Lists are represented in this way.
Instructions on certain actions are represented in this way.
See ‘. . . ’ cross-references are represented in this way
Important Information
2.3 Structure of safety instructions
The signal words DANGER - WARNING - CAUTION classify the degree of risk of bodily injury in an actual
situation. You can avoid injury by complying with the behavioural rules provided.
The warning triangle symbol indicates a "General Danger".
General Safety Instructions
6
Rieber GmbH & Co. KG
Observe these operating and safety instructions to prevent injuries, damage to health
and damage to property. Do not make any conversions or modifications to the
appliance.
Do not use the appliance if damaged. If there are signs of a fault or in the case of
unusual noises or smell, switch the appliance off and unplug the mains plug. Only use
the appliance with the cable undamaged. Otherwise there is a danger of electric shock
and fire.
Maintenance and repair work may only be carried out by qualified and skilled
personnel using original spare parts and accessories. Never attempt to carry out
repairs to the appliance yourself!
Only connect the appliance to suitable earthed mains connections. Make sure that the
mains connection matches the specifications on the type plate of the appliance, see
bottom of appliance. Otherwise there is a danger of fire and electric shock!
Place the appliance on a stable, flat and heat-resistant surface, to prevent risk of fire
and accidents.
Do not place the cable close to heat sources or on sharp edges etc. Always grasp the
plug, not the cable, when removing the plug from the socket. Otherwise the cable may
be damaged. Do not allow the cable to hang down. Lay the cable in such a way that it
does not represent a tripping hazard!
When using extension cables: Unwind the cable from the spool to prevent any heat
build-up or cable fire. The coupling must have splash protection, must be made of
rubber or be rubber-coated. The cable cross-section must be at least 1.5 mm2.
This appliance is not intended to be used by persons (including children) with limited
physical, sensory or mental aptitude or lack of experience and/or knowledge unless
they are supervised by a person responsible for their safety or have received
instruction from this person as to how the appliance is used. Children should be
supervised, to ensure that they do not play with the appliance.
Do not operate the appliance unsupervised. Make sure that the switch is in position "0"
and the power regulator is in position "0", before inserting the plug in the socket. Make
sure the appliance cannot be switched on unintentionally. Connecting the appliance to
the power supply while it is switched on can cause an accident.
Protect the appliance from moisture (splashes, rain). Do not immerse the appliance in
water or other liquids, do not wash in the dishwasher. Water penetration increases the
risk of an electric shock.
Use only Rieber
thermoplate
®
as a cooking vessel. Always use a lid for heating food
or keeping it warm. The hob and the bottom of the cooking vessel must always be
clean and dry. Do not use cooking vessels made of plastic, porcelain or aluminium foil.
3 General Safety Instructions
This section covers residual risks and hazards associated with the intended use of the appliance. We have
provided a list of all generally valid safety instructions which must be followed.
In the following section, safety information relating to a particular operation or situation is placed before the
appropriate operation step or description of the situation.
The information provided here such as ‘Basic rules of conduct’, ‘Operator's obligations’ etc. only refers to the
legally required observance of requirements such as the Workplaces Ordinance (ArbStättV) according to
German law.
General Safety Instructions
Rieber GmbH & Co. KG
7
Do not block or cover the ventilation slot for aerating and ventilating the appliance. This
can lead to overheating of the appliance. Observe a minimum distance of 10 cm from
walls or objects. Do not operate the appliance near other heat sources. Do not insert
objects into the openings.
Do not touch the hot surface of the glass or adjacent surfaces. The surfaces of the
appliance get hot. Please let the appliance cool down completely before cleaning or
storing it. Otherwise there is a risk of burns and fire!
thermoplates
®
get hot during use. Wear protective gloves when handling hot
thermoplates
®
. Avoid burns.
Risk of scalding
. When lifting the lid, scalds can be caused by hot steam or
condensation water.
Risk of burns
from hot food. Check the temperature of the food before serving.
Carefully clean the appliance at regular intervals. Do not use corrosive cleaning
agents, hard scouring pads, steel wool or oven spray. You can find special cleaners
and cleaning scrapers in shops.
Avoid scratches from pointed and sharp objects on the glass surface. Protect the glass
surface from breakage due to falling objects. Place cooking vessels carefully on the
glass surface.
Materials such as plastic, aluminium foil or sugar can cause cracks or breaks in the hot
glass ceramic.
Switch the heating mechanism off and scrape off the residues with a glass scraper,
while the heating surface is still warm.
In addition to this user guide there are a range of health and safety and other
regulations that are relevant for operation. When handling food, please observe the
HACCP regulations on compliance with hygiene requirements.
Your appliance is made of high-quality material which can be reused / recycled. Take it
to a collection point. For disposal, disconnect the appliance from mains supply. Unplug
the mains plug. Cut off the cable directly at the casing. Take the appliance and the
cable to your municipal waste disposal centre.
ATTENTION
The total connected load of electrical appliances might exceed the locally permissible
connected load. Peak loads can occur, for example, when several appliances are
turned on/off simultaneously. Material damage, including cable fire, is possible.
► Comply with the locally permissible connected load.
► Avoid switching a large number of appliances on/off at the same time.
ATTENTION
thermoplates
®
can be damaged by overheating.
► Please observe the thermoplate
®
instructions.
# Important information
General Safety Instructions
8
Rieber GmbH & Co. KG
# Operator's duties
Operator: The operator is the person who operates the appliance for commercial or economic purposes either
himself/herself or lets others use it and bears the legal appliance responsibility for protection of the user, staff or
any third parties during operation.
The appliance is used in commercial applications. For this reason, the operator of the appliance must
meet all legal duties relating to work safety.
In addition to the safety instructions in this guide, the safety, accident prevention and environmental
protection regulation applying to the application of the appliance must be complied with.
In particular, the following shall apply:
The operator must be familiar with the applicable work safety regulations and identify, by
carrying out a risk analysis, any additional hazards which are due to the place where the
appliance is used. These hazards must be addressed in the form of operating instructions
governing the operation of the appliance.
During the whole service life of the appliance, the operator must verify if the operator's
operating instructions reflect the current versions of the applicable regulations. If necessary, the
operator must update the operating instructions accordingly.
The operator must define and assign the responsibilities for installation, operation, repair,
maintenance and cleaning clearly.
The operator must make sure that all personnel working with the appliance have read and
understood this guide. In addition, the operator must train the personnel and inform them of the
hazards involved at regular intervals.
The operator must provide the personnel with the necessary protective equipment and make
sure that they wear it.
In addition, the operator must ensure that the appliance is always in a perfect technical condition. For
this reason, the following shall apply:
The operator must ensure that the maintenance intervals defined in this guide are obeyed.
The operator must have all safety equipment checked regularly for completeness and proper
function.
The operator must ensure that the required media connections are available.
The operator must ensure that all safety-relevant measures required on site are taken.
Rieber GmbH & Co. KG
9
WARNING
In the area of hot parts such as hob, containers and food, there is a risk of burning one's
hands and arms on the hot surfaces. The state of the hot heating surface is not visible.
► Where possible wear protective gloves.
► Keep unauthorised persons away from the appliance.
► Never operate the appliance unsupervised.
► Keep flammable materials away from the product.
3.1 Personnel qualification
Safe operation requires certain technical skills and personal qualification of each person.
The responsibility for organization lies with the ‘Designated Representative’ (operator).
According to EN 50110-1, the Designated Representative is a 'person assigned the direct
responsibility for the performance of the work. If necessary, this responsibility can be assigned
partly to other persons. [...] The designated representative must instruct all persons involved in
the work on all hazards which may not be obvious for them’.
The work may only be performed by ‘instructed persons’ who have been trained accordingly.
Training, instructions must be repeated, proper understanding must be verified (ideally by way
of an appropriate test).
Only ‘Qualified Staff’ are allowed to carry out repair work.
IEC 60204-1 defines qualified personnel as "persons who, on account of their training and
relevant experience are in the position to recognise risks and avoid potentially dangerous
situations."
Electrical work may only be carried out by trained and experienced electricians.
Electro-technically instructed persons may only work under the supervision of a qualified
electrician.
General Safety Instructions
3.2 Provide protective equipment for personnel
Ensure that the personnel wear the personal protective equipment appropriate to the relevant
situation.
Wear safety gloves to avoid burns at hands and arms.
3.3 Appliance-specific safety instructions
This chapter describes general, appliance-specific safety instructions. In the following section, additional safety
information relating to a particular operation or situation is placed before the appropriate operation step or
3.3.1 Dangers due to hot surfaces, burns
description of the situation.
General Safety Instructions
10
Rieber GmbH & Co. KG
WARNING
Risk of fire.
► Observe a minimum distance of 20 cm from walls.
► If there is a fire risk, cover the surface and wall with non-flammable, heat-insulating
material.
► Observe local fire protection measures.
WARNING
Risk of burns when wearing metal parts on the body in close proximity to an induction
appliance close to the surface of the cooking area.
► Do not wear watches, rings or metal objects.
► Do not place metal objects such as cutlery, tins or jewellery on the hob within the
cooking zone.
ATTENTION
Substantial damage is possible to magnetically-sensitive objects in close proximity to an
induction appliance.
► Keep magnetically-sensitive objects such as credit cards, phone cards, cassettes and
watches away from the area immediately around an induction appliance.
WARNING
Risk of death. Persons with a pacemaker may experience interference or influence when
handling an induction appliance due to electromagnetic radiation.
We recommend that the operator takes the following precautions:
► Keep persons with a pacemaker away from the appliance initially. Identify this
workplace where necessary.
► Have the doctor clarify the actual situation and individual compatibility where
necessary.
3.3.2 Risk of fire
3.3.3 Dangers due to unexpected heating of objects as a result of induction
3.3.4 Danger for persons with pacemakers due to induction
Rieber GmbH & Co. KG
11
WARNING
Danger of electric shock. Water penetration increases the risk of an electric shock.
► Never direct a water jet onto the device.
► Protect the appliance from moisture.
WARNING
Danger of electric shock from damaged Ceran® glass surface.
► Avoid electrically conductive materials in the immediate vicinity, for example metal
splash guard.
► If the Ceran
®
glass surface is damaged, if it is cracked, for example, disconnect the
appliance from the mains supply immediately.
ATTENTION
Improper handling and impacts can damage the Ceran® glass surface.
► NEVER place a hot pot on the cold Ceran
®
glass surface or a cold pot on a hot Ceran
®
glass surface, otherwise the Ceran® glass surface may crack due to thermal stresses.
► Do not place inappropriately large or heavy pots or objects on the appliance. Avoid
falling objects.
► Even seemingly light objects, like a salt cellar, can cause cracks or breaks in the worst
case scenario. Prevent objects from falling onto the Ceran® glass surface.
► Materials such as plastic, aluminium foil or sugar can cause cracks or breaks as well
as incrustations and adhesions on the hot Ceran® glass surface. Switch the heating
mechanism off and scrape off the residues with a glass scraper, while the heating
surface is still warm.
WARNING
Danger of cuts from damaged Ceran® glass surface. Sharp and pointed edges can cause
cuts.
► If the Ceran
®
glass surface is damaged, disconnect the appliance from the mains
supply immediately.
3.3.5 Risks due to electricity
General Safety Instructions
Risks arising from damaged Ceran® glass surface
Electrical hazards
3.3.6 Danger of cuts from damaged Ceran® glass surface
General Safety Instructions
12
Rieber GmbH & Co. KG
3.3.7 Risks due to power interruption
Possibility of malfunction after power interruption.
Disconnect the unit from the mains completely after a power failure.
Make sure that the switch is in position "0" and the power regulator is in position "0", before
inserting the plug in the socket.
3.3.8 Warnings concerning the use of the appliance by children
This appliance may be used by children over 14 and by persons with limited physical, sensory and
intellectual abilities or a lack of experience and/or knowledge if they are supervised or if they were
instructed in the safe use of the appliance and have understood the resulting dangers.
Children may not play with the appliance.
Cleaning and user maintenance may not be carried out by children without supervision.
3.3.9 Note the product identification and ensure its preservation
Product identification, general
The type plate bears the legally required product data.
Note on the Ceran® glass surface in English and German
„ NOTE: Surfaces hot during use!“"
On the underside of the appliance:
A text/pictorial instruction is located on the underside (option).
3.4 Safety and monitoring devices
The appliance is protected against overheating. In the case of a defective control, the
maximum admissible temperature is kept.
Pot detection for type K | POT -…-IK-…: If no pot is detected, the appliance control switches
the cooking zone off after 10 minutes. To switch it on again, turn the power regulator back to
the zero position first of all.
ON/OFF rocker switch including green indicator light for operating state (option)
To increase your safety we recommend that you install a residual current operated device
(RCD) with a tripping current of 30 mA upstream of the appliance.
Rieber GmbH & Co. KG
13
User tip
► You can find detailed information in the company's internal instructions.
► We recommend that half-yearly emergency training sessions should be carried out.
3.5 Information about regulations to be followed
In addition to this user guide there are a range of health and safety and other regulations that are
relevant for the operation of this cooking station; these include HACCP food hygiene regulations for
example.
3.6 Instructions on behaviour in an emergency
In an emergency always interrupt the power connection immediately, by disconnecting the
electrical connector.
First aid in the case of burns and scalding or electric shock
Inform yourself on this before commissioning the appliance.
Store the emergency equipment, including the relevant instructions, at a readily accessible place
near the place of use.
Purpose
4 Purpose
This chapter describes the intended use and contains warnings against misuse, for your safety.
4.1 Generally, the following are intended uses for the product
For mobile service in the catering, hotel, and food processing industry; also suitable for the
care and school catering sectors.
To avoid risks to persons with pacemakers, the use of appliances with inductive heating in
public areas or for self-service is only permitted under constant supervision. Keep people away
from the appliance.
Keep magnetically-sensitive objects such as credit cards and phone cards away from
appliances with inductive heating. Such objects could be damaged.
To prevent persons from burning themselves on hot surfaces, use of the product in public/for
self-service should only be allowed under constant supervision. Keep people away from the
appliance.
Wear personal protective equipment such as protective gloves.
Operate the appliance on a switched mains socket outlet.
Connect a residual current operated device (RCD) with a tripping current of 30 mA in series on
site.
The designated purpose of use includes compliance with the technical data. Note the
information on the rating plate as well as the product identification.
For use only by appropriately trained and suitable operating personnel.
Purpose
14
Rieber GmbH & Co. KG
4.2 Prevent any predictable misuse and abuse
# Prevent any potential misuse in advance, general
Never operate the appliance unsupervised.
Do not operate the appliance outdoors. Keep the appliance away from moisture.
Do not operate the appliance in dimly lit places.
Do not lean against or sit on the appliance.
Keep any combustible or explosive fluids away from heatable appliances. Otherwise a fire or
explosion may occur.
Never operate the appliance with an empty cooking container.
After 3 hours the total permissible regenerating and keep-warm time according to the health
requirements is reached. Comply with the HACCP requirements.
Do not use to heat up a room.
4.3 Special intended use for appliances with a Ceran® glass surface
# Prevent foreseeable misuse
Danger of electric shock. If the Ceran
®
glass surface is damaged, if there is a crack in the glass for
example, disconnect the appliance from the mains supply immediately. If possible avoid electrically
conductive materials in the immediate vicinity, for example metal splash guards.
When using an appliance with a Ceran
®
glass surface, never place a hot pot on the cold Ceran
glass surface or a cold pot on the “hot” Ceran® glass surface, otherwise the Ceran® glass surface
could crack due to thermal stresses.
Even a seemingly light object such as a salt cellar can cause cracks or breaks in the Ceran
surface in the worst case scenario. Prevent objects from falling onto the Ceran® glass surface.
Do not place aluminium foil or plastic containers on the Ceran
®
glass surface, as this could cause
damage.
4.4 Special intended use for appliances with an induction hob
# Prevent foreseeable misuse
Persons with a pacemaker may experience interference or influence when handling an induction
appliance due to electromagnetic radiation. We recommend that the operator takes the following
precautions: Keep persons with a pacemaker away from the appliance initially. Identify this
workplace where necessary. Have the doctor clarify the actual situation and individual compatibility
where necessary.
®
glass
®
The induction generator could switch off or be damaged. Only use the appliance with induction-
compatible and approved cookware. Semi-inductive cookware will result in a decreased cooking
performance; the efficiency will be substantially reduced.
Rieber GmbH & Co. KG
15
Example
Example
1 Ceran® glass surface
2 Lead
3 Indicator light showing operating state
Switched ON/OFF (option)
4 Retractable power regulator
5 Product identification (option)
6 Product identification (option)
7 Ventilation opening for fan
8 Product identification: Type plate
9 Rubber feet
10 ON/OFF rocker switch including red
indicator light on the underside of the
appliance (option)
5 Equipment Descriptions
This chapter provides useful information on the structure and function of the equipment.
5.1 Identification of components
Equipment Descriptions
Equipment Descriptions
16
Rieber GmbH & Co. KG
1/1-CH800
2/3-CK1600
1/1-CK2200
1/1-CK2200 2Z
2/3-IK2300
1/1-IK3600 Q
Use, intended use: See cover sheet
Heat output [W]
800
1 600
2 200
2 200
2 300
3 600
Heat generation
Electric hob
Electric hob
Electric hob
Electric hob
Induction
Induction
Material
Heating surface
Ceran® glass surface
Casing
Stainless steel
External dimensions
[mm]
Width
533
353
533
533
353
533 Depth
380
380
380
380
380
380
Height
88
88
88
88
88
88
Weight [kg]
5.9
4.3
7.2
7.2
7
9
Ambient temperature
+ 5°C to + 40°C
Load-bearing capacity of
installation area [kg]
40 kg
Minimum distance from
walls
20 cm
Protection class
IPX0 according to EN 60529. For installation outdoors a canopy or protection from
penetrating moisture is required.
Rated voltage / mains
frequency
1N AC 230 V 50 / 60 Hz
Electrical fuse
16 A
: Connect the unit on site to a socket with a series-connected residual current operated
device (RCD) with a tripping current of 30 mA.
Length of connection
cable:
≥ 1.5 m
5.2 Technical details
Hobs can be distinguished according to the type of heat generation:
Electric hob: → The heat is generated within the hob with electric heating elements.
Induction hob: → The hob generates an alternating magnetic field, whose energy heats the
base of the pot.
The appliances are equivalent to 2/3 and 1/1 Gastronorm in size.
The casing can be 'polished' or ‘black-coated’ stainless steel.
For detailed information on dimensions, order number, accessories, circuit diagrams, spare and
wearing parts:
See catalogue/brochure
Rieber GmbH & Co. KG
17
User tip
With the optimal accessories the
K | POT -
is energy-saving and the possible applications
can be extended.
The GN saucepan
thermoplate
®
prevents food from overboiling or burning. Use of the
buffet lid creates the perfect serving situation.
► Use accessories from Rieber, GN saucepan thermoplate
®
.
ATTENTION
Protective foils or heat-sensitive objects at/in the appliance might damage the
appliance during heating.
► Ensure that there is no protective foil on/in the appliance.
5.3 Cooking units, accessories and their use
http://www.rieber.de
6 Before first use
Before first use
# Observe general prerequisites
The appliance has no defects or visible damage.
The appliance is at room temperature and is dry.
Observe the local building inspectorate regulations.
If necessary, clean the appliance before using for the first time.
Clean with a light damp cloth and rub dry with a clean cloth.
See ‘Cleaning, Maintenance and Care’, page 32
Use
18
Rieber GmbH & Co. KG
Remove stubborn dirt from the Ceran® glass surface immediately if possible,
using the glass scraper.
Light dirt that is not burnt on can be removed with a damp cloth or a washing-
up sponge without detergent.
7 Use
7.1 Safety instructions on use
Keep to the basic rules for operating the product
The installation conditions such as lighting, safe positioning, free access are complied with.
The place of installation is horizontal.
Connect the unit on site to a socket with a series-connected residual current operated device
(RCD) with a tripping current of 30 mA. Electrical fuse 16 A
In the event of a power failure switch off the switch at the mains socket outlet, otherwise the
appliance could suddenly restart and cause unforeseeable risks.
Risk of fire. Observe a minimum distance of 20 cm from walls.
If there is a fire risk, cover the surface and wall with non-flammable, heat-insulating material.
Danger of electric shock and cuts from damaged Ceran
appliance before each use; pay special attention to the lead.
®
glass surface. Check the integrity of the
Keep unauthorised persons away from the appliance. Never operate the appliance unsupervised.
NEVER pour oil or grease into an empty heated-up pot or pan, as there is a risk of burns and fire.
Risk of burns on the hot heating surface. Let the appliance cool down before you start cleaning or
store / transport the appliance. The surface of the appliance cools down to lukewarm within 60
minutes with the heating surface open.
Do not stack appliances.
# Note on removal of soiling during use
See chapter ‘Cleaning, Maintenance and Care’, page 32
Use
Rieber GmbH & Co. KG
19
Check that the switch is in
the ‘OFF’ position.
Connect appliance to
power.
For appliances with inductive heat generation, observe the following prerequisites
WARNING
Persons with a pacemaker may experience interference or influence when handling an induction
appliance due to electromagnetic radiation. Keep persons with a pacemaker away from the
appliance. Identify this workplace.
Have the doctor clarify the actual situation and individual compatibility first of all.
WARNING
Risk of burns
Keep metal objects such as watches, rings, cutlery and tins away from the cooking zone. These
could be heated up very quickly.
Only use induction-compatible containers such as GN containers, pots and pans for induction
cooking appliances.
▌ Unsuitable equipment can damage the appliance.
▌ If unsuitable equipment is used, no power is output.
▌ The use of combined types of cooking equipment (semi-inductive cookware)
decreases efficiency.
Always place induction-compatible cooking containers in the centre of the induction hob.
▌ The cooking container is heated evenly.
▌ Protection against boiling dry / overheating protection is guaranteed.
ATTENTION. Keep magnetically-sensitive objects such as credit cards and phone cards away.
Such objects could be damaged.
For appliances with a Ceran® glass surface, observe the following prerequisites
When using an appliance with a Ceran
glass surface or a cold pot on the “hot” Ceran® glass surface, otherwise the Ceran® glass surface
could crack due to thermal stresses.
Even a seemingly light object such as a salt cellar can cause cracks or breaks in the Ceran
surface in the worst case scenario. Prevent objects from falling onto the Ceran® glass surface.
Do not place aluminium foil or plastic containers on the Ceran
damage.
7.2 General mode of operation
7.2.1 Start process
®
glass surface, never place a hot pot on the cold Ceran
®
glass surface, as this could cause
®
glass
®
Use
20
Rieber GmbH & Co. KG
thermoplate
®
on the
appliance.
Put lid on.
Press the retractable power
regulator.
▌
Power regulator
emerges.
Set power regulator to
position ‘0’, if it is in another
position.
Set switch of switched
mains socket outlet to ON
(option).
Switch ON/OFF rocker
switch on bottom of
appliance to ON (option).
Select a power setting or a
program.
Only for type IK: Wait for at
least 3 seconds. Then set
the power regulator to the
desired power.
▌
The selected
program is
executed.
Press and retract power
regulator.
User tip
Good to know:
► If the power supply is interrupted during the program sequence, the program must be
restarted. Set the power regulator to position ‘0’. Switch the switch to OFF, then ON
(option).
► The power of the cooking zone can be increased by turning the power regulator
clockwise. The power output is reduced by turning anticlockwise.
► Only for type IK: Wait for at least 3 seconds. Then set the power regulator to the
desired power.
▌
When the cooking container is removed from the hob, the power of the
appliance reduces automatically due to the absence of inductive heating.
User tip for optimal results
Every dish heats up differently.
► Test the settings before using the buffet.
► Check the temperature.
User tip for saving energy
Use the thermoplate® with a lid.
Occasional stirring will ensure even temperature distribution.
Rieber GmbH & Co. KG
21
Press the retractable power
regulator.
Turn the power regulator to '0'.
▌
The LED is off.
Press the retractable power
regulator.
Turn the power regulator to
'0'.
▌
The LED is off.
Press and retract power
regulator.
Switch off the switch of the
mains socket outlet.
Switch ON/OFF rocker
switch on bottom of
appliance to OFF (option).
Unplug the connector from
the mains socket outlet.
Allow appliance to cool
down.
User tip
With the optimal accessories the
K | POT -
is energy-saving and the possible applications
can be extended.
The GN saucepan
thermoplate
®
prevents food from overboiling or burning. Use of the
buffet lid creates the perfect serving situation.
► Use accessories from Rieber, GN saucepan thermoplate
®
.
7.2.2 Stop process
7.2.3 Switch appliance off
Use
7.3 Equip the appliance with suitable accessories
Use
22
Rieber GmbH & Co. KG
1 Ceran® glass surface /heating surface
2 ON/OFF rocker switch including red indicator light
3 Retractable power regulator
4 Indicator light showing operating state → The indicator light is lit when the appliance is
electrically activated and the power regulator is not in position "0.
5 Lead with connector
7.4 Use of the K | POT -1/1-CH-800
# Intended use of the K | POT -1/1-CH-800
For keeping hot food warm.
Use thermoplate®.
‘Purpose’, cover sheet page 1, page 13 ff.
Rieber GmbH & Co. KG
23

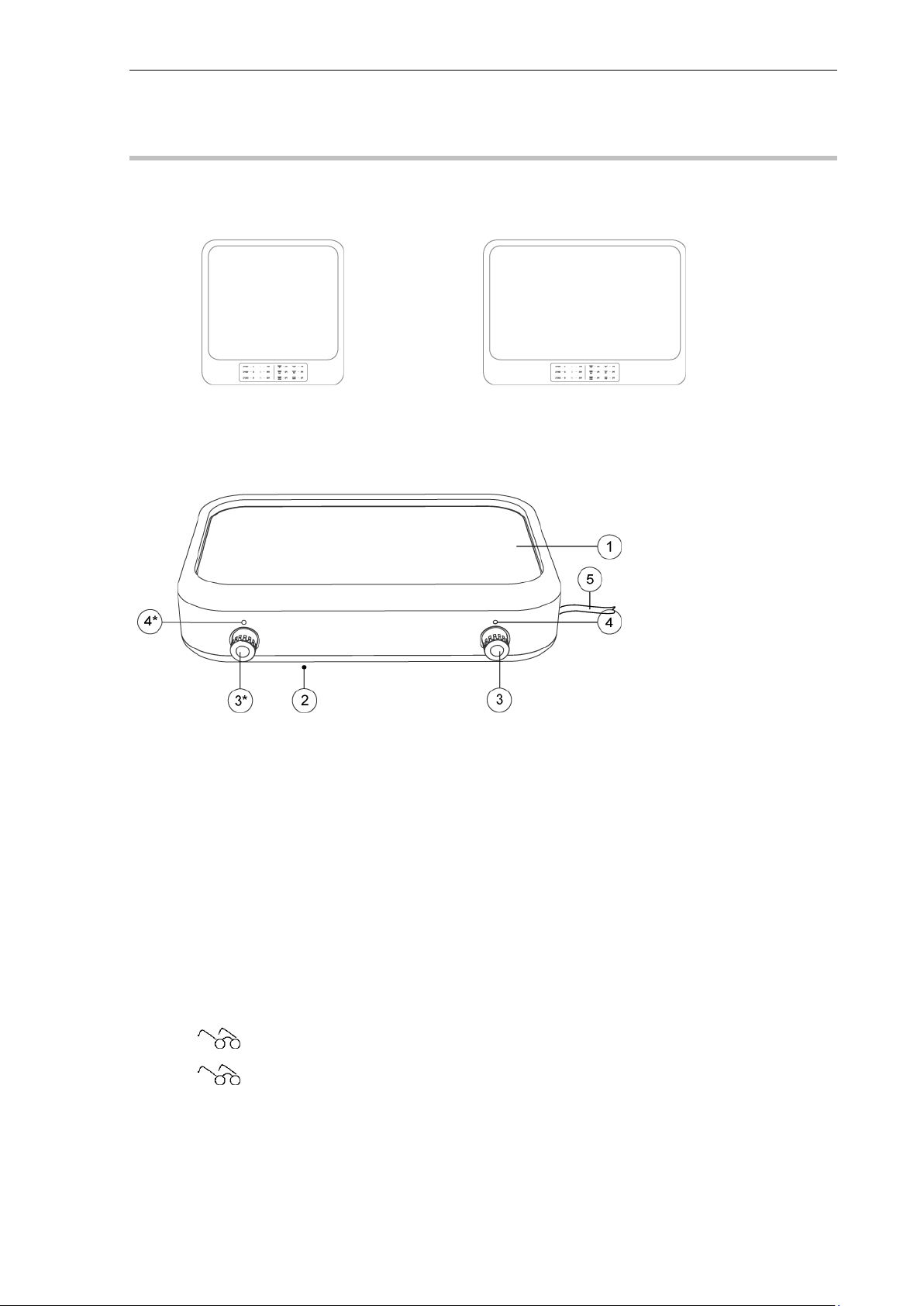

2/3-CK-1600
1/1-CK-2200
1/1-CK-2200-2Z
1 Ceran® glass surface /heating surface
2 ON/OFF rocker switch including red indicator light
3 Retractable power regulator (* only for 2Z)
4 Indicator light showing operating state → The indicator light is lit when the appliance is
electrically activated and the program switch is not in position '0'. (* only for 2Z)
5 Lead with connector
6 Overview of program settings
7.5 Use of the K | POT -…-CK-…
7.5.1 Overview …
Use
# Intended use of the K | POT -…-CK-…
Keep-warm settings 1 to 3 for keeping hot food warm.
Programs P1 to P6 for automatic regeneration of pre-prepared food.
Power settings 4 to 6 for steaming, cooking and baking.
Use thermoplate®.
‘Purpose’, cover sheet page 1, page 13 ff.
Use
24
Rieber GmbH & Co. KG
Initial temperature
4° to 6°C
Initial temperature
4° to 6°C
Initial temperature
65° to 70°C
Power settings
Program settings
for heating / regenerating
small quantities
Program settings
for heating / regenerating
large quantities.
Program settings
for keeping warm
for cooking, steaming,
baking
YELLOW LED
P1 – P6
RED LED
W1 – W3
RED LED
4 - 6
Press and
retract heat
control dial.
Rieber GmbH & Co. KG
25
7.5.2 Program settings for keeping warm
Program level
For keeping warm
Medium power
for delicate dishes
200 W
300 W
150 W
for less delicate dishes
370 W
440 W
220 W
for robust dishes
500 W
650 W
325 W
▌
The LED
lights up red
during the keep-warm time.
▌
After 3 hours of uninterrupted ON time the LED
flashes red.
Keeping hot food warm
Use
Observe the total permissible regeneration and keep-warm time of 3 hours in accordance with the
health requirements, otherwise health impairments can result.
7.5.3 Program settings for regeneration
Automatic regeneration of pre-prepared food
# Starting point:
Food temperature 4 to 6 °C
Times specified for consumption temperature
Use
26
Rieber GmbH & Co. KG
# Work steps
Select program.
▌ Heating and fan switch on after around 5 seconds.
▌ If the program is changed during program execution, the new program starts
without a preheating phase.
Turn the power regulator back to ‘0’ at every START. Then select the desired program.
If the power supply is interrupted during the program sequence, the program must be restarted. To
do this, turn the power regulator back to ‘0’ and then select the desired program.
Use
Rieber GmbH & Co. KG
27
Program level
For heating / regeneration
Medium power
Food with delicate structure such as fish, rice,
couscous, pasta
420 W
1 100 W
550 W
Delicate vegetable dishes such as chard,
asparagus, hop shoots, sugar snap peas
625 W
1 220 W
610 W
Less delicate vegetable dishes such as
puree, polenta, root vegetables, beans,
cauliflower, carrots
810 W
1 400 W
700 W
Thai curry, light vegetable stews, Züricher
Geschnetzeltes (Zurich-style veal dish), rice,
pasta, couscous, puree
920 W
1 550 W
775 W
Casseroles, ragouts, compact stews
containing meat
1 120 W
1 700 W
850 W
Casseroles, ragout
1 350 W
1 870 W
935 W
After 35 minutes
the appliance automatically switches to the keep-warm phase.
▌
The LED
flashes yellow
.
▌
Change to the keep-warm phase
Check the temperature of the food before serving to your guests.
After 3 hours
the total permissible regenerating and keep-warm time according to HACCP is
exceeded.
▌
The LED
flashes red.
Observe the total permissible regeneration and keep-warm time of 3 hours in accordance with the
health requirements, otherwise health impairments can result.
Use
28
Rieber GmbH & Co. KG
Power setting
For cooking
Power
Steaming
800 W
1 100 W
550 W
Cooking and baking
1 050 W
1 450 W
725 W
Baking
1 600 W
2 200 W
1 100 W
▌
The
LED lights up red
during the cooking time.
7.5.4 Power settings for cooking
ATTENTION
thermoplate® can be damaged by overheating. Please observe the instructions for your
thermoplate®.
Rieber GmbH & Co. KG
29
2/3-IK-2300
1/1-IK-3600 Q
1 Ceran® glass surface /heating surface
2 ON/OFF rocker switch including red indicator light
3 Retractable power regulator for the hob (* left hob 1/1 IK 3500 Q)
4 Operating light
2/3 IK 2300: The operating light comes on when the inductive mode is activated or a metal pot is
placed on the heating surface. (Option)
1/1 IK 3600 Q: The operating light comes on when the inductive mode is activated or a metal pot
is placed on the heating surface. (* left hob)
5 Lead with connector
7.6 Use of the K | POT -…-IK-…
7.6.1 Overview …
Use
# Intended use of the K | POT -…-IK-…
For keeping hot food warm, for regenerating pre-prepared dishes, for cooking.
Use thermoplate®.
‘Purpose’, cover sheet page 1, page 13
‘General mode of operation’, page 19
Use
30
Rieber GmbH & Co. KG
Overview of functions
K | POT -2/3 IK-2300
K | POT -1/1 IK-3600 Q
Pot detection
X X Power settings
X X Melting and keep-warm function
—
X
Automatic preheating
— X Boost function
— X Bridging function
—
X
Automatic shut-off (operating time
limitation)
—
X
7.6.2 Overview of functions of the K | POT induction
7.6.3 Pot detection (induction)
The heat setting of a cooking zone can be selected without any cookware present.
The power is generally only released by the control when suitable cookware is detected on the
cooking zone. Make sure that you use suitable cookware.
If no pot is detected, the appliance control switches the cooking zone off after 10 minutes.
The cooking zone can only be switched on again when the power regulator has been turned
back to the "0" position.
Minimum pot diameter: 120 mm
7.6.4 Power settings
Power settings 1 to 9 enable any type of food preparation, from gently keeping warm and
regeneration to grilling.
7.6.5 Melting and keep-warm function
# Melting function
The purpose of the melting function is to regulate the base of the pot to give a temperature of
around 45°C /42°C in the pot. This allows food to be melted in an energy-optimised manner.
The melting function is setting 1, which is reached by turning the power regulator to the right
from the zero position.
The maximum period of time is limited to 2 hours. Switches to OFF automatically.
# Keep-warm function
The purpose of the keep-warm function is to regulate the base of the pot to give a temperature of
around 70°C /65°C in the pot. This allows food to be kept warm in an energy-optimised manner or
gently warmed.
The keep-warm function is setting 2, which is reached by turning the power regulator to the
right from the zero position.
The maximum period of time is limited to 2 hours. Switches to OFF automatically.
Rieber GmbH & Co. KG
31
Heat setting:
OTL [minutes]:
Heat setting:
OTL [minutes]:
1
120
5
300 2 120
6
300 3 360
7
240
4
360
8
90
7.6.6 Automatic preheating
The purpose of the automatic preheating is to trigger the following heat setting.
This function is activated by fully turning the power regulator to the left with a holding time
of at least 2 seconds. A heat setting must be selected on the power regulator within 10
seconds, the so-called continuous cooking setting.
If heat settings 0, 1, 2, 9 are selected or if the power regulator is turned all the way to the
left/right, then the automatic preheating is not activated.
7.6.7 Boost function
With the boost function you can set a time limit, a maximum of 10 minutes, for operating a
cooking zone at maximum power.
If both hobs are selected in the booster function, then the last selection takes priority. The other
cooking zone is automatically reduced to half power. The maximum possible power of the
appliance is constant.
To activate this function, turn the power regulator to setting 8, then to setting 9 as far as the stop.
Then set the power regulator to setting 8.
Use
To deactivate the function, turn the power regulator anticlockwise to a setting below 8.
▌ After 10 minutes the function switches off automatically.
7.6.8 Bridging function
On the induction hob, two defined cooking zones can be "bridged". These can be controlled as
if they were "one" cooking zone.
The left cooking zone is the main cooking zone. The right cooking zone is the additional
cooking zone.
The power regulator of both cooking zones must be turned all the way to the right
simultaneously. Minimum holding time 2 seconds. The power regulator of the additional
cooking zone must then be set to heat setting 9.
7.6.9 Automatic shut-off (operating time limitation OTL)
Depending on the heat setting selected for each cooking zone, a maximum permissible
operating time (without any changes in heat setting) is defined.
If this maximum time limit is exceeded, the respective cooking zone is switched off.
The cooking zone can only be restarted after resetting ("zero setting") the power regulator.
The time remaining until automatic shut-off is reset to the initial value after each new operation
of the cooking zone.
Cleaning, Maintenance and Care
32
Rieber GmbH & Co. KG
WARNING
Danger of electric shock. Risk of death.
► Isolate appliance from power supply; disconnect the power supply unit.
► Protect the appliance from moisture. Do not use a steam cleaning unit to clean the
appliance. Doing so may allow moisture to get into the electrical system and cause a
short circuit. Do not expose to spray water. To clean the electrical part, use a moist
cloth and dry the surface using a dry cloth.
► Have electrical appliances inspected by a qualified electrician every six months
1
.
Remove stubborn dirt from the Ceran® glass surface immediately if possible,
using the glass scraper.
Light dirt that is not burnt on can be removed with a damp cloth or a washing-
up sponge without detergent.
ATTENTION! Clean the heating surface with commercially available glass
cleaner.
Wipe down the surfaces afterwards with a soft cloth.
ATTENTION
Incorrect cleaning can damage the surface or even destroy the appliance.
► Be careful not to scratch the surface with sharp-edged objects. Do not use sponges
with abrasive surfaces, steel wool or steel brushes.
► Do not use any abrasive or aggressive cleaning agents.
► Use cleaning agents which are suitable for stainless steel.
► Avoid prolonged exposure of stainless steel to sodium chloride solutions.
1
8 Cleaning, Maintenance and Care
8.1 Safety information relating to cleaning, maintenance and care
8.2 Choose the correct cleaning method
In principle the same rules apply for cleaning Ceran® glass surfaces as for standard glass surfaces.
Prevent risks due to electricity
Source: DGUV Regulation 3. Electrical Systems and Equipment
Rieber GmbH & Co. KG
33
ATTENTION
Incorrect cleaning can cause damage to the surface.
► Clean the appliance with a hot, mild detergent diluted in water. After cleaning, rub
surfaces dry with a soft cloth.
User tip
► We recommend Rieber cleaning agent for stainless steel for cleaning stainless
steel.
▌
It is an especially tough yet gentle cleaner, produces a dazzling shine,
cleans and protects in one.
ATTENTION
Incorrect cleaning can cause damage to the surface.
► Clean the appliance with a hot, mild detergent diluted in water. After cleaning, rub
surfaces dry with a soft cloth.
8.3 Clean and service stainless steel parts
Remove dirt and limescale regularly.
Cleaning, Maintenance and Care
8.4 Clean and service plastic parts
8.5 Ensure preservation of the product identification
The type plate of your appliance provides important technical data for use and a unique identification,
which is necessary for replacement parts, for example. Instructions assist safe handling.
Double check the condition of the product identification. Inspect this at least 1x every six months.
Contact ‘Sales & Service’ Rieber if necessary.
‘Note the product identification and ensure its preservation, page 12
8.6 Keep ready for next use in dry condition
ATTENTION
Do not stack appliances. Incorrect storage can damage the appliance.
Store appliance at room temperature.
Fault – What now?
34
Rieber GmbH & Co. KG
DANGER
Danger of electric shock. Dangerous electrical voltage.
► Switch off and separate a damaged electrical appliance.
► Disconnect the connecting plug on the unit before starting repair work.
► Have all electrical repairs carried out by an authorised electrician only.
Fault
Possible cause
Rectification
Appliance does not heat up
If
thermoplate
®
is missing from the
heating surface, the appliance
switches off with a time delay.
Restart process.
# Operating staff
Page 19
Indicator light for operating
state does not come on
Is voltage present?
Do mains voltage and mains
frequency match the
information on the type plate?
Rocker switch switched ON?
# Operating staff
Inadequate heating power
Appliance defective
Repair
# Rieber Service
The casing is excessively
hot
Appliance defective
Repair
# Rieber Service
Ceran® glass surface
damaged, for example crack
or break
Mechanical impact
Repair
# Rieber Service
Connection line or
connector plug damaged
Mechanical impact; appliance
defective
Repair
# Qualified electrician
9 Fault – What now?
9.1 Notes on troubleshooting
Possibility of malfunction after power interruption. Disconnect the unit from the mains
completely after a power failure. Then switch the appliance on again.
‘General mode of operation ’, page 19
Any repairs during warranty period may only be performed by manufacturer´s service department of
Rieber. Please contact the manufacturer´s service department of Rieber.
Warranty and liability
Rieber GmbH & Co. KG
35
IMPORTANT
Customer service needs information about the type and number of the appliance.
Your device is made of high-quality materials that can be re-used or recycled. For disposal,
disconnect the appliance from mains supply. Unplug the mains plug. Cut off the cable
directly at the casing. Dispose of this appliance properly via your local disposal facility.
Your appliance is made of high-quality material which can be reused / recycled. For
disposal, disconnect the appliance from mains supply. Unplug the mains plug. Cut off the
cable directly at the casing. Dispose of this appliance properly via your local disposal
facility.
# Customer service, spare parts
If you have a fault you cannot remedy yourself, please get in touch with your Rieber partner or
Rieber central customer service.
9.2 Disposing of your product
# Disposing of your product
10 Warranty and liability
Manufacturer liability and warranty shall no longer apply if
you do not follow the information and instructions in this user guide,
you use the appliance for any purpose other than the intended use,
See chapter "Designated purpose of use"
make conversions or functional modifications,
use non-original spare parts.
The "Sales and delivery terms and conditions" of Max Maier GmbH & Co. KG shall apply for all
warranty claims made against the manufacturer. For instance, any repairs and/or overhaul during the
warranty period may only be performed by the manufacturer´s service department of Rieber, failing
which any claims hereof may be voided. Please contact the manufacturer´s service department of
Rieber.
The following wearing parts are not included in the warranty:
not applicable
Excerpt from EC Declarations of Conformity
36
Rieber GmbH & Co. KG
Manufacturer:
Eisfink Max Maier GmbH & Co. KG
Rheinlandstraße 10
D 71636 Ludwigsburg
Phone +49 (0) 7141 479-0
FAX +49 (0) 7141 479-200
E-mail info@eisfink.de
www.eisfink.de
Responsible for Sales and Service:
Rieber GmbH & Co. KG
Hoffmannstraße 44
D72770 Reutlingen, Germany
Phone +49 (0) 7121 518-0
FAX +49 (0) 7121 518-302
E-mail info@rieber.de
www.rieber.de
11 Excerpt from EC Declarations of Conformity
# EC Declaration of Conformity according to EC Machinery Directive 2006/42/EC
Eisfink Max Maier GmbH & Co. KG herewith declares that the products
K | POT -1/1-CH-800
K | POT -2/3-CK-1600
K | POT -1/1-CK- 2200
K | POT -1/1-CK- 2200-2Z
K | POT -2/3-IK 2300
K | POT -1/1-IK-3600 Q
comply with the basic requirements of the EC Machinery Directive 2006/42/EC, Appendix II A,
harmonised standards (DIN EN ISO 12100:2011-03 Safety of machines – General principles for design
– Risk assessment and risk reduction).
# EC Declaration of Conformity in accordance with the European Directive on Electromagnetic Compatibility 2004/30/EC
Eisfink Max Maier GmbH & Co. KG herewith declares that the products
K | POT -1/1-CH-800
K | POT -2/3-CK-1600
K | POT -1/1-CK- 2200
K | POT -1/1-CK- 2200-2Z
K | POT -2/3-IK 2300
K | POT -1/1-IK-3600 Q
comply with the basic requirements of the European Directive on Electromagnetic Compatibility
2004/30/EC in respect of their electrical design.
If required, a copy of the EC Declaration of Conformity can be obtained from our sales team.
12 Contact address
Loading...
