OPERATOR’S MANUAL

14 U.S. GALLONS/ 53 LITERS PROFESSIONAL WET/DRY VAC

WD1450

FOR QUESTIONS OR INFORMATION CONTACT US AT

CALL 1-800-4-RIDGID (1-800-474-3443) OR

.ridgidvacs.com

www

WARNING:

To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.

Thank you for buying a RIDGID product.

SAVE THIS MANUAL FOR FUTURE REFERENCE

Part No. SP6542 Printed in Mexico

SP6542-2.qxd 6/26/07 1:24 PM Page 2

Table of Contents

ection Page

Important Safety Instructions. . . . . . . . . 2

Introduction . . . . . . . . . . . . . . . . . . . . . . 4

Unpacking and Checking

Carton Contents . . . . . . . . . . . . . . . . . 4

Tools Required . . . . . . . . . . . . . . . . . . 4

Replacement Filter Assembly . . . . . . . . 6

Drum/Caster Foot Assembly . . . . . . . . . 7

Accessory Storage Bag Assembly . . . . 8

Installing Accessory Storage Bag . . . 8

Removing Accessory Storage Bag . . 8

Accessory Storage . . . . . . . . . . . . . . . . 8

Cord Wrap . . . . . . . . . . . . . . . . . . . . . 8

Wet/Dry Vac Assembly . . . . . . . . . . . . . 9

Operation. . . . . . . . . . . . . . . . . . . . . . . 10

Section Page

Vacuuming Dry Materials . . . . . . . . . 10

Vacuuming Liquids . . . . . . . . . . . . . . 11

Emptying the Drum. . . . . . . . . . . . . . 11

Moving the Wet/Dry Vac. . . . . . . . . . 11

Blowing Feature . . . . . . . . . . . . . . . . 11

Maintenance . . . . . . . . . . . . . . . . . . . . 12

Filter . . . . . . . . . . . . . . . . . . . . . . . . . 12

Cleaning and Disinfecting

the Wet/Dry Vac . . . . . . . . . . . . . . 13

Storage. . . . . . . . . . . . . . . . . . . . . . . 13

Casters . . . . . . . . . . . . . . . . . . . . . . . 13

Filter Replacement . . . . . . . . . . . . . . . 14

Repair Parts. . . . . . . . . . . . . . . . . . . . . 16

Warranty . . . . . . . . . . . . . . . . . . . . . . . 18

IMPORTANT SAFETY INSTRUCTIONS

Safety is a combination of common sense, staying alert, and knowing how your wet/dry vacuum cleaner (“Vac”) works.

Safety Signal Words

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION: Indicates a potentially

hazardous situation which, if not avoided, may result in minor or moderate injury.

When using your Vac, always follow basic safety precautions including the following:

WARNING - To

reduce the risk of fire, electric shock, or injury:

• Read and understand this operator’s

manual and all labels on the Wet/Dry Vac before operating.

• Use only as described in this manual.

• Do not leave Vac running while unattended.

Sparks inside the motor can ignite

•

flammable vapors or dust. To reduce the risk of fire or explosion, do not vacuum or use near flammable or combustible liquids, gases, or explosive dusts, such as gasoline or other fuels, lighter fluid, cleaners, oilbased paints, natural gas, hydrogen, coal dust, magnesium dust, aluminum dust, grain dust, or gun powder

• Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not vacuum drywall dust or cold fireplace soot or ash with standard filter. This is a very fine dust which may be exhausted back into the air. Use a fine dust filter instead.

• To reduce the risk of health hazards from vapors or dust, do not vacuum toxic materials.

• Do not use or store near hazardous materials.

• To reduce the risk of electric shock, do not expose to rain or allow liquid to enter motor compartment. Store indoors.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Do not use with a torn filter or without the filter installed except when vacuuming liquids as described in the Operation section of this manual. Dry debris ingested by the impeller may damage the motor or be exhausted back into the air.

•

WARNING: The power cord on this product contains lead, a chemical known in the State of California to cause birth defects or other reproductive harm.

Wash hands after handling.

Do not leave V

• from outlet when not in use and before servicing.

f V

urn of

•

ac plugged in. Unplug

ac before unplugging.

SP6542-2.qxd 6/26/07 1:20 PM Page 3

• To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.

Do not unplug by pulling on cord. To

• unplug, grasp the plug, not the cord.

• Do not use with damaged cord, plug or other parts. If your Vac is not working as it should, has missing parts, has been dropped, damaged, left outdoors, or dropped into water, return it to an Authorized Service Center.

• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners. Do not run Vac over cord. Keep cord away from heated surfaces.

• Do not handle plug, switch, or the Vac with wet hands.

• Do not put any object into ventilation openings. Do not vacuum with any ventilation openings blocked; keep free of dust, lint, hair or anything that may reduce air flow.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• To reduce the risk of falls, use extra care when cleaning on stairs.

• To reduce the risk of back injury or falls, do not lift a Vac that is heavy with liquid or debris. Partially empty the Vac by scooping or draining liquid to make it comfortable to lift.

• To reduce the risk of personal injury or damage to Vac, use only Ridgid recommended accessories.

• When using as a blower:

- Direct air discharge only at work area.

- Do not direct air at bystanders.

- Keep children away when blowing.

- Do not use blower for any job except

blowing dirt and debris.

- Do not use as a sprayer.

- Wear safety eyewear.

• To reduce the risk of eye injury, wear safety eyewear. The operation of any utility Vac or blower can result in foreign objects being blown into the eyes, which can result in severe eye damage.

• This Wet/Dry Vac is double-insulated, eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions for Servicing DoubleInsulated Wet/Dry Vacs before servicing.

• Use only extension cords that are rated or outdoor use. Extension cords in

f poor condition or that are too small in

ire size can pose fire and shock

w hazards. To reduce the risk of these hazards when using an extension cord, be sure it is in good condition and that the connection does not come into contact with liquid. To keep power loss to a minimum, use the following table to choose the minimum wire size extension cord:

Extension Cord Length Gauge A.W.G.

0-50 Ft. 14 50-100 Ft. 12

CAUTION:

• To reduce the risk of hearing damage,

wear ear protectors when using for extended hours or using in a noisy area.

• For dusty operations, wear dust mask.

NOTE: Static shocks are common in dry areas or when the relative humidity of the air is low. Vacuuming fine debris with your Vac can deposit static charge on the hose or on the Vac. The best remedy to reduce the frequency of static shocks in your home or when using this Vac is to add moisture to the air with a humidifier.

Observe the following warnings that appear on the motor housing of your Vac:

DOUBLE INSULATED GROUNDING NOT REQUIRED. WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS.

WARNING: For your own safety, read and understand operator’s manual. Do not run unattended. Do not pick up hot ashes, coals, toxic, flammable or other hazardous materials. Do not use around explosive liquids or vapors.

WARNING: To reduce the risk of electric shock - do not expose to rain - store indoors.

SAVE THIS MANUAL

SP6542-2.qxd 6/26/07 1:20 PM Page 4

Introduction

This Wet/Dry Vac is intended for household use. It may be used for vacuuming wet or dry media and may be used as a blower.

Read this operator’s manual to familiarize yourself with the product features and to understand the specific usage of your new Vac.

Unpacking and Checking Carton Contents

Tools Required

Remove entire contents of carton. Check each item against the Carton Contents List. Contact 1-800-4-RIDGID or E-mail us at info@ridgidvacs.com if any parts

Phillips Screwdriver

Carton Contents List

are damaged or missing.

Key Description Qty

A Wet/Dry Vac Assembly.................1

B Tug-A-Long Hose.........................1

C Utility Nozzle................................1

D Wet Nozzle...................................1

E Car Nozzle ...................................1

F Extension Wands .........................2

G Operator’s Manual .......................1

SP6542-2.qxd 6/26/07 1:20 PM Page 5

Carton containing the following parts:

Key Description Qty

Accessory Storage Bag ...............1

J Caster Foot, Front........................2

K Caster Foot, Rear ........................2

Bag of Loose Parts -

Containing the following:

Key Description Qty

L 2” Caster ......................................4

M Screw, Type AB #10 x 1-3/4 ........4

Filter

Threaded Stud

Filter Cage

Slots (3)

Filter Nut

Filter Nut Lever

Filter Plate

THIS SIDE

OWARD LID

Filter Cage

Tabs (3)

Float

Solid End

Slots (3)

Filter Cage Tabs (3)

Slots (3)

Power Head Assembly

SP6542-2.qxd 6/26/07 1:20 PM Page 6

Replacement Filter Assembly

1. Carefully slide the filter over the filter cage, sliding it over the center ring covering the 3 slots until the filter stops against the lid.

2. Place filter nut and filter plate onto threaded stud and tighten it down. Finger tighten only.

NOTE: Lever of filter nut should be away from plate as shown.

IMPORTANT: Do not overtighten as this may deform or crack the filter cage, or filter.

NOTE: If filter cage or float needs to be removed or replaced, use a flat blade screwdriver and insert the blade near one of the tabs between the filter cage and the center ring of the lid. Pry the tab out of the slot. Tilt the cage and lift away from the lid. To replace, follow the assembly instructions below:

WARNING: For your own safety,

never connect plug to power source outlet until all assembly steps are complete and you have read and understood the safety and operation instructions. Do not operate vac with any parts damaged or missing.

3. Place the float over the opening in the center of the lid with the words "This Side Towards Lid" laying face down over the hole.

WARNING: To reduce the risk of

personal injury or damage to vac be sure to keep hands, fingers, or any other foreign objects out of the center opening when assembling the float.

4. Line up filter cage tabs with slots in the center ring of the lid.

5. Push on the filter cage until the tabs snap into slots for a secure fit.

Rear Caster Foot

Drain

Front Caster Foot

Drum

Front Caster Foot

Drain

#10 x 1-3/4" Screw (4)

Rear Caster Foot

Socket

Caster Stem Caster Ball

SP6542-2.qxd 6/26/07 1:20 PM Page 7

Drum/Caster Foot Assembly

If any parts are missing or damaged contact Customer Service.

Do not assemble until you have all the parts.

1. Insert the front and rear caster feet into the bottom of drum as shown. Light taps with a mallet or hammer may be needed to fully seat both caster feet.

2. Install (4) #10 x 1-3/4” screws into matching holes on both front and rear caster feet, securing them to the bottom of the drum. Tighten screws until just snug. Do not over tighten as this may tend to deform the caster feet.

3. Insert the caster stem into each of the caster feet, as shown.

4. Push on the caster until the ball on the caster stem is inserted all the way into the socket. You will be able to hear the ball snap into the socket and the caster will swivel easily when positioning is correct.

Accessory Rod Receptacles

Accessory Storage Bag Rods

Powerhead Accessory Storage Rod

Pull

Straight

Push/Pull Handle

Cord Wrap

Power Cord

Hose Storage Areas

Accessory Storage Bag

Female End of Extension Wand

SP6542-2.qxd 6/26/07 1:20 PM Page 8

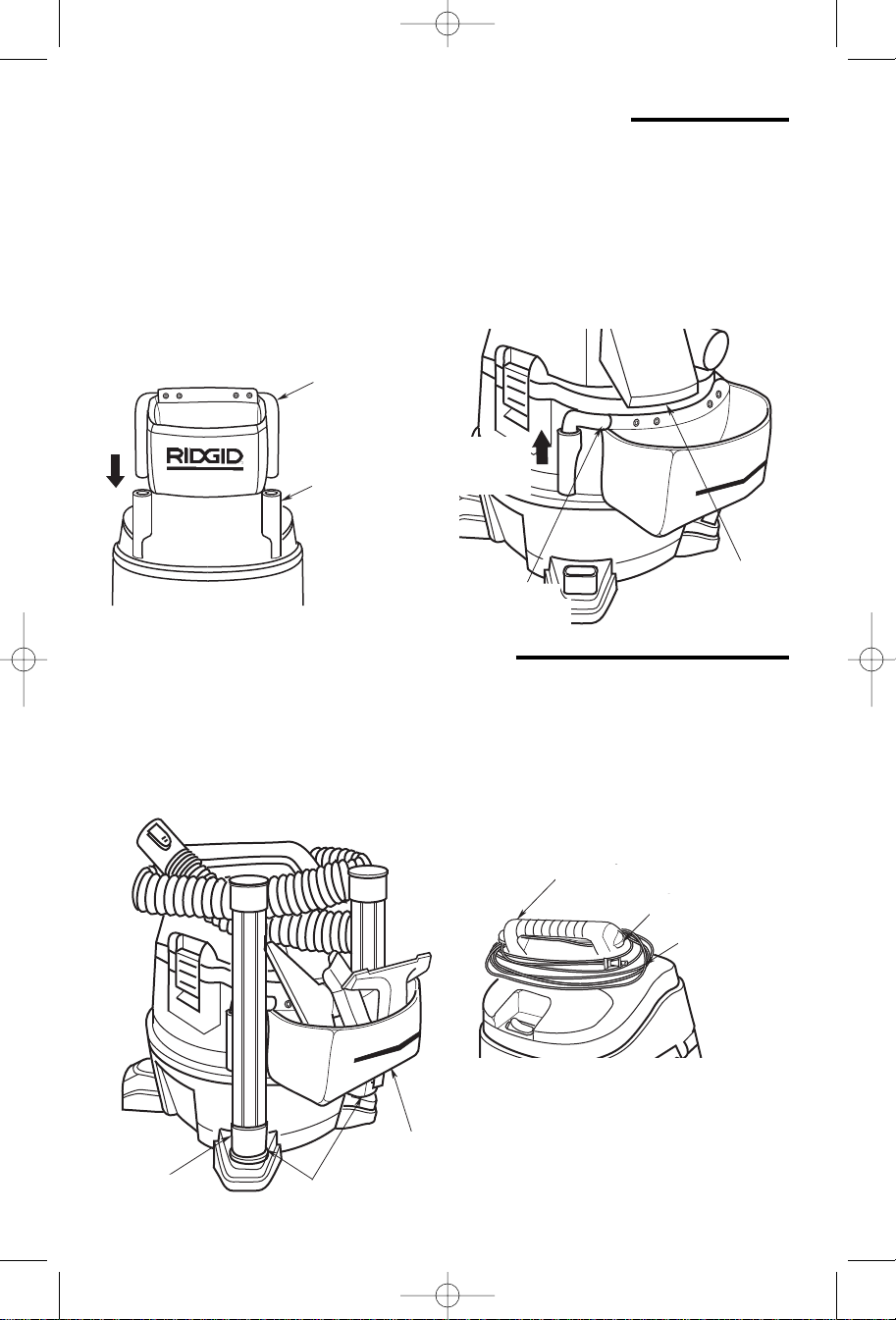

Accessory Storage Bag

Installing Accessory Storage Bag

1. Position rods of accessory storage bag directly over accessory rod receptacles in dust drum.

2. Slide rods of accessory storage bag into accessory rod receptacles until fully seated.

Removing Accessory Storage Bag

1. Pull straight up on rods of accessory storage bag until bag is loose.

NOTE: Powerhead will need to be removed before accessory storage bag can be removed.

Accessory Storage

Your accessories may be stored in the accessory storage bag, or in the two locations on the rear caster feet.

NOTE: Insert female end of extension wand into the holder sleeve as shown.

Cord Wrap

When vacuuming is complete, unplug the cord and wrap it around the power assembly as shown. The cord should wrap under the pull handle (above the inlet) and around and under the cord wrap of the motor cover.

Drum Latch

Drum Flange

Latch

Drum

Powerhead Assembly

Press and Pull

Release Button

SP6542-2.qxd 6/26/07 1:20 PM Page 9

Wet/Dry Vac Assembly

1. Position the powerhead assembly on the drum/caster foot assembly as shown (assembled earlier).

2. Rotate both latches down and press until you hear them snap over the flanges on the drum.

Insert Hose

Insert the push button end of the “Tug-ALong” hose into the inlet of the vac. The hose should snap into place. To remove the hose from the vac, press the release button in the hose assembly and pull the hose out of the vac inlet, as shown.

SP6542-2.qxd 6/26/07 1:20 PM Page 10

Operation

WARNING

To reduce the risk of fire or explosion, do not operate this vac in areas with flammable gases, vapors or explosive dust in the air. Flammable gases or vapors include but are not limited to; lighter fluid, solvent type cleaners, oil-base paints, gasoline, alcohol or aerosol sprays. Explosive dusts include but are not limited to; coal, magnesium, aluminum, grain or gun powder. Do not vacuum explosive dust, flammable or combustible liquids or hot ashes. Do not use this vac as a sprayer. To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.

WARNING: The operation of any utility vac can result in foreign objects being blown into the eyes, which can result in severe eye damage. Always wear safety eyewear complying with ANSI Z87.1 (or in Canada, CSA Z94.3) before starting operation. Safety eyewear are available at many local retail stores.

CAUTION: To reduce risk of

hearing damage, wear ear protectors when using the vac for extended hours or when using it in a noisy area.

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

After you plug the power cord into the outlet, turn the unit on by pushing the switch from position "O" to position "l". The symbols used on the switch actuator are international "On & Off" symbols. "O" is the symbol for "OFF" and "l" is the symbol for "ON".

Familiarize yourself with the accessories included with the vac. Each accessory may be used in various ways for vacuuming and blowing debris. Here is a list of the accessories and their uses.

OFF

Utility Nozzle - General purpose nozzle for

most vacuuming applications. Wet Nozzle - Used for wet pickup on

smooth surfaces to pick up liquid and dry the surface in one stroke.

Car Nozzle - Dry pickup nozzle for car interiors and most upholstery cleaning.

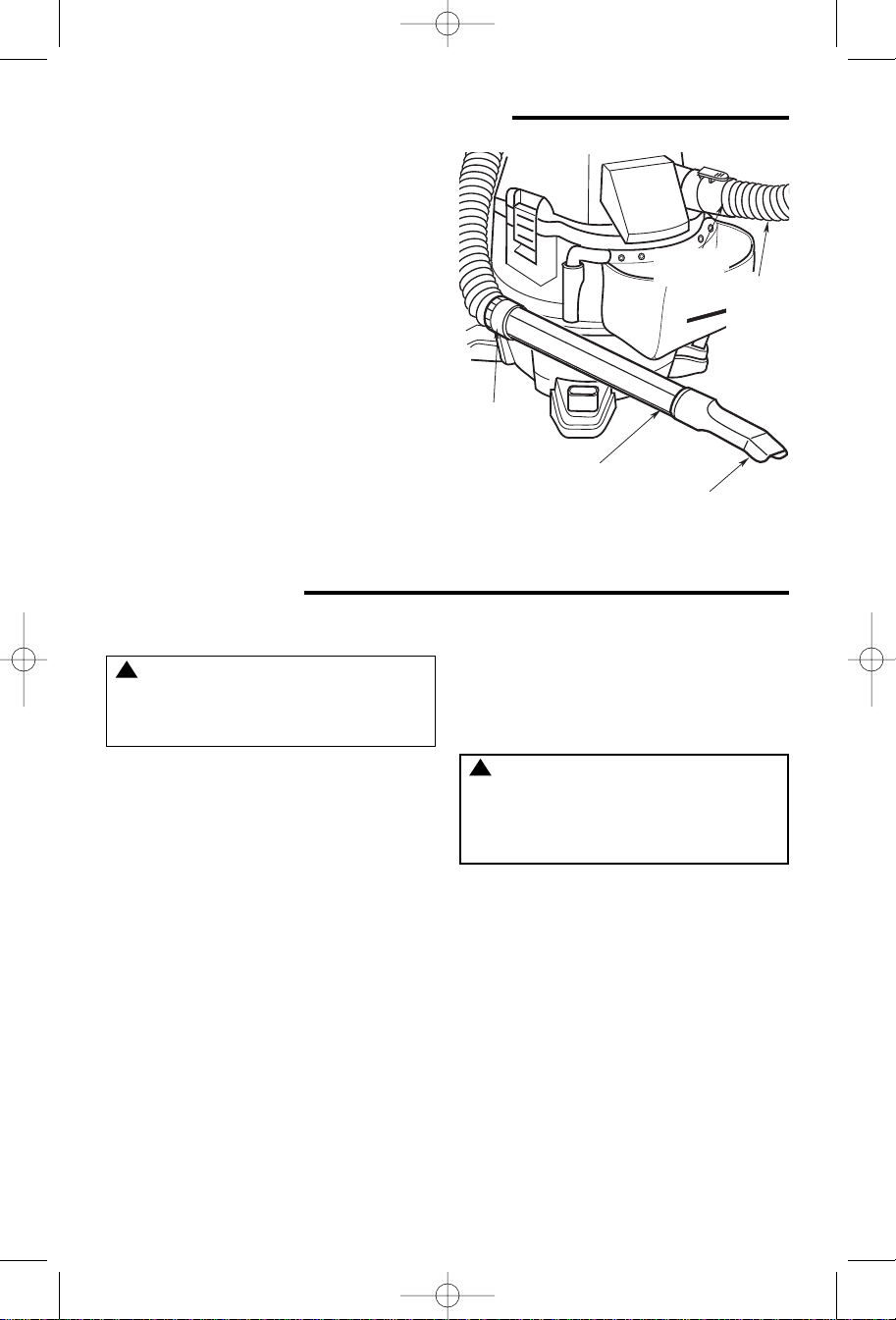

Extension Wands - These wands can be connected together and provides additional length for more reach.

Hose - Provides transfer of vacuum or blowing capability to work site. Provides the means of attaching extension wands and nozzles.

WARNING: To reduce the risk of fire or electric shock, do not run vac unattended.

Vacuuming Dry Materials

1. The filter must always be in correct position to reduce the risk of leaks and possible damage to vac.

2. Your Wet/Dry Vac comes with the VF5000 Fine Dust Filter installed. When using your vac to pick up very fine dust, it will be necessary for you to empty the drum and clean the filter at more frequent intervals to maintain peak vac performance.

NOTE: A dry material. If you use your vac to pick up dust when the filter is wet, the filter will clog quickly and be very dif

3. If your filter is wet but you need to use

dry filter is necessary to pick up

ficult to clean.

the vac to pick up dry material, you can quickly dry the filter by running the vac without hose attached for about 10 minutes. The clean air rushing through the vac will help dry the filter.

SP6542-2.qxd 6/26/07 1:20 PM Page 11

Vacuuming Liquids

1. When picking up small amounts of iquid the filter may be left in place.

2. When picking up large amounts of

liquid we recommend that the filter be removed. If the filter is not removed, it will become saturated and misting may appear in the exhaust.

3. When the liquid in the drum reaches a

predetermined level, the float mechanism will rise automatically to cut off air-flow. When this happens, turn off the vac, unplug the power cord, and empty the drum. You will know that the float has risen because vac airflow ceases and the motor noise will become higher in pitch, due to increased motor speed.

4. After using the vac to pick up liquids, the

filter must be dried to reduce the risk of possible mildew and damage to the filter.

IMPORTANT: To reduce the risk of damage to the vac, do not run motor with float in raised position.

Emptying the Drum

WARNING: To reduce the risk of

ack injury or falls, do not lift a vac

b heavy with liquid or debris. Scoop or drain enough contents out to make the vac light enough to lift comfortably.

Moving the Wet/Dry Vac

Should it become necessary to pick the vac up to move it, the handle on the sides of the dust drum are used to lift. To maneuver the vac, the push/pull handle on the powerhead of the unit should be used.

Blowing Feature

Your vac features a blowing port. It can blow sawdust and other debris. Follow the steps below to use your vac as a blower.

WARNING: Always wear safety eyewear complying with ANSI Z87.1 (or in Canada, CSA Z94.3) before using as a blower.

WARNING: To reduce the risk of injury from accidental starting, unplug power cord before emptying the drum.

1. The vac comes equipped with a drain for easy emptying of liquids. Simply unscrew the drain cap and lift the opposite side slightly to empty the drum.

2. Another option is to remove the powerhead assembly.

3. Lay powerhead assembly aside on a clean area while emptying drum.

4. Dump the drum contents into the proper waste disposal container.

WARNING: To reduce the risk of injury to bystanders, keep them clear of blowing debris.

CAUTION: Wear a dust mask if blowing creates dust which might be inhaled.

CAUTION: To reduce the risk of hearing damage wear ear protectors when using the vac/blower for extended hours or when using it in a noisy area.

1. Locate blowing port of your vac.

2. Insert the locking end of the tug-along hose into the blowing port of the vac. The hose should snap into place.

+ 25 hidden pages
