Operator’s Manual
With
With
Technology
Technology
WARNING!
Read this Operator’s Manual carefully before using
this tool. Failure to understand and follow the contents of this manual may
result in electrical shock,
fire, and/or serious personal injury.
For support and additional information
about using your Compact C40 go to
support.seesnake.com/compact-c40
or scan this QR code.
Original Instructions – English – 1
Page 2
Table of Contents
Introduction
Regulatory Statements ...............................................................................................................................................3
Safety Symbols ...........................................................................................................................................................3
General Safety Rules
Work Area Safety ........................................................................................................................................................ 4
Electrical Safety .......................................................................................................................................................... 4
Personal Safety ..........................................................................................................................................................4
Equipment Use and Care ...........................................................................................................................................5
Pre-Operation Inspection ............................................................................................................................................ 5
Compact C40 Overview
Description .................................................................................................................................................................6
Standard Equipment ................................................................................................................................................... 7
System Components .................................................................................................................................................. 8
Specific Safety Information
Compact C40 Safety ..................................................................................................................................................8
Operating Instructions
Placement ..................................................................................................................................................................9
Routing the Camera ...................................................................................................................................................9
Inspection Overview ...................................................................................................................................................9
Pipe Guides ................................................................................................................................................................ 9
CS6x Versa Docking System
Mounting the Monitor ................................................................................................................................................ 10
Removing the Monitor ..............................................................................................................................................10
System Cable Removal ............................................................................................................................................ 11
Maintenance and Support
Cleaning ................................................................................................................................................................... 12
Maintaining Components .......................................................................................................................................... 12
Storage ..................................................................................................................................................................... 12
Support ..................................................................................................................................................................... 12
Service and Repair ................................................................................................................................................... 12
Disposal .................................................................................................................................................................... 12
2 – English – Compact C40
Page 3
Introduction
The warnings, cautions, and instructions discussed in this manual cannot cover all possi-
ble conditions and situations that may occur. It
must be understood by the operator that common sense and caution are factors which cannot
be built into this product, but must be supplied
by the operator.
Regulatory Statements
The EC Declaration of Conformity (890-011-
320.10) will accompany this manual as a separate booklet when required.
This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Safety Symbols
In this manual and on the product, safety symbols and
signal words are used to communicate important safety
information. This section is provided to improve understanding of these signal words and symbols.
This is the safety alert symbol. It is used to alert
you to potential injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury or death.
DANGER
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE
NOTICE indicates information that relates
to the protection of property.
This symbol means read the operator’s manual
carefully before using the equipment. The manual contains important information on the safe
and proper operation of the equipment.
This symbol means always wear safety glasses
with side shields or goggles when handling or
using this equipment to reduce the risk of eye injury.
This symbol indicates the risk of electrical shock.
Compact C40 – English – 3
Page 4
General Safety Rules
WARNING
Read all safety warnings and instructions. Failure to
follow the warnings and instructions may result in
electrical shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS!
Work Area Safety
• Keep your work area clean and well lit. Cluttered or
dark areas invite accidents.
• Do not operate equipment in explosive atmo-
spheres, such as in the presence of flammable liquids, gases, or dust. Equipment can create sparks
which may ignite the dust or fumes.
• Keep children and bystanders away while operat-
ing equipment. Distractions can cause you to lose
control.
Electrical Safety
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electrical shock
if your body is earthed or grounded.
• Do not expose equipment to rain or wet condi-
tions. Water entering equipment will increase the risk
of electrical shock.
Personal Safety
• Stay alert, watch what you are doing, and use common sense when operating equipment. Do not use
equipment while you are tired or under the influence of
drugs, alcohol, or medication. A moment of inattention
while operating equipment may result in serious injury.
• Dress properly. Do not wear loose clothing or jewelry.
Loose clothes, jewelry, and long hair can be caught in
moving parts.
• Practice good hygiene. Use hot, soapy water to wash
hands and other body parts exposed to drain contents
after handling or using drain inspection equipment. To
prevent contamination from toxic or infectious material, do not eat or smoke while operating or handling
drain inspection equipment.
• Always use appropriate personal protective equip-
ment when handling and using equipment in
drains. Drains may contain chemicals, bacteria, and
other substances that may be toxic, infectious, and
cause burns or other issues. Appropriate personal
protective equipment always includes safety glasses
and may include a dust mask, hard hat, hearing protection, drain cleaning gloves or mitts, latex or rubber
gloves, face shields, goggles, protective clothing, respirators, and steel toed, non-skid footwear.
• If using drain cleaning equipment and drain in-
spection equipment at the same time, wear RIDGID drain cleaning gloves. Never grasp the rotating
drain cleaning cable with anything else, including other
gloves or a rag which can become wrapped around
the cable and cause hand injuries. Only wear latex
or rubber gloves underneath RID GID drain cleaner
gloves. Do not use damaged drain cleaning gloves.
• Keep all electrical connections dry and off the
ground. Touching equipment or plugs with wet hands
can increase the risk of electrical shock.
• Do not abuse the cord. Never use the cord for carry-
ing, pulling, or unplugging the power tool. Keep cord
away from heat, oil, sharp edges, and moving parts.
Damaged or entangled cords increase the risk of electrical shock.
• If operating equipment in a damp location is un-
avoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of a GFCI reduces the
risk of electrical shock.
4 – English – Compact C40
Page 5
Equipment Use and Care
• Do not force equipment. Use the correct equipment
for your application. The correct equipment does the
job better and more safely.
• Do not use equipment if the power switch does
not turn it on and off. Any equipment that cannot
be controlled with the power switch is dangerous and
must be repaired.
Pre-Operation Inspection
WARNING
• Disconnect the plug from the power source and/or
the battery pack from the equipment before making adjustments, changing accessories, or storing. Preventive safety measures reduce the risk of in-
jury.
• Store idle equipment out of the reach of chil-
dren and do not allow persons unfamiliar with
the equipment or these instructions to operate
the equipment. Equipment can be dangerous in the
hands of untrained users.
• Maintain equipment. Check for misalignment or
binding of moving parts, missing parts, breakage of
parts, and any other condition that may affect the
equipment’s operation. If damaged, have the equipment repaired before use. Many accidents are caused
by poorly maintained equipment.
• Do not overreach. Keep proper footing and balance
at all times. This enables better control of the equipment in unexpected situations.
• Use the equipment and accessories in accor-
dance with these instructions, taking into account
the working conditions and the work to be performed. Use of the equipment for operations differ-
ent from those intended can result in hazardous situations.
• Use only accessories that are recommended by
the manufacturer for your equipment. Accessories
that may be suitable for one piece of equipment may
become hazardous when used with other equipment.
• Keep handles dry, clean, and free from oil and
grease. Clean handles give better control of the
equipment.
• Carrying the system incorrectly can cause the
monitor’s docking handle to disengage from the
docking system and may result in property damage and/or serious injury. Do not carry the Compact
C40 by the monitor’s docking handle or its front handle.
To reduce the risk of serious injury from electrical
shock or other causes, and to prevent damage to
your equipment, inspect all equipment and correct
any problems before each use.
To inspect all equipment, follow these steps:
1. Power off your equipment.
2. Disconnect and inspect all cords, cables, and connectors for damage or modification.
3. Clean any dirt, oil, or other contamination from your
equipment to ease inspection and to prevent it from
slipping from your grip during transport or use.
4. Inspect your equipment for any broken, worn, missing, misaligned, or binding parts, or any other condition which might prevent safe, normal operation.
5. Refer to the instructions for all other equipment to inspect and make sure it is in good, usable condition.
6. Check your work area for the following:
• Adequate lighting.
• The presence of flammable liquids, vapors, or
dust that may ignite. If present, do not work in
area until sources have been identified and corrected. The equipment is not explosion proof.
Electrical connections can cause sparks.
• A clear, level, stable, and dry place for the operator. Do not use the equipment while standing
in water.
7. Examine the job to be done and determine the correct equipment for the task.
8. Observe the work area and erect barriers as necessary to keep bystanders away.
See additional product specific safety information
and warnings starting on page 8.
Compact C40 – English – 5
Page 6
Compact C40 Overview
Description

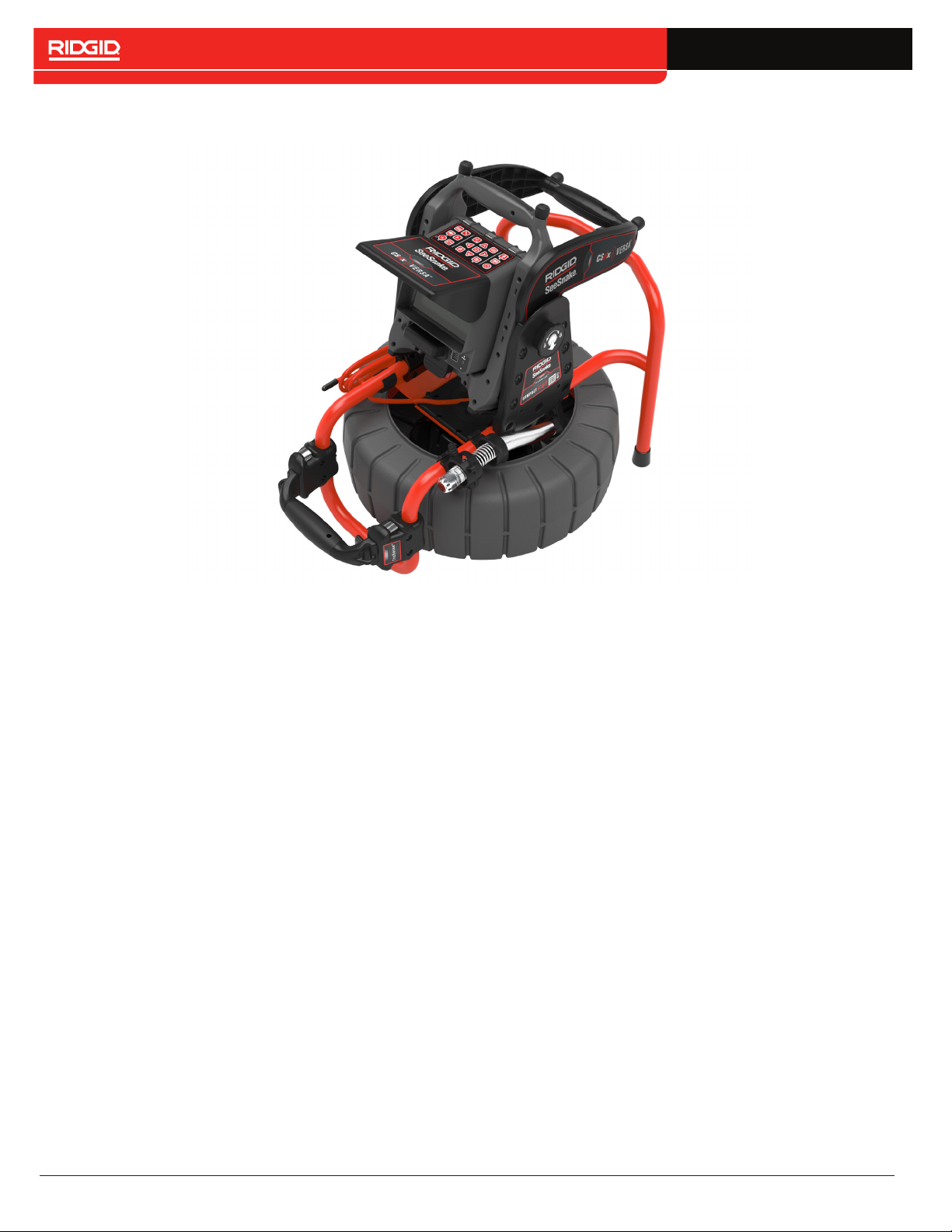

The RIDGID® SeeSnake® Compact C40 camera reel offers fast, easy setup and can take on the most diverse
and demanding inspection conditions. The Compact C40
features a self-leveling camera at the end of a push cable
stiff enough to give you the power to push through small
or restricted pipes, yet flexible enough to make multiple
tight turns.
The FleX mitter® sonde helps locate points of interest in
the pipe. FleX mitter sondes have long, powerful antennas
capable of putting out a signal strong enough to pinpoint
the camera’s location underground, while still preserving
its flexibility through turns.
All SeeSnake monitors can connect to the Compact C40.
Pair it with a SeeSnake CSx™ series Wi-Fi enabled monitor to deliver professional multimedia reports to your customers quickly and easily.
The CS6x Versa is specifically designed to mount on the
Compact C40’s docking system for viewing ease, quick
setup, and effortless transport.
TruSense™ Technology Description
TruSense technology establishes a two-way communication link between the camera head and a connected
CSx series Wi-Fi enabled monitor. Advanced on-camera
sensors convey valuable information about the in-pipe
environment.
Included TruSense Sensors
TiltSense™
The TiltSense inclinometer measures the camera’s degree of tilt and displays it on a CSx series Wi-Fi enabled
monitor, giving you a useful indicator of the camera’s
angle as it lays inside the pipe.
HDR Image Sensor
The high dynamic range (HDR) image sensor expands
the camera’s dynamic range, allowing a greater ratio of
bright and dark areas to be displayed in the same image
at the same time without reducing visibility. The result is
superior clarity and detail, allowing you to quickly and
easily identify problem areas.
6 – English – Compact C40
Page 7
Specifications
Specifications
Weight 7.8 kg [17lb]
Dimensions
Length 626mm [25in]
Depth 360mm [14in]
Height 429mm [16.9 in]
Drum diameter 432mm [17in]
TruSense Camera
Type Self-Leveling
Length
26mm [1in]*
37 mm [1.5 in]**
Diameter 25mm [1in]
Resolution 640 × 480 pixels
Sonde
Type FleX mitter
®
Frequency 512 Hz
Pipe Capacity
§
38mm to 152mm
[1.5in to 6in]
System Cable Length 3 m [10 ft]
Operating Environment
Temperature
‡
Storage temperature
Ingress protection
(without monitor)
-10°C to 50°C
[14°F to 122°F]
-10°C to 70°C
[14°F to 158°F]
IP×6
Relative humidity 5 to 95 percent
Altitude 4,000 m [13,123 ft]
Camera depth rating
* Measured from lens to spring.
** Measured from lens to end of threads.
§ Actual pipe capacity depends on pipe conditions.
‡ While the camera can function in extreme temperatures, some
image quality changes may occur.
Waterproof to 100 m
[328.1 ft]
Distance Measurement
Type TruSense Counter
Data Communication Two-Way
Push Cable
Length 40 m [131 ft]
Diameter 6.7mm [0.26in]
Fiberglass core diameter 3mm [0.12in]
Minimum bend radius 64mm [2.5in]
Standard Equipment
• SeeSnake Compact C40
• Docking System
• Operator’s Manual
• Pipe Guide Kit
• Spanner Wrench
Compact C40 – English – 7
Page 8

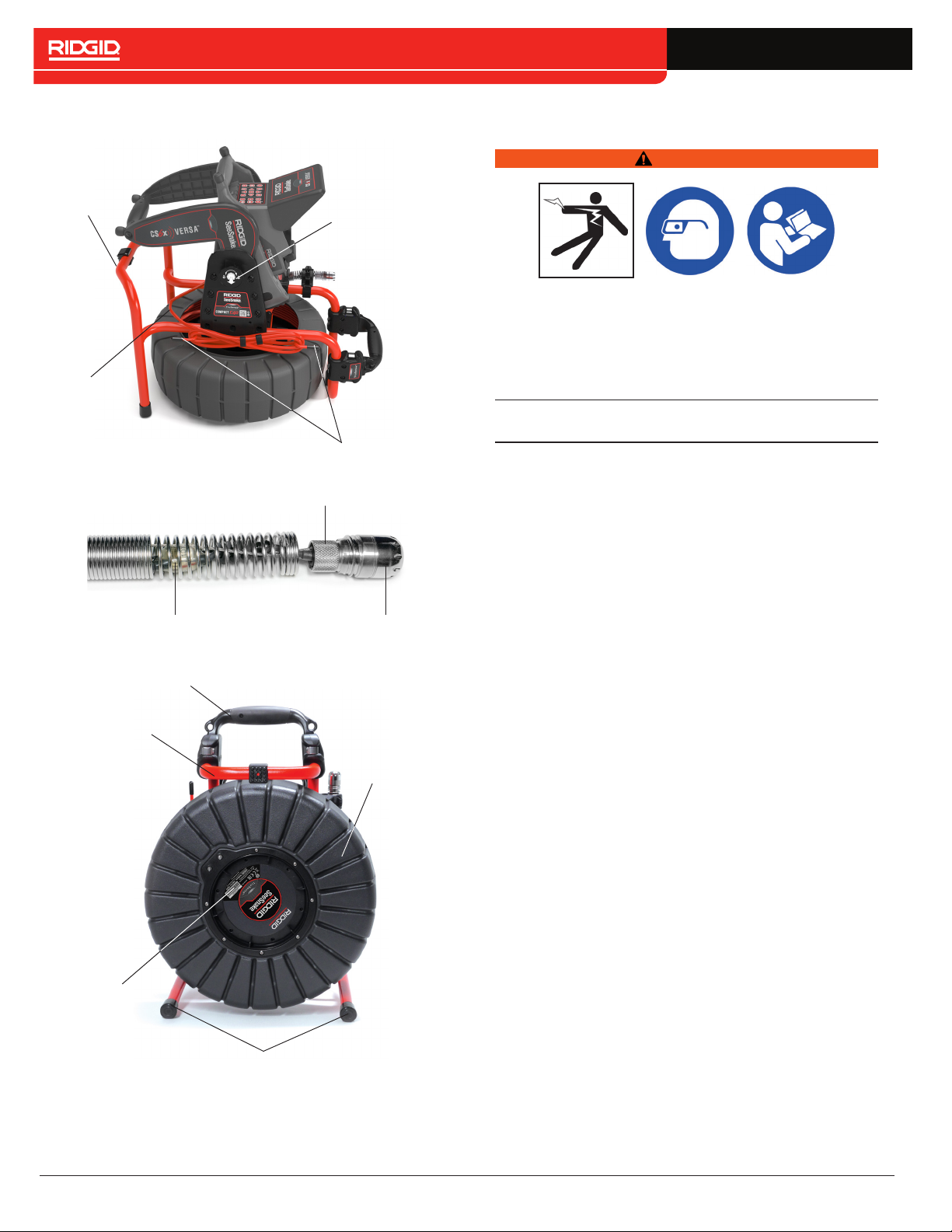

System Components
Frame
SeeSnake
System
Cable
Locking Sleeve
Specic Safety Information
WARNING
Docking System
This section contains important safety information
that is specific to the Compact C40. Read these precautions carefully before using the equipment to reduce the risk of electrical shock, fire, and/or serious
injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE!
Cable Wraps
Compact C40 Safety
• Read and understand this manual, the digital reporting monitor’s manual, and the instructions for
any other equipment you are using before operating the equipment. Failure to follow all instructions
may result in property damage and/or serious injury.
Keep this manual with the equipment for future use.
FleX mitter Sonde Camera Head
Frame Handle
Frame
Serial Number
Label
Rubber Feet
Drum
• Operating the equipment while in water increas-
es the risk of electrical shock. Do not operate the
system if operator or equipment are standing in water.
• The equipment is not designed to provide high
voltage protection and isolation. Do not use where
a danger of high voltage contact is present.
• To prevent damage to the equipment and to de-
crease the risk of injury, do not expose the equipment to mechanical shocks. Exposure to mechani-
cal shocks can damage equipment and increase the
risk of serious injury.
• Always use appropriate personal protective equip-
ment when handling and using equipment in
drains. Wear appropriate protective equipment such
as latex or rubber gloves, goggles, face shields, and
respirators when inspecting drains that might contain
hazardous chemicals or bacteria. Always wear eye
protection to protect against dirt and other foreign objects.
8 – English – Compact C40
Page 9
Operating Instructions
Placement

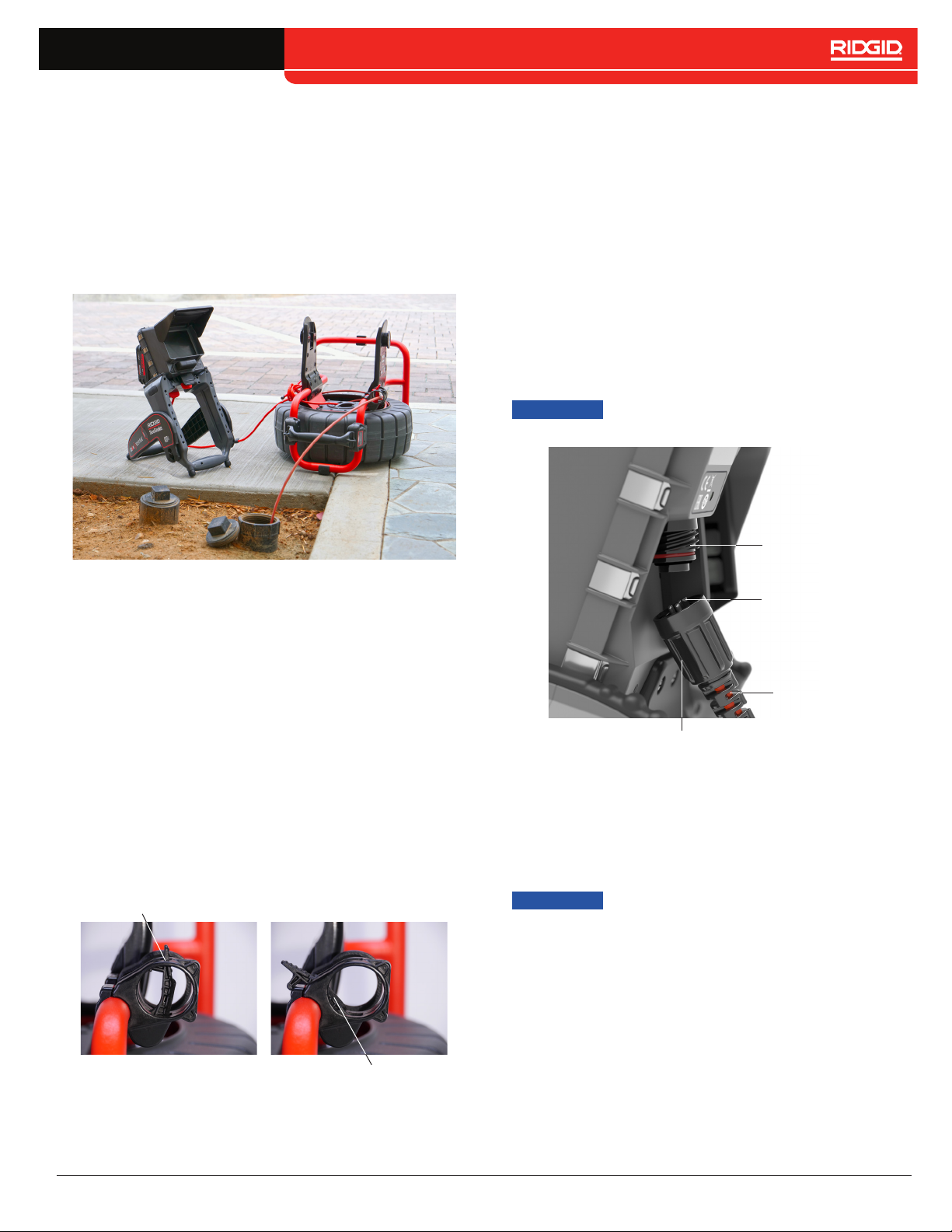

Set up your SeeSnake system near the pipe entrance
so you can manipulate the push cable while viewing the
monitor. Make sure that the drum can spin freely. Placing
the reel where the drum cannot spin freely may result
in over-winding the cable, which may result in property
damage and/or serious injury.
Inspection Overview
To perform a pipe inspection, connect any See Snake
monitor to the reel, power on the system, push the push
cable through the pipe, and observe the display.
For advanced inspection options, such as capturing
media, locating the sonde, tracing the push cable, and
delivering reports, refer to the manual that comes with
your monitor.
Connecting to the Monitor
Connect the system cable to the monitor by aligning the
connector guide pin with the socket and pushing the
connector straight in.
Routing the Camera
If the camera is inside the drum, you must route the
camera through the push cable guides. The push cable
and camera head should be threaded through all three
guides.
1. Press the tab toward the outer edge of the outermost
push guide to lock open the clip and free the camera spring
2. Reach inside the drum and find the camera.
3. Insert the camera through the inner push cable guide
and then through the two outer push cable guides.
4. Return the spring clip to the operation position to secure the spring and prevent the push cable from retracting back into the drum.
Operation Position
NOTICE
Only twist the outer locking sleeve.
Never bend or twist the connector.
Socket
Guide Pin
Connector
Ridge
Outer Locking Sleeve
Retrieving the Camera
Pull the push cable back out of the pipe with slow, steady
force and feed small lengths back into the drum. Wipe
the push cable with a paper towel or rag as you retrieve
it.
NOTICE
Do not exert excessive force or pull at
sharp angles. Feeding longer lengths
or forcing the push cable may cause it
to loop, kink, or break.
Locked Open
Only lock open the spring clip when you are routing the
camera. Keep the spring clip in the operation position
during normal use.
Pipe Guides
Pipe guides center the camera in the pipe, improve
picture quality, and help keep the lens clear. Use pipe
guides when possible to reduce wear and tear on the
camera system.
Compact C40 – English – 9
Page 10

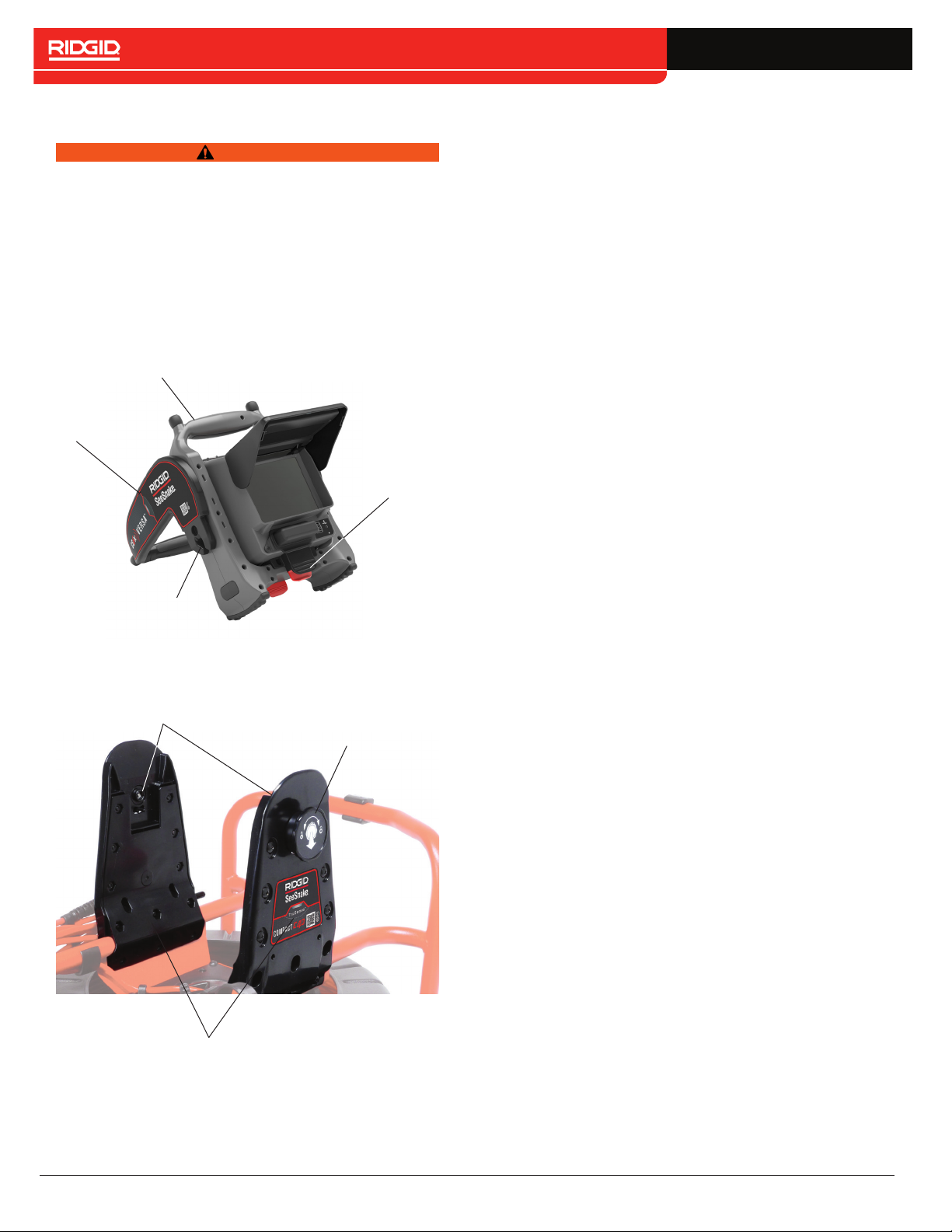

CS6x Versa Docking System
WARNING
Do not carry the Compact C40 by the monitor’s
mounting frame or kickstand. Doing so can cause
the monitor to disengage from the docking system
and may result in property damage and/or serious
injury.
Mounting the Monitor
1. Turn the docking joints on sides of the kickstand so
that the openings point down.
Mounting Frame
Kickstand
Mounting
Removing the Monitor
1. Place the Compact C40 so you can grasp both
quick-release knobs.
2. Pull both knobs out and away from the docking fins.
In the same motion as pulling the knobs out, turn
the knobs together in either direction to disengage
the locks.
Note: The locks are disengaged when the yellow indicator labels are visible under the knobs.
3. Grip the docking handle and pull the digital reporting
monitor straight up.
Clips
Docking Joint
2. Center the CS6x Versa over the docking fins and
align the docking joints with the joint sockets.
Joint Sockets
Quick-Release Knob
Docking Fins
3. Firmly push the monitor down into the docking system until you feel the monitor lock into place.
10 – English – Compact C40
Page 11
System Cable Removal
1. Disconnect the system cable from the reporting
monitor and remove the monitor from the docking
system.
2. Unwrap the system cable from the cable wraps.
System Cable Installation
To install the system cable, follow these steps:

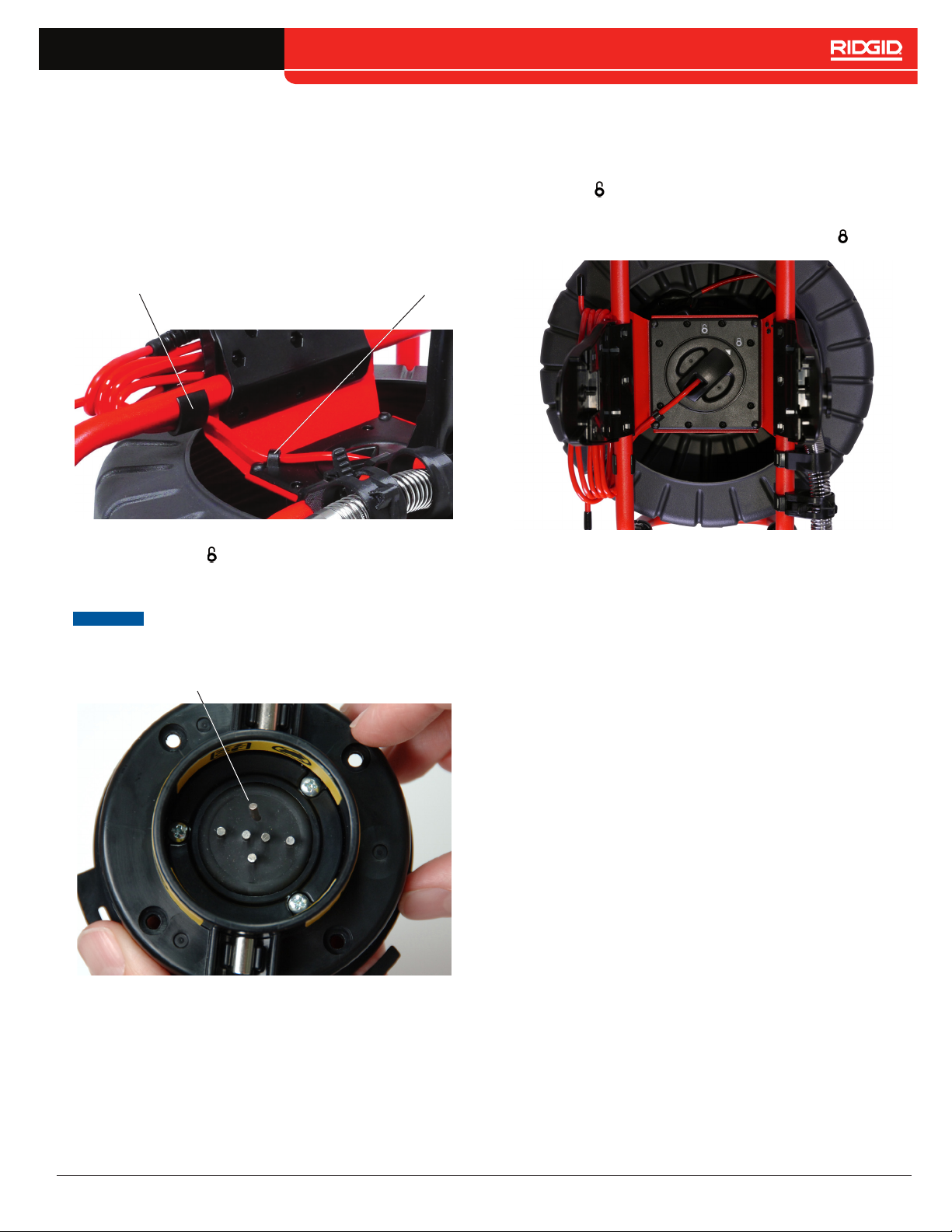

1. Align the arrow on the slip-ring dial with the unlock
symbol on the frame and insert the slip-ring dial
into the slip-ring cavity.
3. Pop the frame cable anchor off the frame and unhook the system cable from the frame hook.
Cable Anchor
4. Turn the slip-ring dial counter-clockwise to the unlocked position .
5. Pull straight out.
NOTICE
Do not touch the contact pins inside the
slip-ring dial. Stressing the contact pins
can cause them to break.
Broken Contact Pin
Frame Hook
2. Turn the slip-ring dial to the locked position .
3. Hook the system cable into the frame hook and snap
the cable anchor onto the frame.
4. Wrap the system cable around the cable wraps.
Compact C40 – English – 11
Page 12
Maintenance and Support
Cleaning
Clean your system with rags and a soft nylon brush. If
desired, a mild detergent or disinfectant can be used. Do
not use solvents or high pressure water to clean any part
of the system.
Support
For support and additional information about using your
system, visit support.seesnake.com/compact-c40/.
Service and Repair
Improper service or repair can cause the camera reel
to be unsafe to operate.
Maintaining Components
Camera Head
Scratches on the camera have a minimal effect on its
performance. Do not use scraping tools or sand the camera to remove scratches.
Push Cable
Run a rag over the push cable and visually inspect it for
cuts and abrasions while pushing it back into the drum.
Replace or repair the push cable if the outer jacket is cut
or abraded.
Storage
The Compact C40 must be stored in a dry, secure area
between -10°C and 70°C [14°F and 158°F]. Store your
equipment in a locked area out of the reach of children
and people unfamiliar with its purpose.
Service and repair of the camera reel must be performed
at a RIDGID Independent Authorized Service Center. To
find your nearest service center or for any service or repair questions:
• Contact your local RIDGID distributor.
• Visit RIDGID.com.
• Contact Ridge Tool Company Technical Service
Department at [email protected] or, in
the USA and Canada, call 1-800-519-3456.
Disposal
Parts of your system contain valuable materials that can
be recycled. There are companies that specialize in recycling that may be found locally. Dispose of the components in compliance with all applicable regulations.
Contact your local waste management authority for more
information.
EC Countries: Do not dispose of electrical
equipment with household waste!
According to the European Guideline 2012/19/
EU for Waste Electrical and Electronic
Equipment and its implementation into national legislation, electrical equipment that is
no longer usable must be collected separately and disposed of in an environmentally correct manner.
12 – English – Compact C40
Battery Disposal
EC Countries: Defective or used batteries must be recy-
cled according to the guideline 2006/66/EEC.
Page 13
Compact C40 – English – 13
Page 14
14 – English – Compact C40
Page 15
Compact C40 – English – 15
Page 16
R
40
E
U
1
e NV (RIDGID)
n
m
0
WWW.RIDGID.COM
Ondernemerslaan 5428
idge Tool Company
0 Clark Street
lyria, Ohio 44035-6001
SA
-800-474-3443
Ridge Tool Europ
ediurT-tniS 0083
uigleB
+32 (0)11 598 62
© 2019 Ridge Tool Company. All rights reserved.
Every effort has been made to ensure that the information in this manual is accurate. Ridge Tool Company and its affiliates reserve
the right to change the specifications of the hardware, software, or both as described in this manual without notice. Visit www.
RIDGID.com for current updates and supplemental information pertaining to this product. Due to product development, the photos
and other presentations specified in this manual may differ from the actual product.
RIDGID and the RIDGID logo are trademarks of Ridge Tool Company, registered in the USA and other countries. All other
registered and unregistered trademarks and logos mentioned herein are the property of their respective owners. Mention of thirdparty products is for informational purposes only and constitutes neither an endorsement nor a recommendation.
Printed in USA 2019/05/31
999-998-439.10 744-021-0095-00-0A
Loading...
