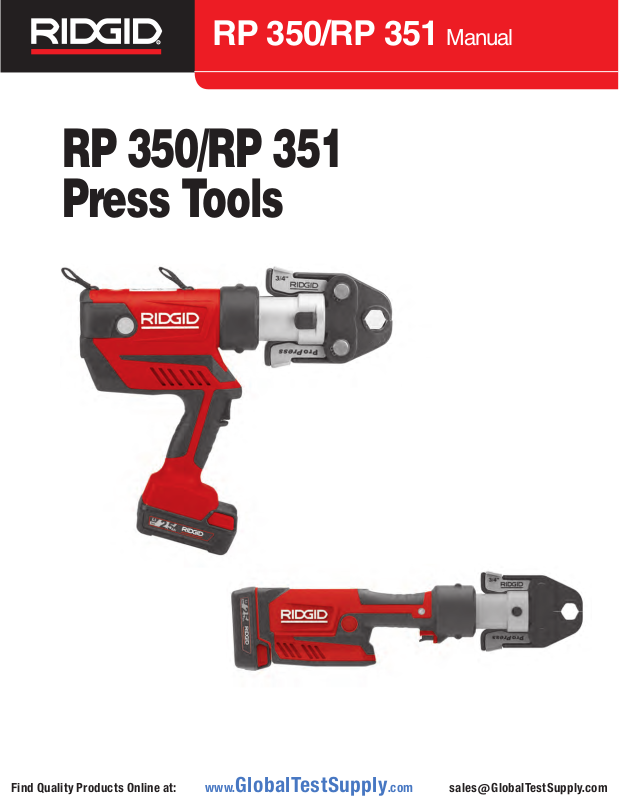

RP 350/RP 351 Manual
RP 350/RP 351
Press Tools
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
RP 350/RP 351 Press Tools
Table of Contents
Recording Form For Machine Serial Number ............................................................................................................1
Safety Symbols/Symbols..............................................................................................................................................2
General Power Tool Safety Warnings
Work Area Safety........................................................................................................................................................2
Electrical Safety ..........................................................................................................................................................2
Personal Safety ..........................................................................................................................................................3
Power Tool Use And Care ..........................................................................................................................................3
Battery Tool Use And Care ........................................................................................................................................3
Service ........................................................................................................................................................................4
Specific Safety Information
Press Tool Safety........................................................................................................................................................4
Description ...
Specifications
Standard Equipment ..................................................................................................................................................7
Pre-Operation Inspection ............................................................................................................................................7
Set-Up And Operaton ..................................................................................................................................................8
Removing/Installing Attachment ................................................................................................................................8
Preparing Connection ................................................................................................................................................8
Pressing A Fitting With Typical Scissor Jaws ............................................................................................................9
Pressing A Fitting With Typical Actuator And Press Ring Set ..................................................................................10
Inspecting The Pressed Connection ........................................................................................................................10
Bluetooth Functions (Wireless Data Transfer) ..........................................................................................................10
Cold Weather Operation ..........................................................................................................................................10
Storage ........................................................................................................................................................................11
Maintenance Instructions
Cleaning And Lubrication..........................................................................................................................................11
Service And Repair ..................................................................................................................................................11
Troubleshooting ........................................................................................................................................................12
Optional Equipment ....................................................................................................................................................12
Disposal ......................................................................................................................................................................13
Electromagnetic Compatibility (EMC) ......................................................................................................................14
.................................................................................................................................................................4
FCC/ISED Statement)..................................................................................................................................................14
EC Declaration of Conformity ..........................................................................................................Inside Back Cover
Lifetime Warranty ........................................................................................................................................Back Cover
*Original Instructions - English
ii
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
999-995-220.10_REV. B
Page 3
RP 350/RP 351 Press Tools
Safety Symbols/Symbols
In this operator’s manual and on the product, safety symbols and signal words are used to communicate important safety information. This section is provided to improve understanding of these signal words and symbols.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER
WARNING
CAUTION
NOTICE
NOTICE indicates information that relates to the protection of property.
This symbol means read the operator’s manual carefully
before using the equipment. The operator’s manual contains important information on the safe and proper operation of the equipment.
This symbol means always wear safety glasses with side
shields or goggles when handling or using this equipment to reduce the risk of eye injury.
This symbol indicates the risk of hands, fingers or other
body parts being crushed.
This symbol indicates the risk of electrical shock.
General Power Tool Safety
Warnings*
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
This symbol indicates that the product is For Indoor Use
Only.
This symbol indicates that the product is Class II equipment.
This symbol indicates this is electrical equipment that
should not be disposed of with household waste. See
“Disposal” section.
This symbol indicates this is electrical equipment meets the
requirements of the applicable EC directives.
This symbol indicates the year of manufacture of the
product.
Electrical Safety
• Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adap -
WARNING
Read all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE!
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work Area Safety
• Keep your work area clean and well lit. Cluttered or
dark areas invite accidents.
• Do not operate power tools in explosive atmo-
spheres, such as in the presence of flam mable
liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
• Keep children and by-standers away while oper-
ating a power tool. Distractions can cause you to lose
ter plugs with earthed (grounded) power tools.
Un modified plugs and matching outlets will reduce
risk of electric shock.
• Avoid body contact with earthed or grounded sur-
faces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electrical shock
if your body is earthed or grounded.
• Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the risk
of electrical shock.
• Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
• When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
control.
* The text used in the General Power Tool Safety Warnings section of this manual is verbatim, as required, from the applicable UL/CSA 62841-1 standard. This
section contains general safety practices for many different types of power tools. Not every precaution applies to every tool, and some do not apply to this tool.
2
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
999-999-207.10_REV. B
Page 4
RP 350/RP 351 Press Tools
• If operating a power tool in a damp location is
unavoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of a GFCI reduces
the risk of electric shock.
Personal Safety
• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol, or medication. A mo -
ment of inattention while operating power tools may
result in serious personal injury.
• Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
• Prevent unintentional starting. Ensure the switch
is in the OFF-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energizing power tools that have the switch
ON invites accidents.
trolled with the switch is dangerous and must be
repaired.
• Disconnect the plug from the power source and/or
remove the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power
tool accidentally.
• Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the pow er tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of
untrained users.
• Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s op er ation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
• Remove any adjusting key or wrench before turning
the power tool ON. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
• Do not overreach. Keep proper footing and bal-
ance at all times. This enables better control of the
power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or
jewel ry. Keep your hair, clothing, and gloves away
from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
• If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
Power Tool Use And Care
• Do not force power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
• Do not use power tool if the switch does not turn it
ON and OFF. Any power tool that cannot be con-
• Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations dif-
ferent from those intended could result in a hazardous
situation.
• Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
Battery Tool Use And Care
• Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
• Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
• When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects
that can make a connection from one terminal to
another. Shorting the battery terminals together may
cause burns or a fire.
• Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact acciden tally occurs, flush with water. If liquid contacts
999-999-207.10_REV. B
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
3
Page 5
RP 350/RP 351 Press Tools
eyes, additionally seek medical help. Liquid ejected
from the battery may cause irritation or burns.
• Do not use a battery pack or tool that is damaged
or modified. Damaged or modified batteries may
exhibit unpredictable behavior resulting in fire, explosion
or risk of injury.
• Do not expose a battery pack or tool to fire or
excessive temperature. Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.
• Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specified in the instructions. Charging im -
properly or at temperatures outside the specified range
may damage the battery and increase the risk of fire.
Service
• Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
Specific Safety Information
• Only use RIDGID®Press Tools with appropriate
RIDGID or RIDGID approved Pressing attachments
(jaws, press rings, actuators, etc.). Other uses or
modifying the Press Tools for other applications may
damage the press tool, damage the attachments
and/or cause personal injury.
• Use proper tool, attachment and fitting combina-
tions. Improper combinations can result in an incomplete joint, which increase the risk of leaks, equipment
damage and injury.
• Before operating a RIDGID®Press Tool, read and
understand:
– This operator’s manual
– The attachment instructions
– The battery/charger manual
– The fitting manufacturer’s installation instructions
– The instructions for any other equipment or material
used with this tool
Failure to follow all instructions and warnings may
result in property damage and/or serious injury.
WARNING
This section contains important safety information
that is specific to this tool.
Read these precautions carefully before using the
press tools to reduce the risk of electrical shock, or
other serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE!
A compartment in the tool carrying case is included to
keep this manual with the tool for use by the operator.
Press Tool Safety
• Keep your fingers and hands away from pressing
attachments during press cycle. Your fingers or hands
can be crushed, fractured or amputated if they become
caught between the attachment or between these components and any other object.
• Never attempt to repair damaged pressing attach-
ments (jaws, press ring, actuator, etc.). Discard the
entire damaged attachment. An attachment that has
been welded, ground, drilled or modified in any manner
can shatter during pressing resulting in serious injury.
Failure to replace the entire pressing attachment may
result in component failure and serious injury.
Description
The RIDGID®RP 350 and RP 351 Press Tools, when used
with ap propriate attachments, are designed to mechanically press fittings onto tubing to create a water-tight and permanent seal, such as for plumbing, heating, air conditioning,
and refrigeration applications. Attachments are also available
for other uses.
When the run switch on the press tool is depressed, an
internal electric motor powers a hydraulic pump which
sends fluid into the cylinder of the tool, moving the ram forward and applying force to the attachment, pressing the fitting. The press cycle takes approximately 4 seconds.
Once the cycle begins to deform a fitting, it will automatically continue until completion, even if the run switch is
released.
• Large forces are generated during product use that
can break or throw parts and cause injury. Stand
clear during use and wear appropriate protective equipment, including eye protection.
4
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
The tool includes a second operating mode (“Control
Mode”) that can be turned on using the RIDGID Link App.
Control Mode allows the fitting to be engaged prior to
999-995-220.10_REV. B
Page 6
RP 350/RP 351 Press Tools
Serial No.
pressing to allow confirmation of proper alignment of the
attachment, fitting and tube.
The Tool Status Lights indicate things such as tool status,
battery status, maintenance required, or improper temperature. A work light turns ON when the run switch is
depressed to illuminate the work area. The head can be
rotated 360° for better access in tight spaces.
The tools are supplied with fabric loops that can be used
with appropriate attachments such as shoulder straps
or tie off lines.
6
3
4
7
5
2
11
8
10
1
12
The press tools include Bluetooth®* wireless technology to
allow connection to smartphones and tablets. See “Blue -
tooth Functions (Wireless Data Transfer)” section for
details.
* The Bluetooth®word mark and logos are registered trademarks by Bluetooth
SIG, inc and any use of such marks by Emerson Electric Co. is under license. Other
trademarks and trade names are those of their respective owners.
3
4
9
6
5
8
7
10
11
Figure 2 – RIDGID RP 351 Press Tool and Standard
Series Jaw
2
1
12
9
Figure 1 – RIDGID RP 350 Press Tool and Standard
Series Jaw
# Description
1 Scissor Style Jaw Set
2 Attachment Mounting Pin
3 Tool Status Lights
4 ON/OFF Button
5 Warning Label
(RP 351 Underside)
6 Fabric Loop
7 Pressure Release Button
(RP 351 Far Side)
8 Handle
9 Battery
10 Run Switch
11 LED Work Light
12 Jaw Sideplate
Figure 3 – Machine Serial Number - Circled digits indicate the year and month of the manufacture. (YY = year, MM = month).
999-995-220.10_REV. B
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
5
Page 7
RP 350/RP 351 Press Tools
Control Marking Description
Main tool power switch. (I = ON, O = OFF).
On/Off Button
Run Switch —
Pressure Allows tool to be released without completing press. If used, press connection is not complete
Release Button and must be repeated.
Attachment
Mounting Pin
Figure 4 – Controls Chart
— Holds attachment to tool. Must be fully inserted for tool to operate. See Figure 6.
ON: Press button until light turns ON. See Figure 5 – Tool Status Lights.
OFF: Press button until light turns OFF. Tool will automatically turn OFF if left unused for ten
(10) minutes.
Turn On Work Light: slightly depress run switch.
Normal Mode: Depress run switch to start press cycle, release when tool locks on. Normal
mode is factory setting.
Control Mode: Depress run switch to engage attachment on workpiece. Make adjustments
as necessary. Press the run switch again to start press cycle, release when tool locks on.
Releasing the switch will not stop the tool once it has locked on. This assures consistent,
repeatable press connection integrity.
Mode can be changed with RIDGID Link App, see Bluetooth Functions section.
Light Segment Number
(Light Continuously On)
1
Green Green Green Green ON button pressed, lights on 4 seconds at start up, tool in “Normal
1
3
4
Blue Blue Blue Blue
2
Green ———Press tool is in Normal Mode, standby, press tool ready to operate.
Red Yellow Yellow Yellow
Red ———
Yellow — Red Red
Yellow ——Red
Yellow Red ——
Green Blue Blue Blue
2 4
————Press tool off (OFF).
3
Purple Firmware update in process, tool cannot be used while updating.
Description
Mode”.
ON button pressed, lights on 4 seconds at start up, tool in "Control
Mode" - see Bluetooth Functions section to change mode.
Tool has malfunctioned. Tool will not operate. Remove and reinsert
battery or AC Adapter. If light still on, have tool serviced.
Tool has malfunctioned. Tool will not operate. Remove and reinsert
battery or AC Adapter. If red light still on, have tool serviced.
Tool and/or battery out of Specification temperature range. Tool will
not operate. Bring the tool and battery to correct operating temperature range.
Attachment mounting pin is not fully inserted. Tool will not operate.
Fully insert pin. If lights still on, have tool serviced.
Battery low. Tool will not operate. Recharge battery/Insert fully
charged battery.
Bluetooth connection established, standby, press tool ready to
operate - For further information see section on Bluetooth
Functions.
Figure 5 – Tool Status Lights
6
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
999-995-220.10_REV. B
Page 8
RP 350/RP 351 Press Tools
Specifications
RP 350 Pistol Press Tool RP 351 Inline Press Tool
Attachments.................RIDGID Standard Series RIDGID Standard Series
Stroke Length ..............1.57" (40 mm) 1.57" (40 mm)
Motor
Voltage.....................18 V DC rated 18 V DC rated
Amperage.................23 A 23 A
Power.......................480 Watts 480 Watts
Ram Force...................7,200 lbs. (32 kN) 7,200 lbs. (32 kN)
Head Rotation..............360° 360°
Duty Cycle ...................3 Press /min. 3 Press /min
Power Supply ..............RIDGID RB-18XX Series 18 V Li-Ion Battery Pack or RIDGID RPA 120/220 AC Power Adapter
(See Optional Equipment Section)
Bluetooth Range ..........33 ft. (10 m) 33 ft. (10 m)
Permissible Humidity.....80% maximum 80% maximum
Operating Temperature
Range.............................15° F to 122° F (-10° C to 50° C) 15° F to 122° F (-10° C to 50° C
Storage Temperature.....32° F to 113° F (0° C to 45° C) 32° F to 113° F (0° C to 45° C)
Weight (no battery/
attachment)....................7.83 lbs (3.55 kg) 7.83 lbs (3.55 kg)
Dimensions..................11.3" x 11.0" x 3.1" 15.7" x 4.65" x 3.1"
287 mm x 279 mm x 77 mm 398 mm x 118 mm x 77 mm
Sound Pressure (L
Vibration* .....................<1.13 m/s
* Sound and Vibration measurements are measured in accordance with a standardized test per Standard EN 62481-1.
- Vibration levels may be used for comparison with other tools and for preliminary assessment of exposure.
- Sound and vibration emissions may vary due to your location and specific use of these tools.
- Daily exposure levels for sound and vibration need to be evaluated for each application and appropriate safety measures taken when needed. Evaluation of exposure
levels should consider the time a tool is switched OFF and not in use. This may significantly reduce the exposure level over the total working period.
PA
)*.....<74.5 dB(A), K=3 dB(A) <74.5 dB(A), K=3 dB(A)
2
, K=1.5 <1.13 m/s2, K=1.5
Standard Equipment
Refer to the RIDGID catalog for details on equipment
supplied with specific tool catalog numbers.
NOTE! RIDGID press tool attachments are offered in two
“series”
• Standard Series
• Compact Series
These attachment series are not interchangeable. Stan dard
series attachments will only work with standard series
tools (RP 350, RP 351, RP 342-XL, RP 340, RP 330,
320-E, CT-400). Compact series attachments will only
work with compact series tools (RP 240, RP 241, RP 200,
RP 210, 100B).
NOTICE
ing methods is the responsibility of the system designer
and/or installer. Before any installation is attempted, careful evaluation of the specific service environment, including
999-995-220.10_REV. B
Find Quality Products Online at: [email protected]
Selection of appropriate materials and join-
www.GlobalTestSupply.com
chemical environment and service temperature, should be
completed. Consult Press Fitting System manufacturer
for selection information.
Pre-Operation Inspection
WARNING
Daily before use, inspect your
press tool and cor rect any
problems to reduce the risk of
serious in jury from electric
shock, crushing injures, attachment failure and other causes, and prevent tool
damage.
1. Switch OFF the tool and remove battery/AC Adapter
from tool.
2. Clean any oil, grease or dirt from the equipment,
especially the handles and controls. This aids inspec-
7
Page 9
RP 350/RP 351 Press Tools
tion and helps to prevent the tool or controls from slipping from your grip.
3. Inspect the press tool for:
• Proper assembly, maintenance and completeness.
• Any broken, worn, missing, misaligned or binding
parts. Confirm fabric loops are in good condition.
• Smooth movement of attachment mounting pin
between the fully open and fully closed position.
Pin should lock into each position. Confirm that the
run switch moves freely and does not bind or stick.
• Presence and readability of warning label (Figure 6).
• Any other condition which may prevent safe and normal operation.
Do not use the press tool until problems have been
repaired.
Warning Label
Pressure
Release
Button
Tool Status
Lights
ON/OFF
Button
Follow Set-up and Operation to reduce the risk of
injury from crushing and other causes and to prevent tool damage.
1. Confirm appropriate work area (See General Power
Tool Safety Warnings). Operate in a clear, level, sta ble,
dry location. Do not use tool while standing in water.
2. Inspect the work to be done and determine the correct RIDGID tool and RIDGID attachment for the
application per their specifications. Using incorrect
equipment for an application can cause injury, damage the tool and make incomplete connections.
3. Confirm all equipment has been inspected and set up
as directed in their instructions.
Removing/Installing Attachment
1. Switch OFF the tool and remove battery/AC Adapter
from tool.
2. Fully open the attachment mounting pin. Remove/insert the appropriate attachment (Figure 7).
3. Fully close the attachment mounting pin until it locks
into the closed position. Attachment mounting pin
must be fully closed to prevent tool damage during
use. Tool lights will be lit to indicate, see Figure 5 for
Tool Status Lights.
Figure 6 – Status Lights/Warning Label
4. Inspect and maintain tool attachments per their instructions. Remove attachment from the tool. Confirm that
attachments are in good condition and clearly marked
as to use.
5 Inspect and maintain any other equipment being used
per its instructions to make sure it is functioning properly.
Set-Up and Operation
WARNING
Keep y our fin gers
and hands away from
the tool attachment
during the press cy-
cle. Your fingers or
hands can be crushed, fractured or amputated in
the attachment, tool, between the tool and attachment, work piece and other objects.
Large forces are generated during product use that
can break or throw parts and cause injury. Stand
clear during use and wear appropriate protective
equipment, including eye protection.
Use proper tool, attachment and fitting combinations. Improper combinations can result in an in complete press connection, which increases the
risk of leaks, equipment damage and injury.
NOTE! Do not operate tool without the attachment in place,
this can damage the tool.
Figure 7 – Attachment Mounting Pin
Preparing Connection
NOTICE
several types of press tool attachments. Always follow
the specific instructions for the press tool attachment
being used and the fitting manufacturers’ specific installation instructions to reduce the risk of improper press
connections and extensive property damage.
1. Prepare the press connection according to the fitting
manufacturer’s instructions.
These instructions are generalized practices for
8
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
999-995-220.10_REV. B
Page 10
2. With dry hands, insert a fully charged battery or AC
Adapter into tool. If using the corded power adapter
with a GFCI, the GFCI (RCD) should have a rated
residual current of 30 mA or less. Depress ON/OFF
button one time to turn tool ON. All LEDs will be lit
green indicating that the tool is ready to use. See
Figure 5 – Tool Status Lights for any other light.
Pressing A Fitting With Typical Scissor
Jaws
1. Properly hold the tool with both hands.
RP 350/RP 351 Press Tools
Figure 10 – Jaws Square to Fitting
4. Confirm jaw is appropriately placed and square to fitting (Figure 10). Keep fingers and hands away from
the jaws to avoid crushing injuries in jaws or between
jaws and surroundings.
Figure 8 – Holding the Tool
2. Squeeze jaw arms to open jaws.
3. Place open jaws around fitting (Figure 9). Properly
align jaw press profile with contour of the fitting as
specified in Fitting Manufacturer’s Installation Instruc tions. Release jaw arms to close jaws around fitting. Do
not hang jaw set from fitting. Tool could unexpectedly
drop and cause serious injury or death.
Normal Mode: Depress the run switch (Figures 1 &
2). Once the tool cycle begins and the rollers contact
the jaw arms, the tool will lock-on and automatically
complete the cycle. Releasing the switch will not
stop the tool once it has locked on. This assures
consistent, repeatable press connection integrity.
Control Mode: Depress the run switch (Figures 1 &
2). The jaws will engage the fitting but the press con-
nection is not made. Make adjustments as necessary.
Press the run switch again, the tool will lock-on and
automatically complete the cycle. Releasing the
switch will not stop the tool once it has locked on. This
assures consistent, repeatable press connection
integrity.
If tool must be removed before a press connection is
completed, depress the pressure release button
(Figures 1 & 2).
NOTICE
press connection is NOT complete and the fitting must be
pressed again to ensure completion. If the tool malfunctions during operation, use this procedure.
5. Release the run switch.
Any time release button is depressed, the
6. Squeeze jaw arms to open jaws.
7. Remove jaw from fitting. Avoid sharp edges that may
have formed on fitting during pressing operation.
8. When operation is complete, depress ON/OFF button
one time to turn tool OFF. Remove battery or AC
Adapter from tool.
Figure 9 – Placing Scissor-Style Jaws Around Fitting
999-995-220.10_REV. B
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
9
Page 11
RP 350/RP 351 Press Tools
Pressing A Fitting With Typical Actuator
And Press Ring Set
1. Open ring and place around fitting. Properly align ring
press profile with contour of the fitting as specified in
Fitting Manufacturer’s Installation Instructions. Release
ring to close around fitting (Figure 11).
2. Confirm appropriate actuator is properly installed in
tool. Squeeze actuator arms to open the actuator
tips. Align actuator tips with ring pockets. Release
actuator arms and fully engage actuator tips into ring
pockets (Figure 12). Mis aligning actuator tip to ring
pocket can damage the ring or actuator during pressing. Do not hang tool and actuator from press ring.
Tool could unexpectedly drop and cause serious
injury or death.
plete the cycle. Releasing the switch will not stop the
tool once it has locked on. This assures consistent,
repeatable press connection integrity.
Control Mode: Depress the run switch (Figures 1 &
2). The jaws will engage the fitting but the press con-
nection is not made. Make adjustments as necessary. Press the run switch again, the tool will lock-on
and automatically complete the cycle. Releasing the
switch will not stop the tool once it has locked on.
This assures consistent, repeatable press connection
integrity.
4. If tool must be removed before a press connection is
completed, depress the pressure release button
(Figures 1 & 2).
NOTICE
press is NOT complete and the press connection must be
pressed again to ensure completion. If the tool malfunctions during operation, use this procedure.
5. Release the run switch.
6. Squeeze actuator arms to open actuator. Remove
actuator from fitting.
7. Remove ring from fitting. Avoid sharp edges that may
have formed on fitting during pressing operation.
Any time release button is depressed, the
Figure 11 – Installing Press Ring Onto Fitting
Figure 12 – Attaching Actuator to Press Ring
3. Confirm ring is appropriately placed and square to fitting. Keep fingers and hands away from the actuator
and ring to avoid crushing injuries in attachment or
between attachment and surroundings.
Normal Mode: Depress the run switch (Figures 1 & 2).
Once the tool cycle begins and the rollers contact the
jaw arms, the tool will lock-on and automatically com-
8. When operation is complete, depress ON/OFF button
one time to turn tool OFF. Remove battery or AC
Adapter from tool.
Inspecting The Pressed Connection
1. Inspect the pressed fitting for:
• Full insertion of tube into fitting.
• Excessive misalignment of the tubes. A slight
amount of misalignment at a press connection is
considered normal.
• Incorrect attachment alignment with the fitting con-
tour. Distorted or deformed fitting.
• Any other issues per the fitting manufacturer. This
could include the removal of a control ring or decal
(used to indicate the connection has not yet been
pressed).
If any issues are found, remove fitting and install a
new press connection.
2. Test the press connection in accordance with connector manufacturer instructions, normal practice and
applicable codes.
Bluetooth Functions (Wireless Data
Transfer)
The RIDGID®RP 350 and RP 351 Press Tools include
Bluetooth®wireless technology allowing wireless data
10
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
999-995-220.10_REV. B
Page 12
RP 350/RP 351 Press Tools
transfer to properly equipped smartphones or tablets
(“devices”) running iOS or Android operating systems.
®
1. Download the appropriate RIDGID
Link app
to your device by going to the Google Play
Store or the Apple App Store.
2. When the tool is ON, a Bluetooth wireless
technology equipped device can find and pair
with the press tool. In the Bluetooth settings of
your device, select desired RIDGID tool.
Refer to your device instructions for specific
information on how to connect via Bluetooth
wireless technology. Once connected, the
green-blue-blue-blue tool status lights will be
lit.
After the initial pairing, most devices will
automati-cally connect to the Tools when the
Bluetooth wireless technology is active and in
range and if device settings are configured to
do so. Press tools should be less than 33 ft.
(10 m) from the device to be detected. Any
obstacle between the tool and device can
reduce the operational range.
3. Follow the app instructions for proper use.
The mode of operation can be changed via
app. The app also allows monitoring of tool
cycles.
4. The wireless data transfer turns OFF when
the press tool is switched OFF. Turn
Bluetooth wireless device OFF to reduce
device battery drain.
Maintenance Instructions
WARNING
Make sure tool is switched OFF and battery or AC
Adapter is removed from tool before performing
maintenance or making any adjustment.
Cleaning And Lubrication
1. Wipe the tool clean daily with a clean dry cloth.
2. Inspect the attachment mounting pin and lubricate the
pin with silicone lubricant as needed.
3. Check return springs in attachments with each use.
Attachments should open and close freely with only
moderate finger effort required.
Service And Repair
WARNING
Improper service or repair can make tool unsafe to
operate.
Service and repair on the RP 350 and RP 351 Press Tools
must be performed by a RIDGID Independent Press Tool
Service Center.
For information on your nearest RIDGID Authorized
Inde-pendent Service Center or any service or repair
Cold Weather Operation
As temperature drops, hydraulic fluid thickens and battery
performance degrades. To reduce the risk of improper
operation, the RP 350 and RP 351 will not operate outside
of the specification temperature range as indicated by
the tool status lights (Figure 5).
When ambient conditions are outside the specification
temperature range, keep the tool and batteries in a conditioned space until ready to use.
Storage
Remove battery or AC Adapter from the press tool. Store
press tool and battery in case. Avoid storing in extreme
heat or cold. The tool will not turn ON if the tool is outside
the specification range. This will be indicated by the tool
status lights. (See Figure 5)
WARNING
that is out of reach of children and people unfamiliar with
the press tool. The tool is dangerous in the hands of
untrained users.
999-995-220.10_REV. B
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Store tool in a dry, secured, locked area
11
Page 13
RP 350/RP 351 Press Tools
Troubleshooting
SYMPTOM POSSIBLE REASONS SOLUTION
Tool will not turn ON
when ON/OFF button is
pressed.
Attachment is locked
onto fitting.
The pressed connections
produced are not complete.
Oil leaks from tool.
Motor runs but tool will
not complete a cycle.
Tool stops during
operation.
See Figure 5 – Tool Status Lights
Battery is completely discharged or battery has
failed.
Battery not properly inserted into handle of tool
AC adapter not correctly inserted into the tool.
Press connection was not successfully completed.
Used wrong jaw for the tube size or material.
The tool was not square to the tube.
Attachment press contour was not aligned with
the fitting contour.
Tool is in need of repair.
Seal or mechanical problems.
Oil level low.
Oil level low.
Insert fully charged battery/recharge battery.
Check to assure battery is fully inserted.
Correctly insert AC adapter into tool.
Push pressure release button to remove jaws from
fitting. Inspect and repress fitting.
Install the correct attachment.
Redo the press connection with new fitting and new
tube. Make sure that the tool is square to the tube.
Redo the joint with new tube and new fitting.
Make sure the attachment press contour is
aligned with the fitting contour.
Take for service.
Take for service.
Optional Equipment
WARNING
To reduce the risk of serious injury, only use equipment specifically designed and recommended for
use with the RP 350 and RP 351 Press Tools, such
as listed below.
Battery and Adapter Packs
Catalog
No. Description
56513 RB-1825 18V 2.5 Ah Lithium Ion Battery
56518 RB-1850 18V 5.0 Ah Lithium Ion Battery
44468 120 AC Power Adapter – North America
43338 220 AC Power Adapter– Europe
44823 120 AC Power Adapter – China
Chargers and Cords
Catalog Plug
No. Region Type
64383 RBC-30 Charger North America A
56523 RBC-30 Charger Europe C
64388 RBC-30 Charger China A
64393 RBC-30 Charger Australia I
64378 RBC-30 Charger Japan A
64398 RBC-30 Charger United Kingdom G
64173 RBC-30 Charger Cord North America A
64183 RBC-30 Charger Cord Europe C
12
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
999-995-220.10_REV. B
Page 14
RP 350/RP 351 Press Tools
Disposal
Parts of these tools contain valuable materials and can be
recycled. There are companies that specialize in recycling
that may be found locally. Dispose of the components in
compliance with all applicable regulations. Contact your
local waste management authority for more information.
For EC Countries: Do not dispose of electrical equipment with household waste!
According to the European Guideline 2012/ 19/ EU for Waste Electrical and Electronic
Equipment and its implemen tation into nation-
al legislation, electrical equipment that is no
longer usable must be collected separately and disposed
of in an environmentally correct manner.
Electromagnetic Compatibility
(EMC)
The term electromagnetic compatibility is taken to mean
the capability of the product to function smoothly in an
environment where electromagnetic radiation and electrostatic discharges are present and without causing
electromagnet interference to other equipment.
NOTICE
standards. However, the possibility of them causing interference in other devices cannot be precluded. All EMC
related standards that have been tested are called out in
the tool's technical document.
These tools conform to all applicable EMC
FCC/ICES Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired operation.
Modifications not expressly approved by this company
could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
This product complies with the Canadian ICES-003 Class
A specifications. See Declaration label on tool.
999-995-220.10_REV. B
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
13
Page 15
EC DECLARATION
RIDGID®RP 350/RP 351 Press Tools
EC DECLARATION OF CONFORMITY
We declare that the machines listed above, when used in accordance
with the operator’s manual, meet the relevant requirements of the
Directives and Standards listed below.
2006/42/EC, 2014/30/EU, 2011/65/EU
IEC 62841-1, EN 61000-6-1, EN 61000-6-3
Complies with UL 62841-1
csa c22.2 No. 62841-1
E114309
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Signature:
Name: Harald Krondorfer
Qualification: V.P. Engineering
Date: 09/01/2020
Page 16
What is covered
®
tools are warranted to be free of defects in workmanship and material.
RIDGID
How long coverage lasts
This warranty lasts for the lifetime of the RIDGID®tool. Warranty coverage ends when the product
becomes unusable for reasons other than defects in workmanship or material.
How you can get service
To obtain the benefit of this warranty, deliver via prepaid transportation the complete product to
RIDGE TOOL COMPANY, Elyria, Ohio, or any RIDGID
®
AUTHORIZED INDEPENDENT SERVICE CEN-
TER. Pipe wrenches and other hand tools should be returned to the place of purchase.
What we will do to correct problems
Warranted products will be repaired or replaced, at RIDGE TOOL’S option, and returned at no charge;
or, if after three attempts to repair or replace during the warranty period the product is still defective, you can elect to receive a full refund of your purchase price.
What is not covered
Failures due to misuse, abuse or normal wear and tear are not covered by this warranty. RIDGE TOOL
shall not be responsible for any incidental or consequential damages.
How local law relates to the warranty
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. This warranty gives you specific rights, and you may also
have other rights, which vary, from state to state, province to province, or country to country.
No other express warranty applies
This FULL LIFETIME WARRANTY is the sole and exclusive warranty for RIDGID
®
products. No
employee, agent, dealer, or other person is authorized to alter this warranty or make any other warranty on behalf of the RIDGE TOOL COMPANY.
FULL LIFETIME
WARRANTY
Against Material Defects
& Workmanship
FULL LIFETIME WARRANTY (legal warranty extended to the product lifecyle,
see warranty conditions)
Printed 9/20
EC44835/11 REV. B
Find Quality Products Online at: [email protected]
The Emerson logo and RIDGID logo are registered trademarks of Emerson Electric Co. or RIDGID, Inc. in the U.S. and other countries.
All other trademarks belong to their respective holders.
www.GlobalTestSupply.com
© 2020 RIDGID, Inc.
999-995-220.
10
Loading...
