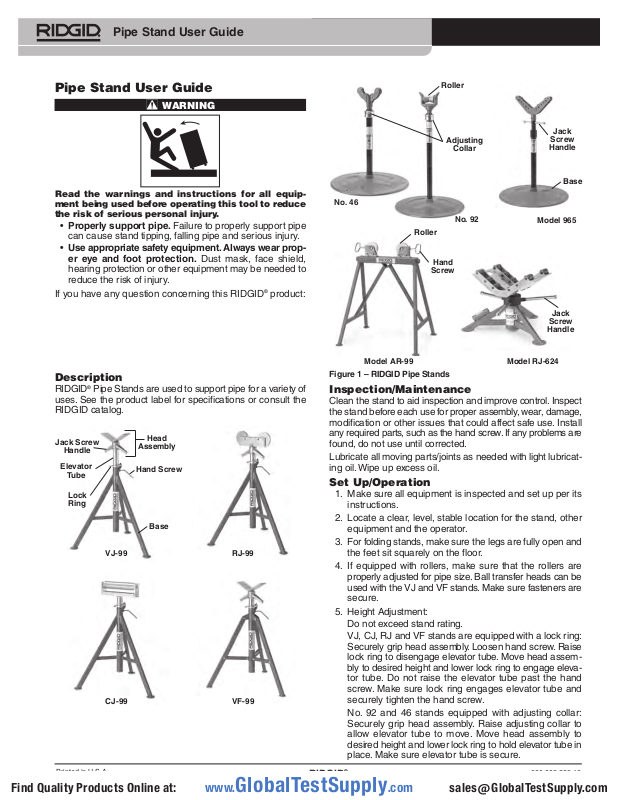

Page 1
Pipe Stand User Guide
Pipe Stand User Guide
Roller
WARNING
Jack
Screw
Handle
Base
Model 965
Read the warnings and instructions for all equipment being used before operating this tool to reduce
the risk of serious personal injury.
• Properly support pipe. Failure to properly support pipe
can cause stand tipping, falling pipe and serious injury.
Adjusting
Collar
No. 46
No. 92
Roller
• Use appropriate safety equipment. Always wear proper eye and foot protection. Dust mask, face shield,
hearing protection or other equipment may be needed to
Hand
Screw
reduce the risk of injury.
®
If you have any question concerning this RIDGID
Description
RIDGID®Pipe Stands are used to support pipe for a variety of
uses. See the product label for specifications or consult the
RIDGID catalog.
product:
Jack
Screw
Handle
Model AR-99
Figure 1 – RIDGID Pipe Stands
Model RJ-624
Inspection/Maintenance
Clean the stand to aid inspection and improve control. Inspect
the stand before each use for proper assembly, wear, damage,
modification or other issues that could affect safe use. Install
Jack Screw
Handle
Elevator
Tube
Head
Assembly
Hand Screw
any required parts, such as the hand screw. If any problems are
found, do not use until corrected.
Lubricate all moving parts/joints as needed with light lubricating oil. Wipe up excess oil.
Set Up/Operation
Lock
Ring
Base
VJ-99
CJ-99
Printed in U.S.A.
EC38979
Find Quality Products Online at: [email protected]
RJ-99
VF-99
www.GlobalTestSupply.com
1. Make sure all equipment is inspected and set up per its
instructions.
2. Locate a clear, level, stable location for the stand, other
equipment and the operator.
3. For folding stands, make sure the legs are fully open and
the feet sit squarely on the floor.
4. If equipped with rollers, make sure that the rollers are
properly adjusted for pipe size. Ball transfer heads can be
used with the VJ and VF stands. Make sure fasteners are
secure.
5. Height Adjustment:
Do not exceed stand rating.
VJ, CJ, RJ and VF stands are equipped with a lock ring:
Securely grip head assembly. Loosen hand screw. Raise
lock ring to disengage elevator tube. Move head assembly to desired height and lower lock ring to engage elevator tube. Do not raise the elevator tube past the hand
screw. Make sure lock ring engages elevator tube and
securely tighten the hand screw.
No. 92 and 46 stands equipped with adjusting collar:
Securely grip head assembly. Raise adjusting collar to
allow elevator tube to move. Move head assembly to
desired height and lower lock ring to hold elevator tube in
place. Make sure elevator tube is secure.
RIDGID
®
2/12
999-998-552.10
REV. A
Page 2
Pipe Stand User Guide
Models equipped with jack screw for fine adjustment: Hold
the head assembly stationary and turn the jack screw
handle to position as desired. Do not force the jack
screw handle, this can allow the screw to come loose
from the stand.
6. Place stands to properly support the pipe. Generally
pipe should be supported in at least two places. The
number and placement of stands depend on the specific circumstances, including pipe size, length and weight.
7. Carefully place the pipe on the stands. Make sure that the
pipe is properly centered on the stands to reduce the
risk of tipping. Do not drop the pipe onto the stands. Do not
exceed the stand ratings. Make sure pipe is stable and
secure. Always stay clear of supported loads.
