TGR11003 68-74 Nova TigerCage
Shoulder Harness Bar Kit
Shoulder Harness Bar
1 T084-1 Shoulder harness bar
2 T002 Clamp tab
1 T037P TigerClamp P (threaded)
1 T038P TigerClamp P
1 T037D TigerClamp D (threaded)
1 T038D TigerClamp D
1 Tube of Anti-Seize
Hardware:
8 3/8” x 1” USS SHCS Clamps
2 ½” x 1 ½” 12 point Gr. 8 bolt Bar to clamp tab
2 ½” Flange nut Bar to clamp tab
TGR10003 Installation Instructions
• Use Anti-Seize on all fasteners that are threaded into stainless clamps or brackets.
• Install all bars before final tightening.
• Always tighten the tab side of the clamp first.
• Torque all 3/8” fasteners to 45 ft-lbs and all 1/2” fasteners to 75 ft-lbs.
• Make sure the clamp is exactly where you want it before tightening as the clamp may scratch
the tubing.
1. In order to keep the “T” in the
casting facing up, and the bolts
facing the correct direction, there are
two different direction clamps. Be
very careful as to which clamp halves
you are bolting together.

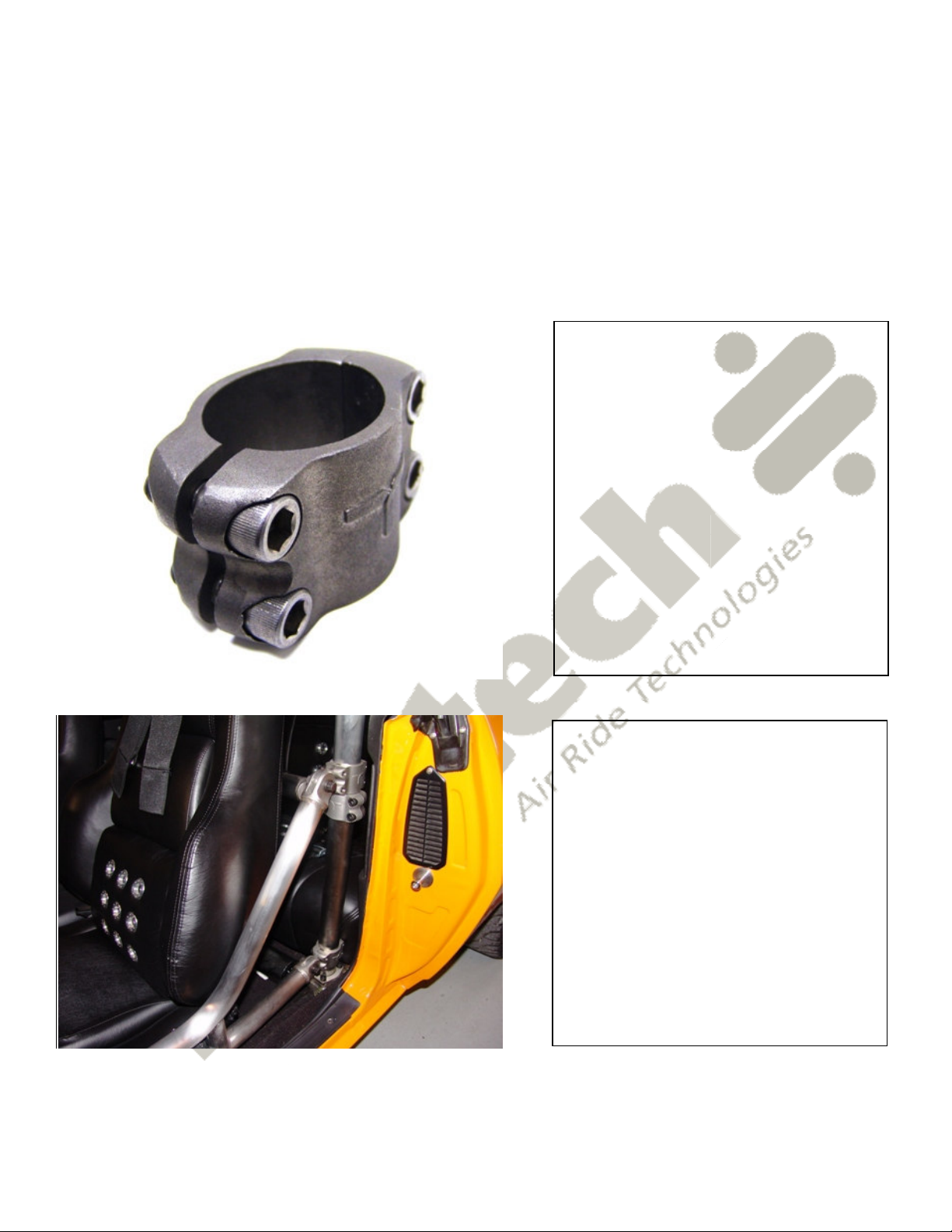

2. A correctly assembled clamp
should look like the one in the picture
shown to the left; there should be a
gap on one side for the tab to slide
into.
3. Assemble the clamps to the main
hoop. Use clamp D on the driver
side and clamp P on the passenger
side.
4. Use the ½” x 1 ½” 12 point bolt &
flange nut to fasten the harness bar
to the clamps.
