350 S. St. Charles St. Jasper, In. 47546
Ph. 812.482.2932 Fax 812.634.6632
www.ridetech.com
Part # 19012899
Mustang II Lower StrongArms
For Use w/ Shockwaves or CoilOvers
Components:
1 90000649 Driver side lower arm
1 90000650 Passenger side lower arm
4 90001942 Molded rubber bushings (Pressed into arms)
2 90000895 Threaded ball joints w/ boot, grease fitting, castle nut and cotter pin
2 90000202 Triangular gussets
2 90000277 5/8” ID x 7 ¾” spacers
4 90002062 Aluminum spacer for shock
2 Thick washers for ball joint (May not be needed on some cars)
Hardware:
2 99621008 5/8”-18 x 12” bolt Lower arm to frame
2 99622006 5/8”-18 Nylok jam nut Lower arm to frame
4 99563001 9/16” USS flat washer Lower arm to frame
2 99501024 ½”-13 x 3 ¼” Gr. 5 bolt Shock to lower arm
2 99502001 ½”-13 Gr. 5 Nylok nut Shock to lower arm
side of crossmember

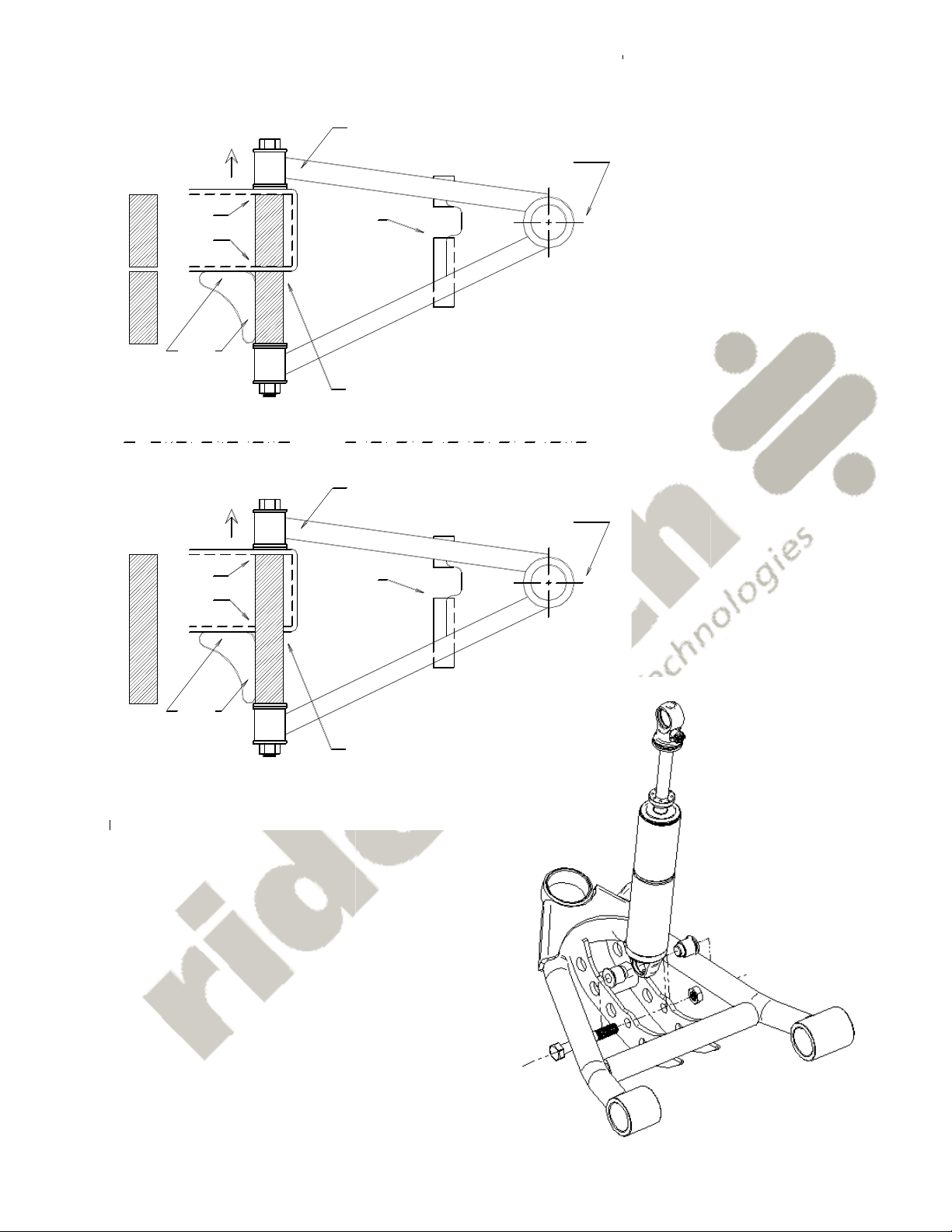

ARM 5000 INSTALLATION INSTRUCTIONS
EXAMPLE A
FRONT
WELD
WELD
WELD
WELD
WELD
WELD
Cut Spacer
EXAMPLE B
FRONT
WELD
WELD
WELD
WELD
SET FORE/AFT SPACING WITH WASHERS
SET FORE/AFT SPACING WITH WASHERS
ShockWave Lower
ShockWave Lower
Mount
Mount
WELD
WELD
OR
SET FORE/AFT SPACING WITH WASHERS
SET FORE/AFT SPACING WITH WASHERS
ShockWave Lower
ShockWave Lower
Mount
Mount
CENTER WITH
CENTER WITH
CROSSMEMBER
CROSSMEMBER
CENTER WITH
CENTER WITH
CROSSMEMBER
CROSSMEMBER
WELD
WELD
DRILL AND WELD
DRILL AND WELD
Spacer Placed Thru
1.375" hole drilled in rear

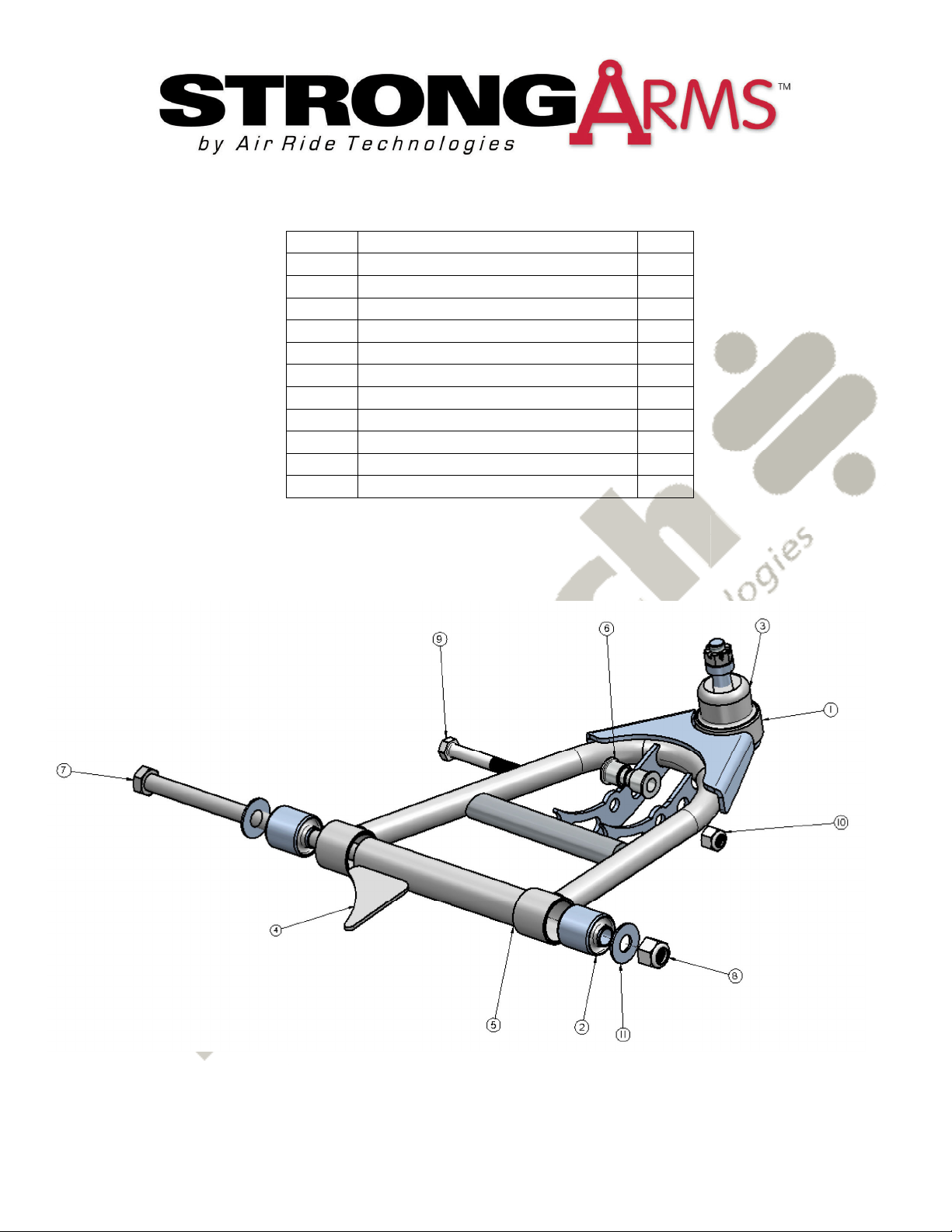

I
tem #
Description
Qty.
1. Driver side arm 1
2. Rubber bushing 2
3. Ball joint 1
4. Frame gusset 1
5. Frame spacer 1
6. Aluminum bearing spacer 2
7. 5/8”-18 x 12” bolt 1
8. 5/8”-18 Nylok jam nut 1
9. ½”-13 x 3 ¼” Gr. 5 bolt 1
10. ½”-13 Gr. 5 Nylok nut 1
11. 9/16” USS flat washer 2
