350 S. St. Charles St. Jasper, In. 47546
Ph. 812.482.2932 Fax 812.634.6632
www.ridetech.com
Part # 11380500
99-06 Silverado Front Black Series Shock Kit
For Use with CoolRide
Components:
2 20000011 Front shocks with hardware
1 90000378 Drivers side upper shock mount
1 90000379 Passenger side upper shock mount
2 90001617 .625” shock stud w/ hardware
Hardware:
2 99373007 3/8” x 1” self tapping bolt Shock mount to frame
8 99373003 3/8 USS flat washer Shock mount to frame
4 99372002 3/8” USS Nylok nut Shock mount to frame
4 99371003 3/8” x 1” USS bolt Shock mount to frame
350 S. St. Charles St. Jasper, In. 47546
Ph. 812.482.2932 Fax 812.634.6632
www.ridetech.com
Installation Instructions

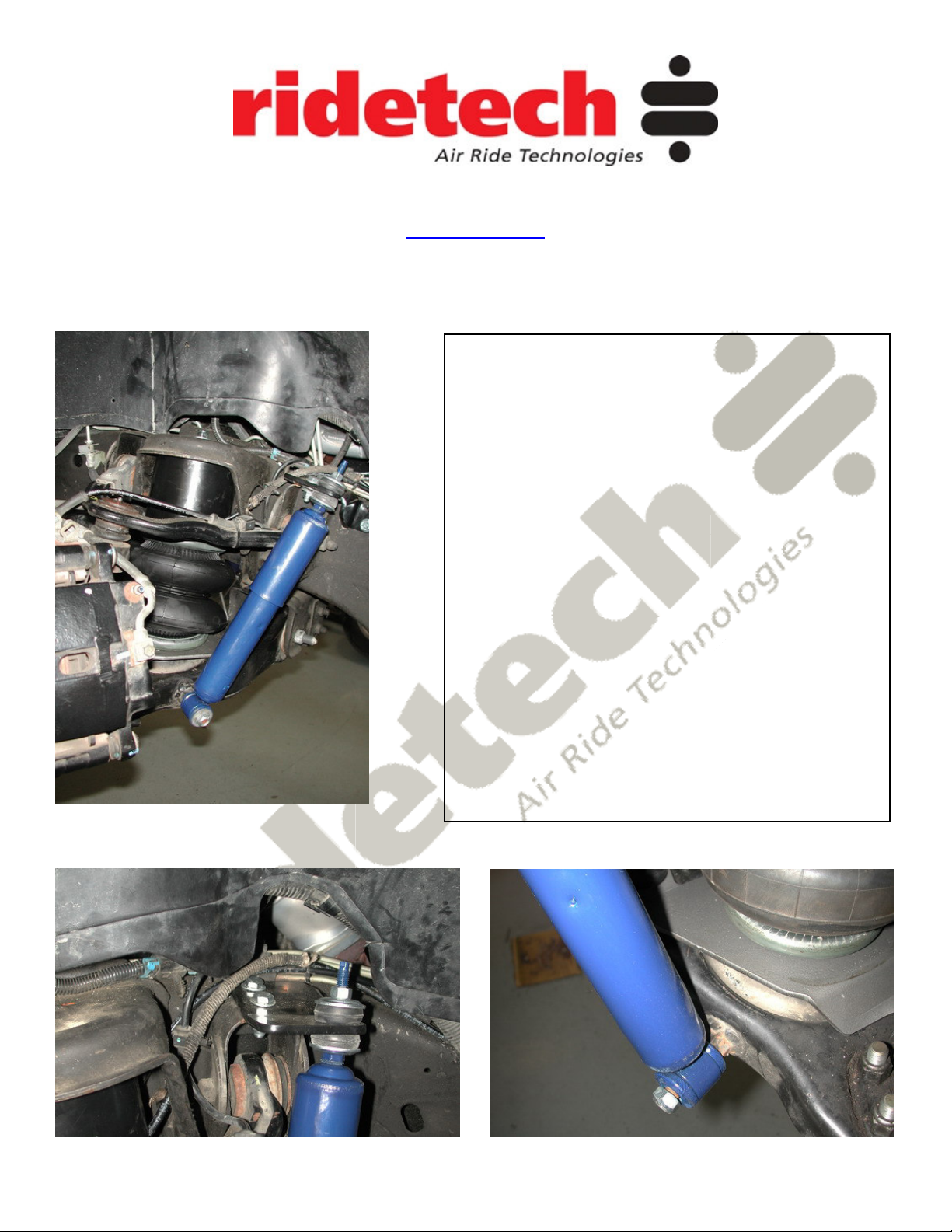

1. The upper shock mount will bolt the rear upper
control arm mounting bracket and to the side of
the frame rail. It will use one existing hole in the
control arm bracket. A 2nd 3/8” hole must be
drilled in the control arm bracket. A 5/16” hole
must be drilled into the frame rail for the 3/8” self
tapping bolts.
2. Fasten the shock to the bracket using new
bushings/hardware supplied.
3. The lower shock stud must be welded to the
rear leg of the lower control arm. To determine
it’s location; place a jack under the lower control
arm and fully compress the air spring. Then fully
compress the shock absorber. Swing the shock
up to the center of the control arm and mark the
center of the eye. Drill 5/8” hole in the arm and
then weld in the stud.
4. Fasten the shock to the stud w/ hardware
supplied.
