Ridetech 11322899 User Manual

350 S. St. Charles St. Jasper, In. 47546
Ph. 812.482.2932 Fax 812.634.6632
www.ridetech.com
Part # 11322899
78-88 GM “G” Body Lower StrongArms
For Use w/ Shockwaves or CoilOvers
1 90000657 Driver side lower arm
1 90000658 Passenger side lower arm
2 90000896 Ball joint
2 90000572 Inner bushing sleeve
2 90000573 Inner bushing sleeve
4 90001085 Poly bushing half
4 90001089 Poly bushing half
4 90002062 Aluminum spacer – Shock to lower arm
4 99250001 ¼”-28 grease fitting – Use Lithium grease on frame bushings
Hardware:
2 99501024 ½”-13 x 3 ¼” Gr.5 bolt Shockwave to lower arm
2 99502001 ½”-13 Nylok nut Shockwave to lower arm
Installation Instructions
1. After removing the factory lower control arm, clean the bushing mounting surfaces on the frame and lubricate with lithium grease.
2. Fasten the lower arm to the frame with the factory hardware.
3. Swing the lower StrongArm up to the shock and secure with the ½” x 3 ¼” bolt and Nylok nut, an aluminum spacer must be installed on each side of the bearing.
4. Slide the ball joint boot over the stud, then push the stud up through the spindle. Secure w/ the new castle nut and cotter pin supplied.
5. Grease the ball joints.
6. Lubricate control arm bushing with Lithium grease.

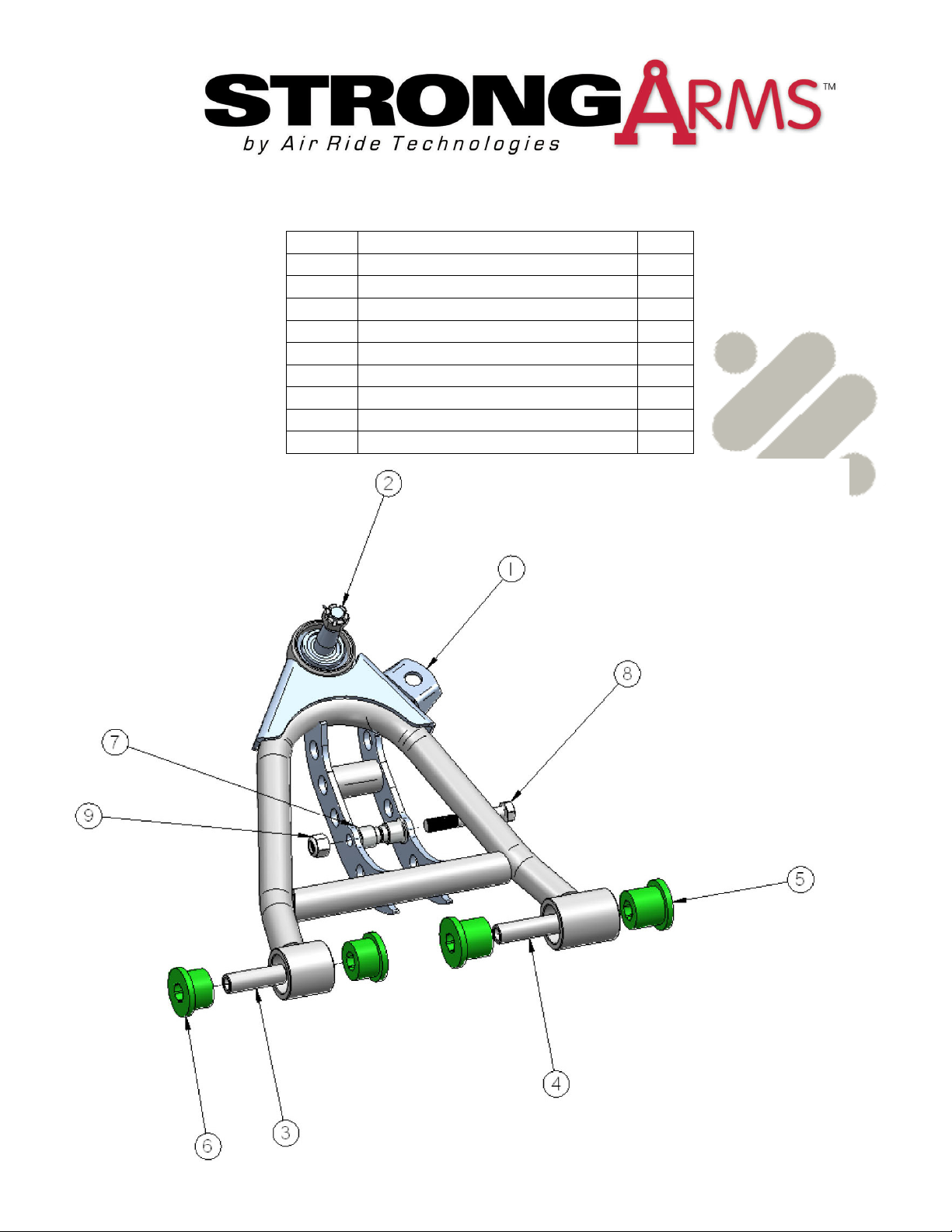

Item # Description Qty.
1. Driver side arm 1
2. Ball Joint 1
3. Inner bushing sleeve – narrow 1
4. Inner bushing sleeve – wide 1
5. Poly bushing half – wide 2
6. Poly bushing half – narrow 2
7. Aluminum bearing spacer 2
8. 1/2”-13 x 3 ¼” bolt 1
9. ½”-13 Nylok nut 1
