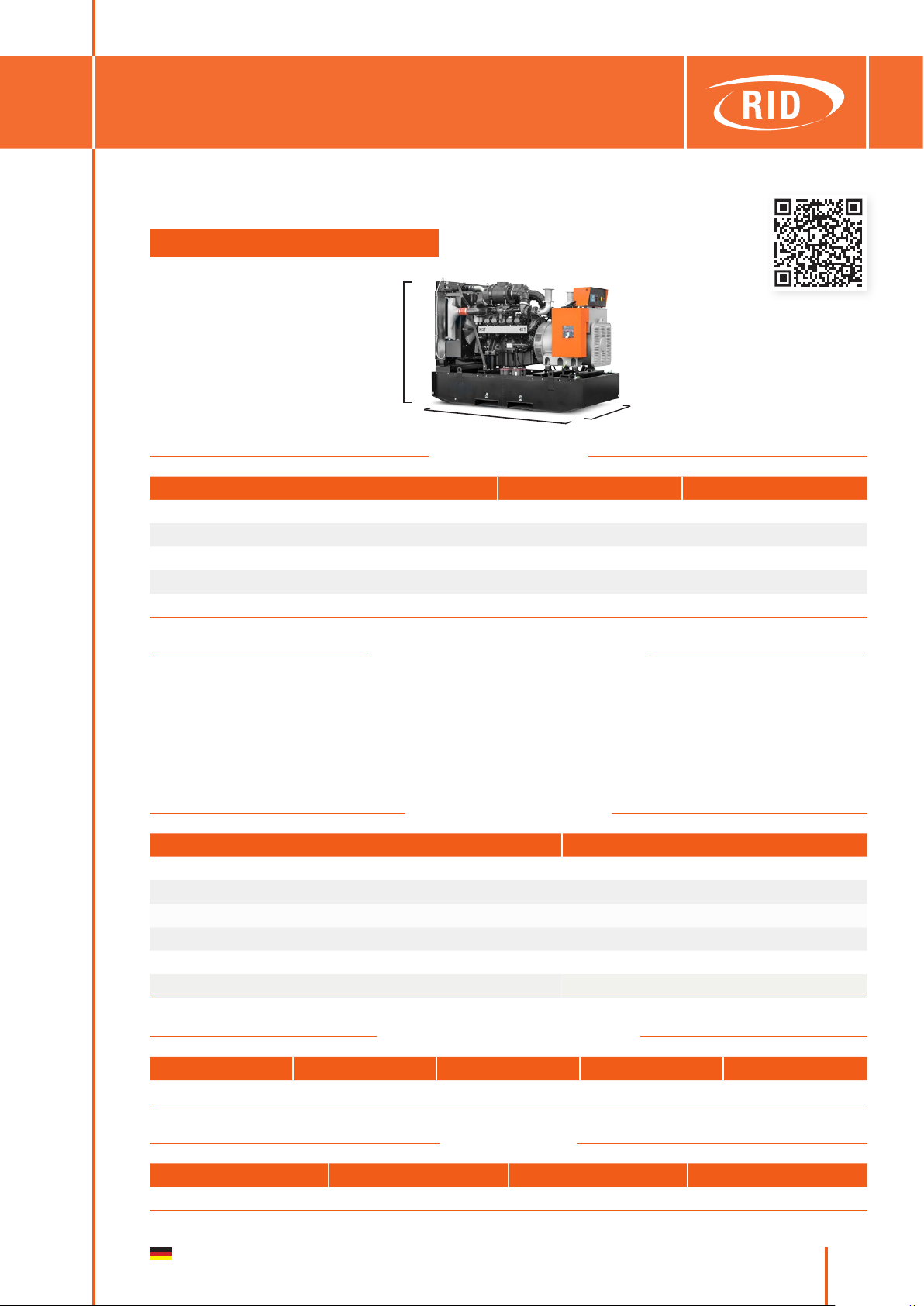

POWER GENERATING SYSTEMS WITH INDIVIDUAL SOLUTIONS
RID 1250 G-SERIES
DIESEL GENERATOR SET 1250 KVA
H
L
W
POWER RATING
OUTPUT RATINGS PRIME STANDBY
Power kVA | kW 125 0 | 1000 1375 | 110 0
Current A 1806 198 6
Voltage V 230 / 400 230 / 400
Frequency
Rated at power factor
Hz
cos φ
50
0,8
POWER RATING DESCRIPTION
Prime Rating
The ratings are applicable for supplying continuous
electrical power (at variable load) in lieu of comercially
purchased power. There is no limitation to the annual
hours of operation and this model can supply 10%
overload power for 1 hour in 12 hours.
Standby Rating
The ratings are applicable for supplying continuous
electrical power (at variable load) in the event of a
utility power failure. No overload is permitted on these
ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3).
PRODUCT OVERVIEW
RATINGS DATA
Order number Generator 713522
Alternator Model Linz PRO40M D/4 | Leroy - Somer LSA 50.2 M6
Engine Type MTU 18 V 2000 G26F
Generator type synchronous
Protection class IP 23
Control Panel RID 1000 A
DIMENSIONS AND WEIGHTS
LENGTH (L) WIDTH (W) HEIGHT (H) WEIGHT TANK CAPACITY
4500 mm 2100 mm 2400 mm 11000 kg up to 1000 l
NOISE LEVEL
1 METER 4 METER 7 METER 10 METE R
106 dB(A) 104 dB(A) 102 dB(A) 98 dB(A)
MADE IN GERMANY
www.rid-gensets.com | Phone: +49 (0) 7266 91347-0 R.I.D. GmbH
Technical d ata is a subje ct to chan ge. R.I.D. Gmb H assumes n o responsi bility fo r misprin t. Pictur es may dif fer from or iginal pro duct.
14.05.2020 issue
1
POWER GENERATING SYSTEMS WITH INDIVIDUAL SOLUTIONS
RID 1250 G-SERIES
DIESEL GENERATOR SET 1250 KVA
ENGINE TECHNICAL DATA
ENGINE TECHNICAL DATA PRIME STANDBY
Engine output kW 110 2 122 0
Engine type MTU 18 V 2000 G26F
Engine size 18-Cylinder V-Type
Injection system direct injection type
Rotational-speed range rpm 150 0
Bore | Stroke mm 135 | 156
Cooling system water + air
Speed regulation electrical
Compression ratio 17, 5
Displacement l 40,2
Engine dry weight kg 3320
FUEL SYSTEM
POWER STANDARD 25% 50% 75% 100%
Fuel consumption PRIME l/h 72,2 128,6 194, 8 261,1
EXHAUST SYSTEM
Silencer type Industrial
max. exhaust gas temperature °C 530
Exhaust gas flow m3/h 14100
Max. exhaust back pressure mbar 50
COOLING SYSTEM
Cooling system water + air
Cooling system capacity l 120
Fan power consumption kW 55
Cooling air flow m3/h 105000
Oil type RID 10W30
Oil filter type replaceable element
Total oil volume
Max. oil temperature °C 105
Air Filter Type replaceable Element
Combustion air volume m3/h 4140
max. intake depression mbar 40
LUBRICATION SYSTEM
l
AIR SYSTEM
114
MADE IN GERMANY
www.rid-gensets.com | Phone: +49 (0) 7266 91347-0 R.I.D. GmbH
Technical d ata is a subje ct to chan ge. R.I.D. Gmb H assumes n o responsi bility fo r misprin t. Pictur es may dif fer from or iginal pro duct.
14.05.2020 issue
2
POWER GENERATING SYSTEMS WITH INDIVIDUAL SOLUTIONS
RID 1250 G-SERIES
DIESEL GENERATOR SET 1250 KVA
ALTERNATOR DATA
Alternator Model Linz PRO40M D/4 Leroy - Somer LSA 50.2 M6
Generator type synchronous
Insulation Class H
Regulation Type AVR
Control System self excited
Execution brushless
Protection class IP 23
Stator Winding Double layer with auxiliary winding
Rotor Winding with damping cage
Winding Pitch 2/3
THD at full load <3% <5%
Overspeed rpm 2250
Air Flow Requirement m3/h 5640 6480
References EN60034 -1 ISO8528-3 EN55011
CERTIFICATIONS AND NORMS
EN6 003 4-1 ISO8528-3 EN55011 Outdoor Noise Equipment Directive 2000/14/EC
MADE IN GERMANY
www.rid-gensets.com | Phone: +49 (0) 7266 91347-0 R.I.D. GmbH
Technical d ata is a subje ct to chan ge. R.I.D. Gmb H assumes n o responsi bility fo r misprin t. Pictur es may dif fer from or iginal pro duct.
14.05.2020 issue
3
POWER GENERATING SYSTEMS WITH INDIVIDUAL SOLUTIONS
RID 1250 G-SERIES
DIESEL GENERATOR SET 1250 KVA
CONTROL PANEL
~ RID 1000 A ~
CONTROLLER FUNCTIONS
FUNCTIONS RANGES, VALUES
operating modes automatic, manual, test and remote available
mains control with limits voltage, frequency, phase sequence available
generator control with limits voltage, frequency, power, phase sequence. available
engine control with limits start, stop, shutdown by alarms available
power control current, kW, kVA, kVAr, power factor available
statistic data mains voltage, frequency and current available
statistic data generator voltage, frequency and current available
fuel level control in % and in liters available
fuel consumption control and history in l/h available
working hours per day in h available
service hours in h available
battery service in h available
events log with time and date 255 events available
alarm list programmation 77 alarms available
protocols GSM, Ethernet, Modbus, Canbus, RID protocol available
REMOTE MONITORING FUNCTIONS
mains voltage L1, L2, L3 in V, AC available
generator voltage L1, L2, L3 in V, AC available
genset battery voltage DC in V, DC available
mains power total in kW, available
generator power total in kW, available
mains frequency in Hz available
generator frequency in Hz available
current L1, L2, L3 in A, available
power L1, L2, L3 in kW, available
engine temperature in °C, optional
enviroment temperature in °C, optional
generator run hours in h, available
generator maintanace hours in h, available
fuel level in L, available
load on mains indication available
load on generator indication available
mains supply indication available
generator supply indication available
SPECIFIC ALARMS
GENSET DOOR OPEN FUEL TANK OPEN AIR FILTER CLOGGING FIRE ALARM
optional optional optional optional
MADE IN GERMANY
www.rid-gensets.com | Phone: +49 (0) 7266 91347-0 R.I.D. GmbH
Technical d ata is a subje ct to chan ge. R.I.D. Gmb H assumes n o responsi bility fo r misprin t. Pictur es may dif fer from or iginal pro duct.
14.05.2020 issue
4
